Transporto priemonė: 1628 S; VIN numerio dalis: 620110

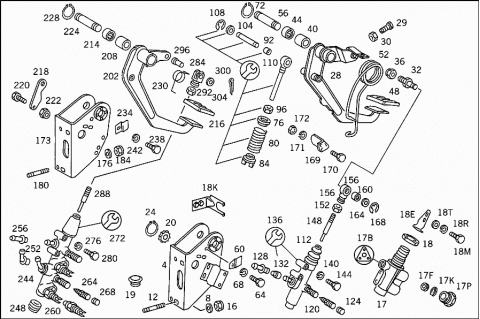

Grupė: 29 PEDAL ASSEMBLY
| # | Kodas | Pavadinimas |
|---|---|---|
| 004 | A 3812901219 | BEARING BRACKET |
| CLUTCH | ||
| 004 | A 3812901219 | BEARING BRACKET |
| CLUTCH | ||
| 008 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 008 | N 000125008443 | WASHER |
| BEARING BRACKET TO CAB | ||
| 012 | N 000939008083 | STUD BOLT |
| BEARING BRACKET TO CAB | ||
| M 8X20 | ||
| 012 | N 000939008136 | STUD BOLT |
| BEARING BRACKET TO CAB | ||
| M 8X30 | ||
| 016 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 016 | N 913004008001 | NUT |
| BEARING BRACKET TO CAB | ||
| 017 | A 0004343801 | VALVE |
| SPLITTER BOX GEARSHIFT 3/2-WAY VALVE | ||
| 017B | A 0014307460 | GASKET KIT |
| 3/2-WAY VALVE | ||
| 017F | A 0009940047 | SEAL RING |
| 3/2-WAY VALVE | ||
| TO M 16 | ||
| 017K | A 0009941248 | LOCK |
| 3/2-WAY VALVE | ||
| TO M 16 | ||
| 017P | A 0009970834 | SCREW |
| Repalced by: A 0009973734 | ||
| 017P | A 0009973734 | SCREW |
| 3/2-WAY VALVE | ||
| TO M 16 | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| FOR CONNECTING PARTS AND PNEUMATIC LINES SEE GROUP 26 | ||
| 018 | N 074305026202 | NUT |
| 3/2-WAY VALVE TO ANGLE | ||
| A 3609900840 | WASHER | |
| Repalced by: N 001440027000 | ||
| N 001440027000 | WASHER | |
| VALVE TO BRACKET | ||
| 018E | A 6202953540 | BRACKET |
| 3/2-WAY VALVE TO PEDAL BEARING BRACKET | ||
| 018E | A 6202954340 | BRACKET |
| 3/2-WAY VALVE TO PEDAL BEARING BRACKET | ||
| 018K | A 6202900133 | BRACKET |
| 3/2-WAY VALVE TO PEDAL BEARING BRACKET | ||
| 018M | N 000933006207 | SCREW |
| BRACKET TO PEDAL BEARING BRACKET | ||
| 018M | N 000933006130 | SCREW |
| BRACKET TO PEDAL BEARING BRACKET | ||
| 018R | N 912004006102 | LOCK WASHER |
| BRACKET TO PEDAL BEARING BRACKET | ||
| 018T | N 000125006421 | WASHER |
| BRACKET TO PEDAL BEARING BRACKET | ||
| 019 | A 6179970081 | GROMMET |
| FIRE WALL,LEFT,IN FRONT LEGROOM | ||
| 019 | A 6179970081 | GROMMET |
| FIRE WALL,LEFT,IN FRONT LEGROOM | ||
| 020 | A 3812910186 | STOP |
| PEDAL ASSEMBLY | ||
| 024 | N 000471016001 | LOCK RING |
| Repalced by: A 0079942041 | ||
| 024 | A 0079942041 | LOCK |
| STOP TO BEARING BRACKET | ||
| 028 | A 3812901016 | PEDAL |
| Repalced by: A 6202900216 | ||
| 028 | A 6202900416 | PEDAL |
| Repalced by: A 6202900216 | ||
| 028 | A 6202900216 | PEDAL |
| CLUTCH | ||
| 028 | A 6202900216 | PEDAL |
| CLUTCH | ||
| 028 | A 6202901816 | PEDAL |
| CLUTCH | ||
| 028 | A 6202902316 | PEDAL |
| CLUTCH | ||
| 029 | A 3529902101 | SCREW |
| 029 | A 3529902101 | SCREW |
| 030 | N 000439008211 | NUT |
| Repalced by: N 304035008001 | ||
| 030 | N 304035008001 | NUT |
| 030 | N 304035008001 | NUT |
| 032 | A 3812910274 | PIN |
| 032 | A 3812910274 | PIN |
| 032 | A 3812910874 | PIN |
| 036 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 036 | N 913004008001 | NUT |
| 040 | A 3812910053 | SPACER TUBE |
| 044 | A 0009815610 | NEEDLE BEARING |
| Repalced by: A 0119813410 | ||
| 044 | A 0089811110 | NEEDLE BEARING |
| Repalced by: A 0119813410 | ||
| 044 | A 0119813410 | NEEDLE BEARING |
| 048 | A 1102910182 | PAD |
| Repalced by: A 1072910182 | ||
| 048 | A 1072910182 | PAD |
| CLUTCH PEDAL | ||
| 052 | A 3819930710 | SPRING |
| CLUTCH PEDAL RESET | ||
| 056 | A 3812940707 | PIVOT PIN |
| PEDAL TO BEARING BRACKET | ||
| 060 | A 3812910073 | LOCK |
| PEDAL TO BEARING BRACKET | ||
| 064 | N 000933006102 | SCREW |
| LOCK TO BEARING BRACKET | ||
| 068 | N 912004006102 | LOCK WASHER |
| LOCK TO BEARING BRACKET | ||
| 072 | N 000471020001 | LOCK RING |
| PEDAL TO BEARING BRACKET | ||
| 076 | A 1112910491 | SPRING RETAINER |
| DEAD CENTER SPRING,TOP | ||
| 080 | A 1109930501 | SPRING |
| (DEAD CENTER SPRING) | ||
| 35 MM | ||
| 084 | A 3092910091 | SPRING RETAINER |
| BOTTOM | ||
| A 3812910233 | ROD | |
| OVER-CENTER ACTING SPRING | ||
| A 3812910333 | ROD | |
| OVER-CENTER ACTING SPRING | ||
| 092 | A 0059813810 | NEEDLE BEARING |
| ROD TO CLUTCH PEDAL | ||
| 092 | A 0059814410 | NEEDLE BEARING |
| ROD TO CLUTCH PEDAL | ||
| 092 | A 0089811210 | NEEDLE BEARING |
| ROD TO CLUTCH PEDAL | ||
| 092 | A 0139818210 | NEEDLE BEARING |
| ROD TO CLUTCH PEDAL | ||
| 096 | N 000439010216 | NUT |
| Repalced by: N 308675010000 | ||
| 096 | N 308675010000 | NUT |
| SPRING TO PUSH ROD | ||
| A 3812910674 | PIN | |
| PUSH ROD TO PEDAL | ||
| 104 | N 000433008406 | WASHER |
| PUSH ROD TO PEDAL | ||
| 108 | N 006799006003 | LOCK PLATE |
| PUSH ROD TO PEDAL | ||
| 110 | A 3802900293 | REPAIR KIT |
| DEAD CENTER SPRING | ||
| 112 | A 0002956806 | MASTER CYLINDER |
| Repalced by: A 0012952906 | ||
| 112 | A 0012952906 | MASTER CYLINDER |
| Repalced by: A 0012956006 | ||
| 112 | A 0012956006 | MASTER CYLINDER |
| CLUTCH;LESS DE-AERATION | ||
| A 0002953283 | BOOT | |
| 120 | A 0004310265 | VALVE |
| Repalced by: A 3075530107 | ||
| 120 | A 3075530107 | VALVE |
| BREATHER | ||
| TO 000 295 68 06 | ||
| 124 | A 0004210887 | PROTECTIVE CAP |
| Repalced by: A 0004217187 | ||
| 124 | A 0004217187 | PROTECTIVE CAP |
| Repalced by: A 0004210887 | ||
| 124 | A 0004210887 | PROTECTIVE CAP |
| CLUTCH MASTER CYLINDER | ||
| TO 000 295 68 06 | ||
| 128 | A 0002950836 | INTERMEDIATE PIECE |
| CLUTCH MASTER CYLINDER | ||
| 132 | A 0009971186 | PLUG |
| 136 | A 0005863529 | REPAIR KIT |

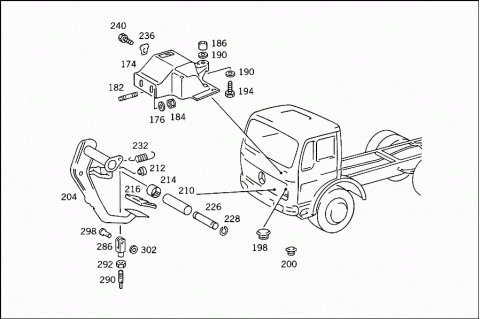

| Repalced by: A 0002903412 | ||
| 136 | A 0002903412 | REPAIR KIT |
| TO MASTER CYLINDER HAVING ALUMINUM PISTON | ||
| TO 000 295 68 06,001 295 29 06 | ||
| 136 | A 0002904667 | REPAIR KIT |
| TO MASTER CYLINDER HAVING SYNTHETIC PISTON | ||
| TO 001 295 60 06 | ||
| 140 | N 912004006102 | LOCK WASHER |
| MASTER CYLINDER TO BEARING BRACKET | ||
| 144 | N 000931006191 | SCREW |
| MASTER CYLINDER TO BEARING BRACKET | ||
| M 6X55 | ||
| 144 | N 000931006191 | SCREW |
| MASTER CYLINDER TO BEARING BRACKET | ||
| M 6X55 | ||
| 144 | N 000931006134 | SCREW |
| MASTER CYLINDER TO BEARING BRACKET | ||
| M 6X60 | ||
| 148 | A 3812950033 | ROD |
| CLUTCH MASTER CYLINDER | ||
| 152 | N 000439008211 | NUT |
| Repalced by: N 304035008001 | ||
| 152 | N 304035008001 | NUT |
| 156 | A 0009961045 | ARTICULATION PIECE |
| CLUTCH MASTER CYLINDER TO CLUTCH PEDAL | ||
| 156 | A 0009961145 | ARTICULATION PIECE |
| CLUTCH MASTER CYLINDER TO CLUTCH PEDAL | ||
| 160 | A 0059813810 | NEEDLE BEARING |
| CLUTCH MASTER CYLINDER TO CLUTCH PEDAL | ||
| 160 | A 0059814410 | NEEDLE BEARING |
| CLUTCH MASTER CYLINDER TO CLUTCH PEDAL | ||
| 160 | A 0089811210 | NEEDLE BEARING |
| CLUTCH MASTER CYLINDER TO CLUTCH PEDAL | ||
| 160 | A 0139818210 | NEEDLE BEARING |
| CLUTCH MASTER CYLINDER TO CLUTCH PEDAL | ||
| 164 | N 000433008406 | WASHER |
| PISTON ROD TO LEVER | ||
| 168 | N 006799006003 | LOCK PLATE |
| PISTON ROD TO LEVER | ||
| 169 | A 6202950228 | LEVER |
| 3/2-WAY VALVE OPERATION | ||
| 169 | A 6202950228 | LEVER |
| 3/2-WAY VALVE OPERATION | ||
| 169 | A 6202900334 | LEVER |
| 3/2-WAY VALVE OPERATION | ||
| 169 | A 6202900334 | LEVER |
| 3/2-WAY VALVE OPERATION | ||
| 170 | N 000933006121 | SCREW |
| Repalced by: N 304017006020 | ||
| 170 | N 304017006020 | SCREW |
| LVER TO CLUTCH PEDAL | ||
| 170 | N 304017006020 | SCREW |
| LVER TO CLUTCH PEDAL | ||
| 171 | N 912004006102 | LOCK WASHER |
| LVER TO CLUTCH PEDAL | ||
| 171 | N 912004006102 | LOCK WASHER |
| LVER TO CLUTCH PEDAL | ||
| 172 | N 000934006007 | NUT |
| LVER TO CLUTCH PEDAL | ||
| 172 | N 000934006007 | NUT |
| LVER TO CLUTCH PEDAL | ||
| 173 | A 3812901519 | BEARING BRACKET |
| BRAKE | ||
| 174 | A 3812941001 | BEARING BRACKET |
| BRAKE | ||
| 174 | A 3812941001 | BEARING BRACKET |
| BRAKE | ||
| 176 | N 007349008003 | WASHER |
| BEARING BRACKET TO CAB | ||
| 180 | N 000939008083 | STUD BOLT |
| BEARING BRACKET TO CAB | ||
| 182 | N 000939008136 | STUD BOLT |
| BEARING BRACKET TO CAB | ||
| 182 | N 000939008136 | STUD BOLT |
| BEARING BRACKET TO CAB | ||
| 184 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 184 | N 913004008001 | NUT |
| BEARING BRACKET TO CAB | ||
| 186 | A 3852920153 | SPACER TUBE |
| Repalced by: A 3524270153 | ||
| 186 | A 3524270153 | SPACER TUBE |
| Repalced by: A 3604270253 | ||
| 186 | A 3604270253 | SPACER TUBE |
| BEARING BRACKET TO STEERING COLUMN BRACKET | ||
| 186 | A 3604270253 | SPACER TUBE |
| BEARING BRACKET TO STEERING COLUMN BRACKET | ||
| 186 | A 3852920253 | SPACER TUBE |
| Repalced by: A 3604270353 | ||
| 186 | A 3604270353 | SPACER TUBE |
| Repalced by: A 3604270253 | ||
| 186 | A 3604270253 | SPACER TUBE |
| BEARING BRACKET TO WINDOW SILL GIRDER | ||
| 186 | A 3604270253 | SPACER TUBE |
| BEARING BRACKET TO WINDOW SILL GIRDER | ||
| 190 | A 3859901840 | WASHER |
| Repalced by: A 4039900040 | ||
| 190 | A 4039900040 | WASHER |
| BEARING BRACKET TO CAB | ||
| 190 | A 4039900040 | WASHER |
| BEARING BRACKET TO CAB | ||
| 194 | N 000931010272 | SCREW |
| BEARING BRACKET TO CAB | ||
| 194 | N 000931010272 | SCREW |
| BEARING BRACKET TO CAB | ||
| N 000137010201 | SPRING WASHER | |
| BEARING BRACKET TO CAB | ||
| N 000137010201 | SPRING WASHER | |
| BEARING BRACKET TO CAB | ||
| 198 | A 3819970486 | PLUG |
| TO PLUG BRAKE OPENING | ||
| 200 | A 3819970386 | PLUG |
| Repalced by: A 0009972020 | ||
| 200 | A 0009972020 | EXPANSION PLUG |
| Repalced by: A 0009973220 | ||
| 200 | A 0009973220 | EXPANSION PLUG |
| TO PLUG BRAKE OPENING | ||
| 202 | A 3812900318 | PEDAL |
| BRAKE | ||
| 204 | A 6202900818 | PEDAL |
| BRAKE | ||
| 204 | A 6202900818 | PEDAL |
| BRAKE | ||
| 204 | A 3852900518 | PEDAL |
| BRAKE | ||
| 204 | A 3852900518 | PEDAL |
| BRAKE | ||
| 208 | A 3812910053 | SPACER TUBE |
| 210 | A 3852920053 | SPACER TUBE |
| 210 | A 3852920053 | SPACER TUBE |
| 212 | A 1152910186 | STOP |
| 212 | A 1152910186 | STOP |
| 214 | A 0009815610 | NEEDLE BEARING |
| Repalced by: A 0119813410 | ||
| 214 | A 0089811110 | NEEDLE BEARING |
| Repalced by: A 0119813410 | ||
| 214 | A 0119813410 | NEEDLE BEARING |
| 216 | A 1102910182 | PAD |
| Repalced by: A 1072910182 | ||
| 216 | A 1072910182 | PAD |
| BRAKE | ||
| 218 | A 3815450144 | LEVER |
| STOP LIGHT SWITCH | ||
| 220 | N 000931008244 | SCREW |
| LEVER TO BRAKE PEDAL | ||
| 222 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 222 | N 913004008001 | NUT |
| LEVER TO BRAKE PEDAL | ||
| 224 | A 3812940707 | PIVOT PIN |
| PEDAL TO BEARING BRACKET | ||
| 226 | A 3852940007 | PIVOT PIN |
| PEDAL TO BEARING BRACKET | ||
| 226 | A 3852940007 | PIVOT PIN |
| PEDAL TO BEARING BRACKET | ||
| 228 | N 000471020001 | LOCK RING |
| PEDAL TO BEARING BRACKET | ||
| 230 | A 3819930210 | SPRING |
| BRAKE PEDAL RELEASE SPRING | ||
| 232 | A 3879935010 | SPRING |
| BRAKE PEDAL RELEASE SPRING | ||
| 232 | A 3879935010 | SPRING |
| BRAKE PEDAL RELEASE SPRING | ||
| 234 | A 3812910073 | LOCK |
| PEDAL TO BEARING BRACKET | ||
| 236 | A 3852920073 | LOCK |
| Repalced by: A 6732920073 | ||
| 236 | A 6732920073 | LOCK |
| PEDAL TO BEARING BRACKET | ||
| 236 | A 6732920073 | LOCK |
| PEDAL TO BEARING BRACKET | ||
| 238 | N 000933006102 | SCREW |
| LOCK TO BEARING BRACKET | ||
| 240 | N 000933006103 | SCREW |
| Repalced by: N 304017006018 | ||
| 240 | N 304017006018 | SCREW |
| LOCK TO BEARING BRACKET | ||
| 240 | N 304017006018 | SCREW |
| LOCK TO BEARING BRACKET | ||
| 242 | N 912004006102 | LOCK WASHER |
| LOCK TO BEARING BRACKET | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| FOR BRAKE VALVE,SEE GROUP 42 | ||
| 244 | A 0002958706 | MASTER CYLINDER |
| BRAKE | ||
| 248 | A 0002950050 | BUSHING |
| Repalced by: A 0004310950 | ||
| 248 | A 0004310950 | BUSHING |
| 252 | A 0002950536 | INTERMEDIATE PIECE |
| DEPARTURE ANGLE DEGREE: | ||
| 45 | ||
| 256 | A 0002950636 | INTERMEDIATE PIECE |
| DEPARTURE ANGLE DEGREE: | ||
| 90 | ||
| 260 | A 0005455509 | SWITCH |
| BRAKE FLUID TELL-TALE LAMP | ||
| 264 | A 0004310265 | VALVE |
| Repalced by: A 3075530107 | ||
| 264 | A 3075530107 | VALVE |
| BREATHER | ||
| 268 | A 0004210887 | PROTECTIVE CAP |
| Repalced by: A 0004217187 | ||
| 268 | A 0004217187 | PROTECTIVE CAP |
| Repalced by: A 0004210887 | ||
| 268 | A 0004210887 | PROTECTIVE CAP |
| 272 | A 0005864729 | REPAIR KIT |
| BRAKE PEDAL MASTER CYLINDER | ||
| 276 | N 912004006102 | LOCK WASHER |
| MASTER CYLINDER TO BEARING BRACKET | ||
| 280 | N 000933006127 | SCREW |
| MASTER CYLINDER TO BEARING BRACKET | ||
| 284 | A 0009961601 | YOKE |
| PISTON ROD AND PUSH ROD | ||
| 286 | A 6209960001 | YOKE |
| PISTON ROD AND PUSH ROD | ||
| 286 | A 6209960001 | YOKE |
| PISTON ROD AND PUSH ROD | ||
| 288 | A 3812950133 | ROD |
| PISTON ROD AND PUSH ROD | ||
| 290 | A 3852950133 | ROD |
| Repalced by: A 9702900039 | ||
| 290 | A 9702900039 | ROD |
| PISTON ROD AND PUSH ROD | ||
| 290 | A 9702900039 | ROD |
| PISTON ROD AND PUSH ROD | ||
| 292 | N 000439008211 | NUT |
| Repalced by: N 304035008001 | ||
| 292 | N 304035008001 | NUT |
| PISTON ROD AND PUSH ROD | ||
| 296 | A 3529910007 | PIN |
| PISTON ROD TO LEVER | ||
| 298 | A 3852920174 | PIN |
| PISTON ROD TO BRAKE PEDAL | ||
| 298 | A 3852920174 | PIN |
| PISTON ROD TO BRAKE PEDAL | ||
| 300 | N 000433010505 | WASHER |
| Repalced by: N 000433010510 | ||
| 300 | N 000433010510 | WASHER |
| PISTON ROD TO LEVER | ||
| 302 | N 000433008406 | WASHER |
| PISTON ROD TO BRAKE PEDAL | ||
| 302 | N 000433008406 | WASHER |
| PISTON ROD TO BRAKE PEDAL | ||
| 304 | N 000094003219 | COTTER PIN |
| PISTON ROD TO LEVER | ||
| 304 | N 000094002059 | COTTER PIN |
| PISTON ROD TO BRAKE PEDAL | ||
| 304 | N 000094002059 | COTTER PIN |
| PISTON ROD TO BRAKE PEDAL | ||

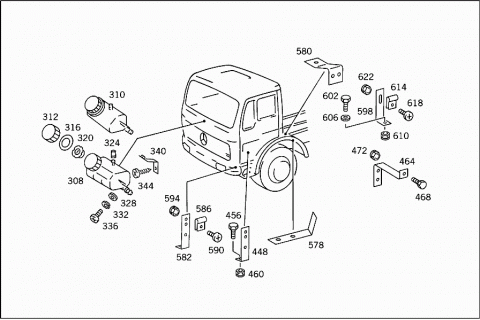

| 308 | A 0002951615 | RESERVOIR |
| RESERVOIR | ||
| 308 | A 0002951915 | RESERVOIR |
| RESERVOIR | ||
| 310 | A 0002951715 | RESERVOIR |
| RESERVOIR | ||
| 310 | A 0002951715 | RESERVOIR |
| RESERVOIR | ||
| 310 | A 0002952315 | RESERVOIR |
| RESERVOIR | ||
| 310 | A 0002952315 | RESERVOIR |
| RESERVOIR | ||
| 310 | A 0002952715 | RESERVOIR |
| RESERVOIR | ||
| 312 | A 0002950116 | LOCKING CAP |
| 316 | A 0002950260 | SEAL RING |
| Repalced by: A 0009972940 | ||
| 316 | A 0009972940 | SEAL RING |
| 320 | A 0002950123 | STRAINER |
| Repalced by: A 0004314334 | ||
| 320 | A 0004314334 | STRAINER |
| 324 | A 0009885435 | CAP |
| RESERVOIR DE-AERATION | ||
| 328 | N 009021006205 | WASHER |
| Repalced by: N 009021006208 | ||
| 328 | N 009021006208 | WASHER |
| EXPANSION TANK TO BRACKET | ||
| 332 | N 912004006102 | LOCK WASHER |
| EXPANSION TANK TO BRACKET | ||
| 336 | N 000000001147 | SCREW |
| EXPANSION TANK TO BRACKET | ||
| M 6X20 | ||
| 340 | A 3872900433 | BRACKET |
| RESERVOIR | ||
| A 6202900233 | BRACKET | |
| RESERVOIR | ||
| 344 | N 007981005306 | SHEET METAL SCREW |
| BRACKET TO CAB | ||

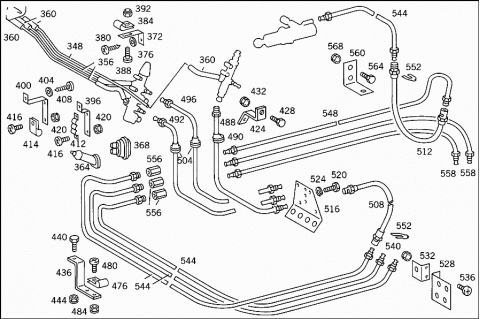

| 348 | A 3872950313 | PIPE |
| FROM CLUTCH MASTER CYLINDER TO RESERVOIR | ||
| 700 MM | ||
| 348 | A 3872950313 | PIPE |
| FROM BRAKE MASTER CYLINDER TO RESERVOIR | ||
| 700 MM | ||
| 348 | A 3872950813 | PIPE |
| FROM CLUTCH MASTER CYLINDER TO RESERVOIR | ||
| 320 MM | ||
| 348 | A 3872950813 | PIPE |
| FROM CLUTCH MASTER CYLINDER TO RESERVOIR | ||
| 320 MM | ||
| 356 | A 3872950413 | PIPE |
| FROM BRAKE MASTER CYLINDER TO RESERVOIR | ||
| 550 MM | ||
| 356 | A 3872950413 | PIPE |
| FROM BRAKE MASTER CYLINDER TO RESERVOIR | ||
| 550 MM | ||
| 360 | A 0009978952 | HOSE |
| BETWEEN MASTER CYLINDER AND LINES | ||
| 364 | A 3819970781 | GROMMET |
| CLUTCH LINE THRU CAB WINDOW SILL | ||
| 364 | A 3819970981 | GROMMET |
| CLUTCH LINE THRU CAB WINDOW SILL | ||
| A 6209970281 | GROMMET | |
| CLUTCH LINE THRU CAB WINDOW SILL | ||
| 368 | A 3819970581 | GROMMET |
| BRAKE LINE THRU CAB WINDOW SILL | ||
| 372 | A 3812950440 | BRACKET |
| HYDRAULIC LINE | ||
| 372 | A 3812950440 | BRACKET |
| HYDRAULIC LINE | ||
| 376 | N 000125006421 | WASHER |
| BRACKET TO CAB | ||
| 376 | N 000125006421 | WASHER |
| BRACKET TO CAB | ||
| 380 | N 007981005306 | SHEET METAL SCREW |
| BRACKET TO CAB | ||
| 380 | N 007981005306 | SHEET METAL SCREW |
| BRACKET TO CAB | ||
| 384 | A 3609950301 | CLAMP |
| HYDRAULIC LINE TO BRACKET | ||
| 388 | N 000000001147 | SCREW |
| HYDRAULIC LINE TO BRACKET | ||
| M 6X20 | ||
| 392 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 392 | N 913004006001 | NUT |
| HYDRAULIC LINE TO BRACKET | ||
| 396 | A 3872950340 | BRACKET |
| HYDRAULIC LINE TO CAB | ||
| 396 | A 3872950340 | BRACKET |
| HYDRAULIC LINE TO CAB | ||
| 396 | A 3872950340 | BRACKET |
| HYDRAULIC LINE TO CAB | ||
| 400 | A 3872950640 | BRACKET |
| HYDRAULIC LINE TO CAB | ||
| 404 | N 000125006421 | WASHER |
| BRACKET TO CAB | ||
| 408 | N 007981005306 | SHEET METAL SCREW |
| BRACKET TO CAB | ||
| 412 | A 3879950007 | CLAMP |
| HYDRAULIC LINE TO BRACKET | ||
| 414 | A 3609950301 | CLAMP |
| HYDRAULIC LINE TO BRACKET | ||
| 416 | N 000000001147 | SCREW |
| HYDRAULIC LINE TO BRACKET | ||
| M 6X20 | ||
| 420 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 420 | N 913004006001 | NUT |
| HYDRAULIC LINE TO BRACKET | ||
| 424 | A 3872940740 | BRACKET |
| BRAKE AND CLUTCH LINES | ||
| 428 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 428 | N 304017008034 | SCREW |
| BRACKET TO HYDRAULIC CYLINDER BEARING BRACKET | ||
| 432 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 432 | N 913004008001 | NUT |
| BRACKET TO HYDRAULIC CYLINDER BEARING BRACKET | ||
| 436 | A 3872940840 | BRACKET |
| BRAKE AND CLUTCH LINES | ||
| 440 | N 000961012151 | SCREW |
| BRACKET TO FRAME | ||
| 444 | N 910113012002 | NUT |
| BRACKET TO FRAME | ||
| 448 | A 3872950240 | BRACKET |
| WITH CONTROL LINE BRACKET TO FRONT CROSS MEMBER | ||
| 456 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 456 | N 304017008034 | SCREW |
| BRACKET TO FRAME | ||
| 460 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 460 | N 913004008001 | NUT |
| BRACKET TO FRAME | ||
| 464 | A 3214760236 | BRACKET |
| FROM HYDRAULIC LINES TO BRAKE BOOSTER | ||
| 468 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 468 | N 304017008034 | SCREW |
| BRACKET TO FRAME | ||
| 472 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 472 | N 913004008001 | NUT |
| BRACKET TO FRAME | ||
| 476 | A 3609950201 | CLAMP |
| Repalced by: A 3604300143 | ||
| 476 | A 3604300143 | CLAMP |
| Repalced by: N 916016008200 | ||
| 476 | N 916016008200 | CLAMP |
| HYDRAULIC LINE TO BRACKET | ||
| 480 | N 000000001147 | SCREW |
| HYDRAULIC LINE TO BRACKET | ||
| M 6X20 | ||
| 484 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 484 | N 913004006001 | NUT |
| HYDRAULIC LINE TO BRACKET | ||
| 488 | A 6202902513 | LINE |
| Repalced by: A 3812901714 | ||
| 488 | A 3812900414 | LINE |
| Repalced by: A 3812901714 | ||
| 488 | A 3812901714 | LINE |
| Repalced by: A 3812903214 | ||
| 488 | A 3812903214 | LINE |
| FROM CLUTCH MASTER CYLINDER TO HYDRAULIC HOSE | ||
| 570 MM | ||
| 490 | A 3819971781 | GROMMET |
| Repalced by: A 3149970581 | ||
| 490 | A 3149970581 | GROMMET |
| 492 | A 3812902113 | LINE |
| Repalced by: A 3812901614 | ||
| 492 | A 3812901614 | LINE |
| FROM BRAKE MASTER CYLINDER TO HYDRAULIC HOSE | ||
| 550 MM | ||
| 496 | A 3812900813 | LINE |
| Repalced by: A 3812901914 | ||
| 496 | A 3812901914 | LINE |
| FROM BRAKE MASTER CYLINDER TO HYDRAULIC HOSE | ||
| 800 MM | ||
| A 6202902413 | LINE | |
| Repalced by: A 3812901814 | ||
| 496 | A 3812900913 | LINE |
| Repalced by: A 3812901814 | ||
| 496 | A 3812901814 | LINE |
| FROM CLUTCH MASTER CYLINDER TO HYDRAULIC HOSE | ||
| 700 MM | ||
| 496 | A 3812901814 | LINE |
| FROM CLUTCH MASTER CYLINDER TO HYDRAULIC HOSE | ||
| 700 MM | ||
| 496 | A 3812901814 | LINE |
| FROM BRAKE MASTER CYLINDER TO HYDRAULIC HOSE | ||
| 700 MM | ||
| 504 | A 3819970881 | GROMMET |
| 508 | A 0002951435 | HOSE |
| FROM BRACKET UNDER CAB FLOOR TO OIL TANK BRACKET | ||
| 555 MM | ||
| 508 | A 0002951435 | HOSE |
| BRAKE LINE,CAB FULCRUM POINT | ||
| 555 MM | ||
| 508 | A 3832950035 | HOSE |
| Repalced by: A 3982950035 | ||
| 508 | A 3982950035 | HOSE |
| FROM BRACKET UNDER CAB FLOOR TO OIL TANK BRACKET | ||
| 512 | A 0002951735 | HOSE |
| CLUTCH;FROM BRACKET AT FRAME TO BRACKET AT TRANSMISSION | ||
| 215 MM | ||
| 512 | A 0002951835 | HOSE |
| CLUTCH;FROM BRACKET AT FRAME TO BRACKET AT TRANSMISSION | ||
| 350 MM | ||
| 512 | A 0002951835 | HOSE |
| CLUTCH;FROM BRACKET AT FRAME TO BRACKET AT TRANSMISSION | ||
| 350 MM | ||
| 512 | A 0002952435 | HOSE |
| CLUTCH;FROM BRACKET AT FRAME TO BRACKET AT ENGINE | ||
| 300 MM | ||
| 516 | A 3852952140 | BRACKET |
| HYDRAULIC LINE | ||
| 516 | A 6202952340 | BRACKET |
| Repalced by: A 6202953040 | ||
| 516 | A 6202953040 | BRACKET |
| HYDRAULIC LINE TO CAB FLOOR | ||
| 516 | A 6202953040 | BRACKET |
| HYDRAULIC LINE TO CAB FLOOR | ||
| 516 | A 6202953040 | BRACKET |
| HYDRAULIC LINE TO CAB FLOOR | ||
| 520 | N 000933006102 | SCREW |
| BRACKET TO CAB | ||
| 524 | N 912004006102 | LOCK WASHER |
| BRACKET TO CAB | ||
| 528 | A 3872940140 | BRACKET |
| CLUTCH AND BRAKE HOSES TO POWERSTEERING OIL-TANK BRACKET | ||
| A 6162950240 | BRACKET | |
| AT OIL TANK BRACKET | ||
| A 6162950240 | BRACKET | |
| AT OIL TANK BRACKET | ||
| A 6202951640 | BRACKET | |
| AT OIL TANK BRACKET | ||
| A 6202951740 | BRACKET | |
| AT OIL TANK BRACKET | ||
| 532 | A 3872940240 | BRACKET |
| BRAKE HOSE TO POWER-STEERING OIL-TANK BRACKET | ||
| 536 | N 007985006193 | SCREW |
| Repalced by: N 000000001146 | ||
| 536 | N 000000001146 | SCREW |
| BRACKET TO OIL TANK | ||
| M 6X16 | ||
| 540 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 540 | N 913004006001 | NUT |
| BRACKET TO OIL TANK | ||
| A 6202902713 | LINE | |
| Repalced by: A 3812902014 | ||
| 544 | A 3812902613 | LINE |
| Repalced by: A 3812902713 | ||
| 544 | A 3812902713 | LINE |
| Repalced by: A 3812902014 | ||
| 544 | A 3812902014 | LINE |
| FROM BRAKE HOSE TO CONNECTOR | ||
| 1100 MM | ||
| 544 | A 3812902014 | LINE |
| FROM CLUTCH HOSE TO CONNECTOR | ||
| 1100 MM | ||
| 544 | A 3812902014 | LINE |
| FROM HYDRAULIC HOSE TO CLUTCH SLAVE CYLINDER | ||
| 1100 MM | ||
| 544 | A 3812901614 | LINE |
| FROM ENGINE MOUNTING BRACKET TO CLUTCH SLAVE CYLINDER | ||
| 550 MM | ||
| 548 | A 3812902513 | LINE |
| Repalced by: A 3812902214 | ||
| 548 | A 3812902214 | LINE |
| FROM CLUTCH HOSE TO CONNECTOR | ||
| 2000 MM | ||
| 548 | A 3812902214 | LINE |
| FROM BRAKE HOSE TO CONNECTOR | ||
| 2000 MM | ||
| 548 | A 3812902214 | LINE |
| FROM CONNECTOR TO CLUTCH HYDRAULIC HODE BRACKET | ||
| 2000 MM | ||
| 548 | A 3812902214 | LINE |
| FROM BRACKET TO BRACKET | ||
| 2000 MM | ||
| A 6202903113 | LINE | |
| Repalced by: A 3812902314 | ||
| A 6202903213 | LINE | |
| Repalced by: A 3812902314 | ||
| A 6202902613 | LINE | |
| Repalced by: A 3812902314 | ||
| A 3812902314 | LINE | |
| FROM BRACKET TO BRACKET | ||
| 2500 MM | ||
| A 3812902314 | LINE | |
| FROM BRACKET TO BRACKET | ||
| 2500 MM | ||
| A 3604280243 | ANGLE | |
| AT LEFT SIDE MEMBER | ||
| A 6162952540 | BRACKET | |
| AT LEFT SIDE MEMBER | ||
| N 000933008152 | SCREW | |
| Repalced by: N 304017008027 | ||
| N 304017008027 | SCREW | |
| ANGLE TO SIDE MEMBER | ||
| N 304017008027 | SCREW | |
| BRACKET TO SIDE MEMBER | ||
| N 007349008003 | WASHER | |
| ANGLE TO SIDE MEMBER | ||
| N 913004008004 | NUT | |
| Repalced by: N 913004008001 | ||
| N 913004008001 | NUT | |
| ANGLE TO SIDE MEMBER | ||
| N 913004008001 | NUT | |
| BRACKET TO SIDE MEMBER | ||
| A 3609950201 | CLAMP | |
| Repalced by: A 3604300143 | ||
| A 3604300143 | CLAMP | |
| Repalced by: N 916016008200 | ||
| N 916016008200 | CLAMP | |
| HYDRAULIC LINE TO SIDE MEMBER | ||
| N 007985006193 | SCREW | |
| Repalced by: N 000000001146 | ||
| N 000000001146 | SCREW | |
| HYDRAULIC LINE TO SIDE MEMBER | ||
| M 6X16 | ||
| N 913004006002 | NUT | |
| Repalced by: N 913004006001 | ||
| N 913004006001 | NUT | |
| HYDRAULIC LINE TO SIDE MEMBER | ||
| 552 | A 0004280473 | BRACKET |
| Repalced by: A 6525040038 | ||
| 552 | A 6525040038 | MOUNTING PLATE |
| HYDRAULIC HOSE TO BRACKET | ||
| 556 | A 0002950736 | INTERMEDIATE PIECE |
| BRAKE AND CLUTCH LINES | ||
| 558 | A 3812909813 | LINE |
| Repalced by: A 3812902414 | ||
| 558 | A 3812902414 | LINE |
| FROM CONNECTOR TO BRAKE SLAVE CYLINDER | ||
| 3000 MM | ||
| 558 | A 6202900813 | LINE |
| Repalced by: A 3812902614 | ||
| 558 | A 3812909413 | LINE |
| Repalced by: A 3812902614 | ||
| 558 | A 3812902614 | LINE |
| FROM CONNECTOR TO BRAKE SLAVE CYLINDER | ||
| 4000 MM | ||
| 560 | A 3872940440 | BRACKET |
| FRAME-TO-ENGINE CLUTCH-HOSE TO FRAME | ||
| 564 | N 000933010128 | SCREW |
| BRACKET TO FRAME | ||
| 568 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 568 | N 910113010000 | NUT |
| BRACKET TO FRAME | ||
| 578 | A 3872940340 | BRACKET |
| HOSE TO ENGINE SUPPORT | ||
| 580 | A 6202950440 | BRACKET |
| CLUTCH HOSE TO FENDER BRACKET | ||
| 580 | A 6202950440 | BRACKET |
| CLUTCH HOSE TO FENDER BRACKET | ||
| A 6202952540 | BRACKET | |
| AT ENGINE MOUNTING CONSOLE | ||
| A 6202952540 | BRACKET | |
| AT ENGINE MOUNTING CONSOLE | ||
| A 6202952540 | BRACKET | |
| AT ENGINE MOUNTING CONSOLE | ||
| A 6452950540 | BRACKET | |
| AT ENGINE,RIGHT | ||
| N 000933016060 | SCREW | |
| Repalced by: N 304017016011 | ||
| N 304017016011 | SCREW | |
| BRACKET TO ENGINE | ||
| N 304017016011 | SCREW | |
| BRACKET TO ENGINE | ||
| A 6202952940 | BRACKET | |
| Repalced by: A 6202954440 | ||
| A 6202954440 | BRACKET | |
| HYDRAULIC LINE TO TRANSMISSION | ||
| A 6202954440 | BRACKET | |
| HYDRAULIC LINE TO TRANSMISSION | ||
| A 3124282040 | BRACKET | |
| Repalced by: A 3604292940 | ||
| A 6205240340 | BRACKET | |
| HYDRAULIC LINE TO TRANSMISSION | ||
| A 6202953240 | BRACKET | |
| HYDRAULIC LINE TO TRANSMISSION | ||
| N 000939008083 | STUD BOLT | |
| BRACKET TO TRANSMISSION | ||
| N 913004008004 | NUT | |
| Repalced by: N 913004008001 | ||
| N 913004008001 | NUT | |
| BRACKET TO TRANSMISSION | ||
| 582 | A 3872950240 | BRACKET |
| HYDRAULIC LINE | ||
| 586 | A 3609950201 | CLAMP |
| Repalced by: A 3604300143 | ||
| 586 | A 3604300143 | CLAMP |
| Repalced by: N 916016008200 | ||
| 586 | N 916016008200 | CLAMP |
| HYDRAULIC LINE TO BRACKET | ||
| 590 | N 007985006145 | SCREW |
| Repalced by: N 007985006581 | ||
| 590 | N 007985006581 | SCREW |
| HYDRAULIC LINE TO BRACKET | ||
| 594 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 594 | N 913004006001 | NUT |
| HYDRAULIC LINE TO BRACKET | ||
| 598 | A 3464295940 | BRACKET |
| Repalced by: A 3464296040 | ||
| 598 | A 3464296040 | BRACKET |
| LINE TO FRONT CROSS MEMBER | ||
| 602 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 602 | N 304017008034 | SCREW |
| BRACKET UNDER CROSS MEMBER | ||
| 606 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 606 | N 000125008443 | WASHER |
| BRACKET UNDER CROSS MEMBER | ||
| 610 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 610 | N 913004008001 | NUT |
| BRACKET UNDER CROSS MEMBER | ||
| 614 | A 3609950201 | CLAMP |
| Repalced by: A 3604300143 | ||
| 614 | A 3604300143 | CLAMP |
| Repalced by: N 916016008200 | ||
| 614 | N 916016008200 | CLAMP |
| LINE TO BRACKET | ||
| 618 | N 000000001147 | SCREW |
| LINE TO BRACKET | ||
| M 6X20 | ||
| 622 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 622 | N 913004006001 | NUT |
| LINE TO BRACKET | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
