Transporto priemonė: 1628 S; VIN numerio dalis: 620111
Grupė: 50 RADIATOR

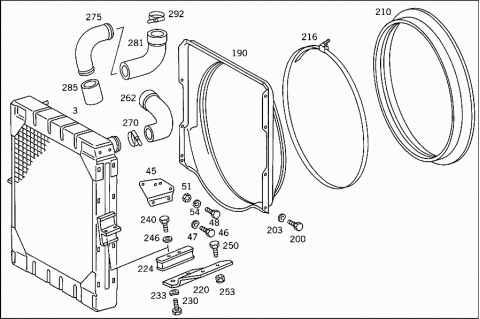

62148

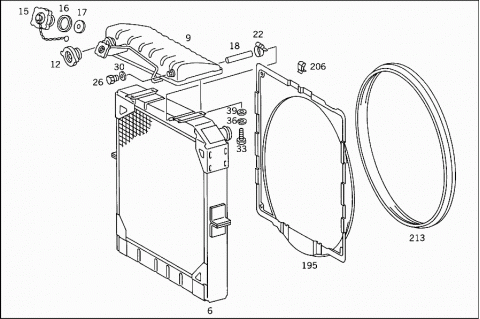

62149

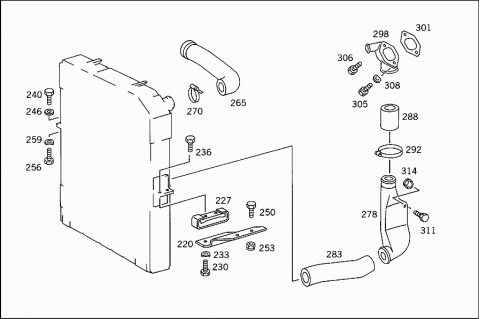

62150

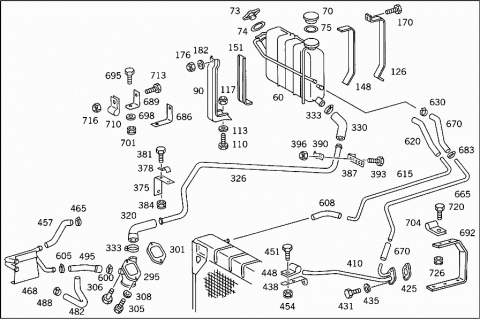

62151

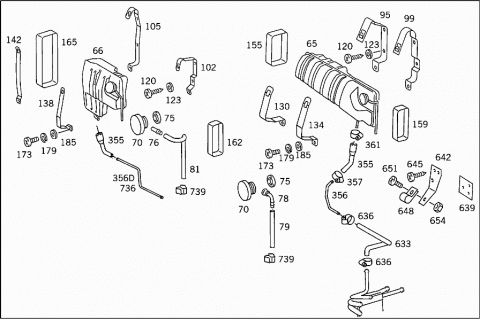

62152

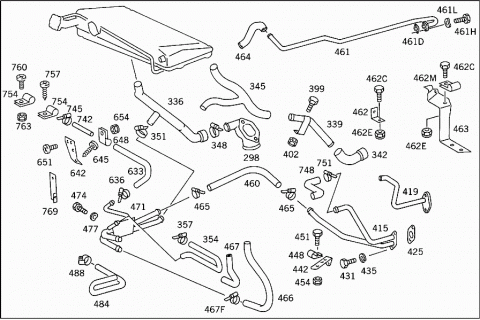

62153
# Kodas Pavadinimas
003 A 3855010401 RADIATOR
Repalced by: A 3875002903
003 A 3875002903 RADIATOR
006 A 0005015701 RADIATOR
Repalced by: A 0005019101
006 A 0005019101 RADIATOR
006 A 0005019101 RADIATOR
009 A 0005000749 TANK
EXPANSION TANK
009 A 0005000749 TANK
EXPANSION TANK
012 A 0005013715 RADIATOR CAP
LATERAL
012 A 0005017115 RADIATOR CAP
LATERAL
012 A 0005017115 RADIATOR CAP
LATERAL
015 A 0005014615 RADIATOR CAP
FILLER NECK
015 A 0005017215 RADIATOR CAP
FILLER NECK
015 A 0005017215 RADIATOR CAP
FILLER NECK
016 A 0005010480 GASKET
O.D.,
52 MM
017 A 0005010880 GASKET
O.D.,
37 MM
018 A 0139978082 HOSE
Repalced by: A 0149975782
018 A 0149975782 HOSE
OVERFLOW, EXPANSION TANK
018 A 0149975782 HOSE
OVERFLOW, EXPANSION TANK
022 A 0005040033 CLAMP
Repalced by: N 916017011000
022 N 916017011000 CLAMP
Repalced by: N 916017011001
022 N 000000000665 CLAMP
OVERFLOW, EXPANSION TANK
022 N 000000000665 CLAMP
OVERFLOW, EXPANSION TANK
026 A 0019973230 SCREW PLUG
Repalced by: N 007604014101
026 N 007604014101 SCREW PLUG
WATER DRAIN
026 N 007604014101 SCREW PLUG
WATER DRAIN
030 N 007603014405 SEAL RING
WATER DRAIN
030 N 007603014405 SEAL RING
WATER DRAIN
033 N 000933008212 SCREW
Repalced by: N 304017008016
033 N 304017008016 SCREW
FROM EXPANSION TANK TO RADIATOR
033 N 304017008016 SCREW
FROM EXPANSION TANK TO RADIATOR
036 N 912004008102 LOCK WASHER
FROM EXPANSION TANK TO RADIATOR
036 N 912004008102 LOCK WASHER
FROM EXPANSION TANK TO RADIATOR
039 N 000125008418 WASHER
Repalced by: N 000125008443
039 N 000125008443 WASHER
FROM EXPANSION TANK TO RADIATOR
039 N 000125008443 WASHER
FROM EXPANSION TANK TO RADIATOR
A 4220100040 BRACKET
Repalced by: A 4220100240
045 A 4220100240 BRACKET
OI DIPSTICK GUIDE TUBE
045 A 4220100140 BRACKET
OI DIPSTICK GUIDE TUBE
046 N 000933006102 SCREW
OIL DIPSTICK BRACKET TO RADIATOR
047 N 000137006204 SPRING WASHER
OIL DIPSTICK BRACKET TO RADIATOR
048 N 000933008145 SCREW
OIL-DIPSTICK GUIDE TUBE TO BRACKET
051 N 007349008003 WASHER
OIL-DIPSTICK GUIDE TUBE TO BRACKET
054 N 912004008102 LOCK WASHER
OIL-DIPSTICK GUIDE TUBE TO BRACKET
060 A 3815000749 TANK
BEHIND CAB
065 A 6205000049 TANK
Repalced by: A 6205000149
065 A 6205000149 TANK
CAB,FRONT
065 A 6205000149 TANK
CAB,FRONT
066 A 6175000049 TANK
Repalced by: A 6205000349
066 A 6205000349 TANK
CAB,FRONT
066 A 6205000349 TANK
CAB,FRONT
066 A 6205000349 TANK
CAB,FRONT
070 A 0005014515 RADIATOR CAP
TOP
073 A 0005014615 RADIATOR CAP
LATERAL
TO 381 500 07 49
073 A 0005017215 RADIATOR CAP
LATERAL
TO 381 500 07 49
074 A 0005010480 GASKET
O.D.,
52 MM,TO 000 501 46 15
075 A 0005010880 GASKET
37 MM
076 A 0005010010 DRAIN PIPE
TO 620 500 00 49,617 500 00 49
078 A 0005010110 DRAIN PIPE
TO 620 500 01 49,620 500 03 49
079 A 0139978582 HOSE
Repalced by: A 0139978682
079 A 0139978682 HOSE
TO 620 500 00 49,620 500 01 49
079 A 0139978682 HOSE
TO 617 500 00 49
081 A 0079972682 HOSE
Repalced by: A 0219977682
081 A 0219977682 HOSE
TO 620 500 03 49
090 A 3815000731 BRACKET
EXPANSION TANK
095 A 6205000031 BRACKET
EXPANSION TANK,RIGHT
099 A 6205000131 BRACKET
EXPANSION TANK,LEFT
102 A 6175000031 BRACKET
EXPANSION TANK,LEFT
102 A 6175000031 BRACKET
EXPANSION TANK,LEFT
102 A 6175000031 BRACKET
EXPANSION TANK,LEFT
105 A 6175000131 BRACKET
EXPANSION TANK,RIGHT
105 A 6175000131 BRACKET
EXPANSION TANK,RIGHT
105 A 6175000131 BRACKET
EXPANSION TANK,RIGHT
110 N 000933010164 SCREW
BRACKET TO RIGHT FENDER
113 N 006902011101 WASHER
BRACKET TO RIGHT FENDER
117 N 913004010008 NUT
Repalced by: N 910113010000
117 N 910113010000 NUT
BRACKET TO RIGHT FENDER
120 N 007981005306 SHEET METAL SCREW
BRACKET TO CAB
120 N 007981005306 SHEET METAL SCREW
BRACKET TO CAB
123 N 000125006421 WASHER
BRACKET TO CAB
123 N 000125006421 WASHER
BRACKET TO CAB
126 A 3815012520 BRACKET
(STRAP)
130 A 6205010320 STRAP
EXPANSION TANK,RIGHT
130 A 6205010320 STRAP
EXPANSION TANK,RIGHT
134 A 6205010420 STRAP
EXPANSION TANK,LEFT
134 A 6205010420 STRAP
EXPANSION TANK,LEFT
138 A 6175010220 STRAP
EXPANSION TANK,LEFT
138 A 6175010220 STRAP
EXPANSION TANK,LEFT
138 A 6175010220 STRAP
EXPANSION TANK,LEFT
142 A 6175010320 STRAP
EXPANSION TANK,RIGHT
142 A 6175010320 STRAP
EXPANSION TANK,RIGHT
142 A 6175010320 STRAP
EXPANSION TANK,RIGHT
148 A 3634750220 PAD
EXPANSION TANK TO BRACKET
425 MM
151 A 3815010295 SHIM
Repalced by: A 3815010495
151 A 3815010495 SHIM
STRAP
155 A 6205010195 SHIM
EXPANSION TANK,RIGHT
155 A 6205010195 SHIM
EXPANSION TANK,RIGHT
159 A 6205010295 SHIM
EXPANSION TANK,LEFT
159 A 6205010295 SHIM
EXPANSION TANK,LEFT
162 A 6175010095 SHIM
EXPANSION TANK,LEFT
162 A 6175010095 SHIM
EXPANSION TANK,LEFT
162 A 6175010095 SHIM
EXPANSION TANK,LEFT
165 A 6175010195 SHIM
EXPANSION TANK,RIGHT
165 A 6175010195 SHIM
EXPANSION TANK,RIGHT
165 A 6175010195 SHIM
EXPANSION TANK,RIGHT
170 N 000933010105 SCREW
EXPANSION TANK TO BRACKET
173 N 007985006193 SCREW
Repalced by: N 000000001146
173 N 000000001146 SCREW
EXPANSION TANK TO BRACKET
M 6X16
173 N 000000001146 SCREW
EXPANSION TANK TO BRACKET
M 6X16
176 N 913004010008 NUT
Repalced by: N 910113010000
176 N 910113010000 NUT
EXPANSION TANK TO BRACKET
179 N 912004006102 LOCK WASHER
EXPANSION TANK TO BRACKET
179 N 912004006102 LOCK WASHER
EXPANSION TANK TO BRACKET
182 N 000125010518 WASHER
Repalced by: N 000125010532
182 N 000125010532 WASHER
EXPANSION TANK TO BRACKET
185 N 009021006205 WASHER
Repalced by: N 009021006208
185 N 009021006208 WASHER
EXPANSION TANK TO BRACKET
185 N 009021006208 WASHER
EXPANSION TANK TO BRACKET
190 A 3875052230 AIR BAFFLE
RADIATOR
195 A 6205050655 FAN SHROUD
RADIATOR
195 A 6205050655 FAN SHROUD
RADIATOR
200 N 000933006102 SCREW
AIR BAFFLE AND BRACKET TO RADIATOR
200 N 000933006102 SCREW
AIR BAFFLE AND BRACKET TO RADIATOR
200 N 000933006102 SCREW
AIR BAFFLE AND BRACKET TO RADIATOR
203 N 000137006204 SPRING WASHER
AIR BAFFLE AND BRACKET TO RADIATOR
203 N 000137006204 SPRING WASHER
AIR BAFFLE AND BRACKET TO RADIATOR
203 N 000137006204 SPRING WASHER
AIR BAFFLE AND BRACKET TO RADIATOR
206 A 1235040246 CLAMP
FAN SHROUD TO RADIATOR
206 A 1235040246 CLAMP
FAN SHROUD TO RADIATOR
210 A 3635050180 BOOT
FAN SHROUD
213 A 6205050086 BOOT
FAN SHROUD
213 A 6205050086 BOOT
FAN SHROUD
216 A 3639950065 CLAMP
FAN SHROUD
220 A 6205040201 SUPPORT
LEFT
220 A 6205040301 SUPPORT
RIGHT
220 A 6205040301 SUPPORT
RIGHT
224 A 3875040012 RUBBER MOUNTING
RADIATOR TO SUPPORT
227 A 6205040012 RUBBER MOUNTING
Repalced by: A 6205040112
227 A 6205040112 RUBBER MOUNTING
RADIATOR TO SUPPORT
227 A 6205040112 RUBBER MOUNTING
RADIATOR TO SUPPORT
230 N 000933010238 SCREW
Repalced by: N 304017010028
230 N 304017010028 SCREW
RUBBER MOUNTING TO SUPPORT
230 N 304017010028 SCREW
RUBBER MOUNTING TO SUPPORT
230 N 304017010028 SCREW
RUBBER MOUNTING TO SUPPORT
233 N 000137010201 SPRING WASHER
RUBBER MOUNTING TO SUPPORT
233 N 000137010201 SPRING WASHER
RUBBER MOUNTING TO SUPPORT
233 N 000137010201 SPRING WASHER
RUBBER MOUNTING TO SUPPORT
236 N 000933010164 SCREW
RADIATOR TO RUBBER MOUNTING
M 10X22
240 N 000933010105 SCREW
RADIATOR TO RUBBER MOUNTING
M 10X25
240 N 000933010105 SCREW
RADIATOR TO RUBBER MOUNTING
M 10X25
246 N 000125010518 WASHER
Repalced by: N 000125010532
246 N 000125010532 WASHER
RADIATOR TO RUBBER MOUNTING
250 N 000961012151 SCREW
CONSOLE TO SIDE MEMBER
250 N 000961012151 SCREW
CONSOLE TO SIDE MEMBER
250 N 000961012151 SCREW
CONSOLE TO SIDE MEMBER
253 N 910113012002 NUT
CONSOLE TO SIDE MEMBER
253 N 910113012002 NUT
CONSOLE TO SIDE MEMBER
253 N 910113012002 NUT
CONSOLE TO SIDE MEMBER
256 N 000933010238 SCREW
Repalced by: N 304017010028
256 N 304017010028 SCREW
RUBBER MOUNTING TO FRAME
256 N 304017010028 SCREW
RUBBER MOUNTING TO FRAME
259 N 000137010201 SPRING WASHER
RUBBER MOUNTING TO FRAME
259 N 000137010201 SPRING WASHER
RUBBER MOUNTING TO FRAME
262 A 3875010982 HOSE
FROM RADIATOR TO THERMOSTAT
265 A 6205011082 HOSE
FROM RADIATOR TO THERMOSTAT
265 A 6205011082 HOSE
FROM RADIATOR TO THERMOSTAT
270 N 916017070000 CLAMP
Repalced by: N 000000000674
270 N 000000000674 CLAMP
HOSE TO RADIATOR AND TO ENGINE
275 A 3875010356 PIPE ELBOW
FROM RADIATOR TO WATER PUMP
278 A 6205010056 PIPE ELBOW
Repalced by: A 6205010156
278 A 6205010156 PIPE ELBOW
Repalced by: A 6205010056
278 A 6205010056 PIPE ELBOW
FROM RADIATOR TO WATER PUMP
278 A 6205010056 PIPE ELBOW
FROM RADIATOR TO WATER PUMP
278 A 6205010456 PIPE ELBOW
Repalced by: A 6205010556
278 A 6205010556 PIPE ELBOW
Repalced by: A 6555010756
278 A 6555010756 PIPE ELBOW
FROM RADIATOR TO WATER PUMP
278 A 6555011556 PIPE ELBOW
FROM RADIATOR TO WATER PUMP
281 A 3875012982 HOSE
FROM RADIATOR TO WATER PUMP
283 A 6205010382 HOSE
FROM RADIATOR TO WATER PUMP
283 A 6205010382 HOSE
FROM RADIATOR TO WATER PUMP
283 A 6205013682 HOSE
FROM RADIATOR TO WATER PUMP
285 N 900271065003 HOSE
FROM RADIATOR TO WATER PUMP
288 N 900271070007 HOSE
FROM RADIATOR TO WATER PUMP
70 X 82 X 85
288 N 900271070007 HOSE
FROM RADIATOR TO WATER PUMP
70 X 82 X 85
292 N 916017070000 CLAMP
Repalced by: N 000000000674
292 N 000000000674 CLAMP
FROM RADIATOR TO WATER PUMP
295 A 3875010223 CONNECTOR
Repalced by: A 3875010423
295 A 3875010423 CONNECTOR
AT WATER PUMP
298 A 6205010023 CONNECTOR
Repalced by: A 6205010323
298 A 6205010323 CONNECTOR
AT WATER PUMP
298 A 6205010323 CONNECTOR
AT WATER PUMP
298 A 6205010123 CONNECTOR
Repalced by: A 6205010423
298 A 6205010423 CONNECTOR
AT WATER PUMP
298 A 6205010423 CONNECTOR
AT WATER PUMP
301 A 4032010480 GASKET
Repalced by: A 4422010480
301 A 4422010480 GASKET
CONNECTOR TO WATER PUMP
305 N 000933010105 SCREW
CONNECTOR TO WATER PUMP
M 10X25
305 N 000933010105 SCREW
CONNECTOR TO WATER PUMP
M 10X25
305 N 000933010105 SCREW
CONNECTOR TO WATER PUMP
M 10X25
306 N 000931010271 SCREW
CONNECTOR TO WATER PUMP
M 10X60
306 N 000931010271 SCREW
CONNECTOR TO WATER PUMP
M 10X60
306 N 000933010105 SCREW
CONNECTOR TO WATER PUMP
M 10X25
306 N 000933010105 SCREW
CONNECTOR TO WATER PUMP
M 10X25
308 N 000137010201 SPRING WASHER
CONNECTOR TO WATER PUMP
311 N 000931010282 SCREW
PIPE BEND TO BRACKET
311 N 000931010282 SCREW
PIPE BEND TO BRACKET
314 N 913004010008 NUT
Repalced by: N 910113010000
314 N 910113010000 NUT
PIPE BEND TO BRACKET
314 N 910113010000 NUT
PIPE BEND TO BRACKET
320 A 3875011082 HOSE
FROM WATER PUMP TO EXPANSION TANK
326 A 3875010624 COOLING WATER PIPE
FROM WATER PUMP TO EXPANSION TANK
326 A 3875011624 COOLING WATER PIPE
FROM WATER PUMP TO EXPANSION TANK
326 A 3875012824 COOLING WATER PIPE
FROM WATER PUMP TO EXPANSION TANK
330 A 3875011782 HOSE
FROM WATER PUMP TO EXPANSION TANK
330 A 3815012282 HOSE
FROM WATER PUMP TO EXPANSION TANK
333 N 916017032000 CLAMP
Repalced by: N 000000000670
333 N 000000000670 CLAMP
FROM WATER PUMP TO EXPANSION TANK
336 A 6205012082 HOSE
FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
336 A 6205012082 HOSE
FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
339 A 6205000172 LINE
FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
339 A 6205000172 LINE
FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
342 A 6205011682 HOSE
Repalced by: A 6585010082
342 A 6585010082 HOSE
FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
342 A 6585010082 HOSE
FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
345 A 6205011882 HOSE
FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
345 A 6205011882 HOSE
FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
348 N 916017032000 CLAMP
Repalced by: N 000000000670
348 N 000000000670 CLAMP
FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
348 N 000000000670 CLAMP
FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
348 N 000000000670 CLAMP
FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
348 N 000000000670 CLAMP
FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
351 N 916017020000 CLAMP
Repalced by: N 000000000667
351 N 000000000667 CLAMP
FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
351 N 000000000667 CLAMP
FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
354 N 900271008043 HOSE
VENTILATION, FROM RADIATOR TO EXPANSION TANK
354 N 900271008043 HOSE
VENTILATION, FROM RADIATOR TO EXPANSION TANK
355 A 6205012882 HOSE
VENTILATION, FROM RADIATOR TO EXPANSION TANK
355 A 6205012882 HOSE
VENTILATION, FROM RADIATOR TO EXPANSION TANK
A 6205013282 HOSE
Repalced by: A 6205012882
355 A 6205012882 HOSE
VENTILATION, FROM RADIATOR TO EXPANSION TANK
356 A 6175010225 BREATHER PIPE
A 6175010325 BREATHER PIPE
Repalced by: A 6205010725
356D A 6205010725 BREATHER PIPE
VENTILATION, FROM RADIATOR TO EXPANSION TANK
356D A 6205010725 BREATHER PIPE
VENTILATION, FROM RADIATOR TO EXPANSION TANK
357 N 916017011000 CLAMP
Repalced by: N 916017011001
357 N 000000000665 CLAMP
VENTILATION, FROM RADIATOR TO EXPANSION TANK
357 N 000000000665 CLAMP
VENTILATION, FROM RADIATOR TO EXPANSION TANK
357 N 000000000665 CLAMP
VENTILATION, FROM RADIATOR TO EXPANSION TANK
357 N 000000000665 CLAMP
VENTILATION, FROM RADIATOR TO EXPANSION TANK
361 N 916017020000 CLAMP
Repalced by: N 000000000667
361 N 000000000667 CLAMP
VENTILATION, FROM RADIATOR TO EXPANSION TANK
361 N 000000000667 CLAMP
VENTILATION, FROM RADIATOR TO EXPANSION TANK
375 A 3875010820 BRACKET
Repalced by: A 3834929141
375 A 3834929141 BRACKET
COOLING WATER LINE TO FRAME
378 A 3879950020 CLAMP
COOLING WATER LINE TO FRAME
381 N 000933008212 SCREW
Repalced by: N 304017008016
381 N 304017008016 SCREW
COOLING WATER LINE TO FRAME
384 N 913004008004 NUT
Repalced by: N 913004008001
384 N 913004008001 NUT
COOLING WATER LINE TO FRAME
387 A 3604292940 BRACKET
COOLING WATER LINE TO BRACKET
390 A 3879950020 CLAMP
COOLING WATER LINE TO BRACKET & CONSOLE,RESP.
393 N 000933008147 SCREW
Repalced by: N 304017008021
393 N 304017008021 SCREW
COOLING WATER LINE TO BRACKET & CONSOLE,RESP.
396 N 913004008004 NUT
Repalced by: N 913004008001
396 N 913004008001 NUT
COOLING WATER LINE TO BRACKET & CONSOLE,RESP.
399 N 000933006103 SCREW
Repalced by: N 304017006018
399 N 304017006018 SCREW
PIPE TO CONTROL BRACKET
399 N 304017006018 SCREW
PIPE TO CONTROL BRACKET
402 N 913004006003 NUT
Repalced by: N 910113006001
402 N 910113006001 NUT
PIPE TO CONTROL BRACKET
402 N 910113006001 NUT
PIPE TO CONTROL BRACKET
410 A 3875000079 FLANGE
HEATING AND BREATHING
415 A 6205000079 FLANGE
HEATING AND BREATHING
415 A 6205000079 FLANGE
HEATING AND BREATHING
415 A 6205000279 FLANGE
HEATING AND BREATHING
415 A 6205000279 FLANGE
HEATING AND BREATHING
419 A 6205000579 FLANGE
DE-AERATION; FROM ENGINE TO EXPANSION TANK
425 N 917003040008 GASKET
FLANGE TO ENGINE
425 N 917003040008 GASKET
FLANGE TO ENGINE
425 N 917003040008 GASKET
FLANGE TO ENGINE
431 N 000933010105 SCREW
FLANGE TO ENGINE
435 N 912004010102 LOCK WASHER
FLANGE TO ENGINE
438 A 3875011420 BRACKET
HEATING PIPE
438 A 3875011420 BRACKET
HEATING PIPE
A 3875016320 BRACKET
Repalced by: A 3875011420
442 A 3875011420 BRACKET
HEATING PIPE
442 A 3875011420 BRACKET
HEATING PIPE
442 A 6205010620 BRACKET
HEATING PIPE
442 A 6205010620 BRACKET
HEATING PIPE
448 A 3609950601 CLAMP
HEATING PIPE TO ENGINE
451 N 000933006130 SCREW
HEATING PIPE TO ENGINE
454 N 913004006003 NUT
Repalced by: N 910113006001
454 N 910113006001 NUT
HEATING PIPE TO ENGINE
457 A 3875060135 HOSE
FROM ENGINE CONNECTION FLANGE TO HEATING PIPE AT RADIATOR
460 A 6205060035 HOSE
FROM ENGINE CONNECTION FLANGE TO HEATING PIPE AT RADIATOR
460 A 6205060035 HOSE
FROM ENGINE CONNECTION FLANGE TO HEATING PIPE AT RADIATOR
460 A 6205060535 HOSE
FROM ENGINE CONNECTION FLANGE TO HEATING PIPE AT RADIATOR
460 A 6205060535 HOSE
FROM ENGINE CONNECTION FLANGE TO HEATING PIPE AT RADIATOR
461 A 6205003672 LINE
(HEATING PIPE) FROM ENGINE TO HEATING PIPE AT RADIATOR
461 A 6205003972 LINE
(HEATING PIPE) FROM ENGINE TO HEATING PIPE AT RADIATOR
461D N 917003022003 GASKET
HEATING PIPE TO ENGINE
461H N 000933008291 SCREW
Repalced by: A 4609900601
A 4609900601 SCREW
HEATING PIPE TO ENGINE
461L N 000137008204 SPRING WASHER
Repalced by: N 000137008212
461L N 000137008212 SPRING WASHER
HEATING PIPE TO ENGINE
462 A 3818320714 BRACKET
HEATING PIPE TO FAN SHROUD BRACKET
462C N 000933006130 SCREW
ANGLE TO AIR BAFFLE BRACKET
M 6X18
462E N 913004006003 NUT
Repalced by: N 910113006001
462E N 910113006001 NUT
ANGLE TO AIR BAFFLE BRACKET
462M A 3609950601 CLAMP
HEATING PIPE TO ANGLE
462M A 3609950601 CLAMP
HEATING PIPE TO BRACKET
462M A 3609950601 CLAMP
HEATING PIPE TO FAN SHROUD BRACKET
463 A 6205062340 BRACKET
BRACKET TO WATER PUMP
464 A 6205062335 HOSE
FROM HEATING PIPE AT ENGINE TO HEATING PIPE AT RADIATOR
464 A 6205062935 HOSE
FROM HEATING PIPE AT ENGINE TO HEATING PIPE AT RADIATOR
464 A 6205062935 HOSE
FROM HEATING PIPE AT ENGINE TO HEATING PIPE AT RADIATOR
465 N 916017020000 CLAMP
Repalced by: N 000000000667
465 N 000000000667 CLAMP
FROM FLANGE TO HEATING PIPE
466 A 6205060235 HOSE
HEATING; TO CAB
467 A 6205060335 HOSE
HEATING; TO CAB
467F N 916017020000 CLAMP
Repalced by: N 000000000667
467F N 000000000667 CLAMP
HEATING; TO CAB
468 A 3875000072 LINE
HEATING PIPE TO ENGINE
471 A 6205000272 LINE
Repalced by: A 6205002672
471 A 6205002672 LINE
Repalced by: A 6205002872
471 A 6205002872 LINE
HEATING AND BREATHING
471 A 6205000572 LINE
HEATING AND BREATHING
471 A 6205000372 LINE
Repalced by: A 6205001672
471 A 6205001672 LINE
HEATING AND BREATHING
471 A 6205001672 LINE
Repalced by: A 6205002972
471 A 6205002972 LINE
Repalced by: A 6205003072
471 A 6205003072 LINE
HEATING AND BREATHING
471 A 6205003072 LINE
HEATING AND BREATHING
474 N 000933006102 SCREW
HEATING PIPE TO RADIATOR
474 N 000933006102 SCREW
HEATING PIPE TO RADIATOR
477 N 000137006204 SPRING WASHER
HEATING PIPE TO RADIATOR
477 N 000137006204 SPRING WASHER
HEATING PIPE TO RADIATOR
482 A 3835060035 HOSE
FROM HEATING PIPE AT RADIATOR TO CAB HEATING PIPE
484 A 6205062035 HOSE
FROM HEATING PIPE AT RADIATOR TO CAB HEATING PIPE
488 N 916017020000 CLAMP
Repalced by: N 000000000667
488 N 000000000667 CLAMP
HEATING; TO CAB
A 3875060435 HOSE
Repalced by: A 3635060135
495 A 3635060135 HOSE
Repalced by: A 3635060235
495 A 3635060235 HOSE
FROM HEATING PIPE AT RADIATOR TO CONNECTOR AT ENGINE
600 N 916017025000 CLAMP
Repalced by: N 000000000668
600 N 000000000668 CLAMP
HEATING; TO CONNECTOR
605 N 916017020000 CLAMP
Repalced by: N 000000000667
605 N 000000000667 CLAMP
HEATING; TO CONNECTOR
608 A 3875011482 HOSE
VENTILATION, FROM RADIATOR TO EXPANSION TANK
615 A 3875012125 BREATHER PIPE
VENTILATION, FROM RADIATOR TO EXPANSION TANK
615 A 3875012225 BREATHER PIPE
VENTILATION, FROM RADIATOR TO EXPANSION TANK
615 A 3875014425 BREATHER PIPE
VENTILATION, FROM RADIATOR TO EXPANSION TANK
615 A 3875014925 BREATHER PIPE
VENTILATION, FROM RADIATOR TO EXPANSION TANK
620 N 900271012018 HOSE
BETWEEN DE-AERATION LINE AND EXPANSION TANK
12X21 MM
620 N 900271012018 HOSE
BETWEEN THE DE-AERATION LINES
12X21 MM
630 N 916017020000 CLAMP
Repalced by: N 000000000667
630 N 000000000667 CLAMP
VENTILATION, FROM RADIATOR TO EXPANSION TANK
630 N 000000000667 CLAMP
VENTILATION, FROM RADIATOR TO EXPANSION TANK
633 N 900271008043 HOSE
FROM EXPANSION TANK TO HEATING PIPE
8X17 MM
633 N 900271008043 HOSE
8X17 MM
633 N 900271008043 HOSE
FROM HEATING PIPE AT RADIATOR TO CAB HEATING PIPE
8X17 MM
636 N 916017011000 CLAMP
Repalced by: N 916017011001
636 N 000000000665 CLAMP
FROM EXPANSION TANK TO HEATING PIPE
636 N 000000000665 CLAMP
FROM EXPANSION TANK TO HEATING PIPE
636 N 000000000665 CLAMP
FROM HEATING PIPE AT RADIATOR TO CAB HEATING PIPE
639 A 6175010520 BRACKET
DE-AERATION LINE
642 A 6175010420 BRACKET
DE-AERATION LINE
642 A 6175010420 BRACKET
DE-AERATION LINE
645 N 007981005306 SHEET METAL SCREW
BRACKET TO CAB
645 N 007981005306 SHEET METAL SCREW
BRACKET TO CAB
645 N 007981005306 SHEET METAL SCREW
BRACKET TO CAB
648 A 3609950201 CLAMP
Repalced by: A 3604300143
648 A 3604300143 CLAMP
Repalced by: N 916016008200
648 N 916016008200 CLAMP
DE-AERATION LINE TO BRACKET
648 N 916016008200 CLAMP
DE-AERATION LINE TO BRACKET
651 N 007985006193 SCREW
Repalced by: N 000000001146
651 N 000000001146 SCREW
DE-AERATION LINE TO BRACKET
M 6X16
651 N 000000001146 SCREW
DE-AERATION LINE TO BRACKET
M 6X16
654 N 913004006002 NUT
Repalced by: N 913004006001
654 N 913004006001 NUT
DE-AERATION LINE TO BRACKET
654 N 913004006001 NUT
DE-AERATION LINE TO BRACKET
665 A 3875016825 BREATHER PIPE
FROM ENGINE TO EXPANSION TANK
665 A 3875014825 BREATHER PIPE
FROM ENGINE TO EXPANSION TANK
670 N 900271015037 HOSE
BETWEEN THE DE-AERATION LINES
15X24 MM
670 N 900271015037 HOSE
BETWEEN DE-AERATION LINE AND EXPANSION TANK
15X24 MM
670 A 3875011682 HOSE
BETWEEN DE-AERATION LINE AND EXPANSION TANK
670 A 3875011682 HOSE
BETWEEN DE-AERATION LINE AND EXPANSION TANK
683 N 916017020000 CLAMP
Repalced by: N 000000000667
683 N 000000000667 CLAMP
FROM ENGINE TO EXPANSION TANK
683 N 000000000667 CLAMP
FROM ENGINE TO EXPANSION TANK
683 N 000000000667 CLAMP
FROM ENGINE TO EXPANSION TANK
686 A 3875015920 BRACKET
Repalced by: A 6454310740
686 A 6454310740 BRACKET
RADIATOR AND ENGINE BREATHING,AT ENGINE
689 A 3875015820 BRACKET
Repalced by: A 3524290740
689 A 3524290740 BRACKET
RADIATOR AND ENGINE BREATHING,AT ENGINE
692 A 3875015620 BRACKET
DE-AERATION LINE
695 N 000933010094 SCREW
RADIATOR AND ENGINE BREATHING,AT ENGINE
698 N 000125010518 WASHER
Repalced by: N 000125010532
698 N 000125010532 WASHER
RADIATOR AND ENGINE BREATHING,AT ENGINE
701 N 913004010008 NUT
Repalced by: N 910113010000
701 N 910113010000 NUT
RADIATOR AND ENGINE BREATHING,AT ENGINE
704 A 3609951401 CLAMP
Repalced by: N 916016011202
704 N 916016011202 CLAMP
DE-AERATION LINE TO BRACKET
704 N 916016011202 CLAMP
DE-AERATION LINE TO BRACKET
704 A 3609951201 CLAMP
DE-AERATION LINE TO BRACKET
704 A 3609951201 CLAMP
DE-AERATION LINE TO BRACKET
704 A 3609951201 CLAMP
DE-AERATION LINE TO BRACKET
710 A 3609950401 CLAMP
DE-AERATION LINE TO BRACKET
A 3609950501 CLAMP
Repalced by: A 3609952001
710 A 3609952001 CLAMP
Repalced by: A 6739950001
710 A 6739950001 CLAMP
DE-AERATION LINE TO BRACKET
713 N 000933006102 SCREW
DE-AERATION LINE TO BRACKET
M 6X16
716 N 913004006003 NUT
Repalced by: N 910113006001
716 N 910113006001 NUT
DE-AERATION LINE TO BRACKET
720 N 000933008212 SCREW
Repalced by: N 304017008016
720 N 304017008016 SCREW
DE-AERATION LINE TO BRACKET
M 8X16
720 N 000933008147 SCREW
Repalced by: N 304017008021
720 N 304017008021 SCREW
DE-AERATION LINE
M 8X20
726 N 913004008004 NUT
Repalced by: N 913004008001
726 N 913004008001 NUT
DE-AERATION LINE TO BRACKET
726 N 913004008001 NUT
DE-AERATION LINE
736 A 6205010725 BREATHER PIPE
DE-AERATION LINE TO HEATER AND TO RADIATOR
739 A 0009881878 CLIP
DE-AERATION
739 A 0009881878 CLIP
DE-AERATION
742 N 900271008043 HOSE
HEATING PIPE TO RADIATOR
8X17X480
742 N 900271008043 HOSE
HEATING PIPE TO RADIATOR
8X17X480
745 N 916017011000 CLAMP
Repalced by: N 916017011001
745 N 000000000665 CLAMP
HEATING PIPE TO RADIATOR
745 N 000000000665 CLAMP
HEATING PIPE TO RADIATOR
748 A 3875011682 HOSE
VENTILATION, FROM RADIATOR TO EXPANSION TANK
751 N 916017020000 CLAMP
Repalced by: N 000000000667
751 N 000000000667 CLAMP
VENTILATION, FROM RADIATOR TO EXPANSION TANK
754 A 3609950201 CLAMP
Repalced by: A 3604300143
754 A 3604300143 CLAMP
Repalced by: N 916016008200
754 N 916016008200 CLAMP
DE-AERATION LINE
757 N 007981005306 SHEET METAL SCREW
DE-AERATION LINE
757 N 007981005306 SHEET METAL SCREW
DE-AERATION LINE
760 N 007985006193 SCREW
Repalced by: N 000000001146
760 N 000000001146 SCREW
DE-AERATION LINE
M 6X16
763 N 913004006002 NUT
Repalced by: N 913004006001
763 N 913004006001 NUT
DE-AERATION LINE
769 A 6205010920 BRACKET
DE-AERATION LINE
Reklama
Kontaktai
Pasiūlymas
Skaitliukas



© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
