Transporto priemonė: 1632 LS; VIN numerio dalis: 387222
Grupė: 40 WHEELS
| # | Kodas | Pavadinimas |
|---|---|---|

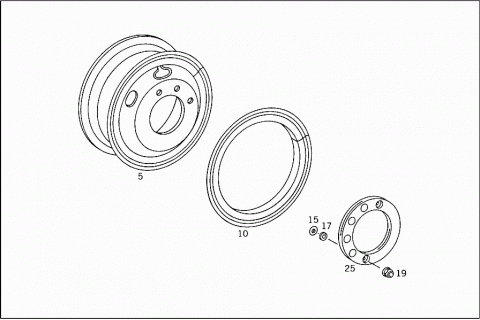

| 005 | A 0014016801 | DISC WHEEL |
| 005 | A 0024013501 | DISC WHEEL |
| 005 | A 0024017101 | DISC WHEEL |
| 005 | A 3874000002 | DISC WHEEL |
| Repalced by: A 0004018205 | ||
| 005 | A 0004018205 | RIM |
| Repalced by: A 0004016902 | ||
| 005 | A 0004016902 | DISC WHEEL |
| 9.00-22.5 | ||
| 005 | A 0004019205 | RIM |
| Repalced by: A 0004012002 | ||
| 005 | A 0004012002 | DISC WHEEL |
| Repalced by: A 0004016402 | ||
| 005 | A 0004016402 | DISC WHEEL |
| 9.00-22.5 | ||
| 005 | A 0004016802 | DISC WHEEL |
| 9.00-22.5 | ||
| 010 | A 0004015206 | SIDE RING |
| Repalced by: A 0004017406 | ||
| 010 | A 0004017406 | SIDE RING |
| A 0004012913 | VALVE | |
| Repalced by: A 0004017113 | ||
| A 0004017113 | VALVE | |
| Repalced by: A 0004013213 | ||
| A 0004013213 | VALVE | |
| 27 DEGREES | ||
| A 0004010272 | NUT | |
| VALVE TO DISC WHEEL | ||
| A 3894010013 | VALVE | |
| Repalced by: A 3854010013 | ||
| A 3894010113 | VALVE | |
| Repalced by: A 3854010013 | ||
| A 3854010013 | VALVE | |
| EXTENSION | ||
| A 3854010113 | VALVE | |
| EXTENSION | ||
| N 007757008600 | VALVE CAP | |
| 015 | A 3174020175 | SPHERICAL RING |
| DISC WHEEL TO REAR AXLE | ||
| 017 | N 074361022351 | LOCK WASHER |
| DISC WHEELS TO FRONT AND REAR AXLES | ||
| 019 | N 074361022204 | NUT |
| DISC WHEELS TO FRONT AND REAR AXLES | ||
| 019 | A 3854000124 | WHEEL NUT |
| Repalced by: A 0004010672 | ||
| 019 | A 6174000024 | WHEEL NUT |
| Repalced by: A 0004010672 | ||
| 019 | A 0004010672 | NUT |
| DISC WHEELS TO FRONT AND REAR AXLES | ||
| 025 | A 3604000325 | HUB CAP |
| FRONT DISC WHEEL | ||

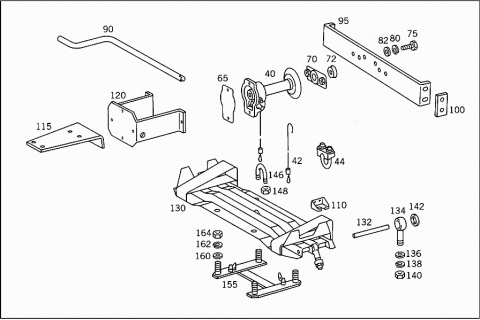

| 040 | A 3354000239 | SPARE WHEEL HOIST |
| 040 | A 3354000239 | SPARE WHEEL HOIST |
| 040 | A 3354000239 | SPARE WHEEL HOIST |
| 042 | A 3354000116 | WIRE CABLE |
| 042 | A 3354000116 | WIRE CABLE |
| 042 | A 3354000116 | WIRE CABLE |
| 044 | N 000741005001 | FERRULE |
| 044 | N 000741005001 | FERRULE |
| 044 | N 000741005001 | FERRULE |
| 065 | A 3354030080 | RUBBER SEAL |
| 065 | A 3354030080 | RUBBER SEAL |
| 065 | A 3354030080 | RUBBER SEAL |
| 070 | A 3354000115 | MOUNTING |
| SPARE WHEEL HOIST | ||
| 070 | A 3354000115 | MOUNTING |
| SPARE WHEEL HOIST | ||
| 070 | A 3354000115 | MOUNTING |
| SPARE WHEEL HOIST | ||
| 072 | A 3354030050 | BUSHING |
| SPARE WHEEL HOIST | ||
| 072 | A 3354030050 | BUSHING |
| SPARE WHEEL HOIST | ||
| 072 | A 3354030050 | BUSHING |
| SPARE WHEEL HOIST | ||
| A 3464005039 | BRACKET | |
| SPARE WHEEL HOIST | ||
| A 3464005039 | BRACKET | |
| SPARE WHEEL HOIST | ||
| 075 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 075 | N 304017008021 | SCREW |
| SPARE WHEEL HOIST | ||
| 075 | N 304017008021 | SCREW |
| SPARE WHEEL HOIST | ||
| 075 | N 304017008021 | SCREW |
| SPARE WHEEL HOIST | ||
| 075 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 075 | N 304017008027 | SCREW |
| SPARE WHEEL HOIST | ||
| 075 | N 304017008027 | SCREW |
| SPARE WHEEL HOIST | ||
| 075 | N 304017008027 | SCREW |
| SPARE WHEEL HOIST | ||
| 080 | N 912004008102 | LOCK WASHER |
| SPARE WHEEL HOIST | ||
| 080 | N 912004008102 | LOCK WASHER |
| SPARE WHEEL HOIST | ||
| 080 | N 912004008102 | LOCK WASHER |
| SPARE WHEEL HOIST | ||
| 082 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 082 | N 000125008443 | WASHER |
| N 913004008004 | NUT | |
| Repalced by: N 913004008001 | ||
| N 913004008001 | NUT | |
| N 304032008006 | NUT | |
| N 304032008006 | NUT | |
| 090 | A 3354030130 | CRANK |
| A 3464030030 | CRANK | |
| A 3464030030 | CRANK | |
| 095 | A 3634030104 | CONNECTING RAIL |
| 100 | A 3874030119 | BASE BLOCK |
| N 000961012151 | SCREW | |
| N 000125013008 | WASHER | |
| N 910113012002 | NUT | |
| 110 | A 3874030001 | SUPPORT |
| A 0009900796 | RIVET | |
| Repalced by: N 910005012020 | ||
| N 910005012080 | RIVET | |
| 12X42 MM | ||
| 115 | A 3874030048 | ANGLE |
| 120 | A 3614030002 | BRACKET |
| N 308676012012 | SCREW | |
| N 910113012002 | NUT | |
| 130 | A 3874000039 | BRACKET |
| A 3354000339 | BRACKET | |
| A 3634000939 | BRACKET | |
| A 3634000939 | BRACKET | |
| 132 | A 3634030074 | PIN |
| 134 | N 000444016317 | EYEBOLT |
| 136 | N 007349017002 | WASHER |
| 138 | N 912004016101 | LOCK WASHER |
| 140 | N 000934016012 | NUT |
| 142 | N 000433017004 | WASHER |
| N 000094004023 | COTTER PIN | |
| 146 | A 3354030029 | HOOK BOLT |
| 146 | A 3354030029 | HOOK BOLT |
| 146 | A 3354030029 | HOOK BOLT |
| 148 | N 913021010001 | NUT |
| Repalced by: N 304035010001 | ||
| 148 | N 304035010001 | NUT |
| 148 | N 304035010001 | NUT |
| 148 | N 000934010009 | NUT |
| Repalced by: N 304032010002 | ||
| 148 | N 304032010002 | NUT |
| 148 | N 304032010002 | NUT |
| 155 | A 3874000069 | CLAMPING PIECE |
| 160 | N 000125017010 | WASHER |
| Repalced by: N 000125017016 | ||
| 160 | N 000125017016 | WASHER |
| SPARE WHEEL TO BRACKET | ||
| 162 | N 912004016101 | LOCK WASHER |
| SPARE WHEEL TO BRACKET | ||
| 164 | N 000934016012 | NUT |
| SPARE WHEEL TO BRACKET | ||
| A 3874030094 | PLATE | |
| BRACKET TO FRAME | ||
| N 000961014054 | SCREW | |
| BRACKET TO FRAME | ||
| M 14X1.5X45 | ||
| N 000960014167 | SCREW | |
| Repalced by: N 000961014064 | ||
| N 000961014064 | SCREW | |
| BRACKET TO FRAME | ||
| M 14X1.5X50 | ||
| N 913004014002 | NUT | |
| Repalced by: N 910113014001 | ||
| N 910113014001 | NUT | |
| BRACKET TO FRAME | ||
| N 910113014001 | NUT | |
| BRACKET TO FRAME | ||
| N 000125015013 | WASHER | |
| Repalced by: N 000125015019 | ||
| N 000125015019 | WASHER | |
| N 000125015019 | WASHER | |
| A 3874030648 | ANGLE | |
| AT FRAME | ||
| A 3874030748 | ANGLE | |
| AT FRAME | ||
| A 3874030448 | ANGLE | |
| AT FRAME | ||
| A 3874030548 | ANGLE | |
| AT FRAME | ||
| N 000961014028 | SCREW | |
| AT FRAME | ||
| N 913004014002 | NUT | |
| Repalced by: N 910113014001 | ||
| N 910113014001 | NUT | |
| AT FRAME | ||
| N 910113014001 | NUT | |
| AT FRAME | ||
| N 000961014050 | SCREW | |
| Repalced by: N 308676014020 | ||
| N 308676014020 | SCREW | |
| AT FRAME | ||
| N 308676014020 | SCREW | |
| AT FRAME | ||
| N 000125015013 | WASHER | |
| Repalced by: N 000125015019 | ||
| N 000125015019 | WASHER | |
| AT FRAME | ||
| N 000125015019 | WASHER | |
| AT FRAME | ||
| N 913004014002 | NUT | |
| Repalced by: N 910113014001 | ||
| N 910113014001 | NUT | |
| AT FRAME | ||
| N 910113014001 | NUT | |
| AT FRAME | ||
| N 000961014028 | SCREW | |
| SPARE WHEEL TO BRACKET | ||
| N 000961014028 | SCREW | |
| SPARE WHEEL TO BRACKET | ||
| N 007349015003 | WASHER | |
| SPARE WHEEL TO BRACKET | ||
| N 000125015013 | WASHER | |
| Repalced by: N 000125015019 | ||
| N 000125015019 | WASHER | |
| SPARE WHEEL TO BRACKET | ||
| N 000125015019 | WASHER | |
| SPARE WHEEL TO BRACKET | ||
| N 912004014100 | LOCK WASHER | |
| SPARE WHEEL TO BRACKET | ||
| N 912004014100 | LOCK WASHER | |
| SPARE WHEEL TO BRACKET | ||
| N 000934014019 | NUT | |
| Repalced by: N 308673014001 | ||
| N 308673014001 | NUT | |
| SPARE WHEEL TO BRACKET | ||

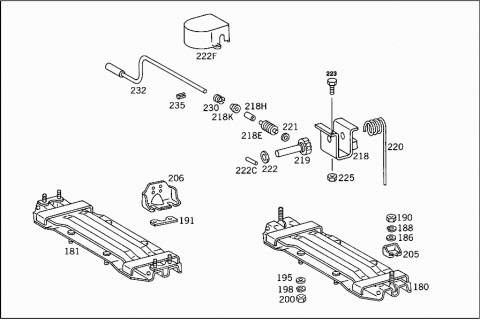

| 180 | A 3874001139 | BRACKET |
| Repalced by: A 3874001739 | ||
| 180 | A 3874001739 | BRACKET |
| SPARE WHEEL CARRIER | ||
| A 3874001939 | BRACKET | |
| Repalced by: A 3874004039 | ||
| 181 | A 3874004039 | BRACKET |
| SPARE WHEEL CARRIER | ||
| A 3634030074 | PIN | |
| SPARE WHEEL CARRIER | ||
| A 3874030074 | PIN | |
| SPARE WHEEL CARRIER | ||
| N 000444016323 | EYEBOLT | |
| SPARE WHEEL CARRIER TO FRAME | ||
| N 000444016104 | EYEBOLT | |
| SPARE WHEEL CARRIER TO FRAME | ||
| A 3859900023 | SCREW | |
| Repalced by: A 6519900023 | ||
| A 6519900023 | SCREW | |
| SPARE WHEEL CARRIER TO FRAME | ||
| 186 | N 007349017002 | WASHER |
| SPARE WHEEL CARRIER TO FRAME | ||
| 188 | N 912004016101 | LOCK WASHER |
| SPARE WHEEL CARRIER TO FRAME | ||
| 188 | N 912004016101 | LOCK WASHER |
| SPARE WHEEL CARRIER TO FRAME | ||
| 190 | N 000934016012 | NUT |
| SPARE WHEEL CARRIER TO FRAME | ||
| 190 | N 000934016012 | NUT |
| SPARE WHEEL CARRIER TO FRAME | ||
| N 000934016011 | NUT | |
| Repalced by: N 308673016001 | ||
| N 308673016001 | NUT | |
| SPARE WHEEL CARRIER TO FRAME | ||
| N 000433017004 | WASHER | |
| SPARE WHEEL CARRIER TO FRAME | ||
| 191 | A 3874030319 | BASE BLOCK |
| SPARE WHEEL CARRIER TO FRAME | ||
| N 000094004023 | COTTER PIN | |
| SPARE WHEEL CARRIER TO FRAME | ||
| N 000094004023 | COTTER PIN | |
| SPARE WHEEL CARRIER TO FRAME | ||
| N 007346004016 | CLAMPING SLEEVE | |
| SPARE WHEEL CARRIER TO FRAME | ||
| 195 | N 007349017002 | WASHER |
| SUPPORT TO SPARE WHEEL CARRIER | ||
| 195 | N 007349019002 | WASHER |
| SUPPORT TO SPARE WHEEL CARRIER | ||
| N 007349021001 | WASHER | |
| SUPPORT TO SPARE WHEEL CARRIER | ||
| 198 | N 912004016101 | LOCK WASHER |
| SUPPORT TO SPARE WHEEL CARRIER | ||
| 198 | N 912004018101 | LOCK WASHER |
| SUPPORT TO SPARE WHEEL CARRIER | ||
| 198 | N 912004020100 | LOCK WASHER |
| SUPPORT TO SPARE WHEEL CARRIER | ||
| 200 | N 000934016011 | NUT |
| Repalced by: N 308673016001 | ||
| 200 | N 308673016001 | NUT |
| SUPPORT TO SPARE WHEEL CARRIER | ||
| 200 | N 000934018006 | NUT |
| SUPPORT TO SPARE WHEEL CARRIER | ||
| 200 | N 000934020008 | NUT |
| Repalced by: N 308673020002 | ||
| 200 | N 308673020002 | NUT |
| Repalced by: N 308674020000 | ||
| 200 | N 308674020000 | NUT |
| SUPPORT TO SPARE WHEEL CARRIER | ||
| 205 | A 3874030001 | SUPPORT |
| SEE GROUP: | ||
| 31 | ||
| 206 | A 3874030701 | SUPPORT |
| SEE GROUP: | ||
| 31 | ||
| A 3834000139 | SPARE WHEEL HOIST | |
| Repalced by: A 3834000639 | ||
| 218 | A 3834000039 | BRACKET |
| Repalced by: A 3834000639 | ||
| 218 | A 3834000739 | BRACKET |
| Repalced by: A 3834000639 | ||
| 218 | A 3834000639 | SPARE WHEEL HOIST |
| 218E | A 3814030185 | WORM |
| Repalced by: A 6204030085 | ||
| 218E | A 6204030085 | WORM |
| 218H | A 3814030250 | BUSHING |
| 218K | N 001481006027 | CLAMPING SLEEVE |
| 219 | A 3834030183 | STOP GEAR |
| Repalced by: A 6204030383 | ||
| 219 | A 6204030383 | STOP GEAR |
| A 3814030036 | CABLE | |
| Repalced by: N 083331008500 | ||
| 220 | N 083331008500 | WIRE CABLE |
| Repalced by: N 083334008000 | ||
| 220 | N 083334008000 | WIRE CABLE |
| 2700 MM | ||
| 221 | A 3149900440 | WASHER |
| WORM AND SHAFT TO BRACKET | ||
| 222 | A 3819900140 | WASHER |
| WORM AND SHAFT TO BRACKET | ||
| 222C | N 001481008038 | CLAMPING SLEEVE |
| Repalced by: N 308752008000 | ||
| 222C | N 308752008000 | CLAMPING PIN |
| WORM AND SHAFT TO BRACKET | ||
| N 002093031201 | DISC SPRING | |
| WORM AND SHAFT TO BRACKET | ||
| 222F | A 3854000020 | COVERING |
| PROTECTION PLATE TO BRACKET | ||
| N 000933006130 | SCREW | |
| PROTECTION PLATE TO BRACKET | ||
| N 009021006205 | WASHER | |
| Repalced by: N 009021006208 | ||
| N 009021006208 | WASHER | |
| PROTECTION PLATE TO BRACKET | ||
| N 913004006002 | NUT | |
| Repalced by: N 913004006001 | ||
| N 913004006001 | NUT | |
| PROTECTION PLATE TO BRACKET | ||
| 223 | N 000933010128 | SCREW |
| SPARE WHEEL HOIST TO CROSS MEMBER | ||
| 225 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 225 | N 910113010000 | NUT |
| SPARE WHEEL HOIST TO CROSS MEMBER | ||
| 230 | A 3834030050 | BUSHING |
| SPARE WHEEL HOIST TO CROSS MEMBER | ||
| 232 | A 3814000045 | CRANK |
| Repalced by: A 3814030045 | ||
| 232 | A 3814030045 | CRANK |
| SPARE WHEEL HOIST TO CROSS MEMBER | ||
| 235 | N 001481006027 | CLAMPING SLEEVE |
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
