Transporto priemonė: 1635 LS; VIN numerio dalis: 645573

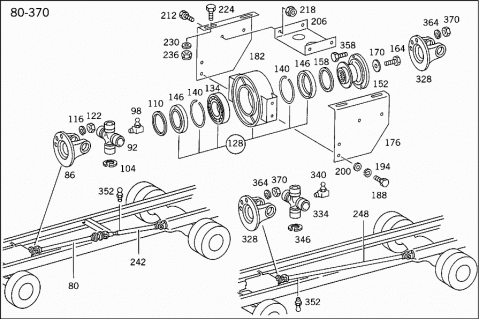

Grupė: 41 PROPELLER SHAFT

#	Kodas	Pavadinimas
080	A 3954101104	PROPELLER SHAFT
		FROM TRANSMISSION TO INTERMEDIATE BEARING
		1503 MM
086	A 3954110811	DRIVE FLANGE
092	A 6204100031	UNIVERSAL JOINT CROSS
	Repalced by: A 9404100031
092	A 9404100031	UNIVERSAL JOINT CROSS
		WITH BUSHINGS
098	N 071412008302	GREASE NIPPLE
104	A 0069943141	LOCK
		AS REQUIRED
		2.00 MM
104	A 0069943541	LOCK
		AS REQUIRED
		2.10 MM
104	A 0069943941	LOCK
		AS REQUIRED
		2.20 MM
110	A 3894130061	PROTECTIVE CAP
110	A 3954130061	PROTECTIVE CAP
116	N 912004016101	LOCK WASHER
		PROPELLER SHAFT TO TRANSMISSION
122	N 000934016013	NUT
	Repalced by: N 308673016001
122	N 308673016001	NUT
		PROPELLER SHAFT TO TRANSMISSION
128	A 3954100022	INTERMEDIATE BEARING
	Repalced by: A 3954100622
128	A 3954100622	INTERMEDIATE BEARING
	Repalced by: A 6554100022
128	A 6554100022	INTERMEDIATE BEARING
		PROPELLER SHAFT
134	A 0029819225	BALL BEARING
134	A 0029819325	BALL BEARING
140	N 912009110200	SNAP RING
146	A 3874130261	PROTECTIVE CAP
	A 6554110052	SPACER WASHER
		PROPELLER SHAFT BEARING
152	A 3954100130	CENTERING FLANGE
	Repalced by: A 3874110446
152	A 3874110446	FLANGE
		PROPELLER SHAFT BEARING
158	A 3894130061	PROTECTIVE CAP
158	A 3954130061	PROTECTIVE CAP
164	A 3899900019	SCREW
		FOLLOWER FLANGE TO PROPELLER SHAFT
170	A 3894110062	THRUST WASHER
		FOLLOWER FLANGE TO PROPELLER SHAFT
176	A 6204138342	BRACKET
		PROPELLER SHAFT BEARING,LEFT
182	A 6204138242	BRACKET
		PROPELLER SHAFT BEARING,RIGHT
188	N 000961012106	SCREW
		BRACKET TO PROPELLER SHAFT BEARING HOUSING
194	N 912004012100	LOCK WASHER
		BRACKET TO PROPELLER SHAFT BEARING HOUSING
200	A 3299900040	WASHER
	Repalced by: A 1232420366
200	A 1232420366	WASHER
		BRACKET TO PROPELLER SHAFT BEARING HOUSING
206	A 3954130011	REINFORCEMENT
		PROPELLER SHAFT BEARING
212	N 000961012106	SCREW
		REINFORCEMENT TO BRACKET
218	N 913004012009	NUT
	Repalced by: N 910113012003
218	N 910113012003	NUT
		REINFORCEMENT TO BRACKET
224	N 000961012108	SCREW
		BRACKET TO CROSS MEMBER
230	A 3299900040	WASHER
	Repalced by: A 1232420366
230	A 1232420366	WASHER
		BRACKET TO CROSS MEMBER
236	N 913004012009	NUT
	Repalced by: N 910113012003
236	N 910113012003	NUT
		BRACKET TO CROSS MEMBER
242	A 6204100302	PROPELLER SHAFT
		FROM INTERMEDIATE BEARING TO REAR AXLE
		1537 MM
248	A 6204100402	PROPELLER SHAFT
		FROM TRANSMISSION TO REAR AXLE
		1798 MM
248	A 3954103102	PROPELLER SHAFT
		FROM TRANSMISSION TO REAR AXLE
		2105 MM
248	A 3954101802	PROPELLER SHAFT
		FROM TRANSMISSION TO REAR AXLE
		1998 MM
328	A 3954110811	DRIVE FLANGE
334	A 6204100031	UNIVERSAL JOINT CROSS
	Repalced by: A 9404100031
334	A 9404100031	UNIVERSAL JOINT CROSS
		WITH BUSHINGS
340	N 071412008302	GREASE NIPPLE
346	A 0069943141	LOCK
		AS REQUIRED
		2.00 MM
346	A 0069943541	LOCK
		AS REQUIRED
		2.10 MM
346	A 0069943941	LOCK
		AS REQUIRED
		2.20 MM
	A 3954110059	SEAL RING
		PROTECTIVE TUBE
		105X17 MM
	A 0004110159	SEAL RING
		PROTECTIVE TUBE
		102.5X22 MM
352	N 071412008101	GREASE NIPPLE
	Repalced by: N 071412008102
352	N 071412008102	GREASE NIPPLE
358	A 0029909901	SCREW
	Repalced by: A 3959900501
358	A 3959900501	SCREW
		PROPELLER SHAFT TO PROPELLER SHAFT BEARING AND TO REAR AXLE
358	A 3959900501	SCREW
		PROPELLER SHAFT TO REAR AXLE
364	N 912004016101	LOCK WASHER
		PROPELLER SHAFT TO PROPELLER SHAFT BEARING AND TO REAR AXLE
364	N 912004016101	LOCK WASHER
		PROPELLER SHAFT TO TRANSMISSION AND TO REAR AXLE
370	N 000934016013	NUT
	Repalced by: N 308673016001
370	N 308673016001	NUT
		PROPELLER SHAFT TO PROPELLER SHAFT BEARING AND TO REAR AXLE
370	N 308673016001	NUT
		PROPELLER SHAFT TO TRANSMISSION AND TO REAR AXLE
