Transporto priemonė: 1635 S; VIN numerio dalis: 645172
Grupė: 49 EXHAUST SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 008 | A 6214900065 | FLEXIBLE METAL TUBE |
| FRONT LEFT AND RIGHT | ||
| 016 | A 6214920008 | COLLAR |
| FRONT LEFT AND RIGHT | ||
| 024 | A 6219970090 | CLAMP |
| FLEXIBLE METAL TUBE TO THROTTLE HOUSING AND TO COLLAR | ||
| 032 | N 000933008161 | SCREW |
| Repalced by: N 304017008028 | ||
| 032 | N 304017008028 | SCREW |
| FLEXIBLE METAL TUBE TO THROTTLE HOUSING AND TO COLLAR | ||
| 040 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 040 | N 913004008001 | NUT |
| FLEXIBLE METAL TUBE TO THROTTLE HOUSING AND TO COLLAR | ||
| 048 | A 6454900219 | EXHAUST PIPE |
| FRONT,REAR LEFT PART | ||
| 048 | A 6454900819 | EXHAUST PIPE |
| FRONT,REAR LEFT PART | ||
| 048 | A 6454901019 | EXHAUST PIPE |
| FRONT,REAR LEFT PART | ||
| 056 | A 6454900319 | EXHAUST PIPE |
| FRONT,REAR RIGHT PART | ||
| 056 | A 6454900919 | EXHAUST PIPE |
| FRONT,REAR RIGHT PART | ||
| 056 | A 6454901119 | EXHAUST PIPE |
| FRONT,REAR RIGHT PART | ||
| 064 | A 6254920040 | CLAMP |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 069 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 069 | N 304017010002 | SCREW |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 074 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 074 | N 910113010000 | NUT |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 079 | N 071555104501 | CLAMP |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 079 | N 071555094501 | CLAMP |
| Repalced by: N 071555094502 | ||
| 079 | N 071555094502 | CLAMP |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 084 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 084 | N 304017010002 | SCREW |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 084 | N 000933008150 | SCREW |
| Repalced by: N 304017008018 | ||
| 084 | N 304017008018 | SCREW |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 089 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 089 | N 910113010000 | NUT |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 089 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 089 | N 913004008001 | NUT |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 094 | A 6204923441 | BRACKET |
| LEFT EXHAUST PIPE | ||
| 094 | A 6204923541 | BRACKET |
| RIGHT EXHAUST PIPE | ||
| 099 | N 000933010145 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M 10X35 | ||
| 104 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 104 | N 910113010000 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 109 | A 6454900001 | EXHAUST MUFFLER |
| FRONT | ||
| 114 | A 6204900034 | SUPPORT |
| EXHAUST MUFFLER,FRONT | ||
| 119 | A 6204910030 | PROTECTIVE PLATE |
| EXHAUST MUFFLER,FRONT | ||
| 124 | N 000961014050 | SCREW |
| Repalced by: N 308676014020 | ||
| 124 | N 308676014020 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 14X35 | ||
| 124 | N 000961014028 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 14X40 | ||
| 129 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 129 | N 910113014001 | NUT |
| SUPPORT TO SIDE MEMBER | ||
| 134 | A 3814920082 | DAMPING PAD |
| MUFFLER BRACKET TO FRAME | ||
| 139 | A 6204910141 | BRACKET |
| EXHAUST MUFFLER,FRONT | ||
| 144 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 144 | N 304017008021 | SCREW |
| BRACKET AND PROTECTIVE PLATE TO SUPPORT | ||
| 149 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 149 | N 000125008443 | WASHER |
| BRACKET AND PROTECTIVE PLATE TO SUPPORT | ||
| 154 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 154 | N 913004008001 | NUT |
| BRACKET AND PROTECTIVE PLATE TO SUPPORT | ||
| 159 | A 6204900051 | SUPPORT |
| EXHAUST MUFFLER,FRONT | ||
| 164 | N 000933008119 | SCREW |
| Repalced by: N 304017008042 | ||
| 164 | N 304017008042 | SCREW |
| EXHAUST MUFFLER TO SUPPORT | ||
| 169 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 169 | N 000125008443 | WASHER |
| EXHAUST MUFFLER TO SUPPORT | ||
| 174 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 174 | N 913004008001 | NUT |
| EXHAUST MUFFLER TO SUPPORT | ||

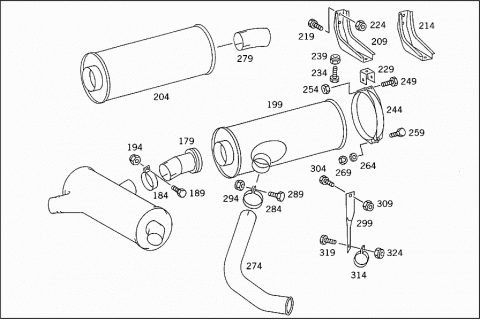

| 179 | A 6454900121 | EXHAUST PIPE |
| FROM FRONT MUFFLER TO REAR MUFFLER | ||
| A 0001425457 | SEAL RING | |
| 184 | A 6454920440 | CLAMP |
| EXHAUST PIPE TO FRONT EXHAUST MUFFLER | ||
| 189 | N 000933010105 | SCREW |
| EXHAUST PIPE TO FRONT EXHAUST MUFFLER | ||
| 194 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 194 | N 910113010000 | NUT |
| EXHAUST PIPE TO FRONT EXHAUST MUFFLER | ||
| 199 | A 6454900201 | EXHAUST MUFFLER |
| REAR | ||
| 204 | A 6454900301 | EXHAUST MUFFLER |
| REAR | ||
| 209 | A 6204910115 | CONSOLE |
| EXHAUST MUFFLER TO SIDE MEMBER | ||
| 209 | A 6204910515 | CONSOLE |
| EXHAUST MUFFLER TO SIDE MEMBER | ||
| 214 | A 6204910315 | CONSOLE |
| EXHAUST MUFFLER TO CROSS MEMBER | ||
| 214 | A 6204910615 | CONSOLE |
| EXHAUST MUFFLER TO CROSS MEMBER | ||
| 219 | N 000961012097 | SCREW |
| Repalced by: N 308676012026 | ||
| 219 | N 308676012026 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| 219 | N 308676012026 | SCREW |
| CONSOLE TO STRUT | ||
| 224 | N 910113012002 | NUT |
| CONSOLE TO SIDE MEMBER | ||
| 224 | N 910113012002 | NUT |
| CONSOLE TO STRUT | ||
| 229 | A 6204910341 | BRACKET |
| STRAP TO FRONT AND REAR CONSOLES | ||
| 229 | A 6204910341 | BRACKET |
| STRAP TO FRONT CONSOLE | ||
| 229 | A 6204910541 | BRACKET |
| STRAP TO REAR CONSOLE | ||
| 234 | N 000933010128 | SCREW |
| BRACKET TO CONSOLE | ||
| 239 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 239 | N 910113010000 | NUT |
| BRACKET TO CONSOLE | ||
| 244 | A 6204900441 | STRAP |
| EXHAUST MUFFLER TO FRONT BRACKET | ||
| 249 | N 000931010271 | SCREW |
| STRAP TO BRACKET | ||
| 254 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 254 | N 910113010000 | NUT |
| STRAP TO BRACKET | ||
| 259 | N 000933008151 | SCREW |
| EXHAUST MUFFLER TO STRAP | ||
| 264 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 264 | N 000125008443 | WASHER |
| EXHAUST MUFFLER TO STRAP | ||
| 269 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 269 | N 913004008001 | NUT |
| EXHAUST MUFFLER TO STRAP | ||
| 274 | A 6454920404 | REAR EXHAUST PIPE |
| 279 | A 6454920504 | REAR EXHAUST PIPE |
| 284 | A 6454920940 | CLAMP |
| Repalced by: N 071555120502 | ||
| 284 | N 071555120500 | CLAMP |
| Repalced by: N 071555120502 | ||
| 284 | N 071555120502 | CLAMP |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 289 | N 000933010145 | SCREW |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 294 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 294 | N 910113010000 | NUT |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 299 | A 6454920041 | BRACKET |
| Repalced by: A 6554920441 | ||
| 299 | A 6554920441 | BRACKET |
| REAR EXHAUST PIPE | ||
| 304 | N 000961014050 | SCREW |
| Repalced by: N 308676014020 | ||
| 304 | N 308676014020 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 309 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 309 | N 910113014001 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 314 | N 071555120502 | CLAMP |
| REAR EXHAUST PIPE TO BRACKET | ||
| 319 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 319 | N 304017010002 | SCREW |
| REAR EXHAUST PIPE TO BRACKET | ||
| 324 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 324 | N 910113010000 | NUT |
| REAR EXHAUST PIPE TO BRACKET | ||

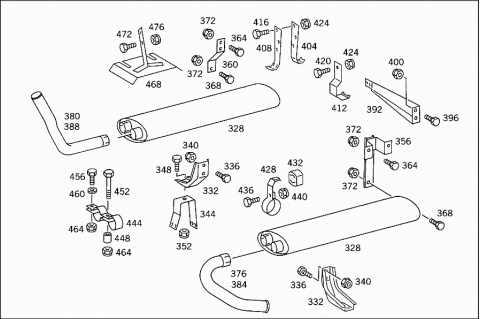

| 328 | A 6454900701 | EXHAUST MUFFLER |
| 332 | A 6204910315 | CONSOLE |
| EXHAUST MUFFLER,FRONT | ||
| 332 | A 6204910615 | CONSOLE |
| EXHAUST MUFFLER,FRONT | ||
| 336 | N 000961012097 | SCREW |
| Repalced by: N 308676012026 | ||
| 336 | N 308676012026 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| A 3099901040 | WASHER | |
| CONSOLE TO SIDE MEMBER | ||
| 340 | N 910113012002 | NUT |
| CONSOLE TO EXHAUST MUFFLER | ||
| 344 | A 6454910341 | BRACKET |
| FRONT LEFT AND RIGHT | ||
| 348 | N 000933010105 | SCREW |
| BRACKET TO CONSOLE | ||
| 352 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 352 | N 910113010000 | NUT |
| BRACKET TO CONSOLE | ||
| 356 | A 6214900140 | BRACKET |
| Repalced by: A 6554902640 | ||
| 356 | A 6554902640 | BRACKET |
| EXHAUST MUFFLER,LEFT REAR | ||
| 360 | A 6454910241 | BRACKET |
| EXHAUST MUFFLER,RIGHT REAR | ||
| 364 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 364 | N 304017010002 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 368 | N 000933010128 | SCREW |
| EXHAUST MUFFLER TO BRACKET | ||
| M 10X20 | ||
| 368 | N 000933010105 | SCREW |
| BRACKET TO EXHAUST PIPE BRACKET | ||
| M 10X25 | ||
| 372 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 372 | N 910113010000 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 372 | N 910113010000 | NUT |
| EXHAUST MUFFLER TO BRACKET | ||
| 376 | A 6454921704 | REAR EXHAUST PIPE |
| SHORT;EXHAUST MUFFLER,LEFT | ||
| 380 | A 6454921804 | REAR EXHAUST PIPE |
| LONG;EXHAUST MUFFLER,RIGHT | ||
| 384 | A 6454921604 | REAR EXHAUST PIPE |
| Repalced by: A 6554926405 | ||
| 384 | A 6554926405 | REAR EXHAUST PIPE |
| SHORT;EXHAUST MUFFLER,RIGHT | ||
| 388 | A 6454921904 | REAR EXHAUST PIPE |
| LONG;EXHAUST MUFFLER,LEFT | ||
| N 071555004501 | CLAMP | |
| EXHAUST PIPE TO MUFFLER AND TO BRACKET | ||
| N 000933008150 | SCREW | |
| Repalced by: N 304017008018 | ||
| N 304017008018 | SCREW | |
| EXHAUST PIPE TO MUFFLER AND TO BRACKET | ||
| N 913004008004 | NUT | |
| Repalced by: N 913004008001 | ||
| N 913004008001 | NUT | |
| EXHAUST PIPE TO MUFFLER AND TO BRACKET | ||
| 392 | A 6214920016 | SUPPORT |
| REAR EXHAUST PIPES | ||
| 396 | N 000961014118 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| N 000125015013 | WASHER | |
| Repalced by: N 000125015019 | ||
| N 000125015019 | WASHER | |
| SUPPORT TO SIDE MEMBER | ||
| 400 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 400 | N 910113014001 | NUT |
| SUPPORT TO SIDE MEMBER | ||
| 404 | A 6214920341 | BRACKET |
| REAR EXHAUST PIPES | ||
| 408 | A 6214920441 | BRACKET |
| REAR EXHAUST PIPES | ||
| 412 | A 6454920541 | BRACKET |
| REAR EXHAUST PIPES | ||
| 416 | N 000933008150 | SCREW |
| Repalced by: N 304017008018 | ||
| 416 | N 304017008018 | SCREW |
| BRACKET TO APPARATUS SUPPORT | ||
| 420 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 420 | N 304017008021 | SCREW |
| BRACKET TO SUPPORT | ||
| 424 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 424 | N 913004008001 | NUT |
| BRACKET TO APPARATUS SUPPORT | ||
| 424 | N 913004008001 | NUT |
| BRACKET TO SUPPORT | ||
| 428 | A 6164922841 | BRACKET |
| REAR EXHAUST PIPE TO DAMPING PAD | ||
| 428 | A 6174923641 | BRACKET |
| REAR EXHAUST PIPE TO DAMPING PAD | ||
| 432 | A 3814920082 | DAMPING PAD |
| TAIL PIPE TO BRACKET | ||
| 432 | A 3814920082 | DAMPING PAD |
| TAIL PIPE TO BRACKET | ||
| 436 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 436 | N 304017010002 | SCREW |
| BRACKET TO EXHAUST PIPE | ||
| 436 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 436 | N 304017008027 | SCREW |
| BRACKET TO EXHAUST PIPE | ||
| 440 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 440 | N 910113010000 | NUT |
| BRACKET TO EXHAUST PIPE | ||
| 440 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 440 | N 913004008001 | NUT |
| BRACKET TO EXHAUST PIPE | ||
| 444 | A 6474920040 | CLAMP |
| EXHAUST PIPE TO EXHAUST PIPE | ||
| 448 | A 3140720253 | SPACER TUBE |
| EXHAUST PIPE TO EXHAUST PIPE | ||
| 452 | N 000931010274 | SCREW |
| Repalced by: N 304014010004 | ||
| 452 | N 304014010004 | SCREW |
| EXHAUST PIPE TO EXHAUST PIPE | ||
| 456 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 456 | N 304017010002 | SCREW |
| EXHAUST PIPE TO EXHAUST PIPE | ||
| 460 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 460 | N 000125010532 | WASHER |
| EXHAUST PIPE TO EXHAUST PIPE | ||
| 464 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 464 | N 910113010000 | NUT |
| EXHAUST PIPE TO EXHAUST PIPE | ||
| N 000933008147 | SCREW | |
| Repalced by: N 304017008021 | ||
| N 304017008021 | SCREW | |
| BRACKET TO BRACKET | ||
| N 913004008004 | NUT | |
| Repalced by: N 913004008001 | ||
| N 913004008001 | NUT | |
| BRACKET TO BRACKET | ||
| 468 | A 6214900030 | PROTECTIVE PLATE |
| TAIL PIPES | ||
| 472 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 472 | N 304017008021 | SCREW |
| PROTECTIVE PLATE TO BRACKET | ||
| 476 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 476 | N 913004008001 | NUT |
| PROTECTIVE PLATE TO BRACKET | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
