Transporto priemonė: 1638 S; VIN numerio dalis: 620183

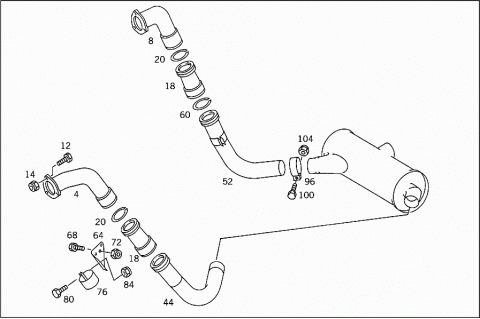

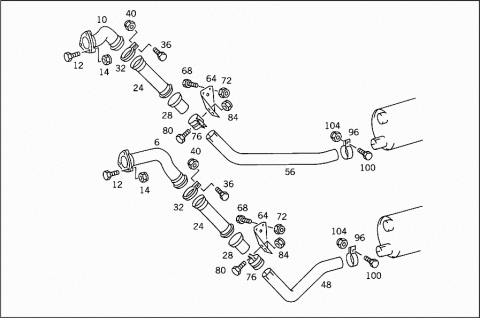

Grupė: 49 EXHAUST SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 004 | A 6204902325 | CONNECTOR |
| LEFT FRONT | ||
| 004 | A 6204902625 | CONNECTOR |
| LEFT FRONT | ||
| 004 | A 6204900225 | CONNECTOR |
| LEFT FRONT | ||
| 004 | A 6204901925 | CONNECTOR |
| LEFT FRONT | ||
| 004 | A 6204902425 | CONNECTOR |
| LEFT FRONT | ||
| 006 | A 6214900925 | CONNECTOR |
| LEFT FRONT | ||
| 008 | A 6204902025 | CONNECTOR |
| RIGHT FRONT | ||
| 008 | A 6204902725 | CONNECTOR |
| RIGHT FRONT | ||
| 008 | A 6204900325 | CONNECTOR |
| RIGHT FRONT | ||
| 008 | A 6204901825 | CONNECTOR |
| RIGHT FRONT | ||
| 008 | A 6204902525 | CONNECTOR |
| RIGHT FRONT | ||
| 010 | A 6214900825 | CONNECTOR |
| RIGHT FRONT | ||
| 012 | N 000931012254 | SCREW |
| Repalced by: N 000931012186 | ||
| 012 | N 000931012186 | SCREW |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| M 12X70 | ||
| N 000931012179 | SCREW | |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| M 12X65 | ||
| 012 | N 000931012132 | SCREW |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| M 12X50 | ||
| N 000931012114 | SCREW | |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| M 12X45 | ||
| 014 | N 913004012010 | NUT |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 018 | A 6204900625 | CONNECTOR |
| FRONT EXHAUST PIPE FRONT PART TO REAR PART | ||
| 020 | A 0001424257 | SEAL RING |
| 024 | A 6204900365 | FLEXIBLE METAL TUBE |
| FRONT EXHAUST PIPE FRONT PART TO REAR PART | ||
| 024 | A 6204900465 | FLEXIBLE METAL TUBE |
| FRONT EXHAUST PIPE FRONT PART TO REAR PART | ||
| 028 | A 6174920008 | COLLAR |
| FRONT EXHAUST PIPE FRONT PART TO REAR PART | ||
| 028 | A 6204920208 | COLLAR |
| FRONT EXHAUST PIPE FRONT PART TO REAR PART | ||
| 032 | A 6209970490 | CLAMP |
| EXHAUST LINE FLEXIBLE METAL TUBE | ||
| 032 | A 6209970590 | CLAMP |
| EXHAUST LINE FLEXIBLE METAL TUBE | ||
| 036 | N 000933008161 | SCREW |
| Repalced by: N 304017008028 | ||
| 036 | N 304017008028 | SCREW |
| CLAMP TO CONNECTOR | ||
| 036 | N 304017008028 | SCREW |
| CLAMP TO CONNECTOR | ||
| 040 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 040 | N 913004008001 | NUT |
| CLAMP TO CONNECTOR | ||
| 040 | N 913004008001 | NUT |
| CLAMP TO CONNECTOR | ||
| 044 | A 6204900219 | EXHAUST PIPE |
| FRONT,REAR LEFT PART | ||
| 044 | A 6244901119 | EXHAUST PIPE |
| FRONT,REAR LEFT PART | ||
| 044 | A 6244900719 | EXHAUST PIPE |
| FRONT,REAR LEFT PART | ||
| 048 | A 6204903019 | EXHAUST PIPE |
| FRONT,REAR LEFT PART | ||
| 052 | A 6204900319 | EXHAUST PIPE |
| FRONT,REAR RIGHT PART | ||
| 052 | A 6244901219 | EXHAUST PIPE |
| FRONT,REAR RIGHT PART | ||
| 052 | A 6244900819 | EXHAUST PIPE |
| FRONT,REAR RIGHT PART | ||
| 056 | A 6204903119 | EXHAUST PIPE |
| FRONT,REAR RIGHT PART | ||
| 060 | A 0001424257 | SEAL RING |
| 064 | A 6234920241 | BRACKET |
| LEFT EXHAUST PIPE | ||
| 064 | A 6234920341 | BRACKET |
| RIGHT EXHAUST PIPE | ||
| 064 | A 6204923441 | BRACKET |
| LEFT EXHAUST PIPE | ||
| 064 | A 6204923441 | BRACKET |
| LEFT EXHAUST PIPE | ||
| 064 | A 6204923541 | BRACKET |
| RIGHT EXHAUST PIPE | ||
| 064 | A 6204923541 | BRACKET |
| RIGHT EXHAUST PIPE | ||
| 068 | N 000933010145 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M 10X35 | ||
| 072 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 072 | N 910113010000 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 076 | A 6234920140 | CLAMP |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 076 | A 6204920840 | CLAMP |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 076 | A 6204920940 | CLAMP |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 080 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 080 | N 304017008027 | SCREW |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 080 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 080 | N 304017010002 | SCREW |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 080 | N 304017010002 | SCREW |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 084 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 084 | N 913004008001 | NUT |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 084 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 084 | N 910113010000 | NUT |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 084 | N 910113010000 | NUT |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 088 | A 6204900001 | EXHAUST MUFFLER |
| LEFT AND RIGHT | ||
| 092 | A 6204900701 | EXHAUST MUFFLER |
| FRONT | ||
| 096 | N 071555078502 | CLAMP |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 096 | N 071555094501 | CLAMP |
| Repalced by: N 071555094502 | ||
| 096 | N 071555094502 | CLAMP |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 100 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 100 | N 304017008027 | SCREW |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 100 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 100 | N 304017010002 | SCREW |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 104 | N 910113008001 | NUT |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 104 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 104 | N 910113010000 | NUT |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 108 | A 6204900034 | SUPPORT |
| FRONT EXHAUST MUFFLER | ||
| 108 | A 6204900334 | SUPPORT |
| EXHAUST MUFFLER,LEFT | ||
| 108 | A 6204900434 | SUPPORT |
| EXHAUST MUFFLER,RIGHT | ||
| 112 | N 000961014050 | SCREW |
| Repalced by: N 308676014020 | ||
| 112 | N 308676014020 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 14X35 | ||
| 112 | N 000961014028 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 14X40 | ||
| 116 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 116 | N 910113014001 | NUT |
| SUPPORT TO SIDE MEMBER | ||
| 120 | A 6204910141 | BRACKET |
| FRONT EXHAUST MUFFLER | ||
| 124 | A 3814920082 | DAMPING PAD |
| BRACKET TO SUPPORT | ||
| 128 | A 6204910030 | PROTECTIVE PLATE |
| FRONT EXHAUST MUFFLER | ||
| 132 | A 6204920118 | BASE PLATE |
| SUPPORT AND PROTECTIVE PLATE TO BRACKET | ||
| 136 | A 6204900051 | SUPPORT |
| FRONT EXHAUST MUFFLER | ||
| 140 | N 000933008160 | SCREW |
| Repalced by: N 304017008040 | ||
| 140 | N 304017008040 | SCREW |
| Repalced by: N 910105008010 | ||
| 140 | N 910105008010 | SCREW |
| Repalced by: N 910143008005 | ||
| 140 | N 910143008005 | SCREW |
| SUPPORT AND PROTECTIVE PLATE TO BRACKET | ||
| 140 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 140 | N 304017008021 | SCREW |
| SUPPORT AND PROTECTIVE PLATE TO BRACKET | ||
| 140 | N 304017008021 | SCREW |
| SUPPORT AND PROTECTIVE PLATE TO BRACKET | ||
| 144 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 144 | N 000125008443 | WASHER |
| SUPPORT AND PROTECTIVE PLATE TO BRACKET | ||
| 148 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 148 | N 913004008001 | NUT |
| SUPPORT AND PROTECTIVE PLATE TO BRACKET | ||
| 152 | N 000933008119 | SCREW |
| Repalced by: N 304017008042 | ||
| 152 | N 304017008042 | SCREW |
| EXHAUST MUFFLER TO SUPPORT | ||
| 156 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 156 | N 000125008443 | WASHER |
| EXHAUST MUFFLER TO SUPPORT | ||
| 160 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 160 | N 913004008001 | NUT |
| EXHAUST MUFFLER TO SUPPORT | ||
| 164 | A 6204900021 | EXHAUST PIPE |
| FROM FRONT MUFFLER TO REAR MUFFLER | ||
| 168 | A 0001424457 | SEAL RING |
| 172 | N 071555110501 | CLAMP |
| EXHAUST PIPE TO FRONT EXHAUST MUFFLER | ||
| 176 | N 000933010105 | SCREW |
| EXHAUST PIPE TO FRONT EXHAUST MUFFLER | ||
| 180 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 180 | N 910113010000 | NUT |
| EXHAUST PIPE TO FRONT EXHAUST MUFFLER | ||
| A 6234900001 | EXHAUST MUFFLER | |
| Repalced by: A 6204900501 | ||
| 184 | A 6204900501 | EXHAUST MUFFLER |
| REAR | ||
| 184 | A 6204900501 | EXHAUST MUFFLER |
| REAR | ||
| 184 | A 6204900501 | EXHAUST MUFFLER |
| REAR | ||
| 184 | A 6234900001 | EXHAUST MUFFLER |
| Repalced by: A 6234900101 | ||
| 184 | A 6234900101 | EXHAUST MUFFLER |
| REAR | ||
| 184 | A 6204900601 | EXHAUST MUFFLER |
| REAR | ||
| 188 | A 6204910115 | CONSOLE |
| REAR EXHAUST MUFFLER,FRONT | ||
| 188 | A 6204910515 | CONSOLE |
| REAR EXHAUST MUFFLER,FRONT | ||
| 192 | A 6204910315 | CONSOLE |
| REAR EXHAUST MUFFLER,REAR | ||
| 192 | A 6204910615 | CONSOLE |
| REAR EXHAUST MUFFLER,REAR | ||
| 196 | N 000961012097 | SCREW |
| Repalced by: N 308676012026 | ||
| 196 | N 308676012026 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 12X1,5X35 | ||
| 200 | N 910113012002 | NUT |
| CONSOLE TO SIDE MEMBER | ||
| M 12X1,5 | ||
| 204 | A 6214911341 | BRACKET |
| EXHAUST MUFFLER,LEFT AND RIGHT | ||
| 208 | A 6204910341 | BRACKET |
| REAR EXHAUST MUFFLER | ||
| 208 | A 6204910341 | BRACKET |
| REAR EXHAUST MUFFLER,FRONT | ||
| 212 | A 6204910541 | BRACKET |
| REAR EXHAUST MUFFLER,REAR | ||
| 216 | N 000961014028 | SCREW |
| BRACKET TO FRAME | ||
| 220 | N 000933010128 | SCREW |
| BRACKET TO CONSOLE | ||
| 224 | N 000125015013 | WASHER |
| Repalced by: N 000125015019 | ||
| 224 | N 000125015019 | WASHER |
| BRACKET TO FRAME | ||
| 228 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 228 | N 910113014001 | NUT |
| BRACKET TO FRAME | ||
| 232 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 232 | N 910113010000 | NUT |
| BRACKET TO CONSOLE | ||
| 236 | A 6214900042 | STRAP |
| Repalced by: A 6554900942 | ||
| 236 | A 6554900942 | STRAP |
| EXHAUST MUFFLER,LEFT AND RIGHT | ||
| 240 | A 6204900441 | STRAP |
| REAR EXHAUST MUFFLER | ||
| 244 | N 006319010302 | SPHERICAL WASHER |
| CLAMP TO BRACKET | ||
| 248 | N 000931010271 | SCREW |
| CLAMP TO BRACKET | ||
| 252 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 252 | N 910113010000 | NUT |
| CLAMP TO BRACKET | ||
| 256 | N 000933008151 | SCREW |
| CLAMP TO EXHAUST MUFFLER | ||
| 260 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 260 | N 000125008443 | WASHER |
| CLAMP TO EXHAUST MUFFLER | ||
| 264 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 264 | N 913004008001 | NUT |
| CLAMP TO EXHAUST MUFFLER | ||
| 268 | A 6214923404 | REAR EXHAUST PIPE |
| SHORT;EXHAUST MUFFLER,LEFT | ||
| 272 | A 6214923504 | REAR EXHAUST PIPE |
| LONG;EXHAUST MUFFLER,RIGHT | ||
| 276 | A 6204921204 | REAR EXHAUST PIPE |
| 280 | A 6214921004 | REAR EXHAUST PIPE |
| 288 | A 6204925104 | REAR EXHAUST PIPE |
| 288 | A 6204925104 | REAR EXHAUST PIPE |
| 288 | A 6204921304 | REAR EXHAUST PIPE |
| A 6204925104 | REAR EXHAUST PIPE | |
| Repalced by: A 6244920604 | ||
| 288 | A 6244920604 | REAR EXHAUST PIPE |
| 288 | A 6244920604 | REAR EXHAUST PIPE |
| 288 | A 6244920504 | REAR EXHAUST PIPE |
| 292 | N 071555075502 | CLAMP |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 296 | N 071555100500 | CLAMP |
| Repalced by: N 071555100501 | ||
| 296 | N 071555100501 | CLAMP |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 296 | N 071555100501 | CLAMP |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 296 | N 071555100501 | CLAMP |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 296 | N 071555104501 | CLAMP |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 296 | N 071555104501 | CLAMP |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 300 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 300 | N 304017008027 | SCREW |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 304 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 304 | N 304017010002 | SCREW |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 308 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 308 | N 913004008001 | NUT |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 312 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 312 | N 910113010000 | NUT |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 316 | A 6214921941 | BRACKET |
| REAR EXHAUST PIPE TO FRAME | ||
| 320 | N 000961012097 | SCREW |
| Repalced by: N 308676012026 | ||
| 320 | N 308676012026 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 324 | N 910113012002 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 328 | A 6214920341 | BRACKET |
| REAR EXHAUST PIPE | ||
| 332 | A 6214920441 | BRACKET |
| REAR EXHAUST PIPE | ||
| 336 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 336 | N 304017008034 | SCREW |
| BRACKET TO EXHAUST PIPE BRACKET | ||
| 340 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 340 | N 913004008001 | NUT |
| BRACKET TO EXHAUST PIPE BRACKET | ||
| 344 | A 3814920082 | DAMPING PAD |
| BRACKET TO EXHAUST PIPE BRACKET | ||
| 348 | A 6214921841 | BRACKET |
| BRACKET TO EXHAUST PIPE BRACKET | ||
| 352 | A 6204921241 | BRACKET |
| REAR EXHAUST PIPE | ||
| 356 | A 6214921741 | BRACKET |
| REAR EXHAUST PIPE | ||
| 356 | A 6244920841 | BRACKET |
| REAR EXHAUST PIPE | ||
| 356 | A 6244920841 | BRACKET |
| REAR EXHAUST PIPE | ||
| 360 | N 000933010105 | SCREW |
| BRACKET TO AIR CLEANER SUPPORT | ||
| 360 | N 000933010105 | SCREW |
| BRACKET TO AIR CLEANER SUPPORT | ||
| 360 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 360 | N 304017010002 | SCREW |
| BRACKET TO HYDRAULIC PUMP BRACKET | ||
| 360 | N 304017010002 | SCREW |
| REAR EXHAUST PIPE TO BRACKET | ||
| 364 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 364 | N 910113010000 | NUT |
| BRACKET TO AIR CLEANER SUPPORT | ||
| 364 | N 910113010000 | NUT |
| BRACKET TO AIR CLEANER SUPPORT | ||
| 364 | N 910113010000 | NUT |
| REAR EXHAUST PIPE TO BRACKET | ||
| 364 | N 910113010000 | NUT |
| BRACKET TO HYDRAULIC PUMP BRACKET | ||
| 368 | N 071555075502 | CLAMP |
| REAR EXHAUST PIPE TO BRACKET | ||
| 368 | N 071555100500 | CLAMP |
| Repalced by: N 071555100501 | ||
| 368 | N 071555100501 | CLAMP |
| REAR EXHAUST PIPE TO BRACKET | ||
| 368 | N 071555100501 | CLAMP |
| REAR EXHAUST PIPE TO BRACKET | ||
| 368 | N 071555100501 | CLAMP |
| REAR EXHAUST PIPE TO BRACKET | ||
| 372 | N 071555090501 | CLAMP |
| Repalced by: N 071555090502 | ||
| 372 | N 071555090502 | CLAMP |
| REAR EXHAUST PIPE TO BRACKET | ||
| 376 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 376 | N 304017008027 | SCREW |
| REAR EXHAUST PIPE TO BRACKET | ||
| 376 | N 304017008027 | SCREW |
| REAR EXHAUST PIPE TO BRACKET | ||
| 376 | N 304017008027 | SCREW |
| REAR EXHAUST PIPE TO BRACKET | ||
| 376 | N 304017008027 | SCREW |
| REAR EXHAUST PIPE TO BRACKET | ||
| 380 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 380 | N 913004008001 | NUT |
| REAR EXHAUST PIPE TO BRACKET | ||
| 380 | N 913004008001 | NUT |
| REAR EXHAUST PIPE TO BRACKET | ||
| 380 | N 913004008001 | NUT |
| REAR EXHAUST PIPE TO BRACKET | ||
| 380 | N 913004008001 | NUT |
| REAR EXHAUST PIPE TO BRACKET | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
