Transporto priemonė: 1638 S; VIN numerio dalis: 620183
Grupė: 50 RADIATOR
| # | Kodas | Pavadinimas |
|---|---|---|
| A 0005017401 | RADIATOR | |
| Repalced by: A 0005019001 | ||
| A 0005019001 | RADIATOR | |
| Repalced by: A 0015010201 | ||
| 002 | A 0015010201 | RADIATOR |
| Repalced by: A 0005001103 | ||
| 002 | A 0005001103 | RADIATOR |
| BEHR | ||
| 004 | A 0005015801 | RADIATOR |
| BEHR | ||
| A 0005017801 | RADIATOR | |
| Repalced by: A 0015010301 | ||
| 004 | A 0015010301 | RADIATOR |
| BEHR | ||
| 006 | A 0005000749 | TANK |
| ON RADIATOR | ||
| TO 000 501 74 01 | ||
| 006 | A 0005001149 | TANK |
| ON RADIATOR | ||
| TO 000 501 90 01,001 501 02 01 | ||
| 008 | A 0005000849 | TANK |
| ON RADIATOR | ||
| TO 000 501 58 01 | ||
| 008 | A 0005001049 | TANK |
| ON RADIATOR | ||
| TO 000 501 78 01,001 501 03 01 | ||
| 012 | A 0005013715 | RADIATOR CAP |
| LATERAL | ||
| 012 | A 0005017115 | RADIATOR CAP |
| LATERAL | ||
| 016 | A 0005014615 | RADIATOR CAP |
| FILLER NECK | ||
| 016 | A 0005017215 | RADIATOR CAP |
| FILLER NECK | ||
| 017 | A 0005010480 | GASKET |
| O.D., | ||
| 52 MM | ||
| 018 | A 0005010880 | GASKET |
| O.D., | ||
| 37 MM | ||
| 019 | A 0019973230 | SCREW PLUG |
| Repalced by: N 007604014101 | ||
| 019 | N 007604014101 | SCREW PLUG |
| WATER DRAIN | ||
| 020 | N 007603014405 | SEAL RING |
| WATER DRAIN | ||
| A 0139978082 | HOSE | |
| Repalced by: A 0149975782 | ||
| 021 | A 0149975782 | HOSE |
| OVERFLOW, EXPANSION TANK | ||
| A 0005040033 | CLAMP | |
| Repalced by: N 916017011000 | ||
| 024 | N 916017011000 | CLAMP |
| Repalced by: N 916017011001 | ||
| 024 | N 000000000665 | CLAMP |
| OVERFLOW, EXPANSION TANK | ||
| A 0019973230 | SCREW PLUG | |
| Repalced by: N 007604014101 | ||
| 028 | N 007604014101 | SCREW PLUG |
| WATER DRAIN | ||
| 032 | N 007603014405 | SEAL RING |
| WATER DRAIN | ||
| 036 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 036 | N 304017008016 | SCREW |
| FROM EXPANSION TANK TO RADIATOR | ||
| 037 | N 912004008102 | LOCK WASHER |
| FROM EXPANSION TANK TO RADIATOR | ||
| 038 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 038 | N 000125008443 | WASHER |
| FROM EXPANSION TANK TO RADIATOR | ||
| A 4220100040 | BRACKET | |
| Repalced by: A 4220100240 | ||
| 039 | A 4220100240 | BRACKET |
| OI DIPSTICK GUIDE TUBE | ||
| 040 | N 000933006102 | SCREW |
| OIL DIPSTICK BRACKET TO RADIATOR | ||
| 041 | N 000137006204 | SPRING WASHER |
| OIL DIPSTICK BRACKET TO RADIATOR | ||
| 042 | N 000933008145 | SCREW |
| OIL-DIPSTICK GUIDE TUBE TO BRACKET | ||
| 043 | N 912004008102 | LOCK WASHER |
| OIL-DIPSTICK GUIDE TUBE TO BRACKET | ||
| 044 | N 007349008003 | WASHER |
| OIL-DIPSTICK GUIDE TUBE TO BRACKET | ||
| 047 | A 6205000149 | TANK |
| (EXPANSION TANK) | ||
| A 6175000049 | TANK | |
| Repalced by: A 6205000349 | ||
| A 6175000049 | TANK | |
| 048 | A 6205000349 | TANK |
| (EXPANSION TANK) | ||
| 048 | A 6205000349 | TANK |
| (EXPANSION TANK) | ||
| 048 | A 6205000349 | TANK |
| (EXPANSION TANK) | ||
| 048 | A 6205000349 | TANK |
| (EXPANSION TANK) | ||
| 052 | A 0005014515 | RADIATOR CAP |
| TOP | ||
| 053 | A 0005010880 | GASKET |
| O.D., | ||
| 37 MM | ||
| 054 | A 0005010110 | DRAIN PIPE |
| TO 620 500 01 49,620 500 03 49 | ||
| 056 | A 0005010010 | DRAIN PIPE |
| TO 617 500 00 49 | ||
| A 0139978582 | HOSE | |
| Repalced by: A 0139978682 | ||
| 060 | A 0139978682 | HOSE |
| TO 620 500 01 49,617 500 00 49 | ||
| A 0079972682 | HOSE | |
| Repalced by: A 0219977682 | ||
| A 0219977682 | HOSE | |
| TO 620 500 03 49 | ||
| 061 | A 0009881878 | CLIP |
| DE-AERATION LINE TO CAB | ||
| 062 | A 6205000031 | BRACKET |
| EXPANSION TANK,RIGHT | ||
| 064 | A 6175000031 | BRACKET |
| EXPANSION TANK,LEFT | ||
| 064 | A 6175000031 | BRACKET |
| EXPANSION TANK,LEFT | ||
| 066 | A 6205000131 | BRACKET |
| EXPANSION TANK,LEFT | ||
| 068 | A 6175000131 | BRACKET |
| EXPANSION TANK,RIGHT | ||
| 068 | A 6175000131 | BRACKET |
| EXPANSION TANK,RIGHT | ||
| 072 | N 007981005306 | SHEET METAL SCREW |
| BRACKET TO CAB | ||
| 076 | N 000125006421 | WASHER |
| BRACKET TO CAB | ||
| Repalced by: N 000125006449 | ||
| 076 | N 000125006449 | WASHER |
| BRACKET TO CAB | ||
| 078 | A 6205010320 | STRAP |
| EXPANSION TANK,RIGHT | ||
| 080 | A 6175010220 | STRAP |
| EXPANSION TANK,LEFT | ||
| 080 | A 6175010220 | STRAP |
| EXPANSION TANK,LEFT | ||
| 082 | A 6205010420 | STRAP |
| EXPANSION TANK,LEFT | ||
| 084 | A 6175010320 | STRAP |
| EXPANSION TANK,RIGHT | ||
| 084 | A 6175010320 | STRAP |
| EXPANSION TANK,RIGHT | ||
| 086 | A 6205010195 | SHIM |
| EXPANSION TANK,RIGHT | ||
| 088 | A 6175010095 | SHIM |
| EXPANSION TANK,LEFT | ||
| 088 | A 6175010095 | SHIM |
| EXPANSION TANK,LEFT | ||
| 090 | A 6205010295 | SHIM |
| EXPANSION TANK,LEFT | ||
| 092 | A 6175010195 | SHIM |
| EXPANSION TANK,RIGHT | ||
| 092 | A 6175010195 | SHIM |
| EXPANSION TANK,RIGHT | ||
| 096 | N 007985006193 | SCREW |
| Repalced by: N 000000001146 | ||
| 096 | N 000000001146 | SCREW |
| EXPANSION TANK TO BRACKET | ||
| M 6X16 | ||
| 100 | N 912004006102 | LOCK WASHER |
| EXPANSION TANK TO BRACKET | ||
| 104 | N 009021006205 | WASHER |
| Repalced by: N 009021006208 | ||
| 104 | N 009021006208 | WASHER |
| EXPANSION TANK TO BRACKET | ||
| A 6205010101 | RADIATOR | |
| Repalced by: A 6205010201 | ||
| 108 | A 6205010201 | RADIATOR |
| CHARGE AIR INTERCOOLER | ||
| 112 | N 000933006121 | SCREW |
| Repalced by: N 304017006020 | ||
| 112 | N 304017006020 | SCREW |
| CHARGING AIR INTERCOOLER TO RADIATOR | ||
| 116 | N 912004006102 | LOCK WASHER |
| CHARGING AIR INTERCOOLER TO RADIATOR | ||
| 117 | N 000125006421 | WASHER |
| CHARGING AIR INTERCOOLER TO RADIATOR | ||
| Repalced by: N 000125006449 | ||
| 117 | N 000125006449 | WASHER |
| CHARGING AIR INTERCOOLER TO RADIATOR | ||
| 118 | A 6205050286 | BOOT |
| HEATING PIPE TO RADIATOR | ||
| 118 | A 6205050186 | BOOT |
| HEATING PIPE TO RADIATOR | ||
| 118 | A 6205050486 | BOOT |
| HEATING PIPE TO RADIATOR | ||
| 119 | A 6205050140 | BRACKET |
| SEALING LIP TO RADIATOR | ||
| A 6360150051 | SPACER RING | |
| Repalced by: A 3059900740 | ||
| 120 | A 3059900740 | WASHER |
| Repalced by: N 000125006421 | ||
| 120 | N 000125006421 | WASHER |
| SEALING LIP TO RADIATOR | ||
| Repalced by: N 000125006449 | ||
| 120 | N 000125006449 | WASHER |
| SEALING LIP TO RADIATOR | ||
| 121 | N 000137006204 | SPRING WASHER |
| SEALING LIP TO RADIATOR | ||
| 122 | N 000933006121 | SCREW |
| Repalced by: N 304017006020 | ||
| 122 | N 304017006020 | SCREW |
| SEALING LIP TO RADIATOR | ||
| 123 | A 6205050355 | FAN SHROUD |
| RADIATOR | ||
| 123 | A 6205050555 | FAN SHROUD |
| RADIATOR | ||
| 123 | A 6205050855 | FAN SHROUD |
| RADIATOR | ||
| 124 | A 1235040246 | CLIP-TYPE NUT |
| FAN SHROUD TO RADIATOR | ||
| 128 | A 6205050086 | BOOT |
| FAN SHROUD | ||
| 130 | A 6205040201 | SUPPORT |
| RADIATOR,LEFT | ||
| 132 | A 6205040801 | SUPPORT |
| RADIATOR,LEFT | ||
| A 6205040012 | RUBBER MOUNTING | |
| Repalced by: A 6205040112 | ||
| 136 | A 6205040112 | RUBBER MOUNTING |
| RADIATOR TO SUPPORT | ||
| 140 | A 6205010395 | SHIM |
| RADIATOR,LEFT | ||
| 144 | N 000933010238 | SCREW |
| Repalced by: N 304017010028 | ||
| 144 | N 304017010028 | HEXAGON HEAD BOLT |
| RUBBER MOUNTING TO SUPPORT | ||
| M10X20 | ||
| 148 | N 000137010201 | SPRING WASHER |
| RUBBER MOUNTING TO SUPPORT | ||
| 150 | N 000933010105 | SCREW |
| RADIATOR TO RUBBER MOUNTING | ||
| M 10X25 | ||
| 152 | N 000933010128 | SCREW |
| RADIATOR TO RUBBER MOUNTING | ||
| M 10X20 | ||
| 156 | N 000137010201 | SPRING WASHER |
| RADIATOR TO RUBBER MOUNTING | ||
| N 000125010518 | WASHER | |
| Repalced by: N 000125010532 | ||
| N 000125010532 | WASHER | |
| RADIATOR TO RUBBER MOUNTING | ||
| 158 | N 000961012151 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 12 X 30 | ||
| 160 | N 000961012122 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 12X40 | ||
| 164 | N 000960012197 | SCREW |
| Repalced by: N 000960012384 | ||
| 164 | N 000960012384 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 12X55 | ||
| 168 | N 910113012002 | NUT |
| SUPPORT TO SIDE MEMBER | ||
| 170 | N 000933010238 | SCREW |
| Repalced by: N 304017010028 | ||
| 170 | N 304017010028 | HEXAGON HEAD BOLT |
| RUBBER MOUNTING TO FRAME | ||
| 170 | N 000933010105 | SCREW |
| RUBBER MOUNTING TO FRAME | ||
| 176 | N 000137010201 | SPRING WASHER |
| RUBBER MOUNTING TO FRAME | ||
| 178 | A 6205011082 | HOSE |
| FROM RADIATOR TO THERMOSTAT | ||
| A 6205011382 | HOSE | |
| Repalced by: A 6205010082 | ||
| 180 | A 6205010082 | HOSE |
| FROM RADIATOR TO THERMOSTAT | ||
| 180 | A 6205012982 | HOSE |
| FROM RADIATOR TO THERMOSTAT | ||
| 184 | N 916017070000 | CLAMP |
| Repalced by: N 000000000674 | ||
| 184 | N 000000000674 | CLAMP |
| HOSE TO RADIATOR AND TO ENGINE | ||
| A 6205010056 | PIPE ELBOW | |
| Repalced by: A 6205010156 | ||
| 188 | A 6205010156 | PIPE ELBOW |
| Repalced by: A 6205010056 | ||
| 188 | A 6205010056 | PIPE ELBOW |
| FROM RADIATOR TO WATER PUMP | ||
| A 6205010456 | PIPE ELBOW | |
| Repalced by: A 6205010556 | ||
| A 6205010556 | PIPE ELBOW | |
| Repalced by: A 6555010756 | ||
| 188 | A 6555011556 | PIPE ELBOW |
| FROM RADIATOR TO WATER PUMP | ||
| 188 | A 6555010756 | PIPE ELBOW |
| FROM RADIATOR TO WATER PUMP | ||
| 192 | A 6205010482 | HOSE |
| FROM RADIATOR TO WATER PUMP | ||
| A 6205013882 | HOSE | |
| Repalced by: A 6555011282 | ||
| 192 | A 6555011282 | HOSE |
| FROM RADIATOR TO WATER PUMP | ||
| 192 | A 6205010982 | HOSE |
| FROM RADIATOR TO WATER PUMP | ||
| 192 | A 6205010682 | HOSE |
| FROM RADIATOR TO WATER PUMP | ||
| 192 | A 6205013782 | HOSE |
| FROM RADIATOR TO WATER PUMP | ||
| 196 | N 900271070007 | HOSE |
| FROM RADIATOR TO WATER PUMP | ||
| 85 MM | ||
| 200 | N 916017070000 | CLAMP |
| Repalced by: N 000000000674 | ||
| 200 | N 000000000674 | CLAMP |
| HOSE TO RADIATOR,PIPE ELBOW,AND WATER PUMP | ||
| A 6205010023 | CONNECTOR | |
| Repalced by: A 6205010323 | ||
| 204 | A 6205010323 | CONNECTOR |
| AT WATER PUMP | ||
| 204 | A 6205010323 | CONNECTOR |
| AT WATER PUMP | ||
| A 6205010123 | CONNECTOR | |
| Repalced by: A 6205010423 | ||
| 204 | A 6205010423 | CONNECTOR |
| AT WATER PUMP | ||
| A 4032010480 | GASKET | |
| Repalced by: A 4422010480 | ||
| 208 | A 4422010480 | GASKET |
| CONNECTOR TO WATER PUMP | ||
| Repalced by: A 0002011080 | ||
| 208 | A 0002011080 | GASKET |
| CONNECTOR TO WATER PUMP | ||
| Repalced by: A 0002011180 | ||
| 208 | A 0002011180 | GASKET |
| CONNECTOR TO WATER PUMP | ||
| Repalced by: A 0002011280 | ||
| 208 | A 0002011280 | GASKET |
| CONNECTOR TO WATER PUMP | ||
| 212 | N 000933010105 | SCREW |
| CONNECTOR TO WATER PUMP | ||
| 212 | N 000933010105 | SCREW |
| CONNECTOR TO WATER PUMP | ||
| 214 | N 000931010271 | SCREW |
| CONNECTOR TO WATER PUMP | ||
| 216 | N 000137010201 | SPRING WASHER |
| CONNECTOR TO WATER PUMP | ||
| 220 | N 000931010282 | SCREW |
| PIPE BEND TO BRACKET | ||
| 224 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 224 | N 910113010000 | NUT |
| PIPE BEND TO BRACKET | ||
| 228 | A 6205012082 | HOSE |
| FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE | ||
| 228 | A 6205011982 | HOSE |
| FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE | ||
| 228 | A 6205013082 | HOSE |
| FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE | ||
| 229 | A 6205011682 | HOSE |
| Repalced by: A 6585010082 | ||
| 229 | A 6585010082 | HOSE |
| FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE | ||
| 230 | A 6205000172 | LINE |
| FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE | ||
| 231 | A 6205011882 | HOSE |
| FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE | ||
| 232 | N 916017032000 | CLAMP |
| Repalced by: N 000000000670 | ||
| 232 | N 000000000670 | CLAMP |
| HOSE TO EXPANSION TANK AND TO WATER PUMP | ||
| 232 | N 000000000670 | CLAMP |
| HOSE TO EXPANSION TANK AND TO WATER PUMP | ||
| 236 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 236 | N 000000000667 | CLAMP |
| HOSE TO HEATING PIPE | ||
| 237 | N 000933006103 | SCREW |
| Repalced by: N 304017006018 | ||
| 237 | N 304017006018 | SCREW |
| PIPE TO CONTROL BRACKET | ||
| 238 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 238 | N 913004006001 | NUT |
| PIPE TO CONTROL BRACKET | ||
| 240 | A 0010947882 | HOSE |
| Repalced by: A 0020945282 | ||
| 240 | A 0020945282 | HOSE |
| FROM ENGINE TO CHARGE AIR INTERCOOLER | ||
| 244 | N 916017090000 | CLAMP |
| HOSE TO RADIATOR AND TO ENGINE | ||
| 248 | A 6205200406 | PIPE ELBOW |
| FROM CHARGING AIR INTERCOOLER TO ENGINE | ||
| 252 | A 6205280080 | GASKET |
| Repalced by: A 6555280080 | ||
| 252 | A 6555280080 | GASKET |
| PIPE TO CHARGING AIR INTERCOOLER | ||
| 256 | N 006912010030 | SCREW |
| PIPE TO CHARGING AIR INTERCOOLER | ||
| N 000912010119 | SCREW | |
| Repalced by: N 000912010219 | ||
| N 000912010219 | SCREW | |
| PIPE TO CHARGING AIR INTERCOOLER | ||
| 260 | N 000137010201 | SPRING WASHER |
| PIPE TO CHARGING AIR INTERCOOLER | ||
| A 0000944782 | HOSE | |
| Repalced by: A 0010947982 | ||
| A 0010947982 | HOSE | |
| Repalced by: A 0020941782 | ||
| A 0020941782 | HOSE | |
| Repalced by: A 0010947982 | ||
| 264 | A 0010947982 | HOSE |
| FROM CHARGING AIR INTERCOOLER TO ENGINE | ||
| 268 | N 000000000676 | CLAMP |
| HOSE TO RADIATOR AND TO ENGINE | ||
| Repalced by: N 000000005890 | ||
| 268 | N 000000005890 | CLAMP |
| HOSE TO RADIATOR AND TO ENGINE | ||
| 270 | A 6205000079 | FLANGE |
| HEATING AND BREATHING | ||
| 270 | A 6205000279 | FLANGE |
| HEATING AND BREATHING | ||
| 272 | A 6205000479 | FLANGE |
| HEATING AND BREATHING | ||
| 272 | A 6205000879 | FLANGE |
| HEATING AND BREATHING | ||
| 273 | A 6205000579 | FLANGE |
| DE-AERATION; FROM ENGINE TO EXPANSION TANK | ||
| 274 | A 6205000779 | FLANGE |
| DE-AERATION; FROM ENGINE TO EXPANSION TANK | ||
| 276 | N 917003040008 | GASKET |
| FLANGE TO ENGINE | ||
| 280 | N 000933010105 | SCREW |
| FLANGE TO ENGINE | ||
| 284 | N 912004010102 | LOCK WASHER |
| FLANGE TO ENGINE | ||
| 288 | A 3875011420 | BRACKET |
| HEATING PIPE TO ENGINE | ||
| 288 | A 3875011420 | BRACKET |
| HEATING PIPE TO ENGINE | ||
| 288 | A 6205011420 | BRACKET |
| HEATING PIPE TO ENGINE | ||
| 288 | A 6205010620 | BRACKET |
| HEATING PIPE TO ENGINE | ||
| 292 | A 3609950601 | CLAMP |
| HEATING PIPE TO BRACKET | ||
| 296 | N 000933006130 | SCREW |
| HEATING PIPE TO BRACKET | ||
| 300 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 300 | N 913004006001 | NUT |
| HEATING PIPE TO BRACKET | ||
| 302 | A 6205060035 | HOSE |
| FROM ENGINE CONNECTION FLANGE TO HEATING PIPE AT RADIATOR | ||
| 302 | A 6205060535 | HOSE |
| FROM ENGINE CONNECTION FLANGE TO HEATING PIPE AT RADIATOR | ||
| 304 | A 6205060635 | HOSE |
| FROM ENGINE CONNECTION FLANGE TO HEATING PIPE AT RADIATOR | ||
| 305 | A 6205003972 | LINE |
| (HEATING PIPE) FROM ENGINE TO HEATING PIPE AT RADIATOR | ||
| 305 | A 6205003572 | LINE |
| (HEATING PIPE) FROM ENGINE TO HEATING PIPE AT RADIATOR | ||
| 305 | A 6205004172 | LINE |
| (HEATING PIPE) FROM ENGINE TO HEATING PIPE AT RADIATOR | ||
| 305 | A 6205003172 | LINE |
| (HEATING PIPE) FROM ENGINE TO HEATING PIPE AT RADIATOR | ||
| 305 | A 6205003772 | LINE |
| (HEATING PIPE) FROM ENGINE TO HEATING PIPE AT RADIATOR | ||
| 305 | A 6205003772 | LINE |
| (HEATING PIPE) FROM ENGINE TO HEATING PIPE AT RADIATOR | ||
| 306 | N 917003022003 | GASKET |
| HEATING PIPE TO ENGINE | ||
| N 000933008291 | SCREW | |
| Repalced by: A 4609900601 | ||
| 307 | A 4609900601 | SCREW |
| HEATING PIPE TO ENGINE | ||
| 308 | N 000137008204 | SPRING WASHER |
| Repalced by: N 000137008212 | ||
| 308 | N 000137008212 | SPRING WASHER |
| HEATING PIPE TO ENGINE | ||
| 309 | A 3818320714 | BRACKET |
| HEATING PIPE TO FAN SHROUD BRACKET | ||
| 310 | A 3604280243 | ANGLE |
| HEATING WATER LINE | ||
| 310 | A 3604280243 | ANGLE |
| HEATING WATER LINE | ||
| 311 | N 000933006130 | SCREW |
| ANGLE TO AIR BAFFLE BRACKET | ||
| M 6X18 | ||
| 312 | N 913004006003 | NUT |
| Repalced by: N 910113006001 | ||
| 312 | N 910113006001 | NUT |
| ANGLE TO AIR BAFFLE BRACKET | ||
| N 000933008291 | SCREW | |
| Repalced by: A 4609900601 | ||
| 313 | A 4609900601 | SCREW |
| ANGLE TO AIR BAFFLE BRACKET | ||
| M 8X20 | ||
| 314 | N 000137008204 | SPRING WASHER |
| Repalced by: N 000137008212 | ||
| 314 | N 000137008212 | SPRING WASHER |
| ANGLE TO AIR BAFFLE BRACKET | ||
| 315 | A 3609950601 | CLAMP |
| HEATING PIPE TO ANGLE | ||
| 315 | A 3609950601 | CLAMP |
| HEATING PIPE TO ANGLE | ||
| 315 | A 3609950601 | CLAMP |
| HEATING PIPE TO BRACKET | ||
| 315 | A 3609950601 | CLAMP |
| HEATING PIPE TO FAN SHROUD BRACKET | ||
| 316 | A 6205062340 | BRACKET |
| BRACKET TO WATER PUMP | ||
| 317 | A 6205062335 | HOSE |
| FROM HEATING PIPE AT ENGINE TO HEATING PIPE AT RADIATOR | ||
| 317 | A 6205062935 | HOSE |
| FROM HEATING PIPE AT ENGINE TO HEATING PIPE AT RADIATOR | ||
| 317 | A 6205062935 | HOSE |
| FROM HEATING PIPE AT ENGINE TO HEATING PIPE AT RADIATOR | ||
| 318 | N 900271018038 | HOSE |
| FROM HEATING PIPE AT ENGINE TO HEATING PIPE AT RADIATOR | ||
| 319 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 319 | N 000000000667 | CLAMP |
| HOSE TO FLANGE AND TO HEATING PIPE | ||
| 320 | A 6205000272 | LINE |
| HEATING PIPE | ||
| A 6205001572 | LINE | |
| Repalced by: A 6205002872 | ||
| 320 | A 6205002872 | LINE |
| HEATING PIPE | ||
| 320 | A 6205002872 | LINE |
| HEATING PIPE | ||
| A 6205002672 | LINE | |
| Repalced by: A 6205002872 | ||
| 320 | A 6205002872 | LINE |
| HEATING PIPE | ||
| A 6205000372 | LINE | |
| Repalced by: A 6205001672 | ||
| 320 | A 6205001672 | LINE |
| HEATING AND BREATHING | ||
| 320 | A 6205003072 | LINE |
| HEATING AND BREATHING | ||
| 320 | A 6205003072 | LINE |
| HEATING AND BREATHING | ||
| A 6205002972 | LINE | |
| Repalced by: A 6205003072 | ||
| 320 | A 6205003072 | LINE |
| HEATING AND BREATHING | ||
| 321 | A 6205000072 | LINE |
| HEATING AND BREATHING | ||
| 321 | A 6205001372 | LINE |
| HEATING AND BREATHING | ||
| 322 | N 000933006183 | SCREW |
| Repalced by: N 304017006016 | ||
| 322 | N 304017006016 | SCREW |
| HEATING PIPE TO RADIATOR | ||
| 323 | N 912004006102 | LOCK WASHER |
| HEATING PIPE TO RADIATOR | ||
| 323 | N 912004006102 | LOCK WASHER |
| HEATING PIPE TO RADIATOR | ||
| 324 | N 000125006421 | WASHER |
| HEATING PIPE TO RADIATOR | ||
| Repalced by: N 000125006449 | ||
| 324 | N 000125006449 | WASHER |
| HEATING PIPE TO RADIATOR | ||
| 324 | N 000125006449 | WASHER |
| HEATING PIPE TO RADIATOR | ||
| 325 | N 000137006204 | SPRING WASHER |
| HEATING PIPE TO RADIATOR | ||
| A 3835060035 | HOSE | |
| Repalced by: A 6205062035 | ||
| 326 | A 6205062035 | HOSE |
| FROM HEATING PIPE AT RADIATOR TO CAB HEATING PIPE | ||
| 327 | A 6205060235 | HOSE |
| HEATER RETURN, FROM RADIATOR TO CAB HEATING PIPE | ||
| 328 | A 6205060335 | HOSE |
| HEATING FEED, FROM RADIATOR TO CAB HEATING PIPE | ||
| 332 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 332 | N 000000000667 | CLAMP |
| HEATING; TO CAB | ||
| 340 | N 900271008043 | HOSE |
| FROM EXPANSION TANK TO HEATING PIPE | ||
| 344 | N 916017011000 | CLAMP |
| Repalced by: N 916017011001 | ||
| 344 | N 000000000665 | CLAMP |
| HOSE TO EXPANSION TANK AND TO HEATING PIPE | ||
| 348 | A 3875011682 | HOSE |
| DE-AERATION; FROM FLANGE TO COOLING WATER EXPANSION TANK | ||
| 352 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 352 | N 000000000667 | CLAMP |
| HOSE TO BREATHER PIPE AND TO ESPANSION TANK | ||
| 356 | A 3875016420 | BRACKET |
| DE-AERATION LINE | ||
| 358 | A 3609950601 | CLAMP |
| DE-AERATION LINE TO BRACKET | ||
| 360 | N 000933006130 | SCREW |
| DE-AERATION LINE TO BRACKET | ||
| M 6X18 | ||
| 364 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 364 | N 913004006001 | NUT |
| DE-AERATION LINE TO BRACKET | ||
| 368 | A 6205012882 | HOSE |
| (DE-AERATION LINE) FROM RADIATOR TO EXPANSION TANK | ||
| A 6205013282 | HOSE | |
| Repalced by: A 6205012882 | ||
| 368 | A 6205012882 | HOSE |
| (DE-AERATION LINE) FROM RADIATOR TO EXPANSION TANK | ||
| A 6205013282 | HOSE | |
| Repalced by: A 6205012882 | ||
| 372 | A 6205012882 | HOSE |
| (DE-AERATION LINE) FROM RADIATOR TO EXPANSION TANK | ||
| 372 | N 900271008043 | HOSE |
| (DE-AERATION LINE) FROM RADIATOR TO EXPANSION TANK | ||
| 372 | N 900271008043 | HOSE |
| (DE-AERATION LINE) FROM RADIATOR TO EXPANSION TANK | ||
| 376 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 376 | N 000000000667 | CLAMP |
| HOSE TO EXPANSION TANK | ||
| 376 | N 000000000667 | CLAMP |
| HOSE TO EXPANSION TANK | ||
| 376 | N 000000000667 | CLAMP |
| HOSE TO EXPANSION TANK | ||
| 380 | N 916017011000 | CLAMP |
| Repalced by: N 916017011001 | ||
| 380 | N 000000000665 | CLAMP |
| (DE-AERATION LINE) FROM RADIATOR TO EXPANSION TANK | ||
| 384 | A 6175010225 | BREATHER PIPE |
| (DE-AERATION LINE) FROM RADIATOR TO EXPANSION TANK | ||
| 384 | A 6205010725 | BREATHER PIPE |
| (DE-AERATION LINE) FROM RADIATOR TO EXPANSION TANK | ||
| 384 | A 6205010725 | BREATHER PIPE |
| (DE-AERATION LINE) FROM RADIATOR TO EXPANSION TANK | ||
| 388 | A 6175010420 | BRACKET |
| DE-AERATION LINE | ||
| 392 | A 6205010920 | BRACKET |
| DE-AERATION LINE | ||
| 396 | N 007981005306 | SHEET METAL SCREW |
| BRACKET TO CAB | ||
| 400 | A 3609950201 | CLAMP |
| Repalced by: A 3604300143 | ||
| 400 | A 3604300143 | CLAMP |
| Repalced by: N 916016008200 | ||
| 400 | N 916016008200 | CLAMP |
| Repalced by: N 000000000319 | ||
| 400 | N 000000000319 | CLAMP |
| DE-AERATION LINE TO BRACKET | ||

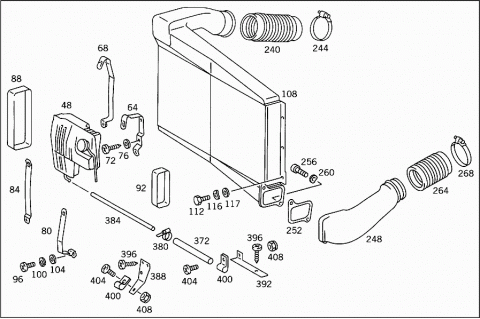

| 404 | N 007985006193 | SCREW |
| Repalced by: N 000000001146 | ||
| 404 | N 000000001146 | SCREW |
| DE-AERATION LINE TO BRACKET | ||
| M 6X16 | ||
| 408 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 408 | N 913004006001 | NUT |
| DE-AERATION LINE TO BRACKET | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
