Mercedes-benz | iAUTO.lt

Transporto priemonė: 1644 S; VIN numerio dalis: 645192

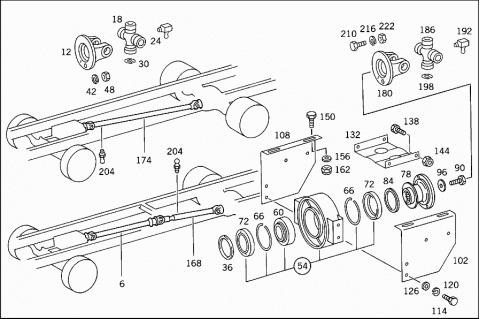

Grupė: 41 PROPELLER SHAFT

#	Kodas	Pavadinimas
006	A 3954101104	PROPELLER SHAFT
		FROM TRANSMISSION TO INTERMEDIATE BEARING
		1503 MM
006	A 3954101604	PROPELLER SHAFT
		FROM TRANSMISSION TO INTERMEDIATE BEARING
		1446 MM
012	A 3954110811	DRIVE FLANGE
018	A 6204100031	UNIVERSAL JOINT CROSS
	Repalced by: A 9404100031
018	A 9404100031	UNIVERSAL JOINT CROSS
		WITH BUSHINGS
024	N 071412008302	GREASE NIPPLE
030	A 0069943141	LOCK
		AS REQUIRED
		2.00 MM
030	A 0069943541	LOCK
		AS REQUIRED
		2.10 MM
030	A 0069943941	LOCK
		AS REQUIRED
		2.20 MM
036	A 3894130061	PROTECTIVE CAP
036	A 3954130061	PROTECTIVE CAP
042	N 912004016101	LOCK WASHER
		PROPELLER SHAFT TO TRANSMISSION
048	N 000934016013	NUT
	Repalced by: N 308673016001
048	N 308673016001	NUT
		PROPELLER SHAFT TO TRANSMISSION
054	A 3954100022	INTERMEDIATE BEARING
	Repalced by: A 3954100622
054	A 3954100622	INTERMEDIATE BEARING
	Repalced by: A 6554100022
054	A 6554100022	INTERMEDIATE BEARING
		PROPELLER SHAFT
060	A 0029819225	BALL BEARING
060	A 0029819325	BALL BEARING
066	N 912009110200	SNAP RING
072	A 3874130261	PROTECTIVE CAP
	A 6554110052	SPACER WASHER
		PROPELLER SHAFT BEARING
078	A 3954100130	CENTERING FLANGE
	Repalced by: A 3874110446
078	A 3874110446	FLANGE
		PROPELLER SHAFT BEARING
084	A 3894130061	PROTECTIVE CAP
084	A 3954130061	PROTECTIVE CAP
090	A 3899900019	SCREW
		FOLLOWER FLANGE TO PROPELLER SHAFT
096	A 3894110062	THRUST WASHER
		FOLLOWER FLANGE TO PROPELLER SHAFT
102	A 6204138342	BRACKET
		PROPELLER SHAFT BEARING,LEFT
102	A 6204136142	BRACKET
		PROPELLER SHAFT BEARING,LEFT
108	A 6204138242	BRACKET
		PROPELLER SHAFT BEARING,RIGHT
108	A 6204136042	BRACKET
		PROPELLER SHAFT BEARING,RIGHT
114	N 000961012106	SCREW
		BRACKET TO PROPELLER SHAFT BEARING HOUSING
120	N 912004012100	LOCK WASHER
		BRACKET TO PROPELLER SHAFT BEARING HOUSING
126	A 3299900040	WASHER
	Repalced by: A 1232420366
126	A 1232420366	WASHER
		BRACKET TO PROPELLER SHAFT BEARING HOUSING
132	A 3954130011	REINFORCEMENT
		PROPELLER SHAFT BEARING
138	N 000961012106	SCREW
		REINFORCEMENT TO BRACKET
144	N 913004012009	NUT
	Repalced by: N 910113012003
144	N 910113012003	NUT
		REINFORCEMENT TO BRACKET
150	N 000961012108	SCREW
		BRACKET TO CROSS MEMBER
156	A 3299900040	WASHER
	Repalced by: A 1232420366
156	A 1232420366	WASHER
		BRACKET TO CROSS MEMBER
162	N 913004012009	NUT
	Repalced by: N 910113012003
162	N 910113012003	NUT
		BRACKET TO CROSS MEMBER
168	A 6204100302	PROPELLER SHAFT
		FROM INTERMEDIATE BEARING TO REAR AXLE
		1537 MM
174	A 6204100402	PROPELLER SHAFT
		FROM TRANSMISSION TO REAR AXLE
		1798 MM
174	A 3954103102	PROPELLER SHAFT
		FROM TRANSMISSION TO REAR AXLE
		2105 MM
174	A 6204100102	PROPELLER SHAFT
		FROM TRANSMISSION TO REAR AXLE
		1688 MM
174	A 3954101802	PROPELLER SHAFT
		FROM TRANSMISSION TO REAR AXLE
		1998 MM
180	A 3954110811	DRIVE FLANGE
186	A 6204100031	UNIVERSAL JOINT CROSS
	Repalced by: A 9404100031
186	A 9404100031	UNIVERSAL JOINT CROSS
		WITH BUSHINGS
192	N 071412008302	GREASE NIPPLE
198	A 0069943141	LOCK
		AS REQUIRED
		2.00 MM
198	A 0069943541	LOCK
		AS REQUIRED
		2.10 MM
198	A 0069943941	LOCK
		AS REQUIRED
		2.20 MM
	A 3954110059	SEAL RING
		PROTECTIVE TUBE
		105X17 MM
	A 0004110159	SEAL RING
		PROTECTIVE TUBE
		102.5X22 MM
204	N 071412008101	GREASE NIPPLE
	Repalced by: N 071412008102
204	N 071412008102	GREASE NIPPLE
210	A 0029909901	SCREW
	Repalced by: A 3959900501
210	A 3959900501	SCREW
		PROPELLER SHAFT TO PROPELLER SHAFT BEARING AND TO REAR AXLE
210	A 3959900501	SCREW
		PROPELLER SHAFT TO REAR AXLE
216	N 912004016101	LOCK WASHER
		PROPELLER SHAFT TO PROPELLER SHAFT BEARING AND TO REAR AXLE
216	N 912004016101	LOCK WASHER
		PROPELLER SHAFT TO TRANSMISSION AND TO REAR AXLE
222	N 000934016013	NUT
	Repalced by: N 308673016001
222	N 308673016001	NUT
		PROPELLER SHAFT TO PROPELLER SHAFT BEARING AND TO REAR AXLE
222	N 308673016001	NUT
		PROPELLER SHAFT TO TRANSMISSION AND TO REAR AXLE
