Transporto priemonė: 1644 S; VIN numerio dalis: 645192

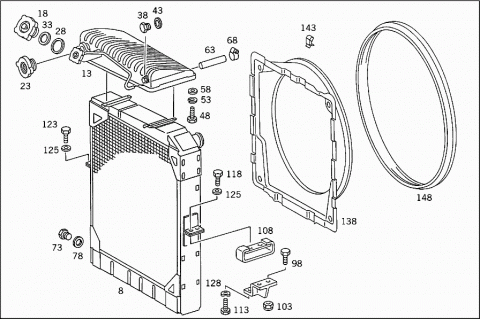

Grupė: 50 RADIATOR
| # | Kodas | Pavadinimas |
|---|---|---|
| 008 | A 0015013901 | RADIATOR |
| Repalced by: A 0015013701 | ||
| 008 | A 0015013701 | RADIATOR |
| WATER | ||
| BEHR | ||
| 008 | A 0005001203 | RADIATOR |
| WATER | ||
| 008 | A 0015013801 | RADIATOR |
| WATER | ||
| BEHR | ||
| 013 | A 0005001149 | TANK |
| COOLING WATER EXPANSION | ||
| BEHR | ||
| 013 | A 0005000849 | TANK |
| COOLING WATER EXPANSION | ||
| BEHR | ||
| 018 | A 0005014615 | RADIATOR CAP |
| FILLER NECK | ||
| 018 | A 0005017215 | RADIATOR CAP |
| FILLER NECK | ||
| 023 | A 0005013715 | RADIATOR CAP |
| LATERAL | ||
| 023 | A 0005017115 | RADIATOR CAP |
| LATERAL | ||
| 028 | A 0005010480 | GASKET |
| O.D., | ||
| 52 MM | ||
| 033 | A 0005010880 | GASKET |
| O.D., | ||
| 37 MM | ||
| 038 | A 0019973230 | SCREW PLUG |
| Repalced by: N 007604014101 | ||
| 038 | N 007604014101 | SCREW PLUG |
| WATER DRAIN | ||
| 043 | N 007603014405 | SEAL RING |
| WATER DRAIN | ||
| 048 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 048 | N 304017008016 | SCREW |
| FROM EXPANSION TANK TO RADIATOR | ||
| 053 | N 912004008102 | LOCK WASHER |
| FROM EXPANSION TANK TO RADIATOR | ||
| 058 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 058 | N 000125008443 | WASHER |
| FROM EXPANSION TANK TO RADIATOR | ||
| 063 | A 0149975782 | HOSE |
| OVERFLOW, EXPANSION TANK | ||
| 068 | N 916017011000 | CLAMP |
| Repalced by: N 916017011001 | ||
| 068 | N 000000000665 | CLAMP |
| OVERFLOW, EXPANSION TANK | ||
| 12-22X13 MM | ||
| 073 | A 0019973230 | SCREW PLUG |
| Repalced by: N 007604014101 | ||
| 073 | N 007604014101 | SCREW PLUG |
| WATER DRAIN | ||
| 078 | N 007603014405 | SEAL RING |
| WATER DRAIN | ||
| 083 | A 6205040201 | SUPPORT |
| RADIATOR,LEFT | ||
| 083 | A 6205040801 | SUPPORT |
| RADIATOR,LEFT | ||
| 093 | N 000961012151 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| 098 | N 000961012122 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| 103 | N 910113012002 | NUT |
| SUPPORT TO SIDE MEMBER | ||
| 108 | A 6205040112 | RUBBER MOUNTING |
| RADIATOR | ||
| 113 | N 000933010238 | SCREW |
| Repalced by: N 304017010028 | ||
| 113 | N 304017010028 | SCREW |
| RUBBER MOUNTING TO SUPPORT | ||
| 113 | N 304017010028 | SCREW |
| RUBBER MOUNTING TO SIDE MEMBER | ||
| 118 | N 000933010128 | SCREW |
| RADIATOR TO LEFT AND RIGHT RUBBER MOUNTINGS | ||
| M 10X20 | ||
| 123 | N 000933010105 | SCREW |
| RADIATOR TO LEFT AND RIGHT RUBBER MOUNTINGS | ||
| M 10X25 | ||
| 123 | N 000933010105 | SCREW |
| RUBBER MOUNTING TO SIDE MEMBER | ||
| M 10X25 | ||
| 125 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 125 | N 000125010532 | WASHER |
| RADIATOR TO LEFT AND RIGHT RUBBER MOUNTINGS | ||
| 128 | N 000137010201 | SPRING WASHER |
| RUBBER MOUNTING TO SIDE MEMBER AND TO SUPPORT | ||

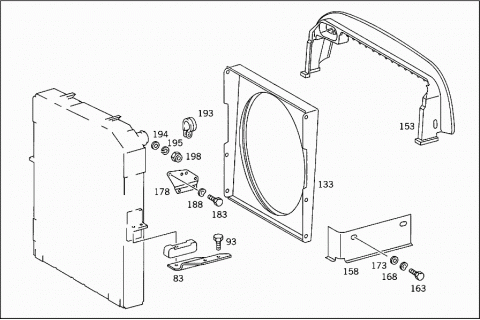

| 133 | A 6205050355 | FAN SHROUD |
| RADIATOR | ||
| 138 | A 6205050855 | FAN SHROUD |
| RADIATOR | ||
| 143 | A 1235040246 | CLAMP |
| FAN SHROUD TO RADIATOR | ||
| 148 | A 6205050086 | BOOT |
| FAN SHROUD TO FAN RING | ||
| 153 | A 6205050286 | BOOT |
| CIRCULATING AIR PARTITIONING | ||
| 158 | A 6205050140 | BRACKET |
| BOOT | ||
| 163 | N 000933006121 | SCREW |
| Repalced by: N 304017006020 | ||
| 163 | N 304017006020 | SCREW |
| BRACKET TO RADIATOR | ||
| 168 | N 000137006204 | SPRING WASHER |
| BRACKET TO RADIATOR | ||
| 173 | A 3059900740 | WASHER |
| Repalced by: N 000125006421 | ||
| 173 | N 000125006421 | WASHER |
| BRACKET TO RADIATOR | ||
| 178 | A 4420100040 | BRACKET |
| OI DIPSTICK GUIDE TUBE | ||
| 178 | A 4420100140 | BRACKET |
| OI DIPSTICK GUIDE TUBE | ||
| 183 | N 000933006183 | SCREW |
| Repalced by: N 304017006016 | ||
| 183 | N 304017006016 | SCREW |
| BRACKET TO RADIATOR | ||
| 188 | N 000137006204 | SPRING WASHER |
| BRACKET TO RADIATOR | ||
| 193 | A 3609951201 | CLAMP |
| OIL-DIPSTICK GUIDE TUBE TO BRACKET | ||
| 194 | N 007349008006 | WASHER |
| Repalced by: N 007349008007 | ||
| 194 | N 007349008007 | WASHER |
| OIL-DIPSTICK GUIDE TUBE TO BRACKET | ||
| 195 | N 912004008102 | LOCK WASHER |
| OIL-DIPSTICK GUIDE TUBE TO BRACKET | ||
| 198 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 198 | N 913004008001 | NUT |
| OIL-DIPSTICK GUIDE TUBE TO BRACKET | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |

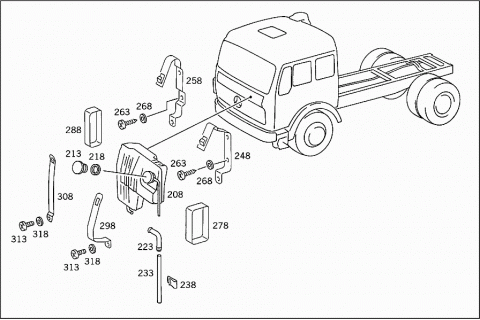

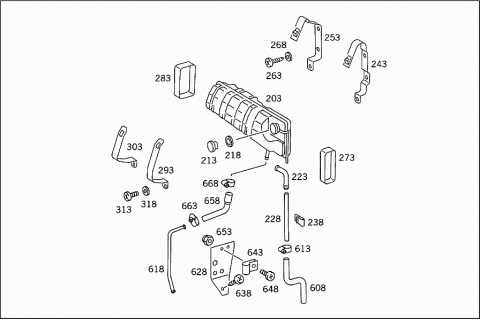

| EXPANSION TANK | ||
| 203 | A 6205000149 | TANK |
| (EXPANSION TANK) | ||
| 208 | A 6205000349 | TANK |
| (EXPANSION TANK) | ||
| 208 | A 6205000349 | TANK |
| (EXPANSION TANK) | ||
| 213 | A 0005014515 | RADIATOR CAP |
| TOP | ||
| 218 | A 0005010880 | GASKET |
| O.D., | ||
| 37 MM | ||
| 223 | A 0005010110 | DRAIN PIPE |
| 228 | A 0139978682 | HOSE |
| OVERFLOW | ||
| 233 | A 0079972682 | HOSE |
| Repalced by: A 0219977682 | ||
| 233 | A 0219977682 | HOSE |
| OVERFLOW | ||
| 233 | A 0219977682 | HOSE |
| OVERFLOW | ||
| 238 | A 0009881878 | CLIP |
| OVERFLOW HOSE TO CAB FIRE WALL FRONT EDGE | ||
| 243 | A 6205000131 | BRACKET |
| EXPANSION TANK,LEFT | ||
| 248 | A 6175000031 | BRACKET |
| EXPANSION TANK,LEFT | ||
| 248 | A 6175000031 | BRACKET |
| EXPANSION TANK,LEFT | ||
| 253 | A 6205000031 | BRACKET |
| EXPANSION TANK,RIGHT | ||
| 258 | A 6175000131 | BRACKET |
| EXPANSION TANK,RIGHT | ||
| 258 | A 6175000131 | BRACKET |
| EXPANSION TANK,RIGHT | ||
| 263 | N 007981005306 | SHEET METAL SCREW |
| BRACKET TO CAB | ||
| 268 | N 000125006421 | WASHER |
| BRACKET TO CAB | ||
| 273 | A 6205010295 | SHIM |
| EXPANSION TANK,LEFT | ||
| 278 | A 6175010095 | SHIM |
| EXPANSION TANK,LEFT | ||
| 278 | A 6175010095 | SHIM |
| EXPANSION TANK,LEFT | ||
| 283 | A 6205010195 | SHIM |
| EXPANSION TANK,RIGHT | ||
| 288 | A 6175010195 | SHIM |
| EXPANSION TANK,RIGHT | ||
| 288 | A 6175010195 | SHIM |
| EXPANSION TANK,RIGHT | ||
| 293 | A 6205010420 | STRAP |
| EXPANSION TANK,LEFT | ||
| 298 | A 6175010220 | STRAP |
| EXPANSION TANK,LEFT | ||
| 298 | A 6175010220 | STRAP |
| EXPANSION TANK,LEFT | ||
| 303 | A 6205010320 | STRAP |
| EXPANSION TANK,RIGHT | ||
| 308 | A 6175010320 | STRAP |
| EXPANSION TANK,RIGHT | ||
| 308 | A 6175010320 | STRAP |
| EXPANSION TANK,RIGHT | ||
| 313 | N 007985006193 | SCREW |
| Repalced by: N 000000001146 | ||
| 313 | N 000000001146 | SCREW |
| STRAP TO BRACKET | ||
| M 6X16 | ||
| 318 | N 009021006205 | WASHER |
| Repalced by: N 009021006208 | ||
| 318 | N 009021006208 | WASHER |
| STRAP TO BRACKET | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |

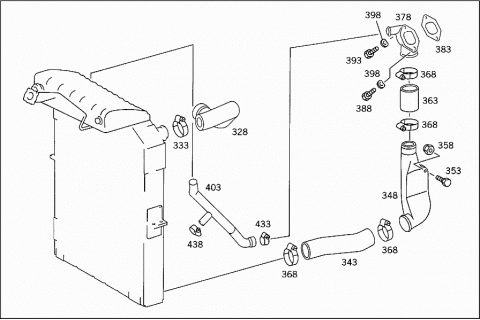

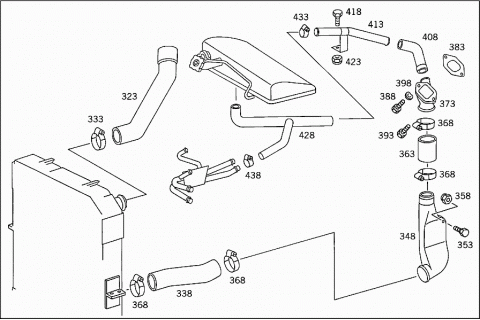

| COOLING WATER LINES | ||
| 323 | A 6205011082 | HOSE |
| FROM RADIATOR TO THERMOSTAT | ||
| 328 | A 6205012982 | HOSE |
| FROM RADIATOR TO THERMOSTAT | ||
| 333 | N 916017070000 | CLAMP |
| Repalced by: N 000000000674 | ||
| 333 | N 000000000674 | CLAMP |
| HOSE TO THERMOSTAT AND TO RADIATOR | ||
| 70-90X13 MM | ||
| 338 | A 6205013882 | HOSE |
| Repalced by: A 6555011282 | ||
| 338 | A 6555011282 | HOSE |
| FROM RADIATOR OUTLET TO WATER PUMP | ||
| 343 | A 6205013782 | HOSE |
| FROM RADIATOR OUTLET TO WATER PUMP | ||
| 348 | A 6205010456 | PIPE ELBOW |
| Repalced by: A 6205010556 | ||
| 348 | A 6205010556 | PIPE ELBOW |
| Repalced by: A 6555010756 | ||
| 348 | A 6555010756 | PIPE ELBOW |
| FROM RADIATOR OUTLET TO WATER PUMP | ||
| 353 | N 000931010282 | SCREW |
| PIPE ELBOW TO BRACKET | ||
| 358 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 358 | N 910113010000 | NUT |
| PIPE ELBOW TO BRACKET | ||
| 363 | N 900271070007 | HOSE |
| FROM RADIATOR OUTLET TO WATER PUMP | ||
| 368 | N 916017070000 | CLAMP |
| Repalced by: N 000000000674 | ||
| 368 | N 000000000674 | CLAMP |
| HOSE TO RADIATOR,PIPE ELBOW,AND WATER PUMP | ||
| 70-90X13 MM | ||
| 373 | A 6205010023 | CONNECTOR |
| Repalced by: A 6205010323 | ||
| 373 | A 6205010323 | CONNECTOR |
| AT WATER PUMP | ||
| 373 | A 6205010323 | CONNECTOR |
| AT WATER PUMP | ||
| 378 | A 6205010123 | CONNECTOR |
| Repalced by: A 6205010423 | ||
| 378 | A 6205010423 | CONNECTOR |
| AT WATER PUMP | ||
| 383 | A 4032010480 | GASKET |
| Repalced by: A 4422010480 | ||
| 383 | A 4422010480 | GASKET |
| CONNECTOR | ||
| 388 | N 000933010105 | SCREW |
| CONNECTOR TO WATER PUMP | ||
| M 10X25 | ||
| 388 | N 000933010105 | SCREW |
| CONNECTOR TO WATER PUMP | ||
| M 10X25 | ||
| 393 | N 000931010271 | SCREW |
| CONNECTOR TO WATER PUMP | ||
| M 10X60 | ||
| 393 | N 000931010271 | SCREW |
| CONNECTOR TO WATER PUMP | ||
| M 10X60 | ||
| 398 | N 000137010201 | SPRING WASHER |
| CONNECTOR TO WATER PUMP | ||
| 403 | A 6205012082 | HOSE |
| FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE | ||
| 403 | A 6205013082 | HOSE |
| FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE | ||
| 408 | A 6205011682 | HOSE |
| Repalced by: A 6585010082 | ||
| 408 | A 6585010082 | HOSE |
| FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE | ||
| 413 | A 6205000172 | LINE |
| FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE | ||
| 418 | N 000933006103 | SCREW |
| Repalced by: N 304017006018 | ||
| 418 | N 304017006018 | SCREW |
| PIPE LINE TO CONTROL BRACKET | ||
| 423 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 423 | N 913004006001 | NUT |
| PIPE LINE TO CONTROL BRACKET | ||
| 428 | A 6205011882 | HOSE |
| FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE | ||
| 433 | N 916017032000 | CLAMP |
| Repalced by: N 000000000670 | ||
| 433 | N 000000000670 | CLAMP |
| HOSE TO EXPANSION TANK AND TO WATER PUMP | ||
| 35-50 X13 MM | ||
| 433 | N 000000000670 | CLAMP |
| HOSE TO EXPANSION TANK AND TO WATER PUMP | ||
| 35-50 X13 MM | ||
| 438 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 438 | N 000000000667 | CLAMP |
| HOSE TO HEATING PIPE | ||
| 20-32X13 MM | ||
| 443 | A 6205000579 | FLANGE |
| DE-AERATION; FROM ENGINE TO EXPANSION TANK | ||
| 448 | A 6205000779 | FLANGE |
| DE-AERATION; FROM ENGINE TO EXPANSION TANK | ||
| 453 | N 917003040008 | GASKET |
| FLANGE | ||
| 458 | N 000933010105 | SCREW |
| FLANGE TO ENGINE | ||
| 463 | N 912004010102 | LOCK WASHER |
| FLANGE TO ENGINE | ||
| 468 | A 3875016420 | BRACKET |
| BREATHER PIPE | ||
| 473 | A 3609950601 | CLAMP |
| BREATHER PIPE TO BRACKET | ||
| 478 | N 000933006130 | SCREW |
| BREATHER PIPE TO BRACKET | ||
| 483 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 483 | N 913004006001 | NUT |
| BREATHER PIPE TO BRACKET | ||
| 488 | A 3875011682 | HOSE |
| DE-AERATION; FROM FLANGE TO COOLING WATER EXPANSION TANK | ||
| 493 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 493 | N 000000000667 | CLAMP |
| HOSE TO BREATHER PIPE AND TO ESPANSION TANK | ||
| 20-32X13 MM | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |

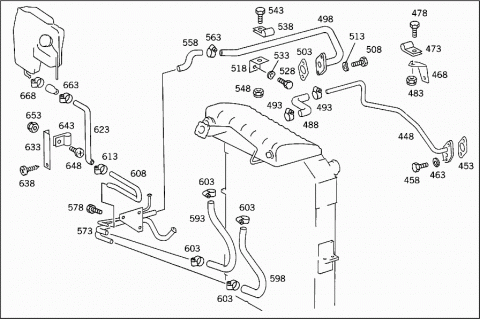

| HEATING LINES | ||
| 498 | A 6205003772 | LINE |
| (HEATING PIPE) FROM ENGINE TO HEATING PIPE AT RADIATOR | ||
| 498 | A 6205003772 | LINE |
| (HEATING PIPE) FROM ENGINE TO HEATING PIPE AT RADIATOR | ||
| 498 | A 6205003772 | LINE |
| (HEATING PIPE) FROM ENGINE TO HEATING PIPE AT RADIATOR | ||
| 498 | A 6205003672 | LINE |
| (HEATING PIPE) FROM ENGINE TO HEATING PIPE AT RADIATOR | ||
| 498 | A 6205003972 | LINE |
| (HEATING PIPE) FROM ENGINE TO HEATING PIPE AT RADIATOR | ||
| 498 | A 6205004272 | LINE |
| (HEATING PIPE) FROM ENGINE TO HEATING PIPE AT RADIATOR | ||
| 503 | N 917003022003 | GASKET |
| HEATING PIPE | ||
| 508 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 508 | N 304017008021 | SCREW |
| HEATING PIPE TO ENGINE | ||
| 513 | N 000137008204 | SPRING WASHER |
| Repalced by: N 000137008212 | ||
| 513 | N 000137008212 | SPRING WASHER |
| HEATING PIPE TO ENGINE | ||
| 518 | A 3604280243 | ANGLE |
| HEATING PIPE | ||
| 518 | A 3604280243 | ANGLE |
| HEATING PIPE | ||
| 518 | A 3818320714 | BRACKET |
| HEATING PIPE TO FAN SHROUD BRACKET | ||
| 523 | A 6205062340 | BRACKET |
| HEATING PIPE | ||
| 528 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 528 | N 304017008021 | SCREW |
| ANGLE TO AIR BAFFLE BRACKET | ||
| 528 | N 304017008021 | SCREW |
| ANGLE TO AIR BAFFLE BRACKET | ||
| 533 | N 000137008204 | SPRING WASHER |
| Repalced by: N 000137008212 | ||
| 533 | N 000137008212 | SPRING WASHER |
| ANGLE TO AIR BAFFLE BRACKET | ||
| 533 | N 000137008212 | SPRING WASHER |
| ANGLE TO AIR BAFFLE BRACKET | ||
| 538 | A 3609950601 | CLAMP |
| HEATING PIPE TO ANGLE AND TO BRACKET | ||
| 538 | A 3609950601 | CLAMP |
| HEATING PIPE TO ANGLE AND TO BRACKET | ||
| 538 | A 3609950601 | CLAMP |
| HEATING PIPE TO FAN SHROUD BRACKET | ||
| 543 | N 000933006130 | SCREW |
| HEATING PIPE TO ANGLE AND TO BRACKET | ||
| 543 | N 000933006130 | SCREW |
| HEATING PIPE TO ANGLE AND TO BRACKET | ||
| 543 | N 000933006130 | SCREW |
| HEATING PIPE TO FAN SHROUD BRACKET | ||
| 548 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 548 | N 913004006001 | NUT |
| HEATING PIPE TO ANGLE AND TO BRACKET | ||
| 548 | N 913004006001 | NUT |
| HEATING PIPE TO ANGLE AND TO BRACKET | ||
| 548 | N 913004006001 | NUT |
| HEATING PIPE TO FAN SHROUD BRACKET | ||
| 553 | N 900271018038 | HOSE |
| FROM HEATING PIPE AT ENGINE TO HEATING PIPE AT RADIATOR | ||
| 450 MM | ||
| 558 | A 6205062935 | HOSE |
| FROM HEATING PIPE AT ENGINE TO HEATING PIPE AT RADIATOR | ||
| 558 | A 6205062935 | HOSE |
| FROM HEATING PIPE AT ENGINE TO HEATING PIPE AT RADIATOR | ||
| 558 | A 6205062335 | HOSE |
| FROM HEATING PIPE AT ENGINE TO HEATING PIPE AT RADIATOR | ||
| 563 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 563 | N 000000000667 | CLAMP |
| HOSE TO HEATING PIPE | ||
| 20-32X13 MM | ||
| 568 | A 6205002872 | LINE |
| HEATING AND BREATHING | ||
| 568 | A 6455000272 | LINE |
| HEATING AND BREATHING | ||
| 568 | A 6205003072 | LINE |
| HEATING AND BREATHING | ||
| 568 | A 6455000672 | LINE |
| HEATING AND BREATHING | ||
| 573 | A 6455000072 | LINE |
| HEATING AND BREATHING | ||
| 578 | N 000933006183 | SCREW |
| Repalced by: N 304017006016 | ||
| 578 | N 304017006016 | SCREW |
| LINE TO RADIATOR | ||
| 583 | N 000125006421 | WASHER |
| LINE TO RADIATOR | ||
| 588 | A 6205062035 | HOSE |
| FROM HEATING PIPE AT RADIATOR TO CAB HEATING PIPE | ||
| 593 | A 6205060335 | HOSE |
| HEATING FEED, FROM RADIATOR TO CAB HEATING PIPE | ||
| 598 | A 6205060235 | HOSE |
| HEATER RETURN, FROM RADIATOR TO CAB HEATING PIPE | ||
| 603 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 603 | N 000000000667 | CLAMP |
| HOSE TO HEATING PIPE | ||
| 20-32X13 MM | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| DE-AERATION LINES | ||
| 608 | N 900271008043 | HOSE |
| DE-AERATION | ||
| 608 | N 900271008043 | HOSE |
| FROM EXPANSION TANK TO DE-AERATION PIPE AT RADIATOR | ||
| 608 | N 900271008043 | HOSE |
| FROM DE-AERATION PIPE AT RADIATOR TO EXPANSION TANK | ||
| 613 | N 916017011000 | CLAMP |
| Repalced by: N 916017011001 | ||
| 613 | N 000000000665 | CLAMP |
| HOSE TO BREATHER PIPE AND TO ESPANSION TANK | ||
| 12-22X13 MM | ||
| 618 | A 6175010225 | BREATHER PIPE |
| FROM EXPANSION TANK TO HEATING PIPE AT RADIATOR | ||
| 623 | A 6205010725 | BREATHER PIPE |
| FROM EXPANSION TANK TO HEATING PIPE AT RADIATOR | ||
| 623 | A 6205010725 | BREATHER PIPE |
| FROM EXPANSION TANK TO HEATING PIPE AT RADIATOR | ||
| 628 | A 6175010420 | BRACKET |
| BREATHER PIPE | ||
| 633 | A 6205010920 | BRACKET |
| BREATHER PIPE | ||
| 638 | N 007981005306 | SHEET METAL SCREW |
| BRACKET TO CAB | ||
| 643 | A 3609950201 | CLAMP |
| Repalced by: A 3604300143 | ||
| 643 | A 3604300143 | CLAMP |
| Repalced by: N 916016008200 | ||
| 643 | N 916016008200 | CLAMP |
| BREATHER PIPE TO BRACKET | ||
| 648 | N 007985006193 | SCREW |
| Repalced by: N 000000001146 | ||
| 648 | N 000000001146 | SCREW |
| BREATHER PIPE TO BRACKET | ||
| M 6X16 | ||
| 653 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 653 | N 913004006001 | NUT |
| BREATHER PIPE TO BRACKET | ||
| 658 | A 6205013282 | HOSE |
| Repalced by: A 6205012882 | ||
| 658 | A 6205012882 | HOSE |
| FROM DE-AERATION PIPE AT RADIATOR TO EXPANSION TANK | ||
| 663 | N 916017011000 | CLAMP |
| Repalced by: N 916017011001 | ||
| 663 | N 000000000665 | CLAMP |
| HOSE TO BREATHER PIPE | ||
| 12-22X13 MM | ||
| 668 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 668 | N 000000000667 | CLAMP |
| HOSE TO EXPANSION TANK | ||
| 20-32X13 MM | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| CHARGE AIR INTERCOOLER | ||
| 673 | A 6205010201 | RADIATOR |
| (CHARGING AIR INTERCOOLER) | ||
| BEHR | ||
| 678 | N 000933006121 | SCREW |
| Repalced by: N 304017006020 | ||
| 678 | N 304017006020 | SCREW |
| CHARGING AIR INTERCOOLER TO RADIATOR | ||
| 683 | N 000125006421 | WASHER |
| CHARGING AIR INTERCOOLER TO RADIATOR | ||
| 688 | A 0010947882 | HOSE |
| Repalced by: A 0020945282 | ||
| 688 | A 0020945282 | HOSE |
| FROM CHARGING AIR INTERCOOLER TO ENGINE | ||
| 693 | N 000000000676 | CLAMP |
| HOSE TO RADIATOR AND TO ENGINE | ||
| 100-120X13 MM | ||
| 698 | A 6205200406 | PIPE ELBOW |
| FROM CHARGING AIR INTERCOOLER TO ENGINE | ||
| 703 | A 6205280080 | GASKET |
| Repalced by: A 6555280080 | ||
| 703 | A 6555280080 | GASKET |
| PIPE ELBOW | ||
| 708 | N 000912010119 | SCREW |
| Repalced by: N 000912010219 | ||
| 708 | N 000912010219 | SCREW |
| PIPE ELBOW TO CHARGING AIR INTERCOOLER | ||
| 713 | N 000137010201 | SPRING WASHER |
| PIPE ELBOW TO CHARGING AIR INTERCOOLER | ||
| A 0010947982 | HOSE | |
| Repalced by: A 0020941782 | ||
| 718 | A 0020941782 | HOSE |
| Repalced by: A 0010947982 | ||
| 718 | A 0010947982 | HOSE |
| FROM PIPE ELBOW TO ENGINE | ||
| 723 | N 000000000676 | CLAMP |
| HOSE TO PIPE ELBOW AND TO ENGINE | ||
| 100-120X13 MM | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
