Transporto priemonė: 1717 L; VIN numerio dalis: 652415
Grupė: 43 EXHAUST BRAKE
| # | Kodas | Pavadinimas |
|---|---|---|
| X XXXXXXXXXXXX | PART NAME MISSING | |

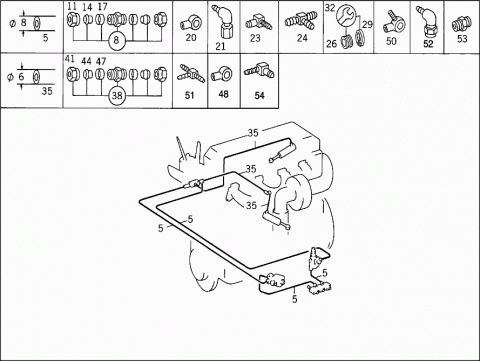

| EXHAUST BRAKE VALVE LINE CONNECTION | ||
| 005 | A 0089979082 | HOSE |
| 6X8 MM | ||
| Repalced by: A 0009872727 | ||
| 005 | A 0009872727 | PLASTIC PIPE |
| 6X8 MM | ||
| 008 | A 0029905971 | FITTING |
| (PARTS KIT),LINE RUPTURE | ||
| 011 | N 915017008100 | UNION NUT |
| 014 | N 003861008005 | GLAND |
| 017 | N 915062006000 | SLEEVE |
| 020 | N 915052006021 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 6/14 MM | ||
| 020 | N 915052006013 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 6/12 MM | ||
| 021 | A 6559900270 | T-FITTING |
| COMPRESSED-AIR-LINE PLUG-CONNECTION | ||
| 023 | A 0019907871 | ELBOW FITTING |
| COMPRESSED-AIR-LINE PLUG-CONNECTION | ||
| 023 | A 0019907971 | ELBOW FITTING |
| COMPRESSED-AIR-LINE PLUG-CONNECTION | ||
| Repalced by: A 0049905371 | ||
| 023 | A 0049905371 | ELBOW FITTING |
| COMPRESSED-AIR-LINE PLUG-CONNECTION | ||
| 024 | A 0004294237 | DISTRIBUTOR |
| COMPRESSED-AIR-LINE PLUG-CONNECTION | ||
| 4 MM | ||
| 024 | A 0009907990 | T-FITTING |
| COMPRESSED-AIR-LINE PLUG-CONNECTION | ||
| 6 MM | ||
| 026 | A 0009940047 | SEAL RING |
| COMPRESSED-AIR-LINE PLUG-CONNECTION | ||
| TO M 16 | ||
| Repalced by: A 0009940747 | ||
| 026 | A 0009940747 | LOCK RING |
| COMPRESSED-AIR-LINE PLUG-CONNECTION | ||
| TO M 16 | ||
| 029 | A 0009941248 | LOCK |
| COMPRESSED-AIR-LINE PLUG-CONNECTION | ||
| TO M 16 | ||
| Repalced by: A 0009945448 | ||
| 029 | A 0009945448 | LOCK |
| COMPRESSED-AIR-LINE PLUG-CONNECTION | ||
| TO M 16 | ||
| 032 | A 6739970045 | REPAIR KIT |
| COMPRESSED-AIR-LINE PLUG-CONNECTION | ||
| TO M 16 | ||
| Repalced by: A 0309971748 | ||
| 032 | A 0309971748 | REPAIR KIT |
| COMPRESSED-AIR-LINE PLUG-CONNECTION | ||
| TO M 16 | ||
| 035 | A 0089976082 | HOSE |
| 4X6 MM | ||
| Repalced by: A 0009872627 | ||
| 035 | A 0009872627 | PLASTIC PIPE |
| 4X6 MM | ||
| 038 | A 0039979172 | FITTING |
| (PARTS KIT),LINE RUPTURE | ||
| 041 | N 915017006100 | UNION NUT |
| 044 | N 003861006007 | GLAND |
| Repalced by: A 0019901667 | ||
| 044 | A 0019901667 | SEAL CONE |
| 047 | N 915062004000 | SLEEVE |
| 048 | N 915052004026 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 4/14 MM | ||
| Repalced by: N 000000000364 | ||
| 048 | N 000000000364 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 4/14 MM | ||
| 048 | N 915052004015 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 4/12 MM | ||
| 050 | A 0019904488 | BANJO UNION |
| COMPRESSED AIR LINE TO EXHAUST BRAKE CYLINDER | ||
| 051 | A 0004294237 | DISTRIBUTOR |
| COMPRESSED-AIR-LINE PLUG-CONNECTION | ||
| 4 MM | ||
| 052 | A 0029905271 | ELBOW FITTING |
| COMPRESSED AIR LINE TO EXHAUST BRAKE CYLINDER | ||
| 053 | N 003952006102 | FITTING |
| EXHAUST BRAKE LINE CONNECTION | ||
| Repalced by: A 0019909871 | ||
| 053 | A 0019909871 | ELBOW FITTING |
| EXHAUST BRAKE LINE CONNECTION | ||
| 054 | A 0019907871 | ELBOW FITTING |
| COMPRESSED-AIR-LINE PLUG-CONNECTION | ||
| 056 | A 0019908168 | FITTING |
| BRACKET TO PIVOT PIN | ||
| 059 | N 000125013008 | WASHER |
| 062 | N 910113012002 | NUT |
| REDUCTION FITTING TO BRACKET | ||
| 065 | N 915036008202 | HOLLOW SCREW |
| EXHAUST BRAKE COMPRESSED AIR LINE | ||
| 068 | N 007603012405 | SEAL RING |
| EXHAUST BRAKE COMPRESSED AIR LINE | ||
| 071 | A 6164290240 | BRACKET |
| COMPRESSED AIR LINE TO EXHAUST BRAKE CYLINDER | ||
| Repalced by: A 6454310740 | ||
| 071 | A 6454310740 | BRACKET |
| COMPRESSED AIR LINE TO EXHAUST BRAKE CYLINDER | ||
| 074 | N 000933008212 | SCREW |
| BRACKET TO EXHAUST BRAKE CYLINDER BRACKET | ||
| Repalced by: N 304017008016 | ||
| 074 | N 304017008016 | SCREW |
| BRACKET TO EXHAUST BRAKE CYLINDER BRACKET | ||
| 077 | N 913004008004 | NUT |
| BRACKET TO EXHAUST BRAKE CYLINDER BRACKET | ||
| Repalced by: N 913004008001 | ||
| 077 | N 913004008001 | NUT |
| BRACKET TO EXHAUST BRAKE CYLINDER BRACKET | ||
| 078 | A 3604292940 | BRACKET |
| COMPRESSED AIR LINE TO ENGINE | ||
| 079 | N 000933008301 | SCREW |
| COMPRESSED AIR LINE TO ENGINE | ||
| Repalced by: A 0079900801 | ||
| 079 | A 0079900801 | SCREW |
| COMPRESSED AIR LINE TO ENGINE | ||
| 080 | N 913004008004 | NUT |
| COMPRESSED AIR LINE TO ENGINE | ||
| Repalced by: N 913004008001 | ||
| 080 | N 913004008001 | NUT |
| COMPRESSED AIR LINE TO ENGINE | ||
| 081 | A 0029975872 | FITTING |
| CONNECTION TO STOP LIGHT SWITCH | ||
| SA 46347 | ||
| Repalced by: A 3899970272 | ||
| 081 | A 3899970272 | FITTING |
| CONNECTION TO STOP LIGHT SWITCH | ||
| SA 46347 | ||
| 083 | A 0004290827 | THRUST RING |
| CONNECTION TO STOP LIGHT SWITCH | ||
| SA 46347 | ||
| Repalced by: A 0009940103 | ||
| 083 | A 0009940103 | THRUST RING |
| CONNECTION TO STOP LIGHT SWITCH | ||
| SA 46347 | ||
| 086 | A 0019970845 | SEAL RING |
| CONNECTION TO STOP LIGHT SWITCH | ||
| SA 46347 | ||
| 092 | A 0019978490 | LOOM TIE |
| COMPRESSED AIR LINE MOUNTING | ||
| 376 MM | ||
| 092 | A 0019978390 | LOOM TIE |
| COMPRESSED AIR LINE MOUNTING | ||
| 280 MM | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |

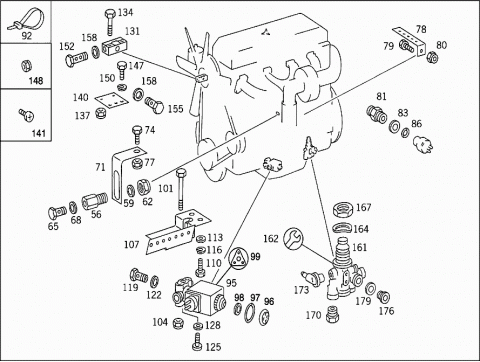

| ENGINE SHUT-OFF AND EXHAUST BRAKE | ||
| 095 | A 0039975336 | VALVE |
| (3/2-WAY SOLENOID VALVE) ENGINE SHUT-OFF | ||
| Repalced by: A 0049975736 | ||
| 095 | A 0049975736 | VALVE |
| (3/2-WAY SOLENOID VALVE) ENGINE SHUT-OFF | ||
| 096 | A 0014310087 | PROTECTIVE CAP |
| WABCO | ||
| 097 | A 0079970248 | SEAL RING |
| WABCO | ||
| 097 | A 0149970048 | SEAL RING |
| BOSCH | ||
| 098 | N 007603006106 | SEAL RING |
| BOSCH | ||
| 099 | A 0034305481 | GASKET KIT |
| KNORR | ||
| 101 | N 000931008254 | SCREW |
| 3/2-WAY SOLENOID VALVE TO BRACKET | ||
| Repalced by: N 304014008002 | ||
| 101 | N 304014008002 | SCREW |
| 3/2-WAY SOLENOID VALVE TO BRACKET | ||
| 104 | N 913004008004 | NUT |
| 3/2-WAY SOLENOID VALVE TO BRACKET | ||
| Repalced by: N 913004008001 | ||
| 104 | N 913004008001 | NUT |
| 3/2-WAY SOLENOID VALVE TO BRACKET | ||
| 107 | A 6554313240 | BRACKET |
| 3/2-WAY SOLENOID VALVE | ||
| 107 | A 6554312740 | BRACKET |
| 3/2-WAY SOLENOID VALVE | ||
| A 6554310884 | SHIM | |
| 3/2-WAY SOLENOID VALVE | ||
| 110 | N 000933008212 | SCREW |
| BRACKET TO CAB FLOOR | ||
| Repalced by: N 304017008016 | ||
| 110 | N 304017008016 | SCREW |
| BRACKET TO CAB FLOOR | ||
| 113 | N 000125008418 | WASHER |
| BRACKET TO CAB FLOOR | ||
| Repalced by: N 000125008443 | ||
| 113 | N 000125008443 | WASHER |
| BRACKET TO CAB FLOOR | ||
| 116 | N 912004008102 | LOCK WASHER |
| BRACKET TO CAB FLOOR | ||
| 119 | N 915036008202 | HOLLOW SCREW |
| 3/2-WAY SOLENOID VALVE,CONNECTIONS: | ||
| "10,20" | ||
| 122 | N 007603012405 | SEAL RING |
| 3/2-WAY SOLENOID VALVE,CONNECTIONS: | ||
| "10,20" | ||
| 125 | N 000084006132 | SCREW |
| 3/2-WAY SOLENOID VALVE | ||
| 128 | N 007603006106 | SEAL RING |
| 3/2-WAY SOLENOID VALVE | ||
| 131 | A 0012604957 | VALVE |
| (SHUTTLE VALVE) | ||
| 134 | N 000931005039 | SCREW |
| TWO-WAY VALVE TO BRACKET | ||
| 137 | N 913004005001 | NUT |
| TWO-WAY VALVE TO BRACKET | ||
| 140 | A 6504311840 | BRACKET |
| SHUTTLE VALVE | ||
| 141 | N 007985006139 | SCREW |
| BRACKET TO AIR-COMPRESSOR-LINE BRACKET | ||
| 147 | N 000933010105 | SCREW |
| BRACKET TO ENGINE,REAR | ||
| 148 | N 913004006002 | NUT |
| BRACKET TO AIR-COMPRESSOR-LINE BRACKET | ||
| Repalced by: N 913004006001 | ||
| 148 | N 913004006001 | NUT |
| BRACKET TO AIR-COMPRESSOR-LINE BRACKET | ||
| 150 | N 912004010102 | LOCK WASHER |
| BRACKET TO ENGINE,REAR | ||
| 152 | N 915047010202 | HOLLOW SCREW |
| TWO-WAY VALVE,CONNECTIONS: | ||
| "20" | ||
| 155 | N 915036010204 | HOLLOW SCREW |
| TWO-WAY VALVE,CONNECTION: | ||
| "11,12" | ||
| Repalced by: N 915036010108 | ||
| 155 | N 915036010108 | HOLLOW SCREW |
| TWO-WAY VALVE,CONNECTION: | ||
| "11,12" | ||
| 158 | N 007603014405 | SEAL RING |
| TWO-WAY VALVE,CONNECTIONS: | ||
| "11,12,20" | ||
| 161 | A 0039977036 | VALVE |
| 3/2-WAY; EXHAUST BRAKE CONTROL | ||
| WABCO | ||
| 161 | A 0039977536 | VALVE |
| 3/2-WAY; EXHAUST BRAKE CONTROL | ||
| BOSCH | ||
| 162 | A 0025869843 | REPAIR KIT |
| 3/2-WAY VALVE | ||
| TO 003 997 70 36,WABCO | ||
| 164 | N 000137027201 | SPRING WASHER |
| 3/2-WAY VALVE TO CAB | ||
| 167 | N 074305026202 | NUT |
| 3/2-WAY VALVE TO CAB | ||
| 170 | A 0009970834 | UNION SCREW |
| 3/2-WAY VALVE;CONNECTIONS: | ||
| "10,21";M 16 | ||
| Repalced by: A 0009973734 | ||
| 170 | A 0009973734 | UNION SCREW |
| 3/2-WAY VALVE;CONNECTIONS: | ||
| "10,21";M 16 | ||
| 173 | A 4063580065 | BREATHER |
| 3/2-WAY VALVE;CONNECTION: | ||
| "30" | ||
| Repalced by: A 3933280065 | ||
| 173 | A 3933280065 | PIPE SOCKET |
| 3/2-WAY VALVE;CONNECTION: | ||
| "30" | ||
| 176 | N 000908012003 | SCREW PLUG |
| 3/2-WAY VALVE;CONNECTION: | ||
| "22" | ||
| Repalced by: N 000908012009 | ||
| 176 | N 000908012009 | SCREW PLUG |
| 3/2-WAY VALVE;CONNECTION: | ||
| "22" | ||
| 179 | N 007603012405 | SEAL RING |
| 3/2-WAY VALVE;CONNECTION: | ||
| "22" | ||
