Transporto priemonė: 1719; VIN numerio dalis: 387006
Grupė: 42 BRAKES

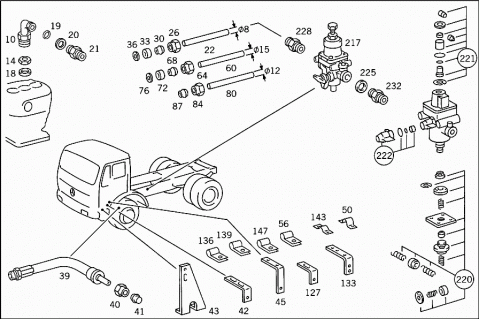

43721

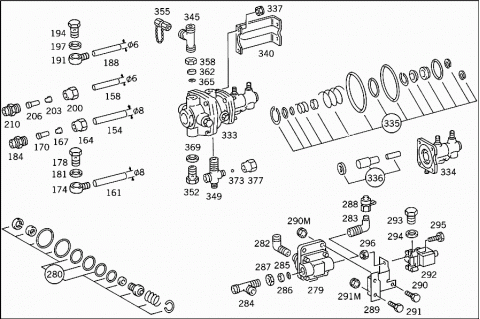

43722

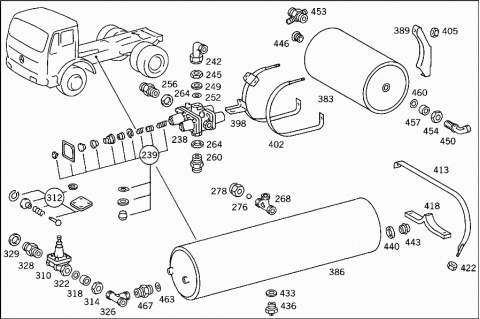

43723

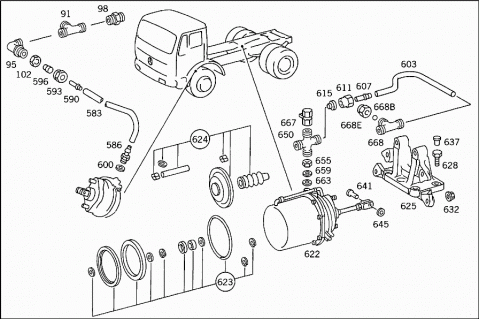

43724

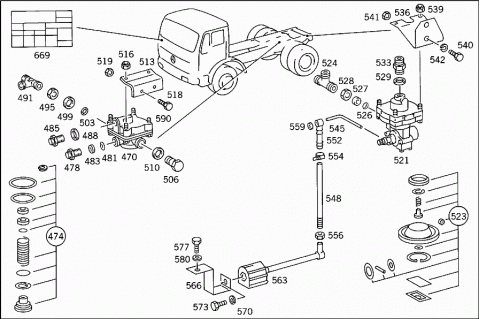

43725

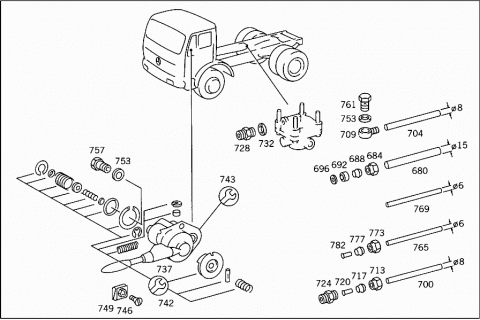

43726

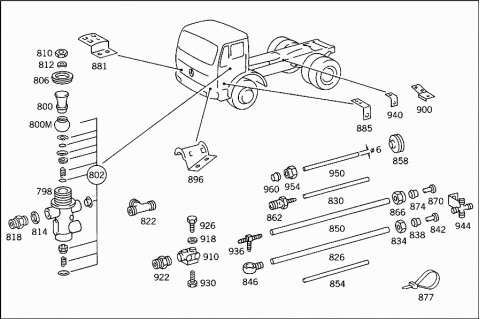

43727
# Kodas Pavadinimas
T YYYYYYYYYYYY PART NAME MISSING
FOR FRONT WHEEL BRAKE,SEE UNIT STANDARD VERSION, MODEL:
739.1
T YYYYYYYYYYYY PART NAME MISSING
FOR FRONT WHEEL BRAKE,SEE UNIT STANDARD VERSION, MODEL:
731.0
T YYYYYYYYYYYY PART NAME MISSING
FOR BRAKES,SEE UNIT STANDARD VERSION, MODEL:
740.1
010 A 0004291838 ELBOW FITTING
AT AIR COMPRESSOR
A 0004294338 ELBOW FITTING
AT AIR COMPRESSOR
014 N 080705026000 NUT
Repalced by: N 080705026003
014 N 080705026003 NUT
AT AIR COMPRESSOR
014 N 080705026003 NUT
AT AIR COMPRESSOR
018 N 007603026104 SEAL RING
AT AIR COMPRESSOR
019 A 0039973848 SEAL RING
020 A 0004290527 THRUST RING
021 N 074298022203 DOUBLE FITTING
BETWEEN THE LINES
021 N 074298022203 DOUBLE FITTING
BETWEEN THE LINES
A 0004290401 LINE
Repalced by: A 0005516456
022 A 0005516456 TUBE
18 MM
026 N 003872018100 UNION NUT
Repalced by: N 915018018000
026 N 915018018000 UNION NUT
030 N 003861018003 GLAND
Repalced by: A 0019901167
030 A 0019901167 SEAL CONE
033 N 074297018302 THRUST RING
Repalced by: N 915065018101
033 N 915065018101 THRUST RING
036 A 0004291584 SEAL RING
Repalced by: N 915045015100
036 N 915045015100 SEAL RING
A 0004295635 BRAKE HOSE
Repalced by: A 0004297335
A 0004297335 BRAKE HOSE
039 A 0004297135 BRAKE HOSE
040 N 003872015100 UNION NUT
Repalced by: N 915018015000
040 N 915018015000 UNION NUT
041 N 003861015004 GLAND
042 A 3464295940 BRACKET
Repalced by: A 3464296040
043 A 3874295840 BRACKET
045 A 3874292240 BRACKET
045 A 3874292240 BRACKET
N 000933008147 SCREW
Repalced by: N 304017008021
N 304017008021 SCREW
BRACKET TO SIDE MEMBER
N 913004008004 NUT
Repalced by: N 913004008001
N 913004008001 NUT
BRACKET TO SIDE MEMBER
050 N 001593019001 CLAMP
LINE TO BRACKET
N 001593015500 CLAMP
Repalced by: A 3609950210
A 3609950210 CLAMP
LINE TO BRACKET
N 000000001147 SCREW
LINE TO BRACKET
M 6X20
N 000000001147 SCREW
LINE TO BRACKET
M 6X20
N 000125006421 WASHER
LINE TO BRACKET
N 000125006421 WASHER
LINE TO BRACKET
N 913004006002 NUT
Repalced by: N 913004006001
N 913004006001 NUT
LINE TO BRACKET
N 913004006001 NUT
LINE TO BRACKET
056 A 3609950601 CLAMP
A 3609950501 CLAMP
Repalced by: A 3609952001
A 3609952001 CLAMP
Repalced by: A 6739950001
A 6739950001 CLAMP
N 074298022203 DOUBLE FITTING
FITTING TO FRAME SIDE MEMBER
A 0019901871 ELBOW FITTING
FITTING TO FRAME SIDE MEMBER
A 0019901871 ELBOW FITTING
FITTING TO FRAME SIDE MEMBER
A 0019901871 ELBOW FITTING
FITTING TO FRAME SIDE MEMBER
N 003940014201 BULKHEAD FITTING
FITTING TO FRAME SIDE MEMBER
N 915065015101 THRUST RING
N 915045012100 SEAL RING
Repalced by: N 007603012121
N 007603012121 SEAL RING
N 074305022202 NUT
FITTING TO FRAME SIDE MEMBER
N 074305022202 NUT
FITTING TO FRAME SIDE MEMBER
N 074305022202 NUT
FITTING TO FRAME SIDE MEMBER
A 0004290201 LINE
Repalced by: A 0005516256
060 A 0005516256 TUBE
15 MM
A 3874209345 LINE
Repalced by: A 0004291401
A 0004291401 LINE
FROM FITTING I TO CONNECTION FITTING II
A 0004291401 LINE
15 MM
064 N 003872015100 UNION NUT
Repalced by: N 915018015000
064 N 915018015000 UNION NUT
068 N 003861015004 GLAND
072 N 915065015101 THRUST RING
A 0004292084 SEAL RING
Repalced by: N 915045012100
076 N 915045012100 SEAL RING
Repalced by: N 007603012121
076 N 007603012121 SEAL RING
A 3874208737 LINE
FROM RIGHT BRAKE CYLINDER TO HOSE
A 3874208837 LINE
FROM LEFT BRAKE CYLINDER TO HOSE
080 A 0004291001 LINE
12 MM
A 0004292101 LINE
12 MM
084 N 003870012104 UNION NUT
Repalced by: N 915017012100
084 N 915017012100 UNION NUT
087 N 003861012007 GLAND
Repalced by: A 0019901967
087 A 0019901967 SEAL CONE
091 A 0009905270 T-FITTING
Repalced by: A 0009905270
091 A 0009905270 T-FITTING
095 N 003911012000 FITTING
Repalced by: A 0009907871
095 A 0009907871 ELBOW FITTING
LINE THRU FRAME
098 A 0029971472 FITTING
Repalced by: A 0049971772
098 A 0049971772 FITTING
Repalced by: A 0029906171
098 A 0029906171 FITTING
AT FRAME
102 N 080705018002 NUT
T YYYYYYYYYYYY PART NAME MISSING
SEE FIG. NO.668
T YYYYYYYYYYYY PART NAME MISSING
SEE FIG. NO.668B
T YYYYYYYYYYYY PART NAME MISSING
SEE FIG. NO.668E
A 3609950401 CLAMP
N 001593013000 CLAMP
N 000000001147 SCREW
CLAMP TO BRACKET
M 6X20
N 913004006002 NUT
Repalced by: N 913004006001
N 913004006001 NUT
CLAMP TO BRACKET
A 3464295940 BRACKET
Repalced by: A 3464296040
A 3464296040 BRACKET
BRACKET TO APPARATUS SUPPORT
N 000933008147 SCREW
Repalced by: N 304017008021
N 304017008021 SCREW
BRACKET TO APPARATUS SUPPORT
N 913004008004 NUT
Repalced by: N 913004008001
N 913004008001 NUT
BRACKET TO APPARATUS SUPPORT
127 A 3464295840 BRACKET
Repalced by: A 3812950440
127 A 3144290240 BRACKET
Repalced by: A 3812950440
127 A 3812950440 BRACKET
N 000933008147 SCREW
Repalced by: N 304017008021
N 304017008021 SCREW
BRACKET TO FRAME SIDE MEMBER
N 913004008004 NUT
Repalced by: N 913004008001
N 913004008001 NUT
BRACKET TO FRAME SIDE MEMBER
133 A 3634292740 BRACKET
136 A 3609950201 CLAMP
Repalced by: A 3604300143
136 A 3604300143 CLAMP
Repalced by: N 916016008200
136 N 916016008200 CLAMP
8 MM
139 A 3609950401 CLAMP
12 MM
143 N 001593013000 CLAMP
12 MM
A 3609950501 CLAMP
Repalced by: A 3609952001
147 A 3609952001 CLAMP
Repalced by: A 6739950001
147 A 6739950001 CLAMP
15 MM
N 000000001147 SCREW
M 6X20
N 000125006421 WASHER
N 913004006002 NUT
Repalced by: N 913004006001
N 913004006001 NUT
154 A 0089979082 HOSE
8 MM
158 A 0089976082 HOSE
Repalced by: A 0009872627
158 A 0009872627 PLASTIC PIPE
BLACK
6 X 4 MM
161 N 040621008208 INSULATING HOSE
YELLOW
8 MM
164 N 003870008101 UNION NUT
Repalced by: N 915017008100
164 N 915017008100 UNION NUT
167 N 003861008005 GLAND
170 A 0007630043 SLEEVE
Repalced by: N 915062006000
170 N 915062006000 SLEEVE
174 N 915052006014 BANJO UNION
A 0009906688 BANJO UNION
Repalced by: N 915052006013
N 915052006013 BANJO UNION
A 0109975982 HOSE
Repalced by: A 0009872827
A 0009872827 PLASTIC PIPE
12 MM
A 0049971772 FITTING
Repalced by: A 0029906171
A 0029906171 FITTING
(PARTS KIT),LINE RUPTURE
TO 010 997 59 82
A 0009921505 BUSHING
Repalced by: N 915062009000
N 915062009000 SLEEVE
N 003870012104 UNION NUT
Repalced by: N 915017012100
N 915017012100 UNION NUT
N 003861012007 GLAND
Repalced by: A 0019901967
A 0019901967 SEAL CONE
N 915052009009 BANJO UNION
SPRING LOAD ACCUMULATOR CYLINDER
A 0019978390 LOOM TIE
A 0039976881 GROMMET
A 3879970181 GROMMET
A 3549970081 GROMMET
LINE THRU FRAME
32/27 MM
A 3879970481 GROMMET
LINE THRU FRAME
38/30 MM
A 3874292940 BRACKET
Repalced by: A 3852670040
A 3852670040 BRACKET
FROM RELAY VALVE TO SPRING-LOAD ACCUMULATOR CYLINDER
A 3874293040 BRACKET
Repalced by: A 3914290140
A 3914290140 BRACKET
FROM RELAY VALVE TO SPRING-LOAD ACCUMULATOR CYLINDER
178 N 915011010101 HOLLOW SCREW
Repalced by: N 915036012101
178 N 915036012203 HOLLOW SCREW
181 N 007603016100 SEAL RING
Repalced by: N 007603016105
181 N 007603016401 SEAL RING
N 003902008001 CONNECTION FITTING
Repalced by: A 0019972672
184 A 0019972672 FITTING
Repalced by: A 0039978972
184 A 0039978972 FITTING
Repalced by: A 0029905971
184 A 0029905971 FITTING
BETWEEN THE LINES
N 003954008101 FITTING
Repalced by: A 0009909970
A 0009909970 T-FITTING
AT RELAY VALVE
188 N 040621006204 INSULATING HOSE
191 A 0009903888 BANJO UNION
Repalced by: N 915052004006
191 N 915052004015 BANJO UNION
194 N 915039008202 HOLLOW SCREW FITTING
197 N 007603012405 SEAL RING
200 N 915017006100 UNION NUT
203 N 003861006007 GLAND
Repalced by: A 0019901667
203 A 0019901667 SEAL CONE
206 A 0009920205 BUSHING
Repalced by: N 915062004000
206 N 915062004000 SLEEVE
206 A 0009920105 BUSHING
Repalced by: N 915062004000
206 N 915062004000 SLEEVE
A 0019900170 T-FITTING
210 A 0039979172 FITTING
A 6204295240 BRACKET
AT CAB FLOOR
N 913004006002 NUT
Repalced by: N 913004006001
N 913004006001 NUT
AT CAB FLOOR
A 0019977590 LOOM TIE
Repalced by: A 0019978490
A 0019978590 LOOM TIE
Repalced by: A 0019978490
A 0019978490 LOOM TIE
A 0019977290 LOOM TIE
Repalced by: A 0019978390
A 0019978390 LOOM TIE
217 A 0014310006 PRESSURE REGULATOR
Repalced by: A 0024314906
217 A 0014310606 PRESSURE REGULATOR
Repalced by: A 0024313406
217 A 0024313406 PRESSURE REGULATOR
Repalced by: A 0024314306
217 A 0014313406 PRESSURE REGULATOR
Repalced by: A 0024314306
217 A 0024314306 PRESSURE REGULATOR
BOSCH
A 0014311206 PRESSURE REGULATOR
Repalced by: A 0024314906
217 A 0024314906 PRESSURE REGULATOR
WABCO
217 A 0024318306 PRESSURE REGULATOR
KNORR
220 A 0015864343 REPAIR KIT
Repalced by: A 0004301107
220 A 0004301107 REPAIR KIT
TO 001 431 00 06,WABCO 975 300 110 0
A 0024304681 REPAIR KIT
VALVE KIT
TO 001 431 00 06,WABCO 975 300 110 0
A 0014304960 REPAIR KIT
TO 002 431 49 06,WABCO 975 303 460 0
A 0015868543 REPAIR KIT
Repalced by: A 0004301407
A 0004301407 REPAIR KIT
TO 001 431 06 06,BOSCH 0 481 039 101
A 0025866743 REPAIR KIT
TO 001 431 12 06,KNORR 3200
A 0025866043 REPAIR KIT
TO 001 431 34 06,GRAU 312 017 014
221 A 0004301768 REPAIR KIT
DIAPHRAGM
TO 002 431 34 06,BOSCH 0 481 039 221
221 A 0004301768 REPAIR KIT
DIAPHRAGM
TO 002 431 43 06,BOSCH 0 481 039 201
222 A 0004307960 REPAIR KIT
TIRE INFLATING CONNECTION
TO 002 431 34 06,BOSCH 0 481 039 221
222 A 0004307960 REPAIR KIT
TIRE INFLATING CONNECTION
TO 002 431 43 06,BOSCH 0 481 039 201
A 0004300407 REPAIR KIT
TO 002 431 83 06,KNORR 90309
N 000931008242 SCREW
PRESSURE REGULATOR TO BRACKET
N 913004008004 NUT
Repalced by: N 913004008001
N 913004008001 NUT
PRESSURE REGULATOR TO BRACKET
A 0004310173 BREATHER PIPE
AT PRESSURE REGULATOR
A 0004300170 MUFFLER
AT PRESSURE REGULATOR
N 916026020001 CLAMP
Repalced by: N 000000000667
N 000000000667 CLAMP
AT PRESSURE REGULATOR
N 916002035100 CLAMP
AT PRESSURE REGULATOR
N 916026016001 CLAMP
Repalced by: A 0059970190
A 0059970190 LOOM TIE
AT PRESSURE REGULATOR
A 0004310151 SPACER RING
AT PRESSURE REGULATOR
A 0119971082 HOSE
Repalced by: A 0005461830
A 0005461830 INSULATING HOSE
AT PRESSURE REGULATOR
A 0019978390 LOOM TIE
AT PRESSURE REGULATOR
225 N 007603022102 SEAL RING
AT PRESSURE REGULATOR
225 N 007603022102 SEAL RING
AT PRESSURE REGULATOR
228 N 074313018201 FITTING
AT PRESSURE REGULATOR
232 N 074298022203 DOUBLE FITTING
AT PRESSURE REGULATOR
232 N 074298022203 DOUBLE FITTING
AT PRESSURE REGULATOR
232 N 074298022203 DOUBLE FITTING
AT PRESSURE REGULATOR
N 074301022203 ELBOW FITTING
AT PRESSURE REGULATOR
A 0009870446 SEALING CORD
AT PRESSURE REGULATOR
A 0004290227 THRUST RING
AT PRESSURE REGULATOR
N 074305022202 NUT
AT PRESSURE REGULATOR
A 0014311506 VALVE
Repalced by: A 0014315806
238 A 0014315806 VALVE
Repalced by: A 0024310606
238 A 0024310606 VALVE
FOUR-CIRCUIT PROTECTIVE VALVE
BOSCH
A 0014312006 VALVE
FOUR-CIRCUIT PROTECTIVE VALVE
KNORR
A 0014313006 VALVE
FOUR-CIRCUIT PROTECTIVE VALVE
WABCO
A 0014313906 VALVE
Repalced by: A 0024312806
A 0024312806 VALVE
Repalced by: A 0024319206
A 0024319206 VALVE
FOUR-CIRCUIT PROTECTIVE VALVE
GRAU
A 0014313806 VALVE
Repalced by: A 0024310406
A 0024310406 VALVE
FOUR-CIRCUIT PROTECTIVE VALVE
BOSCH
A 0014314706 VALVE
FOUR-CIRCUIT PROTECTIVE VALVE
WABCO
A 0014316806 VALVE
Repalced by: A 0024312906
A 0024312906 VALVE
Repalced by: A 0024319306
A 0024319306 VALVE
FOUR-CIRCUIT PROTECTIVE VALVE
GRAU
A 0014313506 VALVE
Repalced by: A 0014318406
A 0014318406 VALVE
FOUR-CIRCUIT PROTECTIVE VALVE
KNORR
A 0014310986 CUP
TO 002 431 04 06,06 06,BOSCH
A 0009934905 SPRING
Repalced by: A 0009935205
A 0009935205 SPRING
TO 002 431 04 06,06 06,BOSCH
A 0014311860 SEAL RING
34X2.3 MM;TO 0014316806;0014313906
A 0024298844 VALVE
TO 0014313906,6806;GRAU 37001,38001
A 0099972448 SEAL RING
TO 0014313906,6806;GRAU 37001,38001
A 0059973248 SEAL RING
25,3X2,4 MM;TO 001 431 68 06,39 06
A 0004313188 VALVE SEAT
TO 0014313906,6806;GRAU 37001,38001
A 0014311960 SEAL RING
Repalced by: A 0009971548
A 0009971548 SEAL RING
15X2 MM;GRAU 19001,23001,
Y YYYYYYYYYYYY PART NAME MISSING
TO 001 431 68 06,001 431 39 06
A 0025863943 REPAIR KIT
BOOT
TO 001 431 15 06,BOSCH
A 0025864043 REPAIR KIT
SEAL RING
TO 001 431 15 06,BOSCH
A 0034300881 REPAIR KIT
TO 002 431 08 81;GRAU 74001
A 0004302906 GASKET KIT
BOOT
TO 002 431 04 06,BOSCH
A 0034304681 VALVE
SEAL RING
TO 001 431 58 06,BOSCH 62012
A 0025861743 REPAIR KIT
BOOT
TO 001 431 38 06,001 431 15 06
A 0034300881 REPAIR KIT
TO 002 431 92 06 GRAU 61001
A 0025864743 REPAIR KIT
Repalced by: A 0015863842
A 0015863842 REPAIR KIT
TO 001 431 20 06,001 431 35 06,KNORR
A 0004303160 REPAIR KIT
TO 001 431 84 06,KNORR
A 0015865343 REPAIR KIT
Repalced by: A 0034300781
A 0034300781 REPAIR KIT
TO 001 431 30 06;WABCO 1000
239 A 0025865942 REPAIR KIT
TO 001 431 30 06;WABCO 3000
A 0004302268 REPAIR KIT
TO 001 431 30 06,WABCO NR.3400
A 0025862843 REPAIR KIT
TO 001 431 47 06;WABCO 2100
A 0004300468 REPAIR KIT
TO 001 431 47 06;WABCO 2210
242 A 0009909671 ELBOW FITTING
Repalced by: A 0029901271
242 A 0029901271 ELBOW FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"1"
245 N 074305022202 NUT
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"1"
249 A 0004290227 THRUST RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"1"
252 A 0009870446 SEALING CORD
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"1"
A 0029971572 FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS:
"11,12"
N 007603016401 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS:
"11,12"
N 074315012100 FITTING
Repalced by: A 0019903371
A 0019903371 ELBOW FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS:
"11,12"
A 0009970469 F-FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS:
"11,12"
A 0009971548 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS:
"11,12"
A 0004290927 THRUST RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS:
"11,12"
N 080705016003 NUT
256 A 0029971572 FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"21"
256 A 0029971572 FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"21"
256 A 0029971572 FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS:
"21,22"
256 N 074313012304 FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"22"
256 N 074313012304 FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"22"
N 003952012101 FITTING
Repalced by: A 0019902771
A 0019902771 ELBOW FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS:
"21,22"
260 N 074313008104 FITTING
Repalced by: A 0029979572
260 A 0029979572 FITTING
264 N 007603016100 SEAL RING
Repalced by: N 007603016105
264 N 007603016401 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"22"
264 N 007603016401 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"22"
A 0009971548 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS:
"21,22"
N 080705018002 NUT
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"22"
N 080705018002 NUT
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"22"
A 0004290927 THRUST RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS:
"21,22"
N 000125019009 WASHER
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"22"
A 0029972672 FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"24"
268 A 0019979272 FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"24"
N 080705016003 NUT
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"24"
A 0004290927 THRUST RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"24"
A 0009971548 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"24"
276 A 0009970386 PLUG
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"24"
278 N 007605018000 LOCK NUT
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"24"
A 0019905268 FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"23"
N 007603016100 SEAL RING
Repalced by: N 007603016105
N 007603016401 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"23"
N 915039008202 HOLLOW SCREW FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"23"
N 007603012405 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"23"
279 A 0004313213 VALVE
LOAD/NO-LOAD VALVE
A 0004313313 VALVE
LOAD/NO-LOAD VALVE
A 0004313313 VALVE
LOAD/NO-LOAD VALVE
A 0005867843 REPAIR KIT
TO 000 431 33 13
A 0005867843 REPAIR KIT
TO 000 431 33 13
280 A 0005867143 REPAIR KIT
TO 000 431 32 13
A 3914311040 BRACKET
Repalced by: A 3934310840
A 3934310840 BRACKET
FROM COMPRESSED AIR LINE TO FRONT WHEEL BRAKE CYLINDER
A 0029977372 FITTING
FROM COMPRESSED AIR LINE TO FRONT WHEEL BRAKE CYLINDER
N 080705018002 NUT
T-FITTING TO BRACKET
291 N 000933008160 SCREW
Repalced by: N 304017008040
291 N 304017008040 SCREW
Repalced by: N 910105008010
291 N 910105008010 SCREW
Repalced by: N 910143008005
291 N 910143008005 SCREW
BRACKET TO SIDE MEMBER
N 913004008004 NUT
Repalced by: N 913004008001
N 913004008001 NUT
BRACKET TO SIDE MEMBER
N 915011010101 HOLLOW SCREW
Repalced by: N 915036012101
N 915036012203 HOLLOW SCREW
CONNECTION:
"1"
N 007603016401 SEAL RING
CONNECTION:
"1"
N 007603016401 SEAL RING
CONNECTION:
"1"
N 074315012100 FITTING
Repalced by: A 0019903371
A 0019903371 ELBOW FITTING
A 0019903371 ELBOW FITTING
282 A 0019903071 ELBOW FITTING
282 A 0019903071 ELBOW FITTING
A 0019900288 BANJO UNION
CONNECTION:
"1"
283 A 3529900071 ELBOW FITTING
283 A 3529900071 ELBOW FITTING
283 A 3529900071 ELBOW FITTING
A 0029978172 FITTING
284 A 0009904570 T-FITTING
284 A 0009904570 T-FITTING
285 A 0009971548 SEAL RING
285 A 0009971548 SEAL RING
286 A 0004290927 THRUST RING
286 A 0004290927 THRUST RING
287 N 080705016003 NUT
287 N 080705016003 NUT
N 915039008202 HOLLOW SCREW FITTING
N 007603012405 SEAL RING
288 A 0004312031 TEST CONNECTION
LOAD/NO-LOAD VALVE,CONNECTION:
VOSS
288 A 0004312031 TEST CONNECTION
LOAD/NO-LOAD VALVE,CONNECTION:
VOSS
288 A 0004314531 TEST CONNECTION
SCHAEFER
288 A 0004314531 TEST CONNECTION
SCHAEFER
288 A 0004314831 TEST CONNECTION
LOAD/NO-LOAD VALVE,CONNECTION:
WABCO
288 A 0004314831 TEST CONNECTION
LOAD/NO-LOAD VALVE,CONNECTION:
WABCO
288 A 0004316131 TEST CONNECTION
LOAD/NO-LOAD VALVE,CONNECTION:
WIRA
288 A 0004316131 TEST CONNECTION
LOAD/NO-LOAD VALVE,CONNECTION:
WIRA
A 0009979486 PLUG
A 3874311140 BRACKET
TEST CONNECTION
289 A 3874313240 BRACKET
TEST CONNECTION
289 A 3874313240 BRACKET
TEST CONNECTION
290 N 000933008153 SCREW
Repalced by: N 304017008034
290 N 304017008034 SCREW
BRACKET TO LOAD/NO-LOAD VALVE
290 N 304017008034 SCREW
BRACKET TO LOAD/NO-LOAD VALVE
290M N 913004008004 NUT
Repalced by: N 913004008001
290M N 913004008001 NUT
BRACKET TO LOAD/NO-LOAD VALVE
290M N 913004008001 NUT
BRACKET TO LOAD/NO-LOAD VALVE
291 N 000933008152 SCREW
Repalced by: N 304017008027
291 N 304017008027 SCREW
BRACKET TO SIDE MEMBER
291 N 304017008027 SCREW
BRACKET TO SIDE MEMBER
291 N 304017008027 SCREW
BRACKET TO SIDE MEMBER
291 N 000933008160 SCREW
Repalced by: N 304017008040
291 N 304017008040 SCREW
Repalced by: N 910105008010
291 N 910105008010 SCREW
Repalced by: N 910143008005
291 N 910143008005 SCREW
291M N 913004008004 NUT
Repalced by: N 913004008001
291M N 913004008001 NUT
BRACKET TO SIDE MEMBER
291M N 913004008001 NUT
BRACKET TO SIDE MEMBER
292 A 0004202755 BLEEDER VALVE
292 A 0004202755 BLEEDER VALVE
A 0029970736 VALVE
Repalced by: A 0004202755
293 N 000908012003 SCREW PLUG
Repalced by: N 000908012009
293 N 000908012009 SCREW PLUG
293 N 000908012009 SCREW PLUG
294 N 007603012405 SEAL RING
294 N 007603012405 SEAL RING
295 N 000933006124 SCREW
295 N 000933006124 SCREW
296 N 913004006002 NUT
Repalced by: N 913004006001
296 N 913004006001 NUT
296 N 913004006001 NUT
T YYYYYYYYYYYY PART NAME MISSING
SEE FIG. NO.276
T YYYYYYYYYYYY PART NAME MISSING
SEE FIG. NO.278
A 0014298644 VALVE
Repalced by: A 0024294344
310 A 0024294344 VALVE
(OVERFLOW VALVE)
A 0024291344 VALVE
Repalced by: A 0024294844
A 0024294844 VALVE
(OVERFLOW VALVE)
312 A 0004300268 REPAIR KIT
OVERFLOW VALVE
TO 002 429 43 44
A 0015862642 REPAIR KIT
OVERFLOW VALVE
TO 002 429 48 44,002 429 13 44
314 N 080705016003 NUT
OVERFLOW VALVE TO T-FITTING
318 A 0004290927 THRUST RING
OVERFLOW VALVE TO T-FITTING
322 A 0009971548 SEAL RING
OVERFLOW VALVE TO T-FITTING
326 N 074317012200 FITTING
Repalced by: A 0009907470
326 A 0009907470 T-FITTING
A 0029973572 FITTING
328 A 0029971572 FITTING
329 N 007603016100 SEAL RING
Repalced by: N 007603016105
329 N 007603016401 SEAL RING
N 080705016003 NUT
FITTING TO OVERFLOW VALVE
A 0004290927 THRUST RING
FITTING TO OVERFLOW VALVE
A 0009971548 SEAL RING
FITTING TO OVERFLOW VALVE
333 A 0014313505 BRAKE VALVE
WABCO
A 0014314305 BRAKE VALVE
BOSCH-TEVES
A 0014319405 BRAKE VALVE
WABCO
A 0024310505 BRAKE VALVE
BOSCH-SCHAEFER
A 0004310378 RUBBER RING
TO 001 431 43 05,002 431 05 05
A 0049970248 SEAL RING
TO 001 431 43 05,BOSCH-TEVES
A 0004312181 VALVE DISC
Repalced by: A 0004312781
A 0004312781 VALVE DISC
TO 001 431 43 05,BOSCH-TEVES
A 0004318986 CUP
TO 001 431 43 05,BOSCH-TEVES
A 0004312281 VALVE DISC
TO 001 431 43 05
TO 001 431 43 05,BOSCH-TEVES
A 0109974248 SEAL RING
TO 001 431 43 05,BOSCH-TEVES
A 0109974348 SEAL RING
Repalced by: A 0049970248
A 0049970248 SEAL RING
TO 002 431 05 05,BOSCH-SCHAEFER
A 0059975248 SEAL RING
TO 001 431 43 05 002 431 05 05
A 0059975348 SEAL RING
TO 001 431 43 05 002 431 05 05
A 0059975448 SEAL RING
TO 001 431 43 05 002 431 05 05
A 0049979148 SEAL RING
TO 001 431 43 05 002 431 05 05
A 0059975548 SEAL RING
TO 001 431 43 05 002 431 05 05
A 0002960107 SLAVE CYLINDER
Repalced by: A 0074202118
334 A 0074202118 WHEEL BRAKE CYLINDER
TO 001 431 43 05.001 431 35 05.TEVES
A 0064201518 WHEEL BRAKE CYLINDER
SLAVE CYLINDER,TO 001 431 94 05, 002 431 05 05
TO 002 431 05 05.001 431 94 05.SCHAEFE
N 007603006108 SEAL RING
TO 001 296 01 07
A 0004310871 SCREW
TO 001 296 01 07
A 0004204155 BLEEDER VALVE
Repalced by: A 0004310265
A 0004310265 VALVE
Repalced by: A 3075530107
A 3075530107 VALVE
A 0004202155 BLEEDER VALVE
Repalced by: A 0004310265
A 3164210187 PROTECTIVE CAP
Repalced by: A 0004210887
A 0004210887 PROTECTIVE CAP
Repalced by: A 0004217187
A 0004217187 PROTECTIVE CAP
Repalced by: A 0004210887
A 0004210887 PROTECTIVE CAP
A 0004212687 PROTECTIVE CAP
Repalced by: A 0004210887
335 A 0005868643 REPAIR KIT
COMPRESSED AIR CYLINDER
TO 001 431 35 05,001 431 94 05
A 0025861343 REPAIR KIT
VALVE DISC
TO 001 431 43 05,002 431 05 05
A 0025865742 REPAIR KIT
Repalced by: A 0004301109
A 0004301109 REPAIR KIT
BLEEDER VALVE
TO 001 431 43 05 002 431 05 05
A 0005864029 REPAIR KIT
Repalced by: A 0005864829
336 A 0005864829 REPAIR KIT
SLAVE CYLINDER
TO 000 296 01 07
A 0025862442 REPAIR KIT
SLAVE CYLINDER
TO 007 420 21 18
A 0025860942 REPAIR KIT
SLAVE CYLINDER
TO 006 420 15 18
A 0025865542 REPAIR KIT
SLAVE CYLINDER
TO 006 420 15 18
A 0089979082 HOSE
BRAKE VALVE BLEEDING
337 N 913004008004 NUT
Repalced by: N 913004008001
337 N 913004008001 NUT
BRAKE VALVE TO BRACKET
340 A 3874311340 BRACKET
N 000933010128 SCREW
BRACKET TO BATTERY/APPARATUS SUPPORT
N 913004010008 NUT
Repalced by: N 910113010000
N 910113010000 NUT
BRACKET TO BATTERY/APPARATUS SUPPORT
N 074317012201 FITTING
Repalced by: A 0009905070
A 0009905070 T-FITTING
345 A 0009904770 T-FITTING
349 A 0029973572 FITTING
349 A 0029973572 FITTING
A 0019903071 ELBOW FITTING
352 A 0029971572 FITTING
A 0029979072 FITTING
A 0009906170 T-FITTING
355 A 0004312031 TEST CONNECTION
VOSS
355 A 0004312031 TEST CONNECTION
VOSS
335 A 0004314531 TEST CONNECTION
SCHAEFER
335 A 0004314531 TEST CONNECTION
SCHAEFER
355 A 0004314831 TEST CONNECTION
WABCO
355 A 0004314831 TEST CONNECTION
WABCO
355 A 0004316131 TEST CONNECTION
WIRA
355 A 0004316131 TEST CONNECTION
WIRA
A 0009979486 PLUG
358 N 080705016003 NUT
362 A 0004290927 THRUST RING
365 A 0009971548 SEAL RING
369 N 007603016100 SEAL RING
Repalced by: N 007603016105
369 N 007603016401 SEAL RING
N 007605018000 LOCK NUT
A 0009970386 PLUG
A 3209970286 PLUG
Repalced by: A 3879970086
373 A 3879970086 PLUG
377 N 915020014000 NUT
A 0029971572 FITTING
N 007603016100 SEAL RING
Repalced by: N 007603016105
N 007603016401 SEAL RING
A 0089979082 HOSE
BLEEDING
A 0019978390 LOOM TIE
BLEEDING
383 A 0004323201 RESERVOIR
Repalced by: A 0004324301
383 A 0004324301 RESERVOIR
Repalced by: A 0034321201
383 A 0034321201 RESERVOIR
20 L
A 0004324801 RESERVOIR
Repalced by: A 0014327501
A 0014327501 RESERVOIR
Repalced by: A 0034321201
A 0034321201 RESERVOIR
386 A 0004322601 RESERVOIR
Repalced by: A 0034321801
386 A 0034321801 RESERVOIR
30 L
389 A 3874320540 BRACKET
N 000933008154 SCREW
Repalced by: N 304017008021
N 304017008021 SCREW
BRACKET TO BATTERY/APPARATUS SUPPORT
N 913004008004 NUT
Repalced by: N 913004008001
N 913004008001 NUT
BRACKET TO BATTERY/APPARATUS SUPPORT
A 3874300240 STRAP
398 A 3874300840 STRAP
A 3874301240 STRAP
402 A 3874300640 STRAP
405 N 000934010014 NUT
A 3874303639 SUPPORT
AIR RESERVOIR
A 3874300339 SUPPORT
AIR RESERVOIR
A 3874303739 SUPPORT
AIR RESERVOIR
A 3874300439 SUPPORT
AIR RESERVOIR
N 000961012052 SCREW
Repalced by: N 308676012012
N 308676012012 SCREW
SUPPORT TO FRAME SIDE MEMBER
N 000961012151 SCREW
SUPPORT TO FRAME SIDE MEMBER
N 912004012100 LOCK WASHER
SUPPORT TO FRAME SIDE MEMBER
A 3874300440 STRAP
413 A 3874300740 STRAP
A 3874300540 STRAP
Repalced by: A 6204300040
A 6204300040 STRAP
A 3874320118 BASE
Repalced by: A 3854320218
418 A 3854320218 BASE
422 N 000934010014 NUT
N 000961012052 SCREW
Repalced by: N 308676012012
N 308676012012 SCREW
STRAP TO SUPPORT
N 000436011004 WASHER
STRAP TO SUPPORT
N 910113012002 NUT
STRAP TO SUPPORT
N 000934010014 NUT
STRAP TO SUPPORT
433 N 007603022102 SEAL RING
436 A 0004322407 VALVE
AIR RESERVOIR
A 0005830296 RING
DRAIN VALVE
TO 000 432 08 07
440 N 007603022102 SEAL RING
443 N 000908022001 SCREW PLUG
Repalced by: N 000908022011
443 N 000908022011 SCREW PLUG
446 N 000908022001 SCREW PLUG
Repalced by: N 000908022011
446 N 000908022011 SCREW PLUG
N 074315012101 FITTING
Repalced by: A 0009907771
450 A 0009907771 ELBOW FITTING
AT AIR RESERVOIR
20 L
450 A 0009907771 ELBOW FITTING
AT AIR RESERVOIR
20 L
450 A 0009907771 ELBOW FITTING
AT AIR RESERVOIR
20 L
A 0009904670 T-FITTING
A 0009970669 F-FITTING
N 074315000200 FITTING
Repalced by: A 0009905871
A 0009905871 ELBOW FITTING
AT AIR RESERVOIR
20 L
A 0029970772 FITTING
453 A 0024295844 VALVE
CHECK VALVE
453 A 0024295944 VALVE
CHECK VALVE
453 A 0024297544 VALVE
CHECK VALVE
454 N 074305022202 NUT
AT AIR RESERVOIR
20 L
457 A 0004290227 THRUST RING
AT AIR RESERVOIR
20 L
460 A 0009870446 SEALING CORD
AT AIR RESERVOIR
20 L
463 N 007603022102 SEAL RING
AT AIR RESERVOIR
30 L
N 074313012100 FITTING
Repalced by: A 0029971172
467 A 0029971172 FITTING
AT AIR RESERVOIR
30 L
467 A 0029971172 FITTING
AT AIR RESERVOIR
30 L
A 0009903970 T-FITTING
Repalced by: A 0019901070
A 0019901070 T-FITTING
AT AIR RESERVOIR
A 0009902687 CROSS FITTING
INSIDE AND OUTSIDE AIR RESERVOIRS, FRONT CONNECTION
A 0004312031 TEST CONNECTION
INSIDE AND OUTSIDE AIR RESERVOIRS, FRONT CONNECTION
A 0004314531 TEST CONNECTION
INSIDE AND OUTSIDE AIR RESERVOIRS, FRONT CONNECTION
A 0004314831 TEST CONNECTION
INSIDE AND OUTSIDE AIR RESERVOIRS, FRONT CONNECTION
A 0004316131 TEST CONNECTION
INSIDE AND OUTSIDE AIR RESERVOIRS, FRONT CONNECTION
A 0009979486 PLUG
470 A 0014296844 VALVE
RELAY VALVE
WABCO
A 0014292044 VALVE
Repalced by: A 0034291644
A 0034291644 VALVE
RELAY VALVE
BOSCH
A 0024290744 VALVE
Repalced by: A 0034295344
A 0034295344 VALVE
RELAY VALVE
KNORR
A 0014299144 VALVE
RELAY VALVE
GRAU
A 0059972648 SEAL RING
2.3X2.4 MM,TO 001 429 91 44,GRAU
A 0004312788 VALVE SEAT
TO 001 429 91 44,GRAU
A 0059972748 SEAL RING
80X3 MM,TO 000 429 28 95, GRAU
A 0014311660 SEAL RING
28X2 MM,TO 001 429 91 44,GRAU
A 0014311760 SEAL RING
86X2 MM,TO 001 429 91 44
86X2 MM,TO 001 429 91 44,GRAU
A 0014311980 GASKET
Repalced by: A 0004311980
A 0004311980 GASKET
34X2X6 MM,TO 001 429 91 44,GRAU
474 A 0005865742 REPAIR KIT
TO 001 429 68 44,WABCO
A 0025865642 REPAIR KIT
Repalced by: A 0004201071
A 0004201071 VALVE
GASKET KIT
TO 003 429 16 44,BOSCH; UP TO 03.82
A 0004201271 VALVE
GASKET KIT
TO 003 429 16 44,BOSCH; FROM 04.82
A 0025865742 REPAIR KIT
Repalced by: A 0004301109
A 0004301109 REPAIR KIT
BLEEDER VALVE
TO 003 429 16 44,BOSCH
A 0025863542 REPAIR KIT
TO 002 429 07 44,003 429 53 44,KNORR
478 N 074298022203 DOUBLE FITTING
A 0029971172 FITTING
RELAY VALVE,CONNECTION:
"1"
481 A 0009870446 SEALING CORD
RELAY VALVE,CONNECTION:
"1"
483 A 0004290227 THRUST RING
RELAY VALVE,CONNECTION:
"1"
485 N 074313008104 FITTING
Repalced by: A 0029979572
485 A 0029979572 FITTING
RELAY VALVE,CONNECTION:
"4"
488 N 007603016100 SEAL RING
Repalced by: N 007603016105
488 N 007603016401 SEAL RING
RELAY VALVE,CONNECTION:
"4"
491 N 074317012201 FITTING
Repalced by: A 0009905070
491 A 0009905070 T-FITTING
495 N 080705016003 NUT
499 A 0004290927 THRUST RING
503 A 0009971548 SEAL RING
506 N 000908016001 SCREW PLUG
RELAY VALVE,CONNECTION:
"2"
510 N 007603016100 SEAL RING
Repalced by: N 007603016105
510 N 007603016401 SEAL RING
RELAY VALVE,CONNECTION:
"2"
513 A 3634311740 BRACKET
516 N 913004008004 NUT
Repalced by: N 913004008001
516 N 913004008001 NUT
518 N 000933010105 SCREW
BRACKET TO LEFT SIDE MEMBER
519 N 913004010008 NUT
Repalced by: N 910113010000
519 N 910113010000 NUT
BRACKET TO LEFT SIDE MEMBER
A 0004316612 BRAKE PRESSURE REGULATOR
Repalced by: A 0014311412
521 A 0014311412 BRAKE PRESSURE REGULATOR
523 A 0025867343 REPAIR KIT
TO 001 431 14 12
A 0005866843 REPAIR KIT
TO 000 431 66 12
524 A 0019979172 FITTING
524 A 0019979172 FITTING
526 A 0009870446 SEALING CORD
527 A 0004290227 THRUST RING
528 N 074305022202 NUT
529 N 007603022102 SEAL RING
533 A 0029971172 FITTING
536 A 3874310740 BRACKET
Repalced by: A 3874311540
536 A 3874311540 BRACKET
536 A 3874311540 BRACKET
539 N 913004008004 NUT
Repalced by: N 913004008001
539 N 913004008001 NUT
540 N 000933010129 SCREW
Repalced by: N 304017010002
540 N 304017010002 SCREW
BRACKET TO SIDE MEMBER
541 N 913004010008 NUT
Repalced by: N 910113010000
541 N 910113010000 NUT
BRACKET TO SIDE MEMBER
542 N 000127010206 LOCK WASHER
BRACKET TO SIDE MEMBER
A 3464315139 LEVER
Repalced by: A 3854310239
A 0004311639 LEVER
Repalced by: A 3854310239
545 A 3854310239 LEVER
Repalced by: A 6204310839
545 A 6204310839 LEVER
Repalced by: A 6744310039
545 A 6744310039 LEVER
A 3464315592 ROD
Repalced by: N 900331008261
548 N 900331008419 PULL ROD
A 3464315192 ROD
Repalced by: N 900331008262
A 3874310092 ROD
Repalced by: N 900331008262
548 N 900331008262 PULL ROD
Repalced by: N 900331008420
548 N 900331008420 PULL ROD
552 A 0004310735 CONNECTOR
554 N 916026010000 CLAMP
Repalced by: N 000000000665
554 N 000000000665 CLAMP
556 N 304032008006 NUT
559 N 000125008418 WASHER
Repalced by: N 000125008443
559 N 000125008443 WASHER
N 000094002008 COTTER PIN
A 0004310518 METAL SPRING BELLOWS
Repalced by: A 0004311418
563 A 0004311418 METAL SPRING BELLOWS
Repalced by: A 0004311718
563 A 0004311718 METAL SPRING BELLOWS
566 A 3874311240 BRACKET
METAL SPRING BELLOWS
570 N 912004012139 LOCK WASHER
METAL SPRING BELLOWS TO BRACKET
573 N 000933012039 SCREW
METAL SPRING BELLOWS TO BRACKET
573 N 000961012047 SCREW
METAL SPRING BELLOWS TO BRACKET
577 A 3893250175 SCREW
Repalced by: N 914142016202
577 N 000961016077 SCREW
Repalced by: N 308676016006
577 N 308676016006 SCREW
BRACKET TO REAR AXLE
580 N 000125017010 WASHER
Repalced by: N 000125017016
580 N 000125017016 WASHER
BRACKET TO REAR AXLE
583 N 916027011014 HOSE
586 N 074304016201 FITTING
A 0004290641 FITTING
590 A 0004290541 FITTING
593 N 003870012104 UNION NUT
Repalced by: N 915017012100
593 N 915017012100 UNION NUT
596 N 003861012007 GLAND
Repalced by: A 0019901967
596 A 0019901967 SEAL CONE
A 0029970590 LOOM TIE
Repalced by: A 0009971190
A 0009971190 LOOM TIE
Repalced by: N 916018011000
N 916017011000 CLAMP
Repalced by: N 916017011001
N 000000000665 CLAMP
600 N 007603016100 SEAL RING
Repalced by: N 007603016105
600 N 007603016401 SEAL RING
603 N 916027011014 HOSE
FROM COMPRESSED AIR LINE TO LEFT TRISTOP CYLINDER
603 N 916027011014 HOSE
FROM RELAY VALVE TO RIGHT TRISTOP CYLINDER
603 N 916027011014 HOSE
FROM TRISTOP CYLINDER TO TRISTOP CYLINDER
607 A 0004290541 FITTING
N 074304016201 FITTING
A 0004292101 LINE
FROM TRISTOP CYLINDER TO TRISTOP CYLINDER
611 N 003870012104 UNION NUT
Repalced by: N 915017012100
611 N 915017012100 UNION NUT
615 N 003861012007 GLAND
Repalced by: A 0019901967
615 A 0019901967 SEAL CONE
N 007603016100 SEAL RING
Repalced by: N 007603016105
N 007603016401 SEAL RING
A 0029970590 LOOM TIE
Repalced by: A 0009971190
A 0009971190 LOOM TIE
Repalced by: N 916018011000
N 916017011000 CLAMP
Repalced by: N 916017011001
N 000000000665 CLAMP
N 900288018006 CLAMP
A 0044203218 WHEEL BRAKE CYLINDER
Repalced by: A 0064200518
A 0064200518 WHEEL BRAKE CYLINDER
Repalced by: A 0064204918
622 A 0064204918 WHEEL BRAKE CYLINDER
TRISTOP CYLINDER
WABCO
622 A 0064204118 WHEEL BRAKE CYLINDER
TRISTOP CYLINDER
BOSCH
622 A 0064205718 WHEEL BRAKE CYLINDER
TRISTOP CYLINDER
KNORR
A 0004212986 DIAPHRAGM
TO 006 420 49 18,WABCO
A 0004312928 DIAPHRAGM
TO 006 420 57 18,KNORR
A 0004313028 DIAPHRAGM
TO 006 420 41 18,BOSCH
A 0003530191 BOOT
TO 006 420 49 18,WABCO
A 0004234187 PROTECTIVE CAP
TO 006 420 57 18,KNORR
A 0004233886 CUP
TO 006 420 41 18,BOSCH
A 0004210763 GUIDE
TO 006 420 49 18,WABCO
A 0004311263 AIR BELLOWS
TO 006 420 41 18,BOSCH
A 0004231060 SEAL RING
TO 006 420 57 18,KNORR
A 0009978786 PLUG
TO 006 420 57 18,KNORR
A 0099979348 SEAL RING
TO 006 420 57 18,KNORR
A 0099979448 SEAL RING
TO 006 480 57 18,KNORR
A 0099979548 SEAL RING
TO 006 420 57 18,KNORR
A 0004231160 SEAL RING
TO 006 420 57 18,KNORR
A 0099979648 SEAL RING
TO 006 420 57 18,KNORR
A 0109970247 SEAL RING
TO 006 420 57 18,KNORR
A 0019973086 PLUG
TO 006 420 57 18,KNORR
A 0099979748 SEAL RING
TO 006 420 57 18,KNORR
A 0014308660 REPAIR KIT
TRISTOP CYLINDER
TO 006 420 41 18,BOSCH
623 A 0015862942 REPAIR KIT
TRAILER-BRAKE-VALVE COMPRESSED-AIR LINE
TO 004 420 32 18.006 420 05 18.WABCO
A 0025863742 REPAIR KIT
Repalced by: A 0025865242
A 0025865242 REPAIR KIT
Repalced by: A 0024301560
A 0024301560 REPAIR KIT
SPRING LOAD ACCUMULATOR CYLINDER
TO 006 420 49 18,WABCO
624 A 0015863442 REPAIR KIT
DIAPHRAGM CYLINDER
TO 004 420 32 18.006 420 05 18.WABCO
A 0025862542 REPAIR KIT
DIAPHRAGM CYLINDER
TO 006 420 49 18,WABCO
625 A 3894230033 BEARING BRACKET
Repalced by: A 3894201978
625 A 3894201978 BEARING BRACKET
Repalced by: A 3854204078
625 A 3854204078 BEARING BRACKET
TRISTOP CYLINDER
N 007346012003 CLAMPING SLEEVE
628 A 3893250275 SCREW
Repalced by: N 914142016201
628 N 000961016036 SCREW
Repalced by: N 308676016013
628 N 308676016013 SCREW
632 N 913013016001 NUT
TRISTOP CYLINDER TO BEARING BRACKET
632 N 913004016004 NUT
Repalced by: N 910113016002
632 N 910113016002 NUT
TRISTOP CYLINDER TO BEARING BRACKET
637 N 900083015000 PLUG
641 A 3619910005 PIN
AT TRISTOP CYLINDER
645 N 000433015005 WASHER
AT TRISTOP CYLINDER
N 000094004049 COTTER PIN
AT TRISTOP CYLINDER
650 A 0029973472 FITTING
AT TRISTOP CYLINDER
A 0019905370 T-FITTING
AT TRISTOP CYLINDER
N 074315012100 FITTING
Repalced by: A 0019903371
A 0019903371 ELBOW FITTING
AT TRISTOP CYLINDER
N 915036012203 HOLLOW SCREW
AT TRISTOP CYLINDER
A 0009909470 T-FITTING
AT TRISTOP CYLINDER
A 0009904770 T-FITTING
AT TRISTOP CYLINDER
N 915039012205 HOLLOW SCREW FITTING
AT TRISTOP CYLINDER
655 N 080705016003 NUT
AT TRISTOP CYLINDER
655 N 080705016003 NUT
AT TRISTOP CYLINDER
659 A 0004290927 THRUST RING
AT TRISTOP CYLINDER
659 A 0004290927 THRUST RING
AT TRISTOP CYLINDER
663 A 0009971548 SEAL RING
AT TRISTOP CYLINDER
663 A 0009971548 SEAL RING
AT TRISTOP CYLINDER
N 007603016401 SEAL RING
AT TRISTOP CYLINDER
667 A 0004312031 TEST CONNECTION
AT TRISTOP CYLINDER
VOSS
667 A 0004314531 TEST CONNECTION
AT TRISTOP CYLINDER
SCHAEFER
667 A 0004314831 TEST CONNECTION
AT TRISTOP CYLINDER
WABCO
667 A 0004316131 TEST CONNECTION
AT TRISTOP CYLINDER
WIRA
A 0009979486 PLUG
668 N 074317012300 FITTING
AT TRISTOP CYLINDER
N 007603016100 SEAL RING
Repalced by: N 007603016105
N 007603016401 SEAL RING
AT TRISTOP CYLINDER
A 0029971572 FITTING
AT TRISTOP CYLINDER
668B A 3879970086 PLUG
AT TRISTOP CYLINDER
668E N 007605014000 LOCK NUT
AT TRISTOP CYLINDER
A 3875840621 GUIDE SIGN
LOAD-DEPENDING BRAKE
669 A 3875842121 GUIDE SIGN
LOAD-DEPENDING BRAKE
A 3875840521 GUIDE SIGN
LOAD-DEPENDING BRAKE
A 3875840221 GUIDE SIGN
LOAD-DEPENDING BRAKE
A 3875840055 ADHESIVE FOIL
A 0004290201 LINE
Repalced by: A 0005516256
680 A 0005516256 TUBE
15 MM
684 N 003872015100 UNION NUT
Repalced by: N 915018015000
684 N 915018015000 UNION NUT
688 N 003861015004 GLAND
692 N 915065015101 THRUST RING
A 0004292084 SEAL RING
Repalced by: N 915045012100
696 N 915045012100 SEAL RING
Repalced by: N 007603012121
696 N 007603012121 SEAL RING
700 A 0089979082 HOSE
8 MM
704 N 040621008206 INSULATING HOSE
BLUE
8 MM
N 040621008207 INSULATING HOSE
RED
709 N 915052006021 BANJO UNION
713 N 003870008101 UNION NUT
Repalced by: N 915017008100
713 N 915017008100 UNION NUT
717 N 003861008005 GLAND
720 A 0007630043 SLEEVE
Repalced by: N 915062006000
720 N 915062006000 SLEEVE
A 0019976772 FITTING
Repalced by: N 915059006000
N 915059006002 FITTING
BETWEEN THE LINES
724 N 003902008100 CONNECTION FITTING
728 A 0009971772 FITTING
Repalced by: A 0009970171
728 A 0009970171 FITTING
732 N 007603022102 SEAL RING
A 0019978590 LOOM TIE
Repalced by: A 0019978490
A 0019978490 LOOM TIE
737 A 0004305581 VALVE
HAND BRAKE VALVE
WABCO
737 A 0004306681 VALVE
HAND BRAKE VALVE
KNORR
737 A 0004305681 VALVE
HAND BRAKE VALVE
WABCO
737 A 0004306781 VALVE
HAND BRAKE VALVE
KNORR
742 A 0005868043 REPAIR KIT
Repalced by: A 0004305760
742 A 0004305760 REPAIR KIT
TO 000 430 55 81,WABCO
743 A 0005868143 REPAIR KIT
Repalced by: A 0004305860
743 A 0004305860 REPAIR KIT
TO 000 430 56 81,WABCO
A 0025866243 REPAIR KIT
Repalced by: A 0034303881
A 0034303881 REPAIR KIT
TO 000 430 66 81,000 430 67 81,KNORR
A 3874310684 SHIM
746 A 0014296844 VALVE
N 000965006003 SCREW
749 A 0009907191 NUT RETAINER
Repalced by: A 3229900091
749 A 3229900091 NUT RETAINER
753 N 007603014405 SEAL RING
757 N 003952012101 FITTING
Repalced by: A 0019902771
757 A 0019902771 ELBOW FITTING
761 N 915011008103 HOLLOW SCREW
Repalced by: N 915036010100
761 N 915036010204 HOLLOW SCREW
Repalced by: N 915036010108
761 N 915036010108 HOLLOW SCREW
765 A 0089976082 HOSE
Repalced by: A 0009872627
765 A 0009872627 PLASTIC PIPE
BLACK
6X4 MM
769 N 040621006203 INSULATING HOSE
RED
6 MM
773 N 915017006100 UNION NUT
777 N 003861006007 GLAND
Repalced by: A 0019901667
777 A 0019901667 SEAL CONE
A 0009920205 BUSHING
Repalced by: N 915062004000
N 915062004000 SLEEVE
782 A 0009920105 BUSHING
Repalced by: N 915062004000
782 N 915062004000 SLEEVE
A 0004340501 VALVE
Repalced by: A 0004342301
798 A 0004342001 VALVE
Repalced by: A 0004342301
798 A 0004342301 VALVE
OPERATING VALVE
WABCO
A 0004341001 VALVE
Repalced by: A 0004342101
A 0004342101 VALVE
OPERATING VALVE
BOSCH
800 A 0009971977 HANDLE
TO 000 434 23 01,WABCO
800M A 0004340586 CUP
TO 000 434 23 01,WABCO
A 0079972448 SEAL RING
TO 000 434 23 01,WABCO
A 0079972548 SEAL RING
TO 000 434 23 01,WABCO
A 0004340386 CUP
Repalced by: A 0004340486
A 0004340486 CUP
TO 000 434 10 01,BOSCH
A 0004340650 BUSHING
TO 000 434 10 01,BOSCH
A 0059979248 SEAL RING
TO 000 434 21 01,BOSCH
A 0014315193 SPRING
TO 000 434 21 01,BOSCH
A 0004314034 STRAINER
TO 000 434 21 01,BOSCH
A 0005869743 REPAIR KIT
TO 000 434 05 01,000 434 20 01,WABCO
A 0015867043 REPAIR KIT
TO 000 434 10 01,BOSCH
A 0015868743 REPAIR KIT
TO 000 434 10 01,BOSCH
A 0025865343 REPAIR KIT
TO 000 434 21 01,BOSCH
802 A 0025869843 REPAIR KIT
TO 000 434 23 01,WABCO
806 A 3634310060 SEAL RING
VALVE TO CAB
810 N 074305026202 NUT
VALVE TO CAB
812 N 000137027201 SPRING WASHER
VALVE TO CAB
A 3933280065 PIPE SOCKET
Repalced by: A 4063580065
A 4063580065 BREATHER
Repalced by: A 3933280065
A 3933280065 PIPE SOCKET
3/2-WAY VALVE;CONNECTION:
"3"
N 915039008202 HOLLOW SCREW FITTING
CONNECTION:
"1"
814 N 007603012405 SEAL RING
CONNECTION:
"1"
818 N 003901008001 SCREW-IN FITTING
Repalced by: A 0009971572
818 A 0009971572 FITTING
Repalced by: A 0019972572
818 A 0019972572 FITTING
CONNECTION:
"2"
822 A 0019902570 T-FITTING
CONNECTION "2.1",REAR LEFT
A 0019875046 SEALING CORD
CONNECTION:
"2"
A 0004290827 THRUST RING
CONNECTION:
"2"
N 080705012003 NUT
CONNECTION:
"2"
N 007603012405 SEAL RING
CONNECTION:
"2"
826 A 0089979082 HOSE
8 MM
830 N 040621008207 INSULATING HOSE
RED
8 MM
834 N 003870008101 UNION NUT
Repalced by: N 915017008100
834 N 915017008100 UNION NUT
838 N 003861008005 GLAND
842 A 0007630043 SLEEVE
Repalced by: N 915062006000
842 N 915062006000 SLEEVE
846 A 0009906688 BANJO UNION
Repalced by: N 915052006013
846 N 915052006013 BANJO UNION
A 0019976772 FITTING
Repalced by: N 915059006000
N 915059006002 FITTING
A 0029979872 FITTING
850 A 0089976082 HOSE
Repalced by: A 0009872627
850 A 0009872627 PLASTIC PIPE
BLACK
6X4 MM
A 0009906688 BANJO UNION
Repalced by: N 915052006013
N 915052006013 BANJO UNION
854 N 040621006204 INSULATING HOSE
YELLOW
6 MM
858 A 3229971581 GROMMET
LINE THRU FRAME
A 3549970081 GROMMET
LINE THRU FRAME
32/27 MM
862 A 0019973572 FITTING
Repalced by: N 915059004000
862 N 915059004001 FITTING
866 N 915017006100 UNION NUT
870 N 003861006007 GLAND
Repalced by: A 0019901667
870 A 0019901667 SEAL CONE
A 0009920205 BUSHING
Repalced by: N 915062004000
N 915062004000 SLEEVE
874 A 0009920105 BUSHING
Repalced by: N 915062004000
874 N 915062004000 SLEEVE
N 073379006203 HOSE
6 MM
A 0019977290 LOOM TIE
Repalced by: A 0019978390
877 A 0019978390 LOOM TIE
A 0019977490 LOOM TIE
Repalced by: A 0019978490
A 0019978490 LOOM TIE
881 A 3874291140 BRACKET
PLASTIC LINES TO FRAME
885 A 3274925419 BRACKET
Repalced by: A 6205240340
885 A 6205240340 BRACKET
PLASTIC LINES TO FRAME
A 3874296340 BRACKET
PLASTIC LINES TO FRAME
N 000933008147 SCREW
Repalced by: N 304017008021
N 304017008021 SCREW
PLASTIC LINES TO FRAME
N 913004008004 NUT
Repalced by: N 913004008001
N 913004008001 NUT
PLASTIC LINES TO FRAME
N 000933008153 SCREW
Repalced by: N 304017008034
N 304017008034 SCREW
BRACKET TO FRONT CROSS MEMBER
N 000125008418 WASHER
Repalced by: N 000125008443
N 000125008443 WASHER
BRACKET TO FRONT CROSS MEMBER
N 913004008004 NUT
Repalced by: N 913004008001
N 913004008001 NUT
BRACKET TO FRONT CROSS MEMBER
896 A 3874291040 BRACKET
900 A 3874291540 BRACKET
PRESSURE GAUGE LINE TO BRACKET
A 3874292740 BRACKET
PRESSURE GAUGE LINE TO BRACKET
A 3274925419 BRACKET
Repalced by: A 6205240340
A 6205240340 BRACKET
PLASTIC LINES TO FRAME
N 000933008147 SCREW
Repalced by: N 304017008021
N 304017008021 SCREW
N 007349008000 WASHER
Repalced by: N 007349008007
N 007349008007 WASHER
BRACKET TO FRONT CROSS MEMBER
N 912004008102 LOCK WASHER
BRACKET TO FRONT CROSS MEMBER
N 304032008006 NUT
BRACKET TO FRONT CROSS MEMBER
910 A 0004294037 DISTRIBUTOR
N 000933008161 SCREW
Repalced by: N 304017008028
N 304017008028 SCREW
DISTRIBUTOR TO SIDE MEMBER
N 000931006084 SCREW
Repalced by: N 304017006027
N 304017006027 SCREW
DISTRIBUTOR TO SIDE MEMBER
N 009021008100 WASHER
Repalced by: N 009021008205
N 009021008205 WASHER
Repalced by: N 009021008213
N 009021008213 WASHER
DISTRIBUTOR TO SIDE MEMBER
N 009021006205 WASHER
Repalced by: N 009021006208
N 009021006208 WASHER
DISTRIBUTOR TO SIDE MEMBER
N 913004008004 NUT
Repalced by: N 913004008001
N 913004008001 NUT
DISTRIBUTOR TO SIDE MEMBER
N 913004006002 NUT
Repalced by: N 913004006001
N 913004006001 NUT
DISTRIBUTOR TO SIDE MEMBER
918 N 007603012405 SEAL RING
AT DISTRIBUTOR
N 915039008202 HOLLOW SCREW FITTING
AT DISTRIBUTOR
922 N 003901008101 SCREW-IN FITTING
AT DISTRIBUTOR
926 N 000908012003 SCREW PLUG
Repalced by: N 000908012009
926 N 000908012009 SCREW PLUG
AT DISTRIBUTOR
930 N 915011008103 HOLLOW SCREW
Repalced by: N 915036010100
930 N 915036010204 HOLLOW SCREW
Repalced by: N 915036010108
930 N 915036010108 HOLLOW SCREW
AT DISTRIBUTOR
N 915047008202 HOLLOW SCREW
AT DISTRIBUTOR
A 0009907990 T-FITTING
936 A 0004294237 DISTRIBUTOR
A 0019902970 T-FITTING
940 A 3604280243 ANGLE
A 3874296140 BRACKET
944 A 3874200086 BRACKET
A 3874200986 BRACKET
A 3874201186 BRACKET
N 000000001147 SCREW
BRACKET TO BRACKET
M 6X20
N 913004006002 NUT
Repalced by: N 913004006001
N 913004006001 NUT
BRACKET TO BRACKET
N 000961012097 SCREW
Repalced by: N 308676012026
N 308676012026 SCREW
BRACKET TO CROSS MEMBER
N 910113012002 NUT
BRACKET TO CROSS MEMBER
N 000961012122 SCREW
BRACKET TO SPRING BRACKET
N 910113012002 NUT
BRACKET TO SPRING BRACKET
N 000961014028 SCREW
BRACKET TO SPRING BRACKET
N 913004014002 NUT
Repalced by: N 910113014001
N 910113014001 NUT
BRACKET TO SPRING BRACKET
950 A 0004290701 LINE
Repalced by: A 0004296201
950 A 0004296201 LINE
6 MM
954 N 915017006100 UNION NUT
960 N 003861006007 GLAND
Repalced by: A 0019901667
960 A 0019901667 SEAL CONE
Reklama
Kontaktai
Pasiūlymas
Skaitliukas



© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
