Transporto priemonė: 1719; VIN numerio dalis: 387006

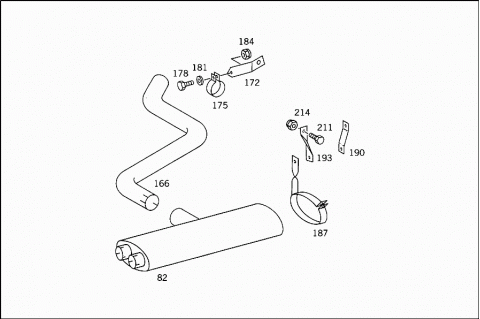

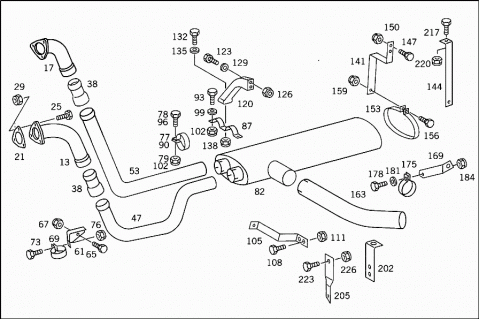

Grupė: 49 EXHAUST SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 013 | A 3874901225 | CONNECTOR |
| LEFT FRONT | ||
| 017 | A 3874901325 | CONNECTOR |
| RIGHT FRONT | ||
| 021 | A 0664920080 | FLANGE GASKET |
| Repalced by: A 3024900080 | ||
| 021 | A 3024900080 | FLANGE GASKET |
| Repalced by: A 4424920080 | ||
| 021 | A 4424920080 | FLANGE GASKET |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 025 | N 000931012114 | SCREW |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 029 | N 913004012010 | NUT |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 038 | A 3874921209 | CONNECTOR |
| 047 | A 3874900619 | EXHAUST PIPE |
| FRONT LEFT | ||
| 047 | A 3894901019 | EXHAUST PIPE |
| FRONT LEFT | ||
| 047 | A 3874900819 | EXHAUST PIPE |
| LEFT FRONT | ||
| 047 | A 3874901019 | EXHAUST PIPE |
| LEFT FRONT | ||
| 047 | A 3874903219 | EXHAUST PIPE |
| LEFT FRONT | ||
| 047 | A 3874904419 | EXHAUST PIPE |
| LEFT FRONT | ||
| 053 | A 3894901119 | EXHAUST PIPE |
| FRONT RIGHT | ||
| 053 | A 3874900719 | EXHAUST PIPE |
| FRONT RIGHT | ||
| 053 | A 3874900919 | EXHAUST PIPE |
| RIGHT FRONT | ||
| 053 | A 3874901119 | EXHAUST PIPE |
| RIGHT FRONT | ||
| 053 | A 3874903319 | EXHAUST PIPE |
| RIGHT FRONT | ||
| 053 | A 3874904519 | EXHAUST PIPE |
| RIGHT FRONT | ||
| A 3874920841 | BRACKET | |
| Repalced by: A 3874925941 | ||
| A 3874922241 | BRACKET | |
| Repalced by: A 3874925941 | ||
| 061 | A 3874925941 | BRACKET |
| LEFT | ||
| A 3874920941 | BRACKET | |
| Repalced by: A 3874926041 | ||
| A 3874922341 | BRACKET | |
| Repalced by: A 3874926041 | ||
| 061 | A 3874926041 | BRACKET |
| RIGHT | ||
| 065 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 065 | N 304017010002 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M 10X30 | ||
| 065 | N 304017010002 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M 10X30 | ||
| 065 | N 304017010002 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M 10X30 | ||
| 065 | N 000933010145 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M 10X35 | ||
| 065 | N 000933010145 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M 10X35 | ||
| 067 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 067 | N 910113010000 | NUT |
| BRACKET TO SIDE MEMBER | ||
| A 3874920140 | CLAMP | |
| Repalced by: A 3874920240 | ||
| 069 | A 3874920240 | CLAMP |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 073 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 073 | N 304017008027 | SCREW |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 076 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 076 | N 913004008001 | NUT |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 077 | N 071555078502 | CLAMP |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 078 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 078 | N 304017008034 | SCREW |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 079 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 079 | N 913004008001 | NUT |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| A 3874900201 | EXHAUST MUFFLER | |
| Repalced by: A 3874900401 | ||
| A 3874900201 | EXHAUST MUFFLER | |
| Repalced by: A 3874900401 | ||
| 082 | A 3874900401 | EXHAUST MUFFLER |
| 082 | A 3874900401 | EXHAUST MUFFLER |
| 082 | A 3874901001 | EXHAUST MUFFLER |
| 087 | A 3874920040 | CLAMP |
| BRACKET TO FRONT EXHAUST PIPE | ||
| 087 | A 3874920040 | CLAMP |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 090 | N 071555078502 | CLAMP |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 093 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 093 | N 304017008034 | SCREW |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 093 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 093 | N 304017008034 | SCREW |
| BRACKET TO FRONT EXHAUST PIPE | ||
| M 8X25 | ||
| 096 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 096 | N 304017008027 | SCREW |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 096 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 096 | N 304017008027 | SCREW |
| BRACKET TO FRONT EXHAUST PIPE | ||
| 099 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 099 | N 000125008443 | WASHER |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 102 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 102 | N 913004008001 | NUT |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 102 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 102 | N 913004008001 | NUT |
| BRACKET TO FRONT EXHAUST PIPE | ||
| 105 | A 3894911041 | BRACKET |
| FRONT EXHAUST MUFFLER | ||
| 105 | A 3894911041 | BRACKET |
| FRONT EXHAUST MUFFLER | ||
| 105 | A 3874914741 | BRACKET |
| FRONT EXHAUST MUFFLER | ||
| 108 | N 000961012097 | SCREW |
| Repalced by: N 308676012026 | ||
| 108 | N 308676012026 | SCREW |
| BRACKET TO FRAME | ||
| 111 | N 910113012002 | NUT |
| BRACKET TO FRAME | ||
| 120 | A 3874911041 | BRACKET |
| Repalced by: A 3874913041 | ||
| 120 | A 3874913041 | BRACKET |
| 123 | N 000961012097 | SCREW |
| Repalced by: N 308676012026 | ||
| 123 | N 308676012026 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| 126 | N 910113012002 | NUT |
| CONSOLE TO SIDE MEMBER | ||
| 129 | N 000125013008 | WASHER |
| 132 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 132 | N 304017010002 | SCREW |
| CONSOLE TO MOUNTING CLAMP | ||
| 135 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 135 | N 000125010532 | WASHER |
| CONSOLE TO MOUNTING CLAMP | ||
| 138 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 138 | N 910113010000 | NUT |
| CONSOLE TO MOUNTING CLAMP | ||
| A 3894911141 | BRACKET | |
| EXHAUST MUFFLER TO FRAME | ||
| 141 | A 3874914641 | BRACKET |
| EXHAUST MUFFLER TO FRAME | ||
| 141 | A 3894911341 | BRACKET |
| EXHAUST MUFFLER TO FRAME | ||
| 141 | A 3874911141 | BRACKET |
| EXHAUST MUFFLER TO FRAME | ||
| 141 | A 3874911141 | BRACKET |
| EXHAUST MUFFLER TO FRAME | ||
| A 3874911341 | BRACKET | |
| Repalced by: A 3874911841 | ||
| 141 | A 3874911841 | BRACKET |
| EXHAUST MUFFLER TO FRAME | ||
| 141 | A 3874911441 | BRACKET |
| EXHAUST MUFFLER TO FRAME | ||
| A 3874913241 | BRACKET | |
| EXHAUST MUFFLER TO SIDE MEMBER | ||
| A 3874913341 | BRACKET | |
| Repalced by: A 3874914041 | ||
| 144 | A 3874914041 | BRACKET |
| EXHAUST MUFFLER TO FRAME | ||
| A 3874924341 | BRACKET | |
| Repalced by: A 3914910141 | ||
| 144 | A 3914910141 | BRACKET |
| EXHAUST MUFFLER TO SIDE MEMBER | ||
| A 3874913141 | BRACKET | |
| EXHAUST MUFFLER TO SIDE MEMBER | ||
| 144 | A 3874928841 | BRACKET |
| EXHAUST MUFFLER TO SIDE MEMBER | ||
| 147 | N 000961012151 | SCREW |
| BRACKET TO FRAME | ||
| 147 | N 000961012097 | SCREW |
| Repalced by: N 308676012026 | ||
| 147 | N 308676012026 | SCREW |
| BRACKET TO FRAME | ||
| 150 | N 910113012002 | NUT |
| BRACKET TO FRAME | ||
| A 3354910040 | CLAMP | |
| Repalced by: A 3874900041 | ||
| 153 | A 3874900041 | CLAMP |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 153 | A 3874900041 | CLAMP |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 156 | N 000933010105 | SCREW |
| TO CLAMP PIPE CLAMPS | ||
| 156 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 156 | N 304017010002 | SCREW |
| TO CLAMP PIPE CLAMPS | ||
| 159 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 159 | N 910113010000 | NUT |
| TO CLAMP PIPE CLAMPS | ||
| A 3894920604 | REAR EXHAUST PIPE | |
| Repalced by: A 3894923504 | ||
| A 3894920604 | REAR EXHAUST PIPE | |
| Repalced by: A 3894923504 | ||
| 163 | A 3894923504 | REAR EXHAUST PIPE |
| 163 | A 3894925104 | REAR EXHAUST PIPE |
| 163 | A 3874920804 | REAR EXHAUST PIPE |
| A 3874922504 | REAR EXHAUST PIPE | |
| Repalced by: A 3874928504 | ||
| 163 | A 3874928504 | REAR EXHAUST PIPE |
| 163 | A 3874921004 | REAR EXHAUST PIPE |
| 163 | A 3874922404 | REAR EXHAUST PIPE |
| 163 | A 3874924904 | REAR EXHAUST PIPE |
| 166 | A 3894920704 | REAR EXHAUST PIPE |
| 166 | A 3894925204 | REAR EXHAUST PIPE |
| 166 | A 3894920804 | REAR EXHAUST PIPE |
| 166 | A 3894925304 | REAR EXHAUST PIPE |
| 166 | A 3894920904 | REAR EXHAUST PIPE |
| 166 | A 3894925404 | REAR EXHAUST PIPE |
| 166 | A 3874922304 | REAR EXHAUST PIPE |
| A 3874922604 | REAR EXHAUST PIPE | |
| Repalced by: A 3874928604 | ||
| 166 | A 3874928604 | REAR EXHAUST PIPE |
| A 3874921104 | REAR EXHAUST PIPE | |
| Repalced by: A 3874922204 | ||
| 166 | A 3874922204 | REAR EXHAUST PIPE |
| 166 | A 3874922704 | REAR EXHAUST PIPE |
| 166 | A 3874925004 | REAR EXHAUST PIPE |
| 169 | A 3874926741 | BRACKET |
| REAR | ||
| 169 | A 3874926741 | BRACKET |
| REAR EXHAUST PIPE | ||
| A 3894920641 | BRACKET | |
| Repalced by: A 3894921441 | ||
| 169 | A 3894921441 | BRACKET |
| REAR EXHAUST PIPE | ||
| 169 | A 3894921441 | BRACKET |
| REAR EXHAUST PIPE | ||
| 169 | A 3874921341 | BRACKET |
| REAR EXHAUST PIPE | ||
| 172 | A 3874926641 | BRACKET |
| REAR | ||
| 172 | A 3874926641 | BRACKET |
| REAR EXHAUST PIPE | ||
| 172 | A 3894920541 | BRACKET |
| 172 | A 3874924941 | BRACKET |
| REAR EXHAUST PIPE | ||
| 172 | A 3894923241 | BRACKET |
| REAR EXHAUST PIPE | ||
| 172 | A 3894920241 | BRACKET |
| REAR EXHAUST PIPE | ||
| 172 | A 3874922441 | BRACKET |
| REAR EXHAUST PIPE | ||
| 172 | A 3874921141 | BRACKET |
| REAR EXHAUST PIPE | ||
| 172 | A 3874921241 | BRACKET |
| REAR EXHAUST PIPE | ||
| 175 | N 071555090901 | CLAMP |
| REAR EXHAUST PIPE | ||
| 175 | N 071555075502 | CLAMP |
| REAR EXHAUST PIPE | ||
| 175 | N 071555075502 | CLAMP |
| REAR EXHAUST PIPE TO BRACKET | ||
| 175 | N 071555075502 | CLAMP |
| REAR EXHAUST PIPE TO BRACKET | ||
| 178 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 178 | N 304017008027 | SCREW |
| REAR EXHAUST PIPE TO BRACKET | ||
| 178 | N 304017008027 | SCREW |
| REAR EXHAUST PIPE TO BRACKET | ||
| 178 | N 000961012097 | SCREW |
| Repalced by: N 308676012026 | ||
| 178 | N 308676012026 | SCREW |
| REAR EXHAUST PIPE TO BRACKET | ||
| 178 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 178 | N 304017008027 | SCREW |
| REAR EXHAUST PIPE TO BRACKET | ||
| 181 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 181 | N 000125008443 | WASHER |
| REAR EXHAUST PIPE TO BRACKET | ||
| 181 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 181 | N 000125008443 | WASHER |
| REAR EXHAUST PIPE TO BRACKET | ||
| 184 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 184 | N 913004008001 | NUT |
| REAR EXHAUST PIPE TO BRACKET | ||
| 184 | N 913004008001 | NUT |
| REAR EXHAUST PIPE TO BRACKET | ||
| 184 | N 910113012002 | NUT |
| REAR EXHAUST PIPE TO BRACKET | ||
| 184 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 184 | N 913004008001 | NUT |
| REAR EXHAUST PIPE TO BRACKET | ||
| A 3954900040 | BRACKET | |
| Repalced by: A 3874900040 | ||
| 187 | A 3874900040 | BRACKET |
| REAR EXHAUST MUFFLER | ||
| A 3874921041 | BRACKET | |
| Repalced by: A 3874922841 | ||
| 190 | A 3874922841 | BRACKET |
| REAR EXHAUST PIPE | ||
| A 3874922641 | BRACKET | |
| REAR EXHAUST PIPE | ||
| 193 | A 3894923141 | BRACKET |
| REAR EXHAUST PIPE | ||
| 202 | A 3874922741 | BRACKET |
| REAR EXHAUST PIPE | ||
| 205 | A 3874924541 | BRACKET |
| REAR EXHAUST PIPE | ||
| 211 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 211 | N 304017008021 | SCREW |
| BRACKET TO APPARATUS SUPPORT | ||
| 211 | N 304017008021 | SCREW |
| BRACKET TO APPARATUS SUPPORT | ||
| 211 | N 000933010105 | SCREW |
| BRACKET TO APPARATUS SUPPORT | ||
| 214 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 214 | N 913004008001 | NUT |
| BRACKET TO APPARATUS SUPPORT | ||
| 214 | N 913004008001 | NUT |
| BRACKET TO APPARATUS SUPPORT | ||
| 214 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 214 | N 910113010000 | NUT |
| BRACKET TO APPARATUS SUPPORT | ||
| 217 | N 000961012052 | SCREW |
| Repalced by: N 308676012012 | ||
| 217 | N 308676012012 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 220 | N 910113012002 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 223 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 223 | N 304017008027 | SCREW |
| BRACKET TO AIR RESERVOIR | ||
| 226 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 226 | N 913004008001 | NUT |
| BRACKET TO AIR RESERVOIR | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
