Transporto priemonė: 1719; VIN numerio dalis: 387006

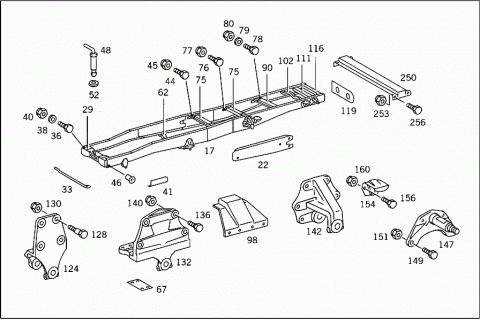

Grupė: 31 FRAME
| # | Kodas | Pavadinimas |
|---|---|---|
| 012 | A 3873100701 | FRAME |
| Repalced by: A 3873109001 | ||
| 012 | A 3873103301 | FRAME |
| Repalced by: A 3873109001 | ||
| 012 | A 3873109001 | FRAME |
| 012 | A 3873102001 | FRAME |
| Repalced by: A 3873103701 | ||
| 012 | A 3873103701 | FRAME |
| 012 | A 3873107902 | FRAME |
| 017 | A 3873100501 | FRAME |
| Repalced by: A 3873108002 | ||
| 017 | A 3873103101 | FRAME |
| Repalced by: A 3873108002 | ||
| 017 | A 3873108002 | FRAME |
| 017 | A 3873102701 | FRAME |
| Repalced by: A 3873103801 | ||
| 017 | A 3873103801 | FRAME |
| 017 | A 3873108301 | FRAME |
| Repalced by: A 3873108202 | ||
| 017 | A 3873102502 | FRAME |
| Repalced by: A 3873108202 | ||
| 017 | A 3873108202 | FRAME |
| 022 | A 3873112751 | TRUSS |
| LEFT | ||
| 022 | A 3873110251 | TRUSS |
| Repalced by: A 3873110451 | ||
| 022 | A 3873111851 | TRUSS |
| LEFT | ||
| 022 | A 3873110451 | TRUSS |
| LEFT | ||
| 022 | A 3873110451 | TRUSS |
| LEFT | ||
| 022 | A 3873114551 | TRUSS |
| LEFT | ||
| 022 | A 3873112851 | TRUSS |
| RIGHT | ||
| 022 | A 3873111951 | TRUSS |
| RIGHT | ||
| 022 | A 3873110351 | TRUSS |
| Repalced by: A 3873110551 | ||
| 022 | A 3873110551 | TRUSS |
| RIGHT | ||
| 022 | A 3873110551 | TRUSS |
| RIGHT | ||
| 022 | A 3873114651 | TRUSS |
| RIGHT | ||
| 024 | N 000961014007 | SCREW |
| CROSS MEMBER TO FRONT SPRING REAR BRACKET | ||
| 026 | N 913004014027 | NUT |
| CROSS MEMBER TO FRONT SPRING REAR BRACKET | ||
| 029 | A 3873100322 | CROSS MEMBER |
| Repalced by: A 3873100422 | ||
| 029 | A 3873100422 | CROSS MEMBER |
| FRONT | ||
| 029 | A 3873100422 | CROSS MEMBER |
| FRONT | ||
| 029 | A 3873100522 | CROSS MEMBER |
| FRONT | ||
| 029 | A 3873100522 | CROSS MEMBER |
| FRONT | ||
| 033 | A 3353150031 | LOCKING SPRING |
| COUPLING PIN | ||
| 033 | A 3353150031 | LOCKING SPRING |
| COUPLING PIN | ||
| 033 | A 3873150031 | LOCKING SPRING |
| COUPLING PIN | ||
| 033 | A 3873150031 | LOCKING SPRING |
| COUPLING PIN | ||
| 036 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 036 | N 304017008034 | SCREW |
| LOCK TO FRONT CROSS MEMBER | ||
| M 8X25 | ||
| 036 | N 304017008034 | SCREW |
| LOCK TO FRONT CROSS MEMBER | ||
| M 8X25 | ||
| 036 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 036 | N 304017008027 | SCREW |
| LOCK TO FRONT CROSS MEMBER | ||
| M 8X30 | ||
| 036 | N 304017008027 | SCREW |
| LOCK TO FRONT CROSS MEMBER | ||
| M 8X30 | ||
| 038 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 038 | N 000125008443 | WASHER |
| LOCK TO FRONT CROSS MEMBER | ||
| 040 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 040 | N 913004008001 | NUT |
| LOCK TO FRONT CROSS MEMBER | ||
| 041 | A 3873120487 | GUSSET PLATE |
| Repalced by: A 3873122087 | ||
| 041 | A 3873122087 | GUSSET PLATE |
| LEFT | ||
| 041 | A 3873120587 | GUSSET PLATE |
| Repalced by: A 3873122187 | ||
| 041 | A 3873122187 | GUSSET PLATE |
| Repalced by: A 6203120987 | ||
| 041 | A 6203120987 | GUSSET PLATE |
| RIGHT | ||
| 042 | A 3873110253 | ANGLE |
| LEFT | ||
| 042 | A 3873110253 | ANGLE |
| LEFT | ||
| 042 | A 3873110253 | ANGLE |
| LEFT | ||
| 042 | A 3873110353 | ANGLE |
| RIGHT | ||
| 042 | A 3873110353 | ANGLE |
| RIGHT | ||
| 042 | A 3873110353 | ANGLE |
| RIGHT | ||
| 044 | N 000961012097 | SCREW |
| Repalced by: N 308676012026 | ||
| 044 | N 308676012026 | SCREW |
| CROSS MEMBER TO SIDE MEMBERS | ||
| 045 | N 910113012002 | NUT |
| CROSS MEMBER TO SIDE MEMBERS | ||
| 046 | N 910005012080 | RIVET |
| 12X42 MM | ||
| 046 | N 910005014056 | RIVET |
| 14X45 MM | ||
| 046 | N 910005012033 | RIVET |
| 12X22 MM | ||
| 048 | A 3873150006 | COUPLING PIN |
| FOR COUPLING MOUTH | ||
| 048 | A 3873150106 | COUPLING PIN |
| FOR COUPLING MOUTH | ||
| 052 | A 0009874346 | SEALING CORD |
| FOR COUPLING MOUTH | ||
| 062 | A 3873120510 | CROSS MEMBER |
| Repalced by: A 3873100027 | ||
| 062 | A 3873100027 | CROSS MEMBER |
| NO.2 | ||
| 062 | A 3873120410 | CROSS MEMBER |
| NO.2 | ||
| 062 | A 3873120610 | CROSS MEMBER |
| NO.2 | ||
| 067 | A 3873120084 | SHIM |
| Repalced by: A 6203121984 | ||
| 067 | A 6203121984 | SHIM |
| CROSS MEMBER TO FRONT SPRING REAR BRACKET | ||
| 067 | A 6203121984 | SHIM |
| CROSS MEMBER TO FRONT SPRING REAR BRACKET | ||
| 068 | A 3893100436 | CROSS MEMBER |
| NO.3 | ||
| 069 | N 000961012097 | SCREW |
| Repalced by: N 308676012026 | ||
| 069 | N 308676012026 | SCREW |
| GUSSET PLATE TO SIDE MEMBER | ||
| 069 | N 000961014028 | SCREW |
| GUSSET PLATE TO SIDE MEMBER | ||
| 070 | N 910113012002 | NUT |
| GUSSET PLATE TO SIDE MEMBER | ||
| 071 | N 000961014054 | SCREW |
| GUSSET PLATE TO SIDE MEMBER | ||
| 072 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 072 | N 910113014001 | NUT |
| GUSSET PLATE TO SIDE MEMBER | ||
| 073 | A 3874310884 | SHIM |
| CROSS MEMBER TO FRONT SPRING REAR BRACKET | ||
| 074 | N 000961014054 | SCREW |
| CROSS MEMBER WITH SHIM TO FRONT SPRING REAR BRACKET | ||
| M 14X45 | ||
| 074 | N 000961014100 | SCREW |
| CROSS MEMBER WITH SHIM TO FRONT SPRING REAR BRACKET | ||
| M 14X30 | ||
| 074 | N 000961014100 | SCREW |
| CROSS MEMBER WITH SHIM TO FRONT SPRING REAR BRACKET | ||
| M 14X30 | ||
| 074A | N 912004014100 | LOCK WASHER |
| CROSS MEMBER WITH SHIM TO FRONT SPRING REAR BRACKET | ||
| 074C | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 074C | N 910113014001 | NUT |
| CROSS MEMBER WITH SHIM TO FRONT SPRING REAR BRACKET | ||
| 075 | A 3873100036 | CROSS MEMBER |
| INTERMEDIATE SHAFT BEARING | ||
| NO.3 | ||
| 075 | A 3873100236 | CROSS MEMBER |
| INTERMEDIATE SHAFT BEARING | ||
| NO.3 | ||
| 075 | A 3873100436 | CROSS MEMBER |
| NO.3 | ||
| 075 | A 3953100136 | CROSS MEMBER |
| NO.4 | ||
| A 3873120025 | CROSS MEMBER | |
| NO.4 | ||
| A 3953120261 | STRUT | |
| AT CROSS MEMBER | ||
| NO.4 | ||
| A 0039900901 | SCREW | |
| Repalced by: A 0029908201 | ||
| A 0029908201 | SCREW | |
| STRUT TO CROSS MEMBER | ||
| N 913004012009 | NUT | |
| Repalced by: N 910113012003 | ||
| N 910113012003 | NUT | |
| STRUT TO CROSS MEMBER | ||
| 076 | N 000961012164 | SCREW |
| CROSS MEMBER TO SIDE MEMBERS | ||
| 076 | N 000961014100 | SCREW |
| CROSS MEMBER TO SIDE MEMBERS | ||
| 077 | N 910113012002 | NUT |
| CROSS MEMBER TO SIDE MEMBERS | ||
| 077 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 077 | N 910113014001 | NUT |
| CROSS MEMBER TO SIDE MEMBERS | ||
| 078 | N 000961012164 | SCREW |
| CROSS MEMBER TO FRAME | ||
| 079 | N 000125013008 | WASHER |
| 080 | N 910113012002 | NUT |
| CROSS MEMBER TO FRAME | ||
| 090 | A 3873120017 | CROSS MEMBER |
| NO.3 | ||
| 090 | A 3873120017 | CROSS MEMBER |
| NO.4 | ||
| 090 | A 3873120017 | CROSS MEMBER |
| NO.5 | ||
| A 3873120025 | CROSS MEMBER | |
| NO.4 | ||
| 094 | A 3873120161 | STRUT |
| AT CROSS MEMBER | ||
| 098 | A 3873120161 | STRUT |
| AT CROSS MEMBER | ||
| A 3873100037 | CROSS MEMBER | |
| NO.4 | ||
| A 3873100037 | CROSS MEMBER | |
| NO.5 | ||
| A 3873100037 | CROSS MEMBER | |
| NO.6 | ||
| 102 | A 3873100437 | CROSS MEMBER |
| NO.4 | ||
| 102 | A 3873100437 | CROSS MEMBER |
| NO.5 | ||
| 102 | A 3873100437 | CROSS MEMBER |
| NO.6 | ||
| 106 | N 000961012164 | SCREW |
| CROSS MEMBER TO SIDE MEMBERS | ||
| M 12X28 | ||
| 106 | N 000961012097 | SCREW |
| Repalced by: N 308676012026 | ||
| 106 | N 308676012026 | SCREW |
| CROSS MEMBER TO SIDE MEMBERS | ||
| M 12X35 | ||
| 108 | N 910113012002 | NUT |
| CROSS MEMBER TO SIDE MEMBERS | ||
| 111 | A 3873120425 | CROSS MEMBER |
| NO.6 | ||
| A 3893100137 | CROSS MEMBER | |
| NO.7 | ||
| A 3873120017 | CROSS MEMBER | |
| NO.7 | ||
| A 3873120361 | STRUT | |
| AT CROSS MEMBER | ||
| A 0039900901 | SCREW | |
| Repalced by: A 0029908201 | ||
| A 0029908201 | SCREW | |
| STRUT TO CROSS MEMBER | ||
| N 913004012009 | NUT | |
| Repalced by: N 910113012003 | ||
| N 910113012003 | NUT | |
| STRUT TO CROSS MEMBER | ||
| 116 | A 3873120035 | CROSS MEMBER |
| Repalced by: A 3933100246 | ||
| 116 | A 3933100046 | CROSS MEMBER |
| Repalced by: A 3933100246 | ||
| 116 | A 3933100246 | CROSS MEMBER |
| Repalced by: A 3873120735 | ||
| 116 | A 3873120735 | CROSS MEMBER |
| REAR | ||
| 119 | A 3875440438 | BRACKET |
| ELECTRIC CABLE TO REAR CROSS MEMBER | ||
| 124 | A 3873220301 | FRONT SPRING BRACKET |
| FRONT | ||
| 128 | A 3879900214 | SCREW |
| FRONT SPRING FRONT BRACKET TO SIDE MEMBER | ||
| M16X55 | ||
| 128 | A 3879900114 | SCREW |
| FRONT SPRING FRONT BRACKET TO SIDE MEMBER | ||
| M16X45 | ||
| 130 | N 913004016005 | NUT |
| Repalced by: N 910113016001 | ||
| 130 | N 910113016001 | NUT |
| FRONT SPRING FRONT BRACKET TO SIDE MEMBER | ||
| 132 | A 3873220503 | FRONT SPRING BRACKET |
| REAR | ||
| 136 | N 000960014237 | SCREW |
| FRONT SPRING REAR BRACKET TO SIDE MEMBER | ||
| M 14X50 | ||
| 136 | N 000961014130 | SCREW |
| FRONT SPRING REAR BRACKET TO SIDE MEMBER | ||
| M 14X42 | ||
| 140 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 140 | N 910113014000 | NUT |
| FRONT SPRING REAR BRACKET TO SIDE MEMBER | ||
| 142 | A 3873250001 | REAR SPRING BRACKET |
| FRONT | ||
| 142 | A 3873250101 | REAR SPRING BRACKET |
| FRONT | ||
| 147 | A 3353250603 | REAR SPRING BRACKET |
| REAR | ||
| 147 | A 3873250003 | REAR SPRING BRACKET |
| REAR | ||
| 149 | N 000961014028 | SCREW |
| REAR SPRING REAR BRACKET TO SIDE MEMBER | ||
| 151 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 151 | N 910113014001 | NUT |
| REAR SPRING REAR BRACKET TO SIDE MEMBER | ||
| 154 | A 3893250117 | HELPER SPRING BRACKET |
| Repalced by: A 6843250017 | ||
| 154 | A 6843250017 | HELPER SPRING BRACKET |
| REAR SPRING | ||
| 154 | A 3873250117 | HELPER SPRING BRACKET |
| REAR SPRING | ||
| 156 | N 000961012097 | SCREW |
| Repalced by: N 308676012026 | ||
| 156 | N 308676012026 | SCREW |
| HELPER SPRING BRACKET TO SIDE MEMBER | ||
| M 12X35 | ||
| 156 | N 000961012122 | SCREW |
| HELPER SPRING BRACKET TO SIDE MEMBER | ||
| M 12X40 | ||
| 156 | N 000961014050 | SCREW |
| Repalced by: N 308676014020 | ||
| 156 | N 308676014020 | SCREW |
| HELPER SPRING BRACKET TO SIDE MEMBER | ||
| 160 | N 910113012002 | NUT |
| HELPER SPRING BRACKET TO SIDE MEMBER | ||
| 160 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 160 | N 910113014001 | NUT |
| HELPER SPRING BRACKET TO SIDE MEMBER | ||
| 167 | A 3873160101 | SIDE MEMBER |
| LEFT | ||
| 171 | A 3873160102 | SIDE MEMBER |
| RIGHT | ||
| 175 | A 3873160052 | ANGLE |
| LEFT | ||
| 175 | A 3873161752 | ANGLE |
| LEFT | ||
| 179 | A 3873160452 | ANGLE |
| LEFT | ||
| 183 | A 3873160152 | ANGLE |
| RIGHT | ||
| 183 | A 3873161852 | ANGLE |
| RIGHT | ||
| A 3873160552 | ANGLE | |
| RIGHT | ||
| 188 | A 3873160040 | BRACKET |
| AUXILIARY FRAME TO FRAME | ||
| 188 | A 3873160240 | BRACKET |
| AUXILIARY FRAME TO FRAME | ||
| 190 | N 000961012164 | SCREW |
| STRUT TO SIDE MEMBER | ||
| M 12X28 | ||
| 190 | N 000961012151 | SCREW |
| STRUT TO SIDE MEMBER | ||
| M 12X30 | ||
| 192 | N 910113012002 | NUT |
| STRUT TO SIDE MEMBER | ||
| 195 | A 3873102263 | CONSOLE |
| LEFT | ||
| 199 | A 3873102363 | CONSOLE |
| RIGHT | ||
| 200 | N 000961012122 | SCREW |
| CONSOLE TO FRAME | ||
| 200 | N 000961014063 | SCREW |
| Repalced by: A 9429901304 | ||
| 200 | A 9429901304 | SCREW |
| CONSOLE TO FRAME | ||
| 200 | N 000961012097 | SCREW |
| Repalced by: N 308676012026 | ||
| 200 | N 308676012026 | SCREW |
| CONSOLE TO FRAME | ||
| M 12X35 | ||
| 200 | N 000961012052 | SCREW |
| Repalced by: N 308676012012 | ||
| 200 | N 308676012012 | SCREW |
| CONSOLE TO FRAME | ||
| M 12X25 | ||
| 202 | N 912004012100 | LOCK WASHER |
| CONSOLE TO FRAME | ||
| 204 | N 910113012002 | NUT |
| CONSOLE TO FRAME | ||
| 204 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 204 | N 910113014000 | NUT |
| CONSOLE TO FRAME | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| MOUNTING USED FOR FRAME CONNECTION PARTS | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| DIMENSIONS ARE INDICATED IN THE FOLLOWING ORDER: | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| THREAD X SHANK DIA. X SHANK LENGTH X TOTAL LENGTH | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| N 000609010004 | FITTED SCREW | |
| M 10X11X14X28 | ||
| N 000610010003 | FITTED SCREW | |
| M 10X11X25X38 | ||
| N 000609010014 | FITTED SCREW | |
| M 10X11X24X40 | ||
| A 3859900514 | SCREW | |
| M 10X11X26.5X46 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| A 3859900714 | SCREW | |
| M 12X12X10X25 | ||
| A 3859901414 | SCREW | |
| M 12X12X11X26 | ||
| A 0039900901 | SCREW | |
| Repalced by: A 0029908201 | ||
| A 0029908201 | SCREW | |
| M 12X12X12X28 | ||
| A 3859901514 | SCREW | |
| M 12X12X13X28 | ||
| A 0029908201 | SCREW | |
| M 12X12X14X30 | ||
| A 3859902114 | SCREW | |
| M 12X12X15X30 | ||
| A 0029908301 | SCREW | |
| Repalced by: N 308676012013 | ||
| N 308676012013 | SCREW | |
| M 12X12X16X32 | ||
| A 3859902214 | SCREW | |
| M 12X12X17X32 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| A 6209900114 | SCREW | |
| M 12X13X12X29 | ||
| A 3969900314 | SCREW | |
| M 12X13X13X30 | ||
| A 3589901914 | SCREW | |
| M 12X13X15X32 | ||
| A 3559900014 | SCREW | |
| M 12X13X18X35 | ||
| A 3589900614 | SCREW | |
| M 12X13X21X38 | ||
| A 6179900114 | SCREW | |
| M 12X13X23X40 | ||
| A 6249900014 | SCREW | |
| M 12X13X25X42 | ||
| A 3859900214 | SCREW | |
| M 12X13X35X52 | ||
| A 6689900114 | SCREW | |
| M 12X13X58X80 | ||
| A 6689900014 | SCREW | |
| M 12X13X63X85 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| A 3229903101 | SCREW | |
| M 14X14X14X32 | ||
| A 3859900814 | SCREW | |
| Repalced by: A 3229903101 | ||
| A 3229903101 | SCREW | |
| M 14X14X16X32 | ||
| A 3859902014 | SCREW | |
| M 14X14X18X34 | ||
| A 3559900114 | SCREW | |
| M 12X14X13X35 | ||
| A 3219901601 | SCREW | |
| Repalced by: A 3169900014 | ||
| A 3169900014 | SCREW | |
| M 14X14X17X35 | ||
| A 3219901901 | SCREW | |
| M 14X14X22X40 | ||
| A 3559900501 | SCREW | |
| M 14X14X24X42 | ||
| A 3409900201 | SCREW | |
| M 14X14X27X45 | ||
| A 3609902001 | SCREW | |
| M 14X14X32X50 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| A 3589900114 | SCREW | |
| M 14X15X15X32 | ||
| A 3589900814 | SCREW | |
| M 14X15X17X34 | ||
| A 6459900014 | SCREW | |
| M 14X15X18X35 | ||
| A 3589901014 | SCREW | |
| M 14X15X19X36 | ||
| A 3589900214 | SCREW | |
| M 14X15X21X38 | ||
| A 3589900414 | SCREW | |
| M 14X15X25X42 | ||
| A 3589900714 | SCREW | |
| M 14X15X27X44 | ||
| A 3589900914 | SCREW | |
| M 14X15X29X46 | ||
| A 3859900414 | SCREW | |
| M 14X15X31X48 | ||
| A 3859900314 | SCREW | |
| M 14X15X35X52 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| A 3859900914 | SCREW | |
| Repalced by: N 308676016020 | ||
| N 308676016020 | SCREW | |
| M 16X16X18X36 | ||
| A 3859901714 | SCREW | |
| M 16X16X20X38 | ||
| A 3859901014 | SCREW | |
| M 16X16X22X40 | ||
| A 3859901114 | SCREW | |
| M 16X16X24X42 | ||
| A 0029909901 | SCREW | |
| Repalced by: A 3959900501 | ||
| A 3959900501 | SCREW | |
| M 16X16X20X45 | ||
| A 3859901814 | SCREW | |
| M 16X16X30X48 | ||
| A 3859901914 | SCREW | |
| M 16X16X32X50 | ||
| A 6259900301 | SCREW | |
| M 16X16X38X90 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| A 3589900514 | SCREW | |
| M 16X17X22X42 | ||
| A 6459900714 | SCREW | |
| M 16X17X24X44 | ||
| A 3609900114 | SCREW | |
| M 16X17X28X48 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| A 3469900014 | SCREW | |
| M 16X18X18X40 | ||
| A 3859902314 | SCREW | |
| M 18X18X23X45 | ||
| A 6209900014 | SCREW | |
| M 16X18X26X48 | ||
| A 3469900114 | SCREW | |
| M 16X18X31X50 | ||
| A 3859902414 | SCREW | |
| M 18X18X33X55 | ||
| A 6229900014 | SCREW | |
| M 16X18X38X60 | ||
| A 3919900014 | SCREW | |
| M 16X18X63X85 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| N 000610018004 | FITTED SCREW | |
| M 18X19X25X45 | ||
| N 000610018009 | FITTED SCREW | |
| M 18X19X33X55 | ||
| N 000610018006 | FITTED SCREW | |
| M 18X19X38X60 | ||
| N 000609018000 | FITTED SCREW | |
| M 18X19X57X85 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| N 913004010011 | NUT | |
| N 913004012009 | NUT | |
| Repalced by: N 910113012003 | ||
| N 910113012003 | NUT | |
| N 913004014005 | NUT | |
| Repalced by: N 910113014000 | ||
| N 910113014000 | NUT | |
| N 913004016005 | NUT | |
| Repalced by: N 910113016001 | ||
| N 910113016001 | NUT | |
| N 913004018004 | NUT | |
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 206 | A 0009900896 | RIVET |
| Repalced by: N 910005012020 | ||
| 206 | A 0009902296 | RIVET |
| Repalced by: N 910005012020 | ||
| 206 | N 910005012080 | RIVET |
| 12X42 MM | ||
| 206 | N 910005012087 | RIVET |
| 12X58 MM | ||
| 206 | A 0009903596 | RIVET |
| Repalced by: N 910005014020 | ||
| 206 | N 910005014056 | RIVET |
| 14X45 MM | ||
| 206 | N 910005014059 | RIVET |
| 14X55 MM | ||
| 206 | A 0009908996 | RIVET |
| Repalced by: N 910005016003 | ||
| 206 | A 0009908896 | RIVET |
| Repalced by: N 910005016003 | ||
| 206 | N 910005016027 | RIVET |
| 16X68 MM | ||
| 206 | N 910005016007 | RIVET |
| 16X68 MM | ||
| 240 | A 3833120005 | ENGINE CROSS MEMBER |
| FRONT | ||
| 244 | A 3833130106 | CONSOLE |
| ENGINE CROSS MEMBER TO SIDE MEMBERS | ||
| 245 | N 000961012164 | SCREW |
| Repalced by: N 000961012093 | ||
| 245 | N 000961012106 | SCREW |
| CONSOLE TO ENGINE CROSS MEMBER | ||
| 247 | N 910113012002 | NUT |
| CONSOLE TO ENGINE CROSS MEMBER | ||
| 248 | N 000961014008 | SCREW |
| Repalced by: N 308676014003 | ||
| 248 | N 308676014003 | SCREW |
| CONSOLE TO FRAME | ||
| 249 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 249 | N 910113014000 | NUT |
| CONSOLE TO FRAME | ||
| 249A | A 3875420640 | BRACKET |
| HORN | ||
| 250 | A 3874030501 | SUPPORT |
| SPARE WHEEL MOUNTING | ||
| 253 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 253 | N 910113010000 | NUT |
| SUPPORT TO FRAME | ||
| 256 | N 000933010105 | SCREW |
| SUPPORT TO FRAME | ||
| 260 | A 3878910531 | CONSOLE |
| Repalced by: A 3878912631 | ||
| 260 | A 3878912631 | CONSOLE |
| CAB MOUNTING,FRONT | ||
| 260 | A 3878912631 | CONSOLE |
| CAB MOUNTING,FRONT | ||
| 260 | A 3878912631 | CONSOLE |
| CAB MOUNTING,FRONT | ||
| 262 | A 3873170323 | STRUT |
| BUMPER AT TORSION BAR | ||
| 264 | A 3873170423 | STRUT |
| BUMPER AT TORSION BAR | ||
| 268 | A 3878910514 | BRACKET |
| BUMPER AT TORSION BAR | ||
| 270 | N 000961014101 | SCREW |
| Repalced by: N 308676014012 | ||
| 270 | N 308676014012 | SCREW |
| CONSOLE,STRUT,AND BRACKET TO FRAME | ||
| 271 | N 000961014063 | SCREW |
| Repalced by: A 9429901304 | ||
| 271 | A 9429901304 | SCREW |
| CONSOLE,STRUT,AND BRACKET TO FRAME | ||
| 272 | N 000125015013 | WASHER |
| Repalced by: N 000125015019 | ||
| 272 | N 000125015019 | WASHER |
| CONSOLE,STRUT,AND BRACKET TO FRAME | ||
| 273 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 273 | N 910113014000 | NUT |
| CONSOLE,STRUT,AND BRACKET TO FRAME | ||
| 275 | N 000961012052 | SCREW |
| Repalced by: N 308676012012 | ||
| 275 | N 308676012012 | SCREW |
| STRUT TO CONSOLE | ||
| 276 | N 910113012002 | NUT |
| STRUT TO CONSOLE | ||

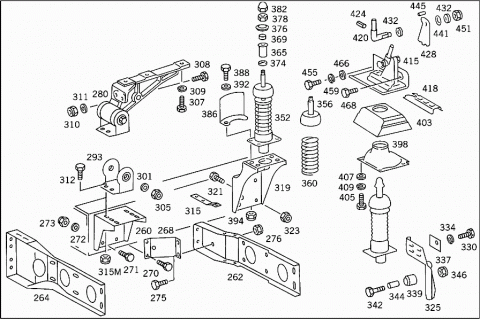

| 280 | A 3878902503 | MOUNTING |
| Repalced by: A 3813106509 | ||
| 280 | A 3813106509 | BRACKET |
| LEFT | ||
| 280 | A 3878902603 | MOUNTING |
| Repalced by: A 3813106609 | ||
| 280 | A 3813106609 | BRACKET |
| RIGHT | ||
| 293 | A 3813171312 | RUBBER BUFFER |
| Repalced by: A 3813171512 | ||
| 293 | A 3878902903 | MOUNTING |
| 301 | N 007349017002 | WASHER |
| 305 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 305 | N 910113016002 | NUT |

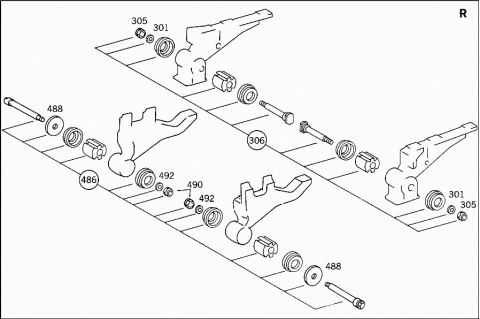

| 306 | A 3815860031 | REPAIR KIT |
| CAB SUSPENSION,FRONT | ||
| 307 | N 000961014028 | SCREW |
| LEFT AND RIGHT BEARING BRACKETS TO CAB | ||
| M 14X40 | ||
| 308 | N 000961014064 | SCREW |
| LEFT AND RIGHT BEARING BRACKETS TO CAB | ||
| M 14X50 | ||
| 309 | N 912004014100 | LOCK WASHER |
| LEFT AND RIGHT BEARING BRACKETS TO CAB | ||
| 310 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 310 | N 910113014001 | NUT |
| LEFT AND RIGHT BEARING BRACKETS TO CAB | ||
| 311 | A 3209901840 | WASHER |
| LEFT AND RIGHT BEARING BRACKETS TO CAB | ||
| 312 | N 000961014063 | SCREW |
| Repalced by: A 9429901304 | ||
| 312 | A 9429901304 | SCREW |
| CAB TO FRAME | ||
| M 14X40 | ||
| 312 | N 000961014101 | SCREW |
| Repalced by: N 308676014012 | ||
| 312 | N 308676014012 | SCREW |
| CAB TO FRAME | ||
| M 14X45 | ||
| A 3878910698 | SHIM | |
| 315 | A 3878910398 | SHIM |
| CAB TO FRAME | ||
| 315M | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 315M | N 910113014000 | NUT |
| CAB TO FRAME | ||

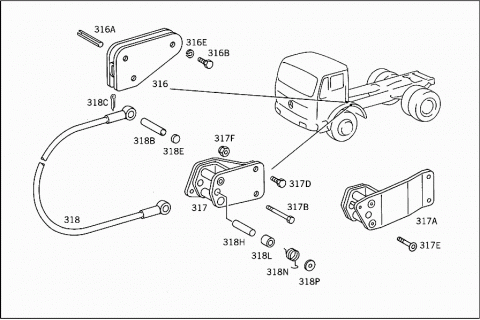

| 316 | A 3878907303 | MOUNTING |
| RETAINING ROPE TO CAB | ||
| 316A | N 001481006040 | CLAMPING SLEEVE |
| RETAINING ROPE TO CAB | ||
| 316B | N 000961014100 | SCREW |
| BEARING BRACKET TO CAB | ||
| 316E | N 912004014100 | LOCK WASHER |
| BEARING BRACKET TO CAB | ||
| 317 | A 3878907203 | MOUNTING |
| RETAINING ROPE TO FRAME | ||
| 317 | A 3878907903 | MOUNTING |
| RETAINING ROPE TO FRAME | ||
| 317 | A 3878907403 | MOUNTING |
| RETAINING ROPE TO FRAME | ||
| 317A | A 3878908003 | MOUNTING |
| RETAINING ROPE TO FRAME | ||
| 317B | N 000960014263 | SCREW |
| BEARING BRACKET TO FRAME | ||
| M 14X120 | ||
| 317D | N 000961014101 | SCREW |
| Repalced by: N 308676014012 | ||
| 317D | N 308676014012 | SCREW |
| BEARING BRACKET TO FRAME | ||
| M 14X45 | ||
| 317E | N 007991014014 | SCREW |
| BEARING BRACKET TO FRAME | ||
| M 14X50 | ||
| N 000961014128 | SCREW | |
| BEARING BRACKET TO FRAME | ||
| M 14X40 | ||
| 317F | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 317F | N 910113014000 | NUT |
| BEARING BRACKET TO FRAME | ||
| 318 | A 0009882075 | WIRE CABLE |
| (RETAINING ROPE),CAB | ||
| 318B | A 3873171174 | PIN |
| RETAINING ROPE TO BEARING BRACKET,TOP | ||
| 318C | N 000094005044 | COTTER PIN |
| RETAINING ROPE TO BEARING BRACKET,TOP | ||
| 318E | A 3635530051 | SPACER RING |
| RETAINING ROPE TO BEARING BRACKET,TOP | ||
| 318H | A 3873171274 | PIN |
| RETAINING ROPE TO BEARING BRACKET, BOTTOM | ||
| 318L | A 3878911553 | SPACER TUBE |
| RETAINING ROPE TO BEARING BRACKET, BOTTOM | ||
| 318N | A 3879930020 | SPRING |
| RETAINING ROPE TO BEARING BRACKET, BOTTOM | ||
| 318N | A 3879930120 | SPRING |
| RETAINING ROPE TO BEARING BRACKET, BOTTOM | ||
| 318P | N 000433021002 | WASHER |
| RETAINING ROPE TO BEARING BRACKET, BOTTOM | ||
| 319 | A 3873170001 | CONSOLE |
| Repalced by: A 6553170001 | ||
| 319 | A 6553170001 | CONSOLE |
| Repalced by: A 3873170001 | ||
| 319 | A 3873170001 | CONSOLE |
| CAB | ||
| 321 | N 000961012151 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| 323 | N 910113012002 | NUT |
| CONSOLE TO SIDE MEMBER | ||
| 325 | A 3873170426 | GUIDE |
| CAB,LEFT | ||
| 325 | A 3873170626 | GUIDE |
| CAB,LEFT | ||
| 325 | A 3873170526 | GUIDE |
| CAB, RIGHT | ||
| 325 | A 3873170726 | GUIDE |
| CAB, RIGHT | ||
| 330 | N 000960012301 | SCREW |
| GUIDE TO CAB | ||
| 334 | N 912004012100 | LOCK WASHER |
| GUIDE TO CAB | ||
| A 3873170028 | REINFORCEMENT | |
| GUIDE TO CAB | ||
| 337 | A 3873170084 | SHIM |
| LATERAL GUIDE OF CAB | ||
| 339 | A 3813170750 | BUSHING |
| GUIDE TO CAB | ||
| 342 | N 000960012230 | SCREW |
| LEFT AND RIGHT BUSHINGS TO FENDER BRACKETS | ||
| 344 | A 3813170553 | SPACER TUBE |
| LEFT AND RIGHT BUSHINGS TO FENDER BRACKETS | ||
| 346 | N 910113012002 | NUT |
| LEFT AND RIGHT BUSHINGS TO FENDER BRACKETS | ||
| 352 | A 3818900719 | SHOCK ABSORBER |
| Repalced by: A 3878901619 | ||
| 352 | A 3878901019 | SHOCK ABSORBER |
| Repalced by: A 3878901619 | ||
| 352 | A 3878901619 | SHOCK ABSORBER |
| Repalced by: A 3878901319 | ||
| 352 | A 3878901319 | SHOCK ABSORBER |
| CAB SUSPENSION,REAR | ||
| 352 | A 3878901319 | SHOCK ABSORBER |
| CAB SUSPENSION,REAR | ||
| 356 | A 3818900101 | MOUNTING |
| 356 | A 0008910201 | RUBBER MOUNTING |
| TO 387 890 16 19 | ||
| 356 | A 0008910301 | RUBBER MOUNTING |
| TO 387 890 13 19 | ||
| 360 | A 3818910080 | SPRING |
| 360 | A 0008910751 | SPRING |
| Repalced by: A 0008910451 | ||
| 360 | A 0008910451 | SPRING |
| 365 | A 3813170753 | SPACER TUBE |
| SHOCK ABSORBER TO CAB | ||
| 369 | A 0009935326 | DISC SPRING |
| Repalced by: A 3275045082 | ||
| 369 | A 3275045082 | RUBBER RING |
| SHOCK ABSORBER TO CAB | ||
| 374 | N 000433015005 | WASHER |
| SHOCK ABSORBER TO CAB | ||
| 376 | A 3878912010 | WASHER |
| SHOCK ABSORBER TO CAB | ||
| 378 | N 000934012022 | NUT |
| SHOCK ABSORBER TO CAB | ||
| 382 | N 001587012008 | CAP NUT |
| Repalced by: N 001587012010 | ||
| 382 | N 001587012010 | CAP NUT |
| SHOCK ABSORBER TO CAB | ||
| 386 | A 3813170031 | COVER PLATE |
| SHOCK ABSORBER | ||
| 388 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 388 | N 304017008034 | SCREW |
| SHOCK ABSORBER TO CONSOLE | ||
| 392 | N 007349008003 | WASHER |
| SHOCK ABSORBER TO CONSOLE | ||
| 394 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 394 | N 304017008021 | SCREW |
| SHOCK ABSORBER TO CONSOLE | ||
| 398 | A 3813176140 | BRACKET |
| Repalced by: A 3813177840 | ||
| 398 | A 3813177840 | BRACKET |
| VIBRATION ABSORBER TO CAB,LEFT | ||
| 398 | A 3813176240 | BRACKET |
| Repalced by: A 3813177940 | ||
| 398 | A 3813177940 | BRACKET |
| VIBRATION ABSORBER TO CAB,RIGHT | ||
| 403 | A 3813170097 | BOOT |
| CAB LOCKING MECHANISM | ||
| 405 | N 000933010105 | SCREW |
| RETAINER TO SIDE MEMBER | ||
| 407 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 407 | N 000125010532 | WASHER |
| RETAINER TO SIDE MEMBER | ||
| 409 | N 912004010102 | LOCK WASHER |
| RETAINER TO SIDE MEMBER | ||
| 415 | A 3813101275 | LOCKING MECHANISM |
| Repalced by: A 3813102075 | ||
| 415 | A 3813102075 | LOCKING MECHANISM |
| CAB,LEFT | ||
| 415 | A 3813101175 | LOCKING MECHANISM |
| Repalced by: A 3813101975 | ||
| 415 | A 3813101975 | LOCKING MECHANISM |
| CAB, RIGHT | ||
| 418 | A 3813170119 | LATCH |
| 420 | A 3813100007 | COUPLING PIN |
| Repalced by: A 3813172374 | ||
| 420 | A 3813172374 | PIN |
| 424 | N 001481006012 | CLAMPING SLEEVE |
| Repalced by: N 000000000306 | ||
| 424 | N 000000000306 | CLAMPING PIN |
| 428 | A 3813170924 | LEVER |
| 432 | A 3813170676 | WASHER |
| 441 | A 0009935426 | DISC SPRING |
| 445 | N 001481006032 | CLAMPING SLEEVE |
| 451 | N 910113012002 | NUT |
| 455 | N 000933010105 | SCREW |
| LOCKING MECHANISM TO CAB | ||
| 459 | N 912004010102 | LOCK WASHER |
| LOCKING MECHANISM TO CAB | ||
| 466 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 466 | N 000125010532 | WASHER |
| LOCKING MECHANISM TO CAB | ||
| 468 | N 000961012094 | SCREW |
| Repalced by: N 308676012013 | ||
| 468 | N 308676012013 | SCREW |
| LOCKING MECHANISM TO CAB | ||
| 468 | N 000961014101 | SCREW |
| Repalced by: N 308676014012 | ||
| 468 | N 308676014012 | SCREW |

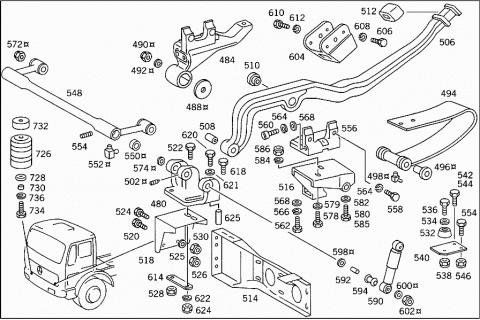

| LOCKING MECHANISM TO CAB | ||
| 480 | A 3878913720 | MOUNTING |
| BEARING BRACKET TO CAB | ||
| 480 | A 3878916020 | MOUNTING |
| Repalced by: A 6558910320 | ||
| 480 | A 6558910320 | MOUNTING |
| BEARING BRACKET TO CAB | ||
| 480 | A 3878915320 | MOUNTING |
| BEARING BRACKET TO CAB | ||
| 480 | A 3878916220 | MOUNTING |
| BEARING BRACKET TO CAB | ||
| 484 | A 3878913820 | MOUNTING |
| CAB SUSPENSION,FRONT RIGHT | ||
| 484 | A 3878916720 | MOUNTING |
| CAB SUSPENSION,FRONT RIGHT | ||
| 484 | A 3878915420 | MOUNTING |
| CAB SUSPENSION,FRONT RIGHT | ||
| 484 | A 3878916320 | MOUNTING |
| CAB SUSPENSION,FRONT RIGHT | ||
| 484 | A 3878916420 | MOUNTING |
| CAB SUSPENSION,FRONT LEFT | ||
| 484 | A 3878916520 | MOUNTING |
| CAB SUSPENSION,FRONT RIGHT | ||
| A 3813171712 | RUBBER BUFFER | |
| Repalced by: A 6205860031 | ||
| A 3813171412 | RUBBER BUFFER | |
| Repalced by: A 6205860031 | ||
| A 3873170874 | PIN | |
| Repalced by: A 6205860031 | ||
| 486 | A 6205860031 | REPAIR KIT |
| CAB SUSPENSION,FRONT | ||
| 488 | A 3873170376 | WASHER |
| BEARING BRACKET TO CAB | ||
| 490 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 490 | N 910113016002 | NUT |
| BEARING BRACKET TO CAB | ||
| 492 | N 007349017002 | WASHER |
| BEARING BRACKET TO CAB | ||
| 494 | A 3878900705 | SPRING |
| Repalced by: A 3878910851 | ||
| 494 | A 3878910851 | SPRING |
| LEFT AND RIGHT | ||
| 496 | A 3638910617 | BUSHING |
| CAB SUSPENSION,FRONT | ||
| 498 | N 071412008200 | GREASE NIPPLE |
| A 3873170674 | PIN | |
| Repalced by: A 3875860131 | ||
| 500 | A 3875860131 | REPAIR KIT |
| Repalced by: A 3873100077 | ||
| 500 | A 3873100077 | REPAIR KIT |
| CAB SUSPENSION,FRONT | ||
| 502 | N 000417008004 | HEADLESS SETSCREW |
| PIN TO BEARING | ||
| 506 | A 3878911756 | LEVER |
| Repalced by: A 3878912856 | ||
| 506 | A 3878912456 | LEVER |
| Repalced by: A 3878912856 | ||
| 506 | A 3878912856 | LEVER |
| (TILTING LEVER),CAB | ||
| 506 | A 3878911656 | LEVER |
| Repalced by: A 3878912756 | ||
| 506 | A 3878912356 | LEVER |
| Repalced by: A 3878912756 | ||
| 506 | A 3878912756 | LEVER |
| (TILTING LEVER),CAB | ||
| 508 | A 3879920003 | BUSHING |
| CAB TILTING LEVER | ||
| 508 | A 3879920203 | BUSHING |
| CAB TILTING LEVER | ||
| A 0009817231 | JOINT BEARING | |
| Repalced by: A 6208910017 | ||
| A 0019810431 | JOINT BEARING | |
| Repalced by: A 6208910017 | ||
| A 0019810531 | JOINT BEARING | |
| Repalced by: A 6208910017 | ||
| 510 | A 6208910017 | BUSHING |
| CAB TILTING LEVER | ||
| A 0029943741 | LOCK | |
| Repalced by: A 6208910017 | ||
| 512 | A 3638910023 | BUFFER |
| TILTING LEVER TO CAB SIDE MEMBER | ||
| 514 | A 3873100153 | STRUT |
| BUMPER,LEFT | ||
| 514 | A 3873100253 | STRUT |
| BUMPER,RIGHT | ||
| 514 | A 3873170423 | STRUT |
| BUMPER AT TORSION BAR | ||
| 516 | A 3878903903 | MOUNTING |
| Repalced by: A 3878905303 | ||
| 516 | A 3878905303 | MOUNTING |
| CAB SUSPENSION,FRONT LEFT | ||
| 516 | A 3878905603 | MOUNTING |
| CAB SUSPENSION,FRONT RIGHT | ||
| 518 | A 3878911431 | CONSOLE |
| CAB SUSPENSION,FRONT | ||
| 520 | N 000961014101 | SCREW |
| Repalced by: N 308676014012 | ||
| 520 | N 308676014012 | SCREW |
| CONSOLE AND STRUT TO FRAME | ||
| 522 | N 000961016036 | SCREW |
| Repalced by: N 308676016013 | ||
| 522 | N 308676016013 | SCREW |
| CONSOLE AND STRUT TO FRAME | ||
| 524 | N 000961018018 | SCREW |
| CONSOLE AND STRUT TO FRAME | ||
| M 18X40 | ||
| 524 | N 000961018043 | SCREW |
| CONSOLE AND STRUT TO FRAME | ||
| M 18X55 | ||
| 525 | A 3543230051 | SPACER RING |
| CONSOLE AND STRUT TO FRAME | ||
| 526 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 526 | N 910113014000 | NUT |
| CONSOLE AND STRUT TO FRAME | ||
| 528 | N 913004016005 | NUT |
| Repalced by: N 910113016001 | ||
| 528 | N 910113016001 | NUT |
| CONSOLE AND STRUT TO FRAME | ||
| 530 | N 913004018004 | NUT |
| CONSOLE AND STRUT TO FRAME | ||
| 532 | A 3878910123 | BUFFER |
| Repalced by: A 3348910072 | ||
| 532 | A 3348910072 | MOUNTING |
| CAB SUSPENSION | ||
| 534 | N 009021008205 | WASHER |
| Repalced by: N 009021008213 | ||
| 534 | N 009021008213 | WASHER |
| BUFFER TO BRACKET | ||
| 536 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 536 | N 304017008034 | SCREW |
| BUFFER TO BRACKET | ||
| 538 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 538 | N 913004008001 | NUT |
| BUFFER TO BRACKET | ||
| 540 | A 3878910914 | BRACKET |
| CAB SUSPENSION | ||
| 542 | N 000961012097 | SCREW |
| Repalced by: N 308676012026 | ||
| 542 | N 308676012026 | SCREW |
| BRACKET TO FRAME | ||
| M 12X35 | ||
| 544 | N 000961012151 | SCREW |
| BRACKET TO FRAME | ||
| M 12X30 | ||
| 546 | N 910113012002 | NUT |
| BRACKET TO FRAME | ||
| 548 | A 3878900404 | STABILIZER |
| CAB SUSPENSION,FRONT | ||
| 550 | A 0009810731 | JOINT BEARING |
| Repalced by: A 0009817231 | ||
| 550 | A 0009810931 | JOINT BEARING |
| Repalced by: A 0009817331 | ||
| 550 | A 0009817331 | JOINT BEARING |
| Repalced by: A 0009817231 | ||
| 550 | A 0009817231 | JOINT BEARING |
| Repalced by: A 0019814631 | ||
| 550 | A 0019814631 | JOINT BEARING |
| 550 | A 0019814831 | JOINT BEARING |
| A 0019814831 | JOINT BEARING | |
| 552 | N 071412008200 | GREASE NIPPLE |
| 554 | N 000960010000 | SCREW |
| STABILIZER | ||
| A 3878910272 | MOUNTING | |
| Repalced by: A 3875860531 | ||
| A 3878910717 | BUSHING | |
| Repalced by: A 3875860531 | ||
| 556 | A 3878910831 | CONSOLE |
| Repalced by: A 6208910631 | ||
| 556 | A 6208910631 | CONSOLE |
| LEFT | ||
| 556 | A 3878910931 | CONSOLE |
| Repalced by: A 6208910731 | ||
| 556 | A 6208910731 | CONSOLE |
| RIGHT | ||
| 558 | N 000961012069 | SCREW |
| Repalced by: N 308676012015 | ||
| 558 | N 308676012015 | SCREW |
| LEFT AND RIGHT CONSOLES TO CAB | ||
| M 12X50 | ||
| 560 | N 006912012013 | SCREW |
| LEFT AND RIGHT CONSOLES TO CAB | ||
| M 12X30 | ||
| 562 | N 000961014088 | SCREW |
| Repalced by: N 308676014008 | ||
| 562 | N 308676014008 | SCREW |
| LEFT AND RIGHT CONSOLES TO CAB | ||
| 564 | N 912004012100 | LOCK WASHER |
| LEFT AND RIGHT CONSOLES TO CAB | ||
| 566 | N 912004014100 | LOCK WASHER |
| LEFT AND RIGHT CONSOLES TO CAB | ||
| 568 | A 3609900940 | WASHER |
| LEFT AND RIGHT CONSOLES TO CAB | ||
| A 3878910957 | PIN | |
| Repalced by: A 3875860531 | ||
| 570 | A 3875860531 | REPAIR KIT |
| CAB FRONT SUSPENSION STABILIZER | ||
| 572 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 572 | N 910113014001 | NUT |
| STABILIZER TO BEARING BRACKET | ||
| 574 | A 3878911910 | WASHER |
| STABILIZER TO BEARING BRACKET | ||
| 574 | A 3209901840 | WASHER |
| BEARING BRACKET TO CAB | ||
| 578 | N 000961014028 | SCREW |
| BEARING BRACKET TO CAB | ||
| M 14X40 | ||
| 578 | N 000960014167 | SCREW |
| Repalced by: N 000961014064 | ||
| 578 | N 000961014064 | SCREW |
| BEARING BRACKET TO CAB | ||
| M 14X50 | ||
| 579 | N 000125015013 | WASHER |
| Repalced by: N 000125015019 | ||
| 579 | N 000125015019 | WASHER |
| BEARING BRACKET TO CAB | ||
| 580 | N 000961014044 | SCREW |
| BEARING BRACKET TO CAB | ||
| 582 | N 007349015003 | WASHER |
| BEARING BRACKET TO CAB | ||
| 584 | N 912004014100 | LOCK WASHER |
| BEARING BRACKET TO CAB | ||
| 585 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 585 | N 304017008034 | SCREW |
| BEARING BRACKET TO CAB | ||
| 586 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 586 | N 913004008001 | NUT |
| BEARING BRACKET TO CAB | ||
| N 000960012189 | SCREW | |
| Repalced by: N 308676012031 | ||
| N 308676012031 | SCREW | |
| Repalced by: N 308676012011 | ||
| N 308676012011 | SCREW | |
| BEARING BRACKET TO CAB | ||
| N 912004012100 | LOCK WASHER | |
| BEARING BRACKET TO CAB | ||
| 590 | A 0008911905 | SHOCK ABSORBER |
| Repalced by: A 0008911805 | ||
| 590 | A 0008911805 | SHOCK ABSORBER |
| CAB SUSPENSION,FRONT | ||
| 592 | A 0008910317 | BUSHING |
| Repalced by: A 0008910617 | ||
| 592 | A 0008910617 | BUSHING |
| 594 | A 0068910501 | RUBBER MOUNTING |
| 598 | A 3873170176 | WASHER |
| Repalced by: A 6203170176 | ||
| 598 | A 6203170176 | WASHER |
| SHOCK ABSORBER TO CONSOLE AND TO CAB | ||
| 600 | A 3873170276 | WASHER |
| Repalced by: N 000125013008 | ||
| 600 | N 000125013022 | WASHER |
| Repalced by: N 000125013008 | ||
| 600 | N 000125013008 | WASHER |
| SHOCK ABSORBER TO CONSOLE AND TO CAB | ||
| 602 | N 910113012002 | NUT |
| SHOCK ABSORBER TO CONSOLE AND TO CAB | ||
| 604 | A 3878915520 | MOUNTING |
| Repalced by: A 3878913220 | ||
| 604 | A 3878913220 | MOUNTING |
| Repalced by: A 6208901603 | ||
| 604 | A 6208901603 | MOUNTING |
| TILTING LEVER TO CAB SIDE MEMBER | ||
| 606 | N 000933010105 | SCREW |
| MOUNTING TO CAB | ||
| 608 | N 912004010102 | LOCK WASHER |
| MOUNTING TO CAB | ||
| 610 | N 000961012052 | SCREW |
| Repalced by: N 308676012012 | ||
| 610 | N 308676012012 | SCREW |
| MOUNTING TO CAB | ||
| 612 | N 912004012100 | LOCK WASHER |
| MOUNTING TO CAB | ||
| 614 | A 3878910498 | SHIM |
| CAB ON CONSOLE AT FRAME | ||
| 618 | N 000961014088 | SCREW |
| Repalced by: N 308676014008 | ||
| 618 | N 308676014008 | SCREW |
| CAB ON CONSOLE AT FRAME | ||
| M 14X35 | ||
| 618 | N 000960014229 | SCREW |
| CAB ON CONSOLE AT FRAME | ||
| M 14X55 | ||
| 620 | N 000961014063 | SCREW |
| Repalced by: A 9429901304 | ||
| 620 | A 9429901304 | SCREW |
| CAB ON CONSOLE AT FRAME | ||
| M 14X40 | ||
| 621 | N 000125015013 | WASHER |
| Repalced by: N 000125015019 | ||
| 621 | N 000125015019 | WASHER |
| CAB ON CONSOLE AT FRAME | ||
| 622 | N 912004014100 | LOCK WASHER |
| CAB ON CONSOLE AT FRAME | ||
| 624 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 624 | N 910113014000 | NUT |
| CAB ON CONSOLE AT FRAME | ||
| 625 | N 001471016000 | GROOVED PIN |
| CAB ON CONSOLE AT FRAME | ||
| N 000961016108 | SCREW | |
| BUFFER TO CAB | ||
| N 000961016081 | SCREW | |
| BUFFER TO CAB | ||
| N 912004016101 | LOCK WASHER | |
| BUFFER TO CAB | ||

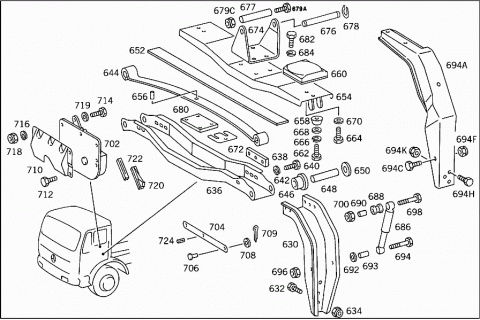

| 630 | A 3878911031 | CONSOLE |
| CAB MOUNTING,REAR | ||
| 630 | A 3878911731 | CONSOLE |
| CAB MOUNTING,REAR | ||
| 632 | N 000961014100 | SCREW |
| CONSOLE TO FRAME | ||
| 634 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 634 | N 910113014001 | NUT |
| CONSOLE TO FRAME | ||
| 636 | A 3878910024 | STRUT |
| Repalced by: A 6558910224 | ||
| 636 | A 6558910224 | STRUT |
| CAB MOUNTING,REAR | ||
| 638 | A 3878910198 | SHIM |
| STRUT TO CONSOLE | ||
| 640 | N 000961012052 | SCREW |
| Repalced by: N 308676012012 | ||
| 640 | N 308676012012 | SCREW |
| STRUT TO CONSOLE | ||
| 642 | N 912004012100 | LOCK WASHER |
| STRUT TO CONSOLE | ||
| 644 | A 3878910651 | SPRING |
| Repalced by: A 3878911051 | ||
| 644 | A 3878911051 | SPRING |
| CAB SUSPENSION,REAR | ||
| 646 | A 3638910717 | BUSHING |
| SPRING TO STRUT | ||
| 648 | A 3638910218 | TUBE |
| SPRING TO STRUT | ||
| 650 | A 3638910010 | WASHER |
| SPRING TO STRUT | ||
| A 3878911351 | SPRING | |
| (SPRING LEAF),BOTTOM;CAB REAR SUSPENSION | ||
| 652 | A 3878911451 | SPRING |
| (SPRING LEAF),TOP;CAB REAR SUSPENSION | ||
| 654 | A 3878900322 | RAIL |
| Repalced by: A 3878900622 | ||
| 654 | A 3878900622 | RAIL |
| Repalced by: A 6558900222 | ||
| 654 | A 6558900222 | RAIL |
| (CONNECTING RAIL) | ||
| 654 | A 3878900622 | RAIL |
| Repalced by: A 6558900222 | ||
| 654 | A 6558900222 | RAIL |
| (CONNECTING RAIL) | ||
| 656 | N 000007012213 | CYLINDRICAL PIN |
| 658 | A 3638910123 | BUFFER |
| Repalced by: A 3878910323 | ||
| 658 | A 3878910323 | BUFFER |
| RAIL STOP | ||
| 660 | A 3878910072 | MOUNTING |
| CAB REST | ||
| 662 | N 000084008122 | SCREW |
| BUFFER AND MOUNTING TO RAIL | ||
| 664 | N 000933008154 | SCREW |
| Repalced by: N 304017008021 | ||
| 664 | N 304017008021 | SCREW |
| BUFFER AND MOUNTING TO RAIL | ||
| 666 | N 912004008102 | LOCK WASHER |
| BUFFER AND MOUNTING TO RAIL | ||
| 668 | N 000433008406 | WASHER |
| BUFFER AND MOUNTING TO RAIL | ||
| 670 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 670 | N 000125008443 | WASHER |
| BUFFER AND MOUNTING TO RAIL | ||
| 672 | A 3878910298 | SHIM |
| BUFFER AND MOUNTING TO RAIL | ||
| 674 | A 3638910520 | MOUNTING |
| Repalced by: A 3878918120 | ||
| 674 | A 3878918120 | MOUNTING |
| CAB MOUNTING,REAR | ||
| 674 | A 6208910020 | MOUNTING |
| CAB MOUNTING,REAR | ||
| 676 | A 3638910457 | PIN |
| CAB MOUNTING,REAR | ||
| 677 | A 3878911753 | SPACER TUBE |
| CAB MOUNTING,REAR | ||
| 678 | N 000471025002 | LOCK RING |
| CAB MOUNTING,REAR | ||
| 679A | N 000960016242 | SCREW |
| Repalced by: N 000960016251 | ||
| 679A | N 000960016251 | SCREW |
| CAB MOUNTING,REAR | ||
| 679C | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 679C | N 910113016002 | NUT |
| CAB MOUNTING,REAR | ||
| 680 | A 3878910811 | PLATE |
| CAB MOUNTING,REAR | ||
| 682 | N 000931010258 | SCREW |
| CAB MOUNTING,REAR | ||
| 682 | N 000931010331 | SCREW |
| CAB MOUNTING,REAR | ||
| 684 | N 912004010102 | LOCK WASHER |
| CAB MOUNTING,REAR | ||
| 686 | A 0008911405 | SHOCK ABSORBER |
| CAB SUSPENSION,REAR | ||
| 686 | A 0008911605 | SHOCK ABSORBER |
| CAB SUSPENSION,REAR | ||
| 686 | A 0008911905 | SHOCK ABSORBER |
| Repalced by: A 0008911805 | ||
| 686 | A 0008911805 | SHOCK ABSORBER |
| CAB SUSPENSION,REAR | ||
| 686 | A 0008911805 | SHOCK ABSORBER |
| CAB SUSPENSION,REAR | ||
| 688 | A 0008910001 | RUBBER MOUNTING |
| 688 | A 0008910401 | RUBBER MOUNTING |
| Repalced by: A 0008910501 | ||
| 688 | A 0008910501 | RUBBER MOUNTING |
| 688 | A 0008910501 | RUBBER MOUNTING |
| 690 | A 0008910217 | BUSHING |
| Repalced by: A 0008910117 | ||
| 690 | A 0008910117 | BUSHING |
| 690 | A 0008910317 | BUSHING |
| Repalced by: A 0008910617 | ||
| 690 | A 0008910617 | BUSHING |
| 690 | A 0008910617 | BUSHING |
| 692 | A 3878911610 | WASHER |
| VIBRATION ABSORBER TO CONSOLE | ||
| 693 | A 3878910453 | SPACER TUBE |
| VIBRATION ABSORBER TO CONSOLE | ||
| 694 | N 000960018125 | SCREW |
| Repalced by: N 000960018072 | ||
| 694 | N 000960018072 | SCREW |
| SHOCK ABSORBER TO CONSOLE | ||
| 694 | N 000960014145 | SCREW |
| SHOCK ABSORBER TO CONSOLE | ||
| 694A | A 3815000727 | SUPPORT |
| EXPANSION TANK | ||
| 694A | A 3815000927 | SUPPORT |
| Repalced by: A 3815001227 | ||
| 694A | A 3815001227 | SUPPORT |
| EXPANSION TANK | ||
| 694C | N 000961012151 | SCREW |
| SUPPORT TO FRAME AND TO CAB CONSOLE | ||
| 694C | N 000961014050 | SCREW |
| Repalced by: N 308676014020 | ||
| 694C | N 308676014020 | SCREW |
| SUPPORT TO FRAME AND TO CAB CONSOLE | ||
| 694F | N 910113012002 | NUT |
| SUPPORT TO FRAME AND TO CAB CONSOLE | ||
| 694F | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 694F | N 910113014001 | NUT |
| SUPPORT TO FRAME AND TO CAB CONSOLE | ||
| 694H | N 000960014136 | SCREW |
| SUPPORT TO CONSOLE | ||
| 694H | N 000960018072 | SCREW |
| Repalced by: N 308765018004 | ||
| 694H | N 308765018004 | SCREW |
| SUPPORT TO CONSOLE | ||
| 694K | N 913004014001 | NUT |
| SUPPORT TO CONSOLE | ||
| 694K | N 913004018003 | NUT |
| Repalced by: N 910113018004 | ||
| 694K | N 910113018004 | NUT |
| SUPPORT TO CONSOLE | ||
| 696 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 696 | N 910113014001 | NUT |
| SHOCK ABSORBER TO CONSOLE | ||
| 696 | N 913004018003 | NUT |
| Repalced by: N 910113018004 | ||
| 696 | N 910113018004 | NUT |
| SHOCK ABSORBER TO CONSOLE | ||
| 698 | N 000960014136 | SCREW |
| SHOCK ABSORBER TO RAIL | ||
| 698 | N 000960018072 | SCREW |
| Repalced by: N 308765018004 | ||
| 698 | N 308765018004 | SCREW |
| SHOCK ABSORBER TO RAIL | ||
| 700 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 700 | N 910113014001 | NUT |
| SHOCK ABSORBER TO RAIL | ||
| 700 | N 913004018003 | NUT |
| Repalced by: N 910113018004 | ||
| 700 | N 910113018004 | NUT |
| SHOCK ABSORBER TO RAIL | ||
| 702 | A 0008900089 | FASTENER |
| Repalced by: A 0008902389 | ||
| 702 | A 0008901389 | FASTENER |
| Repalced by: A 0008902389 | ||
| 702 | A 0008902389 | FASTENER |
| (CENTRAL LOCK) | ||
| 704 | A 3878910070 | ROD |
| CAB LOCKING MECHANISM | ||
| 706 | N 001444008202 | PIN |
| PULL TO FASTENER | ||
| 708 | N 000433008406 | WASHER |
| PULL TO FASTENER | ||
| 709 | N 000094002059 | COTTER PIN |
| PULL TO FASTENER | ||
| 710 | A 3878911131 | CONSOLE |
| CENTRAL LOCK | ||
| 712 | N 000933010128 | SCREW |
| CENTRAL LOCK TO CAB | ||
| 714 | N 000933010105 | SCREW |
| CENTRAL LOCK TO CAB | ||
| 716 | N 912004010102 | LOCK WASHER |
| CENTRAL LOCK TO CAB | ||
| 718 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 718 | N 910113010000 | NUT |
| CENTRAL LOCK TO CAB | ||
| 719 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 719 | N 000125010532 | WASHER |
| CENTRAL LOCK TO CAB | ||
| 720 | A 3878910814 | BRACKET |
| CENTRAL LOCK | ||
| 722 | A 3878910085 | SEAL |
| CENTRAL LOCK | ||
| 724 | N 007346005003 | CLAMPING SLEEVE |
| CENTRAL LOCK | ||
| 726 | A 3638910223 | BUFFER |
| CAB SUSPENSION,FRONT | ||
| 728 | A 3638910047 | FLANGE |
| BUFFER TO FRAME | ||
| 730 | A 3638910517 | BUSHING |
| BUFFER TO FRAME | ||
| A 3878911710 | WASHER | |
| Repalced by: A 3878912210 | ||
| A 3878912210 | WASHER | |
| Repalced by: A 4432610076 | ||
| A 4432610076 | WASHER | |
| BUFFER TO FRAME | ||
| 20 MM | ||
| 732 | A 3878912210 | WASHER |
| Repalced by: A 4432610076 | ||
| 732 | A 4432610076 | WASHER |
| BUFFER TO FRAME | ||
| 10 MM | ||
| 734 | N 000931010053 | SCREW |
| BUFFER TO CAB | ||
| 736 | N 912004010102 | LOCK WASHER |
| BUFFER TO CAB | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
