Transporto priemonė: 1719; VIN numerio dalis: 387006

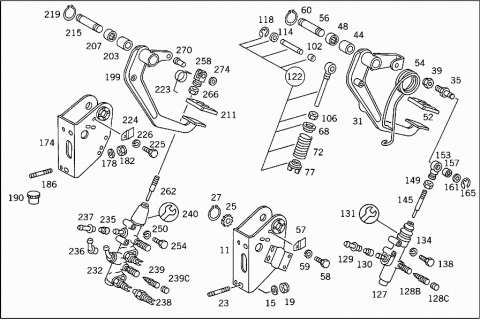

Grupė: 29 PEDAL ASSEMBLY
| # | Kodas | Pavadinimas |
|---|---|---|
| 011 | A 3812900519 | BEARING BRACKET |
| Repalced by: A 3812901319 | ||
| 011 | A 3812901319 | BEARING BRACKET |
| Repalced by: A 3812901219 | ||
| 011 | A 3812901219 | BEARING BRACKET |
| CLUTCH PEDAL | ||
| 015 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 015 | N 000125008443 | WASHER |
| BEARING BRACKET TO CAB | ||
| 019 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 019 | N 913004008001 | NUT |
| BEARING BRACKET TO CAB | ||
| 023 | N 000939008083 | STUD BOLT |
| BEARING BRACKET TO CAB | ||
| M 8X20 | ||
| 023 | N 000939008136 | STUD BOLT |
| BEARING BRACKET TO CAB | ||
| M 8X30 | ||
| 025 | A 3812910186 | STOP |
| CLUTCH PEDAL | ||
| 027 | N 000471016001 | LOCK RING |
| Repalced by: A 0079942041 | ||
| 027 | A 0079942041 | LOCK |
| STOP TO BEARING BRACKET | ||
| 031 | A 3812900616 | PEDAL |
| Repalced by: A 3812901016 | ||
| 031 | A 3812900916 | PEDAL |
| Repalced by: A 3812901016 | ||
| 031 | A 3812901016 | PEDAL |
| Repalced by: A 6202900216 | ||
| 031 | A 6202900416 | PEDAL |
| Repalced by: A 6202900216 | ||
| 031 | A 6202900216 | PEDAL |
| CLUTCH | ||
| 035 | A 3812910274 | PIN |
| CLUTCH PEDAL | ||
| 039 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 039 | N 913004008001 | NUT |
| CLUTCH PEDAL | ||
| 044 | A 3812910053 | SPACER TUBE |
| CLUTCH PEDAL | ||
| 048 | A 0009815610 | NEEDLE BEARING |
| Repalced by: A 0119813410 | ||
| 048 | A 0089811110 | NEEDLE BEARING |
| Repalced by: A 0119813410 | ||
| 048 | A 0119813410 | NEEDLE BEARING |
| 052 | A 1102910182 | PAD |
| Repalced by: A 1072910182 | ||
| 052 | A 1072910182 | PAD |
| CLUTCH PEDAL | ||
| 054 | A 3819930510 | SPRING |
| Repalced by: A 3819930710 | ||
| 054 | A 3819930710 | SPRING |
| CLUTCH PEDAL RESET | ||
| 056 | A 3812940507 | PIVOT PIN |
| PEDAL TO BEARING BRACKET | ||
| 056 | A 3812940707 | PIVOT PIN |
| PEDAL TO BEARING BRACKET | ||
| 057 | A 3812910073 | LOCK |
| PEDAL TO BEARING BRACKET | ||
| 058 | N 000933006102 | SCREW |
| PEDAL TO BEARING BRACKET | ||
| 059 | N 912004006102 | LOCK WASHER |
| PEDAL TO BEARING BRACKET | ||
| 060 | N 000471020001 | LOCK RING |
| PEDAL TO BEARING BRACKET | ||
| 060 | N 000471020001 | LOCK RING |
| PEDAL TO BEARING BRACKET | ||
| 068 | A 1112910491 | SPRING RETAINER |
| DEAD CENTER SPRING,TOP | ||
| 072 | A 1109930501 | SPRING |
| (DEAD CENTER SPRING) | ||
| 35 MM | ||
| 072 | A 3819930201 | SPRING |
| (DEAD CENTER SPRING) | ||
| 23.2 MM | ||
| 077 | A 3092910091 | SPRING RETAINER |
| BOTTOM | ||
| 077 | A 1102900633 | BRACKET |
| Repalced by: A 3092910091 | ||
| A 1102950150 | BUSHING | |
| Repalced by: A 3092910091 | ||
| A 1072910091 | SPRING RETAINER | |
| Repalced by: A 3092910091 | ||
| A 3812910133 | ROD | |
| Repalced by: A 3812910233 | ||
| A 3812910233 | ROD | |
| OVER-CENTER ACTING SPRING | ||
| A 3812910333 | ROD | |
| OVER-CENTER ACTING SPRING | ||
| A 0009816431 | JOINT BEARING | |
| ROD TO CLUTCH PEDAL | ||
| 102 | A 0059813810 | NEEDLE BEARING |
| ROD TO CLUTCH PEDAL | ||
| 102 | A 0059814410 | NEEDLE BEARING |
| ROD TO CLUTCH PEDAL | ||
| 102 | A 0089811210 | NEEDLE BEARING |
| ROD TO CLUTCH PEDAL | ||
| 102 | A 0139818210 | NEEDLE BEARING |
| ROD TO CLUTCH PEDAL | ||
| 106 | N 000439010216 | NUT |
| Repalced by: N 308675010000 | ||
| 106 | N 308675010000 | NUT |
| PUSH ROD TO INTERMEDIATE LEVER | ||
| A 3812910474 | PIN | |
| PUSH ROD TO PEDAL | ||
| A 3812910574 | PIN | |
| PUSH ROD TO PEDAL | ||
| 114 | N 000433008406 | WASHER |
| PUSH ROD TO PEDAL | ||
| 118 | N 006799006003 | LOCK PLATE |
| PUSH ROD TO PEDAL | ||
| 122 | A 3802900093 | REPAIR KIT |
| DEAD CENTER SPRING | ||
| 122 | A 3802900193 | REPAIR KIT |
| DEAD CENTER SPRING | ||
| 127 | A 0002956806 | MASTER CYLINDER |
| Repalced by: A 0012952906 | ||
| 127 | A 0012952906 | MASTER CYLINDER |
| Repalced by: A 0012956006 | ||
| 127 | A 0012956006 | MASTER CYLINDER |
| CLUTCH;LESS DE-AERATION | ||
| A 0002950983 | BOOT | |
| A 0002953283 | BOOT | |
| 128B | A 0004310265 | VALVE |
| Repalced by: A 3075530107 | ||
| 128B | A 3075530107 | VALVE |
| BREATHER | ||
| TO 000 295 68 06 | ||
| 128C | A 3164210187 | PROTECTIVE CAP |
| Repalced by: A 0004210887 | ||
| 128C | A 0004210887 | PROTECTIVE CAP |
| Repalced by: A 0004217187 | ||
| 128C | A 0004217187 | PROTECTIVE CAP |
| Repalced by: A 0004210887 | ||
| 128C | A 0004210887 | PROTECTIVE CAP |
| TO 000 295 68 06 | ||
| 129 | A 0002950836 | INTERMEDIATE PIECE |
| 130 | A 0009974235 | PLUG |
| Repalced by: A 0009971186 | ||
| 130 | A 0009971186 | PLUG |
| 131 | A 0005863529 | REPAIR KIT |
| Repalced by: A 0002903412 | ||
| 131 | A 0002903412 | REPAIR KIT |
| TO MASTER CYLINDER HAVING ALUMINUM PISTON | ||
| TO 000 295 68 06,001 295 29 06 | ||
| A 0002904667 | REPAIR KIT | |
| TO MASTER CYLINDER HAVING SYNTHETIC PISTON | ||
| TO 001 295 60 06 | ||
| 134 | N 912004006102 | LOCK WASHER |
| CLUTCH MASTER CYLINDER TO PEDAL BEARING BRACKET | ||
| 138 | N 000931006191 | SCREW |
| CLUTCH MASTER CYLINDER TO PEDAL BEARING BRACKET | ||
| 145 | A 3812950033 | ROD |
| MASTER CYLINDER | ||
| 149 | N 000439008211 | NUT |
| Repalced by: N 304035008001 | ||
| 149 | N 304035008001 | NUT |
| MASTER CYLINDER | ||
| 153 | A 0009961145 | ARTICULATION PIECE |
| ROD TO PEDAL | ||
| 153 | A 0009961045 | ARTICULATION PIECE |
| CLUTCH MASTER CYLINDER TO CLUTCH PEDAL | ||
| 157 | A 0059813810 | NEEDLE BEARING |
| CLUTCH MASTER CYLINDER TO CLUTCH PEDAL | ||
| 157 | A 0059814410 | NEEDLE BEARING |
| CLUTCH MASTER CYLINDER TO CLUTCH PEDAL | ||
| 157 | A 0089811210 | NEEDLE BEARING |
| CLUTCH MASTER CYLINDER TO CLUTCH PEDAL | ||
| 157 | A 0139818210 | NEEDLE BEARING |
| CLUTCH MASTER CYLINDER TO CLUTCH PEDAL | ||
| 161 | N 000433008406 | WASHER |
| PISTON ROD TO LEVER | ||
| 165 | N 006799006003 | LOCK PLATE |
| PISTON ROD TO LEVER | ||
| 174 | A 3812900419 | BEARING BRACKET |
| Repalced by: A 3812901519 | ||
| 174 | A 3812901519 | BEARING BRACKET |
| BRAKE | ||
| 178 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 178 | N 000125008443 | WASHER |
| BEARING BRACKET TO CAB | ||
| 182 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 182 | N 913004008001 | NUT |
| BEARING BRACKET TO CAB | ||
| 186 | N 000939008083 | STUD BOLT |
| BEARING BRACKET TO CAB | ||
| 190 | A 3819970486 | PLUG |
| BEARING BRACKET TO CAB | ||
| 199 | A 3812900318 | PEDAL |
| BRAKE | ||
| 203 | A 3812910053 | SPACER TUBE |
| BRAKE PEDAL | ||
| 207 | A 0009815610 | NEEDLE BEARING |
| Repalced by: A 0119813410 | ||
| 207 | A 0089811110 | NEEDLE BEARING |
| Repalced by: A 0119813410 | ||
| 207 | A 0119813410 | NEEDLE BEARING |
| BRAKE PEDAL | ||
| 211 | A 1102910182 | PAD |
| Repalced by: A 1072910182 | ||
| 211 | A 1072910182 | PAD |
| PIPING | ||
| A 3815400084 | LEVER | |
| Repalced by: A 3815450144 | ||
| A 3815450144 | LEVER | |
| STOP LIGHT SWITCH | ||
| N 000931008314 | SCREW | |
| LEVER TO BRAKE PEDAL | ||
| N 913004008004 | NUT | |
| Repalced by: N 913004008001 | ||
| N 913004008001 | NUT | |
| LEVER TO BRAKE PEDAL | ||
| N 000933006127 | SCREW | |
| STOP LIGHT SWITCH STOP | ||
| N 000934006007 | NUT | |
| STOP LIGHT SWITCH STOP | ||
| 215 | A 3812940507 | PIVOT PIN |
| PEDAL TO BEARING BRACKET | ||
| 215 | A 3812940707 | PIVOT PIN |
| PEDAL TO BEARING BRACKET | ||
| 219 | N 000471020001 | LOCK RING |
| PEDAL TO BEARING BRACKET | ||
| 219 | N 000471020001 | LOCK RING |
| PEDAL TO BEARING BRACKET | ||
| 223 | A 3819930210 | SPRING |
| BRAKE PEDAL | ||
| 224 | A 3812910073 | LOCK |
| PEDAL TO BEARING BRACKET | ||
| 225 | N 000933006102 | SCREW |
| PEDAL TO BEARING BRACKET | ||
| 226 | N 912004006102 | LOCK WASHER |
| PEDAL TO BEARING BRACKET | ||
| 232 | A 0002958706 | MASTER CYLINDER |
| BRAKE | ||
| A 0002952783 | BOOT | |
| Repalced by: A 0005864729 | ||
| A 0002950437 | SCREW PLUG | |
| Repalced by: A 0002950050 | ||
| 235 | A 0002950050 | BUSHING |
| Repalced by: A 0004310950 | ||
| 235 | A 0004310950 | BUSHING |
| 236 | A 0002950536 | INTERMEDIATE PIECE |
| 45 DEGREES | ||
| 237 | A 0002950636 | INTERMEDIATE PIECE |
| 80 DEGREES | ||
| 238 | A 0035424717 | SENDER UNIT |
| Repalced by: A 0005455509 | ||
| 238 | A 0005455509 | SWITCH |
| STOP LIGHT | ||
| 239 | A 0004310265 | VALVE |
| Repalced by: A 3075530107 | ||
| 239 | A 3075530107 | VALVE |
| BREATHER | ||
| A 3164210187 | PROTECTIVE CAP | |
| Repalced by: A 0004210887 | ||
| A 0004210887 | PROTECTIVE CAP | |
| Repalced by: A 0004217187 | ||
| 239C | A 0004217187 | PROTECTIVE CAP |
| Repalced by: A 0004210887 | ||
| 239C | A 0004210887 | PROTECTIVE CAP |
| 240 | A 0005863629 | REPAIR KIT |
| Repalced by: A 0005864729 | ||
| 240 | A 0005864729 | REPAIR KIT |
| ADDITIONAL CLUSTER GEARBOX GV80 | ||
| TO 000 295 87 06 | ||
| 250 | N 912004006102 | LOCK WASHER |
| MASTER CYLINDER TO BEARING BRACKET | ||
| 254 | N 000931006191 | SCREW |
| MASTER CYLINDER TO BEARING BRACKET | ||
| 258 | A 0009961601 | YOKE |
| MASTER CYLINDER | ||
| 262 | A 3812950133 | ROD |
| MASTER CYLINDER | ||
| 266 | N 000439008211 | NUT |
| Repalced by: N 304035008001 | ||
| 266 | N 304035008001 | NUT |
| ADDITIONAL CLUSTER GEARBOX GV80 | ||
| 270 | A 3149910107 | PIN |
| Repalced by: A 3529910007 | ||
| 270 | A 3529910007 | PIN |
| PISTON ROD TO LEVER | ||
| 274 | N 000433010505 | WASHER |
| Repalced by: N 000433010510 | ||
| 274 | N 000433010510 | WASHER |
| PISTON ROD TO LEVER | ||
| N 000094003219 | COTTER PIN | |
| PISTON ROD TO LEVER | ||

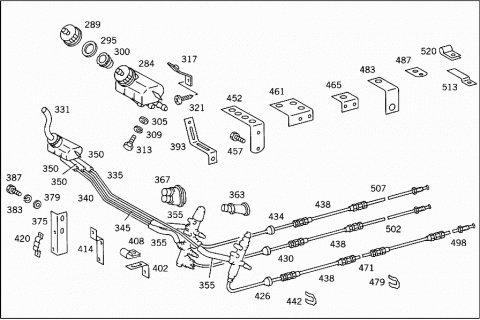

| 284 | A 0002951615 | RESERVOIR |
| RESERVOIR | ||
| 284 | A 0002951915 | RESERVOIR |
| RESERVOIR | ||
| 289 | A 0002950016 | LOCKING CAP |
| Repalced by: A 0002951615 | ||
| A 0002950016 | LOCKING CAP | |
| Repalced by: A 0002951915 | ||
| A 0002950116 | LOCKING CAP | |
| RESERVOIR | ||
| 295 | A 0002950260 | SEAL RING |
| Repalced by: A 0009972940 | ||
| 295 | A 0009972940 | SEAL RING |
| RESERVOIR | ||
| 300 | A 0002950123 | STRAINER |
| Repalced by: A 0004314334 | ||
| 300 | A 0004314334 | STRAINER |
| A 0002950520 | VALVE | |
| Repalced by: A 0009885435 | ||
| A 0009885435 | CAP | |
| RESERVOIR DE-AERATION | ||
| 305 | N 009021006205 | WASHER |
| Repalced by: N 009021006208 | ||
| 305 | N 009021006208 | WASHER |
| EXPANSION TANK TO BRACKET | ||
| 309 | N 912004006102 | LOCK WASHER |
| EXPANSION TANK TO BRACKET | ||
| 313 | N 000000001147 | SCREW |
| EXPANSION TANK TO BRACKET | ||
| M 6X20 | ||
| 317 | A 3872900033 | BRACKET |
| Repalced by: A 3872900433 | ||
| 317 | A 3872900433 | BRACKET |
| RESERVOIR | ||
| 321 | N 007985005306 | SCREW |
| BRACKET TO CAB | ||
| A 0009881878 | CLIP | |
| LINE MOUNTING | ||
| 331 | A 0029975982 | HOSE |
| RESERVOIR DE-AERATION | ||
| 335 | A 3872950613 | PIPE |
| Repalced by: A 3872950313 | ||
| 335 | A 3872950313 | PIPE |
| FROM CLUTCH MASTER CYLINDER TO RESERVOIR | ||
| 700 MM | ||
| 335 | A 3872950313 | PIPE |
| FROM BRAKE MASTER CYLINDER TO RESERVOIR | ||
| 700 MM | ||
| 335 | A 3872950813 | PIPE |
| FROM CLUTCH MASTER CYLINDER TO RESERVOIR | ||
| 320 MM | ||
| 340 | A 3872950513 | PIPE |
| Repalced by: A 3872950413 | ||
| 340 | A 3872950713 | PIPE |
| Repalced by: A 3872950413 | ||
| 345 | A 3872950413 | PIPE |
| FROM BRAKE MASTER CYLINDER TO RESERVOIR | ||
| 550 MM | ||
| 345 | A 3872950413 | PIPE |
| FROM BRAKE MASTER CYLINDER TO RESERVOIR | ||
| 550 MM | ||
| 350 | A 0089971282 | HOSE |
| Repalced by: A 0009978952 | ||
| 350 | A 0119976782 | HOSE |
| Repalced by: A 0009978952 | ||
| 355 | A 0079974282 | HOSE |
| Repalced by: A 0009978952 | ||
| 355 | A 0009978952 | HOSE |
| BETWEEN MASTER CYLINDER AND LINES | ||
| 363 | A 3819970781 | GROMMET |
| CLUTCH LINE THRU CAB WINDOW SILL | ||
| 363 | A 3819970981 | GROMMET |
| CLUTCH LINE THRU CAB WINDOW SILL | ||
| 367 | A 3819970581 | GROMMET |
| BRAKE LINE THRU CAB WINDOW SILL | ||
| 367 | A 3819971081 | GROMMET |
| Repalced by: A 3819970581 | ||
| 367 | A 3819970581 | GROMMET |
| BRAKE LINE THRU CAB WINDOW SILL | ||
| 375 | A 3872930041 | ANGLE |
| WIPER MOTOR | ||
| 379 | N 000125006421 | WASHER |
| ANGLE TO WIPER MOTOR BRACKET | ||
| 383 | N 912004006102 | LOCK WASHER |
| ANGLE TO WIPER MOTOR BRACKET | ||
| 387 | N 007985005158 | SCREW |
| ANGLE TO WIPER MOTOR BRACKET | ||
| A 3872950340 | BRACKET | |
| WIPER MOTOR | ||
| A 3872950640 | BRACKET | |
| WIPER MOTOR | ||
| N 007981005306 | SHEET METAL SCREW | |
| BRACKET TO CAB | ||
| N 000125006421 | WASHER | |
| BRACKET TO CAB | ||
| A 3872940740 | BRACKET | |
| WITH HYDRAULIC CYLINDER BEARING BRACKET TO FRAME | ||
| N 000961012151 | SCREW | |
| WITH HYDRAULIC CYLINDER BEARING BRACKET TO FRAME | ||
| N 910113012002 | NUT | |
| WITH HYDRAULIC CYLINDER BEARING BRACKET TO FRAME | ||
| A 3872940840 | BRACKET | |
| WITH CAB TILTING HYDRAULIC LINE BRACKET TO FRAME | ||
| N 000933008153 | SCREW | |
| Repalced by: N 304017008034 | ||
| N 304017008034 | SCREW | |
| WITH CAB TILTING HYDRAULIC LINE BRACKET TO FRAME | ||
| N 913004008004 | NUT | |
| Repalced by: N 913004008001 | ||
| N 913004008001 | NUT | |
| WITH CAB TILTING HYDRAULIC LINE BRACKET TO FRAME | ||
| A 3872950240 | BRACKET | |
| LINE TO FRONT CROSS MEMBER | ||
| 393 | A 3464316540 | BRACKET |
| Repalced by: A 3464296440 | ||
| 393 | A 3464296440 | BRACKET |
| WITH EXHAUST PIPE BRACKET TO SIDE MEMBER | ||
| A 3609950201 | CLAMP | |
| Repalced by: A 3604300143 | ||
| A 3604300143 | CLAMP | |
| Repalced by: N 916016008200 | ||
| N 916016008200 | CLAMP | |
| LINES TO FRAME | ||
| N 000000001147 | SCREW | |
| LINES TO FRAME | ||
| M 6X20 | ||
| N 913004006002 | NUT | |
| Repalced by: N 913004006001 | ||
| N 913004006001 | NUT | |
| LINES TO FRAME | ||
| 402 | A 3812950440 | BRACKET |
| LINES FROM MASTER CYLINDER TO RESERVOIR | ||
| N 000125006421 | WASHER | |
| BRACKET TO CAB | ||
| N 007981005306 | SHEET METAL SCREW | |
| BRACKET TO CAB | ||
| 408 | A 3609950301 | CLAMP |
| LINE TO BRACKET | ||
| N 000000001147 | SCREW | |
| LINE TO BRACKET | ||
| M 6X20 | ||
| N 913004006002 | NUT | |
| Repalced by: N 913004006001 | ||
| N 913004006001 | NUT | |
| LINE TO BRACKET | ||
| A 3872950240 | BRACKET | |
| LINE TO FRONT CROSS MEMBER | ||
| 414 | A 3872950140 | BRACKET |
| WIPER MOTOR BRACKET | ||
| N 000000001147 | SCREW | |
| BRACKET TO CAB | ||
| M 6X20 | ||
| N 913004006002 | NUT | |
| Repalced by: N 913004006001 | ||
| N 913004006001 | NUT | |
| BRACKET TO CAB | ||
| 420 | A 3879950007 | CLAMP |
| LINE TO BRACKET | ||
| N 000000001147 | SCREW | |
| LINE TO BRACKET | ||
| M 6X20 | ||
| N 913004006002 | NUT | |
| Repalced by: N 913004006001 | ||
| N 913004006001 | NUT | |
| LINE TO BRACKET | ||
| 426 | A 3812908613 | LINE |
| Repalced by: A 3812902113 | ||
| 426 | A 3812902113 | LINE |
| Repalced by: A 3812901614 | ||
| 426 | A 3812901614 | LINE |
| FROM CLUTCH MASTER CYLINDER TO HYDRAULIC HOSE | ||
| 550 MM | ||
| 426 | A 3812901614 | LINE |
| FROM BRAKE MASTER CYLINDER TO HYDRAULIC HOSE | ||
| 550 MM | ||
| 430 | A 3812900414 | LINE |
| Repalced by: A 3812901714 | ||
| 430 | A 3812901714 | LINE |
| Repalced by: A 3812903214 | ||
| 430 | A 3812903214 | LINE |
| 570 MM | ||
| 430 | A 3812900813 | LINE |
| Repalced by: A 3812901914 | ||
| 430 | A 3812901914 | LINE |
| FROM BRAKE MASTER CYLINDER TO HYDRAULIC HOSE | ||
| 800 MM | ||
| 434 | A 3812901913 | LINE |
| Repalced by: A 3812900913 | ||
| 434 | A 3812902013 | LINE |
| Repalced by: A 3812900913 | ||
| 434 | A 3812900913 | LINE |
| Repalced by: A 3812901814 | ||
| 434 | A 3812901814 | LINE |
| FROM CLUTCH MASTER CYLINDER TO HYDRAULIC HOSE | ||
| 700 MM | ||
| 434 | A 3812901814 | LINE |
| FROM BRAKE MASTER CYLINDER TO HYDRAULIC HOSE | ||
| 700 MM | ||
| 434 | A 3812901814 | LINE |
| FROM CLUTCH MASTER CYLINDER TO CLUTCH HOSE | ||
| 700 MM | ||
| A 3819970881 | GROMMET | |
| MASTER CYLINDER LINE THRU CAB FLOOR | ||
| A 3819970881 | GROMMET | |
| MASTER CYLINDER LINE THRU CAB FLOOR | ||
| A 3819970881 | GROMMET | |
| MASTER CYLINDER LINE THRU CAB FLOOR | ||
| A 3819971781 | GROMMET | |
| Repalced by: A 3149970581 | ||
| A 3149970581 | GROMMET | |
| 438 | A 0002951435 | HOSE |
| CLUTCH LINE,CAB FULCRUM POINT | ||
| 555 MM | ||
| 438 | A 0002951435 | HOSE |
| BRAKE LINE,CAB FULCRUM POINT | ||
| 555 MM | ||
| 442 | A 0004280473 | BRACKET |
| Repalced by: A 6525040038 | ||
| 442 | A 6525040038 | MOUNTING PLATE |
| BRAKE HOSE | ||
| 452 | A 3872940040 | BRACKET |
| BRAKE HOSE | ||
| A 3852951940 | BRACKET | |
| Repalced by: A 3852952140 | ||
| A 3852952140 | BRACKET | |
| BRAKE HOSE | ||
| A 3852952140 | BRACKET | |
| BRAKE HOSE | ||
| N 000933006102 | SCREW | |
| BRACKET TO CAB | ||
| N 000933006102 | SCREW | |
| BRACKET TO CAB | ||
| N 912004006102 | LOCK WASHER | |
| BRACKET TO CAB | ||
| N 912004006102 | LOCK WASHER | |
| BRACKET TO CAB | ||
| 457 | N 007981005306 | SHEET METAL SCREW |
| BRACKET TO CAB | ||
| 461 | A 3872940140 | BRACKET |
| CLUTCH AND BRAKE HOSES TO POWERSTEERING OIL-TANK BRACKET | ||
| 465 | A 3872940240 | BRACKET |
| BRAKE HOSE TO POWER-STEERING OIL-TANK BRACKET | ||
| N 000000001147 | SCREW | |
| BRAKE HOSE TO POWER-STEERING OIL-TANK BRACKET | ||
| M 6X20 | ||
| N 913004006002 | NUT | |
| Repalced by: N 913004006001 | ||
| N 913004006001 | NUT | |
| BRAKE HOSE TO POWER-STEERING OIL-TANK BRACKET | ||
| A 3872950540 | BRACKET | |
| AT CAB FLOOR | ||
| N 000000001147 | SCREW | |
| BRACKET TO CAB FLOOR | ||
| M 6X20 | ||
| N 000125006421 | WASHER | |
| BRACKET TO CAB FLOOR | ||
| N 913004006002 | NUT | |
| Repalced by: N 913004006001 | ||
| N 913004006001 | NUT | |
| BRACKET TO CAB FLOOR | ||
| A 3872950740 | BRACKET | |
| LINE TO ENGINE FRONT CROSS MEMBER | ||
| 471 | A 3812902613 | LINE |
| Repalced by: A 3812902713 | ||
| 471 | A 3812902713 | LINE |
| Repalced by: A 3812902014 | ||
| 471 | A 3812902014 | LINE |
| FROM HYDRAULIC HOSE TO CLUTCH CONNECTOR | ||
| 1100 MM | ||
| 471 | A 3812902014 | LINE |
| FROM HYDRAULIC HOSE TO BRAKE CONNECTOR | ||
| 1100 MM | ||
| A 3812902813 | LINE | |
| Repalced by: A 3812902513 | ||
| A 3812902913 | LINE | |
| Repalced by: A 3812902513 | ||
| A 3812902513 | LINE | |
| Repalced by: A 3812902214 | ||
| A 3812902214 | LINE | |
| FROM CLUTCH HOSE TO CONNECTOR | ||
| 2000 MM | ||
| A 3812902214 | LINE | |
| FROM BRAKE HOSE TO CONNECTOR | ||
| 2000 MM | ||
| A 3812902314 | LINE | |
| FROM HYDRAULIC HOSE TO CLUTCH CONNECTOR | ||
| 2500 MM | ||
| A 0002950736 | INTERMEDIATE PIECE | |
| BRAKE AND CLUTCH LINES | ||
| A 0002951835 | HOSE | |
| CLUTCH;FROM BRACKET AT FRAME TO BRACKET AT ENGINE | ||
| 350 MM | ||
| 479 | A 0004280473 | BRACKET |
| Repalced by: A 6525040038 | ||
| 479 | A 6525040038 | MOUNTING PLATE |
| CLUTCH HOSE | ||
| 483 | A 3872940440 | BRACKET |
| FRAME-TO-ENGINE CLUTCH-HOSE TO FRAME | ||
| 487 | A 3872940540 | BRACKET |
| HOSE TO TRANSMISSION | ||
| A 3872941040 | BRACKET | |
| HOSE TO TRANSMISSION | ||
| A 3852951440 | BRACKET | |
| HOSE TO TRANSMISSION | ||
| A 3852952340 | BRACKET | |
| HOSE TO TRANSMISSION | ||
| N 912004012100 | LOCK WASHER | |
| HOSE TO TRANSMISSION | ||
| N 000961012034 | SCREW | |
| HOSE TO TRANSMISSION | ||
| A 3049911240 | SPACER TUBE | |
| HOSE TO TRANSMISSION | ||
| N 000931010239 | SCREW | |
| HOSE TO TRANSMISSION | ||
| A 3464295940 | BRACKET | |
| Repalced by: A 3464296040 | ||
| A 3464296040 | BRACKET | |
| LINE TO FRONT CROSS MEMBER | ||
| N 000933008147 | SCREW | |
| Repalced by: N 304017008021 | ||
| N 304017008021 | SCREW | |
| BRACKET TO CROSS MEMBER | ||
| N 913004008004 | NUT | |
| Repalced by: N 913004008001 | ||
| N 913004008001 | NUT | |
| BRACKET TO CROSS MEMBER | ||
| N 000125008418 | WASHER | |
| Repalced by: N 000125008443 | ||
| N 000125008443 | WASHER | |
| BRACKET TO CROSS MEMBER | ||
| A 3609950201 | CLAMP | |
| Repalced by: A 3604300143 | ||
| A 3604300143 | CLAMP | |
| Repalced by: N 916016008200 | ||
| N 916016008200 | CLAMP | |
| LINE TO BRACKET | ||
| N 000000001147 | SCREW | |
| LINE TO BRACKET | ||
| M 6X20 | ||
| N 913004006002 | NUT | |
| Repalced by: N 913004006001 | ||
| N 913004006001 | NUT | |
| LINE TO BRACKET | ||
| 498 | A 3812902113 | LINE |
| Repalced by: A 3812901614 | ||
| 498 | A 3812901614 | LINE |
| FROM HYDRAULIC HOSE TO CLUTCH SLAVE CYLINDER | ||
| 550 MM | ||
| 502 | A 3812901013 | LINE |
| 507 | A 6202901113 | LINE |
| A 3812907613 | LINE | |
| Repalced by: A 3812903213 | ||
| A 3812903213 | LINE | |
| Repalced by: A 3812902414 | ||
| A 3812902414 | LINE | |
| FROM CONNECTOR TO BRAKE VALVE | ||
| 3000 MM | ||
| A 3812904513 | LINE | |
| Repalced by: A 3812909813 | ||
| A 3812909813 | LINE | |
| Repalced by: A 3812902414 | ||
| A 3812902414 | LINE | |
| FROM CONNECTOR TO BRAKE VALVE | ||
| 3000 MM | ||
| A 3812902414 | LINE | |
| FROM CONNECTOR TO BRAKE VALVE | ||
| 3000 MM | ||
| A 3812902414 | LINE | |
| FROM CONNECTOR TO BRAKE VALVE | ||
| 3000 MM | ||
| A 3812902414 | LINE | |
| FROM CONNECTOR TO BRAKE VALVE | ||
| 3000 MM | ||
| A 3812902514 | LINE | |
| FROM CONNECTOR TO BRAKE VALVE | ||
| 3500 MM | ||
| A 3812902514 | LINE | |
| FROM CONNECTOR TO BRAKE VALVE | ||
| 3500 MM | ||
| A 3852952540 | BRACKET | |
| HYDRAULIC LINES TO FRAME | ||
| N 000933008152 | SCREW | |
| Repalced by: N 304017008027 | ||
| N 304017008027 | SCREW | |
| BRACKET TO FRAME | ||
| N 913004008004 | NUT | |
| Repalced by: N 913004008001 | ||
| N 913004008001 | NUT | |
| BRACKET TO FRAME | ||
| A 3609950201 | CLAMP | |
| Repalced by: A 3604300143 | ||
| A 3604300143 | CLAMP | |
| Repalced by: N 916016008200 | ||
| N 916016008200 | CLAMP | |
| HYDRAULIC LINE TO BRACKET | ||
| N 007985006157 | SCREW | |
| Repalced by: N 000000001145 | ||
| N 000000001145 | SCREW | |
| HYDRAULIC LINE TO BRACKET | ||
| N 913004006002 | NUT | |
| Repalced by: N 913004006001 | ||
| N 913004006001 | NUT | |
| HYDRAULIC LINE TO BRACKET | ||
| 513 | A 3373535040 | BRACKET |
| Repalced by: A 3872950440 | ||
| 513 | A 3872950440 | BRACKET |
| Repalced by: A 3124761535 | ||
| 513 | A 3124761535 | BRACKET |
| LINE TO BUMPER STRUT | ||
| N 000933010128 | SCREW | |
| BRACKET TO BUMPER | ||
| N 913004010008 | NUT | |
| Repalced by: N 910113010000 | ||
| N 910113010000 | NUT | |
| BRACKET TO BUMPER | ||
| 520 | A 3609950201 | CLAMP |
| Repalced by: A 3604300143 | ||
| 520 | A 3604300143 | CLAMP |
| Repalced by: N 916016008200 | ||
| 520 | N 916016008200 | CLAMP |
| LINE TO BUMPER STRUT | ||
| N 000000001147 | SCREW | |
| LINE TO BRACKET | ||
| M 6X20 | ||
| N 913004006002 | NUT | |
| Repalced by: N 913004006001 | ||
| N 913004006001 | NUT | |
| LINE TO BRACKET | ||
| A 3872950540 | BRACKET | |
| BRACKET TO CAB FLOOR | ||
| N 000125006421 | WASHER | |
| BRACKET TO CAB FLOOR | ||
| N 000000001147 | SCREW | |
| BRACKET TO CAB FLOOR | ||
| M 6X20 | ||
| N 913004006002 | NUT | |
| Repalced by: N 913004006001 | ||
| N 913004006001 | NUT | |
| BRACKET TO CAB FLOOR | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
