Transporto priemonė: 1719; VIN numerio dalis: 387006
Grupė: 41 PROPELLER SHAFT
| # | Kodas | Pavadinimas |
|---|---|---|

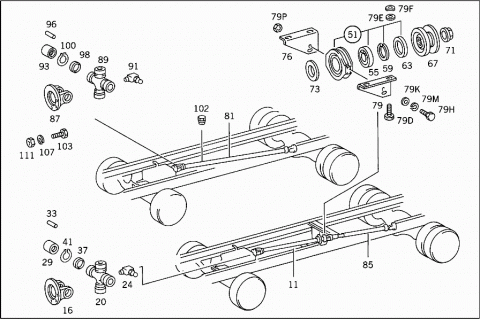

| 011 | A 3854100704 | PROPELLER SHAFT |
| FROM TRANSMISSION TO PROPELLER SHAFT BEARING | ||
| 1855 MM | ||
| 011 | A 3854107704 | PROPELLER SHAFT |
| FROM TRANSMISSION TO PROPELLER SHAFT BEARING | ||
| 1816 MM | ||
| 011 | A 3894100204 | PROPELLER SHAFT |
| Repalced by: A 3854106604 | ||
| 011 | A 3854106604 | PROPELLER SHAFT |
| FROM TRANSMISSION TO PROPELLER SHAFT BEARING | ||
| 983 MM | ||
| 011 | A 3854100304 | PROPELLER SHAFT |
| FROM TRANSMISSION TO PROPELLER SHAFT BEARING | ||
| 1106 MM | ||
| 011 | A 3854107004 | PROPELLER SHAFT |
| FROM TRANSMISSION TO PROPELLER SHAFT BEARING | ||
| 1092 MM | ||
| 016 | A 3604110611 | DRIVE FLANGE |
| Repalced by: A 3854111711 | ||
| 016 | A 3854111711 | DRIVE FLANGE |
| 020 | A 3604100231 | UNIVERSAL JOINT CROSS |
| Repalced by: A 3854100531 | ||
| 020 | A 3854100531 | UNIVERSAL JOINT CROSS |
| Repalced by: A 3814100231 | ||
| 020 | A 3814100231 | UNIVERSAL JOINT CROSS |
| Repalced by: A 9734100031 | ||
| 020 | A 9734100031 | UNIVERSAL JOINT CROSS |
| WITH BUSHINGS | ||
| 024 | N 071412008302 | GREASE NIPPLE |
| 029 | A 3854100242 | BEARING BUSHING |
| Repalced by: A 3854100842 | ||
| 029 | A 3854100842 | BEARING BUSHING |
| A 3604100142 | BEARING BUSHING | |
| A 0009817187 | NEEDLE | |
| Repalced by: A 3819810487 | ||
| 033 | A 3819810487 | NEEDLE |
| SET = 144 PIECES | ||
| 037 | A 0089970946 | SEAL RING |
| A 3604110233 | EXPANSION PLUG | |
| 041 | A 0029941241 | LOCK |
| Repalced by: A 0069940641 | ||
| 041 | A 0069940641 | LOCK |
| AS REQUIRED | ||
| 1.65 MM | ||
| 041 | A 0029941341 | LOCK |
| Repalced by: A 0069940841 | ||
| 041 | A 0069940841 | LOCK |
| AS REQUIRED | ||
| 1.70 MM | ||
| 041 | A 0029941441 | LOCK |
| Repalced by: N 000472048000 | ||
| 041 | N 000472048000 | LOCK RING |
| AS REQUIRED | ||
| 1.75 MM | ||
| 041 | A 0029941741 | LOCK |
| Repalced by: A 0069941241 | ||
| 041 | A 0069941241 | LOCK |
| AS REQUIRED | ||
| 1.80 MM | ||
| 041 | A 0029941841 | LOCK |
| Repalced by: A 0069941441 | ||
| 041 | A 0069941441 | LOCK |
| AS REQUIRED | ||
| 1.85 MM | ||
| 041 | A 0039943641 | LOCK |
| AS REQUIRED | ||
| 1.90 MM | ||
| A 3854130161 | PROTECTIVE CAP | |
| A 3854130461 | PROTECTIVE CAP | |
| 051 | A 3855860141 | REPAIR KIT |
| Repalced by: A 3854100110 | ||
| 051 | A 3854100110 | REPAIR KIT |
| Repalced by: A 3854100122 | ||
| 051 | A 3854100122 | INTERMEDIATE BEARING |
| Repalced by: A 3854100922 | ||
| 051 | A 3854100922 | INTERMEDIATE BEARING |
| Repalced by: A 3854101722 | ||
| 051 | A 3854101722 | INTERMEDIATE BEARING |
| Repalced by: A 9734100022 | ||
| 051 | A 9734100022 | INTERMEDIATE BEARING |
| PROPELLER SHAFT | ||
| 055 | A 0019818125 | BALL BEARING |
| 059 | N 912009100200 | SNAP RING |
| 063 | A 3854130061 | PROTECTIVE CAP |
| INSIDE | ||
| A 9734110052 | SPACER WASHER | |
| PROPELLER SHAFT BEARING | ||
| 067 | A 3604100130 | CENTERING FLANGE |
| PROPELLER SHAFT BEARING | ||
| 067 | A 3854100030 | CENTERING FLANGE |
| Repalced by: A 3854110045 | ||
| A 3854110045 | FLANGE | |
| PROPELLER SHAFT BEARING | ||
| A 3854130161 | PROTECTIVE CAP | |
| A 3854130461 | PROTECTIVE CAP | |
| 071 | A 3853510172 | NUT |
| 073 | A 3894110162 | THRUST WASHER |
| PROPELLER SHAFT TO FOLLOWER FLANGE | ||
| A 3839900019 | SCREW | |
| PROPELLER SHAFT TO FOLLOWER FLANGE | ||
| A 3894131042 | BRACKET | |
| LEFT | ||
| A 3894131042 | BRACKET | |
| LEFT | ||
| A 3894131142 | BRACKET | |
| RIGHT | ||
| A 3894131142 | BRACKET | |
| RIGHT | ||
| 076 | A 3874132242 | BRACKET |
| LEFT | ||
| 076 | A 3874135042 | BRACKET |
| LEFT | ||
| 076 | A 3874135542 | BRACKET |
| LEFT | ||
| 079 | A 3874132342 | BRACKET |
| RIGHT | ||
| 079 | A 3874135142 | BRACKET |
| RIGHT | ||
| 079 | A 3874135642 | BRACKET |
| RIGHT | ||
| 079D | N 000931010282 | SCREW |
| BRACKET TO HOUSING | ||
| M 10X40 | ||
| 079D | N 000933010105 | SCREW |
| BRACKET TO HOUSING | ||
| M 10X25 | ||
| 079E | N 007349010003 | WASHER |
| Repalced by: N 007349010007 | ||
| 079E | N 007349010007 | WASHER |
| BRACKET TO HOUSING | ||
| 079F | N 912004010102 | LOCK WASHER |
| BRACKET TO HOUSING | ||
| 079H | N 000961012094 | SCREW |
| Repalced by: N 308676012013 | ||
| 079H | N 308676012013 | SCREW |
| PROPELLER SHAFT BEARING TO CROSS MEMBER | ||
| 079K | A 3299900040 | WASHER |
| Repalced by: A 1232420366 | ||
| 079K | A 1232420366 | WASHER |
| PROPELLER SHAFT BEARING TO CROSS MEMBER | ||
| 079M | N 912004012100 | LOCK WASHER |
| PROPELLER SHAFT BEARING TO CROSS MEMBER | ||
| 079P | N 000934012034 | NUT |
| PROPELLER SHAFT BEARING TO CROSS MEMBER | ||
| 081 | A 3854100802 | PROPELLER SHAFT |
| Repalced by: A 3854101907 | ||
| 081 | A 3854101907 | PROPELLER SHAFT |
| Repalced by: A 3854103107 | ||
| 081 | A 3854103107 | PROPELLER SHAFT |
| FROM TRANSMISSION TO REAR AXLE | ||
| 1825 MM | ||
| 085 | A 3854104707 | PROPELLER SHAFT |
| FROM PROPELLER SHAFT BEARING TO REAR AXLE | ||
| 1300 MM | ||
| 085 | A 3854104407 | PROPELLER SHAFT |
| FROM PROPELLER SHAFT BEARING TO REAR AXLE | ||
| 1130 MM | ||
| 085 | A 3074101302 | PROPELLER SHAFT |
| Repalced by: A 3854104707 | ||
| 085 | A 3854104707 | PROPELLER SHAFT |
| FROM PROPELLER SHAFT BEARING TO REAR AXLE | ||
| 1300 MM | ||
| 087 | A 3604110611 | DRIVE FLANGE |
| Repalced by: A 3854111711 | ||
| 087 | A 3854111711 | DRIVE FLANGE |
| 089 | A 3604100231 | UNIVERSAL JOINT CROSS |
| Repalced by: A 3854100531 | ||
| 089 | A 3854100531 | UNIVERSAL JOINT CROSS |
| Repalced by: A 3814100231 | ||
| 089 | A 3814100231 | UNIVERSAL JOINT CROSS |
| Repalced by: A 9734100031 | ||
| 089 | A 9734100031 | UNIVERSAL JOINT CROSS |
| WITH BUSHINGS | ||
| 091 | N 071412008302 | GREASE NIPPLE |
| 093 | A 3854100842 | BEARING BUSHING |
| 093 | A 3604100142 | BEARING BUSHING |
| 096 | A 0009817187 | NEEDLE |
| Repalced by: A 3819810487 | ||
| 096 | A 3819810487 | NEEDLE |
| SET = 144 PIECES | ||
| 098 | A 0089970946 | SEAL RING |
| 100 | A 0029941241 | LOCK |
| Repalced by: A 0069940641 | ||
| 100 | A 0069940641 | LOCK |
| AS REQUIRED | ||
| 1,65 MM | ||
| 100 | A 0029941341 | LOCK |
| Repalced by: A 0069940841 | ||
| 100 | A 0069940841 | LOCK |
| AS REQUIRED | ||
| 1.70 MM | ||
| 100 | A 0029941441 | LOCK |
| Repalced by: N 000472048000 | ||
| 100 | N 000472048000 | LOCK RING |
| AS REQUIRED | ||
| 1.75 MM | ||
| 100 | A 0029941741 | LOCK |
| Repalced by: A 0069941241 | ||
| 100 | A 0069941241 | LOCK |
| AS REQUIRED | ||
| 1.80 MM | ||
| 100 | A 0029941841 | LOCK |
| Repalced by: A 0069941441 | ||
| 100 | A 0069941441 | LOCK |
| AS REQUIRED | ||
| 1.85 MM | ||
| 100 | A 0039943641 | LOCK |
| AS REQUIRED | ||
| 1.90 MM | ||
| 102 | N 900087008000 | PLUG |
| N 071412008101 | GREASE NIPPLE | |
| Repalced by: N 071412008102 | ||
| N 071412008102 | GREASE NIPPLE | |
| 103 | A 3609901901 | SCREW |
| Repalced by: A 3609903001 | ||
| 103 | A 3609903001 | SCREW |
| TO MOUNT THE PROPELLER SHAFTS | ||
| 107 | N 912004012100 | LOCK WASHER |
| TO MOUNT THE PROPELLER SHAFTS | ||
| 111 | N 000934012034 | NUT |
| TO MOUNT THE PROPELLER SHAFTS | ||

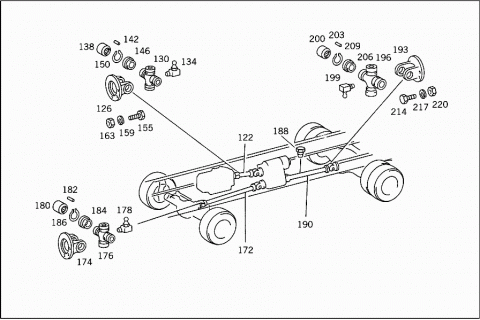

| 122 | A 3074101502 | PROPELLER SHAFT |
| Repalced by: A 3074101402 | ||
| 122 | A 3074101402 | PROPELLER SHAFT |
| Repalced by: A 3854105302 | ||
| 122 | A 3854105302 | PROPELLER SHAFT |
| Repalced by: A 3004100407 | ||
| 122 | A 3004100407 | PROPELLER SHAFT |
| FROM TRANSMISSION TO TRANSFER CASE | ||
| 710 MM | ||
| 126 | A 3604110611 | DRIVE FLANGE |
| Repalced by: A 3854111711 | ||
| 126 | A 3854111711 | DRIVE FLANGE |
| 130 | A 3604100231 | UNIVERSAL JOINT CROSS |
| Repalced by: A 3854100531 | ||
| 130 | A 3854100531 | UNIVERSAL JOINT CROSS |
| Repalced by: A 3814100231 | ||
| 130 | A 3814100231 | UNIVERSAL JOINT CROSS |
| Repalced by: A 9734100031 | ||
| 130 | A 9734100031 | UNIVERSAL JOINT CROSS |
| WITH BUSHINGS | ||
| 134 | N 071412008302 | GREASE NIPPLE |
| 138 | A 3604110233 | EXPANSION PLUG |
| 138 | A 3854100242 | BEARING BUSHING |
| Repalced by: A 3854100842 | ||
| 138 | A 3854100842 | BEARING BUSHING |
| TO 385 410 05 01 | ||
| 138 | A 3604100142 | BEARING BUSHING |
| A 0009817187 | NEEDLE | |
| Repalced by: A 3819810487 | ||
| 142 | A 3819810487 | NEEDLE |
| SET = 144 PIECES | ||
| 146 | A 0089970946 | SEAL RING |
| 150 | A 0029941241 | LOCK |
| Repalced by: A 0069940641 | ||
| 150 | A 0069940641 | LOCK |
| AS REQUIRED | ||
| 1.65 MM | ||
| 150 | A 0029941341 | LOCK |
| Repalced by: A 0069940841 | ||
| 150 | A 0069940841 | LOCK |
| AS REQUIRED | ||
| 1.70 MM | ||
| 150 | A 0029941441 | LOCK |
| Repalced by: N 000472048000 | ||
| 150 | N 000472048000 | LOCK RING |
| AS REQUIRED | ||
| 1.75 MM | ||
| 150 | A 0029941741 | LOCK |
| Repalced by: A 0069941241 | ||
| 150 | A 0069941241 | LOCK |
| AS REQUIRED | ||
| 1.80 MM | ||
| 150 | A 0029941841 | LOCK |
| Repalced by: A 0069941441 | ||
| 150 | A 0069941441 | LOCK |
| AS REQUIRED | ||
| 1.85 MM | ||
| 150 | A 0039943641 | LOCK |
| AS REQUIRED | ||
| 1.90 MM | ||
| N 071412008101 | GREASE NIPPLE | |
| Repalced by: N 071412008102 | ||
| N 071412008102 | GREASE NIPPLE | |
| 155 | A 3609901901 | SCREW |
| Repalced by: A 3609903001 | ||
| 155 | A 3609903001 | SCREW |
| PROPELLER SHAFT TO CLUTCH AND TO TRANSMISSION | ||
| 159 | N 912004012100 | LOCK WASHER |
| PROPELLER SHAFT TO CLUTCH AND TO TRANSMISSION | ||
| 163 | N 000934012034 | NUT |
| PROPELLER SHAFT TO CLUTCH AND TO TRANSMISSION | ||
| 172 | A 3854101302 | PROPELLER SHAFT |
| Repalced by: A 3854105107 | ||
| 172 | A 3854105107 | PROPELLER SHAFT |
| FROM TRANSFER CASE TO FRONT AXLE | ||
| 1355 MM | ||
| 174 | A 3604110611 | DRIVE FLANGE |
| Repalced by: A 3854111711 | ||
| 174 | A 3854111711 | DRIVE FLANGE |
| 176 | A 3604100231 | UNIVERSAL JOINT CROSS |
| Repalced by: A 3854100531 | ||
| 176 | A 3854100531 | UNIVERSAL JOINT CROSS |
| Repalced by: A 3814100231 | ||
| 176 | A 3814100231 | UNIVERSAL JOINT CROSS |
| Repalced by: A 9734100031 | ||
| 176 | A 9734100031 | UNIVERSAL JOINT CROSS |
| WITH BUSHINGS | ||
| 178 | N 071412008302 | GREASE NIPPLE |
| A 3604110233 | EXPANSION PLUG | |
| A 3854100242 | BEARING BUSHING | |
| Repalced by: A 3854100842 | ||
| 180 | A 3854100842 | BEARING BUSHING |
| A 3604100142 | BEARING BUSHING | |
| A 0009817187 | NEEDLE | |
| Repalced by: A 3819810487 | ||
| 182 | A 3819810487 | NEEDLE |
| SET = 144 PIECES | ||
| 184 | A 0089970946 | SEAL RING |
| 186 | A 0029941241 | LOCK |
| Repalced by: A 0069940641 | ||
| 186 | A 0069940641 | LOCK |
| AS REQUIRED | ||
| 1.65 MM | ||
| 186 | A 0029941341 | LOCK |
| Repalced by: A 0069940841 | ||
| 186 | A 0069940841 | LOCK |
| AS REQUIRED | ||
| 1.70 MM | ||
| 186 | A 0029941441 | LOCK |
| Repalced by: N 000472048000 | ||
| 186 | N 000472048000 | LOCK RING |
| AS REQUIRED | ||
| 1.75 MM | ||
| 186 | A 0029941741 | LOCK |
| Repalced by: A 0069941241 | ||
| 186 | A 0069941241 | LOCK |
| AS REQUIRED | ||
| 1.80 MM | ||
| 186 | A 0029941841 | LOCK |
| Repalced by: A 0069941441 | ||
| 186 | A 0069941441 | LOCK |
| AS REQUIRED | ||
| 1.85 MM | ||
| 186 | A 0039943641 | LOCK |
| AS REQUIRED | ||
| 1.90 MM | ||
| 188 | N 900087008000 | PLUG |
| N 071412008101 | GREASE NIPPLE | |
| Repalced by: N 071412008102 | ||
| N 071412008102 | GREASE NIPPLE | |
| A 3074101302 | PROPELLER SHAFT | |
| Repalced by: A 3854105107 | ||
| A 3854105107 | PROPELLER SHAFT | |
| FROM TRANSFER CASE TO REAR AXLE | ||
| 1355 MM | ||
| 190 | A 3074101202 | PROPELLER SHAFT |
| Repalced by: A 3854105307 | ||
| 190 | A 3854105307 | PROPELLER SHAFT |
| FROM TRANSFER CASE TO REAR AXLE | ||
| 1250 MM | ||
| 190 | A 3854101302 | PROPELLER SHAFT |
| FROM TRANSFER CASE TO REAR AXLE | ||
| 1390 MM | ||
| 190 | A 3854104707 | PROPELLER SHAFT |
| FROM TRANSFER CASE TO REAR AXLE | ||
| 1300 MM | ||
| 193 | A 3604110611 | DRIVE FLANGE |
| Repalced by: A 3854111711 | ||
| 193 | A 3854111711 | DRIVE FLANGE |
| 196 | A 3604100231 | UNIVERSAL JOINT CROSS |
| Repalced by: A 3854100531 | ||
| 196 | A 3854100531 | UNIVERSAL JOINT CROSS |
| Repalced by: A 3814100231 | ||
| 196 | A 3814100231 | UNIVERSAL JOINT CROSS |
| Repalced by: A 9734100031 | ||
| 196 | A 9734100031 | UNIVERSAL JOINT CROSS |
| WITH BUSHINGS | ||
| 199 | N 071412008302 | GREASE NIPPLE |
| A 3604110233 | EXPANSION PLUG | |
| A 3854100242 | BEARING BUSHING | |
| Repalced by: A 3854100842 | ||
| 200 | A 3854100842 | BEARING BUSHING |
| A 3604100142 | BEARING BUSHING | |
| A 0009817187 | NEEDLE | |
| Repalced by: A 3819810487 | ||
| 203 | A 3819810487 | NEEDLE |
| SET = 144 PIECES | ||
| 206 | A 0089970946 | SEAL RING |
| 209 | A 0029941241 | LOCK |
| Repalced by: A 0069940641 | ||
| 209 | A 0069940641 | LOCK |
| AS REQUIRED | ||
| 1.65 MM | ||
| 209 | A 0029941341 | LOCK |
| Repalced by: A 0069940841 | ||
| 209 | A 0069940841 | LOCK |
| AS REQUIRED | ||
| 1.70 MM | ||
| 209 | A 0029941441 | LOCK |
| Repalced by: N 000472048000 | ||
| 209 | N 000472048000 | LOCK RING |
| AS REQUIRED | ||
| 1.75 MM | ||
| 209 | A 0029941741 | LOCK |
| Repalced by: A 0069941241 | ||
| 209 | A 0069941241 | LOCK |
| AS REQUIRED | ||
| 1.80 MM | ||
| 209 | A 0029941841 | LOCK |
| Repalced by: A 0069941441 | ||
| 209 | A 0069941441 | LOCK |
| AS REQUIRED | ||
| 1.85 MM | ||
| 209 | A 0039943641 | LOCK |
| AS REQUIRED | ||
| 1.90 MM | ||
| N 071412008101 | GREASE NIPPLE | |
| Repalced by: N 071412008102 | ||
| N 071412008102 | GREASE NIPPLE | |
| 214 | A 3609901901 | SCREW |
| Repalced by: A 3609903001 | ||
| 214 | A 3609903001 | SCREW |
| PROPELLER SHAFT TO TRANSMISSION AND TO FRONT AND REAR AXLES | ||
| 217 | N 912004012100 | LOCK WASHER |
| PROPELLER SHAFT TO TRANSMISSION AND TO FRONT AND REAR AXLES | ||
| 220 | N 000934012034 | NUT |
| PROPELLER SHAFT TO TRANSMISSION AND TO FRONT AND REAR AXLES | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
