Transporto priemonė: 1719; VIN numerio dalis: 387006

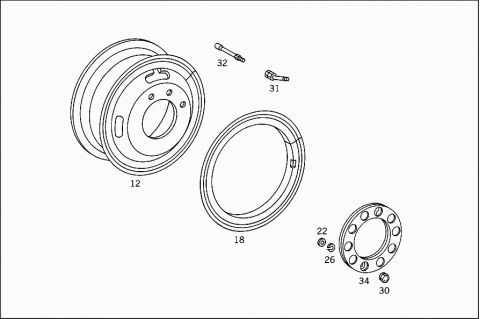

Grupė: 40 WHEELS
| # | Kodas | Pavadinimas |
|---|---|---|
| A 3354000802 | DISC WHEEL | |
| Repalced by: A 0014017501 | ||
| 012 | A 0014017501 | DISC WHEEL |
| 8.0-20 | ||
| A 3354000202 | DISC WHEEL | |
| Repalced by: A 0014016001 | ||
| 012 | A 0014016001 | DISC WHEEL |
| 8.0-20 | ||
| 012 | A 0024013601 | DISC WHEEL |
| 8.0-20 | ||
| A 3354001402 | DISC WHEEL | |
| Repalced by: A 0014016001 | ||
| A 6174000102 | DISC WHEEL | |
| Repalced by: A 3874000102 | ||
| A 3874000102 | DISC WHEEL | |
| Repalced by: A 0004017605 | ||
| A 0004017605 | RIM | |
| Repalced by: A 0004017905 | ||
| 012 | A 0004017905 | RIM |
| Repalced by: A 0004016702 | ||
| 012 | A 0004016702 | DISC WHEEL |
| 8.25-22.5 | ||
| 012 | A 0004018905 | RIM |
| Repalced by: A 0004016502 | ||
| 012 | A 0004016502 | DISC WHEEL |
| 8.25-22.5 | ||
| 012 | A 0004016602 | DISC WHEEL |
| 8.25-22.5 | ||
| 018 | A 0004015606 | SIDE RING |
| 022 | A 3174020175 | SPHERICAL RING |
| DISC WHEEL TO REAR AXLE | ||
| 026 | N 074361022351 | LOCK WASHER |
| DISC WHEELS TO FRONT AND REAR AXLES | ||
| 030 | N 074361022204 | NUT |
| DISC WHEELS TO FRONT AND REAR AXLES | ||
| 031 | A 0004012913 | VALVE |
| Repalced by: A 0004017113 | ||
| 031 | A 0004017113 | VALVE |
| Repalced by: A 0004013213 | ||
| 031 | A 0004013213 | VALVE |
| 27 DEGREES | ||
| A 0004010272 | NUT | |
| VALVE TO DISC WHEEL | ||
| 032 | A 3854010013 | VALVE |
| EXTENSION | ||
| 032 | A 3854010113 | VALVE |
| EXTENSION | ||
| N 007757008600 | VALVE CAP | |
| A 3854000124 | WHEEL NUT | |
| Repalced by: A 0004010672 | ||
| A 6174000024 | WHEEL NUT | |
| Repalced by: A 0004010672 | ||
| A 0004010672 | NUT | |
| DISC WHEELS TO FRONT AND REAR AXLES | ||
| 034 | A 3604000325 | HUB CAP |
| FRONT DISC WHEEL | ||
| 034 | A 3894000025 | HUB CAP |
| Repalced by: A 3894000325 | ||
| 034 | A 3894000325 | HUB CAP |
| FRONT DISC WHEEL | ||
| 045 | A 3354000239 | SPARE WHEEL HOIST |
| 049 | A 3354000116 | WIRE CABLE |
| 053 | N 000741005001 | FERRULE |
| A 3524002439 | BRACKET | |
| Repalced by: A 3524003439 | ||
| A 3524003439 | SPARE WHEEL HOIST | |
| Repalced by: A 3524003339 | ||
| A 3524003339 | SPARE WHEEL HOIST | |
| A 0004030090 | CHAIN | |
| A 0004030036 | CABLE | |
| A 0004030012 | COVERING | |
| A 3525850023 | SLEEVE | |
| Repalced by: A 3525850003 | ||
| A 3525850003 | PROTECTIVE WRAPPER | |
| (BAG) | ||
| A 3464005339 | BRACKET | |
| Repalced by: A 6554000049 | ||
| A 6554000049 | PLATE | |
| SPARE WHEEL | ||
| 057 | A 3354030080 | RUBBER SEAL |
| 061 | A 3354000115 | MOUNTING |
| 065 | A 3354030050 | BUSHING |
| 069 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 069 | N 304017008021 | SCREW |
| M 8X20 | ||
| 069 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 069 | N 304017008027 | SCREW |
| M 8X30 | ||
| 074 | N 912004008102 | LOCK WASHER |
| 078 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 078 | N 000125008443 | WASHER |
| N 913004008004 | NUT | |
| Repalced by: N 913004008001 | ||
| N 913004008001 | NUT | |
| 083 | A 3354030130 | CRANK |
| 091 | A 3634030104 | CONNECTING RAIL |
| 095 | A 3048180184 | STAFF |
| Repalced by: A 3874030119 | ||
| 095 | A 3874030119 | BASE BLOCK |
| N 000961012151 | SCREW | |
| CONNECTING RAIL AND SHIM TO FRAME | ||
| N 000125013008 | WASHER | |
| N 910113012002 | NUT | |
| CONNECTING RAIL AND SHIM TO FRAME | ||
| 102 | A 3874030001 | SUPPORT |
| A 0009900796 | RIVET | |
| Repalced by: N 910005012020 | ||
| N 910005012080 | RIVET | |
| 12X42 MM | ||
| 107 | A 3874030048 | ANGLE |
| 111 | A 3614030002 | BRACKET |
| 113 | N 000961012052 | SCREW |
| Repalced by: N 308676012012 | ||
| 113 | N 308676012012 | SCREW |
| 115 | N 910113012002 | NUT |
| 123 | A 3634000239 | BRACKET |
| Repalced by: A 3874001639 | ||
| 123 | A 3874001639 | BRACKET |
| 125 | A 3634030019 | BASE BLOCK |
| 127 | A 3634030074 | PIN |
| 131 | N 000444016317 | EYEBOLT |
| 135 | N 007349017002 | WASHER |
| 139 | N 912004016101 | LOCK WASHER |
| 143 | N 000934016019 | NUT |
| 147 | N 000433017004 | WASHER |
| N 000094004023 | COTTER PIN | |
| 152 | A 3354030029 | HOOK BOLT |
| 156 | N 000934010009 | NUT |
| Repalced by: N 304032010002 | ||
| 156 | N 304032010002 | NUT |
| 161 | A 3874000069 | CLAMPING PIECE |
| 165 | N 000125017010 | WASHER |
| Repalced by: N 000125017016 | ||
| 165 | N 000125017016 | WASHER |
| 169 | N 912004016101 | LOCK WASHER |
| 173 | N 000934016019 | NUT |
| 180 | A 3874001039 | BRACKET |
| Repalced by: A 3874001639 | ||
| 180 | A 3874001639 | BRACKET |
| SPARE WHEEL CARRIER | ||
| 181 | A 3874001839 | BRACKET |
| Repalced by: A 3874003939 | ||
| 181 | A 3874003939 | BRACKET |
| SPARE WHEEL CARRIER | ||
| 182 | A 3634030074 | PIN |
| SPARE WHEEL CARRIER | ||
| 183 | A 3874030074 | PIN |
| SPARE WHEEL CARRIER | ||
| 185 | N 000444016323 | EYEBOLT |
| SPARE WHEEL CARRIER TO FRAME | ||
| 185 | N 000444016104 | EYEBOLT |
| SPARE WHEEL CARRIER TO FRAME | ||
| 185 | A 3859900023 | SCREW |
| Repalced by: A 6519900023 | ||
| 185 | A 6519900023 | SCREW |
| SPARE WHEEL CARRIER TO FRAME | ||
| 186 | N 007349017002 | WASHER |
| SPARE WHEEL CARRIER TO FRAME | ||
| 188 | N 912004016101 | LOCK WASHER |
| SPARE WHEEL CARRIER TO FRAME | ||
| 188 | N 912004016101 | LOCK WASHER |
| SPARE WHEEL CARRIER TO FRAME | ||
| 190 | N 000934016012 | NUT |
| SPARE WHEEL CARRIER TO FRAME | ||
| 190 | N 000934016012 | NUT |
| SPARE WHEEL CARRIER TO FRAME | ||
| 190 | N 000934016011 | NUT |
| Repalced by: N 308673016001 | ||
| 190 | N 308673016001 | NUT |
| SPARE WHEEL CARRIER TO FRAME | ||
| N 000433017004 | WASHER | |
| SPARE WHEEL CARRIER TO FRAME | ||
| 191 | A 3874030319 | BASE BLOCK |
| SPARE WHEEL CARRIER TO FRAME | ||
| N 000094004023 | COTTER PIN | |
| SPARE WHEEL CARRIER TO FRAME | ||
| N 000094004023 | COTTER PIN | |
| SPARE WHEEL CARRIER TO FRAME | ||
| N 007346004016 | CLAMPING SLEEVE | |
| 195 | N 007349017002 | WASHER |
| SUPPORT TO SPARE WHEEL CARRIER | ||
| 195 | N 007349019002 | WASHER |
| SUPPORT TO SPARE WHEEL CARRIER | ||
| 195 | N 007349021001 | WASHER |
| SUPPORT TO SPARE WHEEL CARRIER | ||
| 198 | N 912004016101 | LOCK WASHER |
| SUPPORT TO SPARE WHEEL CARRIER | ||
| 198 | N 912004018101 | LOCK WASHER |
| SUPPORT TO SPARE WHEEL CARRIER | ||
| 198 | N 912004020100 | LOCK WASHER |
| SUPPORT TO SPARE WHEEL CARRIER | ||
| 200 | N 000934016011 | NUT |
| Repalced by: N 308673016001 | ||
| 200 | N 308673016001 | NUT |
| SUPPORT TO SPARE WHEEL CARRIER | ||
| 200 | N 000934018006 | NUT |
| SUPPORT TO SPARE WHEEL CARRIER | ||
| 200 | N 000934020008 | NUT |
| Repalced by: N 308673020002 | ||
| 200 | N 308673020002 | NUT |
| Repalced by: N 308674020000 | ||
| 200 | N 308674020000 | NUT |
| SUPPORT TO SPARE WHEEL CARRIER | ||
| 205 | A 3874030001 | SUPPORT |
| 206 | A 3874030601 | SUPPORT |
| N 910005012080 | RIVET | |
| SUPPORT TO FRAME | ||
| 12X42 MM | ||
| A 3834000139 | SPARE WHEEL HOIST | |
| Repalced by: A 3834000639 | ||
| 218 | A 3834000039 | BRACKET |
| Repalced by: A 3834000639 | ||
| 218 | A 3834000739 | BRACKET |
| Repalced by: A 3834000639 | ||
| A 3834000639 | SPARE WHEEL HOIST | |
| 218H | A 3814030185 | WORM |
| Repalced by: A 6204030085 | ||
| 218H | A 6204030085 | WORM |
| 218K | A 3814030250 | BUSHING |
| 218M | N 001481006027 | CLAMPING SLEEVE |
| 219 | A 3834030183 | STOP GEAR |
| Repalced by: A 6204030383 | ||
| 219 | A 6204030383 | STOP GEAR |
| A 3814030036 | CABLE | |
| Repalced by: N 083331008500 | ||
| 220 | N 083331008500 | WIRE CABLE |
| Repalced by: N 083334008000 | ||
| 220 | N 083334008000 | WIRE CABLE |
| 2700 MM | ||
| 221 | A 3854000020 | COVERING |
| SPARE WHEEL HOIST | ||
| N 000933006130 | SCREW | |
| PROTECTION PLATE TO BRACKET | ||
| N 009021006205 | WASHER | |
| Repalced by: N 009021006208 | ||
| N 009021006208 | WASHER | |
| PROTECTION PLATE TO BRACKET | ||
| N 913004006002 | NUT | |
| Repalced by: N 913004006001 | ||
| N 913004006001 | NUT | |
| PROTECTION PLATE TO BRACKET | ||
| A 3149900440 | WASHER | |
| WORM AND SHAFT TO BRACKET | ||
| A 3819900140 | WASHER | |
| WORM AND SHAFT TO BRACKET | ||
| N 001481008038 | CLAMPING SLEEVE | |
| Repalced by: N 308752008000 | ||
| N 308752008000 | CLAMPING PIN | |
| WORM AND SHAFT TO BRACKET | ||
| N 002093031201 | DISC SPRING | |
| WORM AND SHAFT TO BRACKET | ||
| 223 | N 000933010128 | SCREW |
| SPARE WHEEL HOIST TO CROSS MEMBER | ||
| 225 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 225 | N 910113010000 | NUT |
| SPARE WHEEL HOIST TO CROSS MEMBER | ||
| 230 | A 3814030150 | BUSHING |
| AT SIDE MEMBER | ||
| 232 | A 3814000045 | CRANK |
| Repalced by: A 3814030045 | ||
| 232 | A 3814030045 | CRANK |
| 235 | N 001481006027 | CLAMPING SLEEVE |
| CRANK TO BUSHING | ||
| N 002093031201 | DISC SPRING | |
| WORM AND SHAFT TO BRACKET | ||
