Transporto priemonė: 1720,1820; VIN numerio dalis: 652020

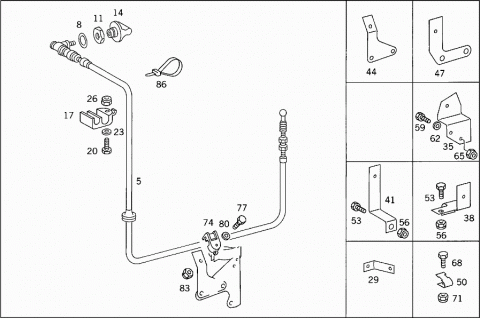

Grupė: 30 CONTROL - 150 MANUAL IDLING CONTROL
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 6523000132 | WIRE CABLE |
| MANUAL CONTROL | ||
| 005 | A 6523000332 | WIRE CABLE |
| Repalced by: A 6523000532 | ||
| 005 | A 6523000532 | WIRE CABLE |
| MANUAL CONTROL | ||
| 005 | A 6523000332 | WIRE CABLE |
| Repalced by: A 6523000532 | ||
| 005 | A 6523000532 | WIRE CABLE |
| MANUAL CONTROL | ||
| 008 | N 000988017008 | FITTED WASHER |
| WIRE CABLE TO INSTRUMENT PANEL | ||
| 011 | A 1075450072 | NUT |
| WIRE CABLE TO INSTRUMENT PANEL | ||
| 014 | A 6553000007 | KNOB |
| IDLING ADJUSTMENT | ||
| 017 | A 6553010043 | CLAMPING PIECE |
| IDLING ADJUSTMENT WIRE CABLE | ||
| 020 | N 000933006124 | SCREW |
| CLAMPING PIECE TO BRACKET | ||
| 023 | N 000125006421 | WASHER |
| CLAMPING PIECE TO BRACKET | ||
| Repalced by: N 000125006449 | ||
| 023 | N 000125006449 | WASHER |
| CLAMPING PIECE TO BRACKET | ||
| 026 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 026 | N 913004006001 | NUT |
| CLAMPING PIECE TO BRACKET | ||
| 029 | A 6523010340 | BRACKET |
| WIRE CABLE TO AIR BAFFLE BRACKET | ||
| 035 | A 6523011040 | BRACKET |
| Repalced by: A 6553000340 | ||
| 035 | A 6553000340 | BRACKET |
| WIRE CABLE TO HYDRAULIC LINE BRACKET | ||
| 038 | A 6523011140 | BRACKET |
| WIRE CABLE TO FRAME SIDE MEMBER | ||
| 041 | A 6523011240 | BRACKET |
| WIRE CABLE TO FRAME SIDE MEMBER | ||
| 044 | A 6553010640 | BRACKET |
| WIRE CABLE TO STEERING OIL TANK BRACKET | ||
| 044 | A 6553010640 | BRACKET |
| WIRE CABLE TO STEERING OIL TANK BRACKET | ||
| 044 | A 6553010640 | BRACKET |
| WIRE CABLE TO STEERING OIL TANK BRACKET | ||
| 044 | A 6583010440 | BRACKET |
| WIRE CABLE TO STEERING GEAR | ||
| 044 | A 6553012140 | BRACKET |
| Repalced by: A 6553012240 | ||
| 044 | A 6553012240 | BRACKET |
| WIRE CABLE TO STEERING OIL TANK BRACKET | ||
| 044 | A 6553010740 | BRACKET |
| WIRE CABLE TO STEERING OIL TANK BRACKET | ||
| 044 | A 6553010740 | BRACKET |
| Repalced by: A 6553012240 | ||
| 044 | A 6553012240 | BRACKET |
| WIRE CABLE TO STEERING OIL TANK BRACKET | ||
| 047 | A 6523010040 | BRACKET |
| WIRE CABLE TO STEERING OIL TANK BRACKET | ||
| 047 | A 6523011340 | BRACKET |
| WIRE CABLE TO STEERING OIL TANK BRACKET | ||
| 047 | A 6523000240 | BRACKET |
| WIRE CABLE TO STEERING OIL TANK BRACKET | ||
| 050 | A 6523010240 | BRACKET |
| IDLING ADJUSTMENT WIRE CABLE | ||
| 053 | N 000933010105 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 056 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 056 | N 910113010000 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 059 | N 000933006121 | SCREW |
| Repalced by: N 304017006020 | ||
| 059 | N 304017006020 | SCREW |
| BRACKET TO STEERING OIL LINE BRACKET | ||
| 062 | N 000125006421 | WASHER |
| BRACKET TO STEERING OIL LINE BRACKET | ||
| Repalced by: N 000125006449 | ||
| 062 | N 000125006449 | WASHER |
| BRACKET TO STEERING OIL LINE BRACKET | ||
| 065 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 065 | N 913004006001 | NUT |
| BRACKET TO STEERING OIL LINE BRACKET | ||
| 068 | N 000933006183 | SCREW |
| Repalced by: N 304017006016 | ||
| 068 | N 304017006016 | SCREW |
| BREACKET TO STEERING OIL TANK BRACKET | ||
| M 6X16 | ||
| 068 | N 007985006538 | SCREW |
| BREACKET TO STEERING OIL TANK BRACKET | ||
| M 6X18 | ||
| 068 | N 000933010198 | SCREW |
| BRACKET TO STEERING GEAR | ||
| M 10X16 | ||
| 068 | N 000933010198 | SCREW |
| BREACKET TO STEERING OIL TANK BRACKET | ||
| M 10X16 | ||
| 068 | N 000933010198 | SCREW |
| BREACKET TO STEERING OIL TANK BRACKET | ||
| M 10X16 | ||
| 068 | N 000933010198 | SCREW |
| BREACKET TO STEERING OIL TANK BRACKET | ||
| M 10X16 | ||
| 071 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 071 | N 913004006001 | NUT |
| BREACKET TO STEERING OIL TANK BRACKET | ||
| 074 | A 6553010043 | CLAMPING PIECE |
| WIRE CABLE TO BRACKET | ||
| 077 | N 000933006124 | SCREW |
| CLAMPING PIECE TO BRACKET | ||
| 080 | N 000125006421 | WASHER |
| CLAMPING PIECE TO BRACKET | ||
| Repalced by: N 000125006449 | ||
| 080 | N 000125006449 | WASHER |
| CLAMPING PIECE TO BRACKET | ||
| 083 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 083 | N 913004006001 | NUT |
| CLAMPING PIECE TO BRACKET | ||
| 086 | A 0019978490 | LOOM TIE |
| WIRE CABLE TO BRACKET | ||
| 376 MM | ||
| 086 | A 0019978390 | LOOM TIE |
| WIRE CABLE TO BRACKET | ||
| 280 MM | ||
