Transporto priemonė: 1720; VIN numerio dalis: 693128

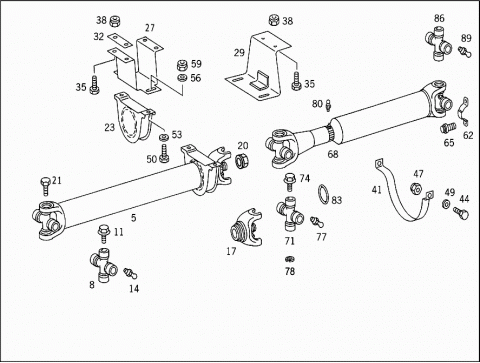

Grupė: 41 PROPELLER SHAFT

#	Kodas	Pavadinimas
005	A 6934107001	PROPELLER SHAFT
		FROM TRANSMISSION TO INTERMEDIATE BEARING I
		1825 MM
005	A 6934107301	PROPELLER SHAFT
		FROM TRANSMISSION TO INTERMEDIATE BEARING I
		955 MM
005	A 6934107401	PROPELLER SHAFT
		FROM TRANSMISSION TO INTERMEDIATE BEARING I
		1583 MM
005	A 6934107801	PROPELLER SHAFT
		FROM TRANSMISSION TO INTERMEDIATE BEARING I
		1875 MM
005	A 6934107601	PROPELLER SHAFT
		FROM TRANSMISSION TO INTERMEDIATE BEARING I
		600 MM
005	A 6934107901	PROPELLER SHAFT
		FROM TRANSMISSION TO INTERMEDIATE BEARING I
		725 MM
006	A 3824107602	PROPELLER SHAFT
		FROM TRANSMISSION TO TRANSFER CASE
		702 MM
007	A 3844107402	PROPELLER SHAFT
		FROM TRANSFER CASE TO FRONT AXLE
		1287 MM
008	A 0004103331	UNIVERSAL JOINT CROSS
		WITH BUSHINGS
008	A 0004102731	UNIVERSAL JOINT CROSS
		WITH BUSHINGS
008	A 0004103131	UNIVERSAL JOINT CROSS
		WITH BUSHINGS
008	A 0004101731	UNIVERSAL JOINT CROSS
		WITH BUSHINGS
011	A 0069903601	SCREW
014	A 0009974788	GREASE NIPPLE
014	A 0009975688	GREASE NIPPLE
		NOT THREADED
017	A 0004101230	CENTERING FLANGE
017	A 0004100930	CENTERING FLANGE
017	A 0004110345	CENTERING FLANGE
017	A 0004100430	CENTERING FLANGE
020	A 0009905050	NUT
021	A 0119904401	SCREW
023	A 0004100222	INTERMEDIATE BEARING
	A 0004130112	RUBBER MOUNTING
023	A 0004101022	INTERMEDIATE BEARING
024	A 0004130380	SEAL RING
		NOTE THREAD DIAMETER
		TO 384 410 74 02 / 76 02:2 1/2"
024	A 0004130780	SEAL RING
		NOTE THREAD DIAMETER
		TO 384 410 74 02 / 76 02:2 1/4"
025	A 0009974888	GREASE NIPPLE
		TO 384 410 74 02 / 76 02
026	A 0009974788	GREASE NIPPLE
		TO 384 410 74 02 / 76 02
027	A 6954137142	BRACKET
		AT CROSS MEMBER
027	A 6934137342	BRACKET
		AT CROSS MEMBER
027	A 6934137442	BRACKET
		AT CROSS MEMBER
	A 6934137042	BRACKET
		AT CROSS MEMBER
029	A 6934137242	BRACKET
		AT CROSS MEMBER
030	A 6934107040	BRACKET
		AT CROSS MEMBER
032	A 3524130011	REINFORCEMENT
035	N 910105010001	HEXAGON HEAD BOLT
		BRACKET TO CROSS MEMBER
		M10X30
036	N 910105012007	SCREW
		BRACKET TO CROSS MEMBER
		M 12X1,5X30
038	N 913023010002	NUT
		BRACKET TO CROSS MEMBER
039	N 913023012002	NUT
		BRACKET TO CROSS MEMBER
041	A 6954117082	REBOUND STRAP
	Repalced by: A 6954117182
041	A 6954117182	REBOUND STRAP
		AT FRAME
041	A 6954117182	REBOUND STRAP
	Repalced by: A 6954117282
041	A 6954117282	REBOUND STRAP
		AT FRAME
041	A 3844137046	REBOUND STRAP
		AT FRAME
044	N 910105014012	SCREW
		REBOUND STRAP TO FRAME
		M 14X30
047	N 913023014003	NUT
		REBOUND STRAP TO FRAME
049	N 000125015012	WASHER
		REBOUND STRAP TO FRAME
050	N 910105012010	SCREW
		FRONT PROPELLER SHAFT TO BRACKET
		M 12X1.5X40
053	N 000125013012	WASHER
		FRONT PROPELLER SHAFT TO BRACKET
056	N 007349013002	WASHER
		FRONT PROPELLER SHAFT TO BRACKET
059	N 913023012002	NUT
		FRONT PROPELLER SHAFT TO BRACKET
062	A 6889907145	BEARING COVER
		PROPELLER SHAFT TO TRANSMISSION
062	A 6889907145	BEARING COVER
		PROPELLER SHAFT TO INTERMEDIATE BEARING AND TO REAR AXLE
062	A 6959957010	CLAMP
		PROPELLER SHAFT TO TRANSMISSION
062	A 6959957010	CLAMP
		PROPELLER SHAFT TO INTERMEDIATE BEARING AND TO REAR AXLE
062	A 3849957010	CLAMP
		PROPELLER SHAFT TO TRANSMISSION
062	A 3849957010	CLAMP
		PROPELLER SHAFT TO FRONT AXLE
062	A 3849957010	CLAMP
		PROPELLER SHAFT TO INTERMEDIATE BEARING AND TO REAR AXLE
062	A 3849957010	CLAMP
		PROPELLER SHAFT TO TRANSFER CASE
062	A 3849957010	CLAMP
		PROPELLER SHAFT TO REAR AXLE
062	A 6654117006	COVER
		PROPELLER SHAFT TO TRANSMISSION
062	A 6654117006	COVER
		PROPELLER SHAFT TO INTERMEDIATE BEARING AND TO REAR AXLE
065	A 3849907801	SCREW
		PROPELLER SHAFT TO TRANSMISSION
065	A 3849907801	SCREW
		PROPELLER SHAFT TO TRANSFER CASE
065	A 3849907801	SCREW
		PROPELLER SHAFT TO FRONT AXLE
065	A 3849907801	SCREW
		PROPELLER SHAFT TO REAR AXLE
065	A 6654117071	SCREW
		PROPELLER SHAFT TO TRANSMISSION
065	A 6654117071	SCREW
		PROPELLER SHAFT TO INTERMEDIATE BEARING AND TO REAR AXLE
068	A 6934107102	PROPELLER SHAFT
		FROM INTERMEDIATE BEARING I TO REAR AXLE
		1813 MM
068	A 6934107202	PROPELLER SHAFT
		FROM INTERMEDIATE BEARING I TO REAR AXLE
		1458 MM
068	A 6944107002	PROPELLER SHAFT
		FROM INTERMEDIATE BEARING I TO REAR AXLE
		1800 MM
068	A 6954107002	PROPELLER SHAFT
		FROM INTERMEDIATE BEARING I TO REAR AXLE
		1740 MM
068	A 6934107502	PROPELLER SHAFT
		FROM INTERMEDIATE BEARING I TO REAR AXLE
		1698 MM
068	A 6934107302	PROPELLER SHAFT
		FROM INTERMEDIATE BEARING I TO REAR AXLE
		1752 MM
068	A 3844108002	PROPELLER SHAFT
		FROM INTERMEDIATE BEARING I TO REAR AXLE
		1402 MM
068	A 6934107602	PROPELLER SHAFT
		FROM TRANSMISSION TO REAR AXLE
		1618MM
069	A 6824107202	PROPELLER SHAFT
		FROM TRANSFER CASE TO REAR AXLE
		1487 MM
071	A 0004101931	UNIVERSAL JOINT CROSS
		WITH BUSHINGS
		TO 693 410 71 02,72 02
	Repalced by: A 0004103331
071	A 0004103331	UNIVERSAL JOINT CROSS
		WITH BUSHINGS
		TO 693 410 71 02,72 02
071	A 0004102731	UNIVERSAL JOINT CROSS
		WITH BUSHINGS
071	A 0004103131	UNIVERSAL JOINT CROSS
		WITH BUSHINGS
071	A 0004101731	UNIVERSAL JOINT CROSS
		WITH BUSHINGS
074	A 0069903601	SCREW
077	A 0009975688	GREASE NIPPLE
		NOT THREADED
077	A 0009974788	GREASE NIPPLE
		NOT THREADED
077	A 0009976688	GREASE NIPPLE
		NOT THREADED
077	A 0009974788	GREASE NIPPLE
078	A 0029944735	SNAP RING
080	A 0009974888	GREASE NIPPLE
083	A 0004130480	SEAL RING
083	A 0004110459	SEAL RING
083	A 0004110359	SEAL RING
083	A 0004130380	SEAL RING
		NOTE THREAD DIAMETER
		2 1/2"
083	A 0004130780	SEAL RING
		NOTE THREAD DIAMETER
		2 1/4"
086	A 0004102731	UNIVERSAL JOINT CROSS
		WITH BUSHINGS
086	A 0004103131	UNIVERSAL JOINT CROSS
		WITH BUSHINGS
086	A 0004101731	UNIVERSAL JOINT CROSS
		WITH BUSHINGS
089	A 0009975688	GREASE NIPPLE
		NOT THREADED
089	A 0009974788	GREASE NIPPLE
