Transporto priemonė: 1720 K; VIN numerio dalis: 693191

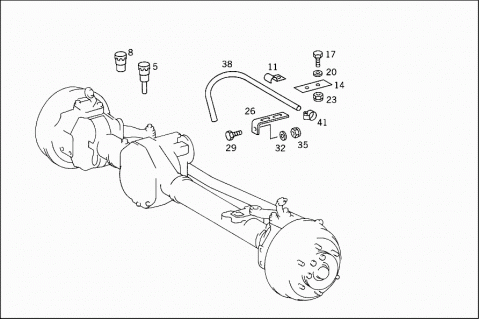

Grupė: 33 FRONT AXLE - 030 AXLE BREATHING
| # | Kodas | Pavadinimas |
|---|---|---|
| T YYYYYYYYYYYY | PART NAME MISSING | |
| AXLE BREATHING | ||
| 005 | A 3453507090 | VALVE |
| 008 | A 3453507290 | VALVE |
| 011 | A 1539950220 | CLAMP |
| BREATHER PIPE TO BRACKET | ||
| 014 | A 3124761236 | BRACKET |
| BREATHER PIPE TO BRACKET | ||
| 017 | N 000933006220 | SCREW |
| BREATHER PIPE TO BRACKET | ||
| M6X16 | ||
| 020 | N 000125006417 | WASHER |
| BREATHER PIPE TO BRACKET | ||
| 023 | N 913023006002 | NUT |
| BREATHER PIPE TO BRACKET | ||
| 026 | A 3464295940 | BRACKET |
| FRONT AXLE | ||
| 029 | N 000933010254 | SCREW |
| BRACKET TO FRONT AXLE | ||
| M10X25 | ||
| 032 | N 000125010513 | WASHER |
| BRACKET TO FRONT AXLE | ||
| 035 | N 913004010004 | NUT |
| BRACKET TO FRONT AXLE | ||
| 038 | A 3769978182 | HOSE |
| 041 | N 916002010100 | CLAMP |
