Transporto priemonė: 1728; VIN numerio dalis: 693148

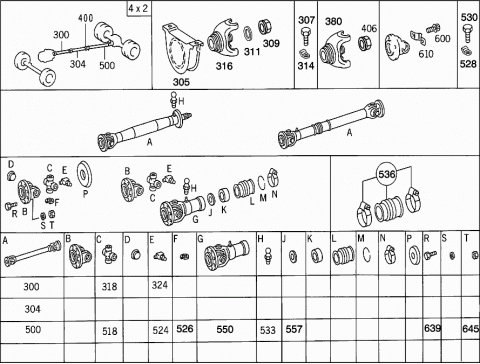

Grupė: 41 PROPELLER SHAFT
| # | Kodas | Pavadinimas |
|---|---|---|
| 300 | A 6934108401 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING I | ||
| 918 MM | ||
| 300 | A 6934100101 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING I | ||
| 300 | A 6934101001 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING I | ||
| 1740 MM | ||
| 300 | A 6934100001 | PROPELLER SHAFT |
| 300 | A 6934100801 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING | ||
| 880MM | ||
| 300 | A 6934100901 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING | ||
| 1745MM | ||
| 304 | A 6934108101 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING I TO INTERMEDIATE BEARING II | ||
| 1308 MM | ||
| 304 | A 6934101201 | PROPELLER SHAFT FRT |
| FROM INTERMEDIATE BEARING I TO INTERMEDIATE BEARING II | ||
| 1747 MM | ||
| 305 | A 0004100922 | INTERMEDIATE BEARING |
| TO A 693 410 10 01 | ||
| 305 | A 0004101022 | INTERMEDIATE BEARING |
| TO A 693 410 09 01, 08 01 | ||
| 305 | A 0004101022 | INTERMEDIATE BEARING |
| TO A 693 410 09 01, 08 01, 12 01 | ||
| 307 | A 0004110071 | SCREW |
| TO A 693 410 10 01 | ||
| 307 | A 0004110071 | SCREW |
| TO A 693 410 12 01 | ||
| 309 | A 0019905550 | NUT |
| TO A 693 410 09 01, 08 01,10 01 | ||
| 309 | A 0019905550 | NUT |
| TO A 693 410 09 01, 08 01,10 01, 12 01 | ||
| 309 | A 0019905550 | NUT |
| TO A 693 410 09 01, 08 01,10 01 | ||
| 311 | A 0004110376 | WASHER |
| TO A 693 410 09 01, 08 01,10 01 | ||
| 311 | A 0004110376 | WASHER |
| TO A 693 410 09 01, 08 01,10 01, 12 01 | ||
| 311 | A 0004110376 | WASHER |
| TO A 693 410 09 01, 08 01,10 01 | ||
| 314 | A 0004113373 | LOCK |
| TO A 693 410 10 01 | ||
| 314 | A 0004113373 | LOCK |
| TO A 693 410 12 01 | ||
| 316 | A 0004110945 | FLANGE |
| TO A 693 410 09 01, 08 01 | ||
| 316 | A 0004110945 | FLANGE |
| TO A 693 410 09 01, 08 01 | ||
| 316 | A 0004111145 | FLANGE |
| TO A 693 410 09 01, 08 01 | ||
| 316 | A 0004111145 | FLANGE |
| TO A 693 410 09 01, 08 01 | ||
| 316 | A 0004110645 | FLANGE |
| 316 | A 0004101630 | CENTERING FLANGE |
| TO A 693 410 10 01 | ||
| 316 | A 0004102230 | CENTERING FLANGE |
| TO A 693 410 12 01 | ||
| 318 | A 0004103931 | UNIVERSAL JOINT CROSS |
| TO A 693 410 09 01, 08 01 | ||
| 318 | A 0004103931 | UNIVERSAL JOINT CROSS |
| TO A 693 410 09 01, 08 01, 12 01 | ||
| 318 | A 0004103431 | UNIVERSAL JOINT CROSS |
| TO A 693 410 10 01 | ||
| 318 | A 0004102731 | UNIVERSAL JOINT CROSS |
| 318 | A 0004102731 | UNIVERSAL JOINT CROSS |
| 318 | A 0004102731 | UNIVERSAL JOINT CROSS |
| 318 | A 0004103831 | UNIVERSAL JOINT CROSS |
| 324 | A 0009975688 | GREASE NIPPLE |
| NOT THREADED | ||
| 324 | A 0009975688 | GREASE NIPPLE |
| NOT THREADED | ||
| 324 | A 0009974888 | GREASE NIPPLE |
| 324 | A 0009974888 | GREASE NIPPLE |
| 324 | A 0009976188 | GREASE NIPPLE |
| 324 | A 0009976188 | GREASE NIPPLE |
| 380 | A 0004100930 | CENTERING FLANGE |
| 380 | A 0004100930 | CENTERING FLANGE |
| 400 | A 0004100222 | INTERMEDIATE BEARING |
| 400 | A 0004100222 | INTERMEDIATE BEARING |
| 400 | A 0004100222 | INTERMEDIATE BEARING |
| 400 | A 0004100510 | INTERMEDIATE BEARING |
| 400 | A 0004100210 | INTERMEDIATE BEARING |
| 400 | A 0004100210 | INTERMEDIATE BEARING |
| 402 | A 0004130112 | RUBBER MOUNTING |
| TO 000 410 02 22 | ||
| 402 | A 0004130112 | RUBBER MOUNTING |
| TO 000 410 02 22 | ||
| 406 | A 0009905050 | NUT |
| 406 | A 0009905050 | NUT |

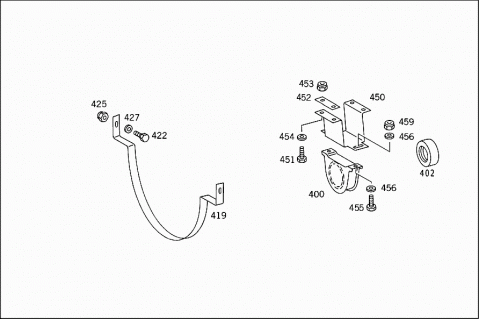

| 419 | A 6954117082 | REBOUND STRAP |
| Repalced by: A 6954117282 | ||
| 419 | A 6954117282 | REBOUND STRAP |
| PROPELLER SHAFT | ||
| 419 | A 3844117282 | REBOUND STRAP |
| PROPELLER SHAFT | ||
| 422 | N 910105010001 | HEXAGON HEAD BOLT |
| REBOUND STRAP TO FRAME | ||
| M10X30 | ||
| 422 | N 910105014012 | SCREW |
| REBOUND STRAP TO FRAME | ||
| 425 | N 913023010002 | NUT |
| REBOUND STRAP TO FRAME | ||
| 425 | N 913023014003 | NUT |
| REBOUND STRAP TO FRAME | ||
| 427 | N 000125010517 | WASHER |
| REBOUND STRAP TO FRAME | ||
| 450 | A 6934137842 | BRACKET |
| PROPELLER SHAFT BEARING I | ||
| 450 | A 6934137942 | BRACKET |
| PROPELLER SHAFT BEARING II | ||
| 450 | A 6934130242 | BRACKET |
| PROPELLER SHAFT BEARING I | ||
| 450 | A 6954137342 | BRACKET |
| AT FRAME | ||
| 450 | A 6964137342 | BRACKET |
| AT FRAME | ||
| 451 | N 910105010011 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| 451 | N 910105010011 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| M 10X40 | ||
| 451 | N 910105012010 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| M 12X1,5X40 | ||
| 452 | A 3524130011 | REINFORCEMENT |
| BRACKET TO CROSS MEMBER | ||
| 453 | N 913023012002 | NUT |
| BRACKET TO CROSS MEMBER | ||
| M 12X1,5 | ||
| 453 | N 913023010002 | NUT |
| BRACKET TO CROSS MEMBER | ||
| 453 | N 913023010002 | NUT |
| BRACKET TO CROSS MEMBER | ||
| 454 | A 1159906040 | WASHER |
| BRACKET TO CROSS MEMBER | ||
| 455 | N 910105012007 | SCREW |
| PROPELLER SHAFT BEARING TO BRACKET | ||
| 455 | N 910105014013 | SCREW |
| PROPELLER SHAFT BEARING TO BRACKET | ||
| M 14X1,5X35 | ||
| 455 | N 910105014013 | HEXAGON HEAD BOLT |
| PROPELLER SHAFT BEARING TO BRACKET | ||
| M 14X1,5X35 | ||
| 456 | N 000125013012 | WASHER |
| PROPELLER SHAFT BEARING TO BRACKET | ||
| 459 | N 913023012002 | NUT |
| PROPELLER SHAFT BEARING TO BRACKET | ||
| M 14X1,5 | ||
| 459 | N 913023012002 | NUT |
| PROPELLER SHAFT BEARING TO BRACKET | ||
| 459 | N 000000005662 | NUT |
| PROPELLER SHAFT BEARING TO BRACKET | ||
| 500 | A 6934108002 | PROPELLER SHAFT |
| FROM TRANSMISSION TO REAR AXLE | ||
| 1730MM | ||
| 500 | A 6954107602 | PROPELLER SHAFT |
| PROPELLER SHAFT TO REAR AXLE DRIVE | ||
| 1350MM | ||
| 500 | A 6964107902 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING TO REAR AXLE | ||
| 1631MM | ||
| 500 | A 6934107802 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING TO REAR AXLE | ||
| 1332 MM | ||
| 500 | A 6934108402 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING TO REAR AXLE | ||
| 1307 MM | ||
| 500 | A 6954107202 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING TO REAR AXLE | ||
| 518 | A 0004103931 | UNIVERSAL JOINT CROSS |
| 518 | A 0004103931 | UNIVERSAL JOINT CROSS |
| 518 | A 0004102731 | UNIVERSAL JOINT CROSS |
| 518 | A 0004102731 | UNIVERSAL JOINT CROSS |
| 518 | A 0004102731 | UNIVERSAL JOINT CROSS |
| 518 | A 0004103431 | UNIVERSAL JOINT CROSS |
| 518 | A 0004103831 | UNIVERSAL JOINT CROSS |
| 524 | A 0009975688 | GREASE NIPPLE |
| NOT THREADED | ||
| 524 | A 0009976188 | GREASE NIPPLE |
| THREADED | ||
| 524 | A 0009976188 | GREASE NIPPLE |
| 526 | A 0039942135 | SNAP RING |
| PARTS KIT | ||
| 526 | A 0039942135 | SNAP RING |
| PARTS KIT | ||
| 526 | A 0039942135 | SNAP RING |
| PARTS KIT | ||
| 528 | A 0004113373 | LOCK |
| 528 | A 0004113373 | LOCK |
| 528 | A 0004113373 | LOCK |
| 530 | A 0004110071 | SCREW |
| 530 | A 0004110071 | SCREW |
| 530 | A 0004110071 | SCREW |
| 533 | A 0009974888 | GREASE NIPPLE |
| 533 | A 0009974888 | GREASE NIPPLE |
| 533 | A 0009974888 | GREASE NIPPLE |
| 533 | A 0009974788 | GREASE NIPPLE |
| 533 | A 0009974788 | GREASE NIPPLE |
| 536 | A 0004100180 | BOOT |
| PARTS KIT | ||
| 550 | A 0004100033 | SLIDING PIECE |
| 550 | A 0004100033 | SLIDING PIECE |
| 550 | A 0004100033 | SLIDING PIECE |
| 557 | A 0004110359 | SEAL RING |
| 557 | A 0004110359 | SEAL RING |
| 557 | A 0004110359 | SEAL RING |
| 600 | A 3849907801 | SCREW |
| PROPELLER SHAFT TO PROPELLER SHAFT | ||
| 600 | A 3849907801 | SCREW |
| PROPELLER SHAFT TO PROPELLER SHAFT | ||
| 600 | A 6969907201 | SCREW |
| PROPELLER SHAFT TO PROPELLER SHAFT | ||
| 600 | A 3849907801 | SCREW |
| PROPELLER SHAFT TO TRANSMISSION | ||
| 600 | A 3849907801 | SCREW |
| PROPELLER SHAFT TO REAR AXLE | ||
| 600 | A 6969907201 | SCREW |
| PROPELLER SHAFT TO REAR AXLE | ||
| 610 | A 6959957010 | CLAMP |
| PROPELLER SHAFT TO PROPELLER SHAFT | ||
| 610 | A 6959957010 | CLAMP |
| PROPELLER SHAFT TO PROPELLER SHAFT | ||
| 610 | A 6969957010 | CLAMP |
| PROPELLER SHAFT TO PROPELLER SHAFT | ||
| 610 | A 6959957110 | CLAMP |
| PROPELLER SHAFT TO PROPELLER SHAFT | ||
| 610 | A 6959957010 | CLAMP |
| PROPELLER SHAFT TO TRANSMISSION | ||
| 610 | A 6969957010 | CLAMP |
| PROPELLER SHAFT TO REAR AXLE | ||
| 610 | A 6959957010 | CLAMP |
| PROPELLER SHAFT TO REAR AXLE | ||
| 610 | A 6959957110 | CLAMP |
| PROPELLER SHAFT TO REAR AXLE | ||
| 639 | A 6969907201 | SCREW |
| PROPELLER SHAFT TO PROPELLER SHAFT | ||
| 639 | A 6969907201 | SCREW |
| PROPELLER SHAFT TO REAR AXLE | ||
| 639 | A 3609903101 | SCREW |
| PROPELLER SHAFT TO TRANSMISSION | ||
| 639 | N 000960014231 | SCREW |
| PROPELLER SHAFT TO TRANSMISSION | ||
| M 14X1,5X50 | ||
| 645 | N 308673012003 | NUT |
| PROPELLER SHAFT TO TRANSMISSION | ||
| 645 | N 000934014025 | NUT |
| PROPELLER SHAFT TO TRANSMISSION | ||
| M 14X1,5 | ||
