Transporto priemonė: 1729 LS; VIN numerio dalis: 655512

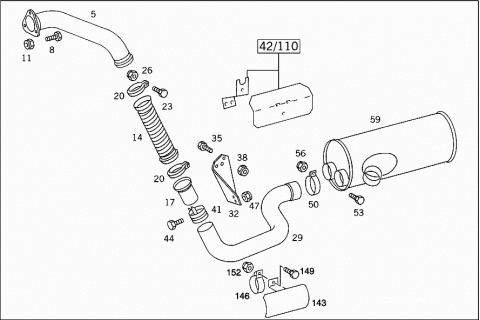

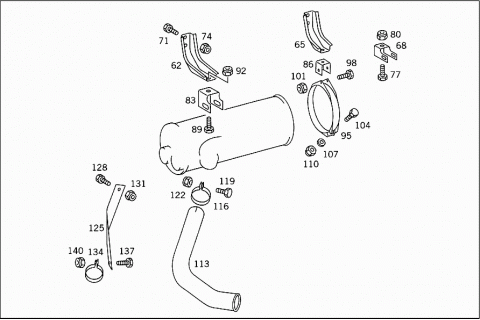

Grupė: 49 EXHAUST SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 6554900025 | CONNECTOR |
| (CONNECTING PIPE),LEFT FRONT | ||
| 005 | A 6554900025 | CONNECTOR |
| FOR THE REMAINING PARTS,SEE ENGINE STANDARD VERSION | ||
| 005 | A 6554900125 | CONNECTOR |
| (CONNECTING PIPE),RIGHT FRONT | ||
| 008 | N 000931012114 | SCREW |
| CONNECTOR TO EXHAUST MANIFOLD | ||
| 011 | N 913004012010 | NUT |
| CONNECTOR TO EXHAUST MANIFOLD | ||
| 014 | A 6204900465 | FLEXIBLE METAL TUBE |
| FRONT LEFT AND RIGHT | ||
| 014 | A 6214900065 | FLEXIBLE METAL TUBE |
| FRONT LEFT AND RIGHT | ||
| 017 | A 6204920208 | COLLAR |
| FRONT LEFT AND RIGHT | ||
| 017 | A 6214920008 | COLLAR |
| FRONT LEFT AND RIGHT | ||
| 020 | A 6209970590 | CLAMP |
| FLEXIBLE METAL TUBE TO CONNECTOR AND TO COLLAR | ||
| 020 | A 6219970090 | CLAMP |
| FLEXIBLE METAL TUBE TO CONNECTOR AND TO COLLAR | ||
| 023 | N 000933008161 | SCREW |
| Repalced by: N 304017008028 | ||
| 023 | N 304017008028 | SCREW |
| FLEXIBLE METAL TUBE TO CONNECTOR AND TO COLLAR | ||
| 026 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 026 | N 913004008001 | NUT |
| FLEXIBLE METAL TUBE TO CONNECTOR AND TO COLLAR | ||
| 029 | A 6554901519 | EXHAUST PIPE |
| FRONT,REAR LEFT PART | ||
| 029 | A 6554904619 | EXHAUST PIPE |
| FRONT,REAR LEFT PART | ||
| 029 | A 6554906519 | EXHAUST PIPE |
| FRONT,REAR LEFT PART | ||
| 029 | A 6554900919 | EXHAUST PIPE |
| FRONT,REAR LEFT PART | ||
| 029 | A 6554904419 | EXHAUST PIPE |
| FRONT,REAR LEFT PART | ||
| 029 | A 6554904419 | EXHAUST PIPE |
| FRONT,REAR LEFT PART | ||
| 029 | A 6554901619 | EXHAUST PIPE |
| FRONT,REAR RIGHT PART | ||
| 029 | A 6554904719 | EXHAUST PIPE |
| FRONT,REAR RIGHT PART | ||
| 029 | A 6554906619 | EXHAUST PIPE |
| FRONT,REAR RIGHT PART | ||
| 029 | A 6554901019 | EXHAUST PIPE |
| FRONT,REAR RIGHT PART | ||
| 029 | A 6554904519 | EXHAUST PIPE |
| FRONT,REAR RIGHT PART | ||
| 029 | A 6554904519 | EXHAUST PIPE |
| FRONT,REAR RIGHT PART | ||
| 032 | A 6204923441 | BRACKET |
| FRONT EXHAUST PIPE,LEFT | ||
| 032 | A 6204923541 | BRACKET |
| FRONT EXHAUST PIPE,RIGHT | ||
| 035 | N 000933010105 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M 10X25 | ||
| 035 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 035 | N 304017010002 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M 10X30 | ||
| 035 | N 000933010145 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M 10X35 | ||
| 038 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 038 | N 910113010000 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 041 | A 6204920940 | CLAMP |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 041 | A 6254920040 | CLAMP |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 044 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 044 | N 304017010002 | SCREW |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 044 | N 000933010094 | SCREW |
| FRONT EXHAUST PIPE TO BRACKET | ||
| M 10X40 | ||
| 044 | N 000933010328 | SCREW |
| FRONT EXHAUST PIPE TO BRACKET | ||
| M 10X45 | ||
| 047 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 047 | N 910113010000 | NUT |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 050 | N 071555104501 | CLAMP |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 053 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 053 | N 304017010002 | SCREW |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 056 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 056 | N 910113010000 | NUT |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 059 | A 6454902301 | EXHAUST MUFFLER |
| 059 | A 6454902001 | EXHAUST MUFFLER |
| 059 | A 6454902401 | EXHAUST MUFFLER |
| 059 | A 6454902401 | EXHAUST MUFFLER |
| 059 | A 6454902101 | EXHAUST MUFFLER |
| 062 | A 6204910215 | CONSOLE |
| EXHAUST MUFFLER,FRONT | ||
| 065 | A 6204910315 | CONSOLE |
| EXHAUST MUFFLER,REAR | ||
| 065 | A 6204910315 | CONSOLE |
| EXHAUST MUFFLER,REAR | ||
| 065 | A 6204910315 | CONSOLE |
| EXHAUST MUFFLER,REAR | ||
| 065 | A 6204910615 | CONSOLE |
| EXHAUST MUFFLER,REAR | ||
| 065 | A 6204910615 | CONSOLE |
| EXHAUST MUFFLER,REAR | ||
| 065 | A 6204910615 | CONSOLE |
| EXHAUST MUFFLER,REAR | ||
| 065 | A 6204910615 | CONSOLE |
| FRONT AND REAR EXHAUST MUFFLERS | ||
| 068 | A 6554911641 | BRACKET |
| EXHAUST MUFFLER,REAR | ||
| 071 | N 000961012151 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| 071 | N 000961012097 | SCREW |
| Repalced by: N 308676012026 | ||
| 071 | N 308676012026 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| 074 | N 910113012002 | NUT |
| CONSOLE TO SIDE MEMBER | ||
| 077 | N 000933010105 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 080 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 080 | N 910113010000 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 083 | A 6204910541 | BRACKET |
| STRAP TO FRONT CONSOLE | ||
| 083 | A 6204910541 | BRACKET |
| STRAP TO FRONT CONSOLE | ||
| 086 | A 6204910341 | BRACKET |
| STRAP TO REAR CONSOLE | ||
| 086 | A 6554913741 | BRACKET |
| STRAP TO REAR CONSOLE | ||
| 086 | A 6554913741 | BRACKET |
| STRAP TO REAR CONSOLE | ||
| 086 | A 6554915841 | BRACKET |
| STRAP TO REAR CONSOLE | ||
| 089 | N 000933010128 | SCREW |
| BRACKET TO CONSOLE | ||
| 092 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 092 | N 910113010000 | NUT |
| BRACKET TO CONSOLE | ||
| 095 | A 6204900042 | STRAP |
| EXHAUST MUFFLER | ||
| 098 | N 000931010271 | SCREW |
| STRAP TO BRACKET | ||
| 101 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 101 | N 910113010000 | NUT |
| STRAP TO BRACKET | ||
| 104 | N 000933008151 | SCREW |
| EXHAUST MUFFLER TO STRAP | ||
| 107 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 107 | N 000125008443 | WASHER |
| EXHAUST MUFFLER TO STRAP | ||
| 110 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 110 | N 913004008001 | NUT |
| EXHAUST MUFFLER TO STRAP | ||
| 113 | A 6554920904 | REAR EXHAUST PIPE |
| Repalced by: A 6554900121 | ||
| 113 | A 6554900121 | EXHAUST PIPE |
| (TAIL PIPE) | ||
| 113 | A 6554925904 | REAR EXHAUST PIPE |
| Repalced by: A 6554901621 | ||
| 113 | A 6554901621 | EXHAUST PIPE |
| (TAIL PIPE) | ||
| 113 | A 6554920914 | END PIECE |
| (TAIL PIPE) | ||
| 113 | A 6454920404 | REAR EXHAUST PIPE |
| (TAIL PIPE) | ||
| 113 | A 6554925804 | REAR EXHAUST PIPE |
| Repalced by: A 6554901521 | ||
| 113 | A 6554901521 | EXHAUST PIPE |
| (TAIL PIPE) | ||
| 113 | A 6554901521 | EXHAUST PIPE |
| (TAIL PIPE) | ||
| 113 | A 6554920614 | END PIECE |
| (TAIL PIPE) | ||
| 116 | N 071555120502 | CLAMP |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 116 | N 071555120502 | CLAMP |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 119 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 119 | N 304017010002 | SCREW |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 119 | N 000933010145 | SCREW |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 122 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 122 | N 910113010000 | NUT |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 125 | A 6554920441 | BRACKET |
| REAR EXHAUST PIPE | ||
| 128 | N 000961014027 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 128 | N 000961014050 | SCREW |
| Repalced by: N 308676014020 | ||
| 128 | N 308676014020 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 131 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 131 | N 910113014001 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 134 | N 071555120502 | CLAMP |
| TAIL PIPE TO BRACKET | ||
| 134 | N 071555100500 | CLAMP |
| Repalced by: N 071555100501 | ||
| 134 | N 071555100501 | CLAMP |
| TAIL PIPE TO BRACKET | ||
| 134 | N 071555100501 | CLAMP |
| TAIL PIPE TO BRACKET | ||
| 134 | A 6204920640 | CLAMP |
| TAIL PIPE TO BRACKET | ||
| 137 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 137 | N 304017010002 | SCREW |
| TAIL PIPE TO BRACKET | ||
| 140 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 140 | N 910113010000 | NUT |
| TAIL PIPE TO BRACKET | ||
| 143 | A 3834901030 | PROTECTIVE PLATE |
| FRONT EXHAUST PIPE | ||
| 146 | N 071555100500 | CLAMP |
| Repalced by: N 071555100501 | ||
| 146 | N 071555100501 | CLAMP |
| PROTECTIVE PLATE TO FRONT EXHAUST PIPE | ||
| 149 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 149 | N 304017010002 | SCREW |
| PROTECTIVE PLATE TO FRONT EXHAUST PIPE | ||
| 152 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 152 | N 910113010000 | NUT |
| PROTECTIVE PLATE TO FRONT EXHAUST PIPE | ||
