Transporto priemonė: 1733 S,1834 S,2433 S,; VIN numerio dalis: 652163

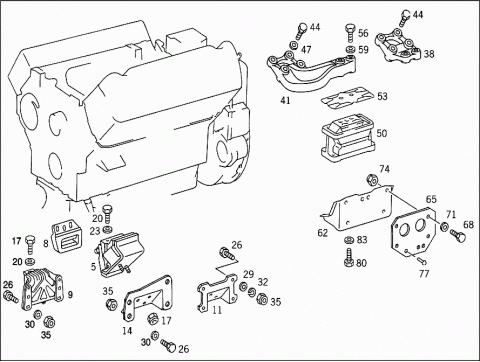

Grupė: 24 ENGINE SUSPENSION
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 6172400017 | RUBBER MOUNTING |
| ADJUSTABLE;FRONMT | ||
| 005 | A 6172400117 | RUBBER MOUNTING |
| ADJUSTABLE;FRONMT | ||
| 005 | A 3002400117 | RUBBER MOUNTING |
| ADJUSTABLE;FRONMT | ||
| 005 | A 3002400217 | RUBBER MOUNTING |
| ADJUSTABLE;FRONMT | ||
| 005 | A 3012403517 | RUBBER MOUNTING |
| ADJUSTABLE;FRONMT | ||
| 008 | A 0002420043 | STOP |
| ENGINE FRONT MOUNTING | ||
| TO 300 240 02 17,617 240 00 17 | ||
| 009 | A 6522410213 | ENGINE MOUNTING |
| LEFT AND RIGHT FRONT | ||
| 011 | A 3832410335 | BEARING BRACKET |
| FRONT RUBBER MOUNTING | ||
| 014 | A 6522410035 | BEARING BRACKET |
| LEFT FRONT RUBBER MOUNTING | ||
| 014 | A 6522410135 | BEARING BRACKET |
| RIGHT FRONT RUBBER MOUNTING | ||
| 017 | N 910113012002 | NUT |
| RUBBER MOUNTING TO BEARING BRACKET | ||
| 017 | N 910113012002 | NUT |
| RUBBER MOUNTING TO BEARING BRACKET | ||
| 020 | N 000961016092 | SCREW |
| RUBBER MOUNTING TO ENGINE SUPPORTING ARM | ||
| 020 | N 000961016092 | SCREW |
| RUBBER MOUNTING TO ENGINE SUPPORTING ARM | ||
| 020 | N 308676016022 | SCREW |
| RUBBER MOUNTING TO ENGINE SUPPORTING ARM | ||
| 023 | A 3529902440 | WASHER |
| RUBBER MOUNTING TO ENGINE SUPPORTING ARM | ||
| 026 | N 000961012092 | SCREW |
| Repalced by: N 000961012025 | ||
| 026 | N 000961012025 | SCREW |
| BEARING BRACKET TO SIDE MEMBER | ||
| M 12X32 | ||
| 026 | N 000961012107 | SCREW |
| Repalced by: N 308676012011 | ||
| 026 | N 308676012011 | SCREW |
| 026 | A 0029903304 | SCREW |
| ENGINE MOUNTING TO SIDE MEMBER | ||
| 026 | N 000961012097 | SCREW |
| Repalced by: N 308676012026 | ||
| 026 | N 308676012026 | SCREW |
| BEARING BRACKET TO SIDE MEMBER | ||
| M 12X35 | ||
| 026 | N 000961012164 | SCREW |
| BEARING BRACKET TO SIDE MEMBER | ||
| 026 | N 000961014113 | SCREW |
| BEARING BRACKET TO SIDE MEMBER | ||
| 026 | N 000961014064 | SCREW |
| ENGINE MOUNTING TO SIDE MEMBER | ||
| 029 | A 3859901040 | WASHER |
| BEARING BRACKET TO SIDE MEMBER | ||
| 029 | A 3859901040 | WASHER |
| ENGINE MOUNTING TO SIDE MEMBER | ||
| 030 | A 3609901840 | WASHER |
| ENGINE MOUNTING TO SIDE MEMBER | ||
| 032 | N 912004012100 | LOCK WASHER |
| BEARING BRACKET TO SIDE MEMBER | ||
| 035 | N 910113012002 | NUT |
| BEARING BRACKET TO SIDE MEMBER | ||
| 035 | N 910113012002 | NUT |
| BEARING BRACKET TO SIDE MEMBER | ||
| 035 | N 910113012002 | NUT |
| ENGINE MOUNTING TO SIDE MEMBER | ||
| 035 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 035 | N 910113014001 | NUT |
| BEARING BRACKET TO SIDE MEMBER | ||
| 035 | N 910113014001 | NUT |
| ENGINE MOUNTING TO SIDE MEMBER | ||
| 038 | A 6522420605 | SUPPORTING ARM |
| REAR | ||
| 038 | A 6172420105 | SUPPORTING ARM |
| REAR | ||
| 041 | A 6522420705 | SUPPORTING ARM |
| REAR LEFT | ||
| 041 | A 6522421105 | SUPPORTING ARM |
| REAR LEFT | ||
| 041 | A 6512420001 | ENGINE SUPPORT |
| REAR LEFT | ||
| 041 | A 6522420805 | SUPPORTING ARM |
| REAR RIGHT | ||
| 041 | A 6522421205 | SUPPORTING ARM |
| REAR RIGHT | ||
| 041 | A 6512420101 | ENGINE SUPPORT |
| REAR RIGHT | ||
| 044 | N 000960018109 | SCREW |
| Repalced by: N 308676018009 | ||
| 044 | N 308676018009 | SCREW |
| SUPPORTING ARM TO BELL HOUSING | ||
| M 18X60 | ||
| 044 | N 000960018119 | SCREW |
| SUPPORTING ARM TO BELL HOUSING | ||
| M 18X85 | ||
| 044 | N 000961022029 | SCREW |
| Repalced by: A 0079905801 | ||
| 044 | A 0079905801 | SCREW |
| SUPPORTING ARM TO BELL HOUSING | ||
| M 22X60 | ||
| 044 | N 000960022057 | SCREW |
| Repalced by: A 0089902401 | ||
| 044 | A 0089902401 | SCREW |
| SUPPORTING ARM TO BELL HOUSING | ||
| M 22X90 | ||
| 044 | N 000960022050 | SCREW |
| SUPPORTING ARM TO BELL HOUSING | ||
| M 22X95 | ||
| 044 | N 000961018041 | SCREW |
| Repalced by: N 308676018001 | ||
| 044 | N 308676018001 | SCREW |
| SUPPORTING ARM TO BELL HOUSING | ||
| M 18X45 | ||
| 047 | A 6209900040 | WASHER |
| SUPPORTING ARM TO BELL HOUSING | ||
| 047 | A 6529900040 | WASHER |
| SUPPORTING ARM TO BELL HOUSING | ||
| 050 | A 6452400018 | RUBBER MOUNTING |
| REAR | ||
| 050 | A 6452400118 | RUBBER MOUNTING |
| REAR | ||
| 050 | A 6452400218 | RUBBER MOUNTING |
| REAR | ||
| 050 | A 6162400618 | RUBBER MOUNTING |
| REAR | ||
| 050 | A 6162400718 | RUBBER MOUNTING |
| REAR | ||
| 050 | A 6162400818 | RUBBER MOUNTING |
| REAR | ||
| 050 | A 6522400018 | RUBBER MOUNTING |
| Repalced by: A 6522400318 | ||
| 050 | A 6522400118 | RUBBER MOUNTING |
| Repalced by: A 6522400318 | ||
| 050 | A 6522400318 | RUBBER MOUNTING |
| REAR | ||
| 050 | A 6452400318 | RUBBER MOUNTING |
| REAR | ||
| 050 | A 6452400418 | RUBBER MOUNTING |
| REAR | ||
| 050 | A 6452400518 | RUBBER MOUNTING |
| REAR | ||
| 053 | A 3832420034 | SCREENING PLATE |
| REAR RUBBER MOUNTING | ||
| 053 | A 6202420034 | SCREENING PLATE |
| REAR RUBBER MOUNTING | ||
| 056 | N 000960016171 | SCREW |
| RUBBER MOUNTING TO SUPPORTING ARM | ||
| 056 | N 000960016105 | SCREW |
| RUBBER MOUNTING TO SUPPORTING ARM | ||
| 056 | N 000960018013 | SCREW |
| Repalced by: N 000960018109 | ||
| 056 | N 000960018109 | SCREW |
| Repalced by: N 308676018009 | ||
| 056 | N 308676018009 | SCREW |
| RUBBER MOUNTING TO SUPPORTING ARM | ||
| 056 | N 000961016039 | SCREW |
| RUBBER MOUNTING TO SUPPORTING ARM | ||
| 059 | A 3529902440 | WASHER |
| RUBBER MOUNTING TO SUPPORTING ARM | ||
| 059 | A 6209900040 | WASHER |
| RUBBER MOUNTING TO SUPPORTING ARM | ||
| 062 | A 3962420002 | SUPPORT |
| REAR RUBBER MOUNTING | ||
| 065 | A 6172420032 | REINFORCEMENT |
| SUPPORT TO SIDE MEMBER | ||
| 068 | N 000961014088 | SCREW |
| Repalced by: N 308676014008 | ||
| 068 | N 308676014008 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 14X35 | ||
| 068 | N 000961014119 | SCREW |
| Repalced by: A 9429901304 | ||
| 068 | A 9429901304 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 14X38 | ||
| 068 | N 000961014131 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 14X48 | ||
| 068 | N 000961014130 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 14X42 | ||
| 071 | A 3609901840 | WASHER |
| SUPPORT TO SIDE MEMBER | ||
| 074 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 074 | N 910113014000 | NUT |
| SUPPORT TO SIDE MEMBER | ||
| 077 | N 910005010016 | RIVET |
| REINFORCEMENT TO SIDE MEMBER | ||
| 077 | N 910005012080 | RIVET |
| REINFORCEMENT TO SIDE MEMBER | ||
| 080 | N 000961012097 | SCREW |
| Repalced by: N 308676012026 | ||
| 080 | N 308676012026 | SCREW |
| RUBBER MOUNTING TO SUPPORT | ||
| M 12X35 | ||
| 080 | N 000961012151 | SCREW |
| RUBBER MOUNTING TO SUPPORT | ||
| M 12X30 | ||
| 080 | N 000961014050 | SCREW |
| Repalced by: N 308676014020 | ||
| 080 | N 308676014020 | SCREW |
| RUBBER MOUNTING TO SUPPORT | ||
| M 14X35 | ||
| 080 | N 000961014027 | SCREW |
| RUBBER MOUNTING TO SUPPORT | ||
| M 14X30 | ||
| 083 | N 000125013008 | WASHER |
| 083 | N 000125015013 | WASHER |
| Repalced by: N 000125015019 | ||
| 083 | N 000125015019 | WASHER |
| RUBBER MOUNTING TO SUPPORT | ||
| 086 | A 6503100051 | CONSOLE |
| CROSS MEMBER,LEFT | ||
| 086 | A 6503100251 | CONSOLE |
| CROSS MEMBER,LEFT | ||
| 086 | A 6503100151 | CONSOLE |
| CROSS MEMBER,RIGHT | ||
| 086 | A 6503100351 | CONSOLE |
| CROSS MEMBER,RIGHT | ||
| 089 | N 000961014063 | SCREW |
| Repalced by: A 9429901304 | ||
| 089 | A 9429901304 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| 092 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 092 | N 910113014000 | NUT |
| CONSOLE TO SIDE MEMBER | ||

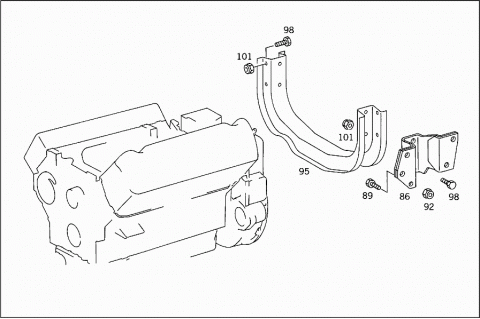

| 095 | A 6163120510 | CROSS MEMBER |
| ENGINE | ||
| 098 | N 000961012190 | SCREW |
| Repalced by: N 308676012012 | ||
| 098 | N 308676012012 | HEXAGON HEAD BOLT |
| ENGINE REAR CROSS MEMBER TO CONSOLE | ||
| 101 | N 913004012009 | NUT |
| Repalced by: N 910113012003 | ||
| 101 | N 910113012003 | NUT |
| ENGINE REAR CROSS MEMBER TO CONSOLE | ||
