Transporto priemonė: 1733 S,1834 S,2433 S,; VIN numerio dalis: 652163

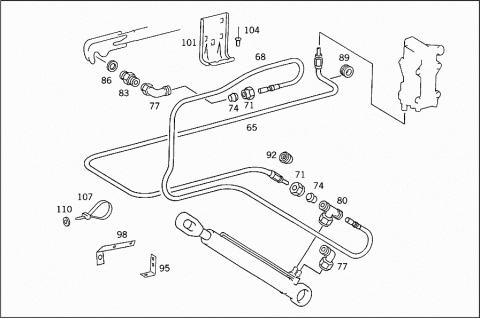

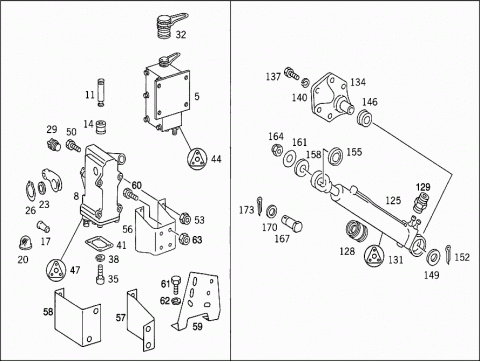

Grupė: 55 HYDRAULIC SYSTEM - 030 HYDRAULIC SYSTEM USED FOR CAB TILTING
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 0005536901 | PUMP |
| Repalced by: A 0005537901 | ||
| 005 | A 0005537901 | PUMP |
| (HAND PUMP) | ||
| WEBER | ||
| 005 | A 0005536501 | PUMP |
| (HAND PUMP) | ||
| POWER PACKER | ||
| 008 | A 0005537901 | PUMP |
| (HAND PUMP) | ||
| WEBER,TO 000 553 79 01 | ||
| 008 | A 0005538901 | PUMP |
| (HAND PUMP) | ||
| WEBER | ||
| 008 | A 0005536801 | PUMP |
| Repalced by: A 0005537901 | ||
| 008 | A 0005537901 | PUMP |
| (HAND PUMP) | ||
| WEBER,TO 000 553 79 01 | ||
| 011 | A 0005531890 | PISTON |
| WEBER,TO 000 553 79 01 | ||
| 011 | A 0005532590 | PISTON |
| WEBER,TO 000 553 89 01 | ||
| 014 | A 0005504655 | VALVE |
| WEBER,TO 000 553 89 01 | ||
| 014 | A 0005503455 | VALVE |
| WEBER,TO 000 553 79 01 | ||
| 014 | A 0005504655 | VALVE |
| WEBER,TO 000 553 89 01 | ||
| 017 | A 0005530403 | FILTER |
| WEBER | ||
| 020 | A 0005531203 | FILTER |
| WEBER | ||
| 023 | N 000988020011 | FITTED WASHER |
| WEBER | ||
| 026 | N 000471020001 | LOCK RING |
| WEBER,HUNGER | ||
| 029 | A 0009901610 | SCREW |
| OIL FILLING | ||
| WEBER | ||
| 029 | A 0009901510 | SCREW |
| OIL FILLING | ||
| HUNGER | ||
| 032 | A 0005530171 | SCREW |
| OIL FILLING | ||
| POWER PACKER | ||
| 035 | N 000912008111 | SCREW |
| Repalced by: N 000000000190 | ||
| 035 | N 000000000190 | SCREW |
| BOX COVER | ||
| WEBER | ||
| 035 | N 000912008114 | SCREW |
| Repalced by: N 000912008201 | ||
| 035 | N 000912008201 | SCREW |
| BOX COVER | ||
| HUNGER | ||
| 038 | N 912004008102 | LOCK WASHER |
| BOX COVER | ||
| WEBER | ||
| 041 | A 0005531280 | GASKET |
| HUNGER | ||
| 044 | A 0005502355 | REPAIR KIT |
| POWER PACKER | ||
| 047 | A 0005502783 | GASKET KIT |
| HAND PUMP | ||
| WEBER | ||
| 047 | A 0005502983 | GASKET KIT |
| HAND PUMP | ||
| HUNGER | ||
| 050 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 050 | N 304017010002 | SCREW |
| HAND PUMP TO BRACKET | ||
| 053 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 053 | N 910113010000 | NUT |
| HAND PUMP TO BRACKET | ||
| 056 | A 3875531540 | BRACKET |
| HAND PUMP | ||
| 056 | A 6525530540 | BRACKET |
| HAND PUMP | ||
| 057 | A 6525530340 | BRACKET |
| HAND PUMP | ||
| A 6525530440 | BRACKET | |
| HAND PUMP | ||
| 058 | A 6525530840 | BRACKET |
| HAND PUMP | ||
| 059 | A 3875531140 | BRACKET |
| HAND PUMP | ||
| 060 | N 000961014050 | SCREW |
| Repalced by: N 308676014020 | ||
| 060 | N 308676014020 | SCREW |
| BRACKET TO FRAME | ||
| M 14X35 | ||
| 060 | N 000961014028 | SCREW |
| BRACKET TO FRAME | ||
| M 14X40 | ||
| N 000933008160 | SCREW | |
| Repalced by: N 304017008040 | ||
| N 304017008040 | SCREW | |
| Repalced by: N 910105008010 | ||
| N 910105008010 | HEXAGON HEAD BOLT | |
| Repalced by: N 910143008005 | ||
| 061 | N 910143008005 | SCREW |
| MANUAL PUMP BRACKET TO FENDER BRACKET | ||
| 062 | N 912004008102 | LOCK WASHER |
| MANUAL PUMP BRACKET TO FENDER BRACKET | ||
| 063 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 063 | N 910113014001 | NUT |
| BRACKET TO FRAME | ||
| 065 | A 6205530182 | HOSE |
| Repalced by: A 6555530582 | ||
| 065 | A 6555530582 | HOSE |
| FROM HAND PUMP TO HYDRAULIC CYLINDER | ||
| 065 | A 6555530582 | HOSE |
| FROM HAND PUMP TO HYDRAULIC CYLINDER | ||
| 065 | A 6555530582 | HOSE |
| FROM HAND PUMP TO HYDRAULIC CYLINDER | ||
| 065 | A 6555530082 | HOSE |
| FROM HAND PUMP TO HYDRAULIC CYLINDER | ||
| 065 | A 6555530082 | HOSE |
| FROM HAND PUMP TO HYDRAULIC CYLINDER | ||
| 065 | A 6155530082 | HOSE |
| FROM HAND PUMP TO HYDRAULIC CYLINDER | ||
| 065 | A 6205530382 | HOSE |
| FROM HYDRAUL.CYLINDER TO TRANSMISSIONSHIFTING-ROD PAWL | ||
| 065 | A 3875530382 | HOSE |
| FROM HYDRAUL.CYLINDER TO TRANSMISSIONSHIFTING-ROD PAWL | ||
| 068 | A 6565530482 | HOSE |
| Repalced by: A 6565500159 | ||
| 068 | A 6565500159 | HOSE |
| FROM HYDRAUL.CYLINDER TO TRANSMISSIONSHIFTING-ROD PAWL | ||
| 068 | A 6565500159 | HOSE |
| FROM HYDRAUL.CYLINDER TO TRANSMISSIONSHIFTING-ROD PAWL | ||
| 071 | N 915017006100 | UNION NUT |
| HIGH PRESSURE HOSE TO HAND PUMP AND TO HYDRAULIC CYLINDER | ||
| 074 | N 003861006007 | CUTTING RING |
| Repalced by: A 0019901667 | ||
| 074 | A 0019901667 | SEAL CONE |
| HIGH PRESSURE HOSE TO HAND PUMP AND TO HYDRAULIC CYLINDER | ||
| 077 | A 0019909871 | ELBOW FITTING |
| HIGH PRESSURE HOSE TO HYDRAULIC CYLINDER | ||
| 077 | A 0019909871 | ELBOW FITTING |
| HOSE TO TRANSMISSION-SHIFT ROD SHIFTING CYLINDER | ||
| 077 | A 0019909871 | ELBOW FITTING |
| HIGH PRESSURE HOSE TO HAND PUMP | ||
| 080 | N 003953006101 | FITTING |
| HAND PUMP HOSE & TRANSMISSION SHIFTING ROD TO CYLINDER | ||
| 083 | N 003901006004 | FITTING |
| Repalced by: A 0029978472 | ||
| 083 | A 0029978472 | FITTING |
| HIGH PRESSURE HOSE TO POWER CYLINDER | ||
| 086 | N 007603010404 | SEAL RING |
| HIGH PRESSURE HOSE TO POWER CYLINDER | ||
| 089 | A 6209970781 | GROMMET |
| HIGH PRESSURE HOSE THRU FRAME | ||
| 089 | A 6209970781 | GROMMET |
| HIGH PRESSURE HOSE THRU FRAME | ||
| 092 | A 1109870039 | RUBBER BUFFER |
| HIGH PRESSURE HOSE THRU CONNECTING PLATE | ||
| 095 | A 3604292440 | BRACKET |
| Repalced by: A 3604292940 | ||
| 095 | A 3604292940 | BRACKET |
| HIGH PRESSURE HOSE TO FRAME | ||
| 098 | A 6205530440 | BRACKET |
| 101 | A 3816820186 | BRACKET |
| A 6155530140 | BRACKET | |
| Repalced by: A 3872950240 | ||
| A 3872950240 | BRACKET | |
| HIGH PRESSURE HOSE TO FENDER BRACKET | ||
| 104 | N 910002004132 | RIVET |
| 107 | A 0019978390 | LOOM TIE |
| HIGH PRESSURE HOSE | ||
| 280 MM | ||
| 107 | A 0019978490 | LOOM TIE |
| HIGH PRESSURE HOSE | ||
| 376 MM | ||
| 110 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 110 | N 000125008443 | WASHER |
| HIGH PRESSURE HOSE | ||
| 125 | A 0015531705 | CYLINDER |
| Repalced by: A 0015539505 | ||
| 125 | A 0015539505 | CYLINDER |
| Repalced by: A 0015533505 | ||
| 125 | A 0015533505 | CYLINDER |
| HYDRAULIC SYSTEM USED FOR CAB TILTING | ||
| POWER PACKER | ||
| 125 | A 0015533505 | CYLINDER |
| HYDRAULIC SYSTEM USED FOR CAB TILTING | ||
| POWER PACKER | ||
| 125 | A 0015533505 | CYLINDER |
| HYDRAULIC SYSTEM USED FOR CAB TILTING | ||
| WEBER | ||
| 125 | A 0015533505 | CYLINDER |
| HYDRAULIC SYSTEM USED FOR CAB TILTING | ||
| WEBER | ||
| 125 | A 0015530905 | CYLINDER |
| HYDRAULIC SYSTEM USED FOR CAB TILTING | ||
| POWER PACKER | ||
| 125 | A 0015534205 | CYLINDER |
| HYDRAULIC SYSTEM USED FOR CAB TILTING | ||
| WEBER | ||
| 125 | A 0015536205 | CYLINDER |
| HYDRAULIC SYSTEM USED FOR CAB TILTING | ||
| WEBER | ||
| 125 | A 0015536405 | CYLINDER |
| HYDRAULIC SYSTEM USED FOR CAB TILTING | ||
| POWER PACKER | ||
| 125 | A 0005537305 | CYLINDER |
| Repalced by: A 0015534205 | ||
| 125 | A 0015534205 | CYLINDER |
| HYDRAULIC SYSTEM USED FOR CAB TILTING | ||
| HUNGER | ||
| 128 | A 0005531428 | GUIDE |
| WEBER,TO 001 553 35 05,001 553 62 05 | ||
| 128 | A 0005531428 | GUIDE |
| WEBER,TO 001 553 35 05,001 553 62 05 | ||
| 129 | A 0005530368 | FITTING |
| WEBER,TO 001 553 35 05 | ||
| 129 | A 0005530368 | FITTING |
| WEBER,TO 001 553 35 05 | ||
| 129 | A 0005530468 | FITTING |
| WEBER,TO 001 553 42 05 | ||
| 131 | A 0005500235 | GASKET KIT |
| HYDRAULIC CYLINDER | ||
| POWER PACKER,TO 001 553 17 05 | ||
| 131 | A 0005500235 | GUIDE |
| HYDRAULIC CYLINDER | ||
| 001 553 64 05 POWER PACKER,TO 001 553 | ||
| 131 | A 0005501407 | GASKET KIT |
| HYDRAULIC CYLINDER | ||
| WEBER,TO 001 553 35 05,001 553 62 05 | ||
| 131 | A 0005501407 | CYLINDER |
| HYDRAULIC CYLINDER | ||
| WEBER,TO 001 553 35 05,001 553 62 05 | ||
| 131 | A 0005501735 | GASKET KIT |
| HYDRAULIC CYLINDER | ||
| POWER PACKER,TO 001 553 09 05 | ||
| 131 | A 0015535105 | GASKET KIT |
| Repalced by: A 0015535005 | ||
| 131 | A 0015535005 | GASKET KIT |
| HYDRAULIC CYLINDER | ||
| WEBER,TO 001 553 42 05 | ||
| 131 | A 0005501907 | GASKET KIT |
| HYDRAULIC CYLINDER | ||
| HUNGER, TO 000 553 73 05 | ||
| 134 | A 3835530338 | BEARING BRACKET |
| HYDRAULIC CYLINDER | ||
| 134 | A 3835530338 | BEARING BRACKET |
| HYDRAULIC CYLINDER | ||
| 134 | A 3835530438 | BEARING BRACKET |
| HYDRAULIC CYLINDER | ||
| 137 | N 308676012012 | HEXAGON HEAD BOLT |
| BEARING BRACKET TO FRAME | ||
| 137 | N 308676012012 | HEXAGON HEAD BOLT |
| BEARING BRACKET TO FRAME | ||
| 137 | N 308676014004 | SCREW |
| BEARING BRACKET TO FRAME | ||
| M 14X25 | ||
| 137 | N 308676014004 | SCREW |
| BEARING BRACKET TO FRAME | ||
| M 14X25 | ||
| 137 | N 308676014004 | SCREW |
| BEARING BRACKET TO FRAME | ||
| M 14X25 | ||
| 137 | N 000961014008 | SCREW |
| Repalced by: N 308676014003 | ||
| 137 | N 308676014003 | SCREW |
| BEARING BRACKET TO FRAME | ||
| M 14X30 | ||
| 140 | N 912004014100 | LOCK WASHER |
| BEARING BRACKET TO FRAME | ||
| 146 | A 6208910417 | BUSHING |
| HYDRAULIC CYLINDER TO BEARING BRACKET | ||
| 149 | A 6205530176 | WASHER |
| HYDRAULIC CYLINDER TO BEARING BRACKET | ||
| 152 | N 000094006327 | COTTER PIN |
| HYDRAULIC CYLINDER TO BEARING BRACKET | ||
| 155 | A 3875530276 | WASHER |
| HYDRAULIC CYLINDER TO CAB | ||
| 155 | A 3875530276 | WASHER |
| HYDRAULIC CYLINDER TO CAB | ||
| 158 | A 3875530076 | WASHER |
| HYDRAULIC CYLINDER TO CAB | ||
| 158 | A 3875530076 | WASHER |
| HYDRAULIC CYLINDER TO CAB | ||
| 161 | A 3875530376 | WASHER |
| HYDRAULIC CYLINDER TO CAB | ||
| 161 | A 3875530376 | WASHER |
| HYDRAULIC CYLINDER TO CAB | ||
| 164 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 164 | N 910113016002 | NUT |
| HYDRAULIC CYLINDER TO CAB | ||
| 164 | N 910113016002 | NUT |
| HYDRAULIC CYLINDER TO CAB | ||
| 167 | N 001444020201 | PIN |
| HYDRAULIC CYLINDER TO ROCKER ARM | ||
| 170 | N 000125021006 | WASHER |
| HYDRAULIC CYLINDER TO ROCKER ARM | ||
| 173 | N 000094005044 | COTTER PIN |
| HYDRAULIC CYLINDER TO ROCKER ARM | ||
