Transporto priemonė: 1733 S,1834 S,2433 S,; VIN numerio dalis: 652163

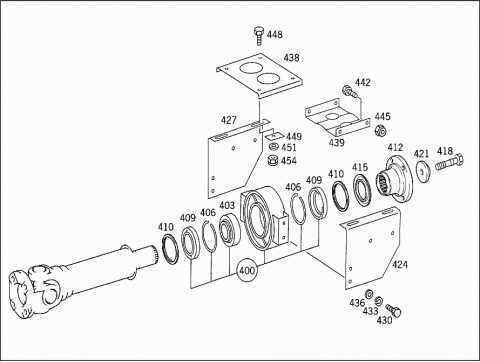

Grupė: 41 PROPELLER SHAFT
| # | Kodas | Pavadinimas |
|---|---|---|
| 100 | A 3004101202 | PROPELLER SHAFT |
| FROM TRANSMISSION TO TRANSFER CASE | ||
| 515 MM | ||
| 115 | A 6504110111 | DRIVE FLANGE |
| Repalced by: A 6504110411 | ||
| 115 | A 6504110411 | DRIVE FLANGE |
| 118 | A 3814100231 | UNIVERSAL JOINT CROSS |
| Repalced by: A 9734100031 | ||
| 118 | A 9734100031 | UNIVERSAL JOINT CROSS |
| MAINTENANCE-FREE | ||
| 121 | N 071412008302 | GREASE NIPPLE |
| 124 | A 0069940641 | LOCK |
| AS REQUIRED | ||
| 1.65 MM | ||
| 124 | A 0069940841 | LOCK |
| AS REQUIRED | ||
| 1.70 MM | ||
| 124 | A 0069941241 | LOCK |
| AS REQUIRED | ||
| 1.80 MM | ||
| 124 | A 0069941441 | LOCK |
| AS REQUIRED | ||
| 1.85 MM | ||
| 127 | A 3854110059 | SEAL RING |
| PROTECTIVE TUBE | ||
| 130 | N 071412008101 | GREASE NIPPLE |
| Repalced by: N 071412008102 | ||
| 130 | N 071412008102 | GREASE NIPPLE |
| 139 | A 3609902901 | SCREW |
| Repalced by: A 3609903101 | ||
| 139 | A 3609903101 | SCREW |
| PROPELLER SHAFT TO TRANSMISSION AND TO TRANSFER CASE | ||
| 142 | N 912004012100 | LOCK WASHER |
| PROPELLER SHAFT TO TRANSMISSION AND TO TRANSFER CASE | ||
| 145 | N 000934012034 | NUT |
| PROPELLER SHAFT TO TRANSMISSION AND TO TRANSFER CASE | ||
| 200 | A 6504101402 | PROPELLER SHAFT |
| Repalced by: A 9734101702 | ||
| 200 | A 9734101702 | PROPELLER SHAFT |
| FROM TRANSFER CASE TO FRONT AXLE | ||
| 1130 MM | ||
| 215 | A 6504110111 | DRIVE FLANGE |
| Repalced by: A 6504110411 | ||
| 215 | A 6504110411 | DRIVE FLANGE |
| 218 | A 3814100231 | UNIVERSAL JOINT CROSS |
| Repalced by: A 9734100031 | ||
| 218 | A 9734100031 | UNIVERSAL JOINT CROSS |
| MAINTENANCE-FREE | ||
| 221 | N 071412008302 | GREASE NIPPLE |
| 224 | A 0069940641 | LOCK |
| AS REQUIRED | ||
| 1.65 MM | ||
| 224 | A 0069940841 | LOCK |
| AS REQUIRED | ||
| 1.70 MM | ||
| 224 | A 0069941241 | LOCK |
| AS REQUIRED | ||
| 1.80 MM | ||
| 224 | A 0069941441 | LOCK |
| AS REQUIRED | ||
| 1.85 MM | ||
| 227 | A 3854110059 | SEAL RING |
| PROTECTIVE TUBE | ||
| 230 | N 071412008101 | GREASE NIPPLE |
| Repalced by: N 071412008102 | ||
| 230 | N 071412008102 | GREASE NIPPLE |
| 239 | A 3609902901 | SCREW |
| Repalced by: A 3609903101 | ||
| 239 | A 3609903101 | SCREW |
| PROPELLER SHAFT TO TRANSFER CASE AND TO FRONT AXLE | ||
| 242 | N 912004012100 | LOCK WASHER |
| PROPELLER SHAFT TO TRANSFER CASE AND TO FRONT AXLE | ||
| 245 | N 000934012034 | NUT |
| PROPELLER SHAFT TO TRANSFER CASE AND TO FRONT AXLE | ||
| 300 | A 6544100004 | PROPELLER SHAFT |
| Repalced by: A 6544102504 | ||
| 300 | A 6544102504 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING | ||
| 1364 MM | ||
| 300 | A 6544100104 | PROPELLER SHAFT |
| Repalced by: A 6544102104 | ||
| 300 | A 6544102104 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING | ||
| 1573 MM | ||
| 300 | A 3954104304 | PROPELLER SHAFT |
| Repalced by: A 6554100704 | ||
| 300 | A 6554100704 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING | ||
| 1455 MM | ||
| 300 | A 3954105104 | PROPELLER SHAFT |
| Repalced by: A 6554101804 | ||
| 300 | A 6554101804 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING | ||
| 1735 MM | ||
| 300 | A 3954103604 | PROPELLER SHAFT |
| Repalced by: A 3954109702 | ||
| 300 | A 3954103604 | PROPELLER SHAFT |
| Repalced by: A 3954106402 | ||
| 304 | A 3954104604 | PROPELLER SHAFT |
| Repalced by: A 6554100504 | ||
| 304 | A 6554100504 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING I TO INTERMEDIATE BEARING II | ||
| 1176 MM | ||
| 315 | A 6544110011 | DRIVE FLANGE |
| Repalced by: A 6544110311 | ||
| 315 | A 6544110311 | DRIVE FLANGE |
| 315 | A 3954110911 | DRIVE FLANGE |
| Repalced by: A 3954111011 | ||
| 315 | A 3954111011 | DRIVE FLANGE |
| Repalced by: A 3954111211 | ||
| 315 | A 3954111211 | DRIVE FLANGE |
| 315 | A 3954111211 | DRIVE FLANGE |
| 318 | A 0004100231 | UNIVERSAL JOINT CROSS |
| Repalced by: A 0004101628 | ||
| 318 | A 0004101628 | UNIVERSAL JOINT |
| Repalced by: A 9424100131 | ||
| 318 | A 9424100131 | UNIVERSAL JOINT CROSS |
| MAINTENANCE-FREE | ||
| 318 | A 6204100031 | UNIVERSAL JOINT CROSS |
| Repalced by: A 9404100031 | ||
| 318 | A 9404100031 | UNIVERSAL JOINT CROSS |
| WITH BUSHINGS | ||
| 318 | A 9404100031 | UNIVERSAL JOINT CROSS |
| WITH BUSHINGS | ||
| 321 | N 071412008302 | GREASE NIPPLE |
| 321 | N 071412008302 | GREASE NIPPLE |
| 324 | A 0069941941 | LOCK |
| AS REQUIRED | ||
| 2.00 MM | ||
| 324 | A 0069942341 | LOCK |
| AS REQUIRED | ||
| 2.10 MM | ||
| 324 | A 0069942741 | LOCK |
| AS REQUIRED | ||
| 2.20 MM | ||
| 324 | A 0069943141 | LOCK |
| AS REQUIRED | ||
| 2.00 MM | ||
| 324 | A 0069943141 | LOCK |
| AS REQUIRED | ||
| 2.00 MM | ||
| 324 | A 0069943541 | LOCK |
| AS REQUIRED | ||
| 2.10 MM | ||
| 324 | A 0069943541 | LOCK |
| AS REQUIRED | ||
| 2.10 MM | ||
| 324 | A 0069943941 | LOCK |
| AS REQUIRED | ||
| 2.20 MM | ||
| 324 | A 0069943941 | LOCK |
| AS REQUIRED | ||
| 2.20 MM | ||
| 336 | A 3894130161 | PROTECTIVE CAP |
| 336 | A 3894130361 | PROTECTIVE CAP |
| 336 | A 3894130061 | PROTECTIVE CAP |
| 336 | A 3894130061 | PROTECTIVE CAP |
| 336 | A 3954130061 | PROTECTIVE CAP |
| 336 | A 3954130061 | PROTECTIVE CAP |
| 339 | A 3609902901 | SCREW |
| Repalced by: A 3609903101 | ||
| 339 | A 3609903101 | SCREW |
| PROPELLER SHAFT TO TRANSMISSION | ||
| 339 | N 000960014237 | SCREW |
| PROPELLER SHAFT TO TRANSMISSION | ||
| 339 | N 000960014237 | SCREW |
| PROPELLER SHAFT TO TRANSMISSION | ||
| 339 | N 000960014237 | SCREW |
| PROPELLER SHAFT TO INTERMEDIATE BEARING | ||
| 342 | N 912004012100 | LOCK WASHER |
| PROPELLER SHAFT | ||
| 342 | N 912004014100 | LOCK WASHER |
| PROPELLER SHAFT | ||
| 324 | N 912004014100 | LOCK WASHER |
| PROPELLER SHAFT | ||
| 345 | N 000934012034 | NUT |
| PROPELLER SHAFT | ||
| 345 | N 000934014020 | NUT |
| PROPELLER SHAFT | ||
| 345 | N 000934014020 | NUT |
| PROPELLER SHAFT | ||
| 400 | A 3894100122 | INTERMEDIATE BEARING |
| Repalced by: A 3894100222 | ||
| 400 | A 3894100222 | INTERMEDIATE BEARING |
| Repalced by: A 6544100022 | ||
| 400 | A 6544100022 | INTERMEDIATE BEARING |
| PROPELLER SHAFT | ||
| 400 | A 3954100022 | INTERMEDIATE BEARING |
| Repalced by: A 3954100622 | ||
| 400 | A 3954100622 | INTERMEDIATE BEARING |
| Repalced by: A 6554100022 | ||
| 400 | A 6554100022 | INTERMEDIATE BEARING |
| PROPELLER SHAFT | ||
| 400 | A 6554100022 | INTERMEDIATE BEARING |
| PROPELLER SHAFT | ||
| 403 | A 0029819625 | BALL BEARING |
| 403 | A 0029819725 | BALL BEARING |
| 403 | A 0029819225 | BALL BEARING |
| 403 | A 0029819225 | BALL BEARING |
| 403 | A 0029819325 | BALL BEARING |
| 403 | A 0029819325 | BALL BEARING |
| 406 | N 912009110200 | SNAP RING |
| 406 | N 912009110200 | SNAP RING |
| 406 | N 912009110200 | SNAP RING |
| 409 | A 3894130261 | PROTECTIVE CAP |
| 409 | A 3874130261 | PROTECTIVE CAP |
| 409 | A 3874130261 | PROTECTIVE CAP |
| 410 | A 6554110052 | SPACER WASHER |
| PROPELLER SHAFT BEARING | ||
| 410 | A 6544110052 | SPACER WASHER |
| PROPELLER SHAFT BEARING | ||
| 412 | A 6544100030 | CENTERING FLANGE |
| Repalced by: A 6544110045 | ||
| 412 | A 6544110045 | FLANGE |
| PROPELLER SHAFT BEARING | ||
| 412 | A 6454100030 | CENTERING FLANGE |
| Repalced by: A 6454110046 | ||
| 412 | A 6454110046 | FLANGE |
| PROPELLER SHAFT BEARING | ||
| 412 | A 6454110046 | FLANGE |
| PROPELLER SHAFT BEARING | ||
| 415 | A 3894130161 | PROTECTIVE CAP |
| 415 | A 3894130361 | PROTECTIVE CAP |
| 415 | A 3894130061 | PROTECTIVE CAP |
| 415 | A 3894130061 | PROTECTIVE CAP |
| 415 | A 3954130061 | PROTECTIVE CAP |
| 415 | A 3954130061 | PROTECTIVE CAP |
| 418 | A 3839900019 | SCREW |
| FOLLOWER FLANGE TO PROPELLER SHAFT | ||
| 418 | A 3899900019 | SCREW |
| FOLLOWER FLANGE TO PROPELLER SHAFT | ||
| 418 | A 3899900019 | SCREW |
| FOLLOWER FLANGE TO PROPELLER SHAFT | ||
| 421 | A 3894110162 | THRUST WASHER |
| FOLLOWER FLANGE TO PROPELLER SHAFT | ||
| 421 | A 3894110062 | THRUST WASHER |
| FOLLOWER FLANGE TO PROPELLER SHAFT | ||
| 421 | A 3894110062 | THRUST WASHER |
| FOLLOWER FLANGE TO PROPELLER SHAFT | ||
| 424 | A 6174131242 | BRACKET |
| PROPELLER SHAFT BEARING,LEFT | ||
| 424 | A 6174131242 | BRACKET |
| PROPELLER SHAFT BEARING I,LEFT | ||
| 424 | A 6174131342 | BRACKET |
| PROPELLER SHAFT BEARING,LEFT | ||
| 424 | A 6174132342 | BRACKET |
| PROPELLER SHAFT BEARING,LEFT | ||
| 424 | A 6174132642 | BRACKET |
| PROPELLER SHAFT BEARING II,LEFT | ||
| 424 | A 6524130042 | BRACKET |
| PROPELLER SHAFT BEARING,LEFT | ||
| 427 | A 6174131142 | BRACKET |
| PROPELLER SHAFT BEARING,RIGHT | ||
| 427 | A 6174131142 | BRACKET |
| PROPELLER SHAFT BEARING I,RIGHT | ||
| 427 | A 6174131442 | BRACKET |
| PROPELLER SHAFT BEARING,RIGHT | ||
| 427 | A 6174132442 | BRACKET |
| PROPELLER SHAFT BEARING,RIGHT | ||
| 427 | A 6174132542 | BRACKET |
| PROPELLER SHAFT BEARING II,RIGHT | ||
| 427 | A 6524130142 | BRACKET |
| PROPELLER SHAFT BEARING,RIGHT | ||
| 430 | N 000961012094 | SCREW |
| Repalced by: N 308676012013 | ||
| 430 | N 308676012013 | HEXAGON HEAD BOLT |
| Repalced by: A 0029902704 | ||
| 430 | A 0029902704 | SCREW |
| BRACKET TO PROPELLER SHAFT BEARING HOUSING | ||
| M 12X30 | ||
| 430 | A 0029902704 | SCREW |
| BRACKET TO PROPELLER SHAFT BEARING HOUSING | ||
| M 12X30 | ||
| 433 | N 912004012100 | LOCK WASHER |
| BRACKET TO PROPELLER SHAFT BEARING HOUSING | ||
| 433 | N 912004012100 | LOCK WASHER |
| BRACKET TO PROPELLER SHAFT BEARING HOUSING | ||
| 436 | A 3299900040 | DISK |
| Repalced by: A 1232420366 | ||
| 436 | A 1232420366 | WASHER |
| BRACKET TO PROPELLER SHAFT BEARING HOUSING | ||
| 436 | A 1232420366 | WASHER |
| BRACKET TO PROPELLER SHAFT BEARING HOUSING | ||
| 438 | A 3854130011 | REINFORCEMENT |
| PROPELLER SHAFT BEARING | ||
| 439 | A 3954130011 | REINFORCEMENT |
| PROPELLER SHAFT BEARING | ||
| 442 | N 000961012094 | SCREW |
| Repalced by: N 308676012013 | ||
| 442 | N 308676012013 | HEXAGON HEAD BOLT |
| REINFORCEMENT TO BRACKET | ||
| 445 | N 913004012009 | NUT |
| Repalced by: N 910113012003 | ||
| 445 | N 910113012003 | NUT |
| REINFORCEMENT TO BRACKET | ||
| 448 | N 000961012106 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| 448 | N 000960010026 | SCREW |
| Repalced by: N 000961010031 | ||
| 448 | N 000961010031 | SCREW |
| Repalced by: N 308676010023 | ||
| 448 | N 308676010023 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| 449 | A 3854130111 | REINFORCEMENT |
| BRACKET TO CROSS MEMBER | ||
| 451 | A 6739900640 | WASHER |
| Repalced by: A 3879900040 | ||
| 451 | A 3879900040 | WASHER |
| Repalced by: N 007349013003 | ||
| 451 | N 007349013005 | WASHER |
| BRACKET TO CROSS MEMBER | ||
| 451 | N 007349010003 | WASHER |
| Repalced by: N 007349010007 | ||
| 451 | N 007349010007 | WASHER |
| BRACKET TO CROSS MEMBER | ||
| 454 | N 913004012009 | NUT |
| Repalced by: N 910113012003 | ||
| 454 | N 910113012003 | NUT |
| BRACKET TO CROSS MEMBER | ||
| 454 | N 913002010010 | NUT |
| BRACKET TO CROSS MEMBER | ||
| 500 | A 6544100402 | PROPELLER SHAFT |
| Repalced by: A 6544103702 | ||
| 500 | A 6544103702 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING TO REAR AXLE | ||
| 1443 MM | ||
| 500 | A 6544100202 | PROPELLER SHAFT |
| Repalced by: A 6544107702 | ||
| 500 | A 6544107702 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING TO REAR AXLE | ||
| 1723 MM | ||
| 500 | A 6544100502 | PROPELLER SHAFT |
| Repalced by: A 6544104702 | ||
| 500 | A 6544104702 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING TO REAR AXLE | ||
| 1939 MM | ||
| 500 | A 3954107802 | PROPELLER SHAFT |
| Repalced by: A 6554104002 | ||
| 500 | A 6554104002 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING TO REAR AXLE | ||
| 1467 MM | ||
| 500 | A 3954107802 | PROPELLER SHAFT |
| Repalced by: A 3954106402 | ||
| 500 | A 3954106502 | PROPELLER SHAFT |
| Repalced by: A 6554101002 | ||
| 500 | A 6554101002 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING TO REAR AXLE | ||
| 1798 MM | ||
| 500 | A 3954107902 | PROPELLER SHAFT |
| Repalced by: A 6554100302 | ||
| 500 | A 6554100302 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING TO REAR AXLE | ||
| 1872 MM | ||
| 500 | A 3954107302 | PROPELLER SHAFT |
| Repalced by: A 6564100802 | ||
| 500 | A 6564100802 | PROPELLER SHAFT |
| Repalced by: A 6564106502 | ||
| 500 | A 6564106502 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING TO REAR AXLE | ||
| 1317 MM | ||
| 500 | A 3954106002 | PROPELLER SHAFT |
| Repalced by: A 3954109702 | ||
| 500 | A 6564100802 | PROPELLER SHAFT |
| Repalced by: A 6544107402 | ||
| 502 | A 6544107402 | PROPELLER SHAFT |
| FROM TRANSMISSION TO REAR AXLE | ||
| 2250 MM | ||
| 502 | A 6544101002 | PROPELLER SHAFT |
| Repalced by: A 6544106802 | ||
| 502 | A 6544106802 | PROPELLER SHAFT |
| FROM TRANSMISSION TO REAR AXLE | ||
| 1545 MM | ||
| 502 | A 6544100502 | PROPELLER SHAFT |
| Repalced by: A 6544104702 | ||
| 502 | A 6544104702 | PROPELLER SHAFT |
| FROM TRANSMISSION TO REAR AXLE | ||
| 1939 MM | ||
| 502 | A 3954106302 | PROPELLER SHAFT |
| Repalced by: A 6554100402 | ||
| 502 | A 6554100402 | PROPELLER SHAFT |
| FROM TRANSMISSION TO REAR AXLE | ||
| 1940 MM | ||
| 502 | A 3954105802 | PROPELLER SHAFT |
| Repalced by: A 6554101302 | ||
| 502 | A 6554101302 | PROPELLER SHAFT |
| FROM TRANSMISSION TO REAR AXLE | ||
| 1618 MM | ||
| 502 | A 3954109702 | PROPELLER SHAFT |
| Repalced by: A 6554103502 | ||
| 502 | A 6554103502 | PROPELLER SHAFT |
| FROM TRANSMISSION TO REAR AXLE | ||
| 1998 MM | ||
| 502 | A 3954106402 | PROPELLER SHAFT |
| Repalced by: A 6554103102 | ||
| 502 | A 6554103102 | PROPELLER SHAFT |
| FROM TRANSMISSION TO REAR AXLE | ||
| 2205 MM | ||
| 504 | A 6544100702 | PROPELLER SHAFT |
| Repalced by: A 6544102702 | ||
| 504 | A 6544102702 | PROPELLER SHAFT |
| Repalced by: A 6544105702 | ||
| 504 | A 6544105702 | PROPELLER SHAFT |
| FROM TRANSFER CASE TO REAR AXLE | ||
| 1189 MM | ||
| 515 | A 6544110011 | DRIVE FLANGE |
| Repalced by: A 6544110311 | ||
| 515 | A 6544110311 | DRIVE FLANGE |
| 515 | A 3954110911 | DRIVE FLANGE |
| Repalced by: A 3954111011 | ||
| 515 | A 3954111011 | DRIVE FLANGE |
| Repalced by: A 3954111211 | ||
| 515 | A 3954111211 | DRIVE FLANGE |
| 518 | A 0004100231 | UNIVERSAL JOINT CROSS |
| Repalced by: A 0004101628 | ||
| 518 | A 0004101628 | UNIVERSAL JOINT |
| Repalced by: A 9424100131 | ||
| 518 | A 9424100131 | UNIVERSAL JOINT CROSS |
| MAINTENANCE-FREE | ||
| 518 | A 6204100031 | UNIVERSAL JOINT CROSS |
| Repalced by: A 9404100031 | ||
| 518 | A 9404100031 | UNIVERSAL JOINT CROSS |
| WITH BUSHINGS | ||
| 521 | N 071412008302 | GREASE NIPPLE |
| 524 | A 0069941941 | LOCK |
| AS REQUIRED | ||
| 2.00 MM | ||
| 524 | A 0069942341 | LOCK |
| AS REQUIRED | ||
| 2.10 MM | ||
| 524 | A 0069942741 | LOCK |
| AS REQUIRED | ||
| 2.20 MM | ||
| 524 | A 0069943141 | LOCK |
| AS REQUIRED | ||
| 2.00 MM | ||
| 524 | A 0069943541 | LOCK |
| AS REQUIRED | ||
| 2.10 MM | ||
| 524 | A 0069943941 | LOCK |
| AS REQUIRED | ||
| 2.20 MM | ||
| 527 | A 3894110080 | GASKET |
| PROTECTIVE TUBE | ||
| 527 | A 3954110059 | SEAL RING |
| PROTECTIVE TUBE | ||
| 105X17 MM | ||
| 527 | A 0004110159 | SEAL RING |
| PROTECTIVE TUBE | ||
| 102.5X22 MM | ||
| 530 | N 071412008101 | GREASE NIPPLE |
| Repalced by: N 071412008102 | ||
| 530 | N 071412008102 | GREASE NIPPLE |
| 539 | A 3609902901 | SCREW |
| Repalced by: A 3609903101 | ||
| 539 | A 3609903101 | SCREW |
| PROPELLER SHAFT TO TRANSMISSION AND TO REAR AXLE | ||
| 539 | A 3609903101 | SCREW |
| PROPELLER SHAFT TO PROPELLER SHAFT BEARING AND TO REAR AXLE | ||
| 539 | A 3609903101 | SCREW |
| PROPELLER SHAFT TO TRANSFER CASE AND TO REAR AXLE | ||
| 539 | N 000960014237 | SCREW |
| PROPELLER SHAFT TO TRANSMISSION, INTERMEDIATE BEARING,AND REAR AXLE | ||
| 542 | N 912004012100 | LOCK WASHER |
| PROPELLER SHAFT | ||
| 542 | N 912004014100 | LOCK WASHER |
| PROPELLER SHAFT | ||
| 545 | N 000934012034 | NUT |
| PROPELLER SHAFT | ||
| 545 | N 000934014020 | NUT |
| PROPELLER SHAFT | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
