Transporto priemonė: 1735; VIN numerio dalis: 655027
Grupė: 49 EXHAUST SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| T YYYYYYYYYYYY | PART NAME MISSING | |
| FOR THE REMAINING PARTS,SEE ENGINE STANDARD VERSION | ||

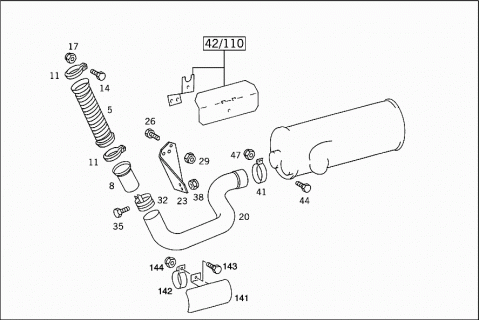

| 005 | A 6214900065 | FLEXIBLE METAL TUBE |
| FRONT LEFT AND RIGHT | ||
| 008 | A 6214920008 | COLLAR |
| FLEXIBLE METAL TUBE TO EXHAUST PIPE | ||
| 011 | A 6219970090 | CLAMP |
| FLEXIBLE METAL TUBE TO THROTTLE HOUSING AND TO COLLAR | ||
| 014 | N 000933008161 | SCREW |
| Repalced by: N 304017008028 | ||
| 014 | N 304017008028 | SCREW |
| FLEXIBLE METAL TUBE TO THROTTLE HOUSING AND TO COLLAR | ||
| 017 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 017 | N 913004008001 | NUT |
| FLEXIBLE METAL TUBE TO THROTTLE HOUSING AND TO COLLAR | ||
| 020 | A 6554900919 | EXHAUST PIPE |
| FRONT,REAR LEFT PART | ||
| 020 | A 6554904419 | EXHAUST PIPE |
| FRONT,REAR LEFT PART | ||
| 020 | A 6454900819 | EXHAUST PIPE |
| FRONT,REAR LEFT PART | ||
| 020 | A 6454901019 | EXHAUST PIPE |
| FRONT,REAR LEFT PART | ||
| 020 | A 6554901719 | EXHAUST PIPE |
| FRONT,REAR LEFT PART | ||
| 020 | A 6554904519 | EXHAUST PIPE |
| FRONT,REAR RIGHT PART | ||
| 020 | A 6554901019 | EXHAUST PIPE |
| FRONT,REAR RIGHT PART | ||
| 020 | A 6454900919 | EXHAUST PIPE |
| FRONT,REAR RIGHT PART | ||
| 020 | A 6454901119 | EXHAUST PIPE |
| FRONT,REAR RIGHT PART | ||
| 020 | A 6554901819 | EXHAUST PIPE |
| FRONT,REAR RIGHT PART | ||
| 023 | A 6204923441 | BRACKET |
| LEFT EXHAUST PIPE | ||
| 023 | A 6554920641 | BRACKET |
| LEFT EXHAUST PIPE | ||
| 023 | A 6204923541 | BRACKET |
| RIGHT EXHAUST PIPE | ||
| 023 | A 6554920741 | BRACKET |
| RIGHT EXHAUST PIPE | ||
| 026 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 026 | N 304017010002 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M 10X30 | ||
| 026 | N 000933010145 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M 10X35 | ||
| 026 | N 000933010094 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M 10X40 | ||
| 029 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 029 | N 910113010000 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 032 | A 6254920040 | CLAMP |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 035 | N 000933010094 | SCREW |
| FRONT EXHAUST PIPE TO BRACKET | ||
| M 10X40 | ||
| 035 | N 000933010328 | SCREW |
| FRONT EXHAUST PIPE TO BRACKET | ||
| M 10X45 | ||
| 038 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 038 | N 910113010000 | NUT |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 041 | N 071555104501 | CLAMP |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 044 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 044 | N 304017010002 | SCREW |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 047 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 047 | N 910113010000 | NUT |
| FRONT EXHAUST PIPE TO MUFFLER | ||

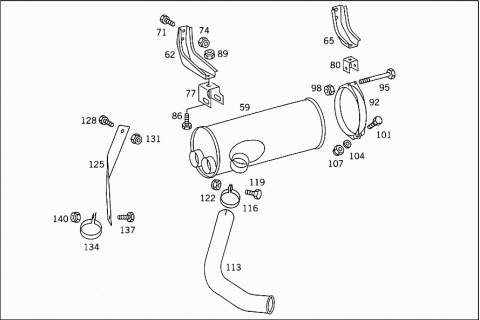

| 059 | A 6454902001 | EXHAUST MUFFLER |
| 059 | A 6454902101 | EXHAUST MUFFLER |
| 059 | A 6454902401 | EXHAUST MUFFLER |
| 062 | A 6204910215 | CONSOLE |
| EXHAUST MUFFLER,FRONT | ||
| 062 | A 6204910615 | CONSOLE |
| EXHAUST MUFFLER,FRONT | ||
| 065 | A 6204910315 | CONSOLE |
| EXHAUST MUFFLER,REAR | ||
| 065 | A 6204910315 | CONSOLE |
| EXHAUST MUFFLER,REAR | ||
| 065 | A 6204910615 | CONSOLE |
| EXHAUST MUFFLER,REAR | ||
| 071 | N 000961012151 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 12X1,5X30 | ||
| 071 | N 000961012097 | SCREW |
| Repalced by: N 308676012026 | ||
| 071 | N 308676012026 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 12X1,5X35 | ||
| 074 | N 910113012002 | NUT |
| CONSOLE TO SIDE MEMBER | ||
| 077 | A 6204910541 | BRACKET |
| STRAP TO FRONT CONSOLE | ||
| 077 | A 6204910541 | BRACKET |
| STRAP TO FRONT AND REAR CONSOLES | ||
| 080 | A 6204910341 | BRACKET |
| STRAP TO REAR CONSOLE | ||
| 080 | A 6554913741 | BRACKET |
| STRAP TO REAR CONSOLE | ||
| 086 | N 000933010128 | SCREW |
| BRACKET TO CONSOLE | ||
| 089 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 089 | N 910113010000 | NUT |
| BRACKET TO CONSOLE | ||
| 092 | A 6204900042 | STRAP |
| EXHAUST MUFFLER | ||
| 095 | N 000931010271 | SCREW |
| STRAP TO BRACKET | ||
| 098 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 098 | N 910113010000 | NUT |
| STRAP TO BRACKET | ||
| 101 | N 000933008151 | SCREW |
| EXHAUST MUFFLER TO STRAP | ||
| 104 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 104 | N 000125008443 | WASHER |
| EXHAUST MUFFLER TO STRAP | ||
| 107 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 107 | N 913004008001 | NUT |
| EXHAUST MUFFLER TO STRAP | ||
| 113 | A 6454920404 | REAR EXHAUST PIPE |
| TAIL PIPE | ||
| 113 | A 6554925804 | REAR EXHAUST PIPE |
| Repalced by: A 6554901521 | ||
| 113 | A 6554901521 | EXHAUST PIPE |
| TAIL PIPE | ||
| 113 | A 6554920614 | END PIECE |
| TAIL PIPE | ||
| 116 | N 071555120502 | CLAMP |
| TAIL PIPE TO EXHAUST MUFFLER | ||
| 119 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 119 | N 304017010002 | SCREW |
| TAIL PIPE TO EXHAUST MUFFLER | ||
| 122 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 122 | N 910113010000 | NUT |
| TAIL PIPE TO EXHAUST MUFFLER | ||
| 125 | A 6554920441 | BRACKET |
| TAIL PIPE | ||
| 128 | N 000961014100 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 131 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 131 | N 910113014001 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 134 | N 071555120502 | CLAMP |
| TAIL PIPE TO BRACKET | ||
| 137 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 137 | N 304017010002 | SCREW |
| TAIL PIPE TO BRACKET | ||
| 140 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 140 | N 910113010000 | NUT |
| TAIL PIPE TO BRACKET | ||
| 141 | A 3834901030 | PROTECTIVE PLATE |
| FRONT EXHAUST PIPE | ||
| 142 | N 071555100500 | CLAMP |
| Repalced by: N 071555100501 | ||
| 142 | N 071555100501 | CLAMP |
| PROTECTIVE PLATE TO FRONT EXHAUST PIPE | ||
| 143 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 143 | N 304017010002 | SCREW |
| PROTECTIVE PLATE TO FRONT EXHAUST PIPE | ||
| 144 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 144 | N 910113010000 | NUT |
| PROTECTIVE PLATE TO FRONT EXHAUST PIPE | ||

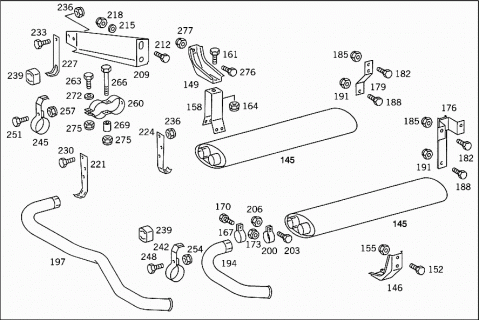

| 145 | A 6454900701 | EXHAUST MUFFLER |
| 146 | A 6554910015 | CONSOLE |
| EXHAUST MUFFLER,LEFT FRONT | ||
| 149 | A 6204910615 | CONSOLE |
| EXHAUST MUFFLER,RIGHT FRONT | ||
| 152 | N 000961012097 | SCREW |
| Repalced by: N 308676012026 | ||
| 152 | N 308676012026 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| 155 | N 910113012002 | NUT |
| CONSOLE TO SIDE MEMBER | ||
| 158 | A 6454910341 | BRACKET |
| EXHAUST MUFFLER TO CONSOLE | ||
| 161 | N 000933010105 | SCREW |
| BRACKET TO CONSOLE | ||
| 164 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 164 | N 910113010000 | NUT |
| BRACKET TO CONSOLE | ||
| 167 | N 071555104501 | CLAMP |
| FRONT EXHAUST PIPE TO MUFFLER AND TO BRACKET | ||
| 167 | N 071555094501 | CLAMP |
| 167 | N 071555094502 | CLAMP |
| FRONT EXHAUST PIPE TO MUFFLER AND TO BRACKET | ||
| 170 | N 000933008150 | SCREW |
| Repalced by: N 304017008018 | ||
| 170 | N 304017008018 | SCREW |
| FRONT EXHAUST PIPE TO MUFFLER AND TO BRACKET | ||
| 173 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 173 | N 913004008001 | NUT |
| FRONT EXHAUST PIPE TO MUFFLER AND TO BRACKET | ||
| 176 | A 6214900140 | BRACKET |
| Repalced by: A 6554902640 | ||
| 176 | A 6554902640 | BRACKET |
| EXHAUST MUFFLER,LEFT REAR | ||
| 179 | A 6454910241 | BRACKET |
| EXHAUST MUFFLER,RIGHT REAR | ||
| 182 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 182 | N 304017010002 | SCREW |
| BRACKET TO LEFT AND RIGHT SIDE MEMBERS | ||
| 182 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 182 | N 304017008027 | SCREW |
| BRACKET TO RIGHT SIDE MEMBER | ||
| 185 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 185 | N 910113010000 | NUT |
| BRACKET TO LEFT AND RIGHT SIDE MEMBERS | ||
| 185 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 185 | N 913004008001 | NUT |
| BRACKET TO RIGHT SIDE MEMBER | ||
| 188 | N 000933010105 | SCREW |
| EXHAUST MUFFLER TO BRACKET | ||
| 191 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 191 | N 910113010000 | NUT |
| EXHAUST MUFFLER TO BRACKET | ||
| 194 | A 6554920414 | END PIECE |
| Repalced by: A 6454921704 | ||
| 194 | A 6454921704 | REAR EXHAUST PIPE |
| SHORT;EXHAUST MUFFLER,LEFT | ||
| 194 | A 6454921804 | REAR EXHAUST PIPE |
| SHORT;EXHAUST MUFFLER,RIGHT | ||
| 197 | A 6554920214 | END PIECE |
| Repalced by: A 6454921604 | ||
| 197 | A 6454921604 | REAR EXHAUST PIPE |
| Repalced by: A 6554926405 | ||
| 197 | A 6554926405 | REAR EXHAUST PIPE |
| LONG;EXHAUST MUFFLER,RIGHT | ||
| 197 | A 6454921904 | REAR EXHAUST PIPE |
| LONG;EXHAUST MUFFLER,LEFT | ||
| 200 | N 071555094501 | CLAMP |
| Repalced by: N 071555094502 | ||
| 200 | N 071555094502 | CLAMP |
| TAIL PIPE TO EXHAUST MUFFLER AND TO BRACKET | ||
| 203 | N 000933008150 | SCREW |
| Repalced by: N 304017008018 | ||
| 203 | N 304017008018 | SCREW |
| TAIL PIPE TO EXHAUST MUFFLER AND TO BRACKET | ||
| 206 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 206 | N 913004008001 | NUT |
| TAIL PIPE TO EXHAUST MUFFLER AND TO BRACKET | ||
| 209 | A 6214920016 | SUPPORT |
| TAIL PIPE ON THE RIGHT | ||
| 212 | N 000961014100 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| 215 | N 000125015013 | WASHER |
| Repalced by: N 000125015019 | ||
| 215 | N 000125015019 | WASHER |
| SUPPORT TO SIDE MEMBER | ||
| 218 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 218 | N 910113014001 | NUT |
| SUPPORT TO SIDE MEMBER | ||
| 221 | A 6214920341 | BRACKET |
| TAIL PIPE | ||
| 224 | A 6214920441 | BRACKET |
| TAIL PIPE | ||
| 224 | A 6554902540 | BRACKET |
| TAIL PIPE | ||
| 227 | A 6454920541 | BRACKET |
| TAIL PIPE | ||
| 230 | N 000933008150 | SCREW |
| Repalced by: N 304017008018 | ||
| 230 | N 304017008018 | SCREW |
| BRACKET TO APPARATUS SUPPORT | ||
| 233 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 233 | N 304017008021 | SCREW |
| BRACKET TO SUPPORT | ||
| 236 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 236 | N 913004008001 | NUT |
| BRACKET TO SUPPORT | ||
| 239 | A 3814920082 | DAMPING PAD |
| BRACKET TO TAIL PIPE BRACKET | ||
| 239 | A 3814920082 | DAMPING PAD |
| BRACKET TO TAIL PIPE BRACKET | ||
| 242 | A 6164922841 | BRACKET |
| TAIL PIPE ON THE LEFT | ||
| 242 | A 6554924741 | BRACKET |
| TAIL PIPE ON THE LEFT | ||
| 245 | A 6174923641 | BRACKET |
| TAIL PIPE ON THE RIGHT | ||
| 248 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 248 | N 304017010002 | SCREW |
| BRACKET TO TAIL PIPE | ||
| 251 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 251 | N 304017008027 | SCREW |
| BRACKET TO TAIL PIPE | ||
| 254 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 254 | N 910113010000 | NUT |
| BRACKET TO TAIL PIPE | ||
| 257 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 257 | N 913004008001 | NUT |
| BRACKET TO TAIL PIPE | ||
| 260 | A 6474920040 | CLAMP |
| TAIL PIPES | ||
| 263 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 263 | N 304017010002 | SCREW |
| TAIL PIPES | ||
| M 10X30 | ||
| 266 | N 000931010274 | SCREW |
| Repalced by: N 304014010004 | ||
| 266 | N 304014010009 | HEXAGON HEAD BOLT |
| TAIL PIPES | ||
| M 10X90 | ||
| 269 | A 3140720253 | SPACER TUBE |
| TAIL PIPES | ||
| 272 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 272 | N 000125010532 | WASHER |
| TAIL PIPES | ||
| 275 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 275 | N 910113010000 | NUT |
| TAIL PIPES | ||
| 276 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 276 | N 304017008021 | SCREW |
| BRACKET TO BRACKET | ||
| 277 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 277 | N 913004008001 | NUT |
| BRACKET TO BRACKET | ||
| A 6214900030 | PROTECTIVE PLATE | |
| (HEAT SHIELD),REAR EXHAUST PIPES | ||
| N 000933008147 | SCREW | |
| Repalced by: N 304017008021 | ||
| N 304017008021 | SCREW | |
| HEAT SHIELD TO BRACKET | ||
| N 913004008004 | NUT | |
| Repalced by: N 913004008001 | ||
| N 913004008001 | NUT | |
| HEAT SHIELD TO BRACKET | ||

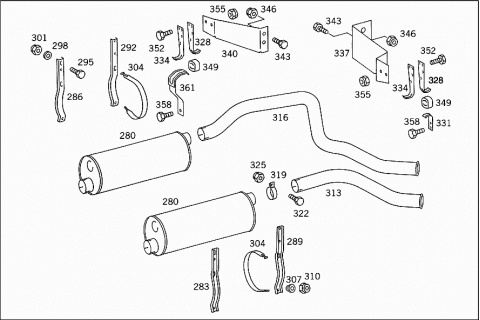

| 280 | A 6454900501 | EXHAUST MUFFLER |
| Repalced by: A 6454901501 | ||
| 280 | A 6454901501 | EXHAUST MUFFLER |
| LEFT AND RIGHT | ||
| 283 | A 6554910141 | BRACKET |
| EXHAUST MUFFLER,LEFT FRONT | ||
| 286 | A 6554910941 | BRACKET |
| EXHAUST MUFFLER,RIGHT FRONT | ||
| 289 | A 6554910541 | BRACKET |
| EXHAUST MUFFLER,LEFT REAR | ||
| 292 | A 6554911041 | BRACKET |
| EXHAUST MUFFLER,RIGHT REAR | ||
| 295 | N 000961014028 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M 14X40 | ||
| 295 | N 000961014050 | SCREW |
| Repalced by: N 308676014020 | ||
| 295 | N 308676014020 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M 14X35 | ||
| 298 | N 000125015013 | WASHER |
| Repalced by: N 000125015019 | ||
| 298 | N 000125015019 | WASHER |
| BRACKET TO SIDE MEMBER | ||
| 301 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 301 | N 910113014001 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 304 | A 6214900042 | STRAP |
| Repalced by: A 6554900942 | ||
| 304 | A 6554900942 | STRAP |
| EXHAUST MUFFLER | ||
| 307 | N 006319010302 | SPHERICAL WASHER |
| STRAP TO BRACKET | ||
| 310 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 310 | N 910113010000 | NUT |
| STRAP TO BRACKET | ||
| 313 | A 6554920405 | REAR EXHAUST PIPE |
| Repalced by: A 6554920004 | ||
| 313 | A 6554920004 | REAR EXHAUST PIPE |
| EXHAUST MUFFLER,LEFT | ||
| 313 | A 6554920905 | REAR EXHAUST PIPE |
| Repalced by: A 6554924604 | ||
| 313 | A 6554924604 | REAR EXHAUST PIPE |
| REAR LEFT | ||
| 316 | A 6554920605 | REAR EXHAUST PIPE |
| Repalced by: A 6554920804 | ||
| 316 | A 6554920804 | REAR EXHAUST PIPE |
| EXHAUST MUFFLER,RIGHT | ||
| 316 | A 6554921005 | REAR EXHAUST PIPE |
| Repalced by: A 6554924704 | ||
| 316 | A 6554924705 | REAR EXHAUST PIPE |
| REAR RIGHT | ||
| 319 | N 071555090501 | CLAMP |
| Repalced by: N 071555090502 | ||
| 319 | N 071555090502 | CLAMP |
| EXHAUST PIPE TO MUFFLER AND TO BRACKET | ||
| 322 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 322 | N 304017010002 | SCREW |
| EXHAUST PIPE TO MUFFLER AND TO BRACKET | ||
| 325 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 325 | N 910113010000 | NUT |
| EXHAUST PIPE TO MUFFLER AND TO BRACKET | ||
| 328 | A 6214920341 | BRACKET |
| DAMPING PAD TO SUPPORT | ||
| 331 | A 6204926241 | BRACKET |
| DAMPING PAD TO SUPPORT | ||
| 331 | A 6204926241 | BRACKET |
| BRACKET TO BRACKET | ||
| 334 | A 6554924041 | BRACKET |
| Repalced by: A 6214921841 | ||
| 334 | A 6214921841 | BRACKET |
| BRACKET TO BRACKET | ||
| 334 | A 6214920441 | BRACKET |
| REAR EXHAUST PIPE TO BRACKET | ||
| 337 | A 6554921441 | BRACKET |
| REAR EXHAUST PIPE TO BRACKET | ||
| 340 | A 6554921741 | BRACKET |
| REAR EXHAUST PIPE TO SIDE MEMBER | ||
| 343 | N 000961014028 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M 14X40 | ||
| 343 | N 000933010145 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M 10X35 | ||
| 346 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 346 | N 910113014001 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 346 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 346 | N 910113010000 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 349 | A 3814920082 | DAMPING PAD |
| BRACKET TO BRACKET | ||
| 352 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 352 | N 304017008034 | SCREW |
| BRACKET TO BRACKET | ||
| M 8X25 | ||
| 355 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 355 | N 913004008001 | NUT |
| BRACKET TO BRACKET | ||
| 358 | N 000933008291 | SCREW |
| Repalced by: A 4609900601 | ||
| 358 | A 4609900601 | SCREW |
| BRACKET TO BRACKET | ||
| M 8X20 | ||
| 361 | A 6554921941 | BRACKET |
| Repalced by: A 6554922041 | ||
| 361 | A 6554922041 | BRACKET |
| BRACKET TO BRACKET | ||
| 361 | A 6554922041 | BRACKET |
| BRACKET TO BRACKET | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
