Transporto priemonė: 1735 S; VIN numerio dalis: 397128

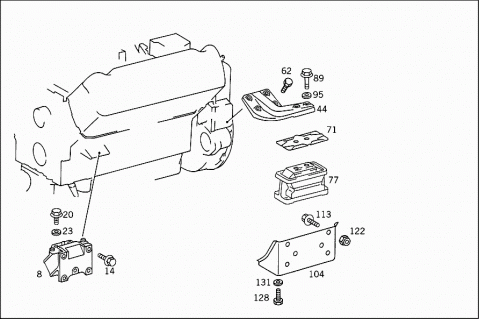

Grupė: 24 ENGINE SUSPENSION
| # | Kodas | Pavadinimas |
|---|---|---|
| 008 | A 6582410013 | RUBBER MOUNTING |
| FRONT | ||
| 008 | A 6582410113 | RUBBER MOUNTING |
| FRONT | ||
| 008 | A 6582410213 | RUBBER MOUNTING |
| FRONT | ||
| 014 | N 000961016108 | SCREW |
| Repalced by: A 0039903704 | ||
| 014 | A 0039903704 | SCREW |
| RUBBER MOUNTING TO SIDE MEMBER | ||
| M 16X30 | ||
| 014 | N 000961016094 | SCREW |
| Repalced by: A 0039904104 | ||
| 014 | A 0039904104 | SCREW |
| RUBBER MOUNTING TO SIDE MEMBER | ||
| M 16X45 | ||
| 020 | N 000961016120 | SCREW |
| Repalced by: A 0039903804 | ||
| 020 | A 0039903804 | SCREW |
| RUBBER MOUNTING TO ENGINE | ||
| 023 | A 3529902440 | WASHER |
| RUBBER MOUNTING TO ENGINE SUPPORTING ARM | ||
| 044 | A 6202420601 | ENGINE SUPPORT |
| LEFT REAR | ||
| 044 | A 6202420701 | ENGINE SUPPORT |
| RIGHT REAR | ||
| 044 | A 6202421601 | ENGINE SUPPORT |
| Repalced by: A 6552423101 | ||
| 044 | A 6552423101 | ENGINE SUPPORT |
| LEFT REAR | ||
| 044 | A 6552423101 | ENGINE SUPPORT |
| LEFT REAR | ||
| 044 | A 6552423101 | ENGINE SUPPORT |
| LEFT REAR | ||
| 044 | A 6552422001 | ENGINE SUPPORT |
| LEFT REAR | ||
| 044 | A 6552422001 | ENGINE SUPPORT |
| LEFT REAR | ||
| 044 | A 6202421701 | ENGINE SUPPORT |
| Repalced by: A 6552423201 | ||
| 044 | A 6552423201 | ENGINE SUPPORT |
| RIGHT REAR | ||
| 044 | A 6552423101 | ENGINE SUPPORT |
| RIGHT REAR | ||
| 044 | A 6552423101 | ENGINE SUPPORT |
| RIGHT REAR | ||
| 044 | A 6552422101 | ENGINE SUPPORT |
| RIGHT REAR | ||
| 044 | A 6552422101 | ENGINE SUPPORT |
| RIGHT REAR | ||
| 062 | N 000960018142 | SCREW |
| ENGINE SUPPORT TO BELL HOUSING | ||
| M 18X65 | ||
| 062 | N 000960018027 | SCREW |
| ENGINE SUPPORT TO BELL HOUSING | ||
| M 18X90 | ||
| 062 | N 000961022025 | SCREW |
| ENGINE SUPPORT TO BELL HOUSING | ||
| M 22X65 | ||
| 062 | N 000961022025 | SCREW |
| ENGINE SUPPORT TO BELL HOUSING | ||
| M 22X65 | ||
| 062 | N 000960022055 | SCREW |
| ENGINE SUPPORT TO BELL HOUSING | ||
| M 22X70 | ||
| 062 | N 000960022055 | SCREW |
| ENGINE SUPPORT TO BELL HOUSING | ||
| M 22X70 | ||
| 062 | N 000960022050 | SCREW |
| ENGINE SUPPORT TO BELL HOUSING | ||
| M 22X95 | ||
| 062 | N 000960022050 | SCREW |
| ENGINE SUPPORT TO BELL HOUSING | ||
| M 22X95 | ||
| 071 | A 3832420034 | SCREENING PLATE |
| REAR RUBBER MOUNTING | ||
| 071 | A 3832420034 | SCREENING PLATE |
| REAR RUBBER MOUNTING | ||
| 071 | A 6202420034 | SCREENING PLATE |
| REAR RUBBER MOUNTING | ||
| 077 | A 6452400118 | RUBBER MOUNTING |
| REAR | ||
| 077 | A 6452400018 | RUBBER MOUNTING |
| REAR | ||
| 077 | A 6452400218 | RUBBER MOUNTING |
| REAR | ||
| A 6452400318 | RUBBER MOUNTING | |
| 089 | N 000960016254 | SCREW |
| Repalced by: A 0039904804 | ||
| 089 | A 0039904804 | SCREW |
| RUBBER MOUNTING TO ENGINE REAR SUPPORT | ||
| 089 | A 0039904804 | SCREW |
| RUBBER MOUNTING TO ENGINE REAR SUPPORT | ||
| 095 | A 3529902440 | WASHER |
| RUBBER MOUNTING TO ENGINE REAR SUPPORT | ||
| 095 | A 3529902440 | WASHER |
| RUBBER MOUNTING TO ENGINE REAR SUPPORT | ||
| 095 | A 6209900040 | WASHER |
| RUBBER MOUNTING TO ENGINE REAR SUPPORT | ||
| 104 | A 6202400206 | CONSOLE |
| REAR RUBBER MOUNTING | ||
| 113 | N 000961016113 | SCREW |
| Repalced by: A 0039903704 | ||
| 113 | A 0039903704 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 16X32 | ||
| 113 | N 000961016104 | SCREW |
| Repalced by: A 0039903804 | ||
| 113 | A 0039903804 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 16X35 | ||
| 113 | N 000961016093 | SCREW |
| Repalced by: A 0039903904 | ||
| 113 | A 0039903904 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 16X40 | ||
| 122 | N 913004016004 | NUT |
| Repalced by: A 0009907150 | ||
| 122 | A 0009907150 | NUT |
| CONSOLE TO SIDE MEMBER | ||
| 128 | N 000961012151 | SCREW |
| Repalced by: A 0029902804 | ||
| 128 | A 0029902804 | SCREW |
| REAR RUBBER MOUNTING TO CONSOLE | ||
| 128 | A 0029902804 | SCREW |
| REAR RUBBER MOUNTING TO CONSOLE | ||
| 128 | N 000961014105 | SCREW |
| REAR RUBBER MOUNTING TO CONSOLE | ||
| 131 | N 000125013008 | WASHER |
| REAR RUBBER MOUNTING TO CONSOLE | ||
| 131 | N 000125013008 | WASHER |
| REAR RUBBER MOUNTING TO CONSOLE | ||
| 131 | N 000125015012 | WASHER |
| REAR RUBBER MOUNTING TO CONSOLE | ||
