Transporto priemonė: 1735 S; VIN numerio dalis: 397128

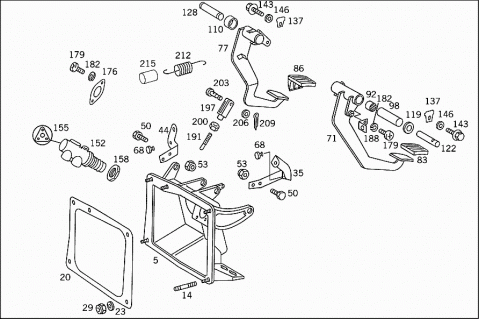

Grupė: 29 PEDAL ASSEMBLY - 090 CLUTCH AND BRAKE PEDAL ASSEMBLY
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 6502900319 | BEARING BRACKET |
| CLUTCH PEDAL AND BRAKE PEDAL | ||
| 014 | A 6732940270 | STUD |
| 020 | A 6452940180 | GASKET |
| BEARING BRACKET TO FIRE WALL | ||
| 023 | N 000125008417 | WASHER |
| BEARING BRACKET TO FIRE WALL | ||
| 029 | N 913004008001 | NUT |
| Repalced by: A 0009906350 | ||
| 029 | A 0009906350 | NUT |
| BEARING BRACKET TO FIRE WALL | ||
| 035 | A 6572910140 | BRACKET |
| CLUTCH PEDAL | ||
| 044 | A 6452920030 | STOP |
| BRAKE PEDAL | ||
| 050 | N 000933006224 | SCREW |
| STOP TO BEARING BRACKET | ||
| 053 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 053 | N 913004006001 | NUT |
| STOP TO BEARING BRACKET | ||
| 068 | A 6732910286 | STOP |
| CLUTCH PEDAL AND BRAKE PEDAL | ||
| 071 | A 6572900616 | PEDAL |
| CLUTCH | ||
| 077 | A 6452900318 | PEDAL |
| BRAKE | ||
| 083 | A 2012910282 | PAD |
| CLUTCH PEDAL | ||
| 086 | A 2012920082 | PAD |
| BRAKE PEDAL | ||
| 092 | A 0019816310 | NEEDLE BEARING |
| CLUTCH PEDAL | ||
| 092 | A 0139814610 | NEEDLE BEARING |
| CLUTCH PEDAL | ||
| 098 | A 6452910053 | SPACER TUBE |
| CLUTCH PEDAL | ||
| 110 | A 1102910550 | BUSHING |
| Repalced by: A 1242920050 | ||
| 110 | A 1242920050 | BUSHING |
| BRAKE PEDAL | ||
| 119 | A 6732910076 | WASHER |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 122 | A 6452940074 | PIN |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 128 | A 6732940174 | PIN |
| BRAKE PEDAL TO BEARING BRACKET | ||
| 137 | A 6732920073 | LOCK |
| CLUTCH AND BRAKE PEDAL PINS TO BEARING BRACKETS | ||
| 143 | N 000933006220 | SCREW |
| Repalced by: A 0019901404 | ||
| 143 | A 0019901404 | SCREW |
| CLUTCH AND BRAKE PEDAL LOCKS TO BEARING BRACKETS | ||
| 146 | N 000125006420 | WASHER |
| CLUTCH AND BRAKE PEDAL LOCKS TO BEARING BRACKETS | ||
| 152 | A 0004343801 | VALVE |
| SPLITTER BOX GEARSHIFT 3/2-WAY VALVE | ||
| 155 | A 0014307460 | GASKET KIT |
| 3/2-WAY VALVE | ||
| 158 | N 074305026202 | NUT |
| FLANGE TO 3/2-WAY VALVE | ||
| 176 | A 6452910046 | FLANGE |
| AT PEDAL ASSEMBLY BEARING BRACKET | ||
| 179 | N 007985006521 | SCREW |
| FLANGE TO BEARING BRACKET | ||
| 179 | N 007985006521 | SCREW |
| ANGLE TO PEDAL UNIT | ||
| 182 | N 912004006100 | LOCK WASHER |
| FLANGE TO BEARING BRACKET | ||
| 182 | N 912004006100 | SPRING LOCK WASHER |
| ANGLE TO PEDAL UNIT | ||
| 188 | A 6452930041 | ANGLE |
| AT PEDAL ASSEMBLY BEARING BRACKET | ||
| 191 | A 6452920032 | ROD |
| Repalced by: A 6732920032 | ||
| 191 | A 6732920032 | ROD |
| TWO-CIRCUIT-BRAKE-VALVE CONTROL | ||
| 197 | A 6209960001 | YOKE |
| OPERATING ROD | ||
| 200 | N 304035008000 | NUT |
| OPERATING ROD | ||
| 203 | A 3852920174 | PIN |
| ROD TO BRAKE PEDAL | ||
| 206 | N 000433008403 | WASHER |
| ROD TO BRAKE PEDAL | ||
| 209 | N 000094002059 | COTTER PIN |
| ROD TO BRAKE PEDAL | ||
| 212 | A 6559930010 | SPRING |
| CLUTCH-PEDAL/BRAKE-PEDAL RESET | ||
| 215 | A 6552910082 | PAD |
| Repalced by: N 040621014200 | ||
| 215 | N 040621014200 | INSULATING HOSE |
| CLUTCH PEDAL RELEASE SPRING | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| FOR SERVICE BRAKE VALVE,SEE GROUP/TU: | ||
| 42/360 | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| FOR CYLINDERS & HYDRAULIC LINES, SEE GROUP / TU: | ||
| 25/330 | ||
