Transporto priemonė: 1735 S; VIN numerio dalis: 397128
Grupė: 40 WHEELS - 090 DISC WHEELS AND SPARE WHEEL CARRIER
| # | Kodas | Pavadinimas |
|---|---|---|

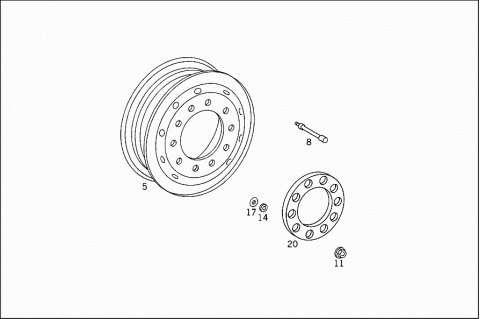

| 005 | A 3974009802 | DISC WHEEL |
| Repalced by: A 3974007502 | ||
| 005 | A 3974007502 | DISC WHEEL |
| 9,0-22,5 | ||
| 008 | A 3854010013 | VALVE |
| EXTENSION | ||
| 008 | A 3854010113 | VALVE |
| EXTENSION | ||
| 011 | N 074361022205 | NUT |
| DISC WHEELS TO FRONT AND REAR AXLES | ||
| 014 | N 074361022351 | LOCK WASHER |
| DISC WHEELS TO FRONT AND REAR AXLES | ||
| 017 | A 3174020175 | SPHERICAL RING |
| DISC WHEELS TO FRONT AND REAR AXLES | ||
| 020 | A 3604000325 | HUB CAP |
| WHEEL COVERING | ||

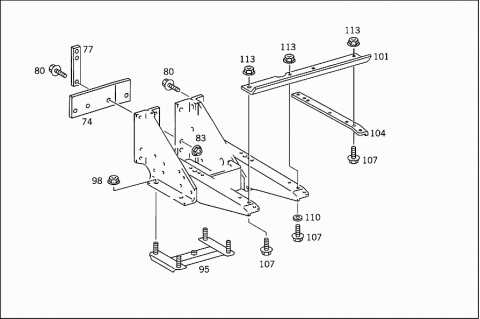

| 023 | A 6554001047 | CONSOLE |
| SPARE WHEEL MOUNTING,LEFT | ||

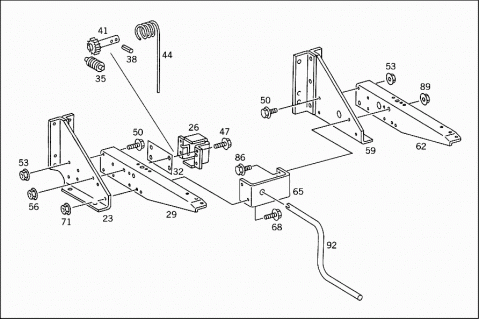

| 026 | A 3874030003 | BEARING BRACKET |
| SPARE WHEEL LIFTER TO FRAME | ||
| 029 | A 3874321416 | SUPPORT |
| SPARE WHEEL LIFTER TO FRAME | ||
| 032 | A 3874031594 | PLATE |
| SPARE WHEEL LIFTER TO FRAME | ||
| 035 | A 6204030085 | WORM |
| SPARE WHEEL HOIST | ||
| 038 | N 001481006042 | CLAMPING SLEEVE |
| SPARE WHEEL HOIST | ||
| 041 | A 6204030683 | STOP GEAR |
| SPARE WHEEL HOIST | ||
| 044 | N 083334008000 | WIRE CABLE |
| SPARE WHEEL HOIST | ||
| 047 | A 0019908604 | SCREW |
| BRACKET TO BEARING BRACKET | ||
| 050 | A 0029902804 | SCREW |
| BRACKET TO BEARING BRACKET | ||
| 053 | A 0009906750 | NUT |
| BRACKET TO BEARING BRACKET | ||
| 056 | A 0009906550 | NUT |
| BRACKET TO BEARING BRACKET | ||
| 059 | A 6554001147 | CONSOLE |
| SPARE WHEEL MOUNTING,RIGHT | ||
| 062 | A 3874321416 | SUPPORT |
| SPARE WHEEL LIFTER TO FRAME | ||
| 065 | A 3874030140 | BRACKET |
| SPARE WHEEL LIFTER TO FRAME | ||
| 068 | A 0029902804 | SCREW |
| BRACKET TO BRACKET | ||
| 068 | A 0029902904 | SCREW |
| BRACKET TO BRACKET | ||
| 071 | A 0009906750 | NUT |
| BRACKET TO BRACKET | ||
| 074 | A 6204030094 | PLATE |
| BRACKET TO FRAME | ||
| 077 | A 3374750384 | SHIM |
| BRACKET TO FRAME | ||
| 080 | A 0029909704 | SCREW |
| BRACKET TO FRAME | ||
| 080 | A 0029909904 | SCREW |
| BRACKET TO FRAME | ||
| 083 | A 0009906950 | NUT |
| BRACKET TO FRAME | ||
| 086 | A 0029902904 | SCREW |
| BRACKET TO BRACKET | ||
| 089 | A 0009906750 | NUT |
| BRACKET TO BRACKET | ||
| 092 | A 6504030045 | CRANK |
| SPARE WHEEL HOIST | ||
| 095 | A 3894000839 | BRACKET |
| SPARE WHEEL HOIST | ||
| 098 | A 0009908650 | NUT |
| DISC WHEEL TO BRACKET | ||
| 101 | A 6174030048 | ANGLE |
| AIR RESERVOIR | ||
| 104 | A 6174030103 | BEARING BRACKET |
| AIR RESERVOIR | ||
| 107 | A 0019908304 | SCREW |
| ANGLE TO SUPPORT | ||
| 110 | N 007349010002 | WASHER |
| ANGLE TO SUPPORT | ||
| 113 | A 0009906550 | NUT |
| ANGLE TO SUPPORT | ||
