Transporto priemonė: 1735 S MBSA; VIN numerio dalis: 655122

Grupė: 43 EXHAUST BRAKE

#	Kodas	Pavadinimas
	X XXXXXXXXXXXX	PART NAME MISSING

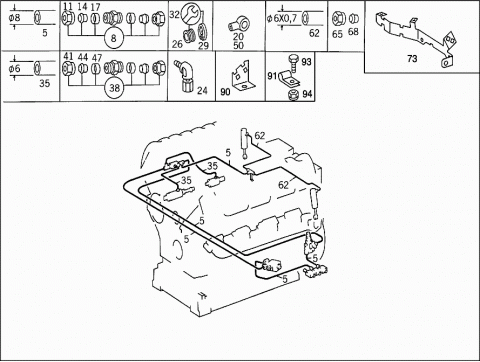

		EXHAUST BRAKE VALVE LINE CONNECTION
005	A 0089979082	HOSE
		6X8 MM
008	A 0029905971	FITTING
		(PARTS KIT),LINE RUPTURE
011	N 915017008100	UNION NUT
014	N 003861008005	GLAND
017	N 915062006000	SLEEVE
020	N 915052006013	BANJO UNION
		HOSE WIDTH, / I.D.,
		6/12 MM
020	N 915052006021	BANJO UNION
		HOSE WIDTH, / I.D.,
		6/14 MM
024	A 6559900270	T-FITTING
		COMPRESSED-AIR-LINE PLUG-CONNECTION
026	A 0009940047	SEAL RING
		COMPRESSED-AIR-LINE PLUG-CONNECTION
		TO M 16
029	A 0009941248	LOCK
		COMPRESSED-AIR-LINE PLUG-CONNECTION
		TO M 16
032	A 6739970045	REPAIR KIT
		COMPRESSED-AIR-LINE PLUG-CONNECTION
		TO M 16
035	A 0089976082	HOSE
	Repalced by: A 0009872627
035	A 0009872627	PLASTIC PIPE
		4X6 MM
038	A 0039979172	FITTING
		(PARTS KIT),LINE RUPTURE
041	N 915017006100	UNION NUT
044	N 003861006007	GLAND
047	N 915062004000	SLEEVE
050	N 915052004015	BANJO UNION
		HOSE WIDTH, / I.D.,
		4/12 MM
050	N 915052004026	BANJO UNION
		HOSE WIDTH, / I.D.,
		4/14 MM
062	A 0004296201	LINE
		6X0.7 MM
062	A 0004296201	LINE
		FROM T-FITTING TO EXHAUST BRAKE CYLINDER
		6X0.7 MM
065	N 915017006100	UNION NUT
068	N 003861006007	GLAND
071	A 6204202186	BRACKET
		(T-FITTING) EXHAUST BRAKE LINE CONNECTION
072	A 6554319040	BRACKET
		(T-FITTING) EXHAUST BRAKE LINE CONNECTION
073	A 6554302710	BRACKET
	Repalced by: A 6554305910
073	A 6554305910	BRACKET
		AT BELL HOUSING
074	N 000931008229	SCREW
		BRACKET TO ENGINE
075	N 007349008006	WASHER
		BRACKET TO ENGINE
076	A 0009975274	T-FITTING
		AT BRACKET
077	N 080705012003	NUT
		T-FITTING TO BRACKET
078	A 3604280243	ANGLE
		COMPRESSED AIR LINE MOUNTING
085	N 915047008202	HOLLOW SCREW
		COMPRESSED AIR LINE TO T-FITTING
085	N 915036008202	HOLLOW SCREW
089	N 007603012405	SEAL RING
090	A 6554310146	BRACKET
	Repalced by: A 6554293540
090	A 6554293540	BRACKET
		COMPRESSED AIR LINE MOUNTING
091	A 3609950101	CLAMP
		COMPRESSED AIR LINE MOUNTING
091	A 3609950301	CLAMP
		COMPRESSED AIR LINE MOUNTING
093	N 000933006183	SCREW
		COMPRESSED AIR LINE MOUNTING
094	N 913002006005	NUT
		COMPRESSED AIR LINE MOUNTING
	Repalced by: N 913002006009
094	N 913002006009	NUT
		COMPRESSED AIR LINE MOUNTING
095	A 6554210120	PROTECTIVE PLATE
		HEAT SHIELD, PLASTIC LINES
095	A 6554210320	PROTECTIVE PLATE
		HEAT SHIELD, PLASTIC LINES
097	N 000933016122	SCREW
		HEAT SHIELD TO BRACKET
098	A 0029974890	LOOM TIE
		COMPRESSED AIR LINE MOUNTING
099	A 0019978490	LOOM TIE
		COMPRESSED AIR LINE MOUNTING
		376 MM
099	A 0019978390	LOOM TIE
		COMPRESSED AIR LINE MOUNTING
		280 MM
	X XXXXXXXXXXXX	PART NAME MISSING

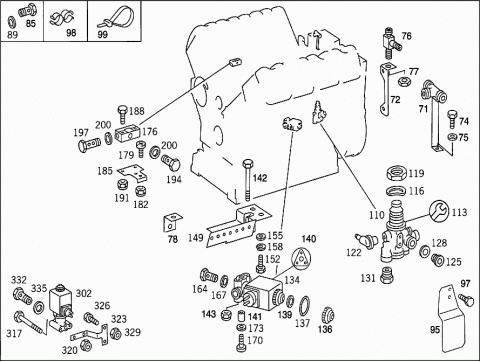

		ENGINE SHUT-OFF AND EXHAUST BRAKE
110	A 0039977036	VALVE
		3/2-WAY; EXHAUST BRAKE CONTROL
		WABCO
110	A 0039977536	VALVE
		3/2-WAY; EXHAUST BRAKE CONTROL
		BOSCH
113	A 0025869843	REPAIR KIT
		3/2-WAY VALVE
		WABCO
113	A 0004200771	REPAIR KIT
		3/2-WAY VALVE
		BOSCH
116	N 000137027201	SPRING WASHER
		3/2-WAY VALVE TO CAB
119	N 074305026202	NUT
		3/2-WAY VALVE TO CAB
122	A 4063580065	BREATHER
	Repalced by: A 3933280065
122	A 3933280065	PIPE SOCKET
		TWO-WAY VALVE,CONNECTION:
		"30"
125	N 000908012003	SCREW PLUG
		TWO-WAY VALVE,CONNECTION:
		"22"
128	N 007603012405	SEAL RING
		TWO-WAY VALVE,CONNECTION:
		"22"
131	A 0009970834	UNION SCREW
		3/2-WAY SOLENOID VALVE,CONNECTIONS:
		"10,20",M 16
134	A 0039975336	VALVE
		(3/2-WAY SOLENOID VALVE) ENGINE SHUT-OFF
		WABCO
136	A 0014310087	PROTECTIVE CAP
		WABCO
137	A 0079970248	SEAL RING
		WABCO
137	A 0149970048	SEAL RING
		BOSCH
139	N 007603006106	SEAL RING
		BOSCH
140	A 0034305481	GASKET KIT
		KNORR
141	A 0049970640	SEAL RING
		3/2-WAY SOLENOID VALVE
		WABCO
142	N 000931008327	SCREW
		3/2-WAY SOLENOID VALVE TO BRACKET
143	N 913004008004	NUT
		3/2-WAY SOLENOID VALVE TO BRACKET
149	A 6554312740	BRACKET
		3/2-WAY SOLENOID VALVE
152	N 000933008212	SCREW
		BRACKET TO CAB FLOOR
155	N 000125008418	WASHER
		BRACKET TO CAB FLOOR
158	N 912004008102	LOCK WASHER
		BRACKET TO CAB FLOOR
164	N 915036008202	HOLLOW SCREW
		3/2-WAY SOLENOID VALVE,CONNECTIONS:
		"10,20"
167	N 007603012405	SEAL RING
		3/2-WAY SOLENOID VALVE,CONNECTIONS:
		"10,20"
170	N 000084006132	SCREW
		3/2-WAY SOLENOID VALVE
173	N 007603006106	SEAL RING
		3/2-WAY SOLENOID VALVE
176	A 0012604957	VALVE
		(SHUTTLE VALVE) AUTOMATIC LOAD-DEPENDING BRAKE
176	A 0012604957	VALVE
		(SHUTTLE VALVE) AUTOMATIC LOAD-DEPENDING BRAKE
179	N 007985006139	SCREW
		BRACKET TO AIR-COMPRESSOR-LINE BRACKET
182	N 913004006002	NUT
	Repalced by: N 913004006001
182	N 913004006001	NUT
		BRACKET TO AIR-COMPRESSOR-LINE BRACKET
185	A 6554313540	BRACKET
	Repalced by: A 6554316740
185	A 6554316740	BRACKET
	Repalced by: A 6504312840
185	A 6504312840	BRACKET
		TWO-WAY VALVE
188	N 000931005039	SCREW
		TWO-WAY VALVE TO BRACKET
191	N 913004005001	NUT
		TWO-WAY VALVE TO BRACKET
194	N 915036010108	HOLLOW SCREW
		TWO-WAY VALVE,CONNECTIONS:
		"11,12,20"
197	N 915047010202	HOLLOW SCREW
		TWO-WAY VALVE,CONNECTIONS:
		"10,11,12,20"
200	N 007603014405	SEAL RING
		TWO-WAY VALVE,CONNECTIONS:
		"10,11,12,20"
	X XXXXXXXXXXXX	PART NAME MISSING
		CRUISE CONTROL
302	A 0039976936	VALVE
		(3/2-WAY SOLENOID VALVE)
317	N 000931008327	SCREW
		3/2-WAY VALVE TO BRACKET
320	N 913004008004	NUT
		3/2-WAY VALVE TO BRACKET
323	A 6454312140	BRACKET
		3/2-WAY
326	N 000933012056	SCREW
		BRACKET TO LEFT SIDE MEMBER
329	N 913004012004	NUT
		BRACKET TO LEFT SIDE MEMBER
332	N 915036008202	HOLLOW SCREW
		3/2-WAY VALVE;CONNECTIONS:
		"13,23"
335	N 007603012405	SEAL RING
		3/2-WAY VALVE;CONNECTIONS:
		"13,23"
