Transporto priemonė: 1735 S MBSA; VIN numerio dalis: 655122

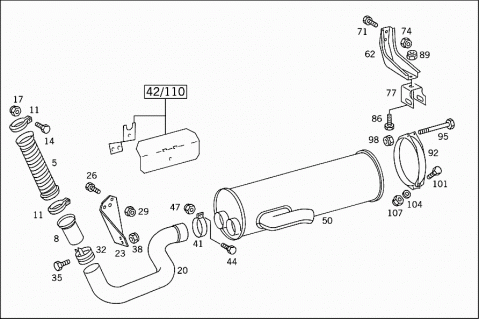

Grupė: 49 EXHAUST SYSTEM

#	Kodas	Pavadinimas
	T YYYYYYYYYYYY	PART NAME MISSING
		FOR THE REMAINING PARTS,SEE ENGINE STANDARD VERSION
005	A 6214900065	FLEXIBLE METAL TUBE
		FRONT LEFT AND RIGHT
008	A 6214920008	COLLAR
		FRONT LEFT AND RIGHT
011	A 6219970090	CLAMP
		FLEXIBLE METAL TUBE TO THROTTLE HOUSING AND TO COLLAR
014	N 000933008161	SCREW
		FLEXIBLE METAL TUBE TO THROTTLE HOUSING AND TO COLLAR
017	N 913004008004	NUT
		FLEXIBLE METAL TUBE TO THROTTLE HOUSING AND TO COLLAR
020	A 6554904419	EXHAUST PIPE
		FRONT,REAR LEFT PART
020	A 6554904519	EXHAUST PIPE
		FRONT,REAR RIGHT PART
023	A 6204923441	BRACKET
		LEFT EXHAUST PIPE
023	A 6204923541	BRACKET
		RIGHT EXHAUST PIPE
026	N 000933010129	SCREW
		BRACKET TO SIDE MEMBER
		M 10X30
026	N 000933010145	SCREW
		BRACKET TO SIDE MEMBER
		M 10X35
029	N 913004010008	NUT
		BRACKET TO SIDE MEMBER
032	A 6254920040	CLAMP
		FRONT EXHAUST PIPE TO BRACKET
035	N 000933010129	SCREW
		FRONT EXHAUST PIPE TO BRACKET
038	N 913004010008	NUT
		FRONT EXHAUST PIPE TO BRACKET
041	N 071555104501	CLAMP
		FRONT EXHAUST PIPE TO MUFFLER
044	N 000933010129	SCREW
		FRONT EXHAUST PIPE TO MUFFLER
047	N 913004010008	NUT
		FRONT EXHAUST PIPE TO MUFFLER
050	A 6454902101	EXHAUST MUFFLER
062	A 6204910615	CONSOLE
		EXHAUST MUFFLER,FRONT
062	A 6204910615	CONSOLE
		EXHAUST MUFFLER,REAR
071	N 000961012151	SCREW
		CONSOLE TO SIDE MEMBER
074	N 913004012008	NUT
		CONSOLE TO SIDE MEMBER
077	A 6554913741	BRACKET
		STRAP TO FRONT AND REAR CONSOLES
086	N 000933010128	SCREW
		BRACKET TO CONSOLE
089	N 913004010008	NUT
		BRACKET TO CONSOLE
092	A 6204900042	STRAP
		EXHAUST MUFFLER
095	N 000931010271	SCREW
		STRAP TO BRACKET
098	N 913004010008	NUT
		STRAP TO BRACKET
101	N 000933008151	SCREW
		EXHAUST MUFFLER TO STRAP
104	N 000125008418	WASHER
		EXHAUST MUFFLER TO STRAP
107	N 913004008004	NUT
		EXHAUST MUFFLER TO STRAP
