Transporto priemonė: 1735 S MBSA; VIN numerio dalis: 655122

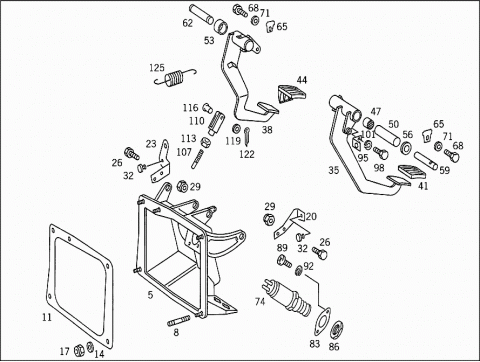

Grupė: 29 PEDAL ASSEMBLY - 090 CLUTCH AND BRAKE PEDAL ASSEMBLY
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 6452900119 | BEARING BRACKET |
| Repalced by: A 6502900319 | ||
| 005 | A 6502900319 | BEARING BRACKET |
| CLUTCH PEDAL AND BRAKE PEDAL | ||
| 008 | A 6732940270 | STUD |
| 011 | A 6452940180 | GASKET |
| BEARING BRACKET TO FIRE WALL | ||
| 014 | N 000125008418 | WASHER |
| BEARING BRACKET TO FIRE WALL | ||
| 017 | N 913004008004 | NUT |
| BEARING BRACKET TO FIRE WALL | ||
| 020 | A 6452910030 | STOP |
| CLUTCH PEDAL | ||
| 023 | A 6452920030 | STOP |
| BRAKE PEDAL | ||
| 026 | N 000933006130 | SCREW |
| STOP TO BEARING BRACKET | ||
| 029 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 029 | N 913004006001 | NUT |
| STOP TO BEARING BRACKET | ||
| 032 | A 6732910286 | STOP |
| CLUTCH PEDAL AND BRAKE PEDAL | ||
| 035 | A 6452901316 | PEDAL |
| CLUTCH | ||
| 038 | A 6452900318 | PEDAL |
| BRAKE | ||
| 041 | A 2012910282 | PAD |
| CLUTCH PEDAL | ||
| 044 | A 2012920082 | PAD |
| BRAKE PEDAL | ||
| 047 | A 0019816310 | NEEDLE BEARING |
| CLUTCH PEDAL | ||
| 047 | A 0139814610 | NEEDLE BEARING |
| CLUTCH PEDAL | ||
| 050 | A 6452910053 | SPACER TUBE |
| CLUTCH PEDAL | ||
| 053 | A 1102910550 | BUSHING |
| Repalced by: A 1242920050 | ||
| 053 | A 1242920050 | BUSHING |
| BRAKE PEDAL | ||
| 056 | A 6732910076 | WASHER |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 059 | A 6452940074 | PIN |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 062 | A 6732940174 | PIN |
| BRAKE PEDAL TO BEARING BRACKET | ||
| 065 | A 6732920073 | LOCK |
| CLUTCH AND BRAKE PEDAL PINS TO BEARING BRACKETS | ||
| 068 | N 000933006183 | SCREW |
| CLUTCH AND BRAKE PEDAL LOCKS TO BEARING BRACKETS | ||
| 071 | N 000125006421 | WASHER |
| CLUTCH AND BRAKE PEDAL LOCKS TO BEARING BRACKETS | ||
| 074 | A 0095426117 | SENDER UNIT |
| Repalced by: A 6555400017 | ||
| 074 | A 6555400017 | SENDER UNIT |
| CLUTCH OPERATION | ||
| EPS | ||
| 083 | A 6452910046 | FLANGE |
| AS REQUIRED | ||
| 3 MM | ||
| 083 | A 6452910146 | FLANGE |
| AS REQUIRED | ||
| 2 MM | ||
| 086 | N 074305026202 | NUT |
| FLANGE TO SENSOR AND TO 3/2-WAY VALVE | ||
| 089 | N 007985006157 | SCREW |
| FLANGE TO BEARING BRACKET | ||
| 092 | N 912004006102 | LOCK WASHER |
| FLANGE TO BEARING BRACKET | ||
| 095 | A 6452930041 | ANGLE |
| AT CLUTCH PEDAL UNIT | ||
| 098 | N 007985006157 | SCREW |
| ANGLE TO PEDAL UNIT | ||
| 101 | N 912004006102 | LOCK WASHER |
| ANGLE TO PEDAL UNIT | ||
| 107 | A 6452920032 | ROD |
| Repalced by: A 6732920032 | ||
| 107 | A 6732920032 | ROD |
| TWO-CIRCUIT-BRAKE-VALVE CONTROL | ||
| 110 | A 6209960001 | YOKE |
| OPERATING ROD | ||
| TO 645 292 00 32 | ||
| 110 | N 071752008003 | YOKE |
| OPERATING ROD | ||
| TO 673 292 00 32 | ||
| 113 | N 000439008211 | NUT |
| OPERATING ROD | ||
| 116 | A 3852920174 | PIN |
| ROD TO BRAKE PEDAL | ||
| 119 | N 000433008406 | WASHER |
| ROD TO BRAKE PEDAL | ||
| 122 | N 000094002059 | COTTER PIN |
| ROD TO BRAKE PEDAL | ||
| 125 | A 6559930010 | SPRING |
| CLUTCH-PEDAL/BRAKE-PEDAL RESET | ||
| A 6552910082 | PAD | |
| Repalced by: N 040621014200 | ||
| N 040621014200 | INSULATING HOSE | |
| CLUTCH PEDAL RELEASE SPRING | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| FOR SERVICE BRAKE VALVE,SEE GROUP/TU: | ||
| 42/360 | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| FOR CYLINDERS & HYDRAULIC LINES, SEE GROUP / TU: | ||
| 25/330 | ||
