Transporto priemonė: 1735 S MBSA; VIN numerio dalis: 655122

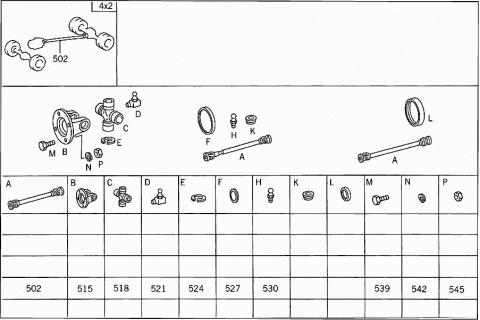

Grupė: 41 PROPELLER SHAFT
| # | Kodas | Pavadinimas |
|---|---|---|
| 502 | A 3954106502 | PROPELLER SHAFT |
| Repalced by: A 6564101502 | ||
| 502 | A 6564101502 | PROPELLER SHAFT |
| FROM TRANSMISSION TO REAR AXLE | ||
| 1795 MM | ||
| 515 | A 3954110911 | DRIVE FLANGE |
| Repalced by: A 3954111011 | ||
| 515 | A 3954111011 | DRIVE FLANGE |
| Repalced by: A 3954111211 | ||
| 515 | A 3954111211 | DRIVE FLANGE |
| 515 | A 6564110011 | DRIVE FLANGE |
| 518 | A 6204100031 | UNIVERSAL JOINT CROSS |
| WITH BUSHINGS | ||
| 518 | A 6564100131 | UNIVERSAL JOINT CROSS |
| WITH BUSHINGS | ||
| 521 | N 071412008300 | GREASE NIPPLE |
| 524 | A 0069943141 | LOCK |
| AS REQUIRED | ||
| 2.00 MM | ||
| 524 | A 0069943541 | LOCK |
| AS REQUIRED | ||
| 2.10 MM | ||
| 524 | A 0069943941 | LOCK |
| AS REQUIRED | ||
| 2.20 MM | ||
| 524 | A 6564111073 | LOCK |
| AS REQUIRED | ||
| 2.90 MM | ||
| 524 | A 6564110173 | LOCK |
| AS REQUIRED | ||
| 3.00 MM | ||
| 524 | A 6564110573 | LOCK |
| AS REQUIRED | ||
| 3.10 MM | ||
| 524 | A 6564110973 | LOCK |
| AS REQUIRED | ||
| 3.20 MM | ||
| 524 | A 6564111773 | LOCK |
| AS REQUIRED | ||
| 3.30 MM | ||
| 527 | A 3954110059 | SEAL RING |
| PROTECTIVE TUBE | ||
| 105X17 MM | ||
| 527 | A 0004110159 | SEAL RING |
| PROTECTIVE TUBE | ||
| 102.5X22 MM | ||
| 527 | A 0004110259 | SEAL RING |
| PROTECTIVE TUBE | ||
| 105.6X12 MM | ||
| 530 | N 071412008100 | GREASE NIPPLE |
| 539 | N 000960014237 | SCREW |
| PROPELLER SHAFT TO TRANSMISSION AND TO REAR AXLE | ||
| 542 | N 912004014100 | LOCK WASHER |
| PROPELLER SHAFT TO TRANSMISSION AND TO REAR AXLE | ||
| 545 | N 000934014020 | NUT |
| PROPELLER SHAFT TO TRANSMISSION AND TO REAR AXLE | ||
