Transporto priemonė: 1823LS - 1833LS, 4X2; VIN numerio dalis: 957582

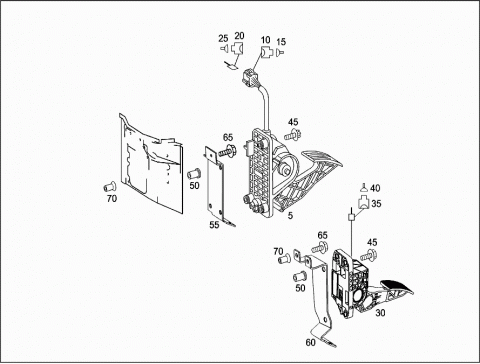

Grupė: 30 CONTROL - 140 ELECTRONIC ACCELERATOR PEDAL CONTROL
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 9413000104 | ACCELERATOR PEDAL |
| 005 | A 9413000104 | ACCELERATOR PEDAL |
| 010 | A 0055459526 | PIN BUSHING HOUSING |
| 9-POLE, YELLOW | ||
| 015 | A 0115458026 | CONTACT SPRING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 1.0-2.5 MM2 | ||
| 015 | A 0115458126 | CONTACT SPRING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 0.5-1.0 MM2 | ||
| 020 | A 0265459728 | PLUG HOUSING |
| ACCELERATOR PEDAL | ||
| 9 PIN | ||
| 025 | A 0355452428 | FLAT PLUG |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 0.5-1.0 MM2 | ||
| 025 | A 0355452528 | FLAT PLUG |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 1.0-2.5 MM2 | ||
| 030 | A 9403000004 | ACCELERATOR PEDAL |
| ACCELERATOR MODULE | ||
| Repalced by: A 9603000004 | ||
| 030 | A 9603000004 | ACCELERATOR PEDAL |
| ACCELERATOR MODULE | ||
| 035 | A 2105403681 | PIN BUSHING HOUSING |
| ACCELERATOR PEDAL | ||
| 6PIN | ||
| 040 | A 0085456326 | CONTACT BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 0.75 MM2 | ||
| 045 | N 910143008005 | HEXALOBULAR BOLT |
| ACCELERATOR PEDAL TO BRACKET | ||
| M8X40 | ||
| 045 | N 910143008005 | HEXALOBULAR BOLT |
| ACCELERATOR PEDAL TO BRACKET | ||
| M8X40 | ||
| 045 | N 910105008014 | HEXAGON HEAD BOLT |
| ACCELERATOR PEDAL TO BRACKET | ||
| M8X35 | ||
| 050 | A 9579900358 | RIVETED NUT |
| PAN HEAD WITH CLAMPING RANGE: | ||
| M8X0.5-3.0 | ||
| Repalced by: N 913024008100 | ||
| 050 | N 913024008100 | RIVET NUT |
| PAN HEAD WITH CLAMPING RANGE: | ||
| M8X16 | ||
| 050 | N 913024008100 | RIVET NUT |
| PAN HEAD WITH CLAMPING RANGE: | ||
| M8X16 | ||
| 055 | A 9573010008 | CLAMP |
| ACCELERATOR PEDAL TO FIRE WALL | ||
| 055 | A 9573010008 | CLAMP |
| ACCELERATOR PEDAL TO FIRE WALL | ||
| 055 | A 9573010040 | BRACKET |
| ACCELERATOR PEDAL TO FIRE WALL | ||
| 055 | A 9573010040 | BRACKET |
| ACCELERATOR PEDAL TO FIRE WALL | ||
| 060 | A 9573010140 | BRACKET |
| ACCELERATOR PEDAL TO FIRE WALL | ||
| 060 | A 9573010240 | BRACKET |
| ACCELERATOR PEDAL TO FIRE WALL | ||
| 065 | N 914146006102 | SCREW |
| BRACKET TO FIRE WALL | ||
| M6X16 | ||
| 065 | N 000000003765 | HEXALOBULAR BOLT |
| BRACKET TO FIRE WALL | ||
| M6X20 | ||
| 065 | N 910105008014 | HEXAGON HEAD BOLT |
| BRACKET TO FIRE WALL | ||
| M8X35 | ||
| 070 | A 9579900558 | RIVETED NUT |
| M6X1.5-3.0 | ||
| Repalced by: A 9579901458 | ||
| 070 | A 9579901458 | RIVETED NUT |
| COUNTERSUNK HEAD WITH CLAMPING RANGE: | ||
| M6X1.5-4.0 | ||
| 070 | A 9579902658 | RIVETED NUT |
| COUNTERSUNK HEAD WITH CLAMPING RANGE: | ||
| M6X4.0-6.5 | ||
| 070 | A 9579900758 | RIVETED NUT |
| COUNTERSUNK HEAD WITH CLAMPING RANGE: | ||
| M8X1.5-3.0 | ||
