Transporto priemonė: 1823; VIN numerio dalis: 375301

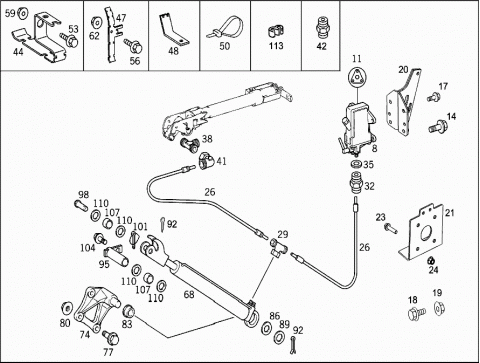

Grupė: 55 HYDRAULIC SYSTEM - 030 HYDRAULIC SYSTEM USED FOR CAB TILTING
| # | Kodas | Pavadinimas |
|---|---|---|
| 008 | A 3755530001 | PUMP |
| (HAND PUMP) | ||
| ERGUN | ||
| 008 | A 0015535901 | PUMP |
| (HAND PUMP) | ||
| WEBER | ||
| 011 | A 0005504483 | GASKET KIT |
| HAND PUMP | ||
| 014 | N 910105010001 | HEXAGON HEAD BOLT |
| HAND PUMP TO BRACKET | ||
| Repalced by: N 000000001157 | ||
| 014 | N 000000001157 | HEXALOBULAR BOLT |
| HAND PUMP TO BRACKET | ||
| M10X30 | ||
| 017 | N 000000000428 | HEXAGON HEAD BOLT |
| BRACKET TO FENDER BRACKET | ||
| M10X35 | ||
| 018 | N 910105010011 | HEXAGON HEAD BOLT |
| HYDRAULIC PUMP TO BRACKET | ||
| M 10X40 | ||
| 019 | N 913023010002 | NUT |
| HYDRAULIC PUMP TO BRACKET | ||
| 020 | A 9405500440 | BRACKET |
| HAND PUMP | ||
| 021 | A 3755500440 | BRACKET |
| HAND PUMP | ||
| 023 | N 000000005291 | HEXAGON HEAD BOLT |
| BRACKET TO SIDE MEMBER | ||
| M14X1.5X80 | ||
| 023 | N 000000005290 | HEXAGON HEAD BOLT |
| BRACKET TO SIDE MEMBER | ||
| M 14X1.5X90 | ||
| 024 | N 000000005662 | NUT |
| BRACKET TO SIDE MEMBER | ||
| M 14 | ||
| 026 | A 9405530582 | HOSE |
| FROM HAND PUMP TO HYDRAULIC CYLINDER | ||
| 4480 MM | ||
| 026 | A 9405530682 | HOSE |
| FROM HAND PUMP TO HYDRAULIC CYLINDER | ||
| 4430 MM | ||
| 026 | A 9405530282 | HOSE |
| FROM LOCKING MECHANISM ON LOCKING MECHANISM | ||
| 026 | A 9425530382 | HOSE |
| HAND PUMP ON LOCK | ||
| 026 | A 9405530482 | HOSE |
| HAND PUMP ON LOCK | ||
| 026 | A 9405532782 | HOSE |
| HAND PUMP ON LOCK | ||
| 026 | A 9405531682 | HOSE |
| HAND PUMP ON LOCK | ||
| 029 | A 0019900170 | T-FITTING |
| HIGH PRESSURE HOSE TO HAND PUMP | ||
| 032 | N 003901006008 | SCREW-IN FITTING |
| Repalced by: A 0029978472 | ||
| 032 | A 0029978472 | FITTING |
| HIGH PRESSURE HOSE TO HAND PUMP | ||
| 035 | N 007603010404 | SEAL RING |
| HIGH PRESSURE HOSE TO HAND PUMP | ||
| 038 | N 003908006001 | FITTING |
| Repalced by: A 0009903470 | ||
| 038 | A 0009903470 | T-FITTING |
| HIGH-PRESSURE HOSE ON LOCKING MECHANISM | ||
| Repalced by: N 000000006204 | ||
| 038 | N 000000006204 | FITTING |
| HIGH-PRESSURE HOSE ON LOCKING MECHANISM | ||
| 041 | N 003905006001 | FITTING |
| HIGH-PRESSURE HOSE ON LOCKING MECHANISM | ||
| 042 | N 003902006001 | CONNECTION FITTING |
| HIGH-PRESSURE HOSE ON LOCKING MECHANISM | ||
| 044 | A 3755530140 | BRACKET |
| HIGH PRESSURE HOSE TO FRAME | ||
| 047 | A 9405531640 | BRACKET |
| HIGH PRESSURE HOSE TO BRACKET | ||
| 048 | A 9405532040 | BRACKET |
| Repalced by: A 9405532340 | ||
| 048 | A 9405532340 | BRACKET |
| HYDRAULIK HOSE ON SHIFT LEVER MOUNT | ||
| 048 | A 3755530240 | BRACKET |
| HYDRAULIK HOSE ON SHIFT LEVER MOUNT | ||
| 050 | A 0069971790 | LOOM TIE |
| LINE MOUNTING | ||
| 050 | A 0069971790 | LOOM TIE |
| LINE MOUNTING | ||
| 050 | A 3719977090 | LOOM TIE |
| LINE MOUNTING | ||
| 365 MM | ||
| 050 | A 0019979590 | LOOM TIE |
| Repalced by: A 0049979890 | ||
| 050 | A 0049979890 | CABLE TIE |
| LINE MOUNTING | ||
| 050 | A 3719977090 | LOOM TIE |
| HIGH PRESSURE HOSE TO BRACKET AND TO FRAME | ||
| 365 MM | ||
| 050 | A 0019978390 | CABLE TIE |
| HIGH PRESSURE HOSE TO BRACKET AND TO FRAME | ||
| 280 X 4.6 MM | ||
| 053 | N 910105014013 | SCREW |
| BRACKET TO FRAME | ||
| 056 | N 910105006024 | HEXAGON HEAD BOLT |
| BRACKET TO FRAME | ||
| 059 | N 913023014003 | NUT |
| BRACKET TO FRAME | ||
| 062 | N 913023006001 | NUT |
| BRACKET TO FRAME | ||
| 068 | A 0025536405 | CYLINDER |
| Repalced by: A 0025538105 | ||
| 068 | A 0025538105 | CYLINDER |
| HYDRAULIC SYSTEM USED FOR CAB TILTING | ||
| WEBER | ||
| 068 | A 0025538105 | CYLINDER |
| HYDRAULIC SYSTEM USED FOR CAB TILTING | ||
| WEBER | ||
| 068 | A 0025538105 | CYLINDER |
| HYDRAULIC SYSTEM USED FOR CAB TILTING | ||
| WEBER | ||
| 068 | A 3755530105 | CYLINDER |
| HYDRAULIC SYSTEM USED FOR CAB TILTING | ||
| ERGUN | ||
| 068 | A 0025538205 | CYLINDER |
| HYDRAULIC SYSTEM USED FOR CAB TILTING | ||
| WEBER | ||
| 068 | A 0025538205 | CYLINDER |
| HYDRAULIC SYSTEM USED FOR CAB TILTING | ||
| WEBER | ||
| 074 | A 9405530038 | BEARING BRACKET |
| Repalced by: A 9405530238 | ||
| 074 | A 9405530238 | BEARING BRACKET |
| HYDRAULIC CYLINDER | ||
| TO A 002 553 81 05 / 82 05 | ||
| 077 | N 910105014010 | SCREW |
| BEARING BRACKET TO UNDERRUN PROTECTION | ||
| 080 | N 913023014003 | NUT |
| BEARING BRACKET TO UNDERRUN PROTECTION | ||
| 083 | A 9418910417 | BUSHING |
| HYDRAULIC CYLINDER TO BEARING BRACKET | ||
| 083 | A 9418910417 | BUSHING |
| HYDRAULIC CYLINDER TO BEARING BRACKET | ||
| 083 | A 9418910417 | BUSHING |
| HYDRAULIC CYLINDER TO BEARING BRACKET | ||
| 083 | A 9418910417 | BUSHING |
| HYDRAULIC CYLINDER TO BEARING BRACKET | ||
| 083 | A 9418910417 | BUSHING |
| HYDRAULIC CYLINDER TO BEARING BRACKET | ||
| 086 | A 9415530076 | WASHER |
| HYDRAULIC CYLINDER TO BEARING BRACKET | ||
| 086 | A 9415530076 | WASHER |
| HYDRAULIC CYLINDER TO BEARING BRACKET | ||
| 086 | A 9415530076 | WASHER |
| HYDRAULIC CYLINDER TO BEARING BRACKET | ||
| 086 | A 9425530076 | WASHER |
| HYDRAULIC CYLINDER TO BEARING BRACKET | ||
| 086 | A 9425530076 | WASHER |
| HYDRAULIC CYLINDER TO BEARING BRACKET | ||
| 089 | A 9415530176 | WASHER |
| HYDRAULIC CYLINDER TO BEARING BRACKET | ||
| 089 | A 9415530176 | WASHER |
| HYDRAULIC CYLINDER TO BEARING BRACKET | ||
| 089 | A 9415530176 | WASHER |
| HYDRAULIC CYLINDER TO BEARING BRACKET | ||
| 092 | N 000094006326 | COTTER PIN |
| Repalced by: N 000094006317 | ||
| 092 | N 000094006326 | COTTER PIN |
| Repalced by: N 000094006317 | ||
| 092 | N 000094006317 | COTTER PIN |
| HYDRAULIC CYLINDER TO BEARING BRACKET | ||
| 6.3X40 MM | ||
| 092 | N 000094006317 | COTTER PIN |
| HYDRAULIC CYLINDER TO BEARING BRACKET | ||
| 6.3X40 MM | ||
| 092 | N 000094006317 | COTTER PIN |
| HYDRAULIC CYLINDER TO BEARING BRACKET | ||
| 6.3X40 MM | ||
| 092 | N 000094006317 | COTTER PIN |
| HYDRAULIC CYLINDER TO BEARING BRACKET | ||
| 6.3X40 MM | ||
| 092 | N 000094006317 | COTTER PIN |
| HYDRAULIC CYLINDER TO BEARING BRACKET | ||
| 6.3X40 MM | ||
| 092 | N 000094006317 | COTTER PIN |
| HYDRAULIC CYLINDER TO BEARING BRACKET | ||
| 6.3X40 MM | ||
| 092 | N 000094005045 | COTTER PIN |
| HYDRAULIC CYLINDER TO BEARING BRACKET | ||
| 5X45 MM | ||
| 092 | N 000094005045 | COTTER PIN |
| HYDRAULIC CYLINDER TO BEARING BRACKET | ||
| 5X45 MM | ||
| 095 | A 0005530774 | PIN |
| HYDRAULIC CYLINDER TO BEARING BRACKET | ||
| WEBER | ||
| 095 | A 0005530774 | PIN |
| HYDRAULIC CYLINDER TO BEARING BRACKET | ||
| WEBER | ||
| 098 | A 3755530074 | PIN |
| HYDRAULIC CYLINDER TO BEARING BRACKET | ||
| ERGUN | ||
| 101 | A 3755500075 | LOCK |
| HYDRAULIC CYLINDER TO BEARING BRACKET | ||
| ERGUN | ||
| 104 | N 910106008020 | SCREW |
| HYDRAULIC CYLINDER TO BEARING BRACKET | ||
| 104 | N 910106008020 | SCREW |
| HYDRAULIC CYLINDER TO BEARING BRACKET | ||
| 107 | A 0005531950 | BUSHING |
| HYDRAULIC CYLINDER TO CAB | ||
| WEBER | ||
| 107 | A 3755530050 | BUSHING |
| HYDRAULIC CYLINDER TO CAB | ||
| ERGUN | ||
| 110 | A 0005531076 | WASHER |
| HYDRAULIC CYLINDER TO CAB | ||
| WEBER | ||
| 110 | A 3755530076 | WASHER |
| HYDRAULIC CYLINDER TO CAB | ||
| ERGUN | ||
| 113 | A 6388320028 | CLAMP |
| HYDRAULIC HOSE | ||
