Transporto priemonė: 1823; VIN numerio dalis: 375301

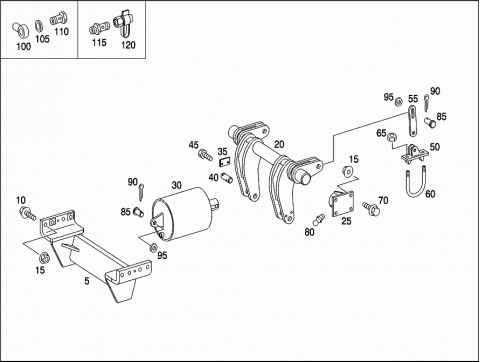

Grupė: 39 TRAILING AXLE - 010 TRAILING AXLES

#	Kodas	Pavadinimas
005	A 3753901240	BRACKET
		BRACKET TO FRAME
005	A 3753901240	BRACKET
		BRACKET TO FRAME
010	N 910105014008	SCREW
		M 14 X 55
010	N 000000005516	HEXAGON HEAD BOLT
		M14X1.5X55
015	N 913023014003	NUT
		M 14
015	N 000000005662	NUT
		M14X1.5
020	A 3753900038	CONSOLE
020	A 3753900038	SUPPORT
025	A 3753900135	BEARING BRACKET
		RIGHT
025	A 3753900135	BEARING BRACKET
		RIGHT
025	A 3753900235	BEARING BRACKET
		LEFT
025	A 3753900235	BEARING BRACKET
		LEFT
030	A 3754300226	CYLINDER
		ON CENTER CROSS MEMBER
030	A 3754300026	CYLINDER
		ON CENTER CROSS MEMBER
035	A 3753931740	BRACKET
035	A 3753931740	BRACKET
040	A 3753930374	PIN
		88 MM
040	A 3753930374	PIN
		88 MM
045	N 910105008008	SCREW
		M 8 X 16
045	N 910105008008	SCREW
		M 8 X 16
050	A 3753900340	BRACKET
		( CARGO )
050	A 3753900440	BRACKET
		( KIPPER )
050	A 3753900840	BRACKET
		RIGHT
		( KIPPER )
055	A 3753930940	BRACKET
		AT SUPPORT
		( CARGO )
055	A 3753931040	BRACKET
		AT SUPPORT
		( KIPPER)
060	A 3753930039	CLAMP
		( CARGO )
060	A 3753930139	CLAMP
		( KIPPER )
065	N 000934018012	NUT
		M 18
065	N 000934018012	NUT
		M 18
070	N 910105014010	SCREW
		M 14 X 45
070	N 910105014010	SCREW
		M 14 X 45
070	N 910105014011	SCREW
		M 14 X 50
080	N 071412008102	GREASE NIPPLE
		M 8 X 1
080	N 071412008102	GREASE NIPPLE
		M 8 X 1
085	A 3753930074	PIN
		53,5 MM
085	A 3753930074	PIN
		53,5 MM
085	A 3753930274	PIN
		57,5 MM
085	A 3753930274	PIN
		57,5 MM
090	N 000094006327	COTTER PIN
090	N 000094006327	COTTER PIN
095	A 3523230376	WASHER
095	A 3523230376	WASHER
095	A 3523230976	WASHER
095	A 3523230976	WASHER
100	N 915052009000	BANJO UNION
		CYLINDER
100	N 915052009000	BANJO UNION
		CYLINDER
105	N 007603016401	SEAL RING
		CYLINDER
105	N 007603016401	SEAL RING
		CYLINDER
110	N 915036012203	HOLLOW SCREW
		CILINDER CONNECTION,RIGHT
110	N 915036012203	HOLLOW SCREW
		CILINDER CONNECTION,RIGHT
115	N 915039012205	HOLLOW SCREW FITTING
		CILINDER CONNECTION,LEFT
115	N 915039012205	HOLLOW SCREW FITTING
		CILINDER CONNECTION,LEFT
120	A 0004312031	TEST CONNECTION
		CILINDER CONNECTION,LEFT
120	A 0004312031	TEST CONNECTION
		CILINDER CONNECTION,LEFT
