Transporto priemonė: 1828; VIN numerio dalis: 374502

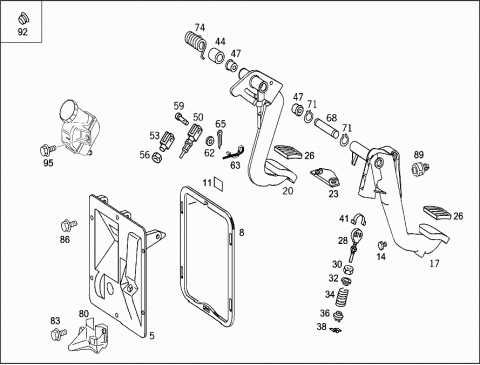

Grupė: 29 PEDAL ASSEMBLY - 090 CLUTCH AND BRAKE PEDAL ASSEMBLY
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 9702940001 | BEARING BRACKET |
| CLUTCH PEDAL AND BRAKE PEDAL | ||
| 005 | A 9402940001 | BEARING BRACKET |
| CLUTCH PEDAL AND BRAKE PEDAL | ||
| 005 | A 9402940001 | BEARING BRACKET |
| CLUTCH PEDAL AND BRAKE PEDAL | ||
| 005 | A 9402940001 | BEARING BRACKET |
| CLUTCH PEDAL AND BRAKE PEDAL | ||
| 005 | A 9702940201 | BEARING BRACKET |
| CLUTCH PEDAL AND BRAKE PEDAL | ||
| 008 | A 9702940080 | GASKET |
| BEARING BRACKET TO FIRE WALL | ||
| 008 | A 9702940080 | GASKET |
| BEARING BRACKET TO FIRE WALL | ||
| 011 | A 0069893085 | ADHESIVE TAPE |
| LOCATING HOLE | ||
| 014 | A 1632910086 | STOP |
| CLUTCH PEDAL | ||
| 014 | A 6732910286 | STOP |
| CLUTCH PEDAL | ||
| 017 | A 9702900516 | PEDAL |
| Repalced by: A 9402900016 | ||
| 017 | A 9402900016 | PEDAL |
| CLUTCH | ||
| 017 | A 9402900216 | PEDAL |
| CLUTCH | ||
| 017 | A 9402900216 | PEDAL |
| CLUTCH | ||
| 017 | A 9702900616 | PEDAL |
| Repalced by: A 9402900116 | ||
| 017 | A 9702900116 | PEDAL |
| CLUTCH | ||
| 017 | A 9402900316 | PEDAL |
| CLUTCH | ||
| 017 | A 9402900416 | PEDAL |
| CLUTCH | ||
| 017 | A 9402900416 | PEDAL |
| CLUTCH | ||
| 020 | A 9402900118 | PEDAL |
| BRAKE | ||
| 020 | A 9402900118 | PEDAL |
| BRAKE | ||
| 020 | A 9402900118 | PEDAL |
| BRAKE | ||
| 020 | A 9702900018 | PEDAL |
| BRAKE | ||
| 020 | A 9702900118 | PEDAL |
| BRAKE | ||
| 020 | A 9402900418 | PEDAL |
| BRAKE | ||
| 020 | A 9402900418 | PEDAL |
| BRAKE | ||
| 020 | A 9402900418 | PEDAL |
| BRAKE | ||
| 023 | A 9412920145 | PLATE |
| BRAKE PEDAL | ||
| 026 | A 2012920082 | PAD |
| BRAKE PEDAL | ||
| 026 | A 2012920082 | PAD |
| BRAKE | ||
| 026 | A 2012920082 | PAD |
| BRAKE | ||
| 026 | A 2012920082 | PAD |
| BRAKE | ||
| 026 | A 2012910282 | PAD |
| CLUTCH | ||
| 026 | A 2012910282 | PAD |
| CLUTCH | ||
| 028 | A 9702900139 | ROD |
| 028 | A 9702900039 | ROD |
| 030 | N 308673008000 | NUT |
| TO 970 290 01 39 | ||
| 032 | A 6732910091 | SPRING RETAINER |
| TOP | ||
| 034 | A 3819930601 | SPRING |
| CLUTCH PEDAL RESET | ||
| 036 | A 3092910091 | SPRING RETAINER |
| BOTTOM | ||
| 038 | A 6732910083 | INSULATOR |
| BOTTOM | ||
| 041 | A 9702910183 | INSULATOR |
| ROD TO CLUTCH PEDAL | ||
| TO A 970 290 05 16 / 06 16 | ||
| 041 | A 9702910183 | INSULATOR |
| ROD TO CLUTCH PEDAL | ||
| TO A 970 290 05 16 / 06 16 | ||
| 044 | A 9702940053 | SPACER TUBE |
| BRAKE PEDAL TO BEARING BRACKET | ||
| 044 | A 9702940053 | SPACER TUBE |
| BRAKE PEDAL TO BEARING BRACKET | ||
| 044 | A 9702940053 | SPACER TUBE |
| BRAKE PEDAL TO BEARING BRACKET | ||
| 047 | A 1242920050 | BUSHING |
| BRAKE PEDAL | ||
| 047 | A 1242920050 | BUSHING |
| BRAKE PEDAL | ||
| 047 | A 1242920050 | BUSHING |
| BRAKE PEDAL | ||
| 050 | A 9702900039 | ROD |
| BRAKE ACTUATION | ||
| 050 | A 9702900239 | ROD |
| BRAKE ACTUATION | ||
| 050 | A 9702900239 | ROD |
| BRAKE ACTUATION | ||
| 053 | A 6209960001 | YOKE |
| BRAKE ACTUATION | ||
| 053 | N 071752008003 | YOKE |
| BRAKE ACTUATION | ||
| 053 | N 071752008003 | YOKE |
| BRAKE ACTUATION | ||
| 053 | N 071752008003 | YOKE |
| BRAKE ACTUATION | ||
| 056 | N 304032008006 | NUT |
| ROD TO YOKE | ||
| 056 | N 304032008005 | NUT |
| ROD TO YOKE | ||
| 056 | N 304032008005 | NUT |
| ROD TO YOKE | ||
| 056 | N 304032008005 | NUT |
| ROD TO YOKE | ||
| 059 | A 3852920174 | PIN |
| ROD TO BRAKE PEDAL | ||
| 059 | A 3852920174 | PIN |
| ROD TO BRAKE PEDAL | ||
| 059 | A 3852920174 | PIN |
| ROD TO BRAKE PEDAL | ||
| 059 | A 6392920074 | PIN |
| ROD TO BRAKE PEDAL | ||
| 062 | N 000433008406 | WASHER |
| ROD TO BRAKE PEDAL | ||
| 062 | N 000433008406 | WASHER |
| ROD TO BRAKE PEDAL | ||
| 062 | N 000433008406 | WASHER |
| ROD TO BRAKE PEDAL | ||
| 063 | N 912011008000 | LOCK |
| ROD TO BRAKE PEDAL | ||
| 065 | N 000094002059 | COTTER PIN |
| ROD TO BRAKE PEDAL | ||
| 065 | N 000094002059 | COTTER PIN |
| ROD TO BRAKE PEDAL | ||
| 065 | N 000094002059 | COTTER PIN |
| ROD TO BRAKE PEDAL | ||
| 068 | A 9702940274 | PIN |
| CLUTCH AND BRAKE PEDALS TO BEARING BRACKET | ||
| 068 | A 9702940274 | PIN |
| CLUTCH AND BRAKE PEDALS TO BEARING BRACKET | ||
| 068 | A 9702940274 | PIN |
| CLUTCH AND BRAKE PEDALS TO BEARING BRACKET | ||
| 071 | A 0079942041 | LOCK |
| CLUTCH AND BRAKE PEDALS TO BEARING BRACKET | ||
| 071 | A 0079942041 | LOCK |
| CLUTCH AND BRAKE PEDALS TO BEARING BRACKET | ||
| 071 | A 0079942041 | LOCK |
| CLUTCH AND BRAKE PEDALS TO BEARING BRACKET | ||
| 074 | A 9409930020 | SPRING |
| BRAKE PEDAL RESET | ||
| 074 | A 9409930020 | SPRING |
| BRAKE PEDAL RESET | ||
| 074 | A 9409930020 | SPRING |
| BRAKE PEDAL RESET | ||
| 074 | A 6679930220 | SPRING |
| BRAKE PEDAL RESET | ||
| 080 | A 9402940095 | WEB |
| BEARING BRACKET TO FIRE WALL | ||
| 083 | N 000000002815 | SCREW |
| BEARING BRACKET TO FIRE WALL | ||
| M 8X35 | ||
| 086 | N 914125008311 | SCREW |
| BEARING BRACKET TO FIRE WALL | ||
| M 8X20 | ||
| 086 | N 000000006271 | HEXAGON HEAD BOLT |
| BEARING BRACKET TO FIRE WALL | ||
| M 8X20 | ||
| 089 | A 1242910086 | STOP |
| CLUTCH PEDAL | ||
| 5,6 MM | ||
| 089 | A 1632910086 | STOP |
| CLUTCH PEDAL | ||
| 12,8 MM | ||
| 089 | A 1632910086 | STOP |
| CLUTCH PEDAL | ||
| 12,8 MM | ||
| 092 | A 0009971586 | PLUG |
| CLUTCH MASTER CYLINDER PLUG OPENING | ||
| 092 | A 3019970386 | PLUG |
| CLUTCH MASTER CYLINDER PLUG OPENING | ||
| 092 | N 915042005000 | PLUG |
| PLUG FOR FASTENING HOLES, EXPANSION RESERVOIR | ||
| 095 | N 000000001114 | SCREW |
| EXPANSION RESERVOIR AT PEDAL BEARING BRACKET | ||
| M 6X15 | ||
| 095 | N 910105006004 | SCREW |
| EXPANSION RESERVOIR AT PEDAL BEARING BRACKET | ||
| M 6X16 | ||
