Transporto priemonė: 1831; VIN numerio dalis: 652192

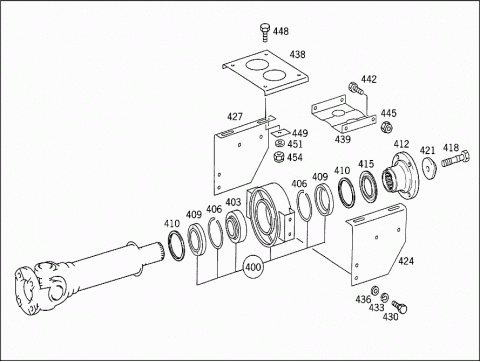

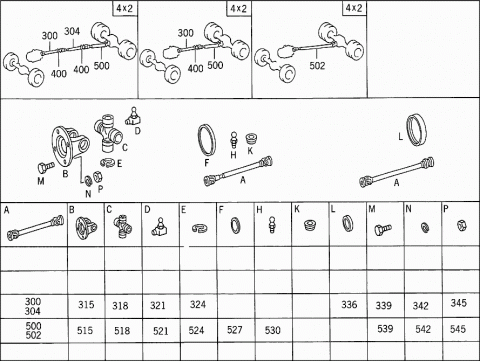

Grupė: 41 PROPELLER SHAFT
| # | Kodas | Pavadinimas |
|---|---|---|
| 300 | A 3954103704 | PROPELLER SHAFT |
| Repalced by: A 6554100804 | ||
| 300 | A 6554100804 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING | ||
| 1503 MM | ||
| 300 | A 3954103404 | PROPELLER SHAFT |
| Repalced by: A 6554101204 | ||
| 300 | A 6554101204 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING | ||
| 1797 MM | ||
| 300 | A 3954104704 | PROPELLER SHAFT |
| Repalced by: A 3954106902 | ||
| 304 | A 3954104604 | PROPELLER SHAFT |
| Repalced by: A 6554100504 | ||
| 304 | A 6554100504 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING I TO INTERMEDIATE BEARING II | ||
| 1176 MM | ||
| 315 | A 3954110911 | DRIVE FLANGE |
| Repalced by: A 3954111011 | ||
| 315 | A 3954111011 | DRIVE FLANGE |
| Repalced by: A 3954111211 | ||
| 315 | A 3954111211 | DRIVE FLANGE |
| 315 | A 3954111211 | DRIVE FLANGE |
| 318 | A 6204100031 | UNIVERSAL JOINT CROSS |
| Repalced by: A 9404100031 | ||
| 318 | A 9404100031 | UNIVERSAL JOINT CROSS |
| WITH BUSHINGS | ||
| 318 | A 9404100031 | UNIVERSAL JOINT CROSS |
| WITH BUSHINGS | ||
| 321 | N 071412008302 | GREASE NIPPLE |
| 321 | N 071412008302 | GREASE NIPPLE |
| 324 | A 0069943141 | LOCK |
| AS REQUIRED | ||
| 2.00 MM | ||
| 324 | A 0069943141 | LOCK |
| AS REQUIRED | ||
| 2.00 MM | ||
| 324 | A 0069943541 | LOCK |
| AS REQUIRED | ||
| 2.10 MM | ||
| 324 | A 0069943541 | LOCK |
| AS REQUIRED | ||
| 2.10 MM | ||
| 324 | A 0069943941 | LOCK |
| AS REQUIRED | ||
| 2.20 MM | ||
| 324 | A 0069943941 | LOCK |
| AS REQUIRED | ||
| 2.20 MM | ||
| 336 | A 3894130061 | PROTECTIVE CAP |
| 336 | A 3894130061 | PROTECTIVE CAP |
| 336 | A 3954130061 | PROTECTIVE CAP |
| 336 | A 3954130061 | PROTECTIVE CAP |
| 339 | N 000960014237 | SCREW |
| PROPELLER SHAFT TO TRANSMISSION | ||
| 339 | N 000960014237 | SCREW |
| PROPELLER SHAFT TO TRANSMISSION | ||
| 339 | N 000960014237 | SCREW |
| PROPELLER SHAFT TO INTERMEDIATE BEARING | ||
| 342 | N 912004014100 | LOCK WASHER |
| PROPELLER SHAFT | ||
| 342 | N 912004014100 | LOCK WASHER |
| PROPELLER SHAFT | ||
| 345 | N 000934014020 | NUT |
| PROPELLER SHAFT | ||
| 345 | N 000934014020 | NUT |
| PROPELLER SHAFT | ||
| 400 | A 3954100022 | INTERMEDIATE BEARING |
| Repalced by: A 3954100622 | ||
| 400 | A 3954100622 | INTERMEDIATE BEARING |
| Repalced by: A 6554100022 | ||
| 400 | A 6554100022 | INTERMEDIATE BEARING |
| PROPELLER SHAFT | ||
| 400 | A 6554100022 | INTERMEDIATE BEARING |
| PROPELLER SHAFT | ||
| 403 | A 0029819225 | BALL BEARING |
| 403 | A 0029819225 | BALL BEARING |
| 403 | A 0029819325 | BALL BEARING |
| 403 | A 0029819325 | BALL BEARING |
| 406 | N 912009110200 | SNAP RING |
| 406 | N 912009110200 | SNAP RING |
| 409 | A 3874130261 | PROTECTIVE CAP |
| 409 | A 3874130261 | PROTECTIVE CAP |
| 410 | A 6554110052 | SPACER WASHER |
| PROPELLER SHAFT BEARING | ||
| 412 | A 6454110046 | FLANGE |
| PROPELLER SHAFT BEARING | ||
| 412 | A 6454110046 | FLANGE |
| PROPELLER SHAFT BEARING | ||
| 415 | A 3894130061 | PROTECTIVE CAP |
| 415 | A 3894130061 | PROTECTIVE CAP |
| 415 | A 3954130061 | PROTECTIVE CAP |
| 415 | A 3954130061 | PROTECTIVE CAP |
| 418 | A 3899900019 | SCREW |
| FOLLOWER FLANGE TO PROPELLER SHAFT | ||
| 418 | A 3899900019 | SCREW |
| FOLLOWER FLANGE TO PROPELLER SHAFT | ||
| 421 | A 3894110062 | THRUST WASHER |
| FOLLOWER FLANGE TO PROPELLER SHAFT | ||
| 421 | A 3894110062 | THRUST WASHER |
| FOLLOWER FLANGE TO PROPELLER SHAFT | ||
| 424 | A 6174131242 | BRACKET |
| PROPELLER SHAFT BEARING,LEFT | ||
| 424 | A 6174131242 | BRACKET |
| PROPELLER SHAFT BEARING I,LEFT | ||
| 424 | A 6174132642 | BRACKET |
| PROPELLER SHAFT BEARING II,LEFT | ||
| 424 | A 6174132342 | BRACKET |
| PROPELLER SHAFT BEARING,LEFT | ||
| 424 | A 6524130942 | BRACKET |
| PROPELLER SHAFT BEARING,LEFT | ||
| 427 | A 6174131142 | BRACKET |
| PROPELLER SHAFT BEARING,RIGHT | ||
| 427 | A 6174131142 | BRACKET |
| PROPELLER SHAFT BEARING I,RIGHT | ||
| 427 | A 6174132542 | BRACKET |
| PROPELLER SHAFT BEARING II,RIGHT | ||
| 427 | A 6174132442 | BRACKET |
| PROPELLER SHAFT BEARING,RIGHT | ||
| 427 | A 6524130842 | BRACKET |
| PROPELLER SHAFT BEARING,RIGHT | ||
| 430 | N 000961012094 | SCREW |
| Repalced by: N 308676012013 | ||
| 430 | N 308676012013 | HEXAGON HEAD BOLT |
| Repalced by: A 0029902704 | ||
| 430 | A 0029902704 | SCREW |
| BRACKET TO PROPELLER SHAFT BEARING HOUSING | ||
| M 12X30 | ||
| 430 | A 0029902704 | SCREW |
| BRACKET TO PROPELLER SHAFT BEARING HOUSING | ||
| M 12X30 | ||
| 433 | N 912004012100 | LOCK WASHER |
| BRACKET TO PROPELLER SHAFT BEARING HOUSING | ||
| 433 | N 912004012100 | LOCK WASHER |
| BRACKET TO PROPELLER SHAFT BEARING HOUSING | ||
| 436 | A 3299900040 | DISK |
| Repalced by: A 1232420366 | ||
| 436 | A 1232420366 | WASHER |
| BRACKET TO PROPELLER SHAFT BEARING HOUSING | ||
| 436 | A 1232420366 | WASHER |
| BRACKET TO PROPELLER SHAFT BEARING HOUSING | ||
| 438 | A 3854130011 | REINFORCEMENT |
| PROPELLER SHAFT BEARING | ||
| 439 | A 3954130011 | REINFORCEMENT |
| PROPELLER SHAFT BEARING | ||
| 442 | N 000961012094 | SCREW |
| Repalced by: N 308676012013 | ||
| 442 | N 308676012013 | HEXAGON HEAD BOLT |
| REINFORCEMENT TO BRACKET | ||
| 445 | N 913004012009 | NUT |
| Repalced by: N 910113012003 | ||
| 445 | N 910113012003 | NUT |
| REINFORCEMENT TO BRACKET | ||
| 448 | N 000961012106 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| 448 | N 000960010026 | SCREW |
| Repalced by: N 000961010031 | ||
| 448 | N 000961010031 | SCREW |
| Repalced by: N 308676010023 | ||
| 448 | N 308676010023 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| 449 | A 3854130111 | REINFORCEMENT |
| BRACKET TO CROSS MEMBER | ||
| 451 | A 3879900040 | WASHER |
| Repalced by: N 007349013003 | ||
| 451 | N 007349013005 | WASHER |
| BRACKET TO CROSS MEMBER | ||
| 451 | N 007349010003 | WASHER |
| Repalced by: N 007349010007 | ||
| 451 | N 007349010007 | WASHER |
| BRACKET TO CROSS MEMBER | ||
| 454 | N 913004012009 | NUT |
| Repalced by: N 910113012003 | ||
| 454 | N 910113012003 | NUT |
| BRACKET TO CROSS MEMBER | ||
| 454 | N 913002010010 | NUT |
| BRACKET TO CROSS MEMBER | ||
| 500 | A 3954100507 | PROPELLER SHAFT |
| Repalced by: A 6554102902 | ||
| 500 | A 6554102902 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING TO REAR AXLE | ||
| 1498 MM | ||
| 500 | A 3954106502 | PROPELLER SHAFT |
| Repalced by: A 6554101002 | ||
| 500 | A 6554101002 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING TO REAR AXLE | ||
| 1798 MM | ||
| 500 | A 3954107902 | PROPELLER SHAFT |
| Repalced by: A 6554100302 | ||
| 500 | A 6554100302 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING TO REAR AXLE | ||
| 1872 MM | ||
| 500 | A 3954107302 | PROPELLER SHAFT |
| Repalced by: A 6564100802 | ||
| 500 | A 6564100802 | PROPELLER SHAFT |
| Repalced by: A 6564106502 | ||
| 500 | A 6564106502 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING II TO REAR AXLE | ||
| 1317 MM | ||
| 500 | A 3954107802 | PROPELLER SHAFT |
| Repalced by: A 3954106902 | ||
| 502 | A 3954105902 | PROPELLER SHAFT |
| Repalced by: A 6554101402 | ||
| 502 | A 6554101402 | PROPELLER SHAFT |
| FROM TRANSMISSION TO REAR AXLE | ||
| 1688 MM | ||
| 502 | A 3954106702 | PROPELLER SHAFT |
| Repalced by: A 6554103202 | ||
| 502 | A 6554103202 | PROPELLER SHAFT |
| FROM TRANSMISSION TO REAR AXLE | ||
| 2105 MM | ||
| 502 | A 3954106902 | PROPELLER SHAFT |
| Repalced by: A 6554101802 | ||
| 502 | A 6554101802 | PROPELLER SHAFT |
| FROM TRANSMISSION TO REAR AXLE | ||
| 2300 MM | ||
| 515 | A 3954110911 | DRIVE FLANGE |
| Repalced by: A 3954111011 | ||
| 515 | A 3954111011 | DRIVE FLANGE |
| Repalced by: A 3954111211 | ||
| 515 | A 3954111211 | DRIVE FLANGE |
| 518 | A 6204100031 | UNIVERSAL JOINT CROSS |
| Repalced by: A 9404100031 | ||
| 518 | A 9404100031 | UNIVERSAL JOINT CROSS |
| WITH BUSHINGS | ||
| 521 | N 071412008302 | GREASE NIPPLE |
| 524 | A 0069943141 | LOCK |
| AS REQUIRED | ||
| 2.00 MM | ||
| 524 | A 0069943541 | LOCK |
| AS REQUIRED | ||
| 2.10 MM | ||
| 524 | A 0069943941 | LOCK |
| AS REQUIRED | ||
| 2.20 MM | ||
| 527 | A 3954110059 | SEAL RING |
| PROTECTIVE TUBE | ||
| 105X17 MM | ||
| 527 | A 0004110159 | SEAL RING |
| PROTECTIVE TUBE | ||
| 102.5X22 MM | ||
| 530 | N 071412008101 | GREASE NIPPLE |
| Repalced by: N 071412008102 | ||
| 530 | N 071412008102 | GREASE NIPPLE |
| 539 | N 000960014237 | SCREW |
| PROPELLER SHAFT TO PROPELLER SHAFT BEARING AND TO REAR AXLE | ||
| 539 | N 000960014237 | SCREW |
| PROPELLER SHAFT TO TRANSMISSION AND TO REAR AXLE | ||
| 539 | N 000960014237 | SCREW |
| PROPELLER SHAFT TO INTERMEDIATE BEARING | ||
| 542 | N 912004014100 | LOCK WASHER |
| PROPELLER SHAFT | ||
| 545 | N 000934014020 | NUT |
| PROPELLER SHAFT | ||
