Transporto priemonė: 1831 LS; VIN numerio dalis: 652591

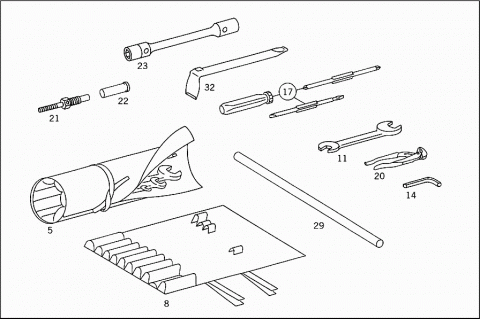

Grupė: 58 TOOLS AND ACCESSORIES
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 6525800003 | TOOL BAG |
| Repalced by: A 3855800003 | ||
| 005 | A 3855800003 | TOOL BAG |
| Repalced by: A 6555800003 | ||
| 005 | A 6555800003 | TOOL BAG |
| ASSEMBLY | ||
| 005 | A 6505800003 | TOOL BAG |
| ASSEMBLY | ||
| 008 | A 3855850001 | TOOL BAG |
| Repalced by: A 6555850001 | ||
| 008 | A 6555850001 | TOOL BAG |
| Repalced by: A 9425850001 | ||
| 008 | A 9425850001 | TOOL BAG |
| EMPTY | ||
| 011 | N 000895008007 | OPEN END WRENCH |
| 8X9 MM | ||
| 011 | N 003110010002 | OPEN END WRENCH |
| 10X11 MM | ||
| 011 | N 003110012005 | OPEN END WRENCH |
| 12X13 MM | ||
| 011 | N 003110013010 | OPEN END WRENCH |
| 13X16 MM | ||
| 011 | N 003110013004 | OPEN END WRENCH |
| 13X17 MM | ||
| 011 | N 003110018002 | OPEN END WRENCH |
| 18X21 MM | ||
| 011 | N 003110019002 | OPEN END WRENCH |
| Repalced by: N 003110019003 | ||
| 011 | N 003110019003 | OPEN END WRENCH |
| 19X22 MM | ||
| 011 | N 003110024001 | OPEN END WRENCH |
| 24X27 MM | ||
| 014 | N 000911014006 | HEX. KEY WRENCH |
| ONE-PART | ||
| 017 | A 0005810317 | SCREWDRIVER |
| THREE-PART | ||
| 020 | A 0005811038 | PLIERS |
| Repalced by: N 005231240200 | ||
| 020 | N 005231240200 | PLIERS |
| Repalced by: A 0005810238 | ||
| 020 | A 0005810238 | PLIERS |
| 021 | A 3892680070 | STUD |
| EMERGENCY SHIFT RELAY VALVE | ||
| 022 | A 0002682157 | COVER |
| EMERGENCY CONTROL SCREW | ||
| 023 | A 0005813901 | SOCKET WRENCH |
| (WHEEL-NUT WRENCH) | ||
| 30X32 MM | ||
| 029 | A 6165810303 | TURN HANDLE |
| SOCKET WRENCH | ||
| 032 | A 0005812158 | TIRE LEVER |
| FOR TIRES | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |

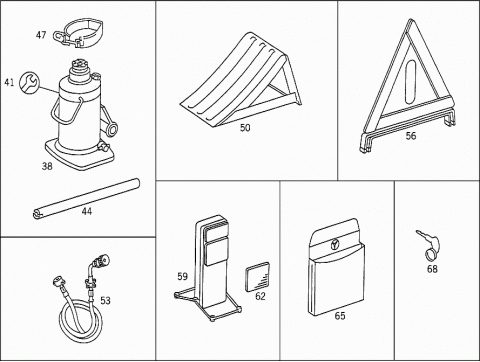

| ACCESSORIES | ||
| 038 | A 0015831315 | JACK |
| Repalced by: A 0015833415 | ||
| 038 | A 0015833415 | JACK |
| LIFTING POWER: | ||
| 12 T | ||
| 041 | A 0005800126 | REPAIR KIT |
| JACK | ||
| 044 | A 0005832545 | ROD |
| Repalced by: A 0005834845 | ||
| 044 | A 0005834845 | ROD |
| PUMP LEVER AND JACK | ||
| 047 | A 3228900571 | STRAP |
| JACK | ||
| 050 | A 3855800017 | CHOCK |
| Repalced by: A 9425830375 | ||
| 050 | A 9425830375 | CHOCK |
| Repalced by: A 9425830175 | ||
| 050 | A 9425830175 | CHOCK |
| Repalced by: A 9425830375 | ||
| 050 | A 9425830375 | CHOCK |
| 053 | A 0005911304 | AIR PUMP HOSE |
| (TIRE INFLATOR HOSE) | ||
| 056 | A 0005906012 | WARNING TRIANGLE |
| Repalced by: A 0005904612 | ||
| 056 | A 0005904612 | WARNING TRIANGLE |
| Repalced by: A 1708900397 | ||
| 056 | A 1708900397 | WARNING TRIANGLE |
| 059 | A 0005832353 | EMERGENCY LANTERN |
| HELLA | ||
| 059 | A 0005833053 | EMERGENCY LANTERN |
| ULO | ||
| 062 | A 0015447990 | LENS |
| AMBER | ||
| HELLA | ||
| 062 | A 0015448090 | LENS |
| WITHE | ||
| HELLA | ||
| 065 | A 1155850095 | PROTECTIVE WRAPPER |
| LICENSE DOCUMENTS | ||
| 068 | A 0005830296 | RING |
| SAFETY LOCK- AND DOOR LOCK KEYS | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| TYPE PLATE,GUIDE SIGNS | ||

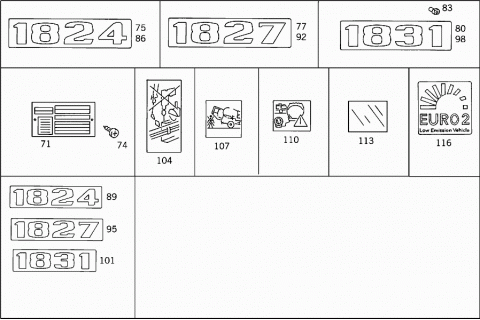

| 071 | A 6245841401 | TYPE PLATE |
| WITH INSCRIPTION: | ||
| DAIMLER-BENZ AG + "WDB" | ||
| 071 | A 6245841301 | TYPE PLATE |
| WITH INSCRIPTION: | ||
| MERCEDES-BENZ AG + "WDB" | ||
| 071 | A 6255842801 | TYPE PLATE |
| WITH INSCRIPTION: | ||
| DAIMLER-BENZ AG + "WDB" | ||
| 071 | A 6255843401 | TYPE PLATE |
| WITH INSCRIPTION: | ||
| DAIMLERCHRYSLER AG + "WDB" | ||
| 074 | N 007981002218 | SHEET METAL SCREW |
| TYPE PLATE | ||
| 075 | A 6418176114 | TYPE DESIGNATION |
| PLASTIC | ||
| "1824" | ||
| 077 | A 6418173614 | TYPE DESIGNATION |
| PLASTIC | ||
| "1827" | ||
| 080 | A 6418173714 | TYPE DESIGNATION |
| PLASTIC | ||
| "1831" | ||
| 083 | A 0049883378 | CLIP |
| TYPE DESIGNATION TO CAB | ||
| 083 | A 3819971881 | GROMMET |
| TYPE DESIGNATION TO CAB | ||
| 086 | A 6418171415 | TYPE DESIGNATION |
| DOOR FOIL | ||
| "1824" | ||
| 089 | A 6418171315 | TYPE DESIGNATION |
| FRONT FOIL | ||
| "1824" | ||
| 092 | A 6418171615 | TYPE DESIGNATION |
| DOOR FOIL | ||
| "1827" | ||
| 095 | A 6418171515 | TYPE DESIGNATION |
| FRONT FOIL | ||
| "1827" | ||
| 098 | A 6418171815 | TYPE DESIGNATION |
| DOOR FOIL | ||
| "1831" | ||
| 101 | A 6418171715 | TYPE DESIGNATION |
| FRONT FOIL | ||
| "1831" | ||
| 104 | A 3855840021 | GUIDE SIGN |
| Repalced by: A 0015847138 | ||
| 104 | A 0015847138 | GUMMED LABEL |
| POLYAMIDE LINES | ||
| Repalced by: A 0045843838 | ||
| 104 | A 0045843838 | GUMMED LABEL |
| POLYAMIDE LINES | ||
| 107 | A 3875841321 | GUIDE SIGN |
| Repalced by: A 0015847238 | ||
| 107 | A 0015847238 | GUMMED LABEL |
| DANGER AREA IN FRONT OF TILTED CAB | ||
| 110 | A 3875843838 | GUMMED LABEL |
| EXPLANATIONS | ||
| 113 | A 3875840055 | ADHESIVE FOIL |
| GUIDE SIGN | ||
| 116 | A 6708173120 | GUIDE SIGN |
| EURO2 | ||
