Transporto priemonė: 1831 LS; VIN numerio dalis: 652593

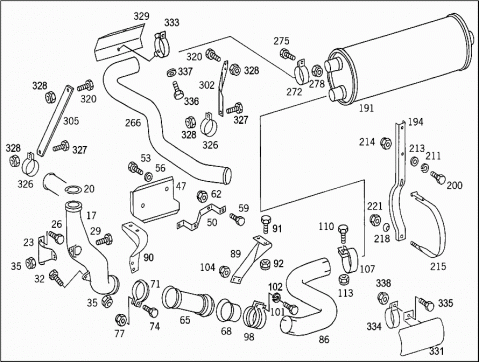

Grupė: 49 EXHAUST SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 017 | A 6524920201 | FRONT EXHAUST PIPE |
| 017 | A 6524920201 | FRONT EXHAUST PIPE |
| 020 | A 0001424357 | SEAL RING |
| FRONT EXHAUST PIPE TO THROTTLE HOUSING | ||
| 020 | A 0001424357 | SEAL RING |
| FRONT EXHAUST PIPE TO THROTTLE HOUSING | ||
| 023 | A 6524920041 | BRACKET |
| Repalced by: A 6524927041 | ||
| 023 | A 6524927041 | BRACKET |
| FRONT EXHAUST PIPE TO TIMING CASE,TOP | ||
| 023 | A 6524927041 | BRACKET |
| FRONT EXHAUST PIPE TO TIMING CASE,TOP | ||
| 026 | N 000933016060 | SCREW |
| Repalced by: N 304017016011 | ||
| 026 | N 304017016011 | SCREW |
| BRACKET TO TIMING CASE | ||
| 026 | N 304017016011 | HEXAGON HEAD BOLT |
| BRACKET TO TIMING CASE | ||
| 029 | N 000933010157 | SCREW |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 029 | N 000933010157 | SCREW |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 032 | N 000933010105 | SCREW |
| FRONT EXHAUST PIPE TO CLUTCH BELL | ||
| 032 | N 000933010105 | SCREW |
| FRONT EXHAUST PIPE TO CLUTCH BELL | ||
| 035 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 035 | N 910113010000 | NUT |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 035 | N 910113010000 | HEXAGON NUT |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 035 | N 910113010000 | HEXAGON NUT |
| FRONT EXHAUST PIPE TO CLUTCH BELL | ||
| 035 | N 910113010000 | HEXAGON NUT |
| FRONT EXHAUST PIPE TO CLUTCH BELL | ||
| 047 | A 6524920030 | PROTECTIVE PLATE |
| FRONT EXHAUST PIPE | ||
| 047 | A 6524920030 | PROTECTIVE PLATE |
| FRONT EXHAUST PIPE | ||
| 050 | A 6524901940 | BRACKET |
| PROTECTIVE PLATE TO SIDE MEMBER | ||
| 050 | A 6524901940 | BRACKET |
| PROTECTIVE PLATE TO SIDE MEMBER | ||
| 053 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 053 | N 304017008016 | SCREW |
| PROTECTIVE PLATE TO BRACKET | ||
| 053 | N 304017008016 | HEXAGON HEAD BOLT |
| PROTECTIVE PLATE TO BRACKET | ||
| 056 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 056 | N 000125008443 | WASHER |
| PROTECTIVE PLATE TO BRACKET | ||
| 056 | N 000125008443 | WASHER |
| PROTECTIVE PLATE TO BRACKET | ||
| 059 | N 000961012052 | SCREW |
| Repalced by: N 308676012012 | ||
| 059 | N 308676012012 | HEXAGON HEAD BOLT |
| BRACKET TO SIDE MEMBER | ||
| 059 | N 308676012012 | HEXAGON HEAD BOLT |
| BRACKET TO SIDE MEMBER | ||
| 062 | N 910113012002 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 062 | N 910113012002 | HEXAGON NUT |
| BRACKET TO SIDE MEMBER | ||
| 065 | A 6214900065 | FLEXIBLE METAL TUBE |
| 068 | A 6214920008 | COLLAR |
| FLEXIBLE METAL TUBE TO EXHAUST PIPE | ||
| 071 | A 6219970090 | CLAMP |
| EXHAUST LINE FLEXIBLE METAL TUBE | ||
| 074 | N 000933008150 | SCREW |
| Repalced by: N 304017008018 | ||
| 074 | N 304017008018 | SCREW |
| EXHAUST LINE FLEXIBLE METAL TUBE | ||
| 077 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 077 | N 913004008001 | NUT |
| EXHAUST LINE FLEXIBLE METAL TUBE | ||
| 086 | A 6524900420 | EXHAUST PIPE |
| IN FRONT OF EXHAUST MUFFLER | ||
| 086 | A 6524902320 | EXHAUST PIPE |
| IN FRONT OF EXHAUST MUFFLER | ||
| 086 | A 6524902320 | EXHAUST PIPE |
| IN FRONT OF EXHAUST MUFFLER | ||
| 086 | A 6524907020 | EXHAUST PIPE |
| IN FRONT OF EXHAUST MUFFLER | ||
| 086 | A 6524904820 | EXHAUST PIPE |
| IN FRONT OF EXHAUST MUFFLER | ||
| 086 | A 6524904820 | EXHAUST PIPE |
| IN FRONT OF EXHAUST MUFFLER | ||
| 086 | A 6524904820 | EXHAUST PIPE |
| IN FRONT OF EXHAUST MUFFLER | ||
| 086 | A 6524900520 | EXHAUST PIPE |
| FRONT,REAR PART | ||
| 086 | A 6524900620 | EXHAUST PIPE |
| FRONT,REAR PART | ||
| 086 | A 6524902420 | EXHAUST PIPE |
| FRONT,REAR PART | ||
| 086 | A 6524904720 | EXHAUST PIPE |
| FRONT,REAR PART | ||
| 089 | A 6524920641 | BRACKET |
| EXHAUST PIPE TO LEFT FRONT SPRING REAR BRACKET | ||
| 089 | A 6524920641 | BRACKET |
| EXHAUST PIPE TO LEFT FRONT SPRING REAR BRACKET | ||
| 089 | A 6534920541 | BRACKET |
| BRACKET TO SIDE MEMBER | ||
| 089 | A 6534920541 | BRACKET |
| BRACKET TO SIDE MEMBER | ||
| 090 | A 6174922941 | BRACKET |
| BRACKET TO SIDE MEMBER | ||
| 091 | N 000961012094 | SCREW |
| Repalced by: N 308676012013 | ||
| 091 | N 308676012013 | HEXAGON HEAD BOLT |
| BRACKET TO SIDE MEMBER | ||
| 091 | N 308676012013 | HEXAGON HEAD BOLT |
| BRACKET TO SIDE MEMBER | ||
| 091 | N 000961014027 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 091 | N 000961014027 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 092 | N 913004012009 | NUT |
| Repalced by: N 910113012003 | ||
| 092 | N 910113012003 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 092 | N 910113012003 | HEXAGON NUT |
| BRACKET TO SIDE MEMBER | ||
| 092 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 092 | N 910113014001 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 092 | N 910113014001 | HEXAGON NUT |
| BRACKET TO SIDE MEMBER | ||
| 098 | A 6254920040 | CLAMP |
| EXHAUST PIPE TO BRACKET | ||
| 098 | A 6254920040 | CLAMP |
| BRACKET TO FRONT SPRING REAR BRACKET | ||
| 101 | N 000933010094 | SCREW |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 101 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 101 | N 304017010002 | SCREW |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 101 | N 000933010105 | SCREW |
| BRACKET TO FRONT SPRING REAR BRACKET | ||
| 101 | N 000961014027 | SCREW |
| BRACKET TO FRONT SPRING REAR BRACKET | ||
| 101 | N 000961014154 | SCREW |
| BRACKET TO FRONT SPRING REAR BRACKET | ||
| 102 | N 912004014100 | LOCK WASHER |
| BRACKET TO FRONT SPRING REAR BRACKET | ||
| 102 | N 912004014100 | LOCK WASHER |
| BRACKET TO FRONT SPRING REAR BRACKET | ||
| 104 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 104 | N 910113010000 | NUT |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 104 | N 910113010000 | HEXAGON NUT |
| BRACKET TO FRONT SPRING REAR BRACKET | ||
| 104 | N 910113010000 | HEXAGON NUT |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 107 | N 071555100500 | CLAMP |
| Repalced by: N 071555100501 | ||
| 107 | N 071555100501 | CLAMP |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 107 | N 071555100500 | CLAMP |
| 107 | N 071555100501 | CLAMP |
| BRACKET TO FRONT SPRING REAR BRACKET | ||
| 107 | N 071555104501 | CLAMP |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 110 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 110 | N 304017010002 | SCREW |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 113 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 113 | N 910113010000 | NUT |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 191 | A 6524900101 | EXHAUST MUFFLER |
| 194 | A 6524910141 | BRACKET |
| Repalced by: A 6524910741 | ||
| 194 | A 6524910741 | BRACKET |
| EXHAUST MUFFLER | ||
| 194 | A 6524910741 | BRACKET |
| EXHAUST MUFFLER | ||
| 194 | A 6524912341 | BRACKET |
| Repalced by: A 6174911841 | ||
| 194 | A 6174911841 | BRACKET |
| EXHAUST MUFFLER | ||
| 194 | A 6174911841 | BRACKET |
| EXHAUST MUFFLER | ||
| 194 | A 6524900141 | CLAMP |
| Repalced by: A 6524903740 | ||
| 194 | A 6524903740 | BRACKET |
| EXHAUST MUFFLER | ||
| 200 | N 000961014050 | SCREW |
| Repalced by: N 308676014020 | ||
| 200 | N 308676014020 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M 14X35 | ||
| 200 | N 308676014020 | HEXAGON HEAD BOLT |
| BRACKET TO SIDE MEMBER | ||
| M 14X35 | ||
| 200 | N 000961014028 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M 14X40 | ||
| 211 | N 912004014100 | LOCK WASHER |
| BRACKET TO SIDE MEMBER | ||
| 213 | A 3209901840 | WASHER |
| BRACKET TO SIDE MEMBER | ||
| 214 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 214 | N 910113014001 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 215 | A 6174900542 | STRAP |
| Repalced by: A 6174900142 | ||
| 215 | A 6174900142 | STRAP |
| EXHAUST MUFFLER TO BRACKET | ||
| 218 | N 006319010302 | SPHERICAL WASHER |
| STRAP TO BRACKET | ||
| 221 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 221 | N 910113010000 | NUT |
| STRAP TO BRACKET | ||
| 266 | A 6524920414 | END PIECE |
| (TAIL PIPE) | ||
| 266 | A 6524923414 | END PIECE |
| (TAIL PIPE) | ||
| 266 | A 6524924714 | END PIECE |
| (TAIL PIPE) | ||
| 266 | A 6524920060 | END PIECE |
| (TAIL PIPE) | ||
| 266 | A 6524920260 | END PIECE |
| (TAIL PIPE) | ||
| 266 | A 6524920260 | END PIECE |
| (TAIL PIPE) | ||
| 266 | A 6524923214 | END PIECE |
| (TAIL PIPE) | ||
| 266 | A 6524925614 | END PIECE |
| Repalced by: A 6524929814 | ||
| 266 | A 6524929814 | END PIECE |
| (TAIL PIPE) | ||
| 266 | A 6524929814 | END PIECE |
| (TAIL PIPE) | ||
| 266 | A 6524920514 | END PIECE |
| (TAIL PIPE) | ||
| 266 | A 6524923514 | END PIECE |
| (TAIL PIPE) | ||
| 266 | A 6524925514 | END PIECE |
| (TAIL PIPE) | ||
| 266 | A 6524920160 | END PIECE |
| (TAIL PIPE) | ||
| 266 | A 6524920360 | END PIECE |
| (TAIL PIPE) | ||
| 266 | A 6524920360 | END PIECE |
| (TAIL PIPE) | ||
| 266 | A 6524923614 | END PIECE |
| (TAIL PIPE) | ||
| 266 | A 6524925314 | END PIECE |
| (TAIL PIPE) | ||
| 266 | A 6524929914 | END PIECE |
| (TAIL PIPE) | ||
| 272 | A 6534920040 | CLAMP |
| TAIL PIPE TO EXHAUST MUFFLER | ||
| 275 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 275 | N 304017010002 | SCREW |
| TAIL PIPE TO EXHAUST MUFFLER | ||
| 278 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 278 | N 910113010000 | NUT |
| TAIL PIPE TO EXHAUST MUFFLER | ||
| 278 | N 910113010000 | HEXAGON NUT |
| TAIL PIPE TO APPARATUS SUPPORT | ||
| 278 | N 910113010000 | HEXAGON NUT |
| TAIL PIPE TO APPARATUS SUPPORT | ||
| 281 | A 6524928241 | BRACKET |
| BRACKET TO APPARATUS SUPPORT | ||
| 281 | A 6524928441 | BRACKET |
| BRACKET TO FRONT SPRING CENTRAL BRACKET | ||
| 284 | A 6524925241 | BRACKET |
| EXHAUST PIPE TO SIDE MEMBER | ||
| 284 | A 6524925241 | BRACKET |
| EXHAUST PIPE TO SIDE MEMBER | ||
| 287 | A 6524928141 | BRACKET |
| TAIL PIPE TO SIDE MEMBER | ||
| 302 | A 6524923141 | BRACKET |
| TAIL PIPE TO APPARATUS SUPPORT | ||
| 302 | A 6524925341 | BRACKET |
| TAIL PIPE TO APPARATUS SUPPORT | ||
| 302 | A 6524924741 | BRACKET |
| TAIL PIPE TO SIDE MEMBER | ||
| 302 | A 6524921441 | BRACKET |
| TAIL PIPE TO SIDE MEMBER | ||
| 305 | A 6244920741 | BRACKET |
| TAIL PIPE TO SIDE MEMBER | ||
| 308 | N 000961014027 | SCREW |
| BRACKET TO FRONT SPRING CENTRAL BRACKET | ||
| 308 | A 0039902804 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M 14X45 | ||
| 320 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 320 | N 304017010002 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 320 | N 304017010002 | HEXAGON HEAD BOLT |
| BRACKET TO SIDE MEMBER | ||
| 320 | N 304017010002 | HEXAGON HEAD BOLT |
| BRACKET TO APPARATUS SUPPORT | ||
| 320 | N 304017010002 | HEXAGON HEAD BOLT |
| BRACKET TO APPARATUS SUPPORT | ||
| 320 | N 304017010002 | HEXAGON HEAD BOLT |
| TAIL PIPE TO BRACKET | ||
| 324 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 324 | N 910113014001 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 324 | N 910113014001 | HEXAGON NUT |
| BRACKET TO SIDE MEMBER | ||
| 324 | N 910113014001 | HEXAGON NUT |
| BRACKET TO APPARATUS SUPPORT | ||
| 324 | N 910113014001 | HEXAGON NUT |
| BRACKET TO APPARATUS SUPPORT | ||
| 324 | N 910113014001 | HEXAGON NUT |
| BRACKET TO MANUAL PUMP BRACKET | ||
| 324 | N 910113014001 | HEXAGON NUT |
| TAIL PIPE TO BRACKET | ||
| 326 | N 071555110501 | CLAMP |
| TAIL PIPE TO BRACKET | ||
| 326 | N 071555110501 | CLAMP |
| TAIL PIPE TO BRACKET | ||
| 326 | N 071555110501 | CLAMP |
| TAIL PIPE TO BRACKET | ||
| 326 | N 071555110501 | CLAMP |
| TAIL PIPE TO BRACKET | ||
| A 6534920140 | CLAMP | |
| TAIL PIPE TO BRACKET | ||
| A 6534920140 | CLAMP | |
| TAIL PIPE TO BRACKET | ||
| 326 | N 071555100500 | CLAMP |
| Repalced by: N 071555100501 | ||
| 326 | N 071555100501 | CLAMP |
| TAIL PIPE TO BRACKET | ||
| 326 | N 071555100501 | CLAMP |
| TAIL PIPE TO BRACKET | ||
| 327 | N 000933010105 | SCREW |
| BRACKET TO MANUAL PUMP BRACKET | ||
| 327 | N 000933010105 | SCREW |
| TAIL PIPE TO BRACKET | ||
| M 10X25 | ||
| 327 | N 000933010105 | SCREW |
| TAIL PIPE TO BRACKET | ||
| M 10X25 | ||
| 327 | N 304017010025 | SCREW |
| Repalced by: N 304017010051 | ||
| 327 | N 304017010051 | SCREW |
| TAIL PIPE TO BRACKET | ||
| M 10X60 | ||
| 327 | N 304017010051 | HEXAGON HEAD BOLT |
| TAIL PIPE TO BRACKET | ||
| M 10X60 | ||
| 328 | N 913004010008 | NUT |
| 328 | N 910113010000 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 328 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 328 | N 910113010000 | NUT |
| TAIL PIPE TO BRACKET | ||
| 328 | N 910113010000 | HEXAGON NUT |
| TAIL PIPE TO BRACKET | ||
| 329 | A 6524920130 | PROTECTIVE PLATE |
| (HEAT SHIELD),EXHAUST MUFFLER | ||
| 330 | A 6524920630 | PROTECTIVE PLATE |
| TAIL PIPE | ||
| 331 | A 3834901030 | PROTECTIVE PLATE |
| 331 | A 3834901030 | PROTECTIVE PLATE |
| 332 | A 6524900041 | CLAMP |
| HEAT SHIELD TO MUFFLER | ||
| 333 | A 6524900341 | CLAMP |
| HEAT SHIELD TO TAILPIPE | ||
| 334 | N 071555100500 | CLAMP |
| Repalced by: N 071555100501 | ||
| 334 | N 071555100501 | CLAMP |
| PROTECTIVE PLATE TO EXHAUST PIPE | ||
| 334 | N 071555100501 | CLAMP |
| PROTECTIVE PLATE TO EXHAUST PIPE | ||
| 335 | N 000933010129 | SCREW |
| 335 | N 304017010002 | SCREW |
| PROTECTIVE PLATE TO EXHAUST PIPE | ||
| 335 | N 000933008212 | SCREW |
| 335 | N 304017008016 | SCREW |
| HEAT SHIELD TO BRACKET | ||
| 336 | N 000933008130 | SCREW |
| 336 | N 304017008039 | SCREW |
| PROTECTIVE PLATE TO EXHAUST PIPE | ||
| 336 | N 304017008039 | HEXAGON HEAD BOLT |
| CLAMP TO EXHAUST MUFFLER | ||
| 336 | N 304017008039 | HEXAGON HEAD BOLT |
| PROTECTIVE PLATE TO EXHAUST PIPE | ||
| 337 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 337 | N 000125008443 | WASHER |
| PROTECTIVE PLATE TO EXHAUST PIPE | ||
| 337 | N 000125008443 | WASHER |
| HEAT SHIELD TO BRACKET | ||
| 338 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 338 | N 910113010000 | NUT |
| PROTECTIVE PLATE TO EXHAUST PIPE | ||
| 338 | N 910113010000 | HEXAGON NUT |
| CLAMP TO EXHAUST MUFFLER | ||
| 338 | N 910113010000 | HEXAGON NUT |
| PROTECTIVE PLATE TO EXHAUST PIPE | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
