Transporto priemonė: 1834 LS; VIN numerio dalis: 655548

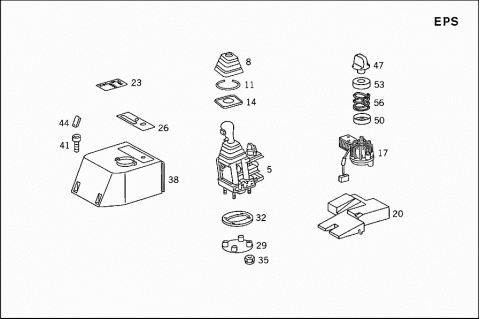

Grupė: 26 TRANSMISSION - 270 ELECTRONIC-PNEUMATIC SHIFT
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 0002602398 | SHIFT MECHANISM |
| ELECTROPNEUMATIC POWER SHIFT | ||
| 008 | A 0002670897 | BOOT |
| SHIFT LEVER UPPER PART | ||
| 011 | A 0002670094 | SNAP RING |
| BOOT TO SHIFT CASE | ||
| 014 | A 0002671776 | WASHER |
| BOOT TO SHIFT CASE | ||
| 017 | A 0005405845 | SWITCH |
| EMERGENCY SHIFT | ||
| 020 | A 0002672320 | CASE |
| INSIDE BOTTOM | ||
| 023 | A 6555840538 | GUMMED LABEL |
| GEARSHIFT DIAGRAM | ||
| 026 | A 6555840938 | GUMMED LABEL |
| "EMERGENCY SHIFT"; IN GERMAN,ENGLISH,FRENCH | ||
| 026 | A 6555841038 | GUMMED LABEL |
| "EMERGENCY SHIFT"; IN GERMAN,ENGLISH,FRENCH | ||
| 029 | A 6552600362 | BRACKET |
| SHIFT MECHANISM | ||
| 032 | A 6552680184 | SHIM |
| SHIFT MECHANISM AND BRACKET TO CAB FLOOR | ||
| 035 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 035 | N 913004008001 | NUT |
| SHIFT MECHANISM AND BRACKET TO CAB FLOOR | ||
| 038 | A 6552680083 | COVERING |
| SHIFT MECHANISM,LEFT | ||
| 038 | A 6552680183 | COVERING |
| SHIFT MECHANISM,RIGHT | ||
| 041 | N 007984006031 | SCREW |
| Repalced by: A 1249900520 | ||
| 041 | A 1249900520 | SCREW |
| COVERING TO CAB | ||
| 044 | A 6552680057 | COVER |
| COVERING | ||
| 047 | A 0009975377 | HANDLE |
| EMERGENCY SWITCH ACTUATION | ||
| 050 | A 6552680085 | SPRING RETAINER |
| EMERGENCY SWITCH ACTUATION | ||
| 053 | A 6552680185 | SPRING RETAINER |
| EMERGENCY SWITCH ACTUATION | ||
| 056 | A 6559930101 | SPRING |
| EMERGENCY SWITCH ACTUATION | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |

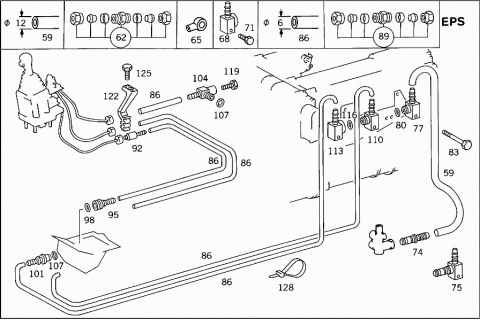

| COMPRESSED AIR;ELECTRONIC-PNEUMATIC SHIFT | ||
| 059 | A 0109975982 | HOSE |
| Repalced by: A 0009872827 | ||
| 059 | A 0009872827 | PLASTIC PIPE |
| PLASTIC | ||
| 9X12 MM | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| TRANSMISSION SUPPLY LINE,CHECK VALVE | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SUPPLY LINE TO CLUTCH BOOSTER | ||
| 062 | A 0029906171 | FITTING |
| (PARTS KIT),LINE RUPTURE | ||
| 065 | N 915052009009 | BANJO UNION |
| SUPPLY LINE TO CLUTCH BOOSTER | ||
| 9/16 MM | ||
| 068 | A 6459900978 | CONNECTOR |
| Repalced by: A 0019904078 | ||
| 068 | A 0019904078 | CONNECTOR |
| SUPPLY LINE TO CLUTCH BOOSTER | ||
| 071 | N 000931006221 | SCREW |
| CONNECTOR TO BRACKET | ||
| 074 | A 0009906878 | CONNECTOR |
| COMPRESSED-AIR-LINE PLUG-CONNECTION | ||
| 075 | A 0019908171 | ELBOW FITTING |
| DISTRIBUTOR OUTPUT, COMPRESSED AIR LINE PLUG CONNECTION | ||
| 077 | A 6459901478 | CONNECTOR |
| DISTRIBUTOR OUTPUT, COMPRESSED AIR LINE PLUG CONNECTION | ||
| 080 | A 0229973948 | SEAL RING |
| 11X2MM | ||
| 083 | N 000931006221 | SCREW |
| CONNECTOR TO TRANSMISSION | ||
| M6X30 | ||
| 086 | A 0089976082 | HOSE |
| Repalced by: A 0009872627 | ||
| 086 | A 0009872627 | PLASTIC PIPE |
| PLASTIC | ||
| 4X6 MM | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| DISTRIBUTOR | ||
| 089 | A 0039979172 | FITTING |
| (PARTS KIT),LINE RUPTURE | ||
| 092 | A 0019975289 | COUPLING |
| COMPRESSED-AIR-LINE PLUG-CONNECTION | ||
| 095 | A 0009903978 | CONNECTOR |
| HOSE WIDTH, / I.D., | ||
| 4 MM | ||
| 098 | A 0019875046 | SEALING CORD |
| 101 | A 0009904278 | CONNECTOR |
| HOSE WIDTH, / I.D., | ||
| 4 MM | ||
| 104 | A 6459901178 | CONNECTOR |
| DISTRIBUTOR OUTPUT, COMPRESSED AIR LINE PLUG CONNECTION | ||
| 107 | A 0149977648 | SEAL RING |
| 6X2 MM | ||
| 110 | A 6459901378 | CONNECTOR |
| DISTRIBUTOR INPUT, COMPRESSED AIR LINE PLUG CONNECTION | ||
| 113 | A 6459901278 | CONNECTOR |
| DISTRIBUTOR OUTPUT, COMPRESSED AIR LINE PLUG CONNECTION | ||
| 116 | A 0149977748 | SEAL RING |
| Repalced by: A 0229973948 | ||
| 116 | A 0229973948 | SEAL RING |
| 11X2 MM | ||
| 119 | N 000933006229 | SCREW |
| CONNECTOR TO BRACKET | ||
| 122 | A 6552600462 | BRACKET |
| LINE MOUNTING | ||
| 125 | N 000933006103 | SCREW |
| Repalced by: N 304017006018 | ||
| 125 | N 304017006018 | SCREW |
| BRACKET TO CAB FLOOR | ||
| 128 | A 0019978390 | LOOM TIE |
| LINE MOUNTING | ||
| 280 MM | ||
