Transporto priemonė: 1844; VIN numerio dalis: 655191

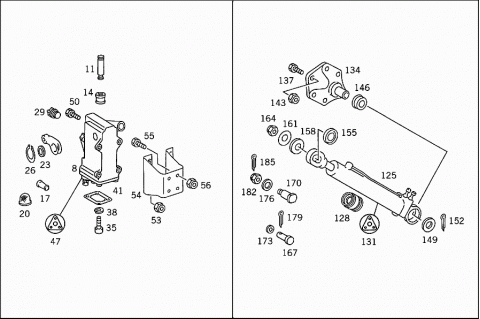

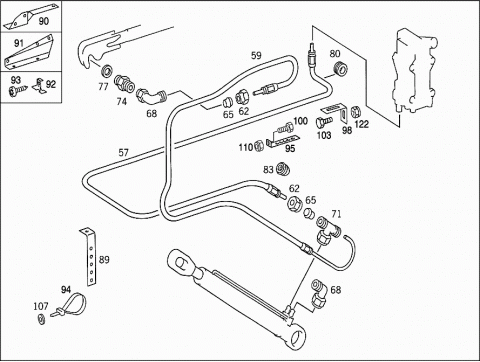

Grupė: 55 HYDRAULIC SYSTEM - 030 HYDRAULIC SYSTEM USED FOR CAB TILTING
| # | Kodas | Pavadinimas |
|---|---|---|
| 008 | A 0015531601 | PUMP |
| Repalced by: A 0005537901 | ||
| 008 | A 0005537901 | PUMP |
| (HAND PUMP) | ||
| WEBER | ||
| 008 | A 0005536901 | PUMP |
| Repalced by: A 0005537901 | ||
| 008 | A 0005537901 | PUMP |
| (HAND PUMP) | ||
| WEBER | ||
| 008 | A 0005536801 | PUMP |
| Repalced by: A 0005537901 | ||
| 008 | A 0005537901 | PUMP |
| (HAND PUMP) | ||
| WEBER | ||
| 011 | A 0005531890 | PISTON |
| WEBER,TO 000 553 79 01 | ||
| 014 | A 0005503455 | VALVE |
| WEBER,TO 000 553 79 01 | ||
| 017 | A 0005530403 | FILTER |
| WEBER | ||
| 020 | A 0005531203 | FILTER |
| HUNGER | ||
| 023 | N 000988020011 | FITTED WASHER |
| 026 | N 000471020001 | LOCK RING |
| 029 | A 0009901610 | SCREW |
| OIL FILLING | ||
| WEBER | ||
| 029 | A 0009901510 | SCREW |
| OIL FILLING | ||
| HUNGER | ||
| 035 | N 000912008111 | SCREW |
| Repalced by: N 000000000190 | ||
| 035 | N 000000000190 | SCREW |
| BOX COVER | ||
| WEBER | ||
| 035 | N 000912008114 | SCREW |
| Repalced by: N 000912008201 | ||
| 035 | N 000912008201 | SCREW |
| BOX COVER | ||
| HUNGER | ||
| 038 | N 912004008102 | LOCK WASHER |
| BOX COVER | ||
| WEBER | ||
| 041 | A 0005531280 | GASKET |
| HUNGER | ||
| 047 | A 0005502783 | GASKET KIT |
| HAND PUMP | ||
| WEBER | ||
| 047 | A 0005502983 | GASKET KIT |
| HAND PUMP | ||
| HUNGER | ||
| 050 | N 000933010105 | SCREW |
| HAND PUMP TO AIR CLEANER SUPPORT | ||
| M 10X25 | ||
| 050 | N 000933010105 | SCREW |
| HAND PUMP TO AIR CLEANER SUPPORT | ||
| M 10X25 | ||
| 050 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 050 | N 304017010002 | SCREW |
| HAND PUMP TO BRACKET | ||
| M 10X30 | ||
| 050 | N 304017010002 | SCREW |
| HAND PUMP TO AIR CLEANER SUPPORT | ||
| 050 | N 304017010002 | SCREW |
| HAND PUMP TO AIR CLEANER SUPPORT | ||
| 050 | N 304017010002 | SCREW |
| HAND PUMP TO AIR CLEANER SUPPORT | ||
| 053 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 053 | N 910113010000 | NUT |
| HAND PUMP TO BRACKET | ||
| 053 | N 910113010000 | NUT |
| HAND PUMP TO BRACKET | ||
| 053 | N 910113010000 | NUT |
| HAND PUMP TO AIR CLEANER SUPPORT | ||
| 054 | A 3875531540 | BRACKET |
| HAND PUMP | ||
| 055 | N 000961014050 | SCREW |
| Repalced by: N 308676014020 | ||
| 055 | N 308676014020 | SCREW |
| BRACKET TO FRAME | ||
| M 14X35 | ||
| 055 | N 000961014028 | SCREW |
| BRACKET TO FRAME | ||
| M 14X40 | ||
| 056 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 056 | N 910113014001 | NUT |
| BRACKET TO FRAME | ||
| 057 | A 6205530182 | HOSE |
| Repalced by: A 6555530582 | ||
| 057 | A 6555530582 | HOSE |
| FROM HAND PUMP TO HYDRAULIC CYLINDER | ||
| 4400 MM | ||
| 057 | A 6555530582 | HOSE |
| FROM HAND PUMP TO HYDRAULIC CYLINDER | ||
| 4400 MM | ||
| 057 | A 6555530082 | HOSE |
| FROM HAND PUMP TO HYDRAULIC CYLINDER | ||
| 4000 MM | ||
| 057 | A 6555530082 | HOSE |
| FROM HAND PUMP TO HYDRAULIC CYLINDER | ||
| 4000 MM | ||
| 059 | A 6565530482 | HOSE |
| Repalced by: A 6565500159 | ||
| 059 | A 6565500159 | HOSE |
| FROM HYDRAUL.CYLINDER TO TRANSMISSIONSHIFTING-ROD PAWL | ||
| 059 | A 6565530782 | HOSE |
| Repalced by: A 6565500259 | ||
| 059 | A 6565500259 | HOSE |
| FROM HYDRAUL.CYLINDER TO TRANSMISSIONSHIFTING-ROD PAWL | ||
| 062 | N 915017006100 | UNION NUT |
| HIGH PRESSURE HOSE TO HAND PUMP AND TO HYDRAULIC CYLINDER | ||
| 065 | N 003861006007 | GLAND |
| Repalced by: A 0019901667 | ||
| 065 | A 0019901667 | SEAL CONE |
| HIGH PRESSURE HOSE TO HAND PUMP AND TO HYDRAULIC CYLINDER | ||
| 068 | A 0019909871 | ELBOW FITTING |
| HIGH PRESSURE HOSE TO HYDRAULIC CYLINDER | ||
| 068 | A 0019909871 | ELBOW FITTING |
| HOSE TO TRANSMISSION-SHIFT ROD SHIFTING CYLINDER | ||
| 071 | N 003953006101 | FITTING |
| HAND PUMP HOSE & TRANSMISSION SHIFTING ROD TO CYLINDER | ||
| 071 | N 003953006101 | FITTING |
| HIGH PRESSURE HOSE TO HYDRAULIC CYLINDER | ||
| 074 | N 003901006004 | SCREW-IN FITTING |
| Repalced by: A 0029978472 | ||
| 074 | A 0029978472 | FITTING |
| HOSE TO TRANSMISSION-SHIFT ROD SHIFTING CYLINDER | ||
| 077 | N 007603010404 | SEAL RING |
| HOSE TO TRANSMISSION-SHIFT ROD SHIFTING CYLINDER | ||
| 080 | A 6559970081 | GROMMET |
| HIGH PRESSURE HOSE THRU FRAME | ||
| 080 | A 6554290081 | GROMMET |
| HIGH PRESSURE HOSE THRU FRAME | ||
| 083 | A 1109870039 | RUBBER BUFFER |
| HIGH PRESSURE HOSE THRU CONNECTING PLATE | ||
| 089 | A 3604292940 | BRACKET |
| HIGH PRESSURE HOSE TO FRAME | ||
| 090 | A 6555530440 | BRACKET |
| HIGH PRESSURE HOSE TO CAB | ||
| 091 | A 6555530540 | BRACKET |
| HIGH PRESSURE HOSE TO CAB | ||
| 092 | A 6555530040 | BRACKET |
| HIGH PRESSURE HOSE TO SHIFT LEVER LOWER PART | ||
| 092 | A 6555530140 | BRACKET |
| HIGH PRESSURE HOSE TO SHIFT LEVER LOWER PART | ||
| 093 | N 007981004258 | SHEET METAL SCREW |
| HIGH PRESSURE HOSE TO SHIFT LEVER LOWER PART | ||
| 094 | A 0019978390 | LOOM TIE |
| COMPRESSED AIR LINE MOUNTING | ||
| 280 MM | ||
| 094 | A 0019978490 | LOOM TIE |
| COMPRESSED AIR LINE MOUNTING | ||
| 376 MM | ||
| 095 | A 3604292440 | BRACKET |
| Repalced by: A 3604292940 | ||
| 095 | A 3604292940 | BRACKET |
| HIGH PRESSURE HOSE TO HYDRAULIC CYLINDER | ||
| 095 | A 3604292940 | BRACKET |
| HIGH PRESSURE HOSE TO HYDRAULIC CYLINDER | ||
| 098 | A 3604292140 | BRACKET |
| Repalced by: A 6205240340 | ||
| 098 | A 6205240340 | BRACKET |
| HIGH PRESSURE HOSE TO HYDRAULIC CYLINDER | ||
| N 000961012097 | SCREW | |
| Repalced by: N 308676012026 | ||
| 100 | N 308676012026 | SCREW |
| HIGH PRESSURE HOSE TO FRAME | ||
| 103 | N 000933010145 | SCREW |
| HIGH PRESSURE HOSE TO FRAME | ||
| 107 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 107 | N 000125008443 | WASHER |
| COMPRESSED AIR LINE MOUNTING | ||
| 110 | N 910113012002 | NUT |
| HIGH PRESSURE HOSE TO FRAME | ||
| N 913004010008 | NUT | |
| Repalced by: N 910113010000 | ||
| 122 | N 910113010000 | NUT |
| HIGH PRESSURE HOSE TO FRAME | ||
| 125 | A 0015531005 | CYLINDER |
| HYDRAULIC SYSTEM USED FOR CAB TILTING | ||
| POWER PACKER | ||
| 125 | A 0015534505 | CYLINDER |
| HYDRAULIC SYSTEM USED FOR CAB TILTING | ||
| WEBER | ||
| 125 | A 0015534705 | CYLINDER |
| HYDRAULIC SYSTEM USED FOR CAB TILTING | ||
| HUNGER | ||
| 125 | A 0015532505 | CYLINDER |
| HYDRAULIC SYSTEM USED FOR CAB TILTING | ||
| WEBER | ||
| 125 | A 0015539605 | CYLINDER |
| HYDRAULIC SYSTEM USED FOR CAB TILTING | ||
| POWER PACKER | ||
| 125 | A 0015534305 | CYLINDER |
| HYDRAULIC SYSTEM USED FOR CAB TILTING | ||
| WEBER | ||
| 125 | A 0005539005 | CYLINDER |
| HYDRAULIC SYSTEM USED FOR CAB TILTING | ||
| HUNGER | ||
| 125 | A 0005538905 | CYLINDER |
| HYDRAULIC SYSTEM USED FOR CAB TILTING | ||
| WEBER | ||
| 128 | A 0005531428 | GUIDE |
| WEBER, TO 001 553 25 05 | ||
| 128 | A 0005531528 | GUIDE |
| HYDRAULIC SYSTEM USED FOR CAB TILTING | ||
| WEBER, TO 001 553 45 05 | ||
| 128 | A 0005501735 | GASKET KIT |
| HYDRAULIC CYLINDER | ||
| POWER PACKER, TO 001 553 10 05 | ||
| 128 | A 0015535005 | GASKET KIT |
| HYDRAULIC CYLINDER | ||
| WEBER, TO 001 553 43 05 | ||
| 131 | A 0005501407 | GASKET KIT |
| HYDRAULIC CYLINDER | ||
| WEBER, TO 001 553 25 05 | ||
| 131 | A 0005501607 | GASKET KIT |
| HYDRAULIC CYLINDER | ||
| HUNGER,TO 001 553 47 05 | ||
| 134 | A 3875530838 | BEARING BRACKET |
| HYDRAULIC CYLINDER | ||
| 134 | A 6205531638 | BEARING BRACKET |
| HYDRAULIC CYLINDER | ||
| 134 | A 6205531738 | BEARING BRACKET |
| Repalced by: A 6555530238 | ||
| 134 | A 6555530238 | BEARING BRACKET |
| HYDRAULIC CYLINDER | ||
| 134 | A 6205531238 | BEARING BRACKET |
| HYDRAULIC CYLINDER | ||
| 137 | N 308676016022 | SCREW |
| BEARING BRACKET TO FRAME | ||
| M16X40 | ||
| 137 | N 000961016081 | SCREW |
| BEARING BRACKET TO FRAME | ||
| M16X25 | ||
| 137 | N 000961014134 | SCREW |
| BEARING BRACKET TO FRAME | ||
| 137 | N 000961016077 | SCREW |
| Repalced by: N 308676016006 | ||
| 137 | N 308676016006 | SCREW |
| BEARING BRACKET TO FRAME | ||
| M 16X45 | ||
| 137 | N 000961016112 | SCREW |
| BEARING BRACKET TO FRAME | ||
| M 16X25 | ||
| 137 | N 308676016013 | SCREW |
| BEARING BRACKET TO FRAME | ||
| M 16X40 | ||
| 137 | A 0039904104 | SCREW |
| BEARING BRACKET TO FRAME | ||
| M 16X1,5X50 | ||
| 137 | N 308676016007 | SCREW |
| BEARING BRACKET TO FRAME | ||
| M 16X1,5X50 | ||
| 137 | N 000960016237 | SCREW |
| BEARING BRACKET AND ENGINE FRONT MOUNTING TO SIDE MEMBER | ||
| M 16X60 | ||
| 143 | N 913004016005 | NUT |
| Repalced by: N 910113016001 | ||
| 143 | N 910113016001 | NUT |
| BEARING BRACKET TO FRAME | ||
| 146 | A 6208910417 | BUSHING |
| HYDRAULIC CYLINDER TO BEARING BRACKET | ||
| 146 | A 6208910417 | BUSHING |
| HYDRAULIC CYLINDER TO SWIVEL ARM | ||
| 149 | A 6205530176 | WASHER |
| HYDRAULIC CYLINDER TO BEARING BRACKET | ||
| 152 | N 000094006327 | COTTER PIN |
| HYDRAULIC CYLINDER TO BEARING BRACKET | ||
| 155 | A 3875530276 | WASHER |
| HYDRAULIC CYLINDER TO CAB | ||
| 158 | A 3875530076 | WASHER |
| HYDRAULIC CYLINDER TO CAB | ||
| 161 | A 3875530376 | WASHER |
| HYDRAULIC CYLINDER TO CAB | ||
| 161 | A 3875530376 | WASHER |
| HYDRAULIC CYLINDER TO SWIVEL ARM | ||
| 164 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 164 | N 910113016002 | NUT |
| HYDRAULIC CYLINDER TO CAB | ||
| 167 | N 001444020201 | PIN |
| HYDRAULIC CYLINDER TO ROCKER ARM | ||
| 170 | A 6208910057 | PIN |
| HYDRAULIC CYLINDER TO ROCKER ARM | ||
| 173 | N 000125021006 | WASHER |
| HYDRAULIC CYLINDER TO ROCKER ARM | ||
| 176 | N 001440014002 | WASHER |
| HYDRAULIC CYLINDER TO ROCKER ARM | ||
| 179 | N 000094005044 | COTTER PIN |
| HYDRAULIC CYLINDER TO ROCKER ARM | ||
| 182 | N 000979016005 | NUT |
| Repalced by: N 000979016008 | ||
| 182 | N 000979016008 | NUT |
| HYDRAULIC CYLINDER TO SWIVEL ARM | ||
| 182 | N 000979014004 | NUT |
| HYDRAULIC CYLINDER TO ROCKER ARM | ||
| 185 | N 000094004056 | COTTER PIN |
| HYDRAULIC CYLINDER TO SWIVEL ARM | ||
| 185 | N 000094003226 | COTTER PIN |
| HYDRAULIC CYLINDER TO ROCKER ARM | ||
