Transporto priemonė: 1919; VIN numerio dalis: 389006
Grupė: 41 PROPELLER SHAFT

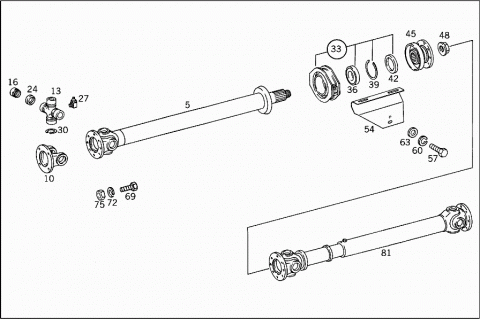

41228
41229

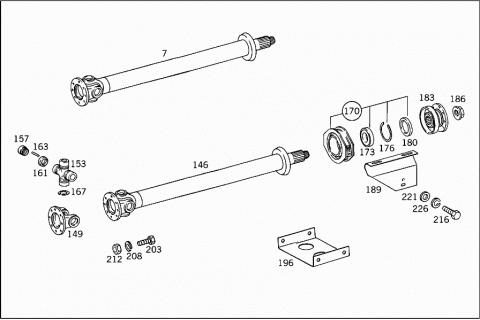

41230
# Kodas Pavadinimas
005 A 3854100304 PROPELLER SHAFT
FROM TRANSMISSION TO INTERMEDIATE SHAFT BEARING
1106 MM
005 A 3854107004 PROPELLER SHAFT
FROM TRANSMISSION TO INTERMEDIATE SHAFT BEARING
1092 MM
005 A 3894100204 PROPELLER SHAFT
Repalced by: A 3854106604
005 A 3854106604 PROPELLER SHAFT
FROM TRANSMISSION TO INTERMEDIATE SHAFT BEARING
983 MM
005 A 3894100304 PROPELLER SHAFT
FROM TRANSMISSION TO INTERMEDIATE SHAFT BEARING
874 MM
005 A 3854107604 PROPELLER SHAFT
FROM TRANSMISSION TO INTERMEDIATE SHAFT BEARING
848 MM
005 A 3854100704 PROPELLER SHAFT
FROM TRANSMISSION TO INTERMEDIATE SHAFT BEARING
1855 MM
005 A 3854107704 PROPELLER SHAFT
FROM TRANSMISSION TO INTERMEDIATE SHAFT BEARING
1816 MM
005 A 3854102804 PROPELLER SHAFT
FROM TRANSMISSION TO INTERMEDIATE SHAFT BEARING I
1584 MM
007 A 3854100604 PROPELLER SHAFT
FROM TRANSMISSION TO INTERMEDIATE SHAFT BEARING I
1569 MM
007 A 3854106704 PROPELLER SHAFT
FROM TRANSMISSION TO INTERMEDIATE SHAFT BEARING I
1543 MM
007 A 3894101004 PROPELLER SHAFT
FROM TRANSMISSION TO INTERMEDIATE SHAFT BEARING I
1796 MM
007 A 3854101404 PROPELLER SHAFT
FROM TRANSMISSION TO INTERMEDIATE SHAFT BEARING I
1805 MM
007 A 3854107204 PROPELLER SHAFT
FROM TRANSMISSION TO INTERMEDIATE SHAFT BEARING I
1757 MM
010 A 3604110611 DRIVE FLANGE
Repalced by: A 3854111711
010 A 3854111711 DRIVE FLANGE
013 A 3604100231 UNIVERSAL JOINT CROSS
Repalced by: A 3854100531
013 A 3854100531 UNIVERSAL JOINT CROSS
Repalced by: A 3814100231
013 A 3814100231 UNIVERSAL JOINT CROSS
Repalced by: A 9734100031
013 A 9734100031 UNIVERSAL JOINT CROSS
WITH BUSHINGS
016 A 3854100242 BEARING BUSHING
Repalced by: A 3854100842
016 A 3854100842 BEARING BUSHING
A 0009817187 NEEDLE
Repalced by: A 3819810487
A 3819810487 NEEDLE
SET = 144 PIECES
024 A 3604110233 EXPANSION PLUG
027 N 071412008302 GREASE NIPPLE
030 A 0069940641 LOCK
AS REQUIRED
1.65 MM
030 A 0069940841 LOCK
AS REQUIRED
1.70 MM
030 N 000472048000 LOCK RING
AS REQUIRED
1.75 MM
030 A 0069941241 LOCK
AS REQUIRED
1.80 MM
030 A 0069941441 LOCK
AS REQUIRED
1.85 MM
030 A 0039943641 LOCK
AS REQUIRED
1.90 MM
A 3854130161 PROTECTIVE CAP
OUTSIDE
A 3854130461 PROTECTIVE CAP
OUTSIDE
033 A 3854100110 REPAIR KIT
Repalced by: A 3854100122
033 A 3854100122 INTERMEDIATE BEARING
Repalced by: A 3854100922
033 A 3854100922 INTERMEDIATE BEARING
Repalced by: A 3854101722
033 A 3854101722 INTERMEDIATE BEARING
Repalced by: A 9734100022
033 A 9734100022 INTERMEDIATE BEARING
PROPELLER SHAFT
036 A 0019818125 BALL BEARING
039 N 912009100200 SNAP RING
042 A 3854130061 PROTECTIVE CAP
A 9734110052 SPACER WASHER
PROPELLER SHAFT BEARING
045 A 3604100130 CENTERING FLANGE
PROPELLER SHAFT BEARING
045 A 3854100030 CENTERING FLANGE
Repalced by: A 3854110045
A 3854110045 FLANGE
PROPELLER SHAFT BEARING
A 3854130161 PROTECTIVE CAP
A 3854130461 PROTECTIVE CAP
048 A 3854110072 NUT
Repalced by: A 3273530172
048 A 3273530172 NUT
Repalced by: A 3853510072
048 A 3853510072 NUT
Repalced by: A 3853510172
048 A 3853510172 NUT
A 3894110162 THRUST WASHER
A 3839900019 SCREW
A 3894130642 BRACKET
LEFT
A 3894130742 BRACKET
RIGHT
A 3894131142 BRACKET
LEFT
A 3894131042 BRACKET
LEFT
A 3894131042 BRACKET
RIGHT
A 3894131142 BRACKET
RIGHT
A 3894130842 BRACKET
Repalced by: A 3984131642
A 3984131642 BRACKET
LEFT
A 3984131642 BRACKET
LEFT
A 3894131642 BRACKET
LEFT
A 3894130942 BRACKET
Repalced by: A 3984131742
A 3984131742 BRACKET
RIGHT
A 3984131742 BRACKET
RIGHT
A 3894131742 BRACKET
RIGHT
A 3894131842 BRACKET
LEFT
A 3894131942 BRACKET
RIGHT
054 A 3874132242 BRACKET
LEFT
A 3874135042 BRACKET
LEFT
A 3874132342 BRACKET
RIGHT
A 3874135142 BRACKET
RIGHT
057 N 000931010282 SCREW
BRACKET TO HOUSING
M 10X40
057 N 000933010105 SCREW
BRACKET TO HOUSING
M 10X25
060 N 912004010102 LOCK WASHER
063 N 007349010003 WASHER
Repalced by: N 007349010007
063 N 007349010007 WASHER
N 000961012094 SCREW
Repalced by: N 308676012013
N 308676012013 SCREW
A 3299900040 WASHER
Repalced by: A 1232420366
A 1232420366 WASHER
N 912004012100 LOCK WASHER
N 000934012023 NUT
Repalced by: N 308673012002
N 308673012002 NUT
069 A 3609901901 SCREW
Repalced by: A 3609903001
069 A 3609903001 SCREW
072 N 912004012100 LOCK WASHER
075 N 000934012034 NUT
A 3854100802 PROPELLER SHAFT
Repalced by: A 3854101907
A 3854101907 PROPELLER SHAFT
Repalced by: A 3854103107
A 3854103107 PROPELLER SHAFT
FROM TRANSMISSION TO REAR AXLE
1825 MM
A 3074100402 PROPELLER SHAFT
FROM PROPELLER SHAFT BEARING TO REAR AXLE
1160 MM
A 3074101202 PROPELLER SHAFT
Repalced by: A 3854105307
A 3854105307 PROPELLER SHAFT
FROM PROPELLER SHAFT BEARING TO REAR AXLE
1250 MM
A 3854104707 PROPELLER SHAFT
FROM PROPELLER SHAFT BEARING TO REAR AXLE
1300 MM
A 3854101002 PROPELLER SHAFT
Repalced by: A 3854109307
A 3854109307 PROPELLER SHAFT
FROM PROPELLER SHAFT BEARING TO REAR AXLE
1328 MM
A 3074101302 PROPELLER SHAFT
Repalced by: A 3854104707
081 A 3854104707 PROPELLER SHAFT
FROM PROPELLER SHAFT BEARING TO REAR AXLE
1300 MM
A 3854100202 PROPELLER SHAFT
Repalced by: A 3854104507
A 3854100502 PROPELLER SHAFT
Repalced by: A 3854104507
081 A 3854104507 PROPELLER SHAFT
FROM PROPELLER SHAFT BEARING II TO REAR AXLE
1580 MM
081 A 3854104507 PROPELLER SHAFT
FROM PROPELLER SHAFT BEARING TO REAR AXLE
1580 MM
A 3604110611 DRIVE FLANGE
Repalced by: A 3854111711
A 3854111711 DRIVE FLANGE
A 3604100231 UNIVERSAL JOINT CROSS
Repalced by: A 3854100531
A 3854100531 UNIVERSAL JOINT CROSS
Repalced by: A 3814100231
A 3814100231 UNIVERSAL JOINT CROSS
Repalced by: A 9734100031
A 9734100031 UNIVERSAL JOINT CROSS
WITH BUSHINGS
A 0009817187 NEEDLE
Repalced by: A 3819810487
A 3819810487 NEEDLE
SET = 144 PIECES
N 071412008302 GREASE NIPPLE
A 0069940641 LOCK
AS REQUIRED
1.65 MM
A 0069940841 LOCK
AS REQUIRED
1.70 MM
N 000472048000 LOCK RING
AS REQUIRED
1.75 MM
A 0069941241 LOCK
AS REQUIRED
1.80 MM
A 0069941441 LOCK
AS REQUIRED
1.85 MM
A 0039943641 LOCK
AS REQUIRED
1.90 MM
N 071412008101 GREASE NIPPLE
Repalced by: N 071412008102
N 071412008102 GREASE NIPPLE
A 3609901901 SCREW
Repalced by: A 3609903001
A 3609903001 SCREW
N 912004012100 LOCK WASHER
N 000934012034 NUT
090 A 3074101502 PROPELLER SHAFT
Repalced by: A 3074101402
090 A 3074101402 PROPELLER SHAFT
Repalced by: A 3004100407
090 A 3004100407 PROPELLER SHAFT
FROM TRANSMISSION TO TRANSFER CASE
710 MM
093 A 3604110611 DRIVE FLANGE
Repalced by: A 3854111711
093 A 3854111711 DRIVE FLANGE
A 3604100231 UNIVERSAL JOINT CROSS
Repalced by: A 3854100531
096 A 3854100531 UNIVERSAL JOINT CROSS
Repalced by: A 3814100231
096 A 3814100231 UNIVERSAL JOINT CROSS
Repalced by: A 9734100031
096 A 9734100031 UNIVERSAL JOINT CROSS
WITH BUSHINGS
100 N 071412008302 GREASE NIPPLE
104 A 3854100242 BEARING BUSHING
Repalced by: A 3854100842
104 A 3854100842 BEARING BUSHING
A 0009817187 NEEDLE
Repalced by: A 3819810487
107 A 3819810487 NEEDLE
SET = 144 PIECES
111 A 0089970946 SEAL RING
116 A 0069940641 LOCK
AS REQUIRED
1.65 MM
116 A 0069940841 LOCK
AS REQUIRED
1.70 MM
116 N 000472048000 LOCK RING
AS REQUIRED
1.75 MM
116 A 0069941241 LOCK
AS REQUIRED
1.80 MM
116 A 0069941441 LOCK
AS REQUIRED
1.85 MM
116 A 0039943641 LOCK
AS REQUIRED
1.90 MM
N 071412008101 GREASE NIPPLE
Repalced by: N 071412008102
N 071412008102 GREASE NIPPLE
121 A 3854101302 PROPELLER SHAFT
FROM TRANSFER CASE FOR TWO REAR AXLES TO REAR AXLE
1390 MM
121 A 3854104707 PROPELLER SHAFT
FROM TRANSFER CASE FOR TWO REAR AXLES TO REAR AXLE
1300 MM
A 3854101302 PROPELLER SHAFT
Repalced by: A 3854105107
A 3854105107 PROPELLER SHAFT
FROM TRANSFER CASE TO FRONT AXLE
1355 MM
A 3604110611 DRIVE FLANGE
Repalced by: A 3854111711
A 3854111711 DRIVE FLANGE
A 3604100231 UNIVERSAL JOINT CROSS
Repalced by: A 3854100531
A 3854100531 UNIVERSAL JOINT CROSS
Repalced by: A 3814100231
A 3814100231 UNIVERSAL JOINT CROSS
Repalced by: A 9734100031
A 9734100031 UNIVERSAL JOINT CROSS
WITH BUSHINGS
N 071412008302 GREASE NIPPLE
A 3854100242 BEARING BUSHING
Repalced by: A 3854100842
A 0009817187 NEEDLE
Repalced by: A 3819810487
A 3819810487 NEEDLE
SET = 144 PIECES
A 0069940641 LOCK
AS REQUIRED
1.65 MM
A 0069940841 LOCK
AS REQUIRED
1.70 MM
N 000472048000 LOCK RING
AS REQUIRED
1.75 MM
A 0069941241 LOCK
AS REQUIRED
1.80 MM
A 0069941441 LOCK
AS REQUIRED
1.85 MM
A 0039943641 LOCK
AS REQUIRED
1.90 MM
N 071412008101 GREASE NIPPLE
Repalced by: N 071412008102
N 071412008102 GREASE NIPPLE
131 A 3609901901 SCREW
Repalced by: A 3609903001
131 A 3609903001 SCREW
PROPELLER SHAFT
136 N 912004012100 LOCK WASHER
PROPELLER SHAFT
140 N 000934012034 NUT
PROPELLER SHAFT
146 A 3894100204 PROPELLER SHAFT
Repalced by: A 3854106604
A 3854106604 PROPELLER SHAFT
FROM PROPELLER SHAFT BEARING I TO PROPELLER SHAFT BEARING II
983 MM
A 3834102204 PROPELLER SHAFT
FROM PROPELLER SHAFT BEARING I TO PROPELLER SHAFT BEARING II
1175 MM
A 3854102904 PROPELLER SHAFT
FROM PROPELLER SHAFT BEARING I TO PROPELLER SHAFT BEARING II
1184 MM
A 3854106204 PROPELLER SHAFT
FROM PROPELLER SHAFT BEARING I TO PROPELLER SHAFT BEARING II
1145 MM
149 A 3604110611 DRIVE FLANGE
Repalced by: A 3854111711
A 3854111711 DRIVE FLANGE
A 3604100231 UNIVERSAL JOINT CROSS
Repalced by: A 3854100531
A 3854100531 UNIVERSAL JOINT CROSS
Repalced by: A 3814100231
153 A 3814100231 UNIVERSAL JOINT CROSS
Repalced by: A 9734100031
153 A 9734100031 UNIVERSAL JOINT CROSS
WITH BUSHINGS
157 A 3604100142 BEARING BUSHING
161 A 0089970946 SEAL RING
163 A 3819810487 NEEDLE
SET = 144 PIECES
A 3604110233 EXPANSION PLUG
N 071412008302 GREASE NIPPLE
167 A 0069940641 LOCK
AS REQUIRED
1.65 MM
167 A 0069940841 LOCK
AS REQUIRED
1.70 MM
167 N 000472048000 LOCK RING
AS REQUIRED
1.75 MM
167 A 0069941241 LOCK
AS REQUIRED
1.80 MM
167 A 0069941441 LOCK
AS REQUIRED
1.85 MM
A 3854130161 PROTECTIVE CAP
OUTSIDE
A 3854130461 PROTECTIVE CAP
OUTSIDE
170 A 3854100110 REPAIR KIT
Repalced by: A 3854100122
170 A 3854100122 INTERMEDIATE BEARING
Repalced by: A 3854100922
170 A 3854100922 INTERMEDIATE BEARING
Repalced by: A 3854101722
170 A 3854101722 INTERMEDIATE BEARING
Repalced by: A 9734100022
170 A 9734100022 INTERMEDIATE BEARING
PROPELLER SHAFT
173 A 0019818125 BALL BEARING
176 N 912009100200 SNAP RING
180 A 3854130061 PROTECTIVE CAP
INSIDE
A 9734110052 SPACER WASHER
PROPELLER SHAFT BEARING
183 A 3604100130 CENTERING FLANGE
PROPELLER SHAFT BEARING
183 A 3854100030 CENTERING FLANGE
Repalced by: A 3854110045
A 3854110045 FLANGE
PROPELLER SHAFT BEARING
A 3854130161 PROTECTIVE CAP
OUTSIDE
A 3854130461 PROTECTIVE CAP
OUTSIDE
186 A 3853510172 NUT
A 3894110162 THRUST WASHER
A 3839900019 SCREW
189 A 3894132042 BRACKET
LEFT
A 3894132142 BRACKET
RIGHT
196 A 3874130111 REINFORCEMENT
PROPELLER SHAFT
N 000961012094 SCREW
Repalced by: N 308676012013
N 308676012013 SCREW
STRUT TO BRACKET
N 910113012002 NUT
STRUT TO BRACKET
N 000961012094 SCREW
Repalced by: N 308676012013
N 308676012013 SCREW
PROPELLER SHAFT BEARING TO CROSS MEMBER
A 3299900040 WASHER
Repalced by: A 1232420366
A 1232420366 WASHER
PROPELLER SHAFT BEARING TO CROSS MEMBER
N 912004012100 LOCK WASHER
PROPELLER SHAFT BEARING TO CROSS MEMBER
N 000934012034 NUT
PROPELLER SHAFT BEARING TO CROSS MEMBER
203 A 3609901901 SCREW
Repalced by: A 3609903001
203 A 3609903001 SCREW
PROPELLER SHAFT TO FOLLOWER FLANGE
208 N 912004012100 LOCK WASHER
PROPELLER SHAFT TO FOLLOWER FLANGE
212 N 000934012034 NUT
PROPELLER SHAFT TO FOLLOWER FLANGE
216 N 000931010282 SCREW
BRACKET TO HOUSING
M 10X40
216 N 000933010105 SCREW
BRACKET TO HOUSING
M 10X25
221 N 007349010003 WASHER
Repalced by: N 007349010007
221 N 007349010007 WASHER
BRACKET TO HOUSING
226 N 912004010102 LOCK WASHER
BRACKET TO HOUSING
Reklama
Kontaktai
Pasiūlymas
Skaitliukas



© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
