Transporto priemonė: 1919; VIN numerio dalis: 389006

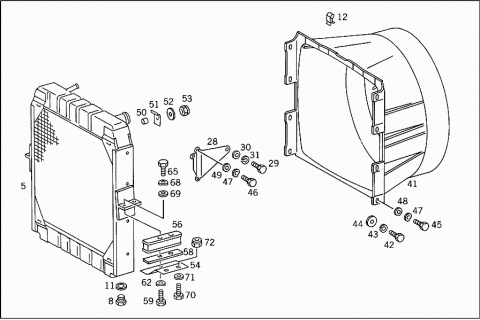

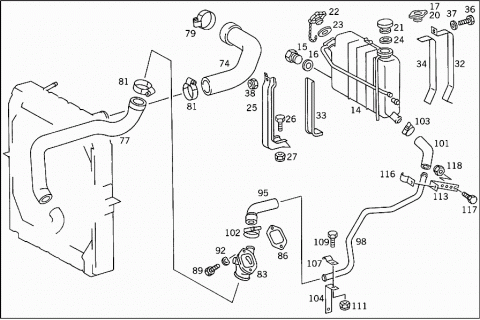

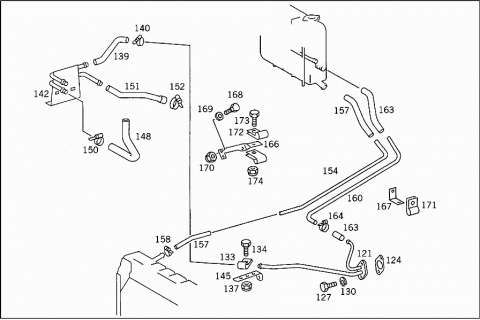

Grupė: 50 RADIATOR
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 3835010201 | RADIATOR |
| 005 | A 3815010601 | RADIATOR |
| 005 | A 0005001403 | RADIATOR |
| 005 | A 3815010301 | RADIATOR |
| 005 | A 3815010901 | RADIATOR |
| 005 | A 0005001503 | RADIATOR |
| 008 | A 0019973230 | SCREW PLUG |
| Repalced by: N 007604014101 | ||
| 008 | N 007604014101 | SCREW PLUG |
| 011 | N 007603014405 | SEAL RING |
| 012 | A 1235040246 | CLAMP |
| 014 | A 3815000149 | TANK |
| Repalced by: A 3815000849 | ||
| 014 | A 3815000249 | TANK |
| Repalced by: A 3815001649 | ||
| 014 | A 3815001649 | TANK |
| EXPANSION TANK TO CAB REAR PANEL | ||
| 014 | A 3815000649 | TANK |
| Repalced by: A 3815000749 | ||
| 014 | A 3815000749 | TANK |
| EXPANSION TANK TO CAB REAR PANEL | ||
| 015 | N 007604014106 | SCREW PLUG |
| Repalced by: N 007604014110 | ||
| 015 | N 007604014110 | SCREW PLUG |
| TO 381 500 06 49 | ||
| 016 | N 007603014103 | SEAL RING |
| TO 381 500 06 49 | ||
| 017 | A 0005013115 | RADIATOR CAP |
| Repalced by: A 0005014215 | ||
| 020 | A 0005013215 | RADIATOR CAP |
| Repalced by: A 0005014215 | ||
| 020 | A 0005014215 | RADIATOR CAP |
| TO 381 500 16 49 | ||
| 021 | A 0005014515 | RADIATOR CAP |
| TO 381 500 06 49,381 500 07 49 | ||
| 022 | A 0005014615 | RADIATOR CAP |
| TO 381 500 06 49,381 500 07 49 | ||
| 022 | A 0005017215 | RADIATOR CAP |
| TO 381 500 06 49,381 500 07 49 | ||
| 023 | A 0005010480 | GASKET |
| O.D., | ||
| 52 MM, TO 000 501 42 15,000 501 46 15 | ||
| 024 | A 0005010880 | GASKET |
| O.D., | ||
| 37 MM | ||
| 025 | A 3815010520 | BRACKET |
| Repalced by: A 6155010020 | ||
| 025 | A 6155010020 | BRACKET |
| EXPANSION TANK | ||
| 025 | A 3815000731 | BRACKET |
| EXPANSION TANK | ||
| 026 | N 000933010164 | SCREW |
| BRACKET TO RIGHT FENDER | ||
| 026 | N 000933010128 | SCREW |
| BRACKET TO RIGHT FENDER | ||
| 027 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 027 | N 910113010000 | NUT |
| BRACKET TO RIGHT FENDER | ||
| 028 | A 4010100240 | BRACKET |
| OIL DIPSTICK TO RADIATOR | ||
| 028 | A 4010100440 | BRACKET |
| OIL DIPSTICK TO RADIATOR | ||
| 029 | N 000933008145 | SCREW |
| OIL-DIPSTICK GUIDE TUBE TO BRACKET | ||
| 030 | N 007349008003 | WASHER |
| OIL-DIPSTICK GUIDE TUBE TO BRACKET | ||
| 031 | N 912004008102 | LOCK WASHER |
| OIL-DIPSTICK GUIDE TUBE TO BRACKET | ||
| 032 | A 3815000131 | BRACKET |
| Repalced by: A 3815012720 | ||
| 032 | A 3815012720 | BRACKET |
| EXPANSION TANK | ||
| 032 | A 3815012520 | BRACKET |
| EXPANSION TANK | ||
| 033 | A 4404750020 | PAD |
| Repalced by: A 3634750220 | ||
| 033 | A 3634750220 | PAD |
| EXPANSION TANK TO BRACKET | ||
| 034 | A 3815010095 | SHIM |
| Repalced by: A 3815010295 | ||
| 034 | A 3815010295 | SHIM |
| Repalced by: A 3815010495 | ||
| 034 | A 3815010495 | SHIM |
| EXPANSION TANK TO BRACKET | ||
| 036 | N 000933010105 | SCREW |
| EXPANSION TANK TO BRACKET | ||
| 037 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 037 | N 000125010532 | WASHER |
| EXPANSION TANK TO BRACKET | ||
| 038 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 038 | N 910113010000 | NUT |
| EXPANSION TANK TO BRACKET | ||
| 041 | A 3835000055 | FAN SHROUD |
| Repalced by: A 3835050355 | ||
| 041 | A 3835050355 | FAN SHROUD |
| 042 | N 000933006103 | SCREW |
| Repalced by: N 304017006018 | ||
| 042 | N 304017006018 | SCREW |
| FAN SHROUD TO RADIATOR | ||
| 043 | N 912004006102 | LOCK WASHER |
| FAN SHROUD TO RADIATOR | ||
| 044 | N 009021006205 | WASHER |
| Repalced by: N 009021006208 | ||
| 044 | N 009021006208 | WASHER |
| FAN SHROUD TO RADIATOR | ||
| 045 | N 000933006102 | SCREW |
| FAN SHROUD TO RADIATOR | ||
| 046 | N 000933006121 | SCREW |
| Repalced by: N 304017006020 | ||
| 046 | N 304017006020 | SCREW |
| FAN SHROUD TO RADIATOR | ||
| 046 | N 000933006130 | SCREW |
| FAN SHROUD TO RADIATOR | ||
| 047 | N 000137006204 | SPRING WASHER |
| FAN SHROUD TO RADIATOR | ||
| 047 | N 000137006204 | SPRING WASHER |
| FAN SHROUD TO RADIATOR | ||
| 048 | A 3859901140 | WASHER |
| FAN SHROUD TO RADIATOR | ||
| 049 | N 000125006421 | WASHER |
| FAN SHROUD TO RADIATOR | ||
| 050 | A 3815040051 | SPACER RING |
| Repalced by: A 3469910040 | ||
| 050 | A 3469910040 | SPACER TUBE |
| FAN SHROUD TO RADIATOR | ||
| 051 | A 3815040031 | SUPPORTING PLATE |
| FAN SHROUD TO RADIATOR | ||
| 052 | N 009021006205 | WASHER |
| Repalced by: N 009021006208 | ||
| 052 | N 009021006208 | WASHER |
| FAN SHROUD TO RADIATOR | ||
| 053 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 053 | N 913004006001 | NUT |
| FAN SHROUD TO RADIATOR | ||
| A 3875040601 | SUPPORT | |
| LEFT | ||
| 054 | A 3875040801 | SUPPORT |
| LEFT | ||
| A 3875040701 | SUPPORT | |
| RIGHT | ||
| 054 | A 3875040901 | SUPPORT |
| RIGHT | ||
| 054 | A 3875041101 | SUPPORT |
| RADIATOR | ||
| 056 | A 3875040012 | RUBBER MOUNTING |
| RADIATOR TO SUPPORT | ||
| 056 | A 3875040112 | RUBBER MOUNTING |
| RADIATOR TO SUPPORT | ||
| 058 | A 3835040084 | SHIM |
| RADIATOR TO RUBBER MOUNTING | ||
| 058 | A 3855040184 | SHIM |
| RADIATOR TO RUBBER MOUNTING | ||
| 058 | A 3855040284 | SHIM |
| RADIATOR TO RUBBER MOUNTING | ||
| 059 | N 000933010238 | SCREW |
| Repalced by: N 304017010028 | ||
| 059 | N 304017010028 | SCREW |
| RUBBER MOUNTING TO SUPPORT | ||
| 062 | N 000137010201 | SPRING WASHER |
| RUBBER MOUNTING TO SUPPORT | ||
| 065 | N 000933010164 | SCREW |
| RADIATOR TO BUFFER | ||
| 065 | N 000933010157 | SCREW |
| RADIATOR TO BUFFER | ||
| 065 | N 000933010145 | SCREW |
| RADIATOR TO RUBBER MOUNTING | ||
| 068 | N 000137010201 | SPRING WASHER |
| RADIATOR TO BUFFER | ||
| 068 | N 000137010201 | SPRING WASHER |
| RADIATOR TO RUBBER MOUNTING | ||
| 069 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 069 | N 000125010532 | WASHER |
| RADIATOR TO BUFFER | ||
| 069 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 069 | N 000125010532 | WASHER |
| RADIATOR TO RUBBER MOUNTING | ||
| 070 | N 000961012097 | SCREW |
| Repalced by: N 308676012026 | ||
| 070 | N 308676012026 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| 070 | N 000961012151 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| 071 | N 000125013008 | WASHER |
| 072 | N 910113012002 | NUT |
| CONSOLE TO SIDE MEMBER | ||
| 074 | A 3835010282 | HOSE |
| FROM RADIATOR TO THERMOSTAT | ||
| 074 | A 3835010082 | HOSE |
| FROM RADIATOR TO THERMOSTAT | ||
| 077 | A 3835010382 | HOSE |
| FROM RADIATOR TO WATER PUMP | ||
| 077 | A 3835010182 | HOSE |
| FROM RADIATOR TO WATER PUMP | ||
| 079 | N 916017070000 | CLAMP |
| Repalced by: N 000000000674 | ||
| 079 | N 000000000674 | CLAMP |
| COOLING WATER HOSE TO WATER PUMP AND TO THERMOSTAT,RESP. | ||
| 081 | N 916017050000 | CLAMP |
| Repalced by: N 000000000672 | ||
| 081 | N 000000000672 | CLAMP |
| COOLING WATER HOSE TO WATER PUMP AND TO THERMOSTAT,RESP. | ||
| 083 | A 3835010023 | CONNECTOR |
| COOLING WATER HOSE TO WATER PUMP | ||
| 086 | A 4032010480 | GASKET |
| Repalced by: A 4422010480 | ||
| 086 | A 4422010480 | GASKET |
| COOLING WATER HOSE TO WATER PUMP | ||
| 089 | N 000933010105 | SCREW |
| CONNECTOR TO WATER PUMP | ||
| 092 | N 000137010201 | SPRING WASHER |
| CONNECTOR TO WATER PUMP | ||
| 095 | A 3875011082 | HOSE |
| FROM WATER PUMP TO EXPANSION TANK | ||
| 098 | A 3875010224 | COOLING WATER PIPE |
| FROM WATER PUMP TO EXPANSION TANK | ||
| 098 | A 3875010724 | COOLING WATER PIPE |
| FROM WATER PUMP TO EXPANSION TANK | ||
| 101 | A 3875011182 | HOSE |
| Repalced by: A 3875011782 | ||
| 101 | A 3875011782 | HOSE |
| FROM WATER PUMP TO EXPANSION TANK | ||
| 102 | N 916017032000 | CLAMP |
| Repalced by: N 000000000670 | ||
| 102 | N 000000000670 | CLAMP |
| FROM WATER PUMP TO EXPANSION TANK | ||
| 102 | N 000000000670 | CLAMP |
| FROM WATER PUMP TO EXPANSION TANK | ||
| 103 | N 916017025000 | CLAMP |
| Repalced by: N 000000000668 | ||
| 103 | N 000000000668 | CLAMP |
| FROM WATER PUMP TO EXPANSION TANK | ||
| 104 | A 3875010920 | BRACKET |
| COOLING WATER LINE TO FRAME | ||
| 107 | A 3879950020 | CLAMP |
| COOLING WATER LINE TO FRAME | ||
| 109 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 109 | N 304017008021 | SCREW |
| COOLING WATER LINE TO FRAME | ||
| 111 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 111 | N 913004008001 | NUT |
| COOLING WATER LINE TO FRAME | ||
| 113 | A 3875011320 | BRACKET |
| COOLING WATER LINE TO FENDER | ||
| 113 | A 3604292040 | BRACKET |
| Repalced by: A 3604292940 | ||
| 113 | A 3604292940 | BRACKET |
| COOLING WATER LINE TO FENDER | ||
| 116 | A 3879950020 | CLAMP |
| COOLING WATER LINE TO FENDER | ||
| 117 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 117 | N 304017008021 | SCREW |
| COOLING WATER LINE TO FENDER | ||
| 118 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 118 | N 913004008001 | NUT |
| COOLING WATER LINE TO FENDER | ||
| 121 | A 3875000179 | FLANGE |
| HEATING AND VENTILATION | ||
| 124 | N 917003040008 | GASKET |
| FLANGE TO ENGINE | ||
| 127 | N 000933010105 | SCREW |
| FLANGE TO ENGINE | ||
| 130 | N 912004010102 | LOCK WASHER |
| FLANGE TO ENGINE | ||
| 133 | A 3609951501 | CLAMP |
| Repalced by: A 3609950601 | ||
| 133 | A 3609950601 | CLAMP |
| HEATING PIPE TO ENGINE | ||
| 134 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 134 | N 304017008016 | SCREW |
| HEATING PIPE TO ENGINE | ||
| 134 | N 000933006130 | SCREW |
| HEATING PIPE TO ENGINE | ||
| 137 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 137 | N 913004008001 | NUT |
| HEATING PIPE TO ENGINE | ||
| 137 | N 913004005005 | NUT |
| HEATING PIPE TO ENGINE | ||
| 139 | A 3875060335 | HOSE |
| FROM FLANGE TO HEATING PIPE | ||
| 140 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 140 | N 000000000667 | CLAMP |
| FROM FLANGE TO HEATING PIPE | ||
| 142 | A 3875000289 | LINE |
| Repalced by: A 3835000072 | ||
| 142 | A 3835000072 | LINE |
| Repalced by: A 3875000072 | ||
| 142 | A 3875000072 | LINE |
| HEATING PIPE | ||
| 145 | A 3875011420 | BRACKET |
| HEATING PIPES | ||
| 148 | A 3635060035 | HOSE |
| Repalced by: A 3835060035 | ||
| 148 | A 3835060035 | HOSE |
| HEATING; TO CAB | ||
| 150 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 150 | N 000000000667 | CLAMP |
| HEATING; TO CAB | ||
| 151 | A 3875060535 | HOSE |
| Repalced by: A 3635060235 | ||
| 151 | A 3635060235 | HOSE |
| HEATING, TO CONNECTOR | ||
| 151 | A 3875060335 | HOSE |
| HEATING, TO CONNECTOR | ||
| 152 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 152 | N 000000000667 | CLAMP |
| HEATING, TO CONNECTOR | ||
| 152 | N 916017025000 | CLAMP |
| Repalced by: N 000000000668 | ||
| 152 | N 000000000668 | CLAMP |
| HEATING, TO CONNECTOR | ||
| 154 | A 3875011925 | BREATHER PIPE |
| VENTILATION, FROM RADIATOR TO EXPANSION TANK | ||
| 154 | A 3875017125 | BREATHER PIPE |
| VENTILATION, FROM RADIATOR TO EXPANSION TANK | ||
| 157 | N 900271012018 | HOSE |
| VENTILATION, FROM RADIATOR TO EXPANSION TANK | ||
| 158 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 158 | N 000000000667 | CLAMP |
| VENTILATION, FROM RADIATOR TO EXPANSION TANK | ||
| 160 | A 3875011525 | BREATHER PIPE |
| 160 | A 3875017225 | BREATHER PIPE |
| 163 | N 900271015037 | HOSE |
| DE-AERATION | ||
| 164 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 164 | N 000000000667 | CLAMP |
| DE-AERATION | ||
| A 3875011020 | BRACKET | |
| Repalced by: A 3855010220 | ||
| 166 | A 3855010220 | BRACKET |
| RADIATOR AND ENGINE BREATHING,AT ENGINE | ||
| 167 | A 3875015920 | BRACKET |
| Repalced by: A 6454310740 | ||
| 167 | A 6454310740 | BRACKET |
| RADIATOR AND ENGINE BREATHING,AT ENGINE | ||
| 168 | N 000933010145 | SCREW |
| RADIATOR AND ENGINE BREATHING,AT ENGINE | ||
| 168 | N 000933010094 | SCREW |
| RADIATOR AND ENGINE BREATHING,AT ENGINE | ||
| 168 | N 000933010094 | SCREW |
| RADIATOR AND ENGINE BREATHING,AT ENGINE | ||
| 169 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 169 | N 000125010532 | WASHER |
| RADIATOR AND ENGINE BREATHING,AT ENGINE | ||
| 169 | N 000125010532 | WASHER |
| RADIATOR AND ENGINE BREATHING,AT ENGINE | ||
| 170 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 170 | N 910113010000 | NUT |
| RADIATOR AND ENGINE BREATHING,AT ENGINE | ||
| 170 | N 910113010000 | NUT |
| RADIATOR AND ENGINE BREATHING,AT ENGINE | ||
| 171 | A 3609951401 | CLAMP |
| Repalced by: N 916016011202 | ||
| 171 | N 916016011202 | CLAMP |
| RADIATOR AND ENGINE BREATHING,AT ENGINE | ||
| A 3609951301 | CLAMP | |
| Repalced by: A 3609951201 | ||
| 172 | A 3609951201 | CLAMP |
| RADIATOR AND ENGINE BREATHING,AT ENGINE | ||
| 172 | A 3609952001 | CLAMP |
| Repalced by: A 6739950001 | ||
| 172 | A 6739950001 | CLAMP |
| RADIATOR AND ENGINE BREATHING,AT ENGINE | ||
| 172 | A 3609950401 | CLAMP |
| RADIATOR AND ENGINE BREATHING,AT ENGINE | ||
| 173 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 173 | N 304017008016 | SCREW |
| RADIATOR AND ENGINE BREATHING,AT ENGINE | ||
| 173 | N 000933006102 | SCREW |
| RADIATOR AND ENGINE BREATHING,AT ENGINE | ||
| 174 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 174 | N 913004008001 | NUT |
| RADIATOR AND ENGINE BREATHING,AT ENGINE | ||
| 174 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 174 | N 913004006001 | NUT |
| RADIATOR AND ENGINE BREATHING,AT ENGINE | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
