Transporto priemonė: 1919; VIN numerio dalis: 389006
Grupė: 46 STEERING
| # | Kodas | Pavadinimas |
|---|---|---|
| X XXXXXXXXXXXX | PART NAME MISSING | |
| FOR MERCEDES-BENZ POWER STEERING, SEE PARTS LIST | ||
| 765.3 | ||

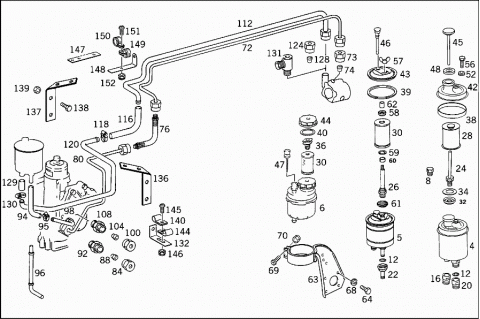

| 004 | A 0004661302 | TANK |
| 005 | A 0004663802 | TANK |
| Repalced by: A 0004664502 | ||
| 006 | A 0004664502 | TANK |
| 008 | A 0004660571 | FITTING |
| A 0009879046 | SEALING CORD | |
| Repalced by: A 0029973245 | ||
| 012 | A 0029973245 | SEAL RING |
| Repalced by: A 0059970848 | ||
| 012 | A 0059970848 | SEAL RING |
| TO 000 466 13 02,000 46 38 02 | ||
| 016 | A 0004660158 | CONNECTOR |
| 020 | A 0004660258 | CONNECTOR |
| 022 | A 0004660558 | CONNECTOR |
| 024 | A 0004665065 | FILTER CARRIER |
| 026 | A 0014664465 | FILTER CARRIER |
| 028 | A 0004660004 | FILTER |
| A 0004660204 | FILTER | |
| Repalced by: A 0004660604 | ||
| 030 | A 0004660604 | FILTER |
| TO 000 466 38 02,000 466 45 02 | ||
| 032 | A 0004660191 | VALVE DISC |
| 034 | A 0004660291 | SPRING |
| 036 | A 0004660740 | BRACKET |
| TO 000 466 45 02 | ||
| 038 | A 0004660380 | GASKET |
| Repalced by: A 0004660580 | ||
| 038 | A 0004660580 | GASKET |
| 039 | A 0004660260 | SEAL RING |
| 040 | A 0004661760 | SEAL RING |
| TO 000 466 45 02 | ||
| 042 | A 0004660505 | COVER |
| 043 | A 0004662005 | COVER |
| 044 | A 0004660068 | FILLER CAP |
| TO 000 466 45 02 | ||
| 045 | A 0004660605 | COVER |
| 046 | A 0004660218 | PIPE |
| 047 | A 0004660267 | OIL DIPSTICK |
| Repalced by: A 0004660867 | ||
| 047 | A 0004660867 | OIL DIPSTICK |
| TO 000 466 45 02 | ||
| A 1233270059 | PROTECTIVE CAP | |
| 048 | A 0004660280 | GASKET |
| 052 | A 0004660075 | WASHER |
| 056 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 056 | N 304017008016 | SCREW |
| 057 | N 000315008010 | NUT |
| 058 | A 0004660675 | CENTERING RING |
| 059 | A 0004660275 | WASHER |
| Repalced by: A 9402680552 | ||
| 059 | A 9402680552 | SPACER WASHER |
| 060 | A 0004660153 | SPACER TUBE |
| 061 | A 0004660238 | COVER PLATE |
| 062 | A 0009870643 | RUBBER SLEEVE |
| 063 | A 3874600235 | BRACKET |
| OIL TANK | ||
| 063 | A 3874600335 | BRACKET |
| OIL TANK | ||
| 064 | N 000933010238 | SCREW |
| Repalced by: N 304017010028 | ||
| 064 | N 304017010028 | SCREW |
| BRACKET TO STEERING | ||
| 068 | N 912004010102 | LOCK WASHER |
| BRACKET TO STEERING | ||
| 069 | N 007985006154 | SCREW |
| Repalced by: A 0029903712 | ||
| 069 | A 0029903712 | SCREW |
| Repalced by: N 000000001149 | ||
| 069 | N 000000001149 | SCREW |
| OIL TANK TO BRACKET | ||
| M6X25 | ||
| 069 | N 007985006139 | SCREW |
| OIL TANK TO BRACKET | ||
| M6X30 | ||
| 070 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 070 | N 913004006001 | NUT |
| OIL TANK TO BRACKET | ||
| 070 | N 913002006001 | NUT |
| Repalced by: N 913002006009 | ||
| 070 | N 913002006009 | NUT |
| OIL TANK TO BRACKET | ||
| 072 | A 3874601924 | LINE |
| FROM POWER STEERING PUMP TO HOSE | ||
| 072 | A 3874604724 | LINE |
| FROM POWER STEERING PUMP TO HOSE | ||
| 073 | N 003870012104 | UNION NUT |
| Repalced by: N 915017012100 | ||
| 073 | N 915017012100 | UNION NUT |
| OIL LINES | ||
| 074 | N 003861012007 | GLAND |
| Repalced by: A 0019901967 | ||
| 074 | A 0019901967 | SEAL CONE |
| OIL LINES | ||
| A 0119973382 | HOSE | |
| Repalced by: A 0009978252 | ||
| A 0119973482 | HOSE | |
| Repalced by: A 0009978252 | ||
| 076 | A 0009978252 | HOSE |
| FROM POWER STEERING PUMP TO STEERING | ||
| 076 | A 0129972582 | HOSE |
| FROM POWER STEERING PUMP TO STEERING | ||
| 076 | A 0019976452 | HOSE |
| FROM POWER STEERING PUMP TO STEERING | ||
| A 3874600524 | LINE | |
| FROM HIGH PRESSURE HOSE TO STEERING | ||
| A 3874603324 | LINE | |
| FROM HIGH PRESSURE HOSE TO STEERING | ||
| 080 | A 3854600024 | LINE |
| FROM HIGH PRESSURE HOSE TO STEERING | ||
| 080 | A 3854600124 | LINE |
| FROM HIGH PRESSURE HOSE TO STEERING | ||
| 084 | N 003870012104 | UNION NUT |
| Repalced by: N 915017012100 | ||
| 084 | N 915017012100 | UNION NUT |
| OIL LINES | ||
| 088 | N 003861012007 | GLAND |
| Repalced by: A 0019901967 | ||
| 088 | A 0019901967 | SEAL CONE |
| OIL LINES | ||
| N 003901012005 | SCREW-IN FITTING | |
| Repalced by: A 0029971572 | ||
| 092 | N 003901012011 | SCREW-IN FITTING |
| PIPE LINE TO STEERING | ||
| A 3609971182 | HOSE | |
| Repalced by: A 3439970582 | ||
| 094 | A 3439970582 | HOSE |
| Repalced by: A 6999974082 | ||
| 094 | A 6999974082 | HOSE |
| Repalced by: A 3859971682 | ||
| 094 | A 3859971682 | HOSE |
| FROM STEERING TO OIL TANK | ||
| 095 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 095 | N 000000000667 | CLAMP |
| HOSE TO OIL LINE | ||
| 096 | A 0014669265 | LINE |
| FROM STEERING TO OIL TANK | ||
| A 3854600224 | LINE | |
| Repalced by: A 3854660265 | ||
| 098 | A 3854660265 | LINE |
| FROM HOSE TO OIL TANK | ||
| 100 | N 003870015101 | UNION NUT |
| Repalced by: N 915017015100 | ||
| 100 | N 915017015100 | UNION NUT |
| FROM STEERING TO OIL TANK | ||
| 104 | N 003861015004 | GLAND |
| FROM STEERING TO OIL TANK | ||
| 108 | N 003901015005 | SCREW-IN FITTING |
| PIPE LINE TO STEERING | ||
| 112 | A 3874602624 | LINE |
| FROM HOSE TO OIL PUMP | ||
| 112 | A 3874605424 | LINE |
| FROM HOSE TO OIL PUMP | ||
| 116 | A 3609970982 | HOSE |
| Repalced by: A 3859971582 | ||
| 116 | A 3859971582 | HOSE |
| OIL LINE CONNECTION | ||
| 118 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 118 | N 000000000667 | CLAMP |
| HOSE TO OIL LINE | ||
| 120 | A 3874602224 | LINE |
| FROM LINE TO OIL TANK | ||
| 120 | A 3834660765 | LINE |
| FROM LINE TO OIL TANK | ||
| 120 | A 3874605024 | LINE |
| FROM LINE TO OIL TANK | ||
| 120 | A 3834660865 | LINE |
| FROM LINE TO OIL TANK | ||
| 124 | N 003870022101 | UNION NUT |
| Repalced by: N 915017022100 | ||
| 124 | N 915017022100 | UNION NUT |
| OIL LINES | ||
| 128 | N 003861022004 | GLAND |
| Repalced by: A 0019901267 | ||
| 128 | A 0019901267 | SEAL CONE |
| OIL LINES | ||
| 129 | A 3609970982 | HOSE |
| Repalced by: A 3859971582 | ||
| 129 | A 3859971582 | HOSE |
| OIL LINE CONNECTION | ||
| 130 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 130 | N 000000000667 | CLAMP |
| HOSE TO OIL LINE | ||
| 131 | A 0009906171 | ELBOW FITTING |
| POWER STEERING PUMP | ||
| 131 | A 0009906171 | ELBOW FITTING |
| POWER STEERING PUMP | ||
| 132 | A 3464295840 | BRACKET |
| Repalced by: A 3812950440 | ||
| 132 | A 3144290240 | BRACKET |
| Repalced by: A 3812950440 | ||
| 132 | A 3812950440 | BRACKET |
| LINE TO STEERING | ||
| 136 | A 3874660240 | BRACKET |
| Repalced by: A 6564660040 | ||
| 136 | A 6564660040 | BRACKET |
| AT FRAME | ||
| 137 | A 3874660940 | BRACKET |
| AT FRAME | ||
| 138 | N 000961012097 | SCREW |
| Repalced by: N 308676012026 | ||
| 138 | N 308676012026 | SCREW |
| BRACKET TO FRAME | ||
| 139 | N 910113012002 | NUT |
| BRACKET TO FRAME | ||
| 140 | A 3609950701 | CLAMP |
| Repalced by: N 916016018202 | ||
| 140 | N 916016018202 | CLAMP |
| LINES TO BRACKET | ||
| 144 | A 3609950401 | CLAMP |
| LINES TO BRACKET | ||
| 145 | N 000000001147 | SCREW |
| DELIVERY AND SUCTION LINES TO BRACKET | ||
| M 6X20 | ||
| 146 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 146 | N 913004006001 | NUT |
| DELIVERY AND SUCTION LINES TO BRACKET | ||
| 147 | A 3814661140 | BRACKET |
| Repalced by: A 3604293140 | ||
| 147 | A 3604293140 | BRACKET |
| BRACKET TO COMPRESSED-AIR-LINE BRACKET | ||
| 148 | A 3874660340 | BRACKET |
| Repalced by: A 6164660040 | ||
| 148 | A 6164660040 | BRACKET |
| BRACKET TO LEFT TRANSVERSE PIPE LOWER BOLT | ||
| 148 | A 3874660840 | BRACKET |
| Repalced by: A 3875015820 | ||
| 148 | A 3875015820 | BRACKET |
| Repalced by: A 3524290740 | ||
| 148 | A 3524290740 | BRACKET |
| RIGHT TRANSVERSE INTAKE PIPE | ||
| 149 | N 916016012200 | CLAMP |
| OIL LINE TO ENGINE | ||
| 150 | N 916016022202 | CLAMP |
| OIL LINE TO ENGINE | ||
| 151 | N 000000001147 | SCREW |
| OIL LINE TO ENGINE | ||
| M 6X20 | ||
| 152 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 152 | N 913004006001 | NUT |
| OIL LINE TO ENGINE | ||

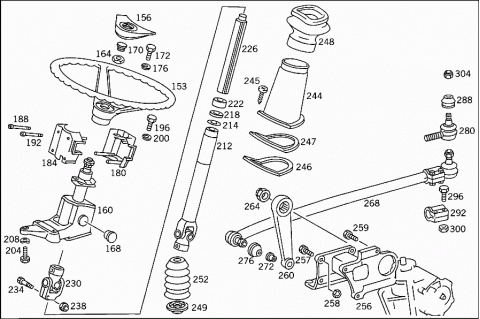

| A 3014640101 | STEERING WHEEL | |
| Repalced by: A 3834640201 | ||
| 153 | A 3834640201 | STEERING WHEEL |
| 156 | A 0004642031 | CAP |
| STEERING WHEEL | ||
| A 0004640432 | BADGE | |
| STEERING WHEEL | ||
| N 308675022001 | NUT | |
| STEERING WHEEL TO STEERING COLUMN | ||
| 160 | A 3814600531 | STEERING COLUMN BRACKET |
| A 3814601331 | STEERING COLUMN BRACKET | |
| 164 | N 000936022002 | NUT |
| STEERING WHEEL TO STEERING COLUMN | ||
| 168 | A 3839970186 | PLUG |
| Repalced by: A 3839970286 | ||
| 168 | A 3839970286 | PLUG |
| BOTTOM LATERAL | ||
| A 3224620023 | COVER | |
| BOTTOM | ||
| A 0119815110 | NEEDLE BEARING | |
| BOTTOM | ||
| 170 | A 3819971186 | PLUG |
| TOP | ||
| 172 | N 007985004107 | SCREW |
| STEERING COLUMN MOUNTED SWITCH | ||
| 176 | N 912006004000 | LOCK WASHER |
| STEERING COLUMN MOUNTED SWITCH | ||
| 180 | A 3814620043 | SHELL |
| STEERING COLUMN PANELLING,REAR | ||
| 180 | A 3814620443 | SHELL |
| STEERING COLUMN PANELLING,REAR | ||
| 184 | A 3814620143 | SHELL |
| Repalced by: A 3814622443 | ||
| 184 | A 3814622443 | SHELL |
| STEERING COLUMN PANELLING,FRONT | ||
| 184 | A 3814620543 | SHELL |
| STEERING COLUMN PANELLING,FRONT | ||
| 188 | A 3819900221 | SCREW |
| SHELL TO STEERING COLUMN | ||
| 192 | A 3819900321 | SCREW |
| SHELL TO STEERING COLUMN | ||
| 196 | N 000084005130 | SCREW |
| SHELL TO STEERING COLUMN | ||
| 200 | N 912006005002 | LOCK WASHER |
| SHELL TO STEERING COLUMN | ||
| 204 | N 000933010145 | SCREW |
| STEERING COLUMN TO CAB | ||
| 208 | N 000137010201 | SPRING WASHER |
| STEERING COLUMN TO CAB | ||
| A 3814600609 | STEERING SHAFT | |
| Repalced by: A 6504600209 | ||
| A 6504600209 | STEERING SHAFT | |
| A 6504600609 | STEERING SHAFT | |
| 212 | A 3814600709 | STEERING SHAFT |
| Repalced by: A 3814607109 | ||
| 212 | A 3814607109 | STEERING SHAFT |
| 214 | A 3814620175 | WASHER |
| 218 | A 3814620260 | SEAL RING |
| 222 | A 3814620061 | SEAL HOLDER |
| 226 | A 3814620403 | SLEEVE |
| STEERING SHAFT | ||
| A 3814620251 | RING | |
| STEERING SHAFT | ||
| A 3814600057 | UNIVERSAL JOINT | |
| 230 | A 3814600057 | UNIVERSAL JOINT |
| Repalced by: A 3164600057 | ||
| 230 | A 3164600057 | UNIVERSAL JOINT |
| Repalced by: A 0004600057 | ||
| 230 | A 0004600057 | UNIVERSAL JOINT |
| 230 | A 3164600157 | UNIVERSAL JOINT |
| Repalced by: A 0004600157 | ||
| 230 | A 0004600157 | UNIVERSAL JOINT |
| 234 | A 3819900114 | SCREW |
| UNIVERSAL JOINT TO STEERING COLUMN TUBE | ||
| M 8X42 | ||
| 234 | A 3819900114 | SCREW |
| UNIVERSAL JOINT TO STEERING COLUMN TUBE | ||
| M 8X42 | ||
| 234 | A 3169900114 | SCREW |
| UNIVERSAL JOINT TO STEERING COLUMN TUBE | ||
| M 8X38 | ||
| 238 | N 910113008001 | NUT |
| UNIVERSAL JOINT TO STEERING COLUMN TUBE | ||
| A 3874610697 | PROTECTIVE SLEEVE | |
| UNIVERSAL JOINT COVERING | ||
| A 3874610797 | PROTECTIVE SLEEVE | |
| UNIVERSAL JOINT COVERING | ||
| A 3874620123 | COVER | |
| PROTECTIVE SLEEVE TO CAB FLOOR | ||
| 244 | A 3874611297 | PROTECTIVE SLEEVE |
| UNIVERSAL JOINT COVERING | ||
| N 007982005303 | SHEET METAL SCREW | |
| PROTECTIVE SLEEVE TO CAB FLOOR | ||
| 245 | N 007981005309 | SHEET METAL SCREW |
| Repalced by: N 007981005321 | ||
| 245 | N 007981005321 | SHEET METAL SCREW |
| PROTECTIVE TUBE TO CAB FLOOR | ||
| 246 | A 3874610180 | GASKET |
| PROTECTIVE TUBE TO CAB FLOOR | ||
| 247 | A 3874620024 | REINFORCEMENT |
| PROTECTIVE TUBE TO CAB FLOOR | ||
| A 3874610096 | BOOT | |
| STEERING COLUMN TO CAB | ||
| 248 | A 3874610396 | BOOT |
| STEERING COLUMN TO CAB | ||
| A 3814620375 | WASHER | |
| Repalced by: A 3814620475 | ||
| 249 | A 3814620475 | WASHER |
| UNIVERSAL JOINT COVERING | ||
| A 3814620596 | BOOT | |
| Repalced by: A 3814621196 | ||
| 252 | A 3814621196 | BOOT |
| UNIVERSAL JOINT COVERING | ||
| 256 | A 3874610240 | STEERING SUPPORT |
| AT FRAME | ||
| A 3874610340 | STEERING SUPPORT | |
| AT FRAME | ||
| 257 | N 000960014027 | SCREW |
| Repalced by: N 000960014225 | ||
| 257 | N 000960014237 | SCREW |
| STEERING SUPPORT TO FRAME | ||
| M14X50 | ||
| N 000960014229 | SCREW | |
| STEERING SUPPORT TO FRAME | ||
| M14X55 | ||
| 258 | N 913004014001 | NUT |
| STEERING SUPPORT TO FRAME | ||
| 259 | N 000961016052 | SCREW |
| STEERING BOX ASSEMBLY TO STEERING SUPPORT | ||
| N 000177001003 | WIRE | |
| STEERING BOX ASSEMBLY TO STEERING SUPPORT | ||
| 260 | A 3874630201 | PITMAN ARM |
| A 3874630501 | PITMAN ARM | |
| 260 | A 3874630701 | PITMAN ARM |
| 260 | A 3874630701 | PITMAN ARM |
| 264 | N 000937045000 | NUT |
| Repalced by: A 0029905051 | ||
| 264 | A 0029905051 | NUT |
| PITMAN ARM TO STEERING BOX ASSEMBLY | ||
| N 000094008014 | COTTER PIN | |
| PITMAN ARM TO STEERING BOX ASSEMBLY | ||
| 268 | A 3874600005 | DRAG LINK |
| Repalced by: A 3874604805 | ||
| 268 | A 3874604805 | DRAG LINK |
| LEMFOERDER | ||
| 268 | A 3874604905 | DRAG LINK |
| EHRENREICH | ||
| 268 | A 3874600605 | DRAG LINK |
| Repalced by: A 3874604405 | ||
| 268 | A 3874604405 | DRAG LINK |
| LEMFOERDER | ||
| 268 | A 3874604505 | DRAG LINK |
| EHRENREICH | ||
| 268 | A 3874600705 | DRAG LINK |
| Repalced by: A 3874601405 | ||
| 268 | A 3874601405 | DRAG LINK |
| Repalced by: A 3874603205 | ||
| 268 | A 3874603205 | DRAG LINK |
| LEMFOERDER | ||
| 268 | A 3874603305 | DRAG LINK |
| EHRENREICH | ||
| 268 | A 3874600705 | DRAG LINK |
| Repalced by: A 3874601505 | ||
| 268 | A 3874601505 | DRAG LINK |
| Repalced by: A 3874603505 | ||
| 268 | A 3874603505 | DRAG LINK |
| LEMFOERDER | ||
| 268 | A 3874603605 | DRAG LINK |
| EHRENREICH | ||
| 268 | A 3874603605 | DRAG LINK |
| EHRENREICH | ||
| 272 | A 0003301085 | BOOT |
| FIXED PART OF JOINT | ||
| 276 | A 3354600096 | BOOT |
| Repalced by: A 0004621796 | ||
| 276 | A 0004621796 | BOOT |
| FIXED PART OF JOINT | ||
| 276 | A 0004621796 | BOOT |
| FIXED PART OF JOINT | ||
| 280 | A 0004600148 | DRAG LINK END |
| Repalced by: A 0004602648 | ||
| 280 | A 0004602648 | DRAG LINK END |
| ADJUSTABLE | ||
| LEMFOERDER | ||
| 280 | A 0004602748 | DRAG LINK END |
| ADJUSTABLE | ||
| EHRENREICH | ||
| 280 | A 0004600348 | DRAG LINK END |
| Repalced by: A 0004602848 | ||
| 280 | A 0004602848 | DRAG LINK END |
| Repalced by: A 0014600848 | ||
| 280 | A 0014600848 | DRAG LINK END |
| Repalced by: A 0014602248 | ||
| 280 | A 0014602248 | DRAG LINK END |
| R.H. THREAD | ||
| LEMFOERDER | ||
| 280 | A 0014602248 | DRAG LINK END |
| R.H. THREAD | ||
| LEMFOERDER | ||
| 280 | A 0004602948 | DRAG LINK END |
| Repalced by: A 0014601248 | ||
| 280 | A 0014601248 | DRAG LINK END |
| Repalced by: A 0014602248 | ||
| 280 | A 0014602248 | DRAG LINK END |
| R.H. THREAD | ||
| EHRENREICH | ||
| 280 | A 0014602248 | DRAG LINK END |
| R.H. THREAD | ||
| EHRENREICH | ||
| 288 | A 3354600096 | BOOT |
| Repalced by: A 0004621796 | ||
| 288 | A 0004621796 | BOOT |
| 288 | A 0004621896 | BOOT |
| 292 | A 0003380645 | CLAMP |
| CLAMP, TWO-HOLE | ||
| A 0003382545 | CLAMP | |
| CLAMP, ONE-HOLE | ||
| LEMFOERDER | ||
| A 0003383145 | CLAMP | |
| CLAMP, ONE-HOLE | ||
| EHRENREICH | ||
| 296 | N 000960012349 | SCREW |
| DRAG LINK END TO DRAG LINK | ||
| M12X58 | ||
| N 000960012453 | SCREW | |
| Repalced by: N 308676012017 | ||
| N 308676012017 | SCREW | |
| DRAG LINK END TO DRAG LINK | ||
| M12X1,5X62 | ||
| 300 | N 913004012009 | NUT |
| Repalced by: N 910113012003 | ||
| 300 | N 910113012003 | NUT |
| DRAG LINK END TO DRAG LINK | ||
| N 000937020001 | NUT | |
| DRAG LINK TO LEVER | ||
| 304 | N 000937024002 | NUT |
| DRAG LINK TO LEVER | ||
| N 000094004065 | COTTER PIN | |
| DRAG LINK TO LEVER | ||
| N 000094005045 | COTTER PIN | |
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
