Transporto priemonė: 1922 AK; VIN numerio dalis: 621307

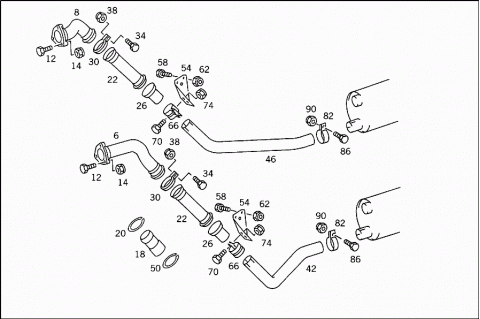

Grupė: 49 EXHAUST SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 006 | A 6214900025 | CONNECTOR |
| LEFT FRONT | ||
| 006 | A 6214900625 | CONNECTOR |
| LEFT FRONT | ||
| 006 | A 6214900625 | CONNECTOR |
| LEFT FRONT | ||
| 008 | A 6214900125 | CONNECTOR |
| RIGHT FRONT | ||
| 008 | A 6214900725 | CONNECTOR |
| RIGHT FRONT | ||
| 008 | A 6214900725 | CONNECTOR |
| RIGHT FRONT | ||
| 008 | A 6214900225 | CONNECTOR |
| RIGHT FRONT | ||
| 008 | A 6214900825 | CONNECTOR |
| RIGHT FRONT | ||
| 012 | N 000931012132 | SCREW |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 12X50 | ||
| N 000931012114 | SCREW | |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 12X45 | ||
| 014 | N 913004012010 | NUT |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 018 | A 6204901625 | CONNECTOR |
| FRONT EXHAUST PIPE FRONT PART TO REAR PART | ||
| 020 | A 0001423957 | SEAL RING |
| 022 | A 6204900365 | FLEXIBLE METAL TUBE |
| FRONT EXHAUST PIPE FRONT PART TO REAR PART | ||
| 022 | A 6204900365 | FLEXIBLE METAL TUBE |
| FRONT EXHAUST PIPE FRONT PART TO REAR PART | ||
| 026 | A 6204920008 | COLLAR |
| Repalced by: A 6524920008 | ||
| 026 | A 6524920008 | COLLAR |
| FRONT EXHAUST PIPE FRONT PART TO REAR PART | ||
| 026 | A 6174920008 | COLLAR |
| FRONT EXHAUST PIPE FRONT PART TO REAR PART | ||
| 030 | A 6209970490 | CLAMP |
| EXHAUST LINE FLEXIBLE METAL TUBE | ||
| 030 | A 6209970490 | CLAMP |
| EXHAUST LINE FLEXIBLE METAL TUBE | ||
| 034 | N 000933008161 | SCREW |
| Repalced by: N 304017008028 | ||
| 034 | N 304017008028 | SCREW |
| CLAMP TO CONNECTOR | ||
| 034 | N 304017008028 | SCREW |
| CLAMP TO CONNECTOR | ||
| 038 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 038 | N 913004008001 | NUT |
| CLAMP TO CONNECTOR | ||
| 038 | N 913004008001 | NUT |
| CLAMP TO CONNECTOR | ||
| 042 | A 6214900120 | EXHAUST PIPE |
| FRONT,REAR LEFT PART | ||
| 042 | A 6214900920 | EXHAUST PIPE |
| FRONT,REAR LEFT PART | ||
| 042 | A 6204903019 | EXHAUST PIPE |
| FRONT,REAR LEFT PART | ||
| 046 | A 6214900020 | EXHAUST PIPE |
| FRONT,REAR RIGHT PART | ||
| 046 | A 6214901020 | EXHAUST PIPE |
| FRONT,REAR RIGHT PART | ||
| 046 | A 6204903119 | EXHAUST PIPE |
| FRONT,REAR RIGHT PART | ||
| 050 | A 0001423957 | SEAL RING |
| 054 | A 6204920041 | BRACKET |
| LEFT EXHAUST PIPE | ||
| 054 | A 6204923441 | BRACKET |
| LEFT EXHAUST PIPE | ||
| 054 | A 6204923441 | BRACKET |
| LEFT EXHAUST PIPE | ||
| 054 | A 6204920141 | BRACKET |
| RIGHT EXHAUST PIPE | ||
| 054 | A 6204923541 | BRACKET |
| RIGHT EXHAUST PIPE | ||
| 054 | A 6204923541 | BRACKET |
| RIGHT EXHAUST PIPE | ||
| 058 | N 000933010145 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M 10X35 | ||
| 062 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 062 | N 910113010000 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 066 | A 3874920240 | CLAMP |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 066 | A 6204920840 | CLAMP |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 066 | A 6204920840 | CLAMP |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 070 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 070 | N 304017008027 | SCREW |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 070 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 070 | N 304017010002 | SCREW |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 070 | N 304017010002 | SCREW |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 074 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 074 | N 913004008001 | NUT |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 074 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 074 | N 910113010000 | NUT |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 074 | N 910113010000 | NUT |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 078 | A 6204900001 | EXHAUST MUFFLER |
| LEFT AND RIGHT | ||
| 082 | N 071555078502 | CLAMP |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 78.5 MM | ||
| 086 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 086 | N 304017008027 | SCREW |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 090 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 090 | N 913004008001 | NUT |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 094 | A 6214910641 | BRACKET |
| EXHAUST MUFFLER TO SIDE MEMBER | ||
| 094 | A 6214910641 | BRACKET |
| EXHAUST MUFFLER,REAR | ||
| 098 | A 6214911741 | BRACKET |
| EXHAUST MUFFLER,FRONT | ||
| 098 | A 6214910741 | BRACKET |
| EXHAUST MUFFLER TO SIDE MEMBER | ||
| 102 | N 000961014028 | SCREW |
| BRACKET TO FRAME | ||
| 106 | N 000125015013 | WASHER |
| Repalced by: N 000125015019 | ||
| 106 | N 000125015019 | WASHER |
| BRACKET TO FRAME | ||
| 110 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 110 | N 910113014001 | NUT |
| BRACKET TO FRAME | ||
| 114 | A 6524900442 | STRAP |
| EXHAUST MUFFLER TO BRACKET | ||
| 118 | N 006319010302 | SPHERICAL WASHER |
| EXHAUST MUFFLER TO BRACKET | ||
| 122 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 122 | N 910113010000 | NUT |
| EXHAUST MUFFLER TO BRACKET | ||
| 126 | A 6244920904 | REAR EXHAUST PIPE |
| SHORT;EXHAUST MUFFLER,RIGHT | ||
| 126 | A 6214920804 | REAR EXHAUST PIPE |
| SHORT;EXHAUST MUFFLER,LEFT | ||
| 130 | A 6214920904 | REAR EXHAUST PIPE |
| LONG;EXHAUST MUFFLER,RIGHT | ||
| 130 | A 6214922204 | REAR EXHAUST PIPE |
| LONG;EXHAUST MUFFLER,RIGHT | ||
| 130 | A 6244921004 | REAR EXHAUST PIPE |
| LONG;EXHAUST MUFFLER,LEFT | ||
| 132 | A 6214921004 | REAR EXHAUST PIPE |
| LEFT AND RIGHT | ||
| 132 | A 6214921004 | REAR EXHAUST PIPE |
| LEFT AND RIGHT | ||
| 134 | N 071555075502 | CLAMP |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 75.5 MM | ||
| 138 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 138 | N 304017008027 | SCREW |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 142 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 142 | N 913004008001 | NUT |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 146 | A 6214920241 | BRACKET |
| AT SIDE MEMBER | ||
| 146 | A 6214920141 | BRACKET |
| AT SIDE MEMBER | ||
| 150 | A 6244921241 | BRACKET |
| AT SIDE MEMBER | ||
| 150 | A 6244921341 | BRACKET |
| AT SIDE MEMBER | ||
| 154 | A 6214920341 | BRACKET |
| BRACKET TO EXHAUST PIPE BRACKET | ||
| 158 | A 6214920441 | BRACKET |
| BRACKET TO EXHAUST PIPE BRACKET | ||
| 158 | A 6214920441 | BRACKET |
| BRACKET TO EXHAUST PIPE BRACKET | ||
| 162 | N 000961014050 | SCREW |
| Repalced by: N 308676014020 | ||
| 162 | N 308676014020 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M 14 X 35 | ||
| 162 | N 000961014028 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M 14 X 40 | ||
| 162 | N 000961014054 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M 14 X 45 | ||
| 162 | N 000960014167 | SCREW |
| Repalced by: N 000961014064 | ||
| 162 | N 000961014064 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M 14 X 50 | ||
| 162 | N 000961012097 | SCREW |
| Repalced by: N 308676012026 | ||
| 162 | N 308676012026 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 166 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 166 | N 910113014001 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 166 | N 910113014001 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 166 | N 910113012002 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 170 | A 3834921341 | BRACKET |
| EXHAUST PIPE TO BRACKET | ||
| 170 | A 3834921341 | BRACKET |
| EXHAUST PIPE TO BRACKET | ||
| 174 | A 3814920082 | DAMPING PAD |
| BRACKET TO BRACKET | ||
| 174 | A 3814920082 | DAMPING PAD |
| BRACKET TO BRACKET | ||
| 178 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 178 | N 304017008021 | SCREW |
| BRACKET TO BRACKET | ||
| M 8X20 | ||
| 178 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 178 | N 304017008034 | SCREW |
| BRACKET TO BRACKET | ||
| M 8X25 | ||
| 182 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 182 | N 913004008001 | NUT |
| BRACKET TO BRACKET | ||
| 182 | N 913004008001 | NUT |
| BRACKET TO BRACKET | ||
| 186 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 186 | N 304017010002 | SCREW |
| REAR EXHAUST PIPE TO BRACKET | ||
| 186 | N 304017010002 | SCREW |
| REAR EXHAUST PIPE TO BRACKET | ||
| 190 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 190 | N 910113010000 | NUT |
| REAR EXHAUST PIPE TO BRACKET | ||
| 190 | N 910113010000 | NUT |
| REAR EXHAUST PIPE TO BRACKET | ||
