Transporto priemonė: 1922 AK; VIN numerio dalis: 621307
Grupė: 31 FRAME

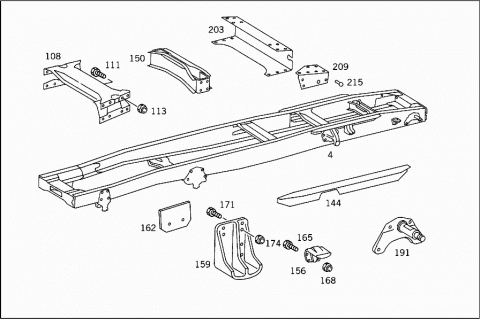

29155

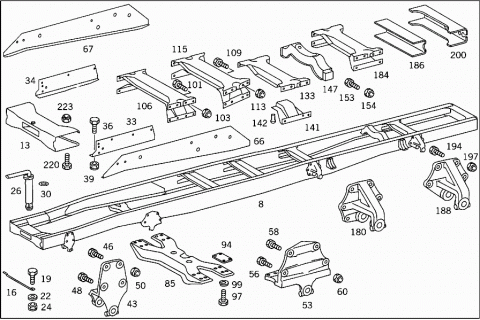

29156

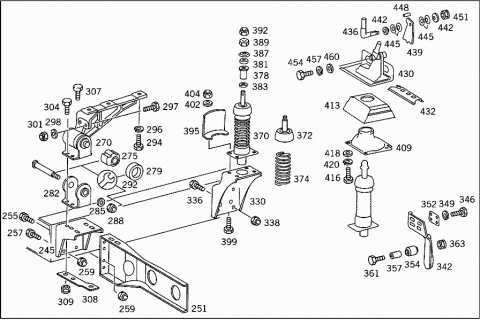

29157

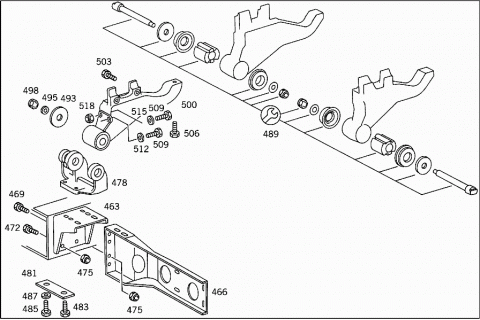

29158

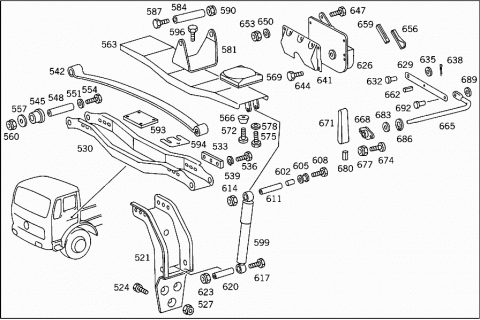

29159
# Kodas Pavadinimas
004 A 6203102701 FRAME
004 A 6213105501 FRAME
A 6213102802 FRAME
004 A 6213100502 FRAME
A 6213102902 FRAME
008 A 6213102801 FRAME
008 A 6213105801 FRAME
008 A 6213102901 FRAME
008 A 6213105901 FRAME
008 A 6213106601 FRAME
008 A 6213106601 FRAME
A 6213103002 FRAME
A 6213103002 FRAME
008 A 6213106801 FRAME
008 A 6213106801 FRAME
A 6213103102 FRAME
A 6213103102 FRAME
008 A 6213102601 FRAME
008 A 6213102601 FRAME
008 A 6213106701 FRAME
Repalced by: A 6213106601
008 A 6213102701 FRAME
008 A 6213102701 FRAME
008 A 6213106901 FRAME
Repalced by: A 6213106801
008 A 6213106901 FRAME
A 6213103202 FRAME
013 A 3873100422 CROSS MEMBER
FRONT
013 A 3873100522 CROSS MEMBER
FRONT
016 A 3353150031 LOCKING SPRING
COUPLING PIN
016 A 3873150031 LOCKING SPRING
COUPLING PIN
019 N 000933008153 SCREW
Repalced by: N 304017008034
019 N 304017008034 SCREW
SPRING TO CROSS MEMBER
019 N 000933008152 SCREW
Repalced by: N 304017008027
019 N 304017008027 SCREW
SPRING TO CROSS MEMBER
022 N 000125008418 WASHER
Repalced by: N 000125008443
022 N 000125008443 WASHER
SPRING TO CROSS MEMBER
024 N 913004008004 NUT
Repalced by: N 913004008001
024 N 913004008001 NUT
SPRING TO CROSS MEMBER
026 A 3873150106 COUPLING PIN
FOR COUPLING MOUTH
030 A 0009874346 SEALING CORD
FOR COUPLING MOUTH
033 A 3873122087 GUSSET PLATE
FRONT LEFT
034 A 3873122187 GUSSET PLATE
Repalced by: A 6203120987
034 A 6203120987 GUSSET PLATE
FRONT RIGHT
036 N 000961012097 SCREW
Repalced by: N 308676012026
036 N 308676012026 SCREW
CROSS MEMBER AND GUSSET PLATE TO SIDE MEMBERS
M 12X35
N 000125013008 WASHER
039 N 910113012002 NUT
CROSS MEMBER AND GUSSET PLATE TO SIDE MEMBERS
043 A 3873220301 FRONT SPRING BRACKET
FRONT
043 A 6203220201 FRONT SPRING BRACKET
Repalced by: A 6203220501
043 A 6203220501 FRONT SPRING BRACKET
Repalced by: A 6203220901
043 A 6203220901 FRONT SPRING BRACKET
FRONT
046 A 6569900014 SCREW
FRONT SPRING FRONT BRACKET TO SIDE MEMBER
M 16X45
046 A 3879900114 SCREW
FRONT SPRING FRONT BRACKET TO SIDE MEMBER
M 16X45
048 A 3879900214 SCREW
FRONT SPRING FRONT BRACKET TO SIDE MEMBER
M 16X55
050 N 913004016005 NUT
Repalced by: N 910113016001
050 N 910113016001 NUT
FRONT SPRING FRONT BRACKET TO SIDE MEMBER
053 A 6203220003 FRONT SPRING BRACKET
Repalced by: A 6203220103
053 A 6203220103 FRONT SPRING BRACKET
REAR
056 N 000960014229 SCREW
FRONT SPRING REAR BRACKET TO SIDE MEMBER
M 14X55
058 N 000961014101 SCREW
Repalced by: N 308676014012
058 N 308676014012 SCREW
FRONT SPRING REAR BRACKET TO SIDE MEMBER
M 14X45
060 N 913004014005 NUT
Repalced by: N 910113014000
060 N 910113014000 NUT
FRONT SPRING REAR BRACKET TO SIDE MEMBER
066 A 6203110553 ANGLE
LEFT REINFORCEMENT
067 A 6203110653 ANGLE
RIGHT REINFORCEMENT
085 A 3873120410 CROSS MEMBER
FRONT SPRING REAR BRACKET
NO.2
085 A 3873120410 CROSS MEMBER
Repalced by: A 3873120610
085 A 3873120610 CROSS MEMBER
NO.2
094 A 3873120084 SHIM
Repalced by: A 6203121984
094 A 6203121984 SHIM
CROSS MEMBER TO FRONT SPRING REAR BRACKET
097 N 000961014100 SCREW
CROSS MEMBER TO FRONT SPRING REAR BRACKET
099 N 912004014100 LOCK WASHER
CROSS MEMBER TO FRONT SPRING REAR BRACKET
101 N 000961014100 SCREW
CROSS MEMBER TO SIDE MEMBERS
M 14X30
103 N 913004014002 NUT
Repalced by: N 910113014001
103 N 910113014001 NUT
CROSS MEMBER TO SIDE MEMBERS
106 A 3873100136 CROSS MEMBER
NO.3
106 A 6213100136 CROSS MEMBER
NO.3
A 3873120025 CROSS MEMBER
NO.3
A 6213120225 CROSS MEMBER
Repalced by: A 3873120025
A 3873120025 CROSS MEMBER
NO.3
A 3873121961 STRUT
AT CROSS MEMBER
A 6243120261 STRUT
AT CROSS MEMBER
A 0039900901 SCREW
Repalced by: A 0029908201
A 0029908201 SCREW
STRUT TO CROSS MEMBER
M 12X28
N 913004012009 NUT
Repalced by: N 910113012003
N 910113012003 NUT
STRUT TO CROSS MEMBER
108 A 6203100036 CROSS MEMBER
NO.3
A 6203121584 SHIM
CROSS MEMBER TO SIDE MEMBERS
109 N 000961014100 SCREW
CROSS MEMBER TO SIDE MEMBERS
M 14X30
111 N 000961014028 SCREW
CROSS MEMBER TO SIDE MEMBERS
M 14X40
113 N 913004014002 NUT
Repalced by: N 910113014001
113 N 910113014001 NUT
CROSS MEMBER TO SIDE MEMBERS
115 A 3873100036 CROSS MEMBER
NO.4
133 A 3893120025 CROSS MEMBER
REAR SPRING FRONT BRACKET
NO.4
133 A 3873120017 CROSS MEMBER
NO.5
141 A 3873120161 STRUT
REAR SPRING FRONT BRACKET
142 N 910005012080 RIVET
STRUT TO CROSS MEMBER
A 6203121584 SHIM
CROSS MEMBER TO SIDE MEMBERS
144 A 6203161052 ANGLE
LEFT REINFORCEMENT
144 A 6203161152 ANGLE
RIGHT REINFORCEMENT
147 A 3873100037 CROSS MEMBER
SHOCK ABSORBER
NO.6
147 A 3873100937 CROSS MEMBER
SHOCK ABSORBER
NO.5
150 A 6203100437 CROSS MEMBER
SHOCK ABSORBER
NO.5
153 N 000961012164 SCREW
CROSS MEMBER TO SIDE MEMBERS
153 N 000961012122 SCREW
CROSS MEMBER TO SIDE MEMBERS
153 N 000961012097 SCREW
Repalced by: N 308676012026
153 N 308676012026 SCREW
CROSS MEMBER TO SIDE MEMBERS
154 N 910113012002 NUT
CROSS MEMBER TO SIDE MEMBERS
156 A 3893250117 HELPER SPRING BRACKET
Repalced by: A 6843250017
156 A 6843250017 HELPER SPRING BRACKET
HELPER SPRING
159 A 3873250117 HELPER SPRING BRACKET
HELPER SPRING
162 A 3893120384 SHIM
HELPER SPRING BRACKET
165 N 000961012097 SCREW
Repalced by: N 308676012026
165 N 308676012026 SCREW
HELPER SPRING BRACKET TO SIDE MEMBER
168 N 910113012002 NUT
HELPER SPRING BRACKET TO SIDE MEMBER
171 N 000960014167 SCREW
Repalced by: N 000961014064
171 N 000961014064 SCREW
HELPER SPRING BRACKET TO SIDE MEMBER
171 N 000961014054 SCREW
HELPER SPRING BRACKET TO SIDE MEMBER
M 14X45
171 N 000961014028 SCREW
HELPER SPRING BRACKET TO SIDE MEMBER
M 14X40
171 N 000961014050 SCREW
Repalced by: N 308676014020
171 N 308676014020 SCREW
HELPER SPRING BRACKET TO SIDE MEMBER
M 14X35
174 N 913004014002 NUT
Repalced by: N 910113014001
174 N 910113014001 NUT
HELPER SPRING BRACKET TO SIDE MEMBER
180 A 3873250101 REAR SPRING BRACKET
FRONT
184 A 3893100137 CROSS MEMBER
NO.7
A 3873120017 CROSS MEMBER
A 3873120361 STRUT
AT CROSS MEMBER
A 0039900901 SCREW
Repalced by: A 0029908201
A 0029908201 SCREW
STRUT TO CROSS MEMBER
M 12X28
N 913004012009 NUT
Repalced by: N 910113012003
N 910113012003 NUT
STRUT TO CROSS MEMBER
186 A 3873120425 CROSS MEMBER
NO.6
188 A 3873250003 REAR SPRING BRACKET
REAR
191 A 3353250603 REAR SPRING BRACKET
REAR
194 N 000961014054 SCREW
REAR SPRING REAR BRACKET TO SIDE MEMBER
194 N 000961014054 SCREW
REAR SPRING REAR BRACKET TO SIDE MEMBER
197 N 913004014002 NUT
Repalced by: N 910113014001
197 N 910113014001 NUT
REAR SPRING REAR BRACKET TO SIDE MEMBER
200 A 3933100246 CROSS MEMBER
Repalced by: A 3873120735
200 A 3873120735 CROSS MEMBER
REAR
203 A 6213120635 CROSS MEMBER
Repalced by: A 6213120335
203 A 6213120335 CROSS MEMBER
Repalced by: A 6553120435
203 A 6553120435 CROSS MEMBER
REAR
209 A 6213120287 GUSSET PLATE
REAR LEFT
209 A 6213120387 GUSSET PLATE
REAR RIGHT
X XXXXXXXXXXXX PART NAME MISSING
MOUNTING USED FOR FRAME CONNECTION PARTS
Y YYYYYYYYYYYY PART NAME MISSING
DIMENSIONS ARE INDICATED IN THE FOLLOWING ORDER:
Y YYYYYYYYYYYY PART NAME MISSING
THREAD X SHANK DIA. X SHANK LENGTH X TOTAL LENGTH
Y YYYYYYYYYYYY PART NAME MISSING
N 000609010004 FITTED SCREW
M 10X11X14X28
N 000610010003 FITTED SCREW
M 10X11X25X38
N 000609010014 FITTED SCREW
M 10X11X24X40
A 3859900514 SCREW
M 10X11X26,5X46
Y YYYYYYYYYYYY PART NAME MISSING
A 3859900714 SCREW
M 12X12X10X25
A 3859901414 SCREW
M 12X12X11X26
A 0039900901 SCREW
Repalced by: A 0029908201
A 0029908201 SCREW
M 12X12X12X28
A 3859901514 SCREW
M 12X12X13X28
A 0029908201 SCREW
M 12X12X14X30
A 3859902114 SCREW
M 12X12X15X30
A 0029908301 SCREW
Repalced by: N 308676012013
N 308676012013 HEXAGON HEAD BOLT
M12X1.5X30
A 3859902214 SCREW
M 12X12X17X32
Y YYYYYYYYYYYY PART NAME MISSING
A 6209900114 SCREW
M 12X13X12X29
A 3969900314 SCREW
M 12X13X13X30
A 3589901914 SCREW
M 12X13X15X32
A 3559900014 SCREW
M 12X13X18X35
A 3589900614 SCREW
M 12X13X21X38
A 6179900114 SCREW
M 12X13X23X40
A 6249900014 SCREW
M 12X13X25X42
A 3859900214 SCREW
M 12X13X35X52
A 6689900114 SCREW
M 12X13X58X80
A 6689900014 SCREW
M 12X13X63X85
Y YYYYYYYYYYYY PART NAME MISSING
A 3859900814 SCREW
Repalced by: A 3229903101
A 3229903101 SCREW
M 14X14X18X32
A 3859902014 SCREW
M 14X14X18X34
A 3559900114 SCREW
M 12X14X13X35
A 3219901601 SCREW
Repalced by: A 3169900014
A 3169900014 SCREW
M 14X14X17X35
A 3219901901 SCREW
M 14X14X22X40
A 3559900501 SCREW
M 14X14X24X42
A 3409900201 SCREW
M 14X14X27X45
A 3609902001 SCREW
M 14X14X32X50
Y YYYYYYYYYYYY PART NAME MISSING
A 3589900114 SCREW
M 14X15X15X32
A 3589900814 SCREW
M 14X15X17X34
A 6459900014 SCREW
M 14X15X18X35
A 3589901014 SCREW
M 14X15X19X36
A 3589900214 SCREW
M 14X15X21X38
A 3589900414 SCREW
M 14X15X25X42
A 3589900714 SCREW
M 14X15X27X44
A 3589900914 SCREW
M 14X15X29X46
A 3859900414 SCREW
M 14X15X31X48
A 3859900314 SCREW
M 14X15X35X52
Y YYYYYYYYYYYY PART NAME MISSING
A 3859900914 SCREW
Repalced by: N 308676016020
N 308676016020 SCREW
M 16X16X18X36
A 3859901714 SCREW
M 16X16X20X38
A 3859901014 SCREW
M 16X16X22X40
A 3859901114 SCREW
Repalced by: N 000961016118
N 000961016118 SCREW
M 16X16X24X42
A 0029909901 SCREW
Repalced by: A 3959900501
A 3959900501 SCREW
M 16X16X20X45
A 3859901814 SCREW
M 16X16X30X48
A 3859901914 SCREW
M 16X16X32X50
A 6259900301 SCREW
M 16X16X38X90
Y YYYYYYYYYYYY PART NAME MISSING
A 3589900514 SCREW
M 16X17X22X42
A 6459900714 SCREW
M 16X17X24X44
A 3609900114 SCREW
Repalced by: A 0009906314
A 0009906314 SCREW
M 16X17X28X48
Y YYYYYYYYYYYY PART NAME MISSING
A 3469900014 SCREW
M 16X18X18X40
A 3859902314 SCREW
M 18X18X23X45
A 6569900014 SCREW
M 16X18X25X45
A 6209900014 SCREW
M 16X18X26X48
A 3469900114 SCREW
M 16X18X31X50
A 3859902414 SCREW
Repalced by: N 000961018043
N 000961018043 SCREW
M 18X18X33X55
A 6229900014 SCREW
M 16X18X38X60
A 3919900014 SCREW
M 16X18X63X85
Y YYYYYYYYYYYY PART NAME MISSING
N 000610018004 FITTED SCREW
M 18X19X25X45
N 000610018009 FITTED SCREW
M 18X19X33X55
N 000610018006 FITTED SCREW
M 18X19X38X60
N 000609018000 FITTED SCREW
M 18X19X57X85
Y YYYYYYYYYYYY PART NAME MISSING
N 913004010011 NUT
N 913004012009 NUT
Repalced by: N 910113012003
N 910113012003 NUT
N 913004014005 NUT
Repalced by: N 910113014000
N 910113014000 NUT
N 913004016005 NUT
Repalced by: N 910113016001
N 910113016001 NUT
N 913004018004 NUT
Y YYYYYYYYYYYY PART NAME MISSING
215 N 910005012073 RIVET
12X28 MM
215 N 910005012080 RIVET
12X42 MM
215 N 910005014056 RIVET
14X45 MM
215 N 910005014059 RIVET
14X55 MM
215 N 910005016027 RIVET
16X58 MM
215 N 910005016027 RIVET
16X68 MM
220 N 000961014028 SCREW
CROSS MEMBER NO.1 TO SIDE MEMBERS
223 N 913004014002 NUT
Repalced by: N 910113014001
223 N 910113014001 NUT
CROSS MEMBER NO.1 TO SIDE MEMBERS
245 A 3878912631 CONSOLE
CAB MOUNTING,FRONT
251 A 3873170423 STRUT
BUMPER AT TORSION BAR
251 A 6203170223 STRUT
BUMPER,LEFT
251 A 6203170223 STRUT
BUMPER,LEFT
251 A 6203170423 STRUT
BUMPER,RIGHT
251 A 6203170423 STRUT
BUMPER,RIGHT
255 N 000961014101 SCREW
Repalced by: N 308676014012
255 N 308676014012 SCREW
CONSOLE AND STRUT TO FRAME
M14X45
257 N 000961014063 SCREW
Repalced by: A 9429901304
257 A 9429901304 SCREW
CONSOLE AND STRUT TO FRAME
M14X40
259 N 913004014005 NUT
Repalced by: N 910113014000
259 N 910113014000 NUT
CONSOLE AND STRUT TO FRAME
270 A 3813106509 BRACKET
CAB,LEFT
270 A 6208902103 MOUNTING
CAB,LEFT
270 A 3813106609 BRACKET
CAB, RIGHT
270 A 6208902203 MOUNTING
CAB, RIGHT
275 A 3813171512 RUBBER BUFFER
CAB SUSPENSION
279 A 3813171412 RUBBER BUFFER
STOP TO SIDE MEMBER
282 A 3878902903 MOUNTING
Repalced by: A 3878908703
282 A 3878908703 MOUNTING
282 A 6208902003 MOUNTING
Repalced by: A 6208902903
282 A 6208902903 MOUNTING
285 N 007349017002 WASHER
Repalced by: N 007349017003
285 N 007349017003 WASHER
288 N 913004016004 NUT
Repalced by: N 910113016002
288 N 910113016002 NUT
A 3813172174 PIN
292 A 3815860031 REPAIR KIT
CAB SUSPENSION,FRONT
294 N 000961014028 SCREW
LEFT AND RIGHT BEARING BRACKETS TO CAB
M 14X40
296 N 912004014100 LOCK WASHER
LEFT AND RIGHT BEARING BRACKETS TO CAB
297 N 000961014064 SCREW
LEFT AND RIGHT BEARING BRACKETS TO CAB
M 14X50
298 A 3209901840 WASHER
LEFT AND RIGHT BEARING BRACKETS TO CAB
301 N 913004014002 NUT
Repalced by: N 910113014001
301 N 910113014001 NUT
LEFT AND RIGHT BEARING BRACKETS TO CAB
304 N 000961014063 SCREW
Repalced by: A 9429901304
304 A 9429901304 SCREW
CAB TO FRAME
M 14X40
307 N 000961014101 SCREW
Repalced by: N 308676014012
307 N 308676014012 SCREW
CAB TO FRAME
M 14X45
A 3878910698 SHIM
308 A 3878910398 SHIM
CAB TO FRAME
309 N 913004014005 NUT
Repalced by: N 910113014000
309 N 910113014000 NUT
CAB TO FRAME
330 A 3873170001 CONSOLE
Repalced by: A 6553170001
330 A 6553170001 CONSOLE
Repalced by: A 3873170001
330 A 3873170001 CONSOLE
CAB MOUNTING,REAR
336 N 000961012097 SCREW
Repalced by: N 308676012026
336 N 308676012026 SCREW
CONSOLE TO SIDE MEMBER
338 N 910113012002 NUT
CONSOLE TO SIDE MEMBER
342 A 3873170626 GUIDE
CAB SUSPENSION,REAR LEFT
342 A 3873170726 GUIDE
CAB SUSPENSION,REAR RIGHT
346 N 000960012301 SCREW
GUIDE TO CAB
349 N 912004012100 LOCK WASHER
GUIDE TO CAB
352 A 3873170084 SHIM
GUIDE TO CAB
354 A 3813170750 BUSHING
LATERAL GUIDE OF CAB
357 A 3813170553 SPACER TUBE
LEFT AND RIGHT BUSHINGS TO FENDER BRACKETS
361 N 000960012230 SCREW
LEFT AND RIGHT BUSHINGS TO FENDER BRACKETS
363 N 910113012002 NUT
LEFT AND RIGHT BUSHINGS TO FENDER BRACKETS
370 A 3878901619 SHOCK ABSORBER
Repalced by: A 3878901319
370 A 3878901319 SHOCK ABSORBER
(VIBRATION ABSORBER),CAB REAR SUSPENSION
370 A 3878901319 SHOCK ABSORBER
(VIBRATION ABSORBER),CAB REAR SUSPENSION
370 A 6208900019 SHOCK ABSORBER
Repalced by: A 6208900119
370 A 6208900119 SHOCK ABSORBER
(VIBRATION ABSORBER),CAB REAR SUSPENSION
370 A 6208900119 SHOCK ABSORBER
(VIBRATION ABSORBER),CAB REAR SUSPENSION
372 A 0008910201 RUBBER MOUNTING
TO 387 890 16 19,620 890 00 19
372 A 0008900148 JOINT
Repalced by: A 0008910301
372 A 0008910301 RUBBER MOUNTING
TO 620 890 01 19,387 890 13 19
374 A 0008910851 SPRING
Repalced by: A 0008910751
374 A 0008910751 SPRING
Repalced by: A 0008910451
374 A 0008910451 SPRING
374 A 0008911051 SPRING
TO 620 890 00 19
374 A 0008911151 SPRING
TO 620 890 01 19
A 0008910123 BUFFER
TO 620 890 00 19
378 A 3813170753 SPACER TUBE
VIBRATION ABSORBER
381 A 3275045082 RUBBER RING
VIBRATION ABSORBER TO CONSOLE
383 N 000433015005 WASHER
VIBRATION ABSORBER TO CONSOLE
387 A 3878912010 WASHER
VIBRATION ABSORBER TO CONSOLE
389 N 000934012022 NUT
VIBRATION ABSORBER TO CONSOLE
392 N 308673012002 HEXAGON NUT
VIBRATION ABSORBER TO CONSOLE
395 A 3813170031 COVER PLATE
VIBRATION ABSORBER TO CONSOLE
399 N 000933008153 SCREW
Repalced by: N 304017008034
399 N 304017008034 SCREW
VIBRATION ABSORBER TO CONSOLE
402 N 009021008205 WASHER
Repalced by: N 009021008213
402 N 009021008213 WASHER
VIBRATION ABSORBER TO CONSOLE
404 N 913004008004 NUT
Repalced by: N 913004008001
404 N 913004008001 NUT
VIBRATION ABSORBER TO CONSOLE
409 A 3813177840 BRACKET
VIBRATION ABSORBER TO CAB,LEFT
409 A 3813177940 BRACKET
VIBRATION ABSORBER TO CAB,RIGHT
413 A 3813170097 BOOT
VIBRATION ABSORBER
416 N 000933010105 SCREW
BRACKET AND BOOT TO SIDE MEMBER
418 N 000125010518 WASHER
Repalced by: N 000125010532
418 N 000125010532 WASHER
BRACKET AND BOOT TO SIDE MEMBER
420 N 912004010102 LOCK WASHER
BRACKET AND BOOT TO SIDE MEMBER
430 A 3813102075 LOCKING MECHANISM
LEFT
430 A 3813101975 LOCKING MECHANISM
RIGHT
432 A 3813170119 LATCH
436 A 3813172374 PIN
439 A 3813170924 LEVER
442 A 3813170676 WASHER
445 A 0009935426 DISC SPRING
448 N 001481006041 CLAMPING SLEEVE
451 N 910113012002 NUT
454 N 000933010105 SCREW
LOCKING MECHANISM TO CAB
457 N 912004010102 LOCK WASHER
LOCKING MECHANISM TO CAB
460 N 000125010518 WASHER
Repalced by: N 000125010532
460 N 000125010532 WASHER
LOCKING MECHANISM TO CAB
463 A 3878912631 CONSOLE
CAB MOUNTING,FRONT
466 A 6203170223 STRUT
BUMPER,LEFT
466 A 6203170423 STRUT
BUMPER,RIGHT
469 N 000961014101 SCREW
Repalced by: N 308676014012
469 N 308676014012 SCREW
CONSOLE AND STRUT TO FRAME
M 14X45
472 N 000961014063 SCREW
Repalced by: A 9429901304
472 A 9429901304 SCREW
CONSOLE AND STRUT TO FRAME
M 14X40
475 N 913004014005 NUT
Repalced by: N 910113014000
475 N 910113014000 NUT
CONSOLE AND STRUT TO FRAME
478 A 3878916020 MOUNTING
Repalced by: A 6558910320
478 A 6558910320 MOUNTING
LEFT SIDE MEMBER
478 A 3878916120 MOUNTING
Repalced by: A 6558910420
478 A 6558910420 MOUNTING
RIGHT SIDE MEMBER
481 A 3878910498 SHIM
BEARING BRACKET TO SIDE MEMBER
483 N 000961014088 SCREW
Repalced by: N 308676014008
483 N 308676014008 SCREW
BEARING BRACKET TO SIDE MEMBER
M 14X35
485 N 000961014103 SCREW
BEARING BRACKET TO SIDE MEMBER
M 14X55
487 N 007349015003 WASHER
BEARING BRACKET TO SIDE MEMBER
489 A 6205860031 REPAIR KIT
CAB SUSPENSION,FRONT
493 A 3873170376 WASHER
CAB SUSPENSION,FRONT
495 N 007349017002 WASHER
CAB SUSPENSION,FRONT
Repalced by: N 007349017003
495 N 007349017003 WASHER
CAB SUSPENSION,FRONT
498 N 913004016004 NUT
Repalced by: N 910113016002
498 N 910113016002 NUT
CAB SUSPENSION,FRONT
500 A 3878916420 MOUNTING
CAB,LEFT
500 A 3878916520 MOUNTING
CAB, RIGHT
503 N 000960012189 SCREW
Repalced by: N 308676012031
503 N 308676012031 SCREW
Repalced by: N 308676012011
503 N 308676012011 SCREW
LEFT AND RIGHT BEARING BRACKETS TO CAB
M 12X50
506 N 000961014028 SCREW
LEFT AND RIGHT BEARING BRACKETS TO CAB
M 14X40
509 N 000961014054 SCREW
LEFT AND RIGHT BEARING BRACKETS TO CAB
M 14X45
509 N 000960014167 SCREW
Repalced by: N 000961014064
509 N 000961014064 SCREW
LEFT AND RIGHT BEARING BRACKETS TO CAB
M 14X50
512 A 3209901840 WASHER
LEFT AND RIGHT BEARING BRACKETS TO CAB
515 N 000125015013 WASHER
Repalced by: N 000125015019
515 N 000125015019 WASHER
LEFT AND RIGHT BEARING BRACKETS TO CAB
518 N 913004014002 NUT
Repalced by: N 910113014001
518 N 910113014001 NUT
LEFT AND RIGHT BEARING BRACKETS TO CAB
521 A 3878911731 CONSOLE
CAB SUSPENSION,REAR
521 A 3818900031 CONSOLE
CAB SUSPENSION,REAR
524 N 000961014050 SCREW
Repalced by: N 308676014020
524 N 308676014020 SCREW
CONSOLE TO SIDE MEMBER
M 14X35
524 N 000961014028 SCREW
CONSOLE TO SIDE MEMBER
M 14X40
527 N 913004014002 NUT
Repalced by: N 910113014001
527 N 910113014001 NUT
CONSOLE TO SIDE MEMBER
530 A 3878910024 STRUT
Repalced by: A 6558910224
530 A 6558910224 STRUT
CROSS CONNECTION
533 A 3878910198 SHIM
STRUT TO CONSOLE
536 N 000960012050 SCREW
STRUT TO CONSOLE
536 N 000961012332 SCREW
STRUT TO CONSOLE
539 N 912004012100 LOCK WASHER
STRUT TO CONSOLE
542 A 3878911551 SPRING
(SPRING LEAF),BOTTOM;CAB REAR SUSPENSION
542 A 3878911651 SPRING
(SPRING LEAF),TOP;CAB REAR SUSPENSION
545 A 3638910717 BUSHING
LEAF SPRING TO STRUT
548 A 3638910218 TUBE
LEAF SPRING TO STRUT
551 A 3638910010 WASHER
LEAF SPRING TO STRUT
554 N 000960012332 SCREW
LEAF SPRING TO STRUT
557 N 009021013200 WASHER
LEAF SPRING TO STRUT
560 N 910113012002 NUT
LEAF SPRING TO STRUT
563 A 3878900622 RAIL
Repalced by: A 6558900222
563 A 6558900222 RAIL
(CONNECTING RAIL)
566 A 3878910323 BUFFER
CAB SUSPENSION
569 A 3878910072 MOUNTING
CAB SUSPENSION
572 N 000084008119 SCREW
BUFFER AND MOUNTING TO RAIL
M 8X20
575 N 000933008154 SCREW
Repalced by: N 304017008021
575 N 304017008021 SCREW
BUFFER AND MOUNTING TO RAIL
M 8X22
578 N 000125008418 WASHER
Repalced by: N 000125008443
578 N 000125008443 WASHER
BUFFER AND MOUNTING TO RAIL
581 A 6208910020 MOUNTING
CAB MOUNTING,REAR
584 A 3878911753 SPACER TUBE
MOUNTING
587 N 000960016242 SCREW
Repalced by: N 000960016251
587 N 000960016251 SCREW
MOUNTING
590 N 913004016004 NUT
Repalced by: N 910113016002
590 N 910113016002 NUT
MOUNTING
593 A 3878910811 PLATE
CAB MOUNTING,REAR
594 A 6208910296 BASE
RAIL AND PLATE TO SPRING
596 N 000931010357 SCREW
Repalced by: N 000933010192
596 A 0019909404 SCREW
RAIL AND PLATE TO SPRING
599 A 0008912205 SHOCK ABSORBER
CAB SUSPENSION,REAR
602 A 0008910617 BUSHING
605 A 0008910501 RUBBER MOUNTING
608 N 000960018127 SCREW
SHOCK ABSORBER TO RAIL
611 A 3878910953 SPACER TUBE
SHOCK ABSORBER TO RAIL
614 N 913004018003 NUT
Repalced by: N 910113018004
614 N 910113018004 NUT
SHOCK ABSORBER TO RAIL
617 N 000960018125 SCREW
Repalced by: N 000960018072
617 N 000960018072 SCREW
SHOCK ABSORBER TO CONSOLE
620 A 3878911053 SPACER TUBE
Repalced by: A 3878910953
620 A 3878910953 SPACER TUBE
SHOCK ABSORBER TO CONSOLE
9 MM
620 A 3878910953 SPACER TUBE
SHOCK ABSORBER TO CONSOLE
623 N 913004018003 NUT
Repalced by: N 910113018004
623 N 910113018004 NUT
SHOCK ABSORBER TO CONSOLE
626 A 0008900089 FASTENER
Repalced by: A 0008902389
626 A 0008901389 FASTENER
Repalced by: A 0008902389
626 A 0008902389 FASTENER
(CENTRAL LOCK)
629 A 3878910070 ROD
CENTRAL LOCK
632 N 001444008202 PIN
PULL TO FASTENER
635 N 000433008406 WASHER
PULL TO FASTENER
638 N 000094002059 COTTER PIN
PULL TO FASTENER
Repalced by: N 000094002060
638 N 000094002060 COTTER PIN
PULL TO FASTENER
641 A 3878911131 CONSOLE
CENTRAL LOCK
644 N 000933010128 SCREW
CENTRAL LOCK
M 10X20
644 N 000933010198 SCREW
CENTRAL LOCK
M 10X16
647 N 000933010105 SCREW
CENTRAL LOCK
M 10X25
N 912004010102 LOCK WASHER
CENTRAL LOCK
650 N 000125010518 WASHER
Repalced by: N 000125010532
650 N 000125010532 WASHER
CENTRAL LOCK
653 N 913004010008 NUT
Repalced by: N 910113010000
653 N 910113010000 NUT
CENTRAL LOCK
656 A 3878910814 BRACKET
SEAL
659 A 3878910085 SEAL
CENTRAL LOCK TO CAB
662 N 007346005003 CLAMPING SLEEVE
BRACKET TO DRAWBAR
665 A 6208910256 LEVER
CAB LOCKING MECHANISM
668 A 3638910317 BUSHING
CAB LOCKING MECHANISM
671 A 6208910073 HANDLE
CAB LOCKING MECHANISM
674 N 007985008142 SCREW
BUSHING AND LEVER TO CAB
677 N 913004008004 NUT
Repalced by: N 913004008001
677 N 913004008001 NUT
BUSHING AND LEVER TO CAB
680 N 007346005004 CLAMPING SLEEVE
Repalced by: N 001481005039
680 N 001481005039 CLAMPING SLEEVE
HANDLE TO LEVER
680 N 001481005039 CLAMPING SLEEVE
LEVER MOUNTING
683 N 000125015013 WASHER
Repalced by: N 000125015019
683 N 000125015019 WASHER
LEVER MOUNTING
686 N 900055014401 RETAINING RING
LEVER MOUNTING
689 N 000433008406 WASHER
PULL ROD TO LEVER
692 N 001444008233 PIN
PULL ROD TO LEVER
N 000094002059 COTTER PIN
PULL ROD TO LEVER
Repalced by: N 000094002060
N 000094002060 COTTER PIN
PULL ROD TO LEVER
Reklama
Kontaktai
Pasiūlymas
Skaitliukas



© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
