Transporto priemonė: 1922 AK; VIN numerio dalis: 621307

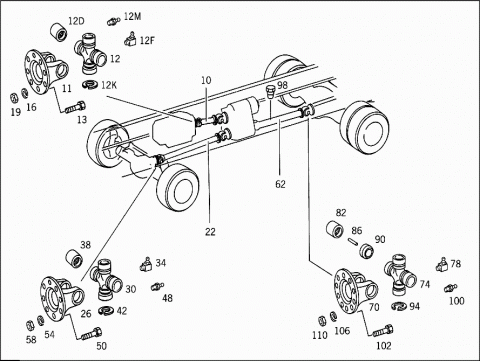

Grupė: 41 PROPELLER SHAFT
| # | Kodas | Pavadinimas |
|---|---|---|
| 010 | A 3954101502 | PROPELLER SHAFT |
| FROM TRANSMISSION TO TRANSFER CASE | ||
| 650 MM | ||
| 010 | A 3874101318 | PROPELLER SHAFT |
| FROM TRANSMISSION TO TRANSFER CASE | ||
| 723 MM | ||
| 010 | A 3894102202 | PROPELLER SHAFT |
| Repalced by: A 3894103702 | ||
| 010 | A 3894103702 | PROPELLER SHAFT |
| FROM TRANSMISSION TO TRANSFER CASE | ||
| 595 MM | ||
| 010 | A 3004100407 | PROPELLER SHAFT |
| FROM TRANSMISSION TO TRANSFER CASE | ||
| 710 MM | ||
| 010 | A 3004100507 | PROPELLER SHAFT |
| FROM TRANSMISSION TO TRANSFER CASE | ||
| 795 MM | ||
| 010 | A 3954101602 | PROPELLER SHAFT |
| FROM TRANSMISSION TO TRANSFER CASE | ||
| 535 MM | ||
| 011 | A 3874110111 | DRIVE FLANGE |
| Repalced by: A 3894110611 | ||
| 011 | A 3894110611 | DRIVE FLANGE |
| 011 | A 3854111711 | DRIVE FLANGE |
| 012 | A 3814100231 | UNIVERSAL JOINT CROSS |
| Repalced by: A 9734100031 | ||
| 012 | A 9734100031 | UNIVERSAL JOINT CROSS |
| WITH BUSHINGS | ||
| 012 | A 0004100131 | UNIVERSAL JOINT CROSS |
| Repalced by: A 6204100031 | ||
| 012 | A 6204100031 | UNIVERSAL JOINT CROSS |
| Repalced by: A 9404100031 | ||
| 012 | A 9404100031 | UNIVERSAL JOINT CROSS |
| WITH BUSHINGS | ||
| 012 | A 6204100131 | UNIVERSAL JOINT CROSS |
| Repalced by: A 0004100231 | ||
| 012 | A 0004100231 | UNIVERSAL JOINT CROSS |
| Repalced by: A 0004101628 | ||
| 012 | A 0004101628 | UNIVERSAL JOINT |
| Repalced by: A 9424100131 | ||
| 012 | A 9424100131 | UNIVERSAL JOINT CROSS |
| WITH BUSHINGS | ||
| 012 | A 0004100428 | UNIVERSAL JOINT CROSS |
| Repalced by: A 6204100031 | ||
| 012 | A 6204100031 | UNIVERSAL JOINT CROSS |
| Repalced by: A 9404100031 | ||
| 012 | A 9404100031 | UNIVERSAL JOINT CROSS |
| WITH BUSHINGS | ||
| 012D | A 3854100742 | BEARING BUSHING |
| 012D | A 3854101042 | BEARING BUSHING |
| 012F | N 071412008302 | GREASE NIPPLE |
| 012K | A 0029941341 | LOCK |
| Repalced by: A 0069940841 | ||
| 012K | A 0069940841 | LOCK |
| AS REQUIRED | ||
| 1.70 MM | ||
| 012K | A 0029941741 | LOCK |
| Repalced by: A 0069941241 | ||
| 012K | A 0069941241 | LOCK |
| AS REQUIRED | ||
| 1.80 MM | ||
| 012K | A 0029941841 | LOCK |
| Repalced by: A 0069941441 | ||
| 012K | A 0069941441 | LOCK |
| AS REQUIRED | ||
| 1.85 MM | ||
| 012K | A 3634110173 | LOCK |
| Repalced by: A 0069941941 | ||
| 012K | A 0069941941 | LOCK |
| AS REQUIRED | ||
| 2.00 MM | ||
| 012K | A 3634110573 | LOCK |
| Repalced by: A 0069942341 | ||
| 012K | A 0069942341 | LOCK |
| AS REQUIRED | ||
| 2.10 MM | ||
| 012K | A 3634111373 | LOCK |
| Repalced by: A 0069942741 | ||
| 012K | A 0069942741 | LOCK |
| AS REQUIRED | ||
| 2.20 MM | ||
| 012K | A 3634110773 | LOCK |
| Repalced by: A 0069943141 | ||
| 012K | A 0069943141 | LOCK |
| AS REQUIRED | ||
| 2.00 MM | ||
| 012K | A 3634110973 | LOCK |
| Repalced by: A 0069943541 | ||
| 012K | A 0069943541 | LOCK |
| AS REQUIRED | ||
| 2.10 MM | ||
| 012K | A 3634111173 | LOCK |
| Repalced by: A 0069943941 | ||
| 012K | A 0069943941 | LOCK |
| AS REQUIRED | ||
| 2.20 MM | ||
| A 3894110080 | GASKET | |
| PROTECTIVE TUBE | ||
| A 3854110059 | SEAL RING | |
| PROTECTIVE TUBE | ||
| 012M | N 071412008101 | GREASE NIPPLE |
| Repalced by: N 071412008102 | ||
| 012M | N 071412008102 | GREASE NIPPLE |
| 013 | A 3609901901 | SCREW |
| Repalced by: A 3609903001 | ||
| 013 | A 3609903001 | SCREW |
| PROPELLER SHAFT TO TRANSMISSION AND TO TRANSFER CASE | ||
| 013 | A 0029909901 | SCREW |
| Repalced by: A 3959900501 | ||
| 013 | A 3959900501 | SCREW |
| COUPLING FLANGE TO TRANSMISSION | ||
| 013 | N 000960014237 | SCREW |
| PROPELLER SHAFT TO TRANSMISSION | ||
| 016 | N 912004016101 | LOCK WASHER |
| PROPELLER SHAFT TO TRANSMISSION AND TO TRANSFER CASE | ||
| 016 | N 912004012100 | LOCK WASHER |
| PROPELLER SHAFT TO TRANSMISSION AND TO TRANSFER CASE | ||
| 016 | N 912004014100 | LOCK WASHER |
| PROPELLER SHAFT TO TRANSMISSION AND TO TRANSFER CASE | ||
| 019 | N 000934016013 | NUT |
| Repalced by: N 308673016001 | ||
| 019 | N 308673016001 | NUT |
| PROPELLER SHAFT TO TRANSMISSION AND TO TRANSFER CASE | ||
| 019 | N 000934012034 | NUT |
| PROPELLER SHAFT TO TRANSMISSION AND TO TRANSFER CASE | ||
| 019 | N 000934014020 | NUT |
| PROPELLER SHAFT TO TRANSMISSION AND TO TRANSFER CASE | ||
| 022 | A 3854105107 | PROPELLER SHAFT |
| FROM TRANSFER CASE TO FRONT AXLE | ||
| 1355 MM | ||
| 022 | A 3854109307 | PROPELLER SHAFT |
| FROM TRANSFER CASE TO FRONT AXLE | ||
| 1328 MM | ||
| 022 | A 3854105407 | PROPELLER SHAFT |
| FROM TRANSFER CASE TO FRONT AXLE | ||
| 1450 MM | ||
| 026 | A 3854111711 | DRIVE FLANGE |
| 030 | A 3814100231 | UNIVERSAL JOINT CROSS |
| Repalced by: A 9734100031 | ||
| 030 | A 9734100031 | UNIVERSAL JOINT CROSS |
| WITH BUSHINGS | ||
| 034 | N 071412008302 | GREASE NIPPLE |
| 038 | A 3854101042 | BEARING BUSHING |
| 042 | A 0029941341 | LOCK |
| Repalced by: A 0069940841 | ||
| 042 | A 0069940841 | LOCK |
| AS REQUIRED | ||
| 1.70 MM | ||
| 042 | A 0029941741 | LOCK |
| Repalced by: A 0069941241 | ||
| 042 | A 0069941241 | LOCK |
| AS REQUIRED | ||
| 1.80 MM | ||
| 042 | A 0029941841 | LOCK |
| Repalced by: A 0069941441 | ||
| 042 | A 0069941441 | LOCK |
| AS REQUIRED | ||
| 1.85 MM | ||
| N 900087008000 | PLUG | |
| 048 | N 071412008101 | GREASE NIPPLE |
| Repalced by: N 071412008102 | ||
| 048 | N 071412008102 | GREASE NIPPLE |
| 050 | A 3609901901 | SCREW |
| Repalced by: A 3609903001 | ||
| 050 | A 3609903001 | SCREW |
| PROPELLER SHAFT TO TRANSFER CASE AND TO FRONT AXLE | ||
| 054 | N 912004012100 | LOCK WASHER |
| PROPELLER SHAFT TO TRANSFER CASE AND TO FRONT AXLE | ||
| 058 | N 000934012034 | NUT |
| PROPELLER SHAFT TO TRANSFER CASE AND TO FRONT AXLE | ||
| 062 | A 3954101202 | PROPELLER SHAFT |
| FROM TRANSFER CASE TO REAR AXLE | ||
| 1467 MM | ||
| 062 | A 3954102001 | PROPELLER SHAFT |
| Repalced by: A 6204100002 | ||
| 062 | A 6204100002 | PROPELLER SHAFT |
| FROM TRANSFER CASE TO REAR AXLE | ||
| 1890 MM | ||
| 062 | A 3854106107 | PROPELLER SHAFT |
| FROM TRANSFER CASE TO REAR AXLE | ||
| 995 MM | ||
| 062 | A 3854104707 | PROPELLER SHAFT |
| FROM TRANSFER CASE TO REAR AXLE | ||
| 1300 MM | ||
| 062 | A 3954105501 | PROPELLER SHAFT |
| Repalced by: A 3954102302 | ||
| 062 | A 3954102302 | PROPELLER SHAFT |
| FROM TRANSFER CASE TO REAR AXLE | ||
| 899 MM | ||
| 062 | A 3954100202 | PROPELLER SHAFT |
| FROM TRANSFER CASE TO REAR AXLE | ||
| 1183 MM | ||
| 070 | A 3634110111 | DRIVE FLANGE |
| Repalced by: A 3954110211 | ||
| 070 | A 3854111711 | DRIVE FLANGE |
| 070 | A 3954110211 | DRIVE FLANGE |
| Repalced by: A 3954110811 | ||
| 070 | A 3954110811 | DRIVE FLANGE |
| 074 | A 3874100031 | UNIVERSAL JOINT CROSS |
| Repalced by: A 6204100031 | ||
| 074 | A 3814100231 | UNIVERSAL JOINT CROSS |
| Repalced by: A 9734100031 | ||
| 074 | A 9734100031 | UNIVERSAL JOINT CROSS |
| WITH BUSHINGS | ||
| 074 | A 6204100031 | UNIVERSAL JOINT CROSS |
| Repalced by: A 9404100031 | ||
| 074 | A 9404100031 | UNIVERSAL JOINT CROSS |
| WITH BUSHINGS | ||
| 078 | N 071412008302 | GREASE NIPPLE |
| 082 | A 3874100142 | BEARING BUSHING |
| 082 | A 3854100742 | BEARING BUSHING |
| 082 | A 3854101042 | BEARING BUSHING |
| 082 | A 3954100142 | BEARING BUSHING |
| 086 | A 3879810487 | NEEDLE |
| Repalced by: A 3879810787 | ||
| 086 | A 3879810787 | NEEDLE |
| SET = 164 PIECES | ||
| TO 387 410 00 31;38.14 MM | ||
| 090 | A 3634110280 | GASKET |
| 094 | A 3634110773 | LOCK |
| Repalced by: A 0069943141 | ||
| 094 | A 0069943141 | LOCK |
| AS REQUIRED | ||
| 2.00 MM | ||
| 094 | A 3634110973 | LOCK |
| Repalced by: A 0069943541 | ||
| 094 | A 0069943541 | LOCK |
| AS REQUIRED | ||
| 2.10 MM | ||
| 094 | A 3634111173 | LOCK |
| Repalced by: A 0069943941 | ||
| 094 | A 0069943941 | LOCK |
| AS REQUIRED | ||
| 2.20 MM | ||
| 094 | A 0029941341 | LOCK |
| Repalced by: A 0069940841 | ||
| 094 | A 0069940841 | LOCK |
| AS REQUIRED | ||
| 1.70 MM | ||
| 094 | A 0029941741 | LOCK |
| Repalced by: A 0069941241 | ||
| 094 | A 0069941241 | LOCK |
| AS REQUIRED | ||
| 1.80 MM | ||
| 094 | A 0029941841 | LOCK |
| Repalced by: A 0069941441 | ||
| 094 | A 0069941441 | LOCK |
| AS REQUIRED | ||
| 1.85 MM | ||
| A 3954110059 | SEAL RING | |
| PROTECTIVE TUBE | ||
| 105X17 | ||
| A 0004110159 | SEAL RING | |
| PROTECTIVE TUBE | ||
| A 3854110059 | SEAL RING | |
| PROTECTIVE TUBE | ||
| 098 | N 900087008000 | PLUG |
| 100 | N 071412008101 | GREASE NIPPLE |
| Repalced by: N 071412008102 | ||
| 100 | N 071412008102 | GREASE NIPPLE |
| 102 | A 0029909901 | SCREW |
| Repalced by: A 3959900501 | ||
| 102 | A 3959900501 | SCREW |
| PROPELLER SHAFT TO TRANSFER CASE AND TO REAR AXLE | ||
| 102 | A 3609901901 | SCREW |
| Repalced by: A 3609903001 | ||
| 102 | A 3609903001 | SCREW |
| PROPELLER SHAFT TO TRANSFER CASE AND TO REAR AXLE | ||
| 106 | N 912004016101 | LOCK WASHER |
| PROPELLER SHAFT TO TRANSFER CASE AND TO REAR AXLE | ||
| 106 | N 912004012100 | LOCK WASHER |
| PROPELLER SHAFT TO TRANSFER CASE AND TO REAR AXLE | ||
| 110 | N 000934016013 | NUT |
| Repalced by: N 308673016001 | ||
| 110 | N 308673016001 | NUT |
| PROPELLER SHAFT TO TRANSFER CASE AND TO REAR AXLE | ||
| 110 | N 000934012034 | NUT |
| PROPELLER SHAFT TO TRANSFER CASE AND TO REAR AXLE | ||
