Transporto priemonė: 1922 AK; VIN numerio dalis: 621307

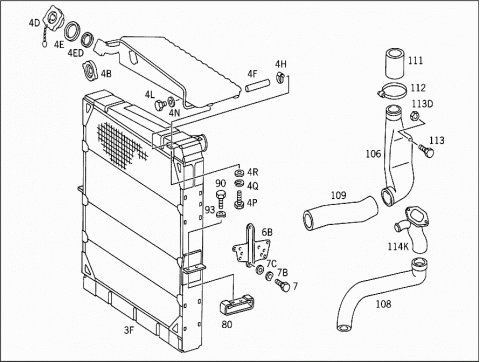

Grupė: 50 RADIATOR
| # | Kodas | Pavadinimas |
|---|---|---|

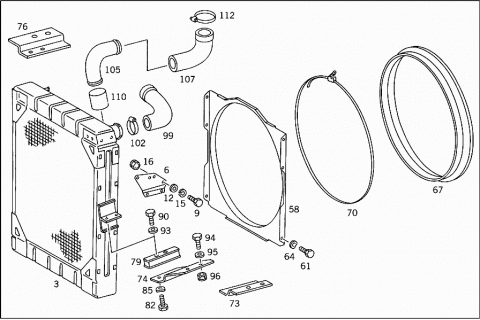

| 003 | A 3855010401 | RADIATOR |
| Repalced by: A 3875002903 | ||
| 003 | A 3875002903 | RADIATOR |
| WATER | ||
| BEHR | ||
| A 0005015701 | RADIATOR | |
| Repalced by: A 0005019101 | ||
| 003D | A 0005019101 | RADIATOR |
| WATER | ||
| BEHR | ||
| 003F | A 0005017601 | RADIATOR |
| WATER | ||
| BEHR | ||

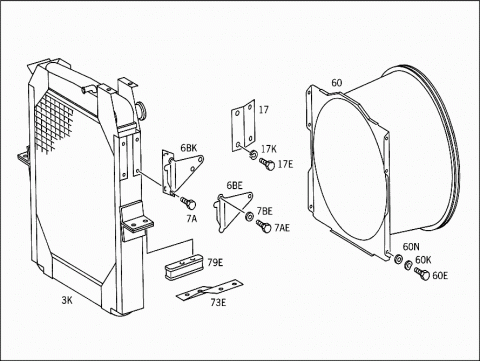

| 003K | A 0015010901 | RADIATOR |
| WATER | ||
| BEHR | ||
| A 0005015901 | RADIATOR | |
| Repalced by: A 0005017401 | ||
| A 0005017401 | RADIATOR | |
| Repalced by: A 0005019001 | ||
| A 0005019001 | RADIATOR | |
| Repalced by: A 0015010201 | ||

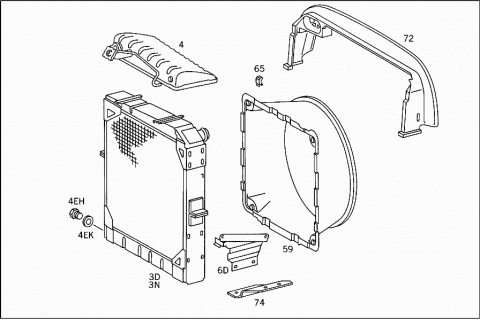

| 003N | A 0015010201 | RADIATOR |
| Repalced by: A 0005001103 | ||
| 003N | A 0005001103 | RADIATOR |
| WATER | ||
| BEHR | ||
| 004 | A 0005000749 | TANK |
| COOLING WATER EXPANSION | ||
| TO 000 501 59 01,74 01;001 501 02 01 | ||
| 004 | A 0005000749 | TANK |
| COOLING WATER EXPANSION | ||
| TO 000 501 59 01,74 01;001 501 02 01 | ||
| 004 | A 0005000649 | TANK |
| COOLING WATER EXPANSION | ||
| 004 | A 0005001549 | TANK |
| COOLING WATER EXPANSION | ||
| 004 | A 0005001149 | TANK |
| COOLING WATER EXPANSION | ||
| TO 000 501 90 01 | ||
| 004B | A 0005013715 | RADIATOR CAP |
| LATERAL | ||
| 004B | A 0005017115 | RADIATOR CAP |
| LATERAL | ||
| 004D | A 0005014615 | RADIATOR CAP |
| FILLER NECK | ||
| 004D | A 0005017215 | RADIATOR CAP |
| FILLER NECK | ||
| 004E | A 0005010480 | GASKET |
| INSIDE | ||
| 52 MM | ||
| 004ED | A 0005010880 | GASKET |
| OUTSIDE | ||
| 37 MM | ||
| 004EH | N 007604014101 | SCREW PLUG |
| WATER DRAIN | ||
| 004EK | N 007603014405 | SEAL RING |
| WATER DRAIN | ||
| 004F | A 0149975782 | HOSE |
| OVERFLOW, EXPANSION TANK | ||
| 004H | A 0005040033 | CLAMP |
| Repalced by: N 916017011000 | ||
| 004H | N 916017011000 | CLAMP |
| Repalced by: N 916017011001 | ||
| 004H | N 000000000665 | CLAMP |
| OVERFLOW, EXPANSION TANK | ||
| 004L | A 0019973230 | SCREW PLUG |
| Repalced by: N 007604014101 | ||
| 004L | N 007604014101 | SCREW PLUG |
| WATER DRAIN | ||
| 004N | N 007603014405 | SEAL RING |
| WATER DRAIN | ||
| 004P | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 004P | N 304017008016 | SCREW |
| FROM EXPANSION TANK TO RADIATOR | ||
| 004Q | N 912004008102 | LOCK WASHER |
| FROM EXPANSION TANK TO RADIATOR | ||
| 004R | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 004R | N 000125008443 | WASHER |
| FROM EXPANSION TANK TO RADIATOR | ||
| 006 | A 4220100040 | BRACKET |
| Repalced by: A 4220100240 | ||
| 006 | A 4220100240 | BRACKET |
| OI DIPSTICK GUIDE TUBE | ||
| 006 | A 4220100240 | BRACKET |
| OI DIPSTICK GUIDE TUBE | ||
| 006 | A 4220100240 | BRACKET |
| OI DIPSTICK GUIDE TUBE | ||
| 006B | A 4210100040 | BRACKET |
| OI DIPSTICK GUIDE TUBE | ||
| 006BE | A 4010100240 | BRACKET |
| OI DIPSTICK GUIDE TUBE | ||
| 006BK | A 4010100440 | BRACKET |
| OI DIPSTICK GUIDE TUBE | ||
| 006D | A 6205000231 | BRACKET |
| OI DIPSTICK GUIDE TUBE | ||
| 007 | N 000933006183 | SCREW |
| Repalced by: N 304017006016 | ||
| 007 | N 304017006016 | SCREW |
| OIL DIPSTICK BRACKET TO RADIATOR | ||
| M 6X16 | ||
| 007 | N 304017006016 | SCREW |
| OIL DIPSTICK BRACKET TO RADIATOR | ||
| M 6X16 | ||
| 007 | N 304017006016 | SCREW |
| OIL DIPSTICK BRACKET TO RADIATOR | ||
| M 6X16 | ||
| 007A | N 000933006130 | SCREW |
| OIL DIPSTICK BRACKET TO RADIATOR | ||
| M 6X18 | ||
| 007AE | N 000933006121 | SCREW |
| Repalced by: N 304017006020 | ||
| 007AE | N 304017006020 | SCREW |
| OIL DIPSTICK BRACKET TO RADIATOR | ||
| M 6X20 | ||
| 007B | N 000137006204 | SPRING WASHER |
| OIL DIPSTICK BRACKET TO RADIATOR | ||
| 007B | N 000137006204 | SPRING WASHER |
| OIL DIPSTICK BRACKET TO RADIATOR | ||
| 007BE | N 000125006421 | WASHER |
| OIL DIPSTICK BRACKET TO RADIATOR | ||
| Repalced by: N 000125006449 | ||
| 007BE | N 000125006449 | WASHER |
| OIL DIPSTICK BRACKET TO RADIATOR | ||
| 007C | A 3859901140 | WASHER |
| OIL DIPSTICK BRACKET TO RADIATOR | ||
| 009 | N 000933008145 | SCREW |
| OIL-DIPSTICK GUIDE TUBE TO BRACKET | ||
| 012 | N 007349008003 | WASHER |
| OIL-DIPSTICK GUIDE TUBE TO BRACKET | ||
| 012 | N 007349008003 | WASHER |
| OIL-DIPSTICK GUIDE TUBE TO BRACKET | ||
| 012 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 012 | N 000125008443 | WASHER |
| OIL-DIPSTICK GUIDE TUBE TO BRACKET | ||
| 015 | N 912004008102 | LOCK WASHER |
| OIL-DIPSTICK GUIDE TUBE TO BRACKET | ||
| 015 | N 912004008102 | LOCK WASHER |
| OIL-DIPSTICK GUIDE TUBE TO BRACKET | ||
| 016 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 016 | N 913004008001 | NUT |
| OIL-DIPSTICK GUIDE TUBE TO BRACKET | ||
| 017 | A 6205001031 | BRACKET |
| BRACKET TO OIL FILLER PIPE BRACKET | ||
| 017E | N 000933008145 | SCREW |
| BRACKET TO OIL FILLER PIPE BRACKET | ||
| 017K | N 912004008102 | LOCK WASHER |
| BRACKET TO OIL FILLER PIPE BRACKET | ||

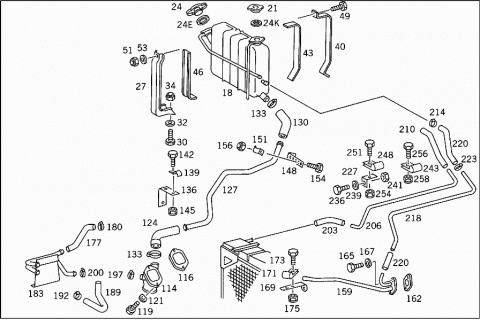

| 018 | A 3815000749 | TANK |
| BEHIND CAB | ||

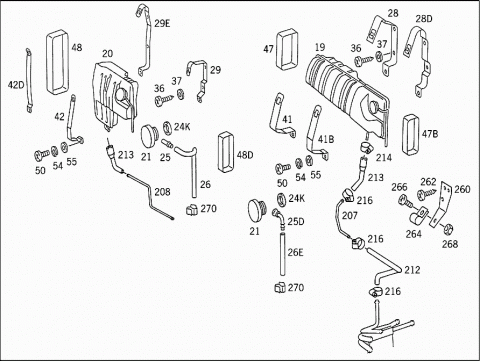

| 019 | A 6205000049 | TANK |
| Repalced by: A 6205000149 | ||
| 019 | A 6205000149 | TANK |
| CAB,FRONT | ||
| 019 | A 6205000149 | TANK |
| CAB,FRONT | ||
| 020 | A 6175000049 | TANK |
| Repalced by: A 6205000349 | ||
| 020 | A 6205000349 | TANK |
| CAB,FRONT | ||
| 020 | A 6205000349 | TANK |
| CAB,FRONT | ||
| 021 | A 0005014515 | RADIATOR CAP |
| TOP | ||
| 024 | A 0005014615 | RADIATOR CAP |
| LATERAL | ||
| TO 381 500 07 49 | ||
| 024 | A 0005017215 | RADIATOR CAP |
| LATERAL | ||
| TO 381 500 07 49 | ||
| 024E | A 0005010480 | GASKET |
| INSIDE | ||
| 52 MM,TO 000 501 46 15 | ||
| 024K | A 0005010880 | GASKET |
| OUTSIDE | ||
| 37 MM | ||
| 025 | A 0005010010 | DRAIN PIPE |
| TO 620 500 00 49,617 500 01 49 | ||
| 025D | A 0005010110 | DRAIN PIPE |
| TO 620 500 01 49,620 500 03 49 | ||
| 026 | A 0139978682 | HOSE |
| TO 620 500 00 49,620 500 01 49 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| TO 617 500 00 49 | ||
| 026E | A 0079972682 | HOSE |
| Repalced by: A 0219977682 | ||
| 026E | A 0219977682 | HOSE |
| TO 620 500 03 49 | ||
| 027 | A 3815000731 | BRACKET |
| EXPANSION TANK | ||
| 028 | A 6205000031 | BRACKET |
| EXPANSION TANK,RIGHT | ||
| 028 | A 6205000031 | BRACKET |
| EXPANSION TANK,RIGHT | ||
| 028D | A 6205000131 | BRACKET |
| EXPANSION TANK,LEFT | ||
| 028D | A 6205000131 | BRACKET |
| EXPANSION TANK,LEFT | ||
| 029 | A 6175000031 | BRACKET |
| EXPANSION TANK,LEFT | ||
| 029 | A 6175000031 | BRACKET |
| EXPANSION TANK,LEFT | ||
| 029E | A 6175000131 | BRACKET |
| EXPANSION TANK,RIGHT | ||
| 029E | A 6175000131 | BRACKET |
| EXPANSION TANK,RIGHT | ||
| 030 | N 000933010164 | SCREW |
| BRACKET TO RIGHT FENDER | ||
| 032 | N 006902011101 | WASHER |
| BRACKET TO RIGHT FENDER | ||
| 034 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 034 | N 910113010000 | NUT |
| BRACKET TO RIGHT FENDER | ||
| 036 | N 007981005306 | SHEET METAL SCREW |
| BRACKET TO CAB | ||
| 036 | N 007981005306 | SHEET METAL SCREW |
| BRACKET TO CAB | ||
| 037 | N 000125006421 | WASHER |
| BRACKET TO CAB | ||
| Repalced by: N 000125006449 | ||
| 037 | N 000125006449 | WASHER |
| BRACKET TO CAB | ||
| 037 | N 000125006449 | WASHER |
| BRACKET TO CAB | ||
| 040 | A 3815012520 | BRACKET |
| STRAP | ||
| 041 | A 6205010320 | STRAP |
| EXPANSION TANK,RIGHT | ||
| 041 | A 6205010320 | STRAP |
| EXPANSION TANK,RIGHT | ||
| 041B | A 6205010420 | STRAP |
| EXPANSION TANK,LEFT | ||
| 041B | A 6205010420 | STRAP |
| EXPANSION TANK,LEFT | ||
| 042 | A 6175010220 | STRAP |
| EXPANSION TANK,LEFT | ||
| 042 | A 6175010220 | STRAP |
| EXPANSION TANK,LEFT | ||
| 042D | A 6175010320 | STRAP |
| EXPANSION TANK,RIGHT | ||
| 042D | A 6175010320 | STRAP |
| EXPANSION TANK,RIGHT | ||
| 043 | A 3634750220 | PAD |
| EXPANSION TANK TO BRACKET | ||
| 046 | A 3815010295 | SHIM |
| Repalced by: A 3815010495 | ||
| 046 | A 3815010495 | SHIM |
| STRAP | ||
| 047 | A 6205010195 | SHIM |
| EXPANSION TANK,RIGHT | ||
| 047 | A 6205010195 | SHIM |
| EXPANSION TANK,RIGHT | ||
| 047B | A 6205010295 | SHIM |
| EXPANSION TANK,LEFT | ||
| 047B | A 6205010295 | SHIM |
| EXPANSION TANK,LEFT | ||
| 048 | A 6175010095 | SHIM |
| EXPANSION TANK,LEFT | ||
| 048 | A 6175010095 | SHIM |
| EXPANSION TANK,LEFT | ||
| 048D | A 6175010195 | SHIM |
| EXPANSION TANK,RIGHT | ||
| 048D | A 6175010195 | SHIM |
| EXPANSION TANK,RIGHT | ||
| 049 | N 000933010105 | SCREW |
| EXPANSION TANK TO BRACKET | ||
| 050 | N 007985006193 | SCREW |
| Repalced by: N 000000001146 | ||
| 050 | N 000000001146 | SCREW |
| EXPANSION TANK TO BRACKET | ||
| M 6X16 | ||
| 050 | N 000000001146 | SCREW |
| EXPANSION TANK TO BRACKET | ||
| M 6X16 | ||
| 051 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 051 | N 910113010000 | NUT |
| EXPANSION TANK TO BRACKET | ||
| 053 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 053 | N 000125010532 | WASHER |
| EXPANSION TANK TO BRACKET | ||
| 054 | N 912004006102 | LOCK WASHER |
| EXPANSION TANK TO BRACKET | ||
| 054 | N 912004006102 | LOCK WASHER |
| EXPANSION TANK TO BRACKET | ||
| 055 | N 009021006205 | WASHER |
| Repalced by: N 009021006208 | ||
| 055 | N 009021006208 | WASHER |
| EXPANSION TANK TO BRACKET | ||
| 055 | N 009021006208 | WASHER |
| EXPANSION TANK TO BRACKET | ||
| 058 | A 3875051630 | AIR BAFFLE |
| RADIATOR | ||
| 058 | A 6205050755 | FAN SHROUD |
| RADIATOR | ||
| 059 | A 6165050255 | FAN SHROUD |
| RADIATOR | ||
| 059 | A 6205050455 | FAN SHROUD |
| RADIATOR | ||
| 060 | A 6165050355 | FAN SHROUD |
| RADIATOR | ||
| 060E | N 000933006183 | SCREW |
| Repalced by: N 304017006016 | ||
| 060E | N 304017006016 | SCREW |
| FAN SHROUD TO RADIATOR | ||
| 060K | N 000137006204 | SPRING WASHER |
| FAN SHROUD TO RADIATOR | ||
| 060N | A 3859901140 | WASHER |
| FAN SHROUD TO RADIATOR | ||
| 061 | N 000933006102 | SCREW |
| AIR BAFFLE AND BRACKET TO RADIATOR | ||
| 061 | N 000933006102 | SCREW |
| AIR BAFFLE AND BRACKET TO RADIATOR | ||
| 064 | N 000137006204 | SPRING WASHER |
| AIR BAFFLE AND BRACKET TO RADIATOR | ||
| 065 | A 1235040246 | CLIP-TYPE NUT |
| FAN SHROUD TO RADIATOR | ||
| 065 | A 1235040246 | CLIP-TYPE NUT |
| FAN SHROUD TO RADIATOR | ||
| 067 | A 3635050180 | BOOT |
| FAN SHROUD | ||
| 067 | A 6175050086 | BOOT |
| FAN SHROUD | ||
| 067 | A 6205050086 | BOOT |
| FAN SHROUD | ||
| 067 | A 6205050086 | BOOT |
| FAN SHROUD | ||
| 070 | A 3639950065 | CLAMP |
| FAN SHROUD | ||
| 072 | A 6205050286 | BOOT |
| HEATING PIPE TO RADIATOR | ||
| 073 | A 6205040401 | SUPPORT |
| RADIATOR,LEFT | ||
| 073 | A 6205040601 | SUPPORT |
| RADIATOR,LEFT | ||
| 073E | A 6205040901 | SUPPORT |
| RADIATOR,LEFT | ||
| 073E | A 6205041001 | SUPPORT |
| RADIATOR,RIGHT | ||
| 074 | A 6205040201 | SUPPORT |
| RADIATOR,LEFT | ||
| 074 | A 6205040201 | SUPPORT |
| RADIATOR,LEFT | ||
| 074 | A 6555040401 | SUPPORT |
| RADIATOR,LEFT | ||
| 076 | A 6205040501 | SUPPORT |
| RADIATOR,RIGHT | ||
| 076 | A 6205040701 | SUPPORT |
| RADIATOR,RIGHT | ||
| 079 | A 3875040012 | RUBBER MOUNTING |
| RADIATOR TO SUPPORT | ||
| 079 | A 3875040012 | RUBBER MOUNTING |
| RADIATOR TO SUPPORT | ||
| 079 | A 3875040012 | RUBBER MOUNTING |
| RADIATOR TO SUPPORT | ||
| 079E | A 3875040112 | RUBBER MOUNTING |
| RADIATOR TO SUPPORT | ||
| 080 | A 6205040012 | RUBBER MOUNTING |
| Repalced by: A 6205040112 | ||
| 080 | A 6205040112 | RUBBER MOUNTING |
| RADIATOR TO SUPPORT | ||
| 080 | A 6205040112 | RUBBER MOUNTING |
| RADIATOR TO SUPPORT | ||
| 082 | N 000933010238 | SCREW |
| Repalced by: N 304017010028 | ||
| 082 | N 304017010028 | HEXAGON HEAD BOLT |
| RUBBER MOUNTING TO SIDE MEMBER AND TO SUPPORT | ||
| 082 | N 304017010028 | HEXAGON HEAD BOLT |
| RUBBER MOUNTING TO SIDE MEMBER AND TO SUPPORT | ||
| 082 | N 304017010028 | HEXAGON HEAD BOLT |
| RUBBER MOUNTING TO SUPPORT | ||
| 085 | N 000137010201 | SPRING WASHER |
| RUBBER MOUNTING TO SIDE MEMBER AND TO SUPPORT | ||
| 085 | N 000137010201 | SPRING WASHER |
| RUBBER MOUNTING TO SIDE MEMBER AND TO SUPPORT | ||
| 085 | N 000137010201 | SPRING WASHER |
| RUBBER MOUNTING TO SUPPORT | ||
| 090 | N 000933010164 | SCREW |
| RADIATOR TO RUBBER MOUNTING | ||
| M10X22 | ||
| 090 | N 000933010105 | SCREW |
| RADIATOR TO RUBBER MOUNTING | ||
| M 10X25 | ||
| 090 | N 000933010105 | SCREW |
| RADIATOR TO RUBBER MOUNTING | ||
| M 10X25 | ||
| 093 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 093 | N 000125010532 | WASHER |
| RADIATOR TO RUBBER MOUNTING | ||
| 094 | N 000961012151 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 12X30 | ||
| 094 | N 000961012151 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 12X30 | ||
| 094 | N 000961012151 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 12X30 | ||
| 094 | N 000961012097 | SCREW |
| Repalced by: N 308676012026 | ||
| 094 | N 308676012026 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 12X35 | ||
| 094 | N 000961012106 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 12X32 | ||
| 095 | N 000125013008 | WASHER |
| 096 | N 910113012002 | NUT |
| SUPPORT TO SIDE MEMBER | ||
| 096 | N 910113012002 | NUT |
| SUPPORT TO SIDE MEMBER | ||
| 096 | N 910113012002 | NUT |
| SUPPORT TO SIDE MEMBER | ||
| 099 | A 3875010582 | HOSE |
| FROM RADIATOR TO THERMOSTAT | ||
| 099 | A 6165010082 | HOSE |
| Repalced by: A 6165010882 | ||
| 099 | A 6165010882 | HOSE |
| FROM THERMOSTAT TO RADIATOR FILLER NECK | ||
| 099 | A 3835010082 | HOSE |
| FROM THERMOSTAT TO RADIATOR FILLER NECK | ||
| 099 | A 6205011182 | HOSE |
| Repalced by: A 6175014982 | ||
| 099 | A 6205010882 | HOSE |
| Repalced by: A 6175014982 | ||
| A 6175014982 | HOSE | |
| FROM RADIATOR TO THERMOSTAT | ||
| A 6175014982 | HOSE | |
| FROM RADIATOR TO THERMOSTAT | ||
| 102 | N 916017070000 | CLAMP |
| Repalced by: N 000000000674 | ||
| 102 | N 000000001468 | CLAMP |
| HOSE TO THERMOSTAT AND TO RADIATOR | ||
| 60-80X13 MM | ||
| 102 | N 000000001468 | CLAMP |
| HOSE TO THERMOSTAT AND TO RADIATOR | ||
| 60-80X13 MM | ||
| 102 | N 000000001468 | CLAMP |
| HOSE TO THERMOSTAT AND TO RADIATOR | ||
| 60-80X13 MM | ||
| 102 | N 916017050000 | CLAMP |
| Repalced by: N 000000000672 | ||
| 102 | N 000000000672 | CLAMP |
| HOSE TO THERMOSTAT AND TO RADIATOR | ||
| 105 | A 3875010356 | PIPE ELBOW |
| FROM RADIATOR TO WATER PUMP | ||
| 106 | A 6205010056 | PIPE ELBOW |
| Repalced by: A 6205010156 | ||
| 106 | A 6205010156 | PIPE ELBOW |
| Repalced by: A 6205010056 | ||
| 106 | A 6205010056 | PIPE ELBOW |
| FROM RADIATOR TO WATER PUMP | ||
| 106 | A 6205010056 | PIPE ELBOW |
| FROM RADIATOR TO WATER PUMP | ||
| 106 | A 6205010456 | PIPE ELBOW |
| Repalced by: A 6205010556 | ||
| 106 | A 6205010556 | PIPE ELBOW |
| Repalced by: A 6555010756 | ||
| 106 | A 6555010756 | PIPE ELBOW |
| FROM RADIATOR TO WATER PUMP | ||
| 106 | A 6555011556 | PIPE ELBOW |
| FROM RADIATOR TO WATER PUMP | ||
| 107 | A 3635010182 | HOSE |
| FROM RADIATOR TO WATER PUMP | ||
| 108 | A 6165010182 | HOSE |
| FROM RADIATOR TO WATER PUMP | ||
| 108 | A 6165010982 | HOSE |
| FROM RADIATOR TO WATER PUMP | ||
| 108 | A 6165011182 | HOSE |
| FROM RADIATOR TO WATER PUMP | ||
| 109 | A 6205010482 | HOSE |
| FROM RADIATOR TO WATER PUMP | ||
| 109 | A 6205013882 | HOSE |
| Repalced by: A 6555011282 | ||
| 109 | A 6555011282 | HOSE |
| FROM RADIATOR TO WATER PUMP | ||
| 109 | A 6205010782 | HOSE |
| FROM RADIATOR TO WATER PUMP | ||
| 109 | A 6205013582 | HOSE |
| FROM RADIATOR TO WATER PUMP | ||
| 110 | N 900271065003 | HOSE |
| FROM RADIATOR TO WATER PUMP | ||
| 111 | N 900271070007 | HOSE |
| FROM RADIATOR TO WATER PUMP | ||
| 111 | N 900271070007 | HOSE |
| FROM RADIATOR TO WATER PUMP | ||
| 112 | N 916017070000 | CLAMP |
| Repalced by: N 000000000674 | ||
| 112 | N 000000001468 | CLAMP |
| HOSE TO RADIATOR AND TO WATER PUMP | ||
| 60-80X13 MM | ||
| 112 | N 000000001468 | CLAMP |
| HOSE TO RADIATOR AND TO WATER PUMP | ||
| 60-80X13 MM | ||
| 112 | N 000000001468 | CLAMP |
| HOSE TO RADIATOR AND TO WATER PUMP | ||
| 60-80X13 MM | ||
| 112 | N 916017060000 | CLAMP |
| Repalced by: N 000000000673 | ||
| 112 | N 000000000673 | CLAMP |
| HOSE TO RADIATOR AND TO WATER PUMP | ||
| 113 | N 000931010282 | SCREW |
| PIPE BEND TO BRACKET | ||
| 113 | N 000931010282 | SCREW |
| PIPE BEND TO BRACKET | ||
| 113D | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 113D | N 910113010000 | NUT |
| PIPE BEND TO BRACKET | ||
| 113D | N 910113010000 | NUT |
| PIPE BEND TO BRACKET | ||
| 114 | A 3875010123 | CONNECTOR |
| AT WATER PUMP | ||
| 114E | A 6165010123 | CONNECTOR |
| AT WATER PUMP | ||
| 114K | A 6165010223 | CONNECTOR |
| AT WATER PUMP | ||
| 115 | A 3875011223 | CONNECTOR |
| Repalced by: A 6205010223 | ||

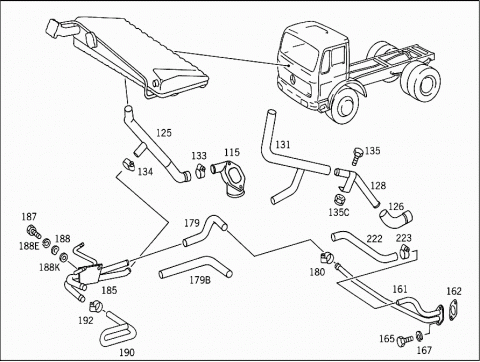

| 115 | A 6205010223 | CONNECTOR |
| AT WATER PUMP | ||
| 115 | A 6205010223 | CONNECTOR |
| AT WATER PUMP | ||
| 115 | A 6205010123 | CONNECTOR |
| Repalced by: A 6205010423 | ||
| 115 | A 6205010423 | CONNECTOR |
| AT WATER PUMP | ||
| 115 | A 6205010423 | CONNECTOR |
| AT WATER PUMP | ||
| 116 | A 4032010480 | GASKET |
| Repalced by: A 4422010480 | ||
| 116 | A 4422010480 | GASKET |
| CONNECTOR TO WATER PUMP | ||
| Repalced by: A 0002011080 | ||
| 116 | A 0002011080 | GASKET |
| CONNECTOR TO WATER PUMP | ||
| Repalced by: A 0002011180 | ||
| 116 | A 0002011180 | GASKET |
| CONNECTOR TO WATER PUMP | ||
| Repalced by: A 0002011280 | ||
| 116 | A 0002011280 | GASKET |
| CONNECTOR TO WATER PUMP | ||
| 119 | N 000933010105 | SCREW |
| CONNECTOR TO WATER PUMP | ||
| 119 | N 000933010164 | SCREW |
| CONNECTOR TO WATER PUMP | ||
| 121 | N 000137010201 | SPRING WASHER |
| CONNECTOR TO WATER PUMP | ||
| 124 | A 3875011082 | HOSE |
| FROM WATER PUMP TO EXPANSION TANK | ||
| 124D | A 6165010382 | HOSE |
| FROM WATER PUMP TO EXPANSION TANK | ||
| 124K | A 6165010682 | HOSE |
| FROM WATER PUMP TO EXPANSION TANK | ||
| 125 | A 6205012082 | HOSE |
| FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE | ||
| 125 | A 6205012082 | HOSE |
| FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE | ||
| 126 | A 6205011682 | HOSE |
| Repalced by: A 6585010082 | ||
| 126 | A 6585010082 | HOSE |
| FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE | ||
| 126 | A 6585010082 | HOSE |
| FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE | ||
| 127 | A 3875010524 | COOLING WATER PIPE |
| FROM WATER PUMP TO EXPANSION TANK | ||
| 128 | A 6205000172 | LINE |
| FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE | ||
| 128 | A 6205000172 | LINE |
| FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE | ||
| 130 | A 3875011782 | HOSE |
| FROM WATER PUMP TO EXPANSION TANK | ||
| 131 | A 6205011482 | HOSE |
| FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE | ||
| 131 | A 6205011482 | HOSE |
| FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE | ||
| 133 | N 916017032000 | CLAMP |
| Repalced by: N 000000000670 | ||
| 133 | N 000000000670 | CLAMP |
| HOSE TO EXPANSION TANK AND TO WATER PUMP | ||
| 133 | N 000000000670 | CLAMP |
| HOSE TO WATER PUMP AND TO HEATING PIPE | ||
| 133 | N 000000000670 | CLAMP |
| HOSE TO WATER PUMP AND TO HEATING PIPE | ||
| 133 | N 000000000670 | CLAMP |
| FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE | ||
| 134 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 134 | N 000000000667 | CLAMP |
| HOSE TO WATER PUMP AND TO HEATING PIPE | ||
| 134 | N 000000000667 | CLAMP |
| HOSE TO WATER PUMP AND TO HEATING PIPE | ||
| 134 | N 000000000667 | CLAMP |
| HOSE TO EXPANSION TANK AND TO WATER PUMP | ||
| 135 | N 000933006103 | SCREW |
| Repalced by: N 304017006018 | ||
| 135 | N 304017006018 | SCREW |
| COOLING WATER LINE TO BRACKET | ||
| 135 | N 304017006018 | SCREW |
| COOLING WATER LINE TO BRACKET | ||
| 135C | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 135C | N 913004006001 | NUT |
| COOLING WATER LINE TO BRACKET | ||
| 135C | N 913004006001 | NUT |
| COOLING WATER LINE TO BRACKET | ||
| 136 | A 3875010820 | BRACKET |
| Repalced by: A 3834929141 | ||
| 136 | A 3834929141 | BRACKET |
| COOLING WATER LINE TO FRAME | ||
| 139 | A 3879950020 | CLAMP |
| COOLING WATER LINE TO FRAME | ||
| 142 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 142 | N 304017008016 | SCREW |
| COOLING WATER LINE TO FRAME | ||
| 145 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 145 | N 913004008001 | NUT |
| COOLING WATER LINE TO FRAME | ||
| 148 | A 3604292940 | BRACKET |
| COOLING WATER LINE TO BRACKET | ||
| 151 | A 3879950020 | CLAMP |
| COOLING WATER LINE TO BRACKET | ||
| 154 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 154 | N 304017008021 | SCREW |
| COOLING WATER LINE TO BRACKET | ||
| 156 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 156 | N 913004008001 | NUT |
| COOLING WATER LINE TO BRACKET | ||
| 159 | A 3875000079 | FLANGE |
| HEATING AND BREATHING | ||
| 160 | A 6175000079 | FLANGE |
| HEATING AND BREATHING | ||
| 160H | A 6175000279 | FLANGE |
| HEATING AND BREATHING | ||
| 161 | A 6205000379 | FLANGE |
| HEATING AND BREATHING | ||
| 161 | A 6205000379 | FLANGE |
| HEATING AND BREATHING | ||
| 161 | A 6205000179 | FLANGE |
| HEATING AND BREATHING | ||
| 161 | A 6205000179 | FLANGE |
| HEATING AND BREATHING | ||

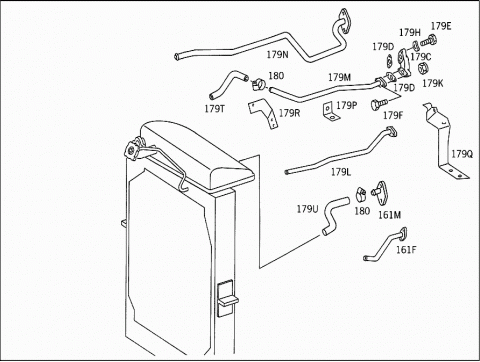

| 161F | A 6175000479 | FLANGE |
| DE-AERATION; FROM ENGINE TO EXPANSION TANK | ||
| 161M | A 6205000679 | FLANGE |
| DE-AERATION; FROM ENGINE TO EXPANSION TANK | ||
| 162 | N 917003040008 | GASKET |
| FLANGE TO ENGINE | ||
| 162 | N 917003040008 | GASKET |
| FLANGE TO ENGINE | ||
| 162 | N 917003040008 | GASKET |
| FLANGE TO ENGINE | ||
| 165 | N 000933010105 | SCREW |
| FLANGE TO ENGINE | ||
| 167 | N 912004010102 | LOCK WASHER |
| FLANGE TO ENGINE | ||
| 169 | A 3875011420 | BRACKET |
| HEATING PIPE | ||
| 169 | A 3875011420 | BRACKET |
| HEATING PIPE | ||
| 169 | A 3875011420 | BRACKET |
| HEATING PIPE | ||
| 170 | A 6205010620 | BRACKET |
| HEATING PIPE | ||
| 170 | A 6205010620 | BRACKET |
| HEATING PIPE | ||
| 171 | A 3609950601 | CLAMP |
| HEATING PIPE TO ANGLE | ||
| 173 | N 000933006130 | SCREW |
| ANGLE TO AIR BAFFLE BRACKET | ||
| 175 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 175 | N 913004006001 | NUT |
| ANGLE TO AIR BAFFLE BRACKET | ||
| 177 | A 3875060435 | HOSE |
| FROM ENGINE CONNECTION FLANGE TO HEATING PIPE AT RADIATOR | ||
| 178 | A 3875060335 | HOSE |
| FROM ENGINE CONNECTION FLANGE TO HEATING PIPE AT RADIATOR | ||
| 178 | A 6165060235 | HOSE |
| FROM ENGINE CONNECTION FLANGE TO HEATING PIPE AT RADIATOR | ||
| 178 | A 6165060335 | HOSE |
| FROM ENGINE CONNECTION FLANGE TO HEATING PIPE AT RADIATOR | ||
| 179 | A 6205060735 | HOSE |
| FROM ENGINE CONNECTION FLANGE TO HEATING PIPE AT RADIATOR | ||
| 179 | A 6205060735 | HOSE |
| FROM ENGINE CONNECTION FLANGE TO HEATING PIPE AT RADIATOR | ||
| 179B | A 6205060435 | HOSE |
| FROM ENGINE CONNECTION FLANGE TO HEATING PIPE AT RADIATOR | ||
| 179B | A 6205060435 | HOSE |
| FROM ENGINE CONNECTION FLANGE TO HEATING PIPE AT RADIATOR | ||
| 179C | A 6205060161 | FLANGE |
| Repalced by: A 6205060261 | ||
| A 6205060261 | FLANGE | |
| HEATING WATER LINE | ||
| 179D | N 917003022003 | GASKET |
| FLANGE TO ENGINE | ||
| 179E | N 000933008116 | SCREW |
| Repalced by: N 000933008337 | ||
| 179E | N 000933008337 | SCREW |
| Repalced by: A 0099900101 | ||
| 179E | A 0099900101 | SCREW |
| FLANGE TO ENGINE | ||
| 179F | N 000933008150 | SCREW |
| Repalced by: N 304017008018 | ||
| 179F | N 304017008018 | SCREW |
| HEATING PIPE TO FLANGE | ||
| 179H | N 000137008204 | SPRING WASHER |
| Repalced by: N 000137008212 | ||
| 179H | N 000137008212 | SPRING WASHER |
| FLANGE TO ENGINE | ||
| 179K | N 910113008001 | NUT |
| HEATING PIPE TO FLANGE | ||
| 179L | A 6205003472 | LINE |
| (HEATING PIPE) FROM ENGINE TO HEATING PIPE AT RADIATOR | ||
| 179L | A 6205003872 | LINE |
| (HEATING PIPE) FROM ENGINE TO HEATING PIPE AT RADIATOR | ||
| 179M | A 6205003272 | LINE |
| (HEATING PIPE) FROM ENGINE TO HEATING PIPE AT RADIATOR | ||
| 179M | A 6175002272 | LINE |
| (HEATING PIPE) FROM ENGINE TO HEATING PIPE AT RADIATOR | ||
| 179N | A 6205003372 | LINE |
| (HEATING PIPE) FROM ENGINE TO HEATING PIPE AT RADIATOR | ||
| 179N | A 6205004072 | LINE |
| (HEATING PIPE) FROM ENGINE TO HEATING PIPE AT RADIATOR | ||
| 179P | A 3818320714 | BRACKET |
| HEATING PIPE TO FAN SHROUD BRACKET | ||
| 179Q | A 6205062340 | BRACKET |
| BRACKET TO WATER PUMP | ||
| 179R | A 6175061040 | BRACKET |
| BEARING TUBE | ||
| 179T | A 6205062835 | HOSE |
| FROM HEATING PIPE AT ENGINE TO HEATING PIPE AT RADIATOR | ||
| 179T | A 6205062235 | HOSE |
| FROM HEATING PIPE AT ENGINE TO HEATING PIPE AT RADIATOR | ||
| 179T | A 6175060935 | HOSE |
| FROM HEATING PIPE AT ENGINE TO HEATING PIPE AT RADIATOR | ||
| 179U | A 6205062135 | HOSE |
| FROM HEATING PIPE AT ENGINE TO HEATING PIPE AT RADIATOR | ||
| 180 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 180 | N 000000000667 | CLAMP |
| HOSE TO FLANGE AND TO HEATING PIPE | ||
| 183 | A 3875000072 | LINE |
| HEATING;MOUNTED TOGETHER WITH RADIATOR AT RUBBER BUFFER | ||
| 184 | A 6175000072 | LINE |
| HEATING AND BREATHING | ||
| 184 | A 6175000372 | LINE |
| HEATING AND BREATHING | ||
| 185 | A 6205000272 | LINE |
| HEATING AND BREATHING | ||
| 185 | A 6205000272 | LINE |
| Repalced by: A 6205002672 | ||
| 185 | A 6205002672 | LINE |
| Repalced by: A 6205002872 | ||
| 185 | A 6205002872 | LINE |
| HEATING AND BREATHING | ||
| 185 | A 6205002872 | LINE |
| HEATING AND BREATHING | ||
| 185 | A 6205001572 | LINE |
| Repalced by: A 6205002872 | ||
| 185 | A 6205002872 | LINE |
| HEATING AND BREATHING | ||
| 185 | A 6205000372 | LINE |
| Repalced by: A 6205001672 | ||
| 185 | A 6205001672 | LINE |
| HEATING AND BREATHING | ||
| 185 | A 6205001672 | LINE |
| Repalced by: A 6205002972 | ||
| 185 | A 6205002972 | LINE |
| Repalced by: A 6205003072 | ||
| 185 | A 6205003072 | LINE |
| HEATING AND BREATHING | ||
| 185 | A 6205003072 | LINE |
| HEATING AND BREATHING | ||
| 185 | A 6205003072 | LINE |
| HEATING AND BREATHING | ||
| 187 | N 000933006102 | SCREW |
| HEATING PIPE TO RADIATOR | ||
| 187 | N 000933006102 | SCREW |
| HEATING PIPE TO RADIATOR | ||
| 188 | N 000137006204 | SPRING WASHER |
| HEATING PIPE TO RADIATOR | ||
| 188 | N 000137006204 | SPRING WASHER |
| HEATING PIPE TO RADIATOR | ||
| 188E | N 912004006102 | LOCK WASHER |
| HEATING PIPE TO RADIATOR | ||
| 188K | N 000125006421 | WASHER |
| HEATING PIPE TO RADIATOR | ||
| Repalced by: N 000125006449 | ||
| 188K | N 000125006449 | WASHER |
| HEATING PIPE TO RADIATOR | ||
| 189 | A 3835060035 | HOSE |
| FROM HEATING PIPE AT RADIATOR TO CAB HEATING PIPE | ||
| 189 | A 3835060035 | HOSE |
| FROM HEATING PIPE AT RADIATOR TO CAB HEATING PIPE | ||
| 190 | A 6205062035 | HOSE |
| FROM HEATING PIPE AT RADIATOR TO CAB HEATING PIPE | ||
| 192 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 192 | N 000000000667 | CLAMP |
| HOSE TO HEATING PIPE | ||
| 196 | A 3635060235 | HOSE |
| FROM HEATING PIPE AT RADIATOR TO CONNECTOR AT ENGINE | ||
| 197 | N 916017025000 | CLAMP |
| Repalced by: N 000000000668 | ||
| 197 | N 000000000670 | CLAMP |
| HEATING; TO CONNECTOR | ||
| 35 - 50 X 13 | ||
| 200 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 200 | N 000000000667 | CLAMP |
| HEATING; TO CONNECTOR | ||
| 200 | N 000000000667 | CLAMP |
| HEATING; TO CONNECTOR | ||
| 203 | A 3875011482 | HOSE |
| VENTILATION, FROM RADIATOR TO EXPANSION TANK | ||
| 206 | A 3875016225 | BREATHER PIPE |
| VENTILATION, FROM RADIATOR TO EXPANSION TANK | ||
| 207 | A 6175010225 | BREATHER PIPE |
| FROM EXPANSION TANK TO HEATING PIPE | ||
| 207 | A 6175010225 | BREATHER PIPE |
| FROM EXPANSION TANK TO HEATING PIPE | ||
| A 6175010325 | BREATHER PIPE | |
| Repalced by: A 6205010725 | ||
| 208 | A 6205010725 | BREATHER PIPE |
| FROM EXPANSION TANK TO HEATING PIPE | ||
| 208 | A 6205010725 | BREATHER PIPE |
| FROM EXPANSION TANK TO HEATING PIPE | ||
| 210 | N 900271012018 | HOSE |
| BREATHER LINE BETWEEN RADIATOR AND EXPANSION TANK | ||
| 12X21 MM | ||
| 212 | N 900271008043 | HOSE |
| FROM EXPANSION TANK TO HEATING PIPE | ||
| 8X17 MM | ||
| 212 | N 900271008043 | HOSE |
| VENTILATION, FROM RADIATOR TO EXPANSION TANK | ||
| 8X17 MM | ||
| 213 | A 6205012882 | HOSE |
| VENTILATION, FROM RADIATOR TO EXPANSION TANK | ||
| 213 | A 6205012882 | HOSE |
| VENTILATION, FROM RADIATOR TO EXPANSION TANK | ||
| 213 | A 6205013282 | HOSE |
| Repalced by: A 6205012882 | ||
| 213 | A 6205012882 | HOSE |
| VENTILATION, FROM RADIATOR TO EXPANSION TANK | ||
| 214 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 214 | N 000000000667 | CLAMP |
| VENTILATION, FROM RADIATOR TO EXPANSION TANK | ||
| 214 | N 000000000667 | CLAMP |
| VENTILATION, FROM RADIATOR TO EXPANSION TANK | ||
| 214 | N 000000000667 | CLAMP |
| VENTILATION, FROM RADIATOR TO EXPANSION TANK | ||
| 214 | N 000000000667 | CLAMP |
| HOSE TO EXPANSION TANK AND TO DE-AERATION PIPE | ||
| 216 | N 916017011000 | CLAMP |
| Repalced by: N 916017011001 | ||
| 216 | N 000000000665 | CLAMP |
| HOSE TO EXPANSION TANK AND TO HEATING PIPE | ||
| 216 | N 000000000665 | CLAMP |
| HOSE TO EXPANSION TANK AND TO HEATING PIPE | ||
| 216 | N 000000000665 | CLAMP |
| HOSE TO EXPANSION TANK AND TO DE-AERATION PIPE | ||
| 216 | N 000000000665 | CLAMP |
| HOSE TO EXPANSION TANK AND TO HEATING PIPE | ||
| 216 | N 000000000665 | CLAMP |
| HOSE TO EXPANSION TANK AND TO HEATING PIPE | ||
| 218 | A 3875016825 | BREATHER PIPE |
| FROM ENGINE TO EXPANSION TANK | ||
| 220 | N 900271015037 | HOSE |
| BETWEEN THE DE-AERATION LINES | ||
| 15X24 MM | ||
| 221 | A 6165010282 | HOSE |
| Repalced by: A 6165011082 | ||
| 222 | A 6165011082 | HOSE |
| DE-AERATION; FROM ENGINE TO EXPANSION TANK | ||
| 222 | A 6165011282 | HOSE |
| DE-AERATION; FROM ENGINE TO EXPANSION TANK | ||
| 222 | A 3875011682 | HOSE |
| DE-AERATION; FROM ENGINE TO EXPANSION TANK | ||
| 222 | A 3875011682 | HOSE |
| DE-AERATION; FROM ENGINE TO EXPANSION TANK | ||
| 223 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 223 | N 000000000667 | CLAMP |
| HOSE TO BREATHER PIPE AND TO ESPANSION TANK | ||
| 227 | A 3875015920 | BRACKET |
| Repalced by: A 6454310740 | ||
| 227 | A 6454310740 | BRACKET |
| RADIATOR AND ENGINE BREATHING,AT ENGINE | ||
| 236 | N 000933010094 | SCREW |
| RADIATOR AND ENGINE BREATHING,AT ENGINE | ||
| 239 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 239 | N 000125010532 | WASHER |
| RADIATOR AND ENGINE BREATHING,AT ENGINE | ||
| 241 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 241 | N 910113010000 | NUT |
| RADIATOR AND ENGINE BREATHING,AT ENGINE | ||
| 243 | A 3609951401 | CLAMP |
| Repalced by: N 916016011202 | ||
| 243 | N 916016011202 | CLAMP |
| DE-AERATION LINE TO BRACKET | ||
| 15 MM | ||
| 243 | A 3609952001 | CLAMP |
| Repalced by: A 6739950001 | ||
| 243 | A 6739950001 | CLAMP |
| DE-AERATION LINE TO BRACKET | ||
| 15 MM | ||
| 243 | A 3609950401 | CLAMP |
| DE-AERATION LINE TO BRACKET | ||
| 12 MM | ||
| 248 | A 3609951201 | CLAMP |
| DE-AERATION LINE TO BRACKET | ||
| 10 MM | ||
| 251 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 251 | N 304017008016 | SCREW |
| DE-AERATION LINE TO BRACKET | ||
| 254 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 254 | N 913004008001 | NUT |
| DE-AERATION LINE TO BRACKET | ||
| 256 | N 000933006183 | SCREW |
| Repalced by: N 304017006016 | ||
| 256 | N 304017006016 | SCREW |
| DE-AERATION LINE TO BRACKET | ||
| 258 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 258 | N 913004006001 | NUT |
| DE-AERATION LINE TO BRACKET | ||
| 260 | A 6175010420 | BRACKET |
| DE-AERATION LINE TO CAB | ||
| 260 | A 6175010420 | BRACKET |
| DE-AERATION LINE TO CAB | ||
| 262 | N 007981005306 | SHEET METAL SCREW |
| BRACKET TO CAB | ||
| 262 | N 007981005306 | SHEET METAL SCREW |
| BRACKET TO CAB | ||
| 264 | A 3609950201 | CLAMP |
| Repalced by: A 3604300143 | ||
| 264 | A 3604300143 | CLAMP |
| Repalced by: N 916016008200 | ||
| 264 | N 916016008200 | CLAMP |
| Repalced by: N 000000000319 | ||
| 264 | N 000000000319 | CLAMP |
| DE-AERATION LINE TO BRACKET | ||
| 264 | N 000000000319 | CLAMP |
| DE-AERATION LINE TO BRACKET | ||
| 266 | N 007985006193 | SCREW |
| Repalced by: N 000000001146 | ||
| 266 | N 000000001146 | SCREW |
| DE-AERATION LINE TO BRACKET | ||
| M 6X16 | ||
| 266 | N 000000001146 | SCREW |
| DE-AERATION LINE TO BRACKET | ||
| M 6X16 | ||
| 268 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 268 | N 913004006001 | NUT |
| DE-AERATION LINE TO BRACKET | ||
| 268 | N 913004006001 | NUT |
| DE-AERATION LINE TO BRACKET | ||
| 270 | A 0009881878 | CLIP |
| DE-AERATION LINE TO CAB | ||
| 270 | A 0009881878 | CLIP |
| DE-AERATION LINE TO CAB | ||

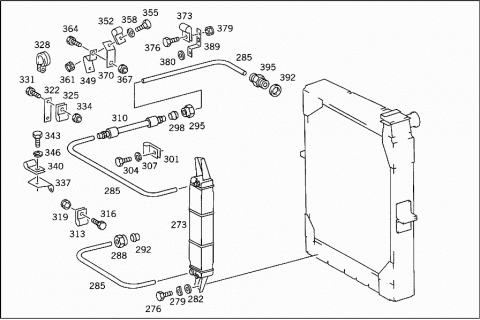

| 273 | A 0005014401 | RADIATOR |
| OIL COOLER | ||
| 276 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 276 | N 304017008016 | SCREW |
| AIR COOLED OIL COOLER TO RADIATOR | ||
| 279 | N 900055008002 | SPRING WASHER |
| AIR COOLED OIL COOLER TO RADIATOR | ||
| 282 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 282 | N 000125008443 | WASHER |
| AIR COOLED OIL COOLER TO RADIATOR | ||
| 285 | A 0002610283 | OIL PIPE |
| FEED | ||
| 285 | A 0002610283 | OIL PIPE |
| RETURN | ||
| 285 | A 0002610283 | OIL PIPE |
| (OIL LINE),FROM HOSE TO TRANSMISSION | ||
| 288 | N 915017015200 | UNION NUT |
| FEED AND RETURN | ||
| 292 | N 915004013200 | SEAL CONE |
| FEED AND RETURN | ||
| 295 | N 915017010100 | UNION NUT |
| FEED AND RETURN | ||
| 295 | N 915017010100 | UNION NUT |
| OIL LINE BETWEEN TRANSMISSION & HOSE, FEED & RETURN | ||
| 298 | N 003861010009 | GLAND |
| FEED AND RETURN | ||
| N 003861010009 | GLAND | |
| OIL LINE BETWEEN TRANSMISSION & HOSE, FEED & RETURN | ||
| 301 | A 3609950301 | CLAMP |
| LINE TO OIL RADIATOR | ||
| 304 | N 000933006183 | SCREW |
| Repalced by: N 304017006016 | ||
| 304 | N 304017006016 | SCREW |
| LINE TO OIL RADIATOR | ||
| 307 | N 912004006102 | LOCK WASHER |
| LINE TO OIL RADIATOR | ||
| 310 | A 3859970982 | HOSE |
| OIL LINE TO TRANSMISSION | ||
| 310 | A 3859971382 | HOSE |
| OIL LINE TO TRANSMISSION | ||
| 313 | A 3609950301 | CLAMP |
| FEED AND RETURN | ||
| 313 | A 3609950301 | CLAMP |
| FEED AND RETURN | ||
| 316 | N 000933006183 | SCREW |
| Repalced by: N 304017006016 | ||
| 316 | N 304017006016 | SCREW |
| FEED AND RETURN | ||
| 319 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 319 | N 913004006001 | NUT |
| FEED AND RETURN | ||
| 322 | A 3852710840 | BRACKET |
| OIL LINE TO HYDRAULIC STEERING LINE BRACKET | ||
| 325 | A 3609950301 | CLAMP |
| OIL LINE TO HYDRAULIC STEERING LINE BRACKET | ||
| 328 | N 916016010201 | CLAMP |
| Repalced by: N 916016010211 | ||
| 328 | N 916016010211 | CLAMP |
| Repalced by: N 000000001045 | ||
| 328 | N 000000001045 | CLAMP |
| OIL LINE TO HYDRAULIC STEERING LINE BRACKET | ||
| 331 | N 000933006183 | SCREW |
| Repalced by: N 304017006016 | ||
| 331 | N 304017006016 | SCREW |
| OIL LINE TO HYDRAULIC STEERING LINE BRACKET | ||
| 334 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 334 | N 913004006001 | NUT |
| OIL LINE TO HYDRAULIC STEERING LINE BRACKET | ||
| 337 | A 3852700341 | BRACKET |
| OIL LINES TO FRONT TRANSVERSE INTAKE PIPE | ||
| 340 | A 3609950301 | CLAMP |
| OIL LINES TO FRONT TRANSVERSE INTAKE PIPE | ||
| 343 | N 000933006103 | SCREW |
| Repalced by: N 304017006018 | ||
| 343 | N 304017006018 | SCREW |
| OIL LINES TO FRONT TRANSVERSE INTAKE PIPE | ||
| 346 | N 912004006102 | LOCK WASHER |
| OIL LINES TO FRONT TRANSVERSE INTAKE PIPE | ||
| 349 | A 3852710940 | BRACKET |
| OIL LINE TO BRACKET | ||
| 352 | A 3609950301 | CLAMP |
| OIL LINE TO BRACKET | ||
| 355 | N 000933010105 | SCREW |
| OIL LINE TO BRACKET | ||
| 358 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 358 | N 000125010532 | WASHER |
| OIL LINE TO BRACKET | ||
| 361 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 361 | N 910113010000 | NUT |
| OIL LINE TO BRACKET | ||
| 364 | N 000933006183 | SCREW |
| Repalced by: N 304017006016 | ||
| 364 | N 304017006016 | SCREW |
| OIL LINE TO BRACKET | ||
| 367 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 367 | N 913004006001 | NUT |
| OIL LINE TO BRACKET | ||
| 370 | A 3832610140 | BRACKET |
| OIL LINE TO BRACKET | ||
| 373 | A 3609950301 | CLAMP |
| BRACKET TO SIDE MEMBER | ||
| 373 | A 3609950301 | CLAMP |
| OIL LINE BETWEEN TRANSMISSION & HOSE, FEED & RETURN | ||
| 373 | A 3609950301 | CLAMP |
| LINE TO TRANSMISSION | ||
| 376 | N 000933006183 | SCREW |
| Repalced by: N 304017006016 | ||
| 376 | N 304017006016 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 376 | N 304017006016 | SCREW |
| OIL LINE BETWEEN TRANSMISSION & HOSE, FEED & RETURN | ||
| 376 | N 304017006016 | SCREW |
| LINE TO TRANSMISSION | ||
| 379 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 379 | N 913004006001 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 379 | N 913004006001 | NUT |
| OIL LINE BETWEEN TRANSMISSION & HOSE, FEED & RETURN | ||
| 379 | N 913004006001 | NUT |
| LINE TO TRANSMISSION | ||
| A 3634291840 | BRACKET | |
| OIL LINE BETWEEN TRANSMISSION & HOSE, FEED & RETURN | ||
| 380 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 380 | N 000125010532 | WASHER |
| OIL LINE BETWEEN TRANSMISSION & HOSE, FEED & RETURN | ||
| 389 | A 3164290040 | BRACKET |
| LINE TO TRANSMISSION | ||
| 392 | N 007603014405 | SEAL RING |
| LINE TO TRANSMISSION | ||
| 395 | N 003901010001 | SCREW-IN FITTING |
| LINE TO TRANSMISSION | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
