Transporto priemonė: 1922 AK; VIN numerio dalis: 621307

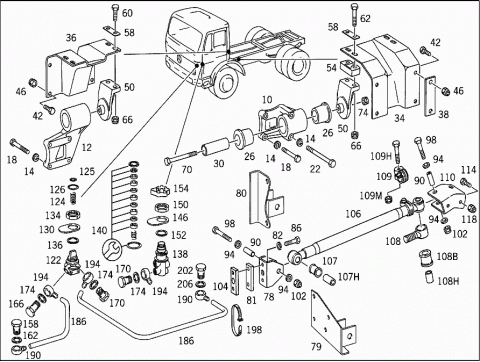

Grupė: 28 TRANSFER CASE
| # | Kodas | Pavadinimas |
|---|---|---|
| T YYYYYYYYYYYY | PART NAME MISSING | |
| FOR TRANSFER CASE,SEE UNIT STANDARD VERSION,MODEL: | ||
| 750.7 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| FOR TRANSFER CASE,SEE UNIT STANDARD VERSION,MODEL: | ||
| 750.4 | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| FOR TRANSFER CASE,SEE UNIT STANDARD VERSION,MODEL: | ||
| 750.8 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 010 | A 6212850001 | CONSOLE |
| LEFT | ||
| 012 | A 6212850101 | CONSOLE |
| RIGHT | ||
| 014 | N 912004014100 | LOCK WASHER |
| BEARING BRACKET TO TRANSMISSION | ||
| 018 | N 000960014250 | SCREW |
| Repalced by: N 000961014158 | ||
| 018 | N 000961014158 | SCREW |
| Repalced by: N 308676014014 | ||
| 018 | N 308676014014 | SCREW |
| BEARING BRACKET TO TRANSMISSION | ||
| M 14X70 | ||
| 022 | N 000960014252 | SCREW |
| BEARING BRACKET TO TRANSMISSION | ||
| M 14X140 | ||
| 026 | A 6212850003 | BEARING |
| RUBBER MOUNT | ||
| 030 | A 6212850053 | SPACER TUBE |
| RUBBER MOUNT | ||
| 034 | A 6212850140 | BRACKET |
| LEFT | ||
| 034 | A 6212850240 | BRACKET |
| LEFT | ||
| 036 | A 6212850040 | BRACKET |
| RIGHT | ||
| 036 | A 6212850340 | BRACKET |
| RIGHT | ||
| 038 | A 6212850184 | SHIM |
| BRACKET TO SIDE MEMBER | ||
| 173X50X7 MM | ||
| 042 | N 000961016036 | SCREW |
| Repalced by: N 308676016013 | ||
| 042 | N 308676016013 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 046 | N 913004016005 | NUT |
| Repalced by: N 910113016001 | ||
| 046 | N 910113016001 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 050 | A 6212850103 | BEARING |
| Repalced by: A 6212850303 | ||
| 050 | A 6212850303 | BEARING |
| TRANSFER CASE TO SUPPORT,LEFT | ||
| 050 | A 6212850103 | BEARING |
| Repalced by: A 6212850403 | ||
| 050 | A 6212850403 | BEARING |
| TRANSFER CASE TO SUPPORT,RIGHT | ||
| 050 | A 6212850403 | BEARING |
| TRANSFER CASE TO SUPPORT | ||
| 054 | A 6212850284 | SHIM |
| BEARING BRACKET TO BRACKET | ||
| 058 | A 6212850084 | SHIM |
| BEARING BRACKET TO BRACKET | ||
| 060 | N 000961016096 | SCREW |
| Repalced by: N 308676016007 | ||
| 060 | N 308676016007 | SCREW |
| BEARING BRACKET TO BRACKET | ||
| M 16X50 | ||
| 060 | N 308676016007 | SCREW |
| BEARING BRACKET TO BRACKET | ||
| M 16X50 | ||
| 060 | N 308676016007 | SCREW |
| BEARING BRACKET TO BRACKET | ||
| M 16X50 | ||
| 062 | N 000960016057 | SCREW |
| BEARING BRACKET TO BRACKET | ||
| M 16X80 | ||
| 066 | N 913004016005 | NUT |
| Repalced by: N 910113016001 | ||
| 066 | N 910113016001 | NUT |
| BEARING BRACKET TO BRACKET | ||
| 070 | N 910105016027 | SCREW |
| RUBBER MOUNTING TO BEARING BRACKET | ||
| 074 | N 913004016005 | NUT |
| Repalced by: N 910113016001 | ||
| 074 | N 910113016001 | NUT |
| RUBBER MOUNTING TO BEARING BRACKET | ||
| 078 | A 6212850840 | BRACKET |
| ROD TO TRANSFER CASE | ||
| 078 | A 6212850840 | BRACKET |
| ROD TO TRANSFER CASE | ||
| 079 | A 6212800385 | SUPPORT |
| ROD TO TRANSFER CASE,LEFT | ||
| 080 | A 6212800285 | SUPPORT |
| ROD TO TRANSFER CASE,RIGHT | ||
| 081 | A 6212850384 | SHIM |
| BRACKET TO TRANSFER CASE | ||
| 082 | N 912004014100 | LOCK WASHER |
| BRACKET TO TRANSFER CASE | ||
| 086 | N 000960014247 | SCREW |
| Repalced by: N 308676014013 | ||
| 086 | N 308676014013 | SCREW |
| BRACKET TO TRANSFER CASE | ||
| 086 | N 000960014219 | SCREW |
| BRACKET TO TRANSFER CASE | ||
| 090 | A 6212850153 | SPACER TUBE |
| PULL ROD TO TRANSFER CASE AND TO SIDE MEMBER | ||
| 094 | N 007349013003 | WASHER |
| Repalced by: N 007349013005 | ||
| 094 | N 007349013005 | WASHER |
| PULL ROD TO TRANSFER CASE AND TO SIDE MEMBER | ||
| 098 | N 000960012264 | SCREW |
| Repalced by: N 308765012003 | ||
| 098 | N 308765012003 | SCREW |
| PULL ROD TO TRANSFER CASE AND TO SIDE MEMBER | ||
| M 12X90 | ||
| 102 | N 910113012002 | NUT |
| PULL ROD TO TRANSFER CASE AND TO SIDE MEMBER | ||
| 104 | A 6212850484 | SHIM |
| 106 | A 6212850055 | ROD |
| (PULL ROD) | ||
| 106 | A 6212850055 | ROD |
| (PULL ROD) | ||
| 106 | A 6212850155 | ROD |
| (PULL ROD) | ||
| 106 | A 6212850355 | ROD |
| (PULL ROD) | ||
| 106 | A 6212850955 | ROD |
| (PULL ROD) | ||
| 107 | A 0002850082 | RUBBER MOUNTING |
| Repalced by: A 0002420250 | ||
| 107 | A 0002420250 | BUSHING |
| 107H | A 0002420350 | BUSHING |
| 108 | A 0002850035 | JOINT |
| TO 621 285 00 55,621 285 01 55, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 621 285 03 55 | ||
| 108B | A 0002850082 | RUBBER MOUNTING |
| Repalced by: A 0002420250 | ||
| 108B | A 0002420250 | BUSHING |
| TO 621 285 00 55,621 285 01 55, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 621 285 03 55 | ||
| 108H | A 0002420350 | BUSHING |
| TO 621 285 00 55,621 285 01 55, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 621 285 03 55 | ||
| 109 | A 0009950544 | CLAMP |
| Repalced by: A 0009957044 | ||
| 109 | A 0009957044 | CLAMP |
| TO 621 285 00 55,621 285 01 55, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 621 285 03 55 | ||
| 109H | N 000960010023 | SCREW |
| TO 621 285 00 55,621 285 01 55, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 621 285 03 55 | ||
| 109M | N 913004010010 | NUT |
| Repalced by: N 910113010002 | ||
| 109M | N 910113010002 | HEXAGON NUT |
| TO 621 285 00 55,621 285 01 55, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 621 285 03 55 | ||
| 110 | A 6212850940 | BRACKET |
| ROD TO SIDE MEMBER | ||
| 110 | A 6212851440 | BRACKET |
| ROD TO SIDE MEMBER | ||
| 114 | N 000961014008 | SCREW |
| Repalced by: N 308676014003 | ||
| 114 | N 308676014003 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M 14X30 | ||
| 114 | N 000961014119 | SCREW |
| Repalced by: A 9429901304 | ||
| 114 | A 9429901304 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M 14X38 | ||
| 114 | A 9429901304 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M 14X38 | ||
| 114 | A 9429901304 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M 14X38 | ||
| 114 | N 000961014116 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M 14X50 | ||
| 114 | N 000961014116 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M 14X50 | ||
| 114 | N 000961014116 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M 14X50 | ||
| 118 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 118 | N 910113014000 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 122 | A 0019975036 | VALVE |
| LONGITUDINAL DIFFERENTIAL LOCK CONTROL | ||
| BOSCH | ||
| 122 | A 0019976136 | VALVE |
| LONGITUDINAL DIFFERENTIAL LOCK CONTROL | ||
| WABCO | ||
| 122 | A 0039975936 | VALVE |
| LONGITUDINAL DIFFERENTIAL LOCK CONTROL | ||
| KNORR | ||
| 122 | A 0039976036 | VALVE |
| LONGITUDINAL DIFFERENTIAL LOCK CONTROL | ||
| VOSS | ||
| 124 | A 0049937501 | SPRING |
| WABCO | ||
| 125 | A 0069972648 | SEAL RING |
| WABCO | ||
| 126 | A 0039979640 | SEAL RING |
| WABCO | ||
| 130 | A 3855844324 | UNIT IDENTIFICATION PLATE |
| LONGITUDINAL DIFFERENTIAL LOCK | ||
| 130 | A 3855841224 | UNIT IDENTIFICATION PLATE |
| Repalced by: A 3855844324 | ||
| 130 | A 3855844324 | UNIT IDENTIFICATION PLATE |
| LONGITUDINAL DIFFERENTIAL LOCK | ||
| 134 | A 3839900051 | NUT |
| VALVE TO FLOOR | ||
| 136 | A 6239900040 | WASHER |
| VALVE TO FLOOR | ||
| 138 | A 0019977936 | VALVE |
| PNEUMATIC CONTROL USED FOR TRANSFER CASE | ||
| BOSCH | ||
| 138 | A 0019977936 | VALVE |
| PNEUMATIC CONTROL USED FOR TRANSFER CASE | ||
| BOSCH | ||
| 138 | A 0019979136 | VALVE |
| PNEUMATIC CONTROL USED FOR TRANSFER CASE | ||
| WABCO | ||
| 138 | A 0019979136 | VALVE |
| PNEUMATIC CONTROL USED FOR TRANSFER CASE | ||
| WABCO | ||
| 138 | A 0019975936 | VALVE |
| PNEUMATIC CONTROL USED FOR TRANSFER CASE | ||
| BOSCH | ||
| 138 | A 0019976936 | VALVE |
| PNEUMATIC CONTROL USED FOR TRANSFER CASE | ||
| WABCO | ||
| 140 | A 0025860943 | REPAIR KIT |
| TO 001 997 91 36 | ||
| 140 | A 0025860943 | REPAIR KIT |
| TO 001 997 91 36 | ||
| 146 | A 3855844124 | UNIT IDENTIFICATION PLATE |
| TRANSFER CASE | ||
| 146 | A 3855844124 | UNIT IDENTIFICATION PLATE |
| TRANSFER CASE | ||
| 150 | A 3839900051 | NUT |
| VALVE TO FLOOR | ||
| 150 | A 3839900051 | NUT |
| VALVE TO FLOOR | ||
| 152 | A 6239900040 | WASHER |
| VALVE TO FLOOR | ||
| 152 | A 6239900040 | WASHER |
| VALVE TO FLOOR | ||
| 154 | A 0009970577 | HANDLE |
| OPERATING VALVE | ||
| 154 | A 0009970577 | HANDLE |
| OPERATING VALVE | ||
| 158 | N 915036008202 | HOLLOW SCREW |
| DISTRIBUTOR | ||
| 162 | N 007603012405 | SEAL RING |
| DISTRIBUTOR | ||
| 166 | N 915047006202 | HOLLOW SCREW |
| LONGITUDINAL DIFFERENTIAL LOCK CONTROL | ||
| 170 | N 915036006202 | HOLLOW SCREW |
| LONGITUDINAL DIFFERENTIAL LOCK CONTROL | ||
| 170 | N 915036006202 | HOLLOW SCREW |
| PNEUMATIC CONTROL USED FOR TRANSFER CASE | ||
| 174 | N 007603010404 | SEAL RING |
| LONGITUDINAL DIFFERENTIAL LOCK CONTROL | ||
| 174 | N 007603010404 | SEAL RING |
| PNEUMATIC CONTROL USED FOR TRANSFER CASE | ||
| 186 | A 0089979082 | HOSE |
| GEAR CASE BREATHING | ||
| 6X8 MM | ||
| 186 | A 0089976082 | HOSE |
| Repalced by: A 0009872627 | ||
| 186 | A 0009872627 | PLASTIC PIPE |
| FROM DISTRIBUTOR TO VALVE | ||
| 4X6 MM | ||
| 186 | A 0009872627 | PLASTIC PIPE |
| FROM VALVE TO TRANSFER CASE SHIFTING CYLINDER | ||
| 4X6 MM | ||
| A 6509970272 | FITTING | |
| BREATHER LINE TO TRANSFER CASE | ||
| 190 | A 0009903888 | BANJO UNION |
| Repalced by: N 915052004006 | ||
| 190 | N 915052004015 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 4/12 MM | ||
| 194 | N 915052004016 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 4/10 MM | ||
| 198 | A 0019978390 | LOOM TIE |
| LINE MOUNTING | ||
| 202 | N 915036008202 | HOLLOW SCREW |
| TRANSFER CASE | ||
| 206 | N 007603012405 | SEAL RING |
| TRANSFER CASE | ||
