Transporto priemonė: 1924 MBSA-RSA; VIN numerio dalis: 397103

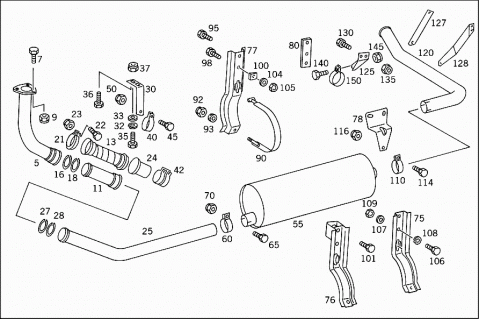

Grupė: 49 EXHAUST SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 3974900119 | EXHAUST PIPE |
| FRONT | ||
| 005 | A 3974902619 | EXHAUST PIPE |
| FRONT | ||
| 005 | A 3974900019 | EXHAUST PIPE |
| FRONT | ||
| 005 | A 3974902719 | EXHAUST PIPE |
| FRONT | ||
| 007 | N 000931012114 | SCREW |
| Repalced by: A 0029907104 | ||
| 007 | A 0029907104 | SCREW |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 007 | N 000931012254 | SCREW |
| Repalced by: A 0029907604 | ||
| 007 | A 0029907604 | SCREW |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 009 | N 913004012010 | NUT |
| Repalced by: N 910113012007 | ||
| 009 | N 910113012007 | NUT |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 011 | A 6204900625 | CONNECTOR |
| FRONT EXHAUST PIPE TO CENTRAL EXHAUST PIPE | ||
| 011 | A 3464900025 | CONNECTOR |
| FRONT EXHAUST PIPE TO CENTRAL EXHAUST PIPE | ||
| 013 | A 6204900465 | FLEXIBLE METAL TUBE |
| FRONT EXHAUST PIPE TO CENTRAL EXHAUST PIPE | ||
| 013 | A 6214900065 | FLEXIBLE METAL TUBE |
| FRONT EXHAUST PIPE TO CENTRAL EXHAUST PIPE | ||
| 016 | A 0001424257 | SEAL RING |
| 018 | A 0001424357 | SEAL RING |
| 021 | A 6209970590 | CLAMP |
| EXHAUST PIPE TO FLEXIBLE METAL TUBE | ||
| 021 | A 6219970090 | CLAMP |
| EXHAUST PIPE TO FLEXIBLE METAL TUBE | ||
| 022 | N 000933008161 | SCREW |
| EXHAUST PIPE TO FLEXIBLE METAL TUBE | ||
| M 8X50 | ||
| 023 | N 913004008004 | NUT |
| EXHAUST PIPE TO FLEXIBLE METAL TUBE | ||
| 024 | A 6204920208 | COLLAR |
| EXHAUST PIPE TO FLEXIBLE METAL TUBE | ||
| 024 | A 6214920008 | COLLAR |
| EXHAUST PIPE TO FLEXIBLE METAL TUBE | ||
| 025 | A 3974900419 | EXHAUST PIPE |
| Repalced by: A 3974901119 | ||
| 025 | A 3974901119 | EXHAUST PIPE |
| CENTRAL | ||
| 025 | A 3974902419 | EXHAUST PIPE |
| CENTRAL | ||
| 025 | A 3974900519 | EXHAUST PIPE |
| Repalced by: A 3974901019 | ||
| 025 | A 3974901019 | EXHAUST PIPE |
| CENTRAL | ||
| 025 | A 3974901319 | EXHAUST PIPE |
| CENTRAL | ||
| 025 | A 3974902519 | EXHAUST PIPE |
| CENTRAL | ||
| 027 | A 0001424257 | SEAL RING |
| 028 | A 0001424357 | SEAL RING |
| 030 | A 3974921541 | BRACKET |
| CENTRAL EXHAUST PIPE | ||
| 030 | A 3974924241 | BRACKET |
| CENTRAL EXHAUST PIPE | ||
| 030 | A 3974920841 | BRACKET |
| CENTRAL EXHAUST PIPE | ||
| 030 | A 3974924341 | BRACKET |
| CENTRAL EXHAUST PIPE | ||
| 032 | N 912004014100 | LOCK WASHER |
| BRACKET TO ENGINE MOUNTING | ||
| 033 | N 000125015013 | WASHER |
| BRACKET TO ENGINE MOUNTING | ||
| 035 | N 000961014097 | SCREW |
| Repalced by: A 0029909404 | ||
| 035 | A 0029909404 | SCREW |
| BRACKET TO ENGINE MOUNTING | ||
| 036 | N 000933010129 | SCREW |
| BRACKET TO ENGINE MOUNTING | ||
| 037 | N 913004010008 | NUT |
| BRACKET TO ENGINE MOUNTING | ||
| 040 | N 071555090501 | CLAMP |
| EXHAUST PIPE TO BRACKET | ||
| 040 | N 071555100500 | CLAMP |
| EXHAUST PIPE TO BRACKET | ||
| 042 | A 6204920940 | CLAMP |
| EXHAUST PIPE TO BRACKET | ||
| 042 | A 6254920040 | CLAMP |
| EXHAUST PIPE TO BRACKET | ||
| 045 | N 000933010129 | SCREW |
| EXHAUST PIPE TO BRACKET | ||
| 045 | A 0019908504 | SCREW |
| EXHAUST PIPE TO BRACKET | ||
| 050 | N 913004010008 | NUT |
| EXHAUST PIPE TO BRACKET | ||
| 050 | A 0009906550 | NUT |
| EXHAUST PIPE TO BRACKET | ||
| 055 | A 3974900201 | EXHAUST MUFFLER |
| 055 | A 3974901201 | EXHAUST MUFFLER |
| 055 | A 3974900101 | EXHAUST MUFFLER |
| 055 | A 3974900801 | EXHAUST MUFFLER |
| 055 | A 3974901301 | EXHAUST MUFFLER |
| 060 | N 071555094501 | CLAMP |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 060 | N 071555104501 | CLAMP |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 065 | N 000933010129 | SCREW |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 070 | N 913004010008 | NUT |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 075 | A 3974910241 | BRACKET |
| Repalced by: A 6214910641 | ||
| 075 | A 6214910641 | BRACKET |
| FRONT EXHAUST MUFFLER | ||
| 075 | A 6214910641 | BRACKET |
| FRONT EXHAUST MUFFLER | ||
| 076 | A 6244900140 | BRACKET |
| FRONT EXHAUST MUFFLER | ||
| 077 | A 6214910741 | BRACKET |
| FRONT EXHAUST MUFFLER | ||
| 078 | A 3974920016 | SUPPORT |
| Repalced by: A 3974920216 | ||
| 078 | A 3974920216 | SUPPORT |
| REAR EXHAUST MUFFLER | ||
| 078 | A 3974920216 | SUPPORT |
| REAR EXHAUST MUFFLER | ||
| 080 | A 3974920718 | BASE PLATE |
| SUPPORT TO FRAME | ||
| 080 | A 3974920718 | BASE PLATE |
| SUPPORT TO FRAME | ||
| N 000961014028 | SCREW | |
| Repalced by: A 0029909604 | ||
| A 0029909604 | SCREW | |
| SUPPORT TO FRAME | ||
| N 000125015013 | WASHER | |
| SUPPORT TO FRAME | ||
| N 913004014002 | NUT | |
| SUPPORT TO FRAME | ||
| 090 | A 3974900142 | STRAP |
| Repalced by: A 6214900042 | ||
| 090 | A 6214900042 | STRAP |
| Repalced by: A 6554900942 | ||
| 090 | A 6554900942 | STRAP |
| EXHAUST MUFFLER | ||
| 090 | A 6554900942 | STRAP |
| EXHAUST MUFFLER | ||
| 090 | A 6554900942 | STRAP |
| EXHAUST MUFFLER | ||
| 092 | N 913004010008 | NUT |
| STRAP TO BRACKET | ||
| 093 | N 006319010303 | SPHERICAL WASHER |
| STRAP TO BRACKET | ||
| 095 | N 000961012122 | SCREW |
| Repalced by: A 0029902904 | ||
| 095 | N 000961012107 | SCREW |
| BRACKET TO FRAME | ||
| M 12X50 | ||
| 095 | N 000961012097 | SCREW |
| Repalced by: A 0029902904 | ||
| 095 | A 0029902904 | SCREW |
| BRACKET TO FRAME | ||
| 098 | N 000961012107 | SCREW |
| BRACKET TO FRAME | ||
| M 12X35 | ||
| 098 | N 000961012151 | SCREW |
| Repalced by: A 0029902804 | ||
| 098 | A 0029902804 | SCREW |
| BRACKET TO FRAME | ||
| 100 | A 3874310884 | SHIM |
| BRACKET TO FRAME | ||
| 101 | N 000961014064 | SCREW |
| BRACKET TO FRAME | ||
| M 14X50 | ||
| 101 | N 000961014064 | SCREW |
| BRACKET TO FRAME | ||
| M 14X50 | ||
| 101 | N 000961014050 | SCREW |
| Repalced by: A 0029909404 | ||
| 101 | A 0029909404 | SCREW |
| BRACKET TO FRAME | ||
| 101 | N 000961014028 | SCREW |
| Repalced by: A 0029909604 | ||
| 101 | A 0029909604 | SCREW |
| BRACKET TO FRAME | ||
| A 6204910018 | PLATE | |
| 104 | N 000125013008 | WASHER |
| BRACKET TO FRAME | ||
| 105 | N 913004012008 | NUT |
| BRACKET TO FRAME | ||
| 106 | N 000961014028 | SCREW |
| Repalced by: A 0029909604 | ||
| 106 | A 0029909604 | SCREW |
| BRACKET TO FRAME | ||
| M 14X40 | ||
| 106 | N 000961014064 | SCREW |
| BRACKET TO FRAME | ||
| M 14X50 | ||
| 106 | N 000961014050 | SCREW |
| BRACKET TO FRAME | ||
| M 14X35 | ||
| 106 | N 000961014050 | SCREW |
| BRACKET TO FRAME | ||
| M 14X35 | ||
| 106 | N 000961014100 | SCREW |
| BRACKET TO FRAME | ||
| M 14X30 | ||
| 107 | N 000125015013 | WASHER |
| BRACKET TO FRAME | ||
| 107 | N 000125015013 | WASHER |
| BRACKET TO FRAME | ||
| 108 | N 912004014100 | LOCK WASHER |
| BRACKET TO FRAME | ||
| 109 | N 913004014002 | NUT |
| Repalced by: A 0009906950 | ||
| 109 | A 0009906950 | NUT |
| BRACKET TO FRAME | ||
| 110 | N 071555104501 | CLAMP |
| EXHAUST MUFFLER TO SUPPORT AND TO PIPE | ||
| 114 | N 000933010129 | SCREW |
| EXHAUST MUFFLER TO SUPPORT AND TO PIPE | ||
| 116 | N 913004010008 | NUT |
| EXHAUST MUFFLER TO SUPPORT AND TO PIPE | ||
| 120 | A 3974920204 | REAR EXHAUST PIPE |
| Repalced by: A 3974921204 | ||
| 120 | A 3974921204 | REAR EXHAUST PIPE |
| 120 | A 3974921204 | REAR EXHAUST PIPE |
| 120 | A 3974921504 | REAR EXHAUST PIPE |
| 120 | A 3974921904 | REAR EXHAUST PIPE |
| 125 | A 3974921441 | BRACKET |
| Repalced by: A 3974922841 | ||
| 125 | A 3974922841 | BRACKET |
| REAR EXHAUST PIPE | ||
| 125 | A 3974922841 | BRACKET |
| REAR EXHAUST PIPE | ||
| 127 | A 3974923041 | BRACKET |
| Repalced by: A 6244920741 | ||
| 127 | A 6244920741 | BRACKET |
| 128 | A 6194921441 | BRACKET |
| 130 | N 000933010105 | SCREW |
| BRACKET TO HYDRAULIC PUMP BRACKET | ||
| M 10X25 | ||
| 130 | N 000933010145 | SCREW |
| BRACKET TO FRAME | ||
| 130 | N 000933010145 | SCREW |
| BRACKET TO FRAME | ||
| 130 | N 000933010094 | SCREW |
| Repalced by: A 0019908704 | ||
| 130 | A 0019908704 | SCREW |
| BRACKET TO FRAME | ||
| 130 | A 0019908704 | SCREW |
| BRACKET TO FRAME | ||
| 135 | N 913004010008 | NUT |
| Repalced by: A 0009906550 | ||
| 135 | A 0009906550 | NUT |
| BRACKET TO FRAME | ||
| 135 | A 0009906550 | NUT |
| BRACKET TO FRAME | ||
| 135 | A 0009906550 | NUT |
| BRACKET TO HYDRAULIC PUMP BRACKET | ||
| 140 | N 000933010129 | SCREW |
| Repalced by: A 0019908504 | ||
| 140 | A 0019908504 | SCREW |
| BRACKET TO EXHAUST PIPE | ||
| 145 | N 913004010008 | NUT |
| Repalced by: A 0009906550 | ||
| 145 | A 0009906550 | NUT |
| BRACKET TO EXHAUST PIPE | ||
| 150 | N 071555090501 | CLAMP |
| BRACKET TO EXHAUST PIPE | ||
